Overview

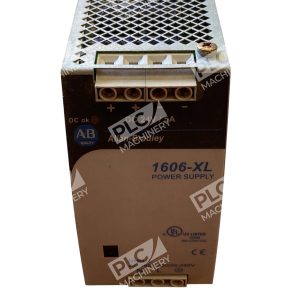

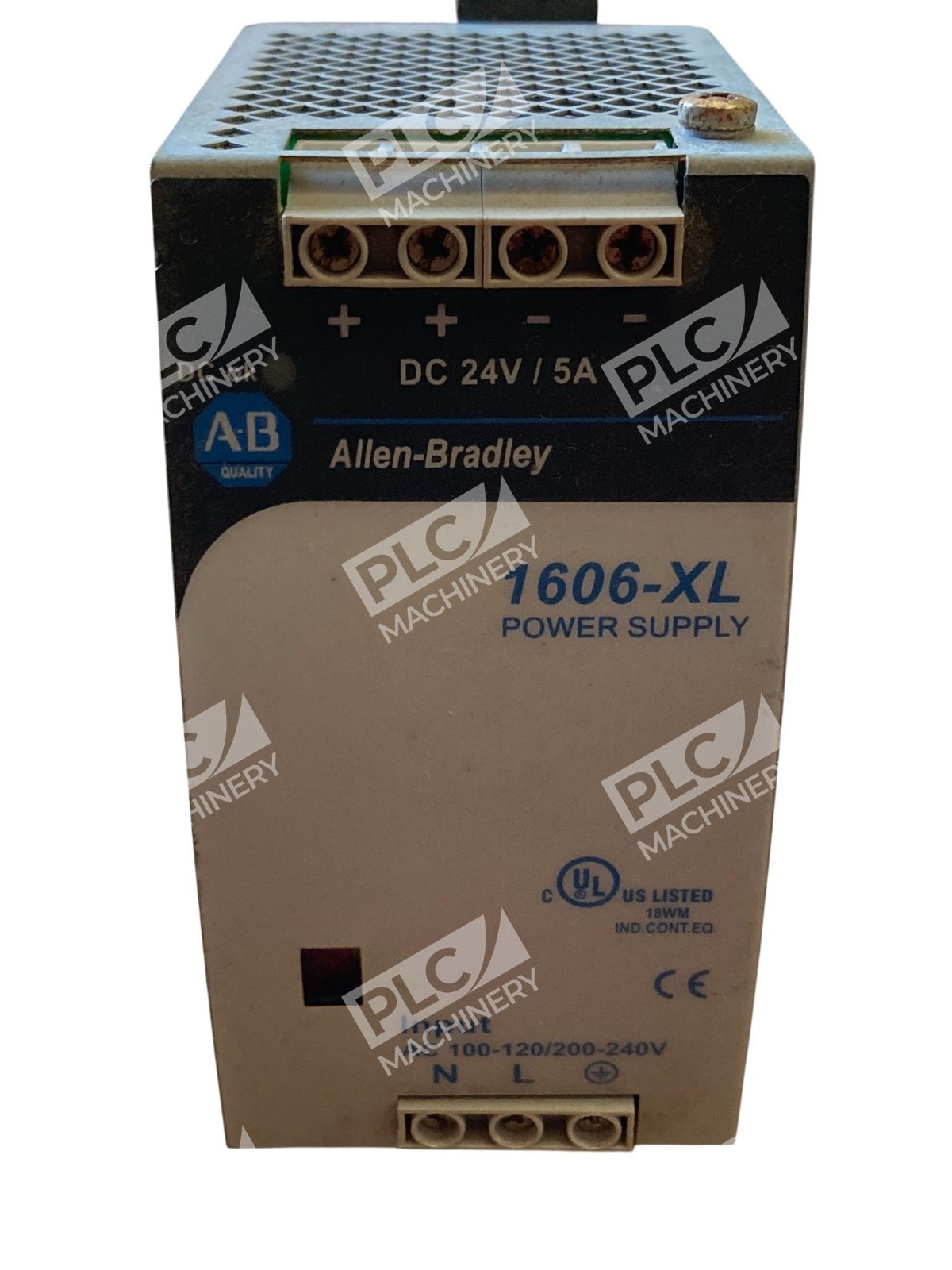

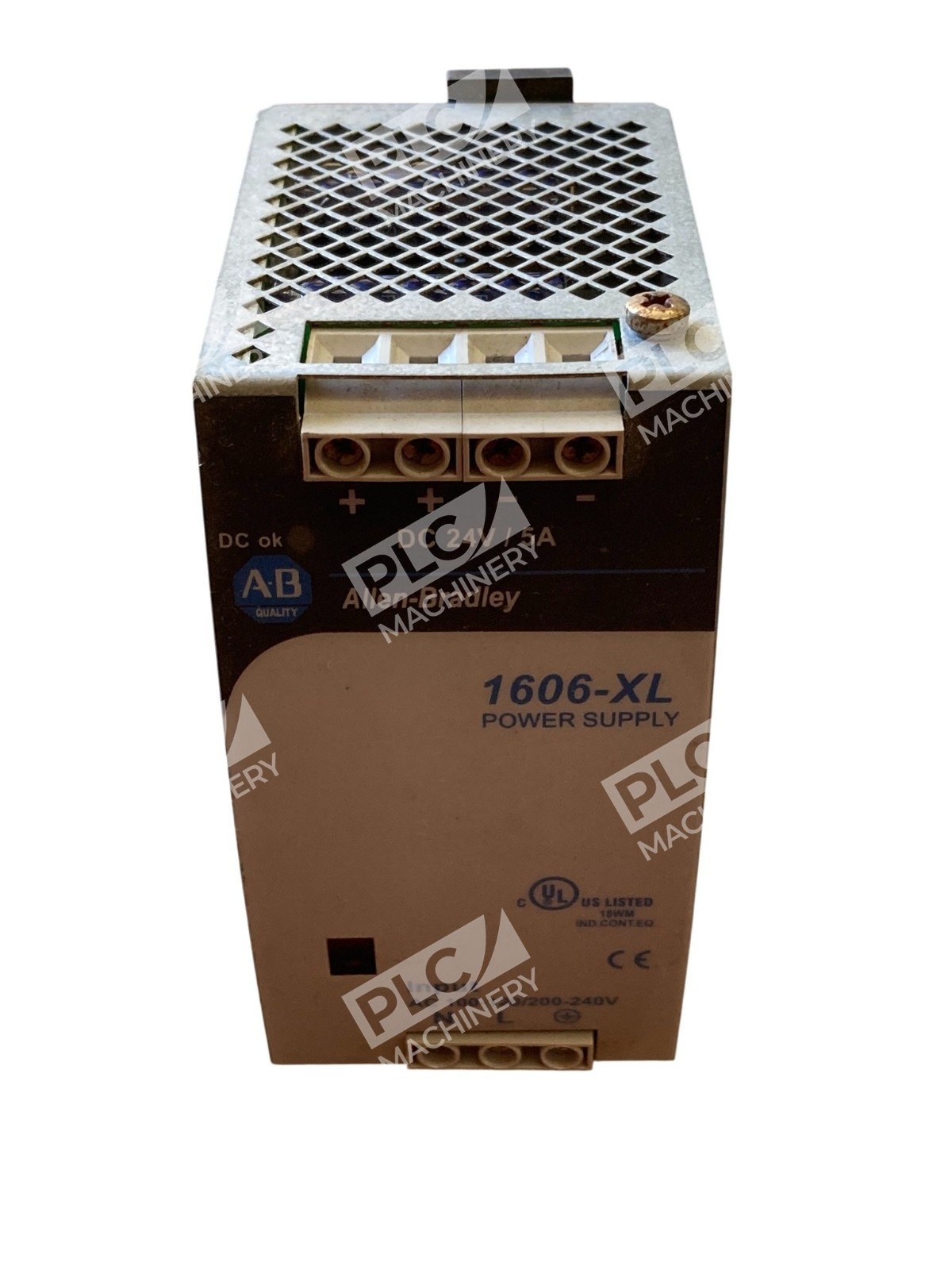

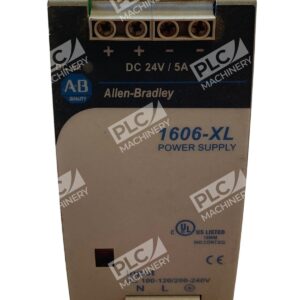

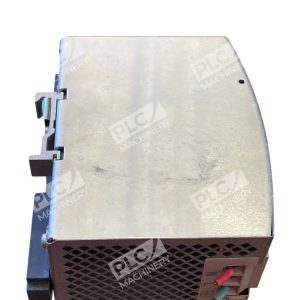

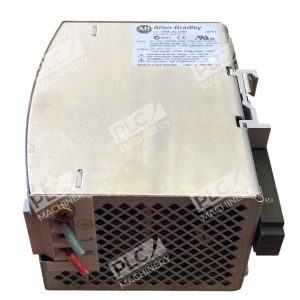

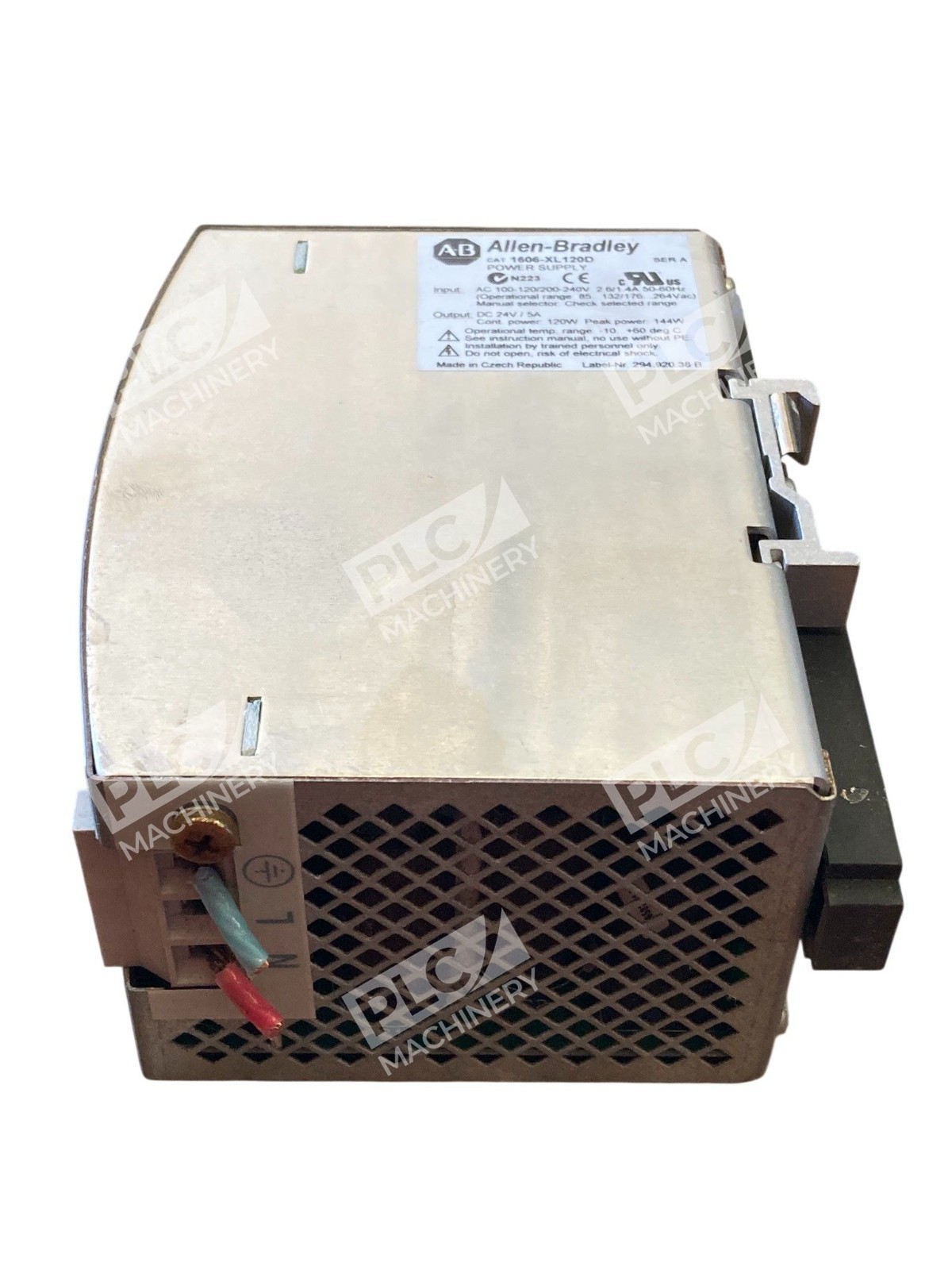

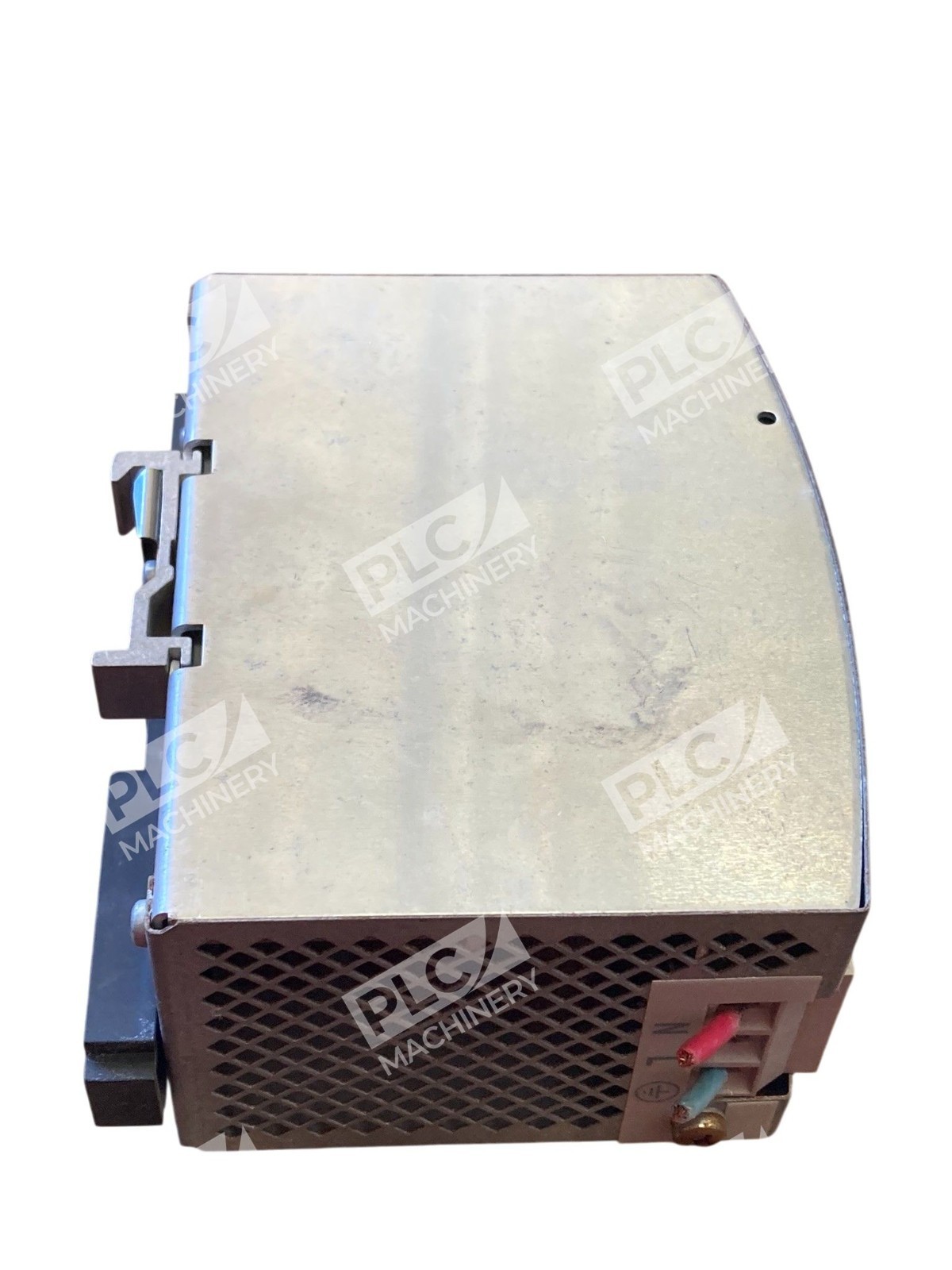

The Allen-Bradley 1606-XL120D is a compact switched-mode power supply designed for industrial automation and control panel integration. This 120W unit delivers regulated 24VDC output from standard 120/230VAC line input, making it suitable for retrofit and spare-parts applications in legacy control systems. Though discontinued in April 2018, the 1606-XL120D remains in demand for equipment maintenance and replacement in active installations.
Key Features
- 120W nominal output power with high efficiency switched-mode design
- Regulated 24VDC output stable for PLC, relay, and solenoid circuits
- Wide input voltage range: 120VAC to 230VAC, auto-sensing

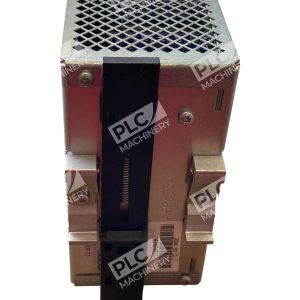

- DIN rail mounting for compact panel integration
- Hold-up time exceeding 37 milliseconds for output voltage continuity during brownouts
- Pluggable terminal connectors for field service

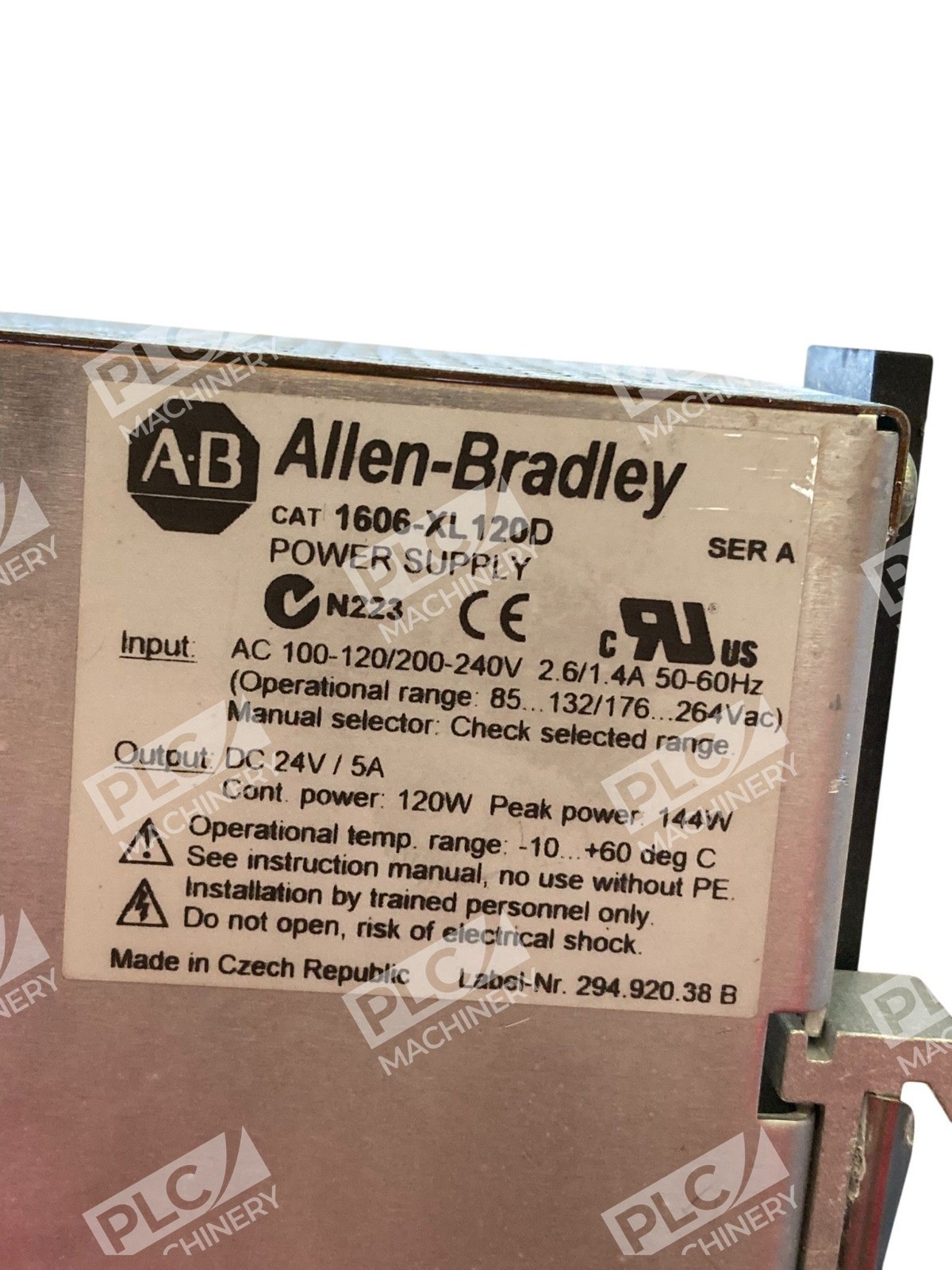

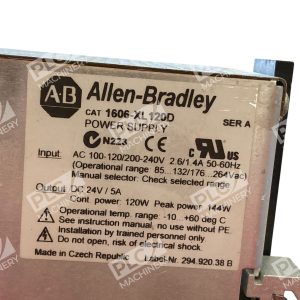

Technical Specifications
- Output Voltage: 24VDC
- Output Current: 5A nominal
- Output Power: 120W
- Input Voltage Range: 85–264VAC (selectable 120V or 230V)
- Input Current (115V): <2.6A; (230V): <1.4A
- Hold-up Time: >37 milliseconds

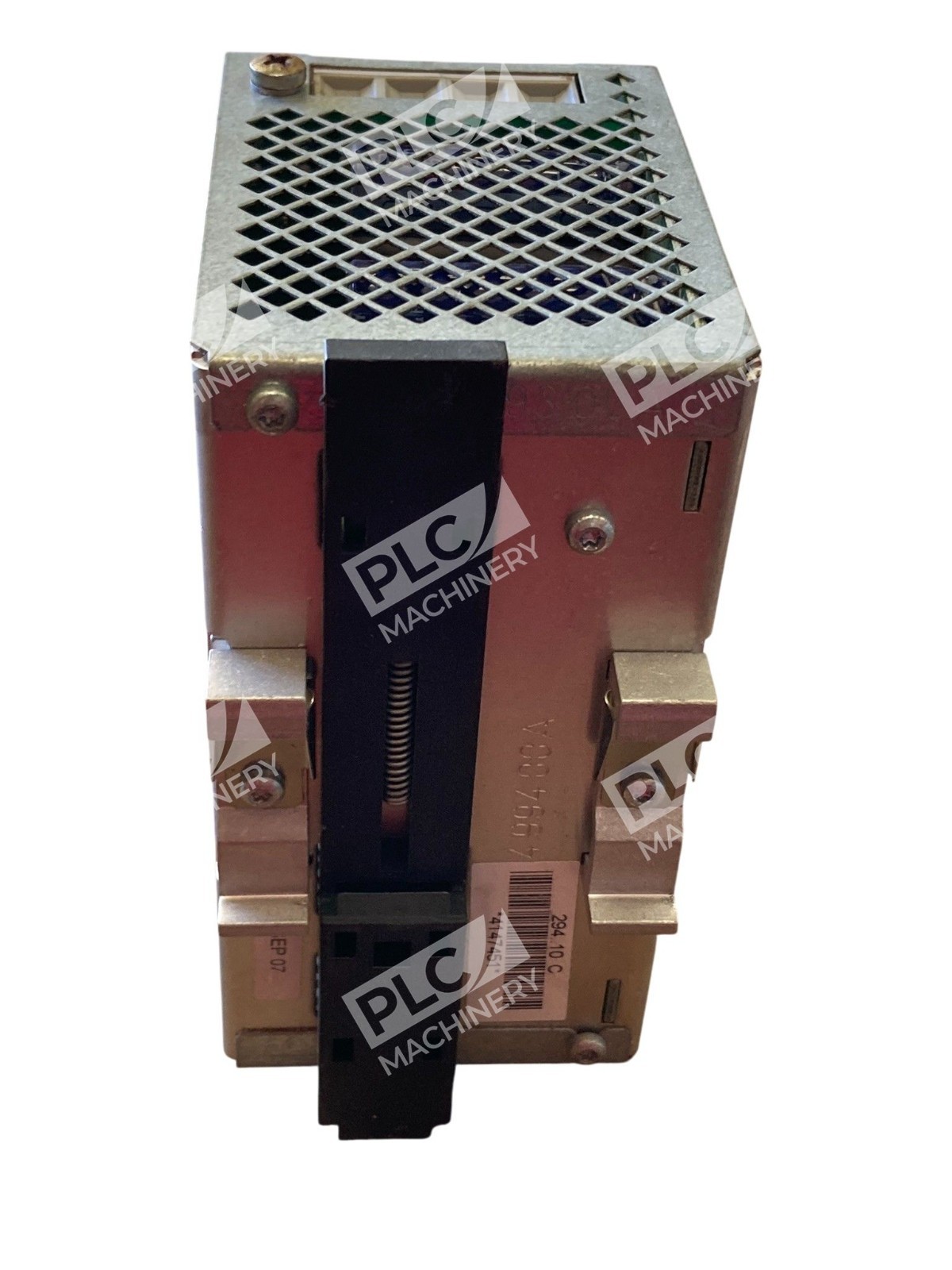

- Mounting: DIN rail (standard 35mm)
- Dimensions: 64mm (W) × 124mm (D) × 102mm (H)
- Weight: 0.62 kg (1.4 lbs)
- Status Indicator: Ready relay output for system status signaling
- Connectors: Pluggable terminal blocks
- Operating Condition: Used, fully functional
Typical Applications
- Backup power for PLC logic power supplies in N+1 redundant configurations
- Control circuit power for solenoid valves, pilot relays, and indicator lights
- Emergency replacement for failed power supplies in operational systems
- Spare parts inventory for legacy Allen-Bradley control panels manufactured 2010–2018
- 24VDC rail power for distributed I/O modules and field devices
Compatibility & Replacements
Compatible With
- Allen-Bradley ControlLogix, CompactLogix, and MicroLogix PLC systems
- Rockwell Automation Studio 5000 programmed controllers
- DIN rail-mounted control architectures with 24VDC bus requirements
- Standard industrial relay logic and automation panels
- 24VDC solenoid and actuator circuits
Replaces / Drop-In Replacement For
- Allen-Bradley 1606-XL120D (Series A and later revisions)
- Legacy 120W, 24VDC power supply modules in equivalent form factor
- Direct replacement available: Allen-Bradley 1606-XLE120E (current production model)
Works With
- EtherNet/IP communication networks for remote diagnostics
- Ready relay output compatible with status monitoring circuits
- Standard DIN rail mounting systems and standard enclosure depths
- Pluggable Combicon terminal connectors for field-replaceable terminals
