Overview

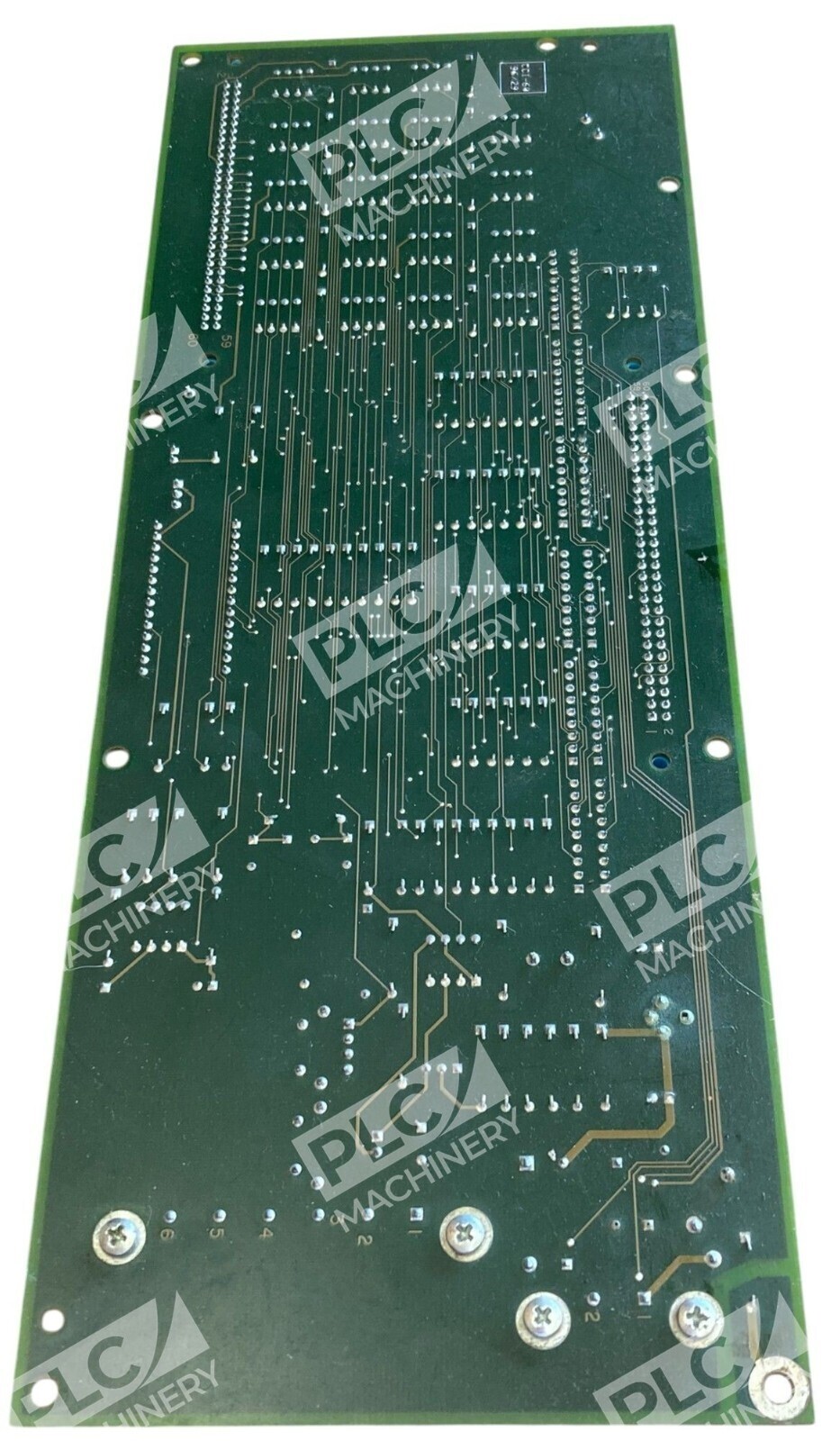

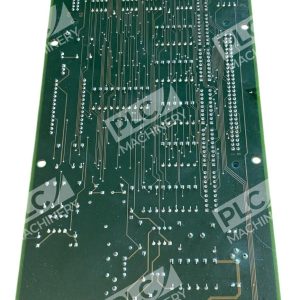

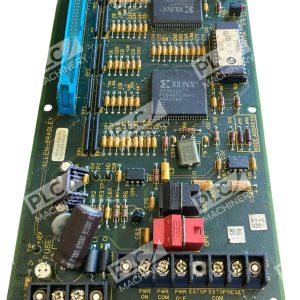

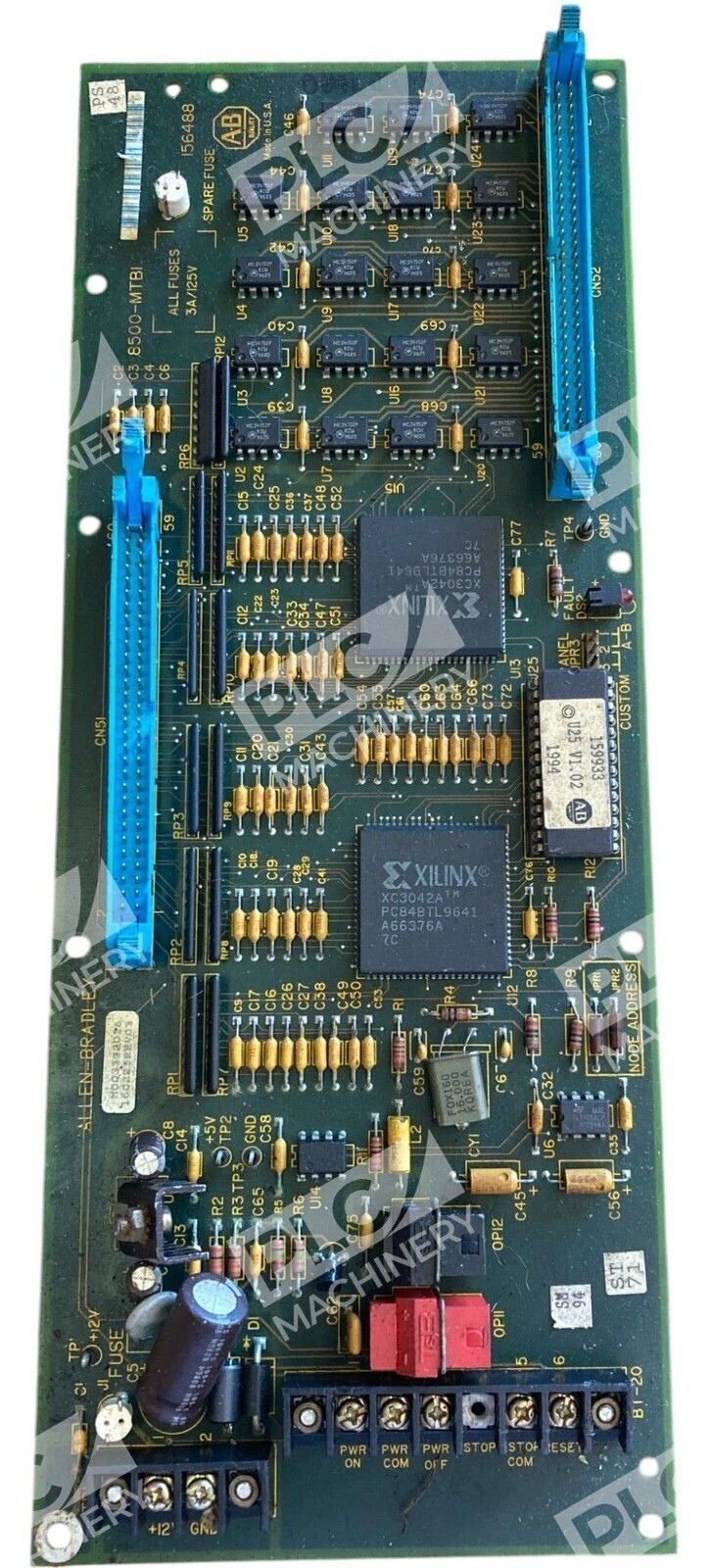

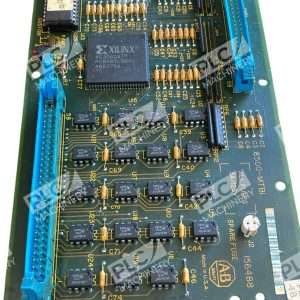

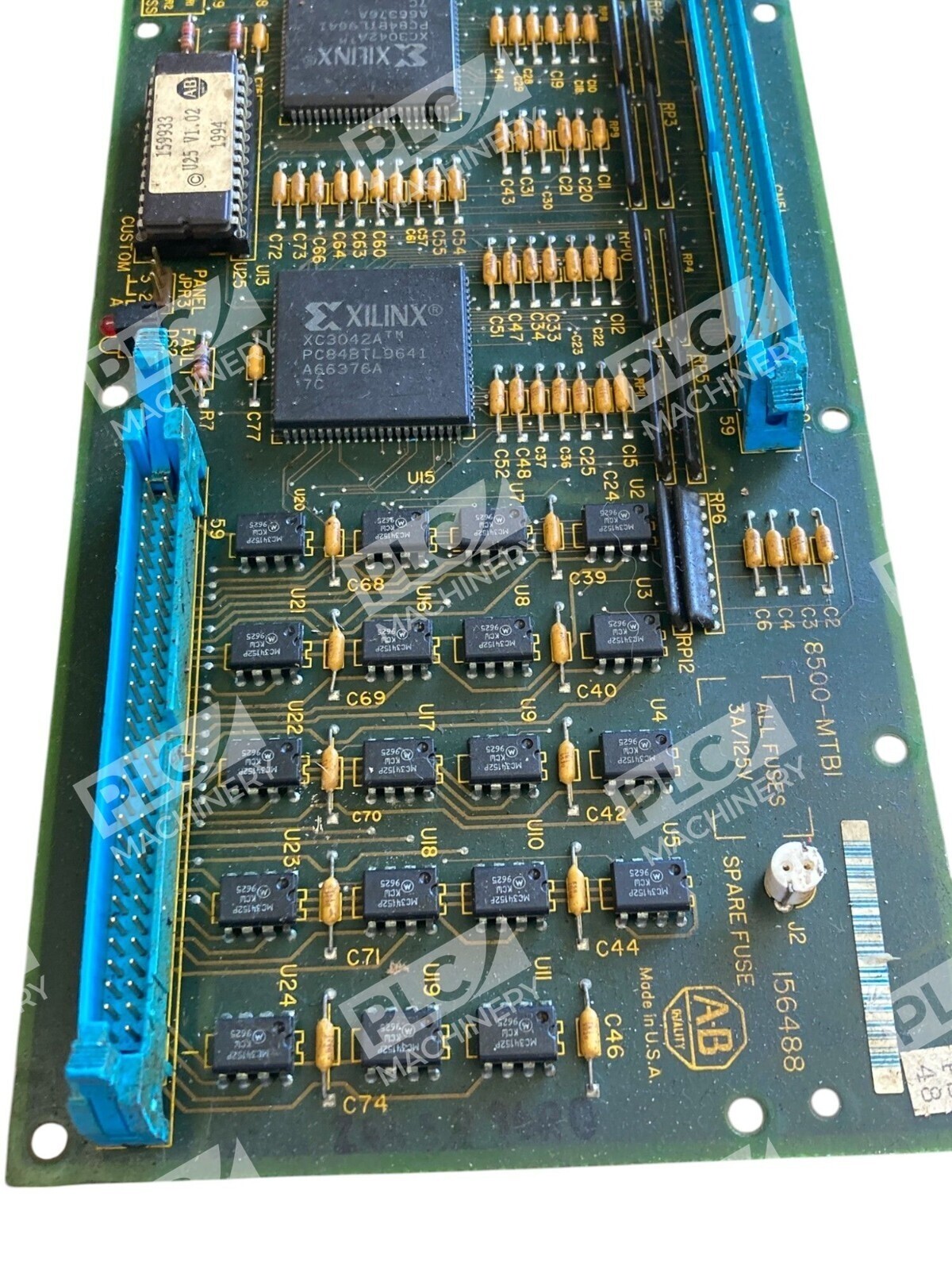

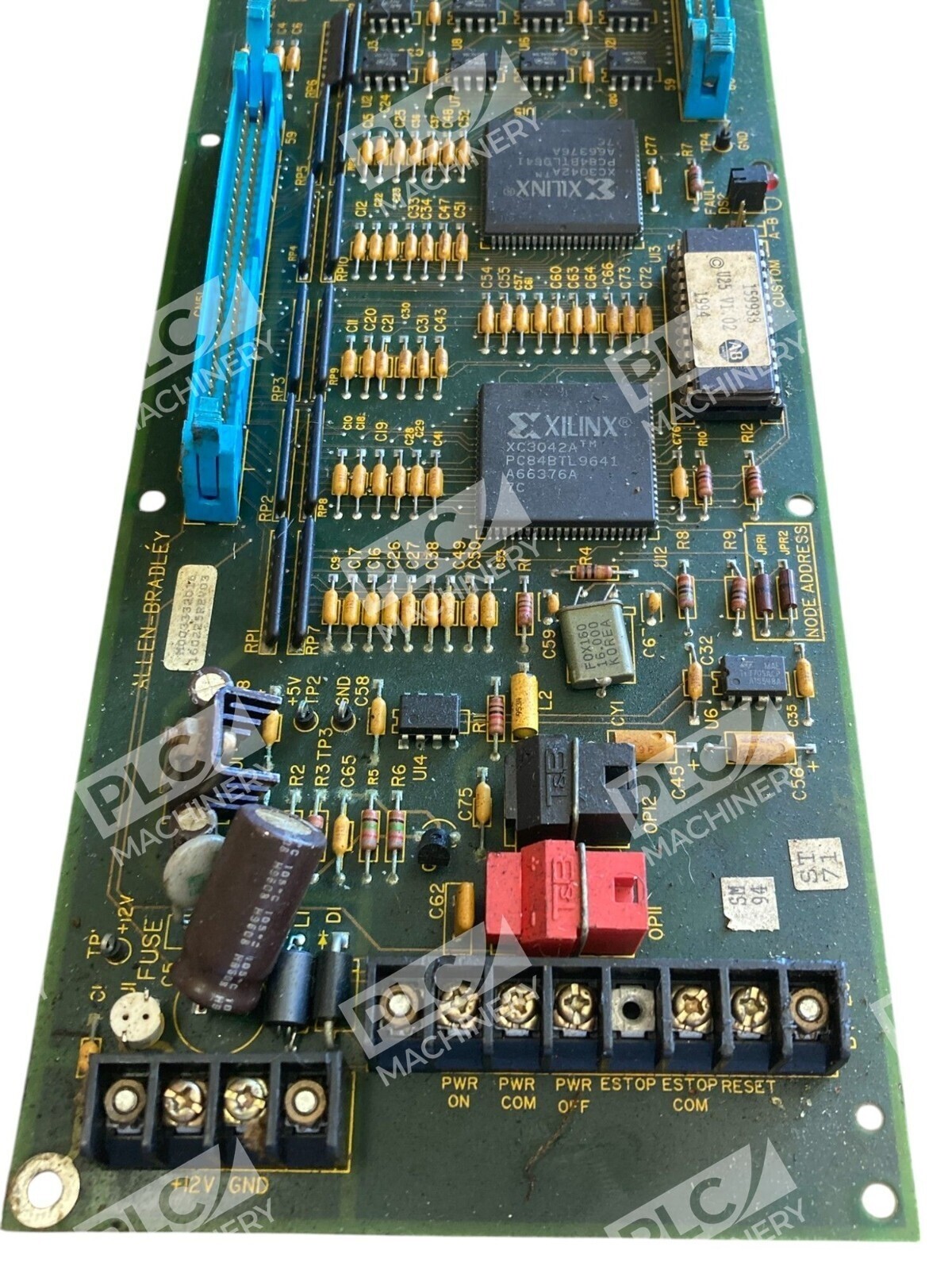

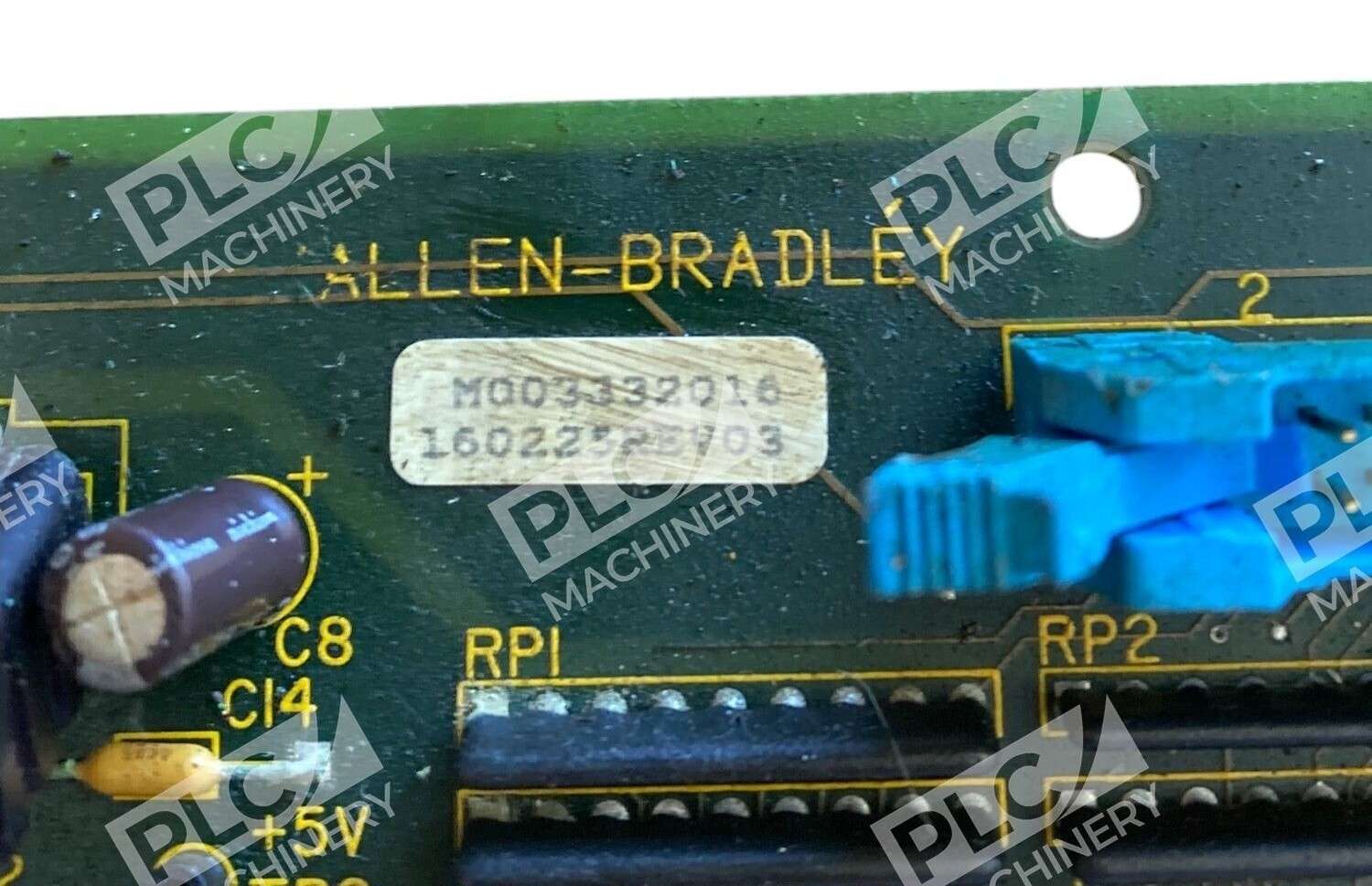

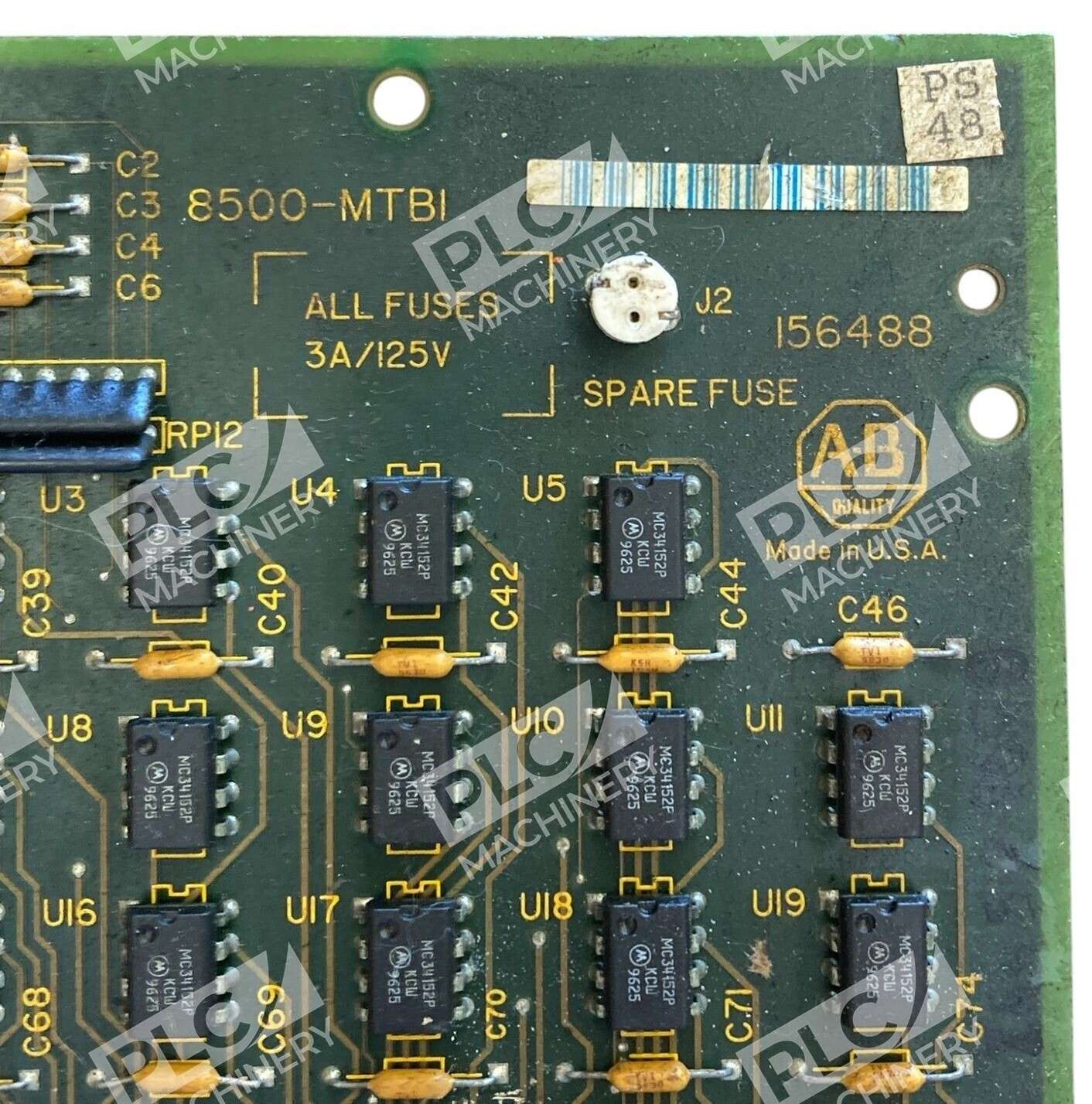

The Allen-Bradley 8500-MTBI is a PC board interface module purpose-built for machine tool control in Computer Numerical Control (CNC) applications. As a discontinued product from Rockwell Automation’s industrial control portfolio, this board served as a critical integration point between CNC machine tools and Allen-Bradley control systems. The 8500-MTBI is commonly sought by maintenance technicians and system integrators working with legacy machines that require component-level replacement or system restoration.
Key Features
- PC board design for direct insertion into legacy CNC machine tool control enclosures
- Machine Tool Builders Interface function for seamless equipment integration
- Discontinued product with established track record in industrial metalworking applications
- Compatible with Allen-Bradley servo and control system architectures from its era
- Designed for use in automated machine tools, lathes, mills, and similar production equipment
Technical Specifications
Detailed electrical and dimensional specifications for this legacy board are limited in current manufacturer documentation due to its discontinued status. For exact pin configurations, voltage requirements, signal levels, or mounting details specific to your application, consult the original equipment documentation or contact an Allen-Bradley authorized service center.
Typical Applications
- CNC machine retrofitting and modernization projects requiring legacy component replacement
- Production equipment restoration where original boards are unavailable or failed
- Automated machine tool control systems using Allen-Bradley servo modules
- Metalworking and manufacturing facilities maintaining vintage or semi-legacy equipment
Compatibility & Replacements
The Allen-Bradley 8500-MTBI is a legacy component part of the 8500 series machine control boards. Direct modern replacements are not readily available from Rockwell Automation, as this product line has been discontinued. For current CNC applications, Rockwell offers newer embedded control platforms and distributed I/O modules. Contact an authorized Allen-Bradley distributor to discuss compatibility with your specific machine tool model or to identify equivalent modern solutions.
