Allen Bradley AB 12V 0.110A DC Input Programming Terminal 1201-HA2 /A

Allen-Bradley 1201-HA2 Programming Terminal

The Allen-Bradley 1201-HA2 is a versatile programming terminal designed to enhance the functionality of various adjustable frequency drives, including the 1336 Plus, 1336 Force, 1305, SMP-3, 1394, and 1557 series. This human-machine interface (HMI) provides users with comprehensive control and programming capabilities, facilitating efficient management of drive parameters and operations.

Key Features

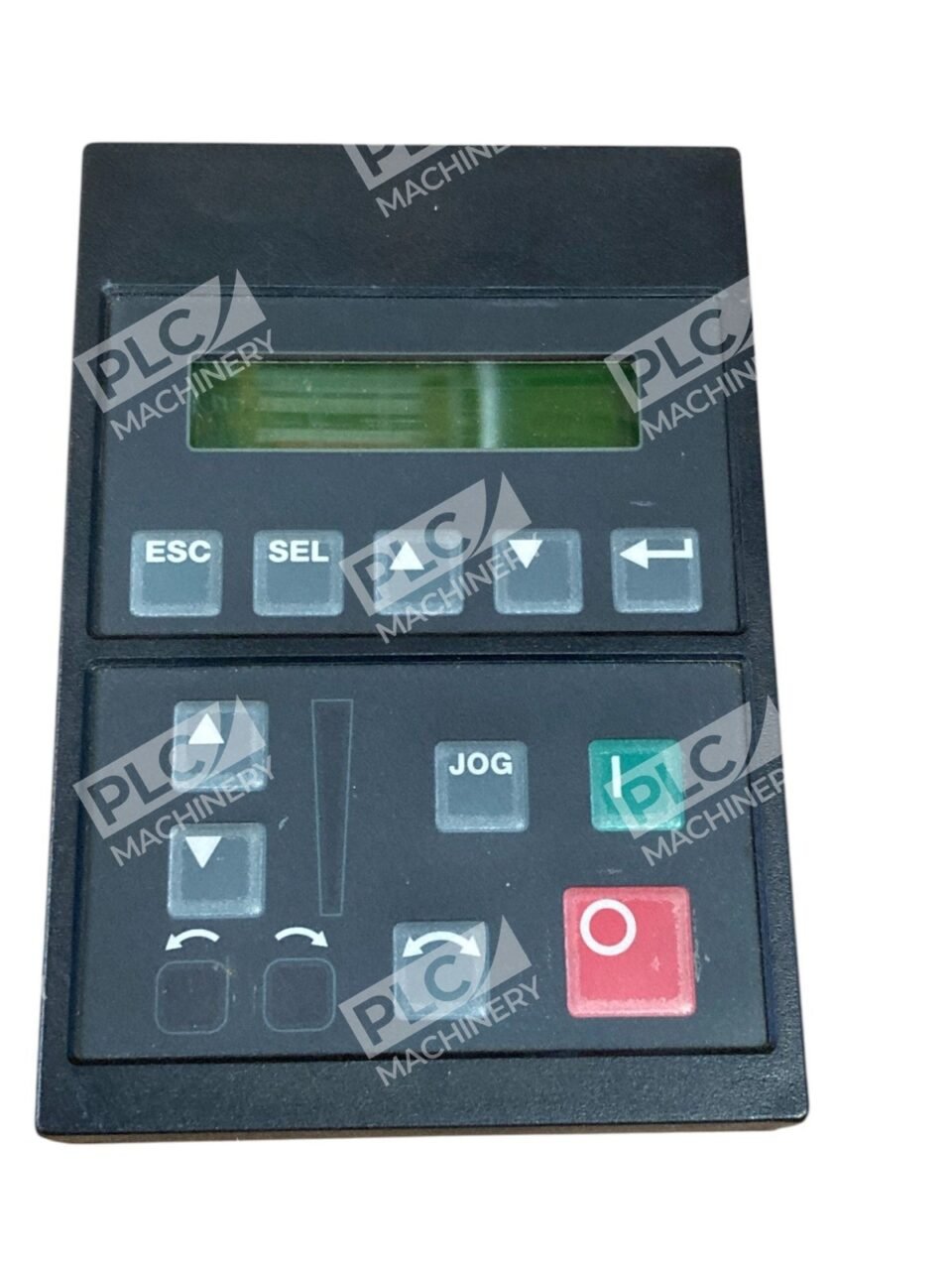

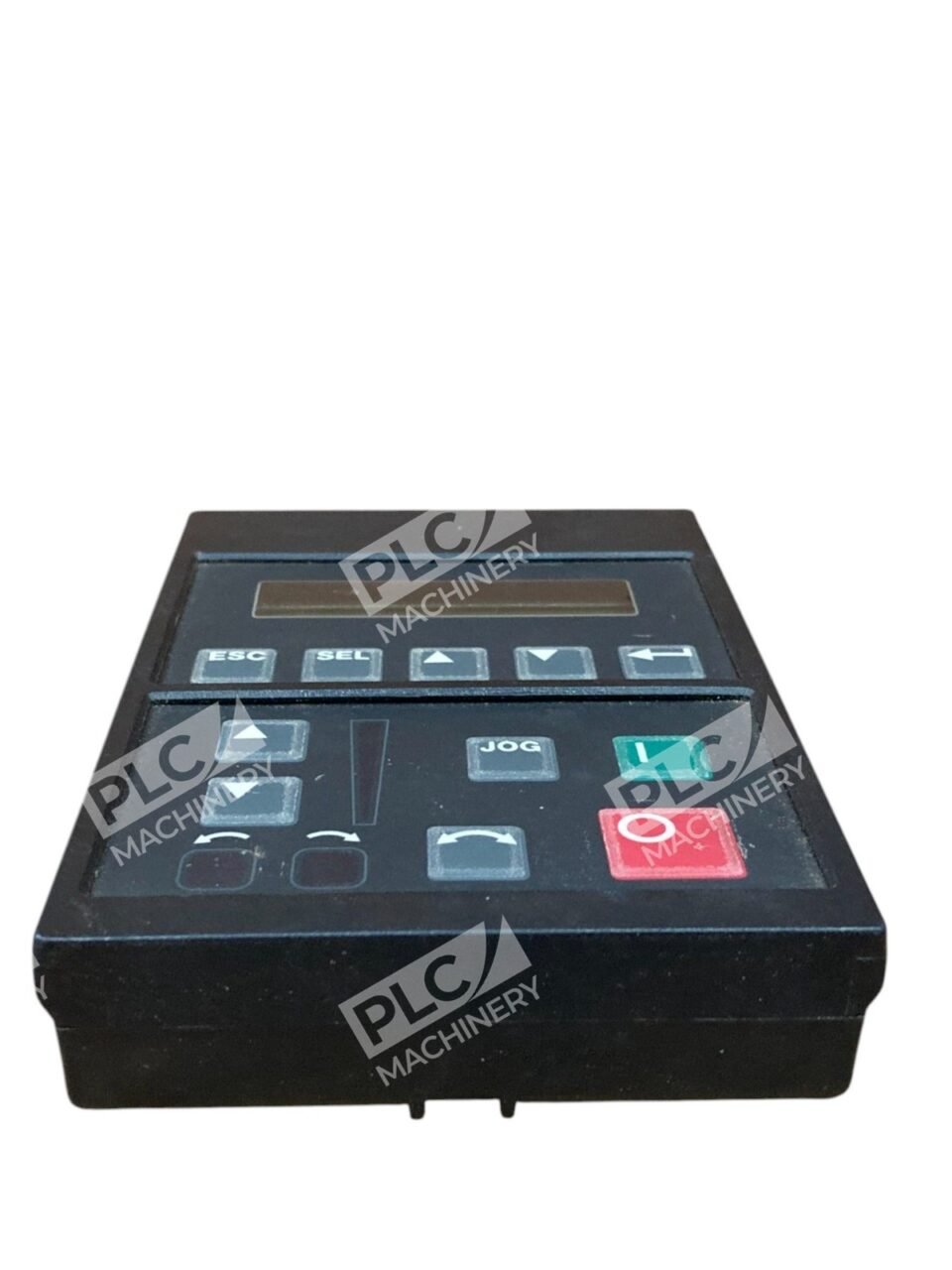

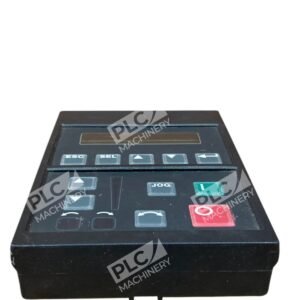

• Integrated Display and Keyboard: Equipped with a mini liquid crystal display and an intuitive button interface, the 1201-HA2 allows for straightforward navigation and data entry, enabling functions such as parameter search and fault management.
• SCANport Connectivity: The terminal utilizes SCANport connectivity to interface seamlessly with compatible drives, enhancing the JOG function and overall drive performance.
• Memory Storage: Resident memory allows for the storage of up to two complete parameter profiles, streamlining the programming process for multiple drives.
• Immediate Fault Display: In the event of a fault, the terminal provides immediate fault messages, regardless of the current mode, ensuring prompt attention to issues.
• Environmental Protection: Housed in a NEMA 1 enclosure, the 1201-HA2 is designed for indoor use, offering protection against dust and accidental contact.

Technical Specifications

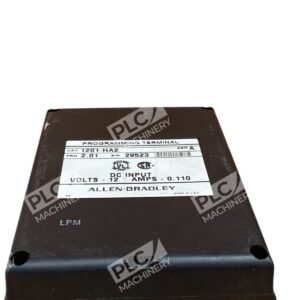

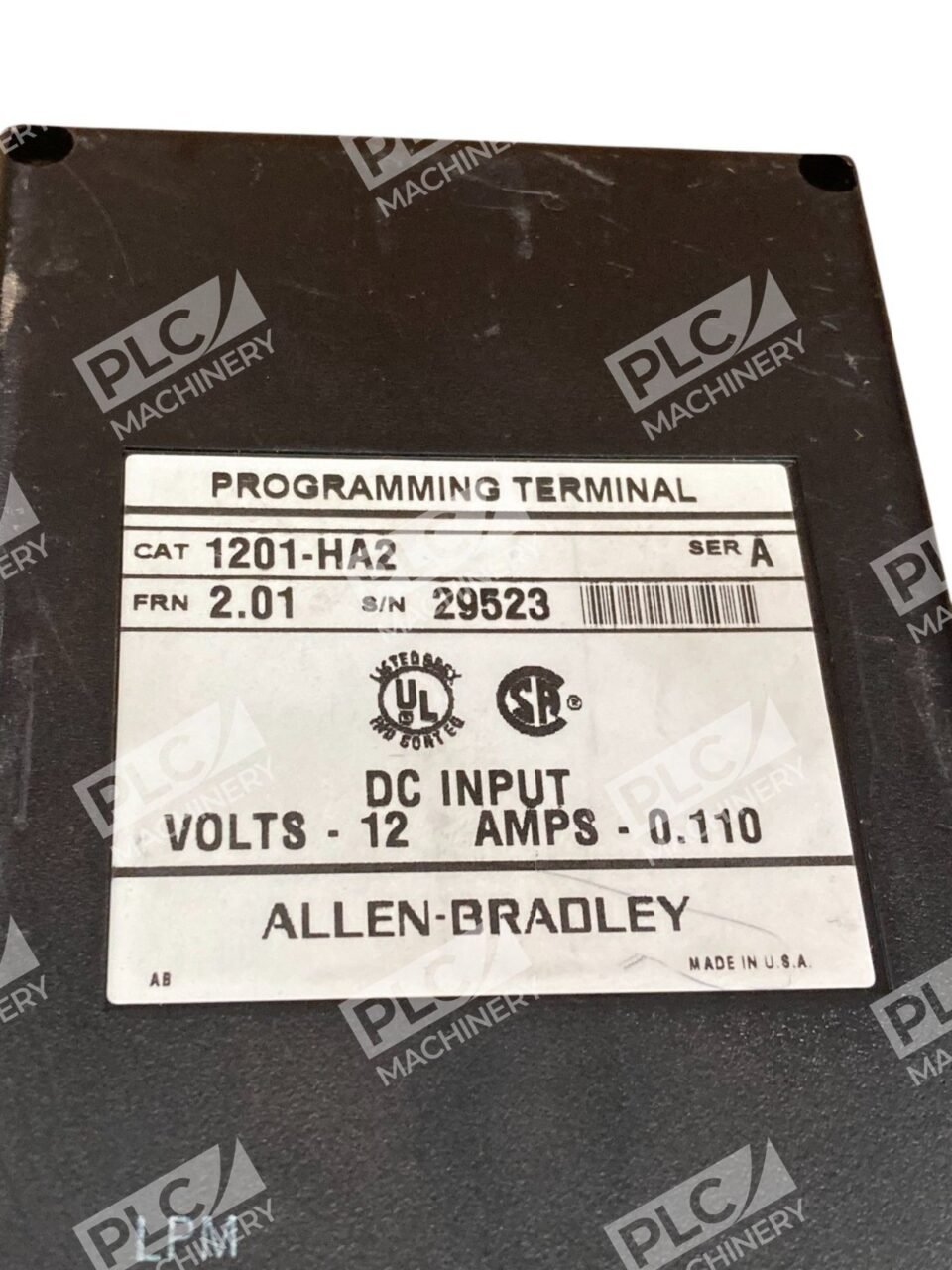

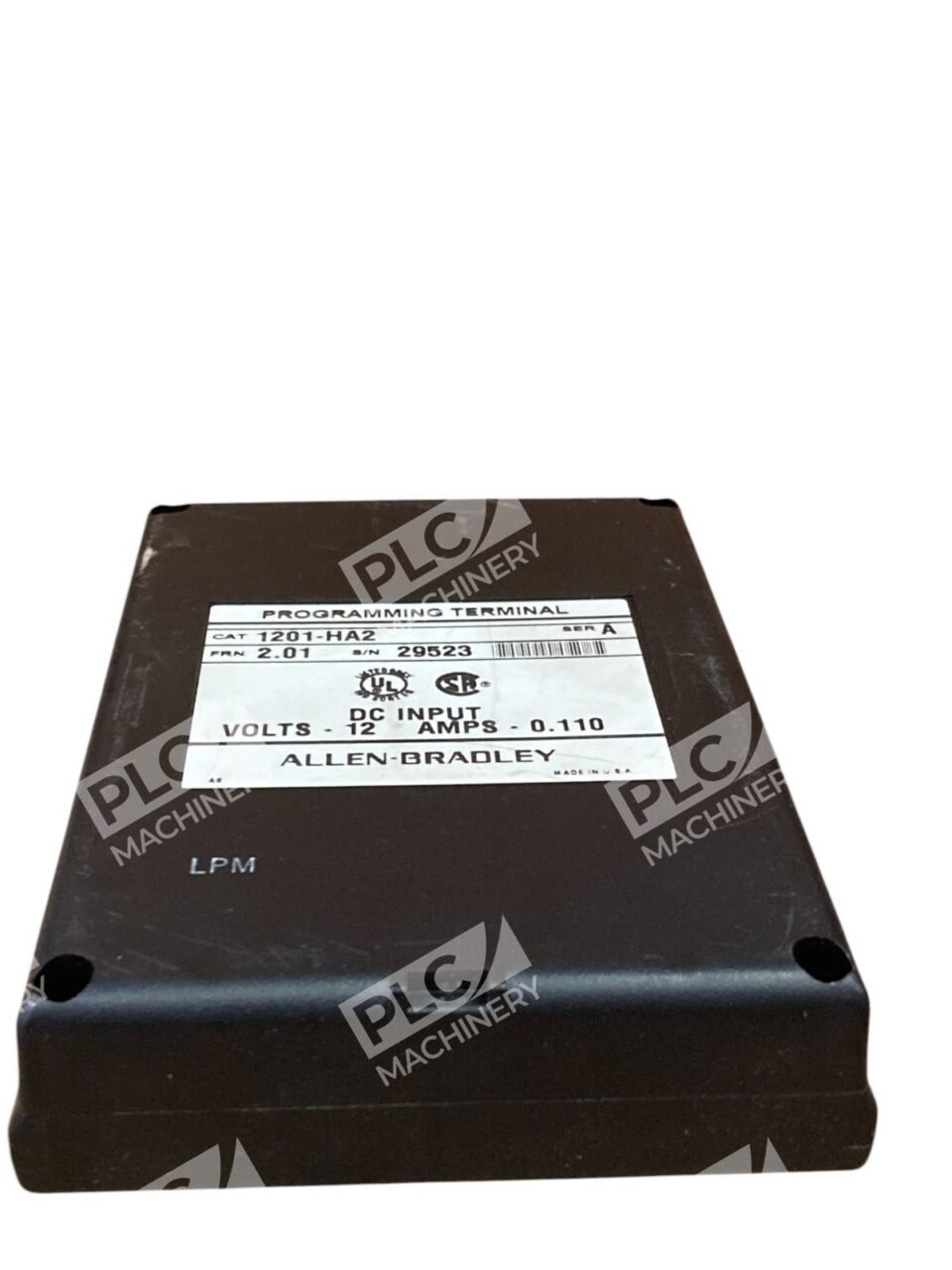

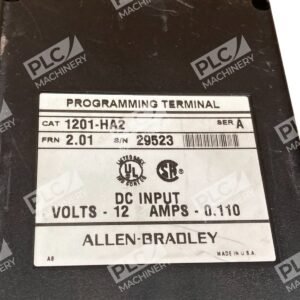

• Input Voltage: 12 Volts DC
• Current Rating: 0.110 Amps
• Operating Temperature: 0 to 40 degrees Celsius
• Dimensions: 58.4 x 40.6 x 45.7 cm
• Weight: Approximately 6.4 ounces

The Allen-Bradley 1201-HA2 programming terminal serves as an essential accessory for efficient drive management, providing a user-friendly interface for programming and monitoring industrial processes.
