Overview

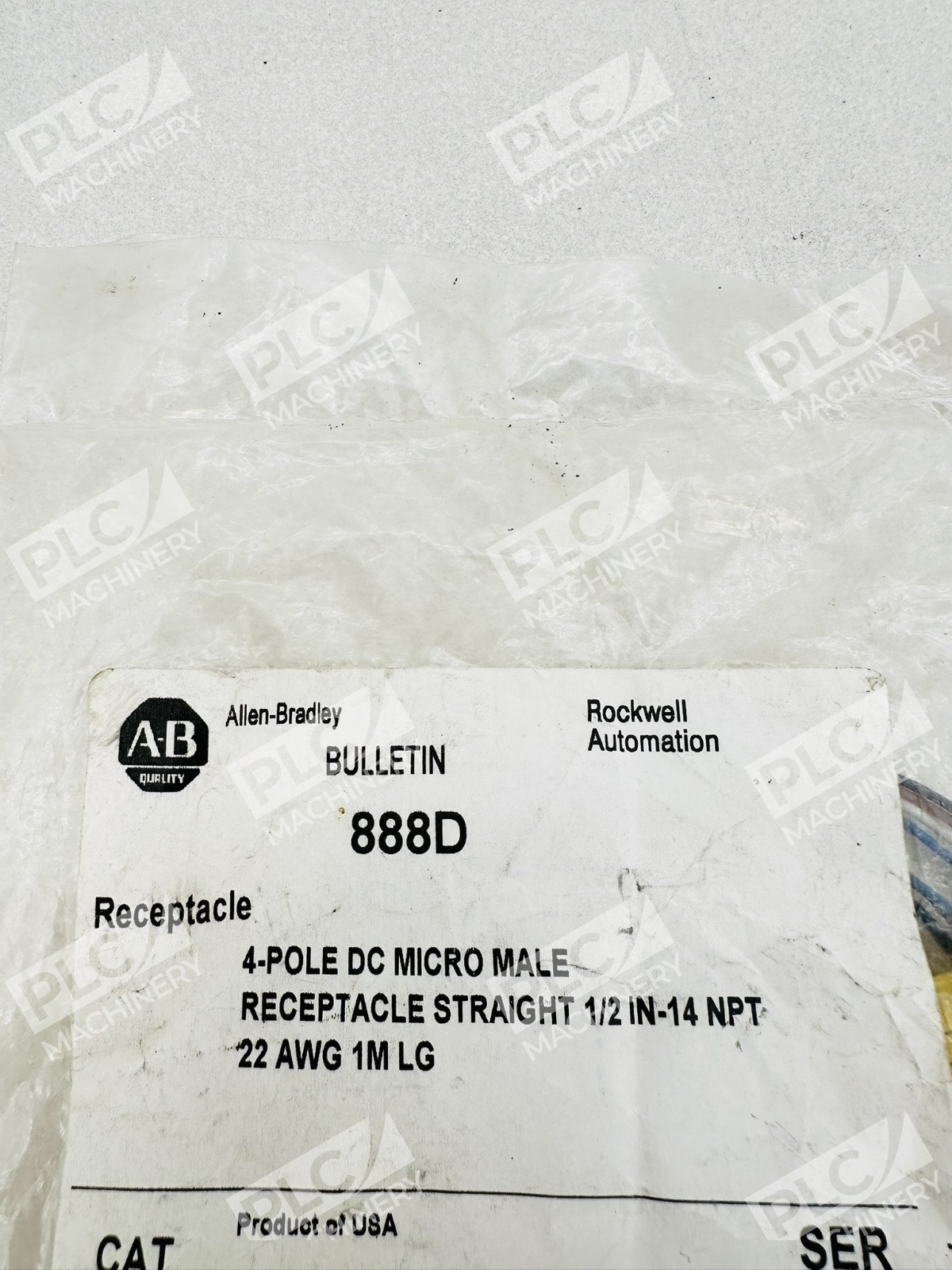

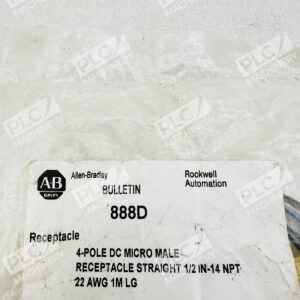

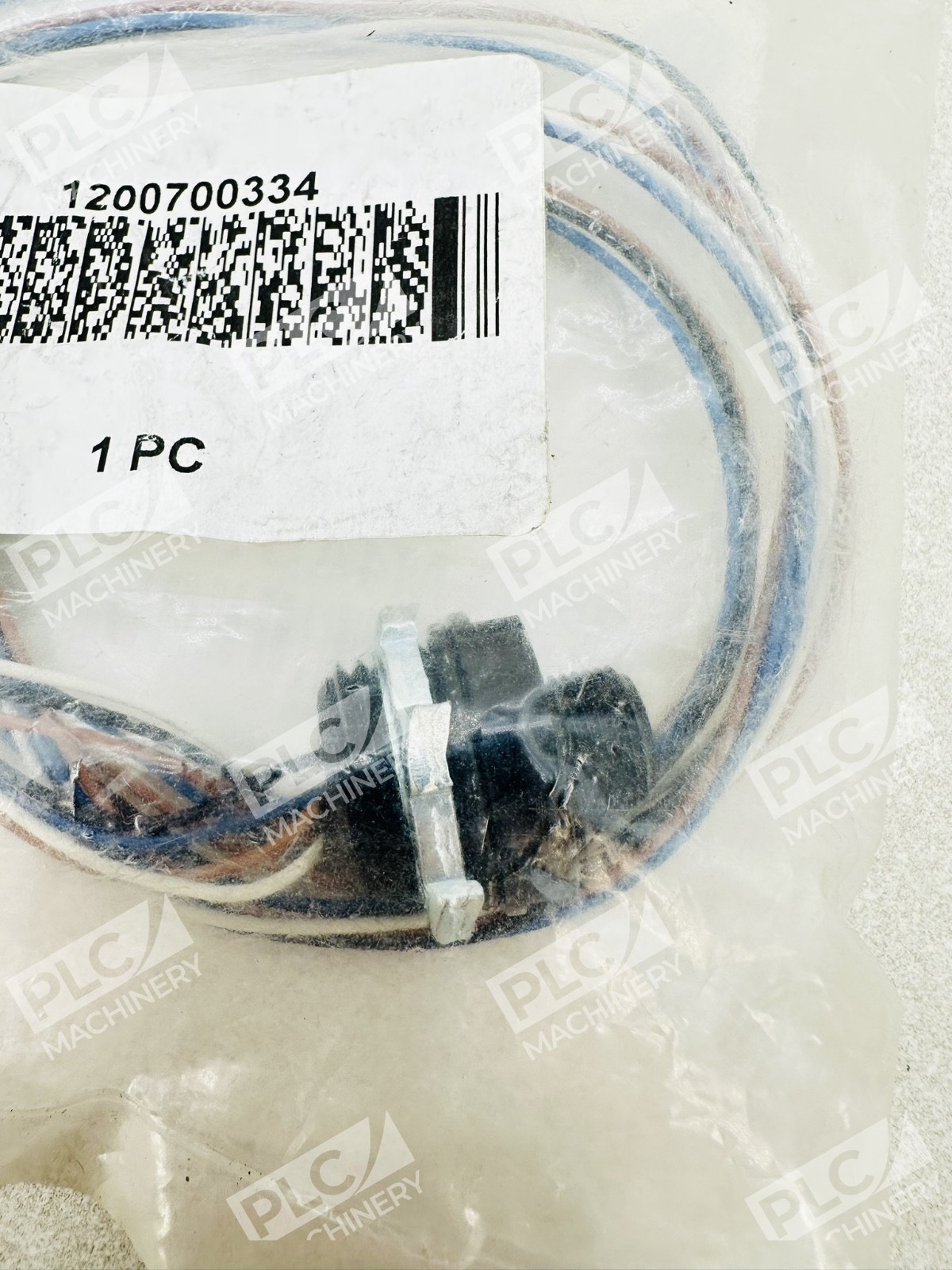

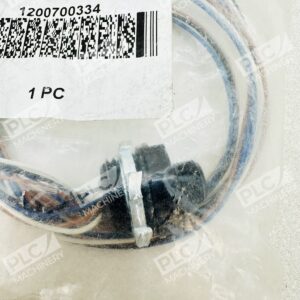

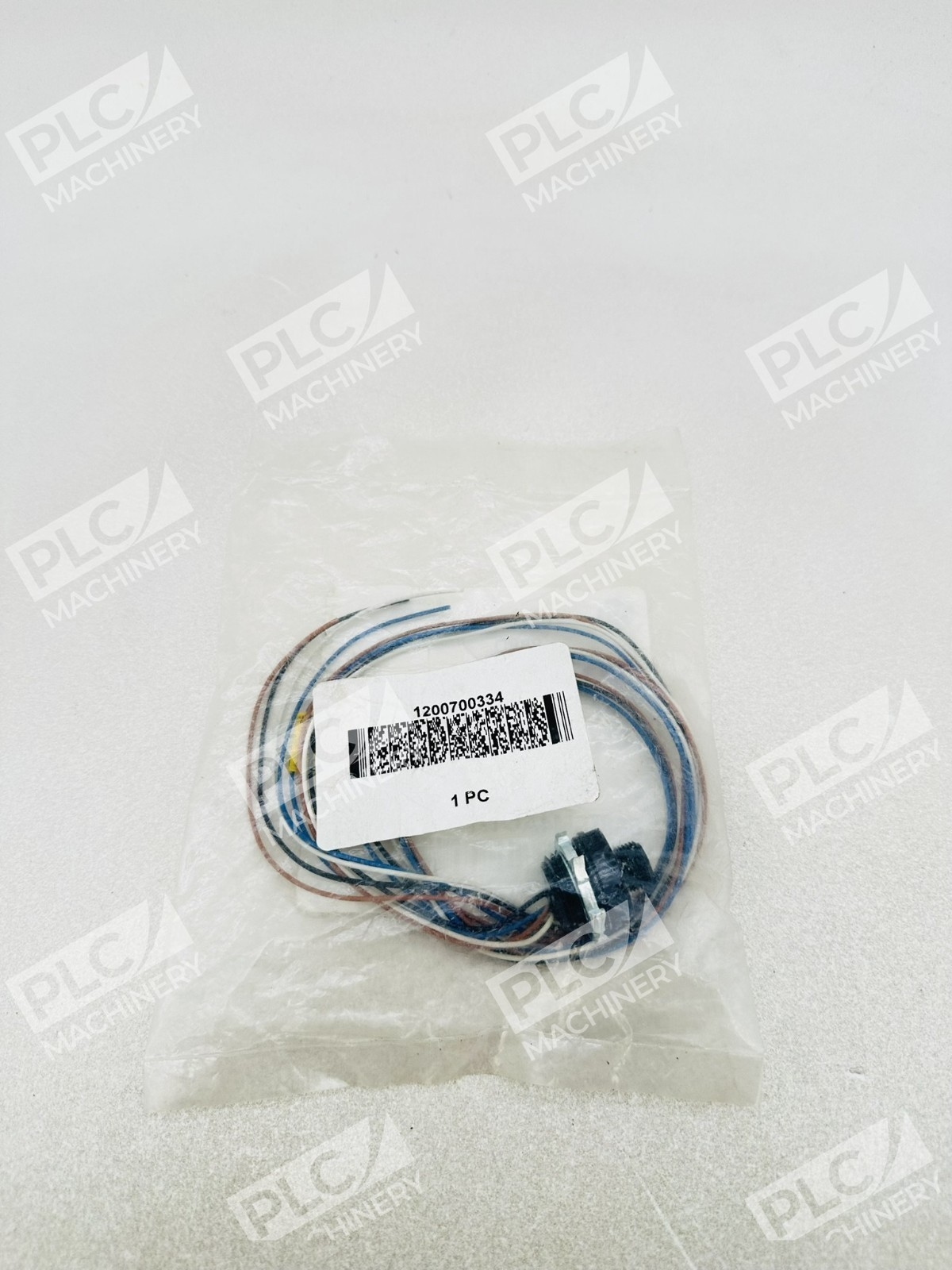

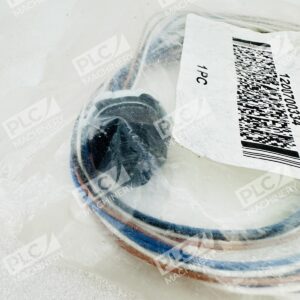

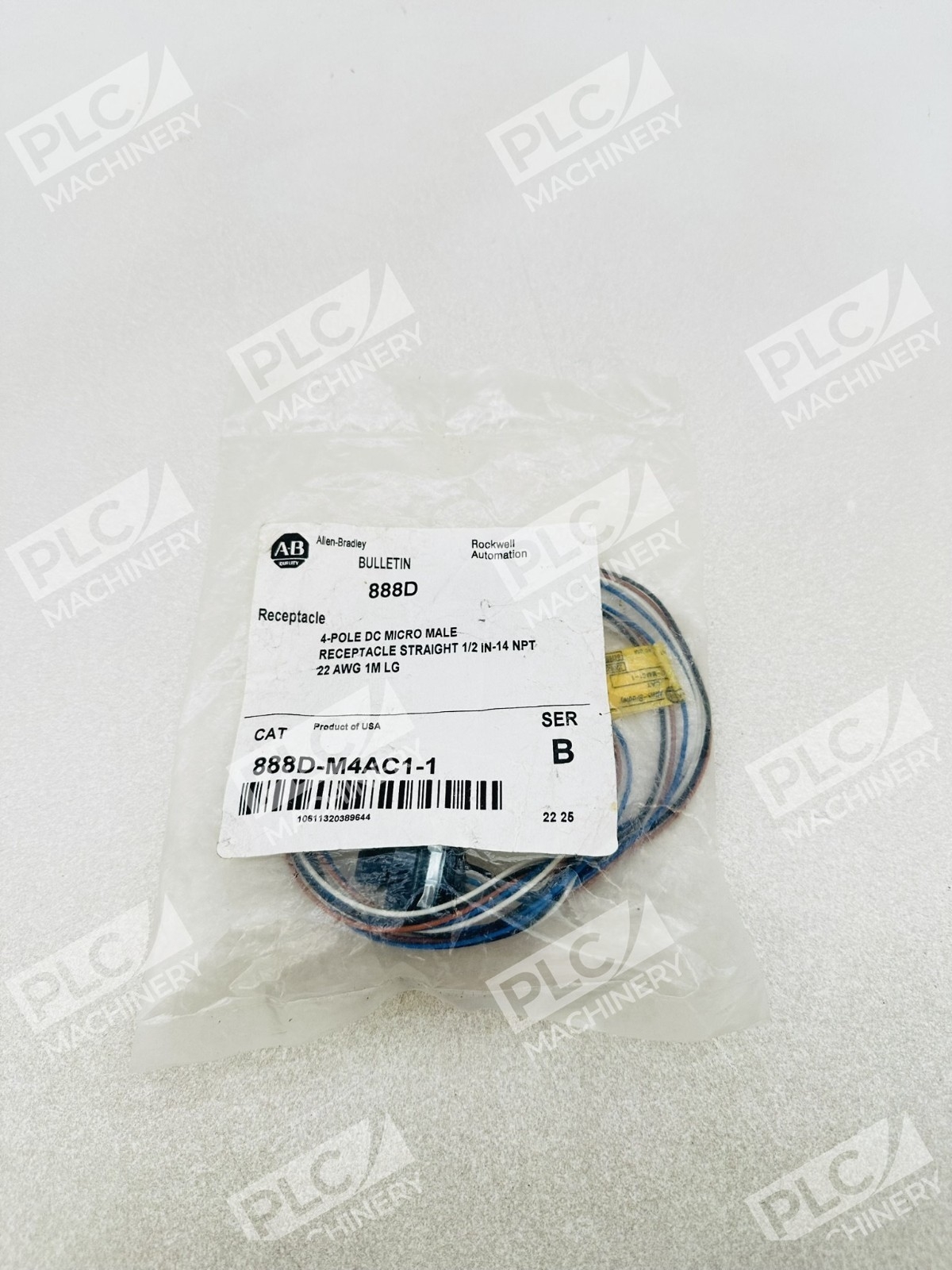

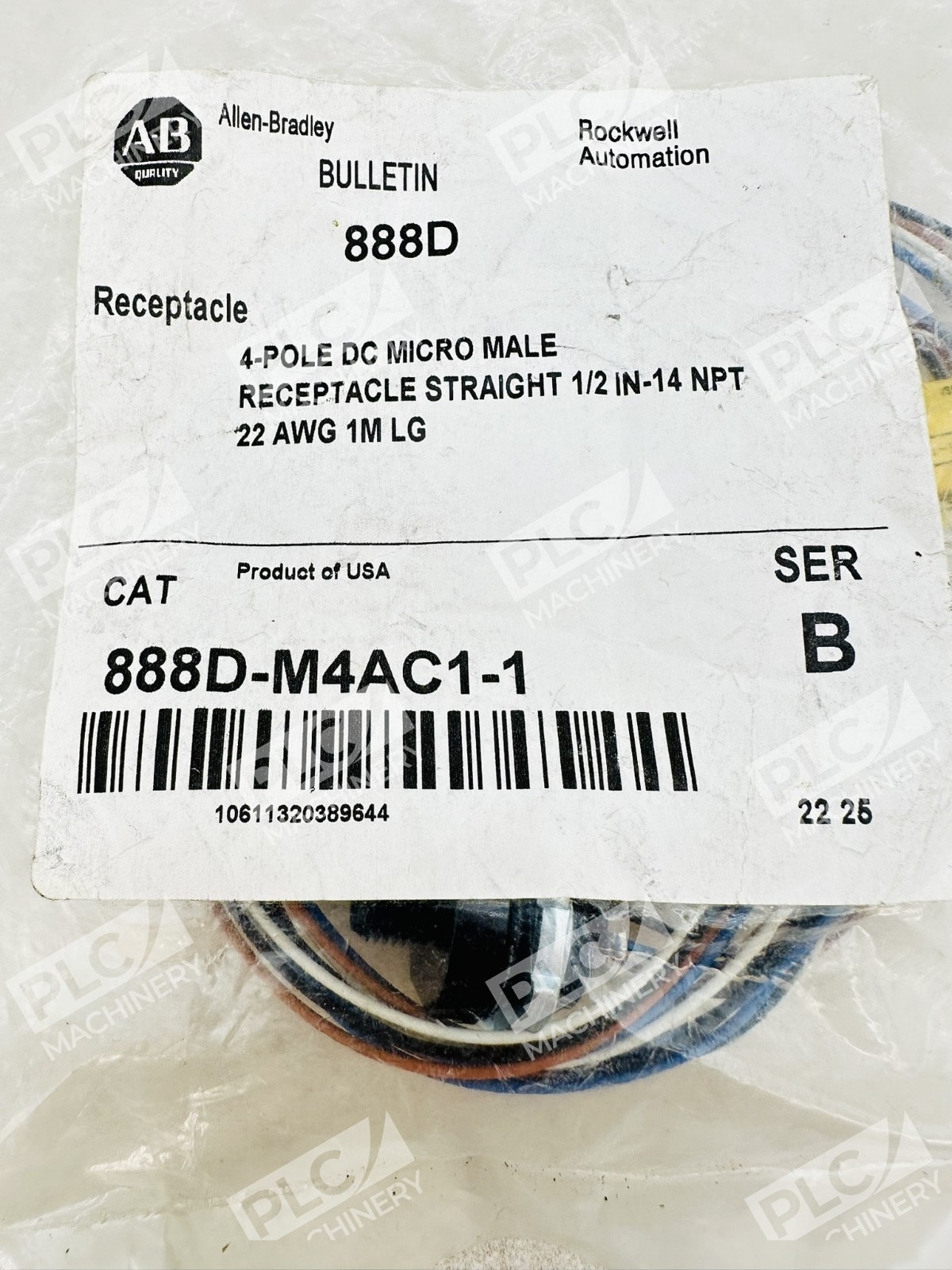

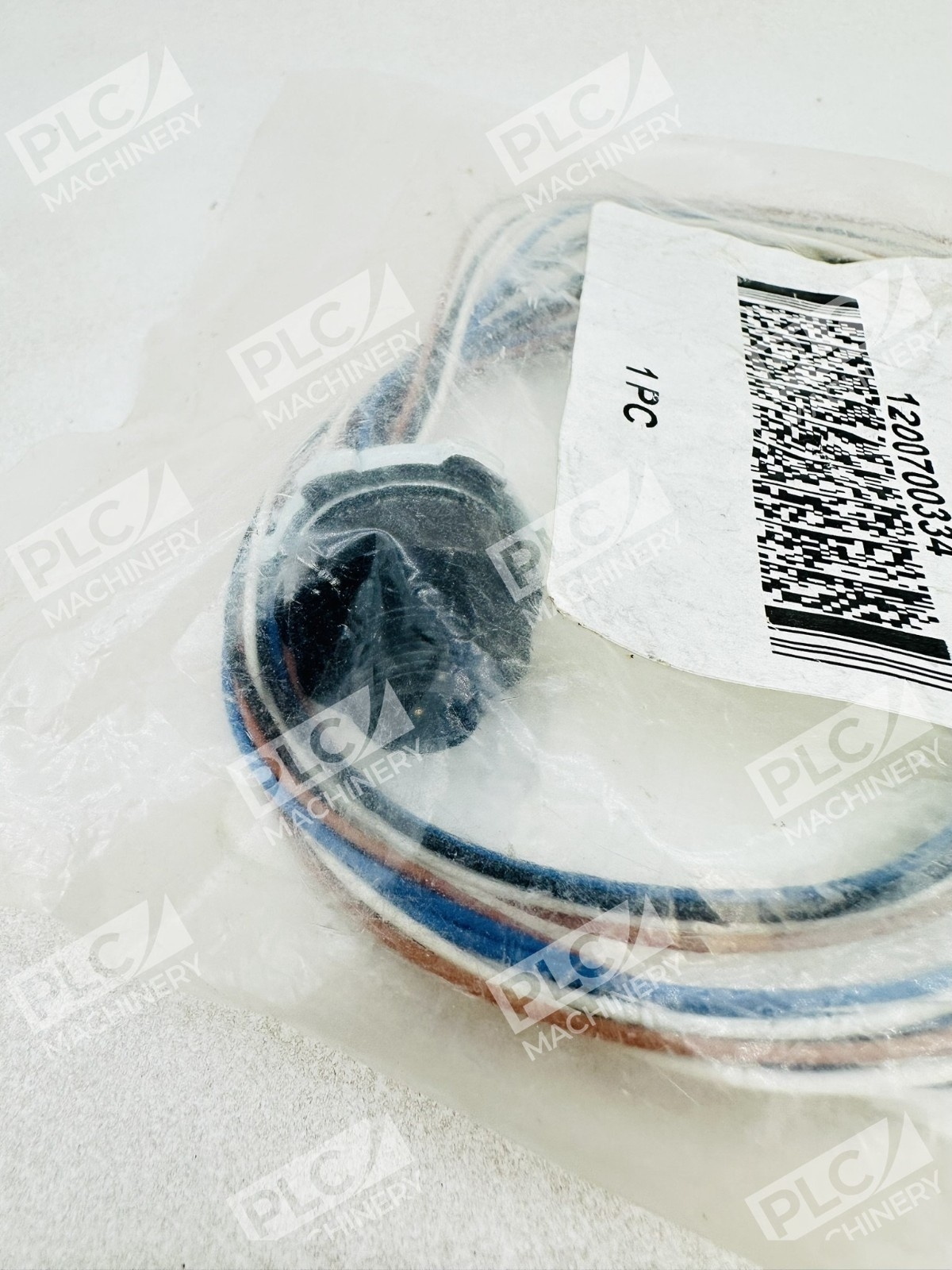

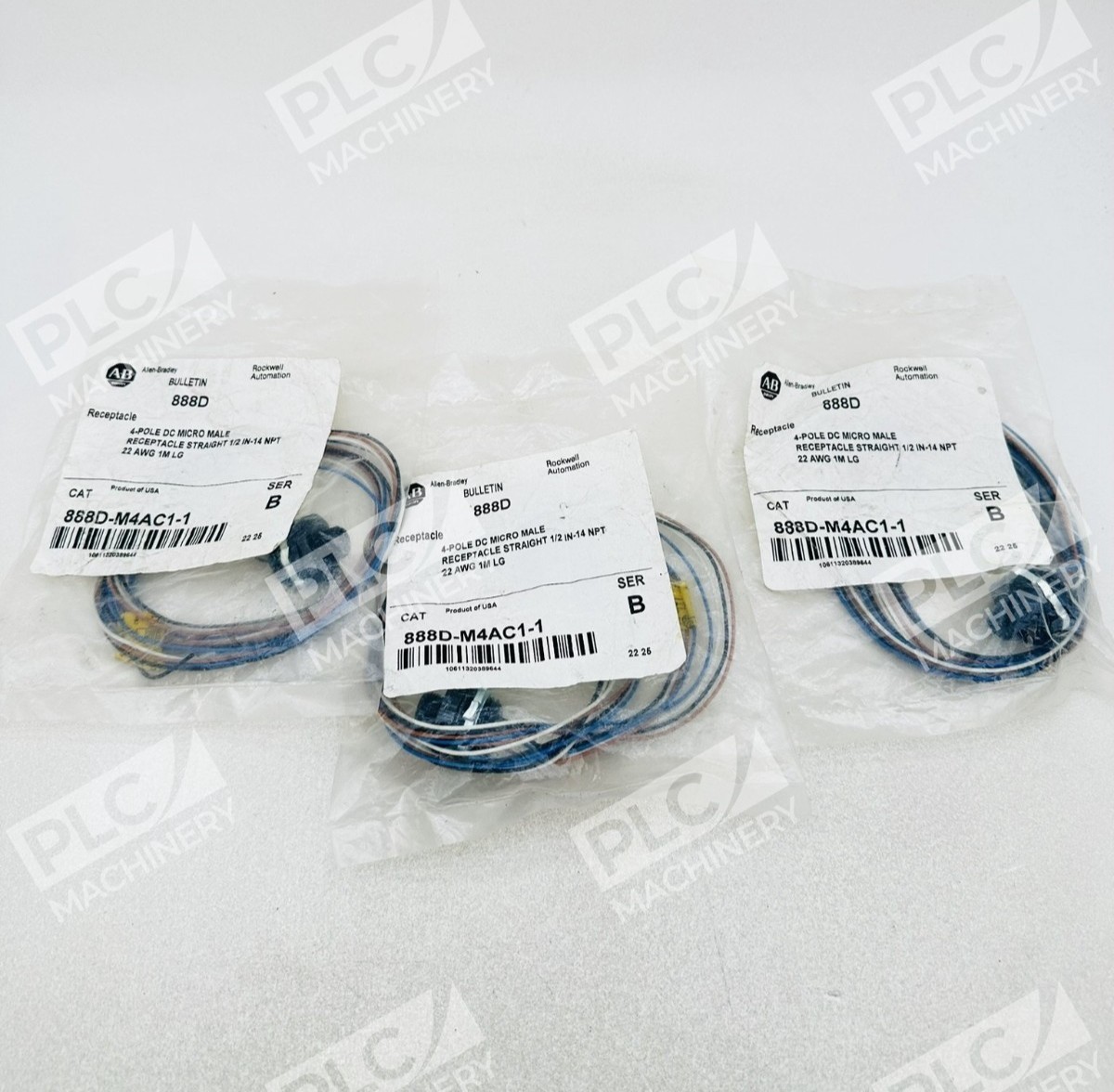

The Allen-Bradley 888D-M4AC1-1 DC Micro (M12) male receptacle is a four-pin industrial connector designed for dependable power connections in machinery, automation equipment, and control systems. This Series B receptacle features a straight male configuration with a sealed 1-meter cable assembly, making it ideal for systems requiring quick, reliable interconnection without field termination.
Key Features
- DC Micro (M12) male straight connector with 4-pin configuration
- Rated for 8 Amps at 250 Volts DC
- 1-meter (3.28-foot) pre-assembled cable with 22 AWG conductors
- Nickel/Gold and Copper/Zinc contact materials for corrosion resistance
- Operating temperature range: -40 to 105 degrees Celsius
- 1/2″-14 NPT male connector mounting interface
- Aluminum housing for durability and lightweight construction
Technical Specifications

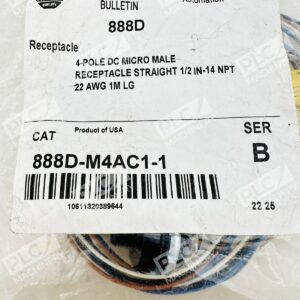

- Part Number: 888D-M4AC1-1 (alternate: 888DM4AC11)
- Connector Type: DC Micro (M12), Male, Straight
- Pins/Poles: 4-pin
- Voltage Rating: 250V DC
- Current Rating: 8 Amps
- Conductor Size: 22 AWG
- Cable Length: 1 meter (3.28 feet)
- Contact Material: Ni/Au plated over CuZn base
- Housing Material: Aluminum
- Mounting Interface: 1/2 x 14 NPT
- Temperature Range: -40 to +105°C
- Standard: KC
- Series: Series B
Typical Applications
- Industrial automation and machinery interconnections
- Sensor and actuator connections in control systems
- Motor and drive signal transmission
- Panel-mounted power distribution in enclosures
- Equipment requiring sealed, corrosion-resistant connectors
- OEM equipment manufacturing and retrofit installations
Compatibility & Replacements
Compatible With
- Allen-Bradley industrial control systems and PLCs
- Machinery equipped with M12 DC Micro connector sockets
- Rockwell Automation automation platforms
- Industrial sensor and actuator networks
- Custom automation panels with M12 receptacle mounting
Replaces / Drop-In Replacement For
- Other 4-pin DC Micro (M12) male receptacles with 1-meter cable in Series B configuration
- Legacy M12 connector assemblies requiring pin-for-pin compatibility
Works With
- DC Micro (M12) female connector panels and devices
- Industrial sensor and I/O modules with M12 inputs
- Servo motors and stepper motor control circuits
- Factory automation networks utilizing standard M12 connectors
- IEC 61076-2-109 compliant DC Micro equipment
