Overview

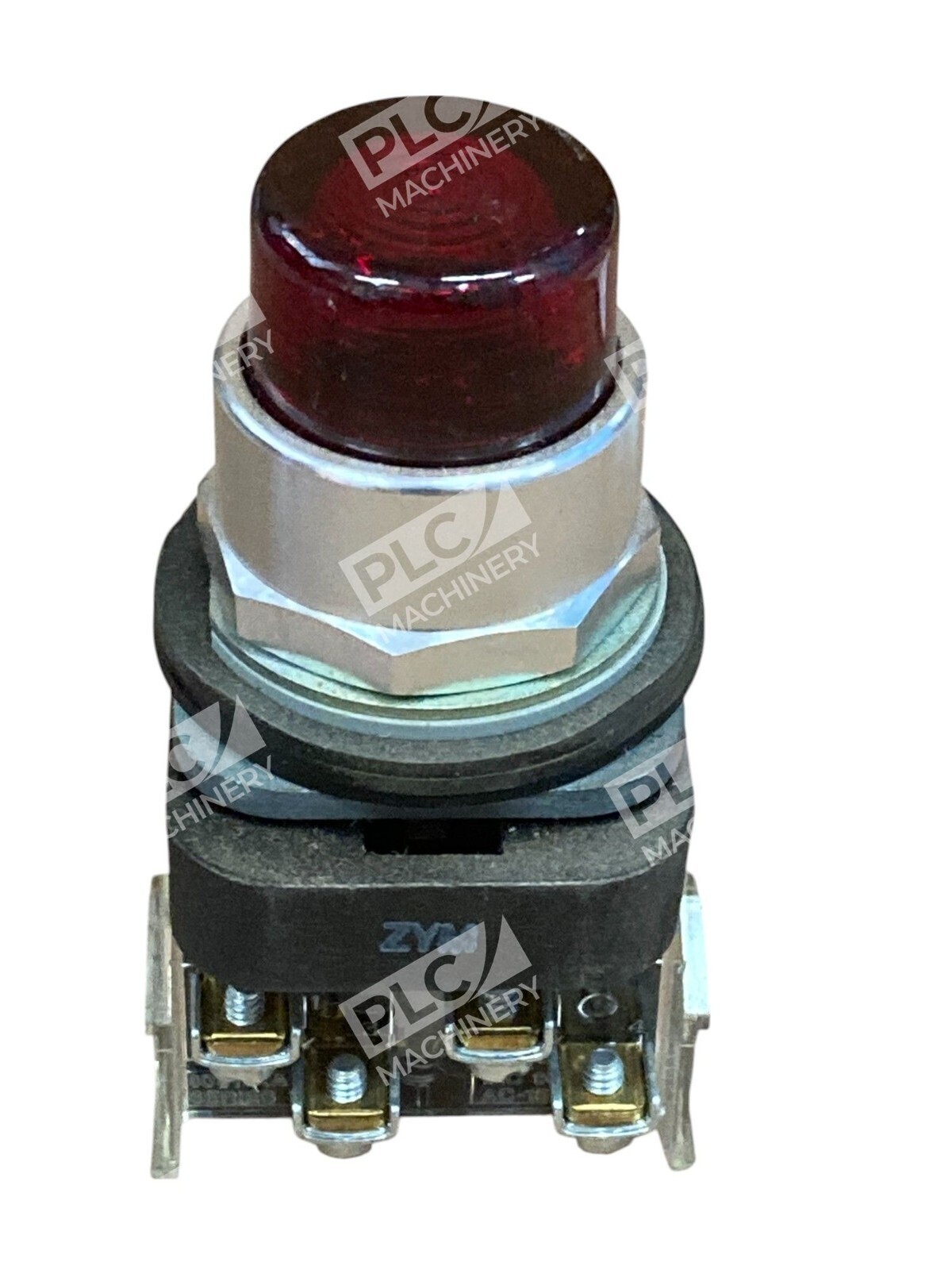

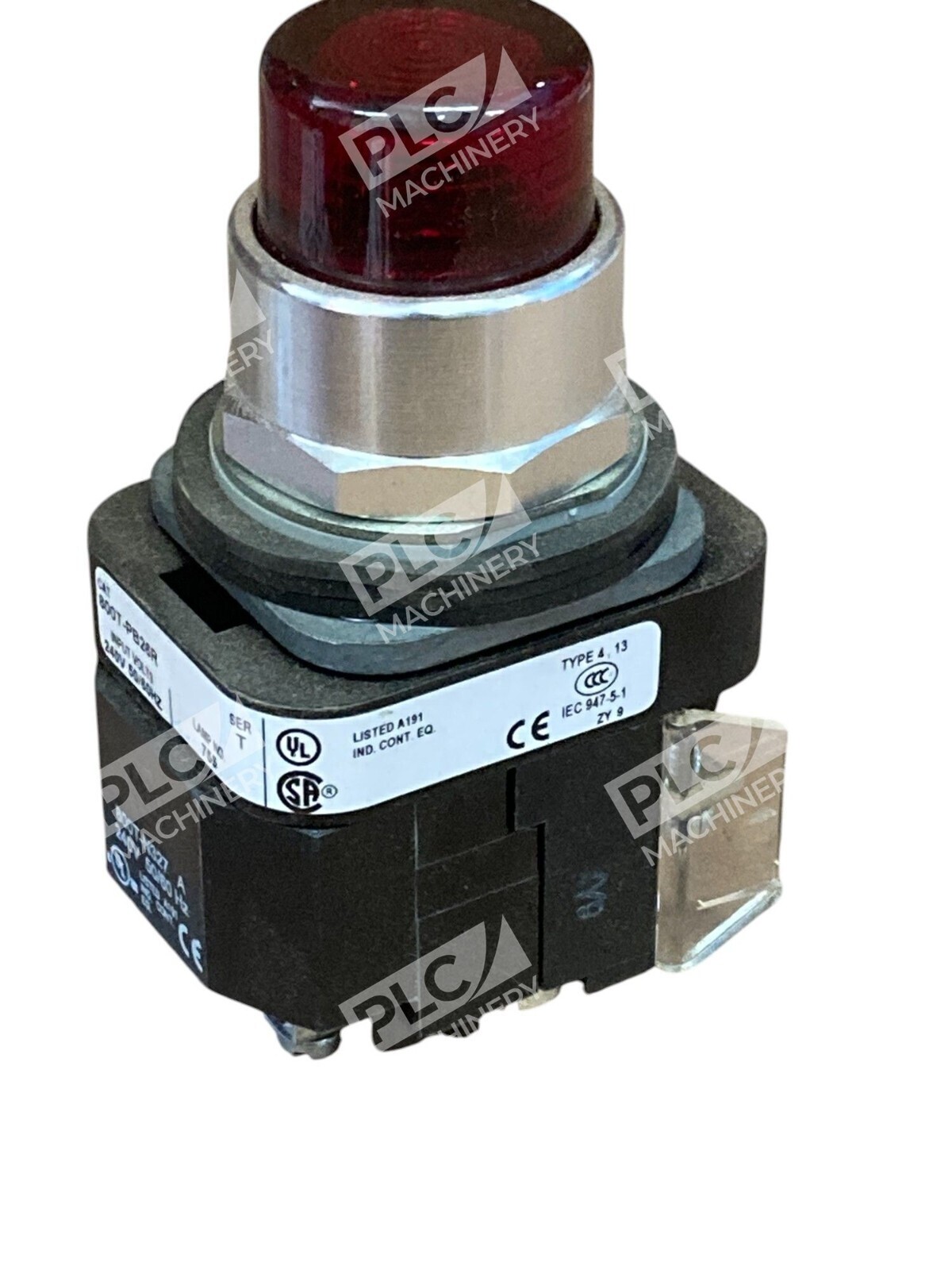

The Allen-Bradley 800T-PB26R is a 30mm momentary push button designed for industrial control panel applications. This model combines a robust mechanical actuator with integrated illumination and transformer, delivering reliable operator feedback in demanding environments. The red lens provides high visibility status indication, making it ideal for emergency stops, system resets, and other critical control functions requiring visual confirmation.
Key Features
- 30mm Compact Design: Fits standard control panel cutouts for easy installation and panel integration.
- Integrated 240V Transformer: Built-in step-down transformer eliminates separate power supply requirements.
- Incandescent Illumination: Red lens with incandescent lamp for high-visibility status indication.
- Momentary Action: Spring-return operation ideal for single-action commands and safety applications.
- NEMA 4/13 Rated: IP66 equivalent protection for washdown and harsh industrial environments.

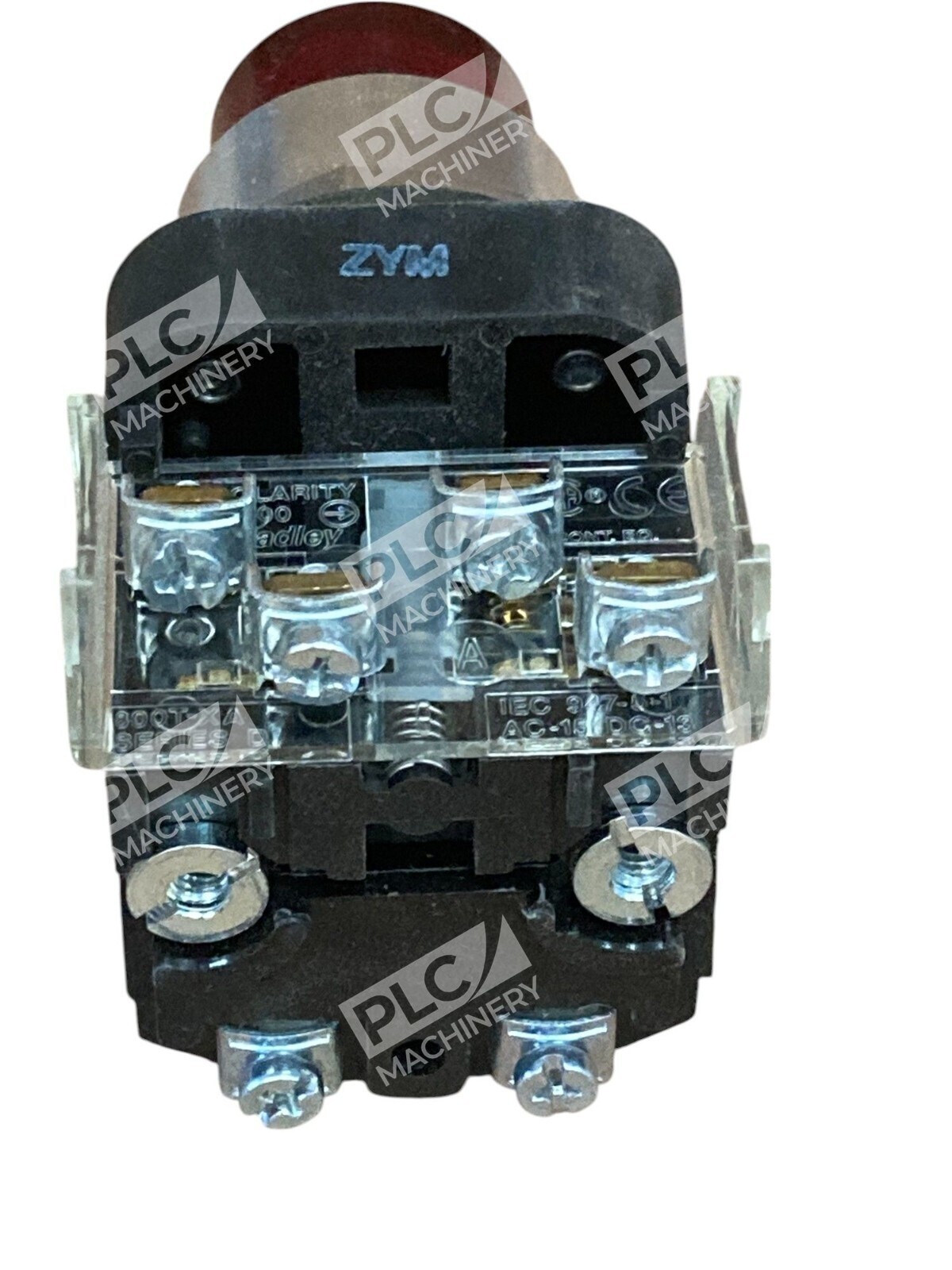

- Standard Contact Block: 1 NO + 1 NC configuration for flexible control logic integration.
Technical Specifications

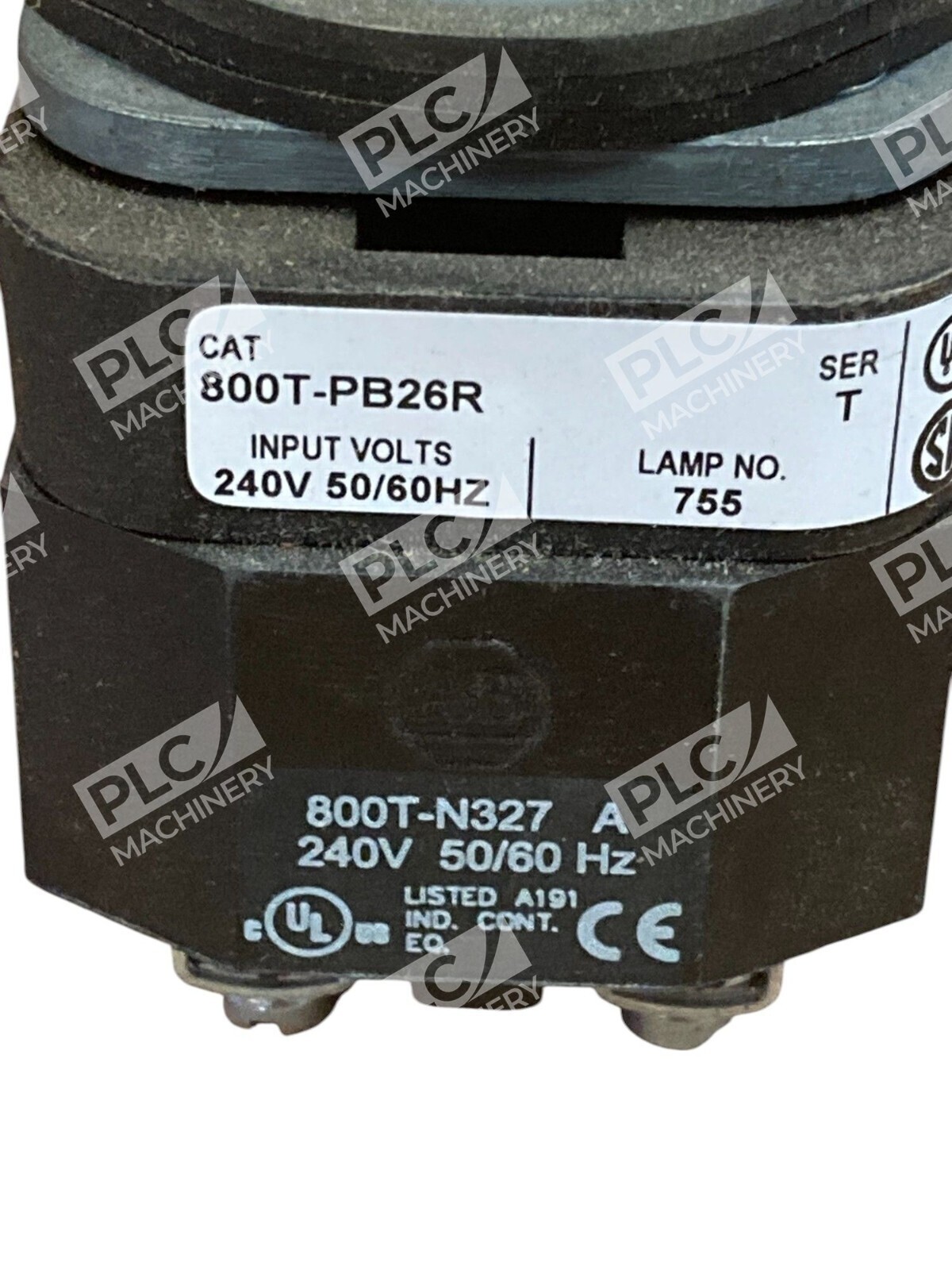

- Lamp Voltage: 240V AC, 50/60 Hz
- Illumination Type: Incandescent
- Lens Color: Red
- Actuator Type: Extended Head, Momentary
- Contact Configuration: Standard (1 NO + 1 NC)
- Enclosure Rating: NEMA 4, Type 13
- Power Module: Transformer type
- Head Diameter: 30.5mm
- Mounting: Panel mount, standard cutout
- Terminal Type: Fingersafe as standard
- Certifications: CCC, KC, UL, CSA, CUL, CE
Typical Applications
- Panel-mounted push buttons for machinery start/stop control
- Emergency stop stations requiring illuminated operator feedback
- Industrial automation system reset and mode selection
- Wet location and washdown environments (NEMA 4/13 rated)
- OEM control panel integration across food processing, packaging, and manufacturing
Compatibility & Replacements
The 800T-PB26R is part of Rockwell Automation’s 800T modular push button line, which supports field customization through interchangeable lens caps, operators, and contact blocks. This allows technicians to adapt the device without full replacement. The standard red lens cap can be swapped for other colors (yellow, green, white, blue) using compatible 800T replacement caps. For complete technical specifications and contact rating details, consult the official Rockwell Automation 800-TD009 technical data publication or your authorized distributor.
