Overview
The Allen-Bradley 800H-PRT16G is a 30mm industrial pilot light designed for push-to-test applications in demanding environments. This illuminated indicator features incandescent lamp technology powered by a 120V AC transformer module, delivering reliable visual feedback in control panels, industrial enclosures, and machinery installations. The green lens color provides clear status indication while meeting strict industry safety standards for hazardous location deployment.
Key Features

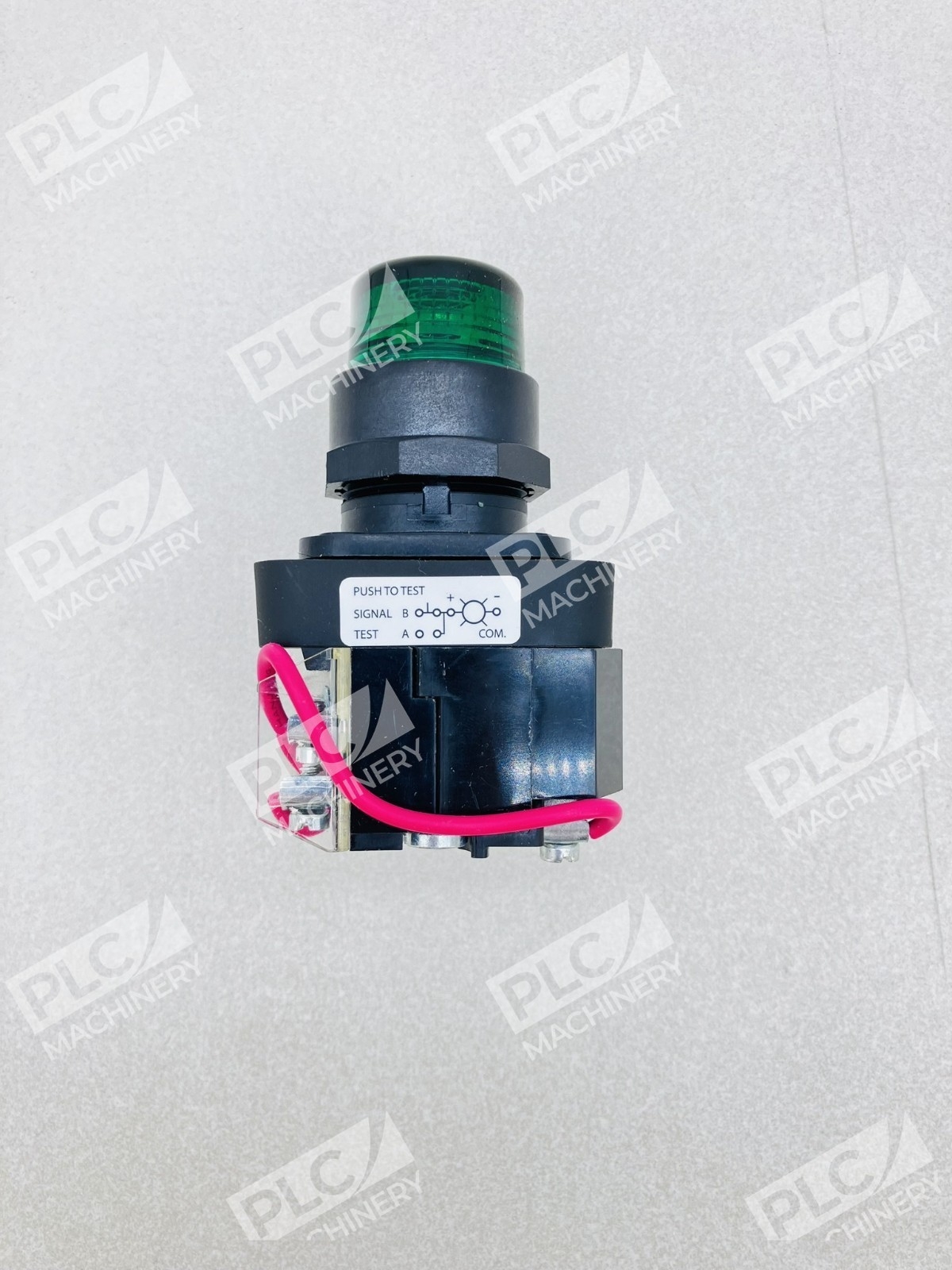

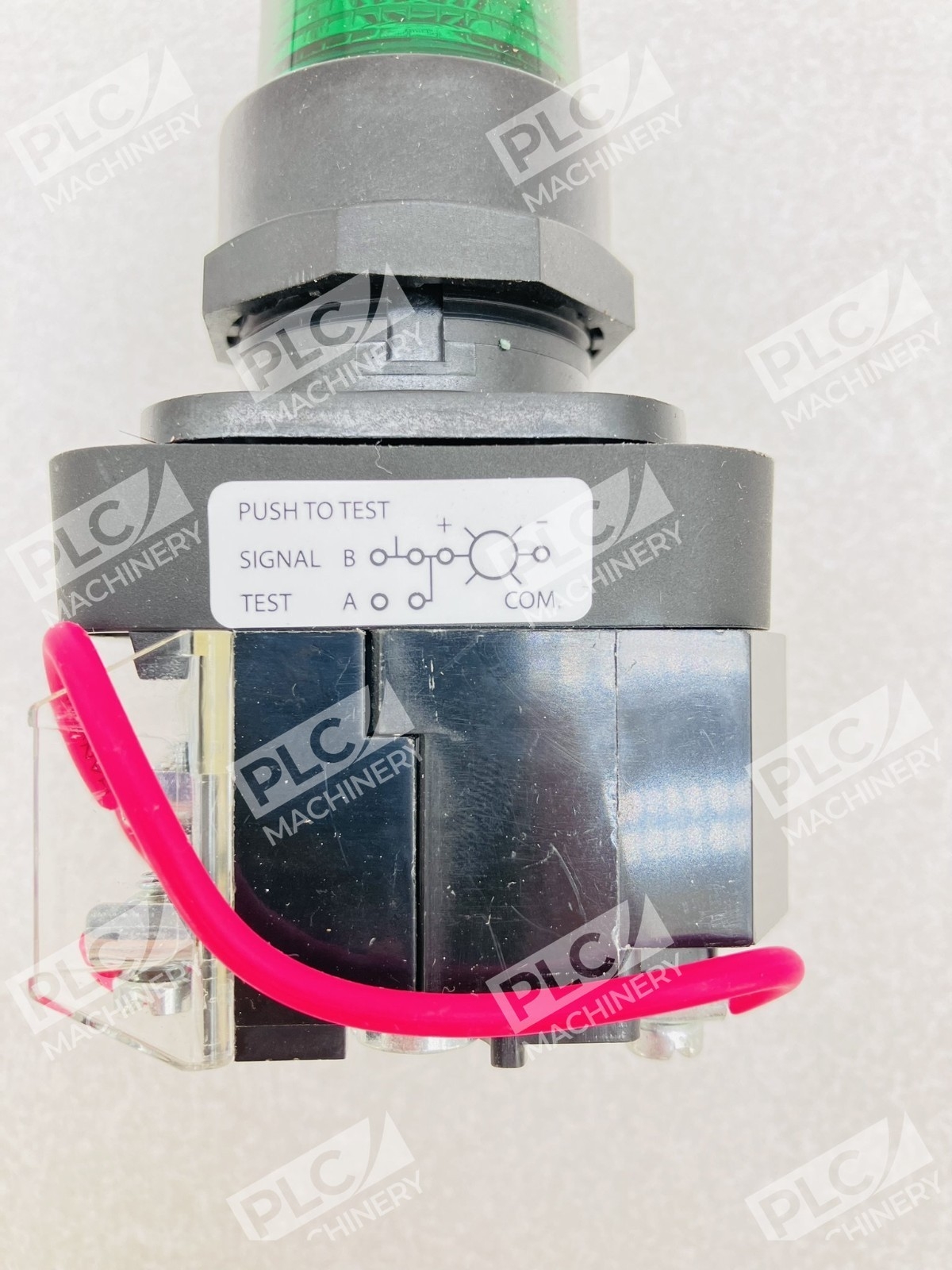

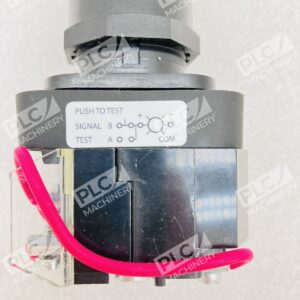

- Push-to-test functionality for convenient lamp checking without breaking circuits
- Incandescent illumination rated 120V AC at 50/60 Hz operation
- 30mm compact form factor fits standard control panel cutouts
- UL, CSA, CUL, CE, CCC, MARINE, and KC certifications for global deployment
- Type 7 and Type 9 hazardous location rated for Class I, Division 2 applications
- Transformer-type power module supports 120V power supply integration
- Durable industrial construction for chemical, oil/gas, and mining environments
Technical Specifications

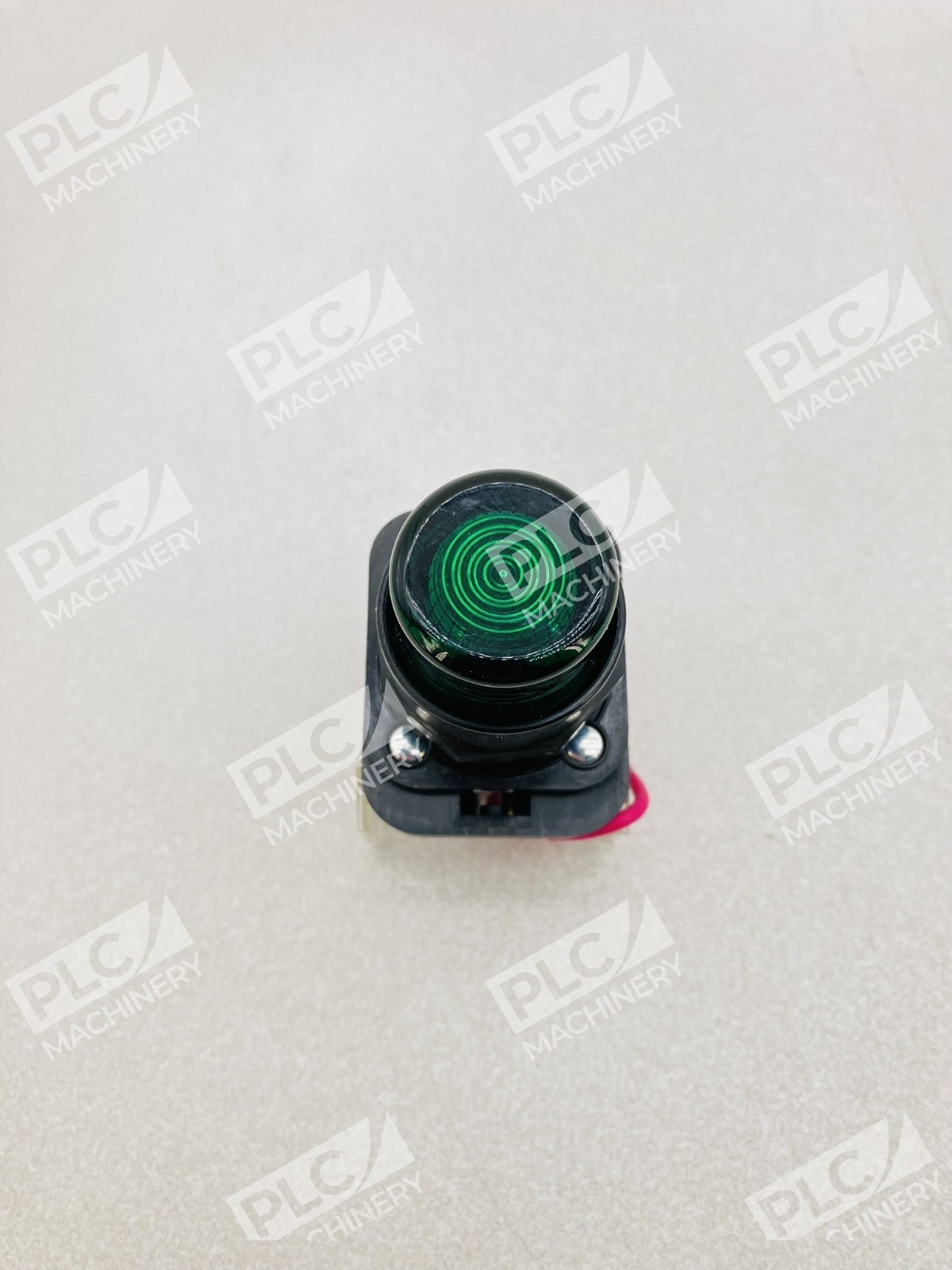

- Lens Color: Green
- Illumination Type: Incandescent

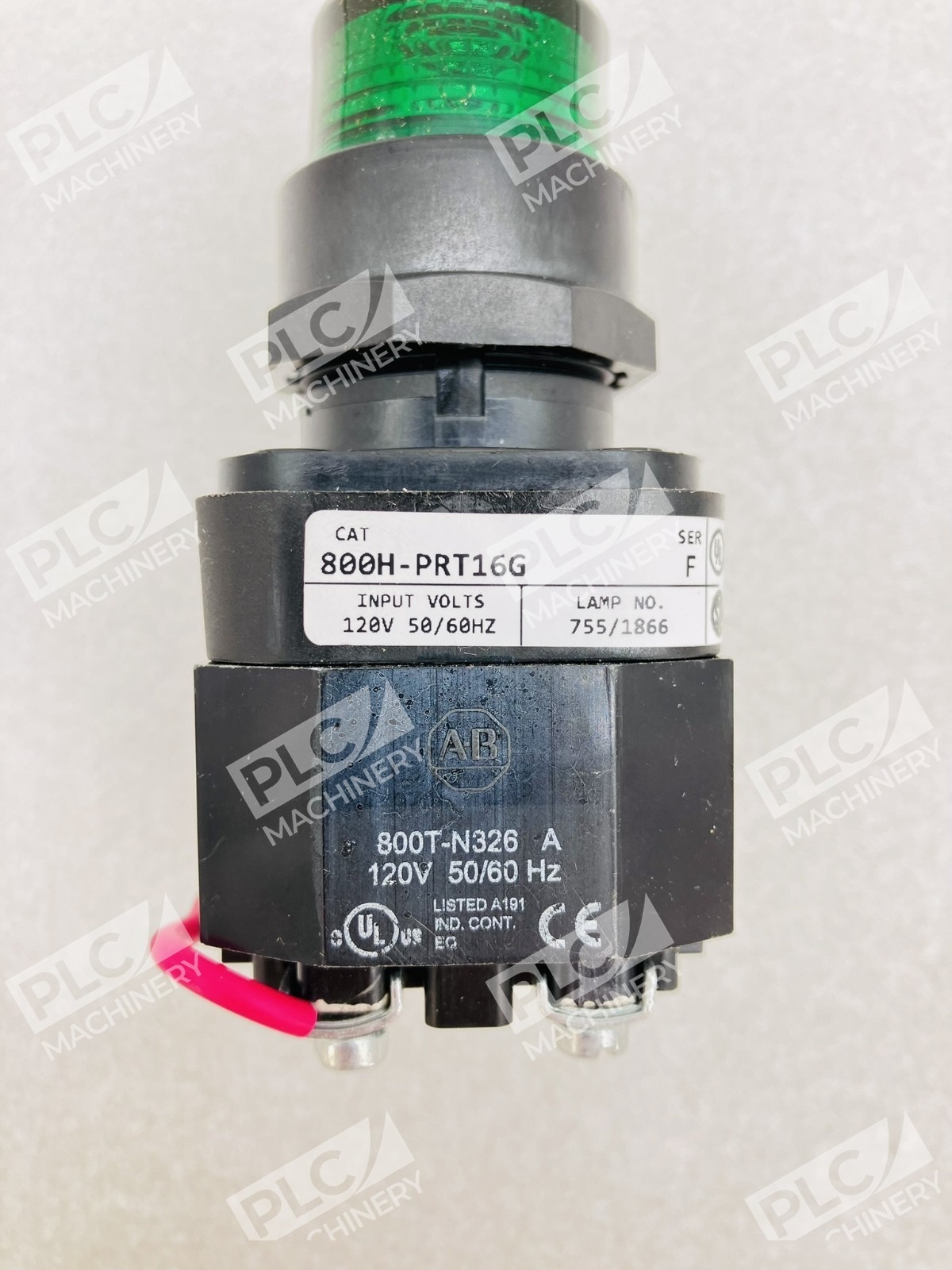

- Voltage Rating: 120 Volt AC, 50/60 Hz
- Power Module Type: Transformer
- Form Factor: 30mm diameter push-to-test
- Action Type: Push-to-Test
- Block Type: Standard

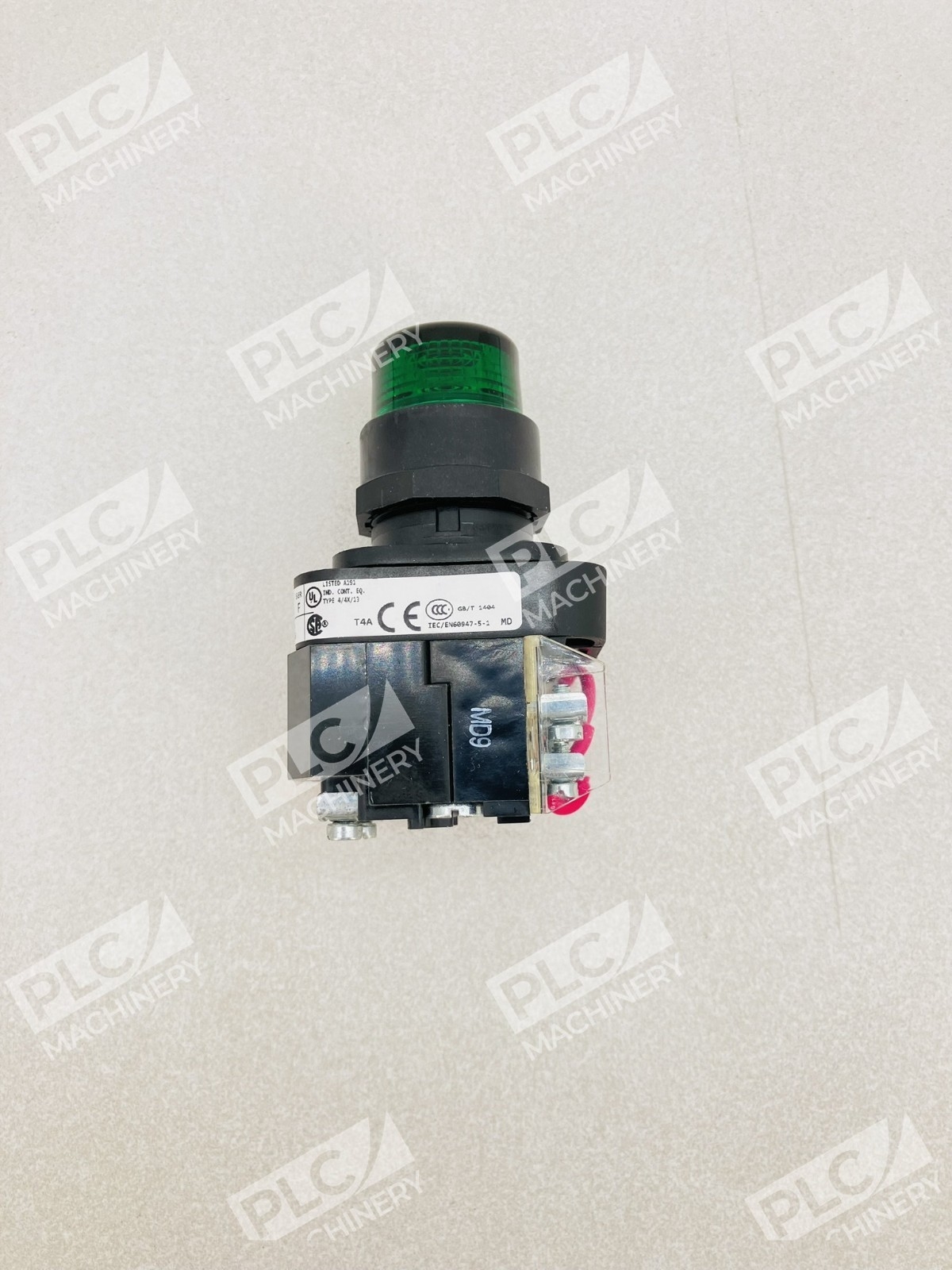

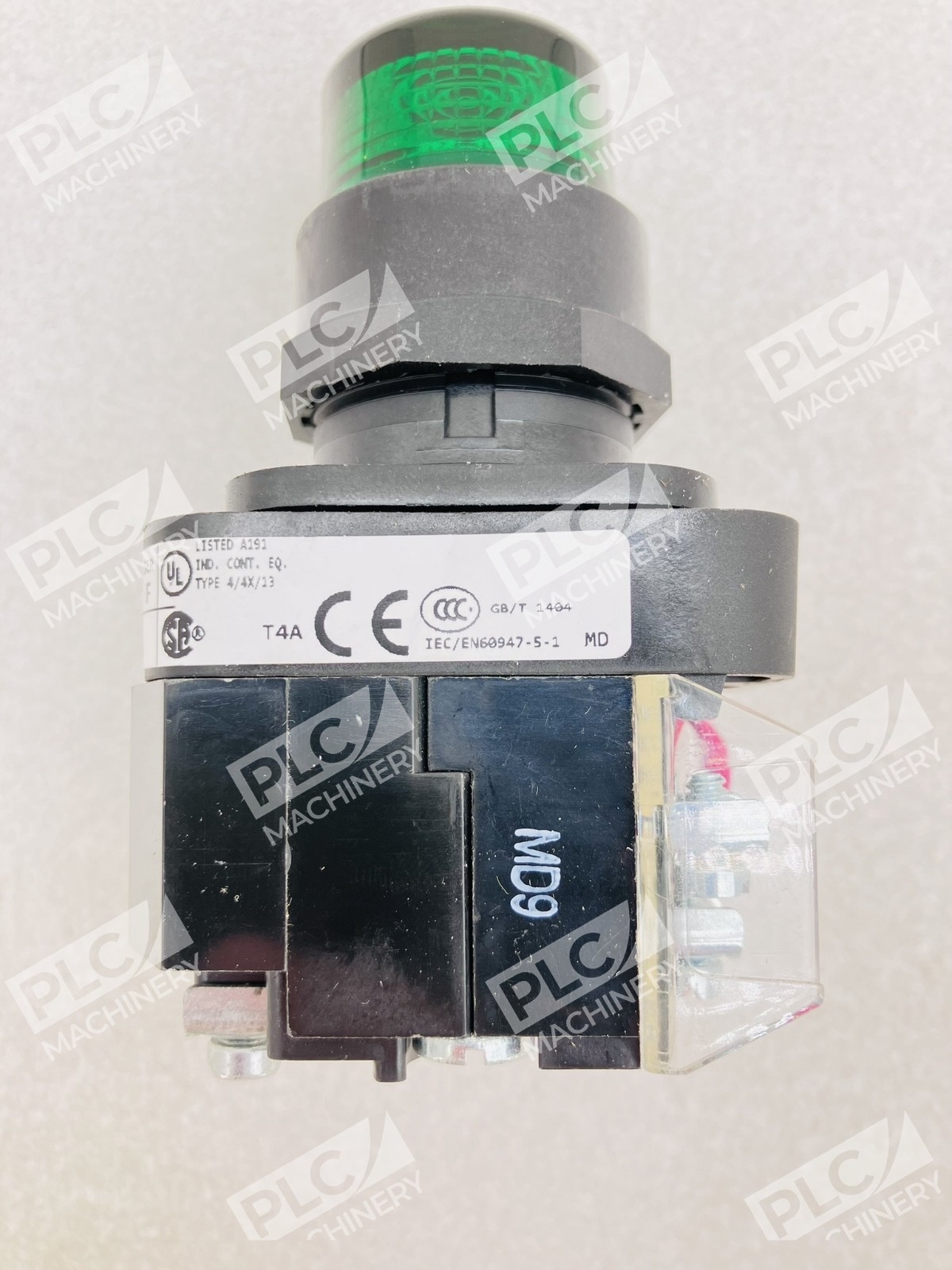

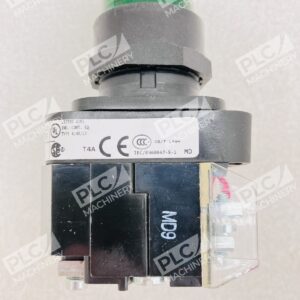

- Approvals: UL, CSA, CUL, CE, CCC, MARINE, KC
- Hazardous Location Rating: Type 7, Type 9

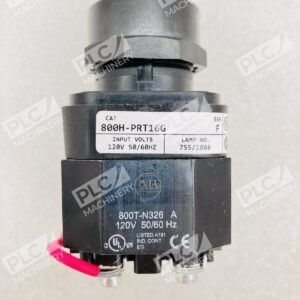

- Catalog Number: 800H-PRT16G
Typical Applications
- Manufacturing machinery control panels and status indication
- Oil and gas facility automated systems and monitoring stations
- Chemical processing plant equipment and safety signaling
- Mining operations control systems and equipment status display
- Industrial automation enclosures requiring pilot light indication
- General purpose industrial control and indication applications
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H series pilot light assemblies
- 30mm standard control panel cutouts and mounting brackets
- 120V AC industrial control power systems

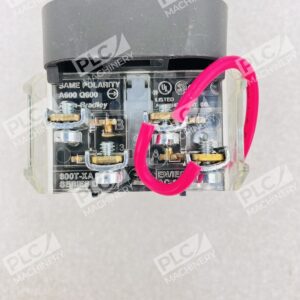

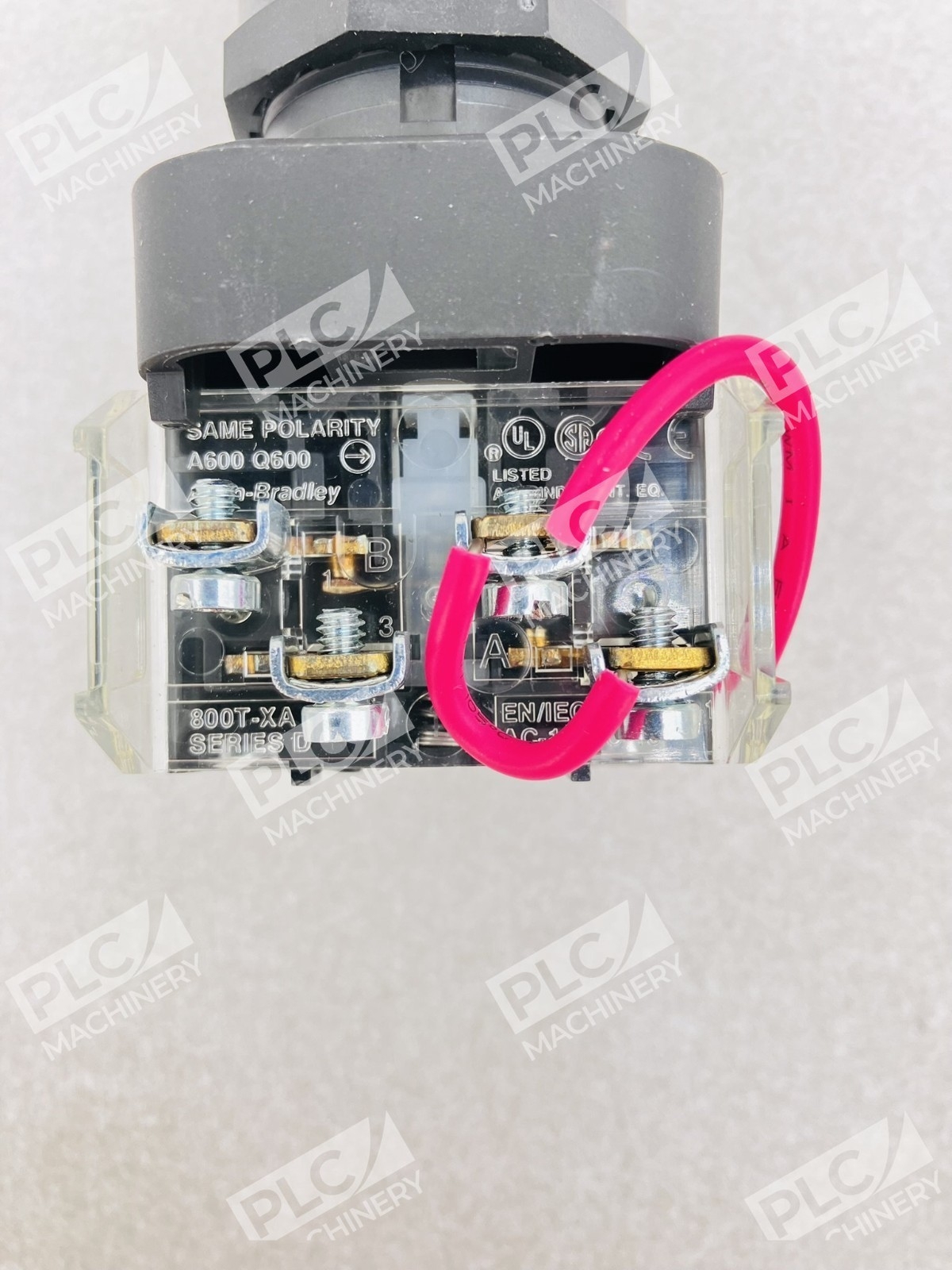

- Standard industrial transformer modules (800T-XA compatible)
- NEMA Type 4, 4X, and 13 enclosure installations
Replaces / Drop-In Replacement For
- 800H-PRT16 (earlier generation)
- Other green 30mm incandescent pilot lights in 120V configurations
Works With
- Allen-Bradley 800H/800T pilot light ecosystem
- Industrial transformer-based power modules
- Standard industrial 120V AC control power supplies
- Conventional relay and control logic systems
