Overview

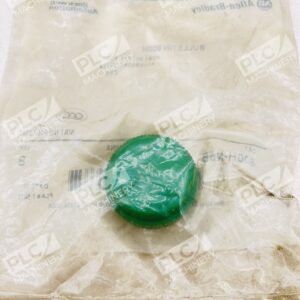

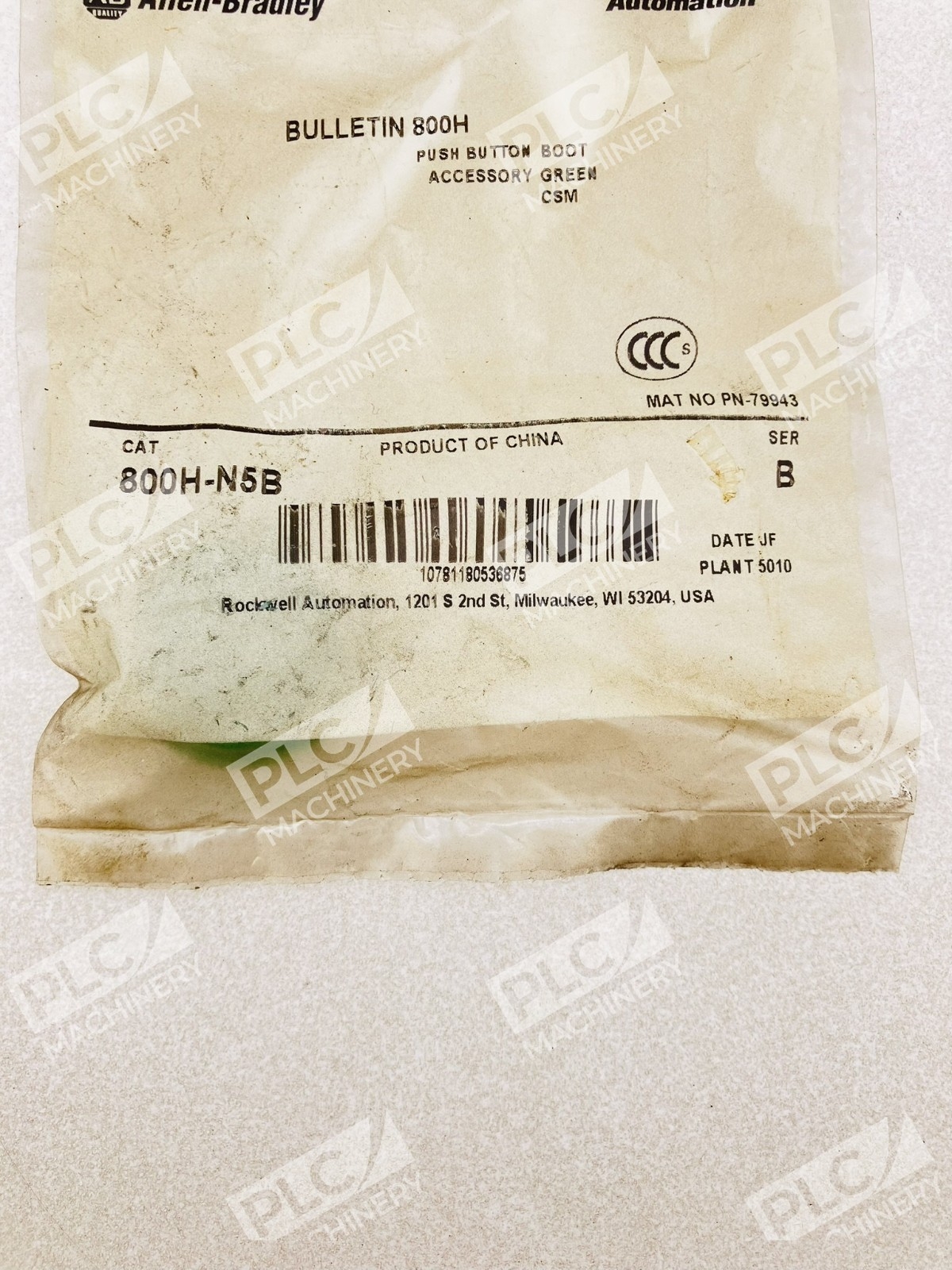

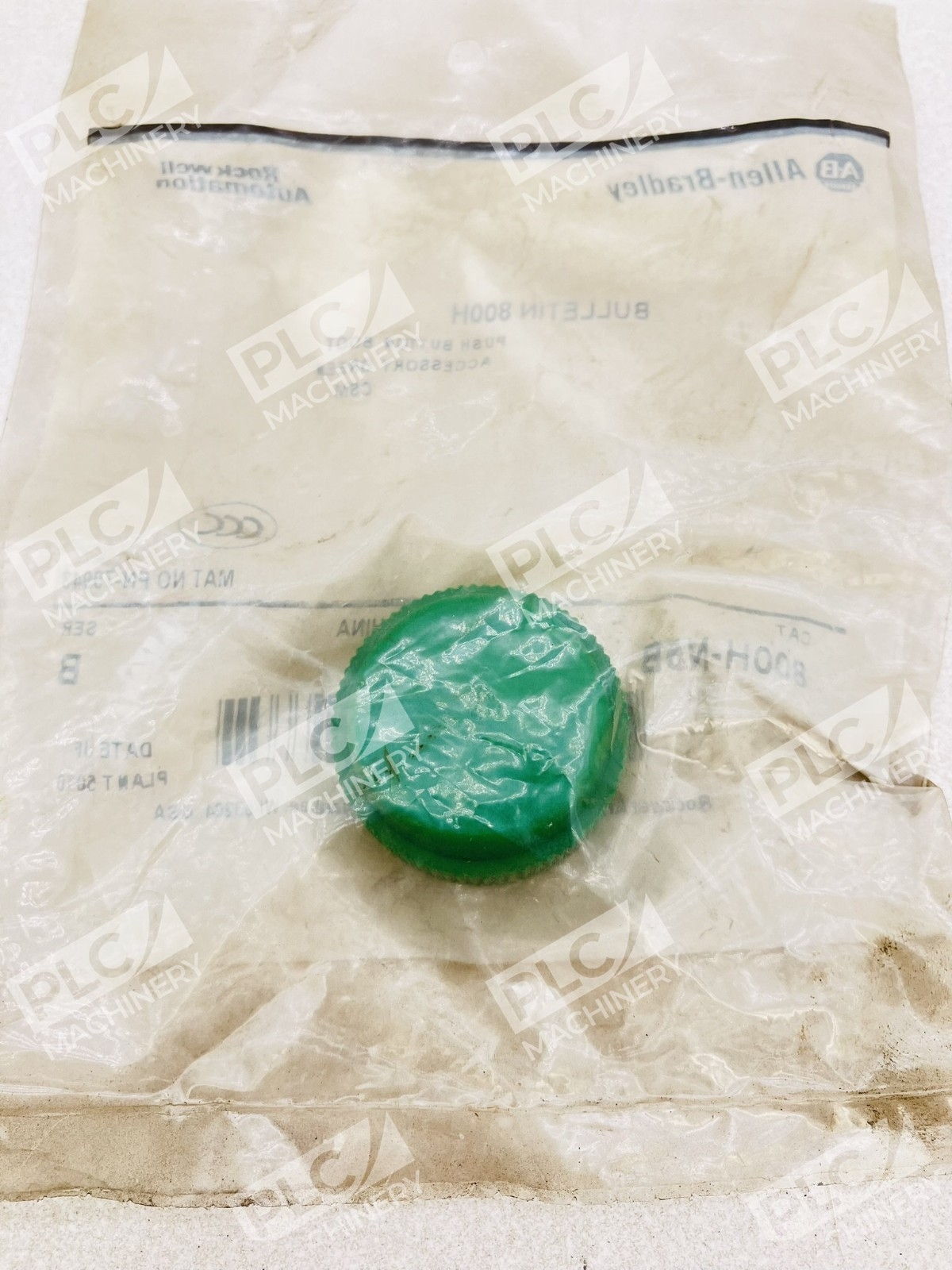

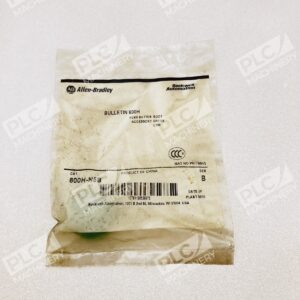

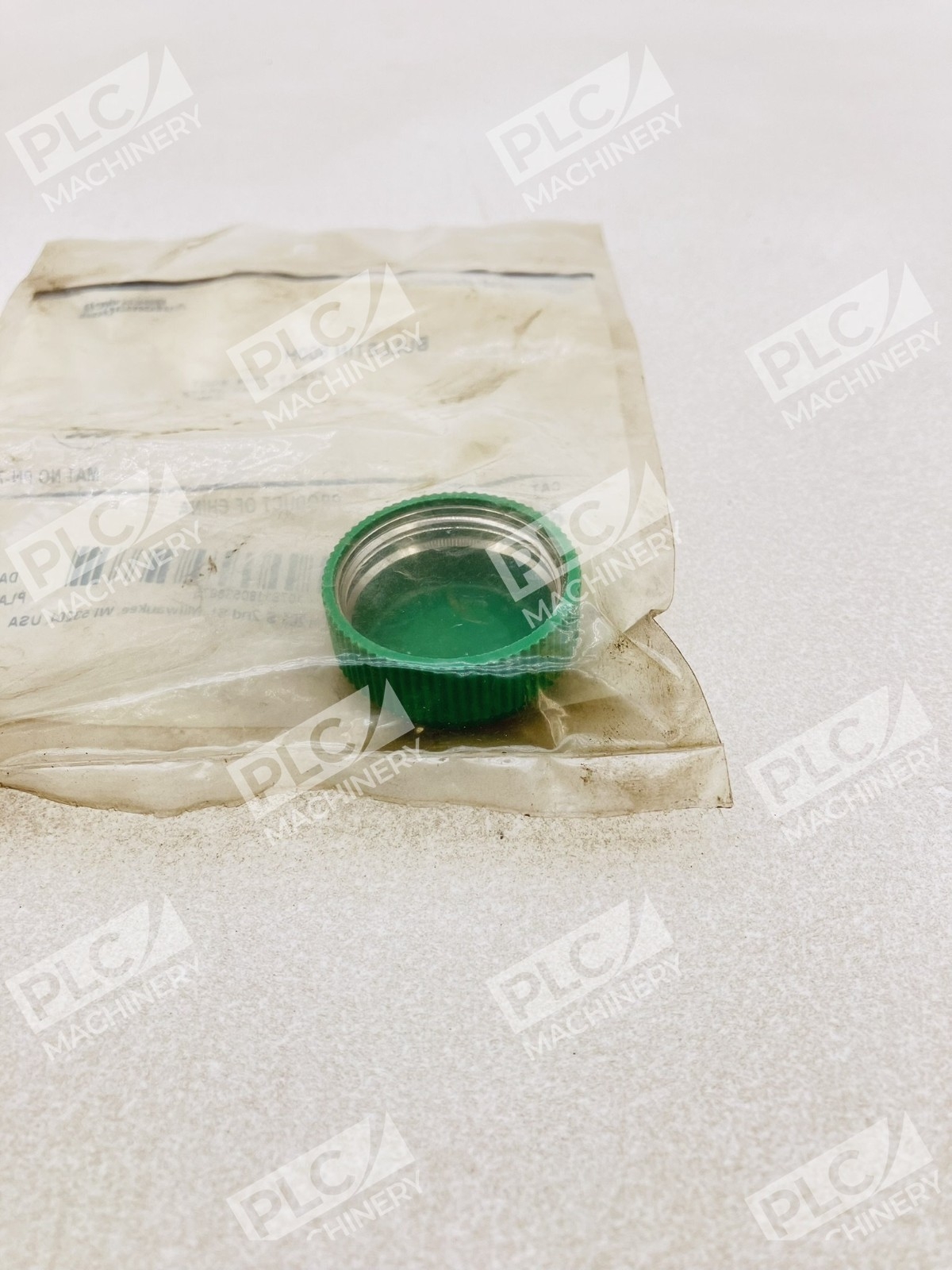

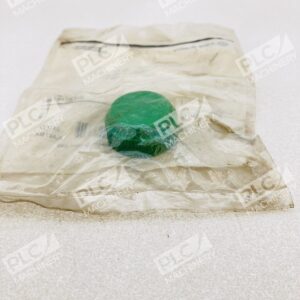

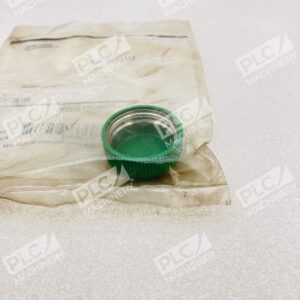

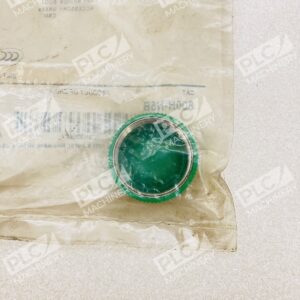

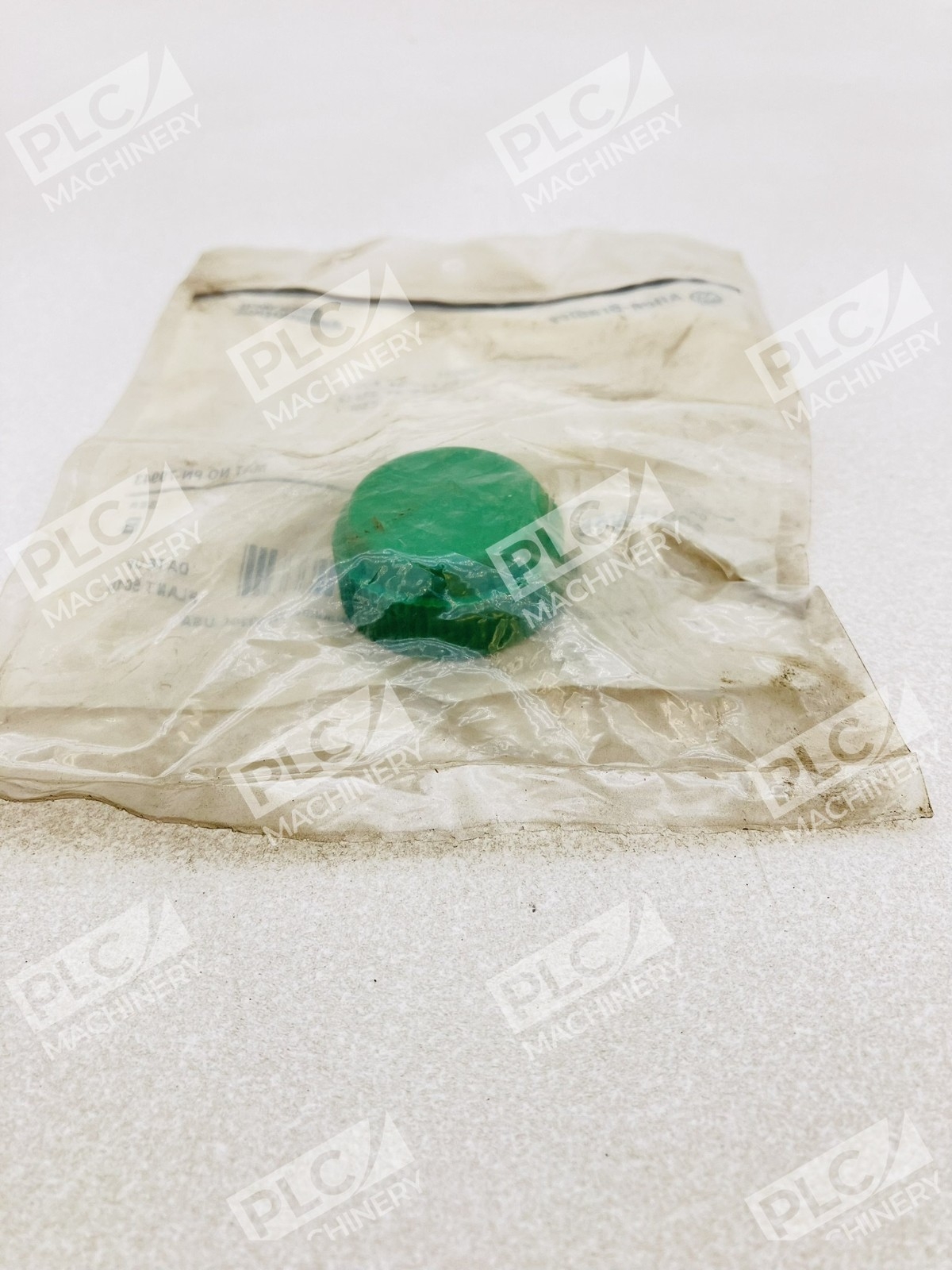

The Allen-Bradley 800H-N5B is a durable protective boot accessory designed for the 800H series of non-illuminated 30mm push buttons. Manufactured from chlorosulfonated polyethylene with a stainless steel insert, this green boot provides reliable protection against dust, oil, water, and corrosive industrial environments. As a standard 800H replacement component, it delivers proven durability and quality suitable for hazardous location applications and demanding control panel environments.
Key Features
- Green color for high visibility and easy identification in control panels
- Chlorosulfonated polyethylene material resists chemical and environmental exposure
- Stainless steel insert provides structural durability
- Designed for non-illuminated 30mm push buttons only
- NEMA 4/4X rated for wet and corrosive environments
- Drop-in replacement—easy to install on existing 800H push button assemblies
Technical Specifications
- Button Size: 30mm (30.5mm)
- Product Type: Protective Boot Accessory
- Color: Green
- Material: Chlorosulfonated Polyethylene with Stainless Steel Insert
- Compatibility: Non-Illuminated 800H Series Push Buttons
- Enclosure Rating: NEMA 4/4X
- Standard: KC (Korean Certification)
- Type: Round Boot
- UPC: 781180536878
- Alternate Part Numbers: 800HN5B
Typical Applications
The 800H-N5B boot accessory is ideal for industrial automation control panels, hazardous location equipment, and any application requiring protective coverings for non-illuminated pushbutton switches. Common uses include:
- Manufacturing floor control systems and emergency stop stations
- Machinery and equipment control panels exposed to moisture and chemicals
- Hazardous location (Class I, Division 1 & 2) push button installations
- Process automation and batch control applications
- Retrofit and maintenance of existing 800H pushbutton assemblies
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H Series 30mm non-illuminated push buttons
- 800H Series hazardous location push button assemblies
- NEMA 4/4X-rated control enclosures
- Industrial automation control systems requiring wet/corrosive environment protection
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) 800H-N5B boots
- Worn or damaged protective boots on existing 800H push button installations
- 800H-N5A (predecessor variant)
Works With
- Rockwell Automation 800H push button product line
- Manual control stations and pushbutton enclosures
- Industrial Ethernet and legacy control panel systems using push button inputs
- Standard industrial automation platforms requiring hardwired pushbutton logic
