Overview

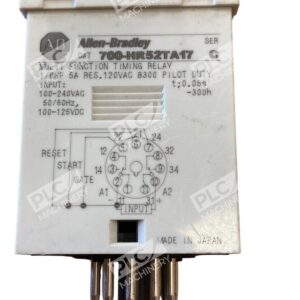

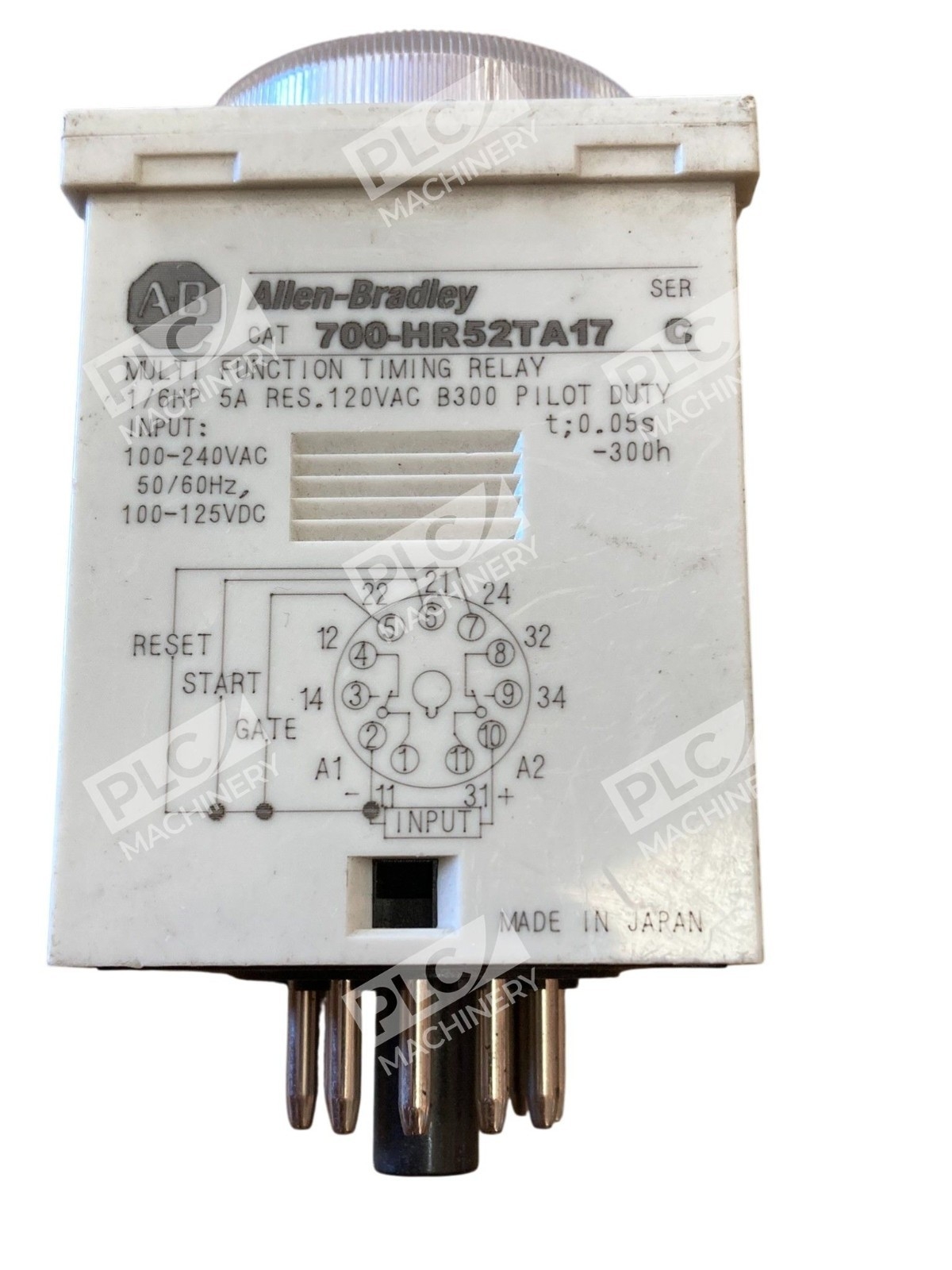

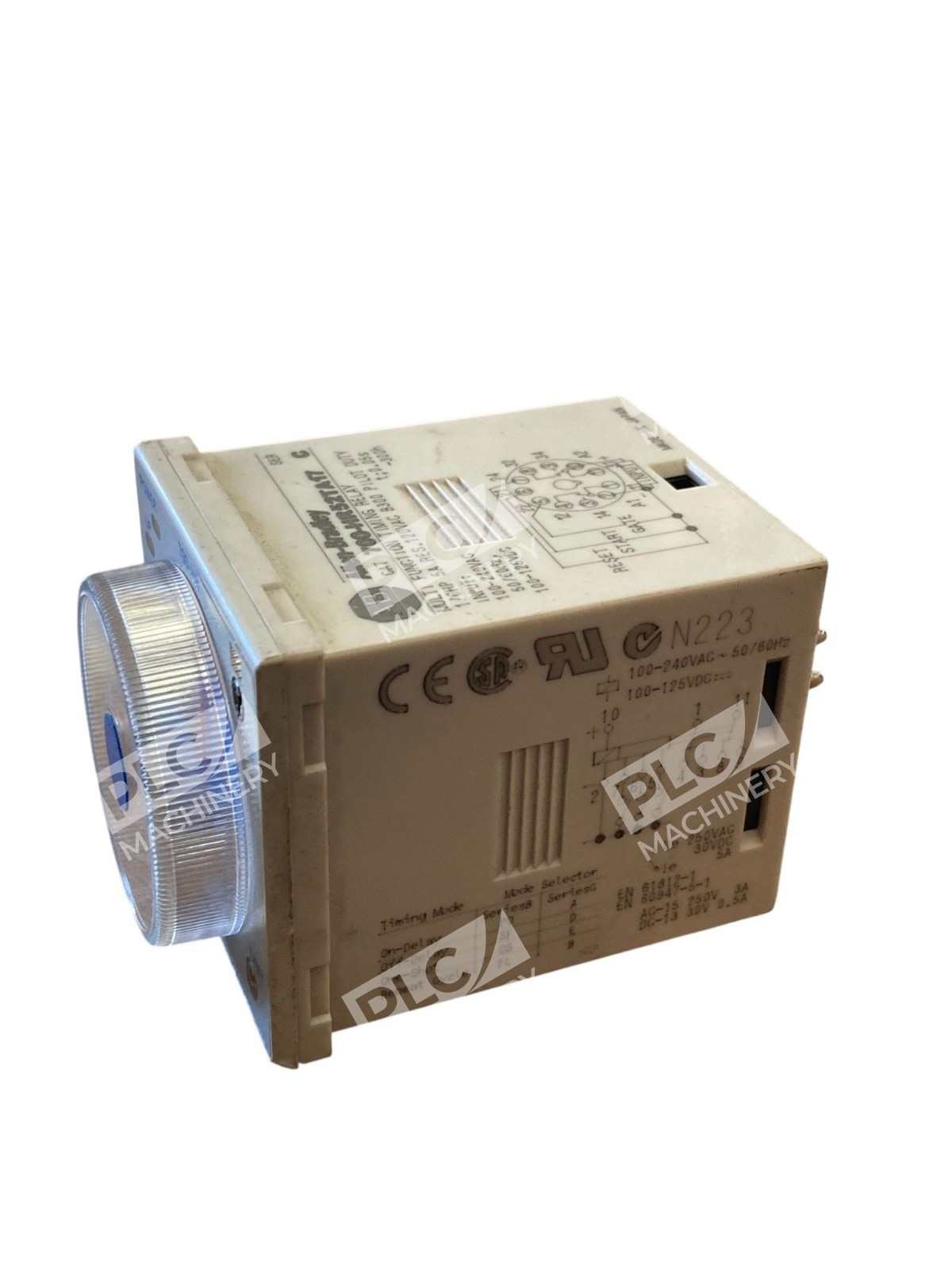

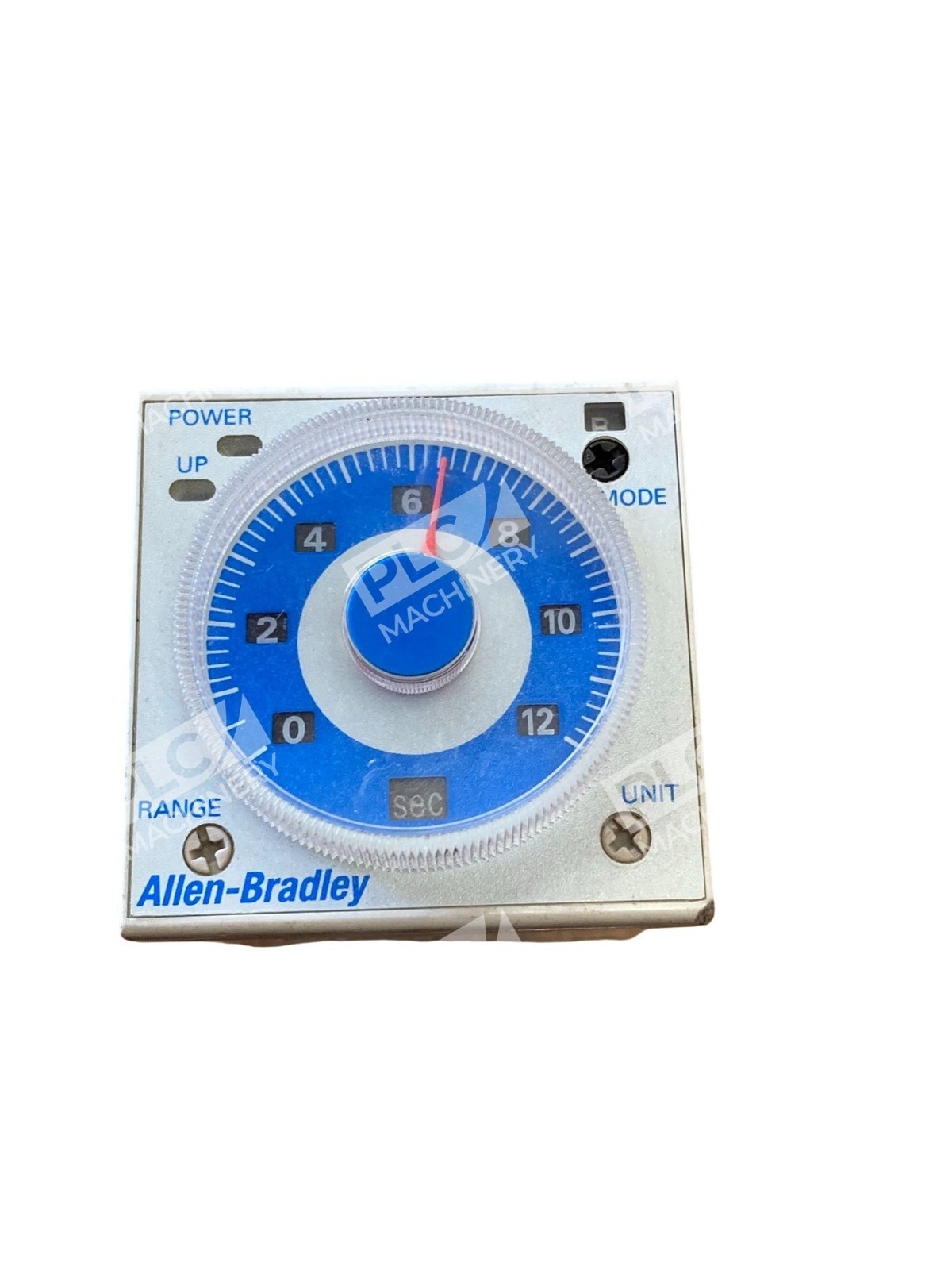

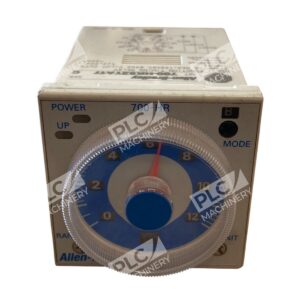

The Allen-Bradley 700-HR52TA17 is a compact, multi-function dial timing relay designed for precise time-delay control in industrial automation and commercial applications. Part of the Bulletin 700-HR family from Rockwell Automation, this 11-pin plug-in timing relay combines versatile functionality with a broad timing range, making it an ideal choice for machinery controls, process automation, and panel-mount installations.
Key Features

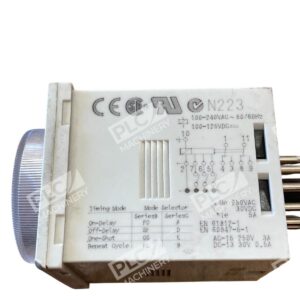

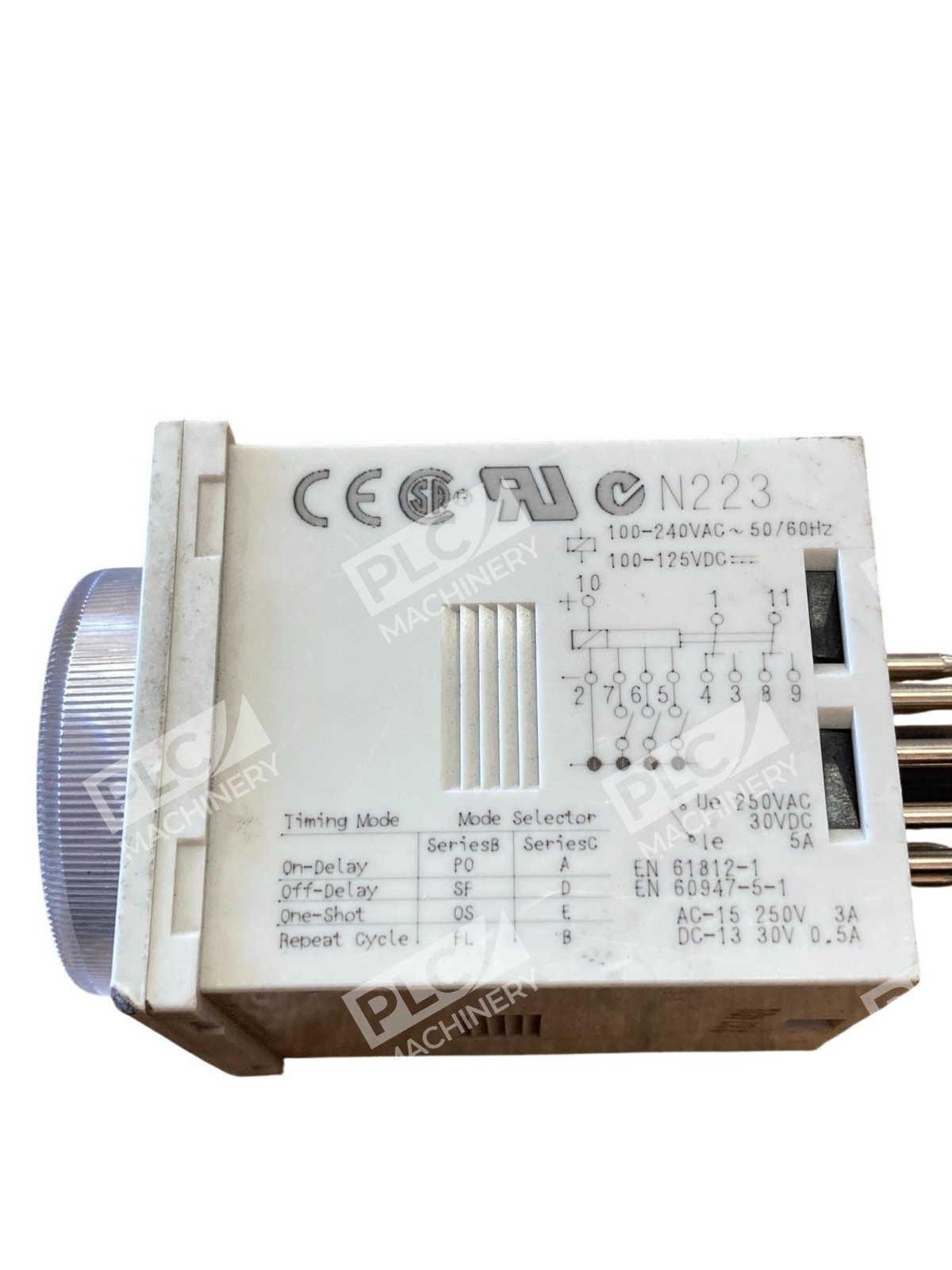

- Multi-function operation with six timing modes: ON-delay, OFF-delay, One Shot, Repeat Cycle (Off Start), Repeat Cycle (On Start), and Signal On/Off Delay
- DPDT (Double-Pole Double-Throw) contact configuration with 5A nominal rating

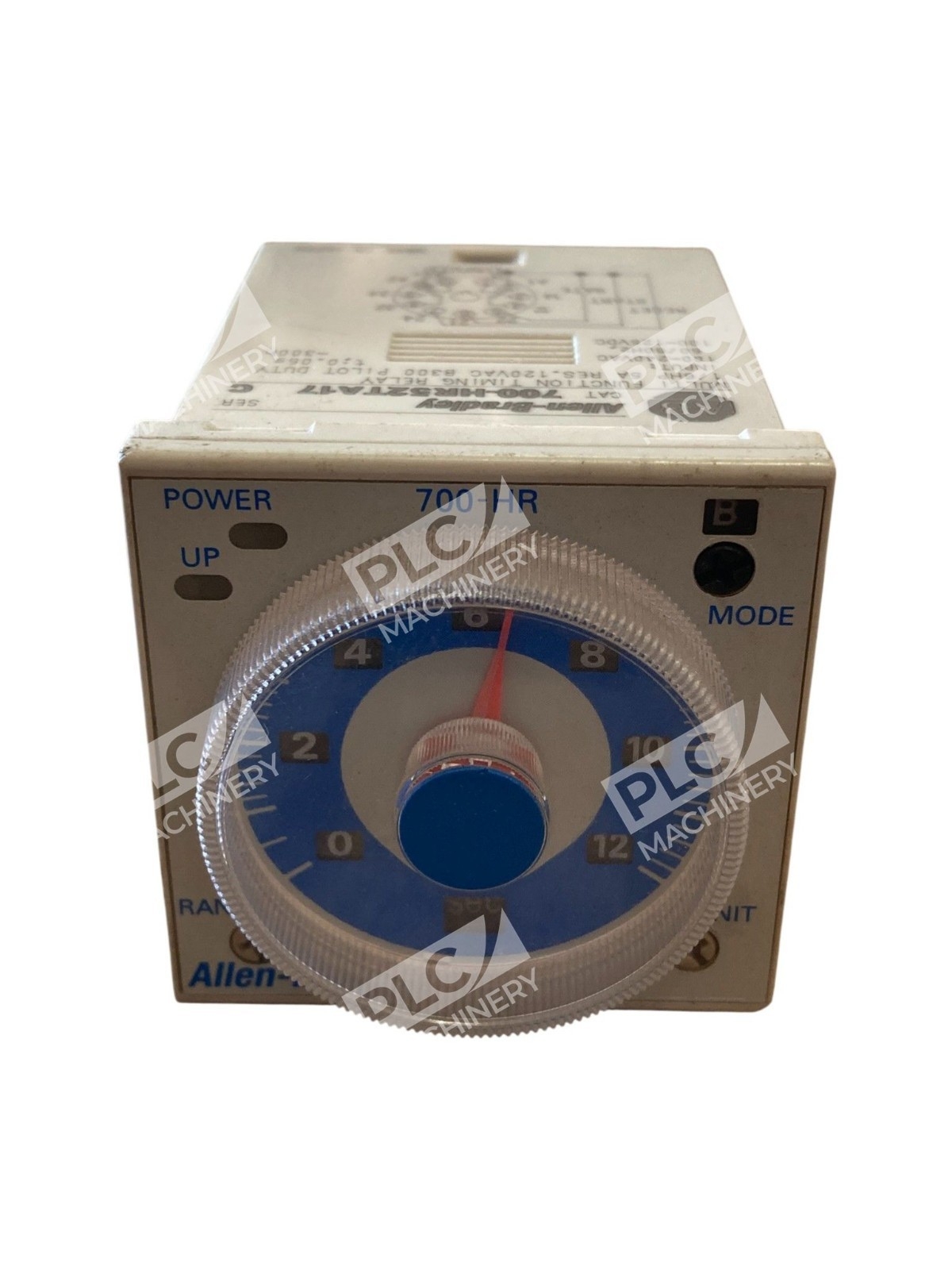

- Adjustable dial timing range from 0.05 seconds to 300 hours
- Wide voltage compatibility: 100-240V AC (50/60 Hz) and 100-125V DC inputs
- Two timed contacts with no voltage inputs for maximum flexibility
- Tube base socket/panel mount design for quick installation and removal
- IP40 rated enclosure protection
- Compact 11-pin plug-in footprint suitable for control panels and enclosures
Technical Specifications
- Catalog Number: 700-HR52TA17
- Coil Voltage: 100-240V AC (50/60 Hz) / 100-125V DC
- Contact Configuration: DPDT (2 timed contacts)
- Nominal Current Rating: 5 Amp
- Timing Range: 0.05 seconds to 300 hours (multi-mode selectable)

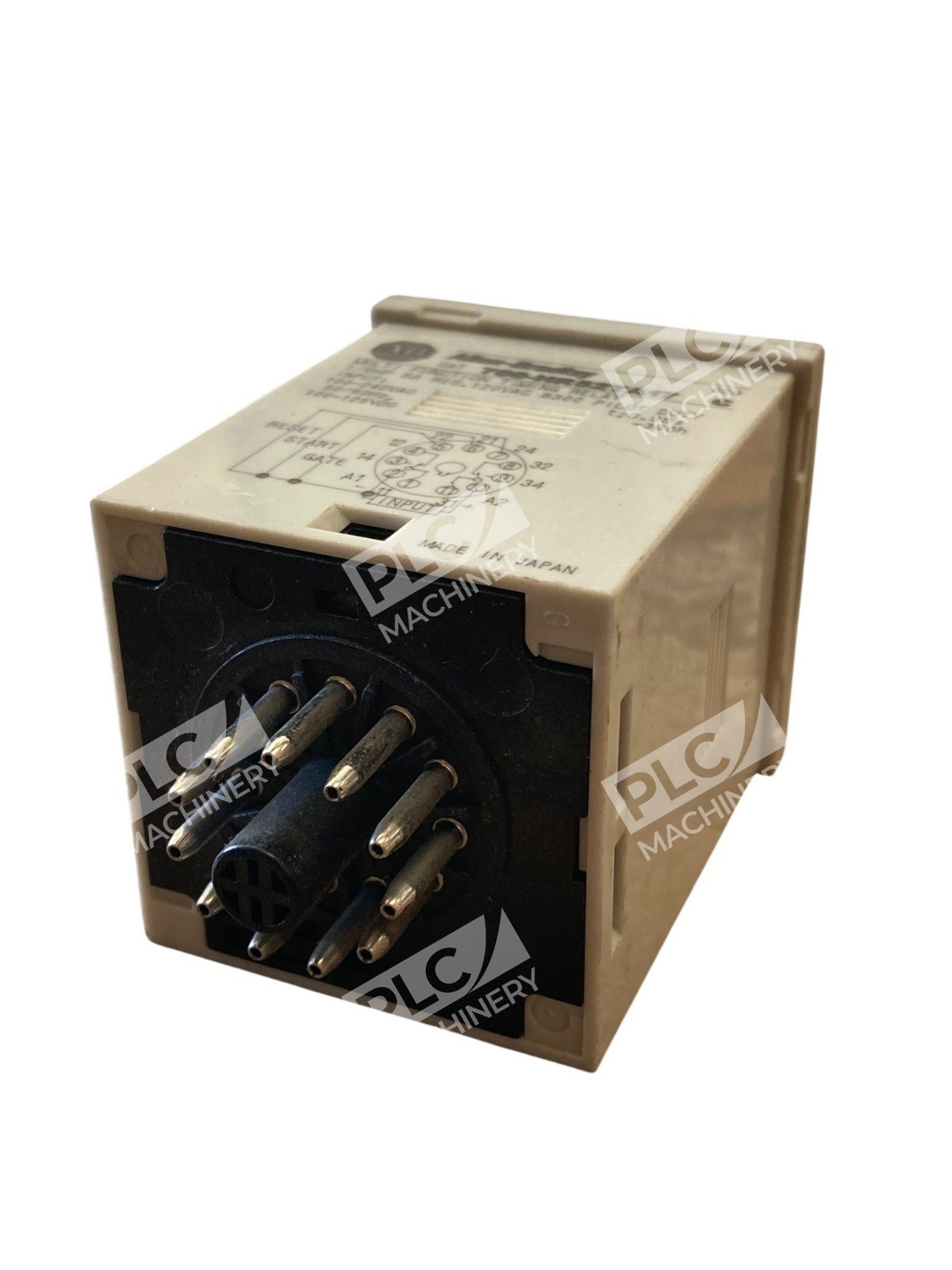

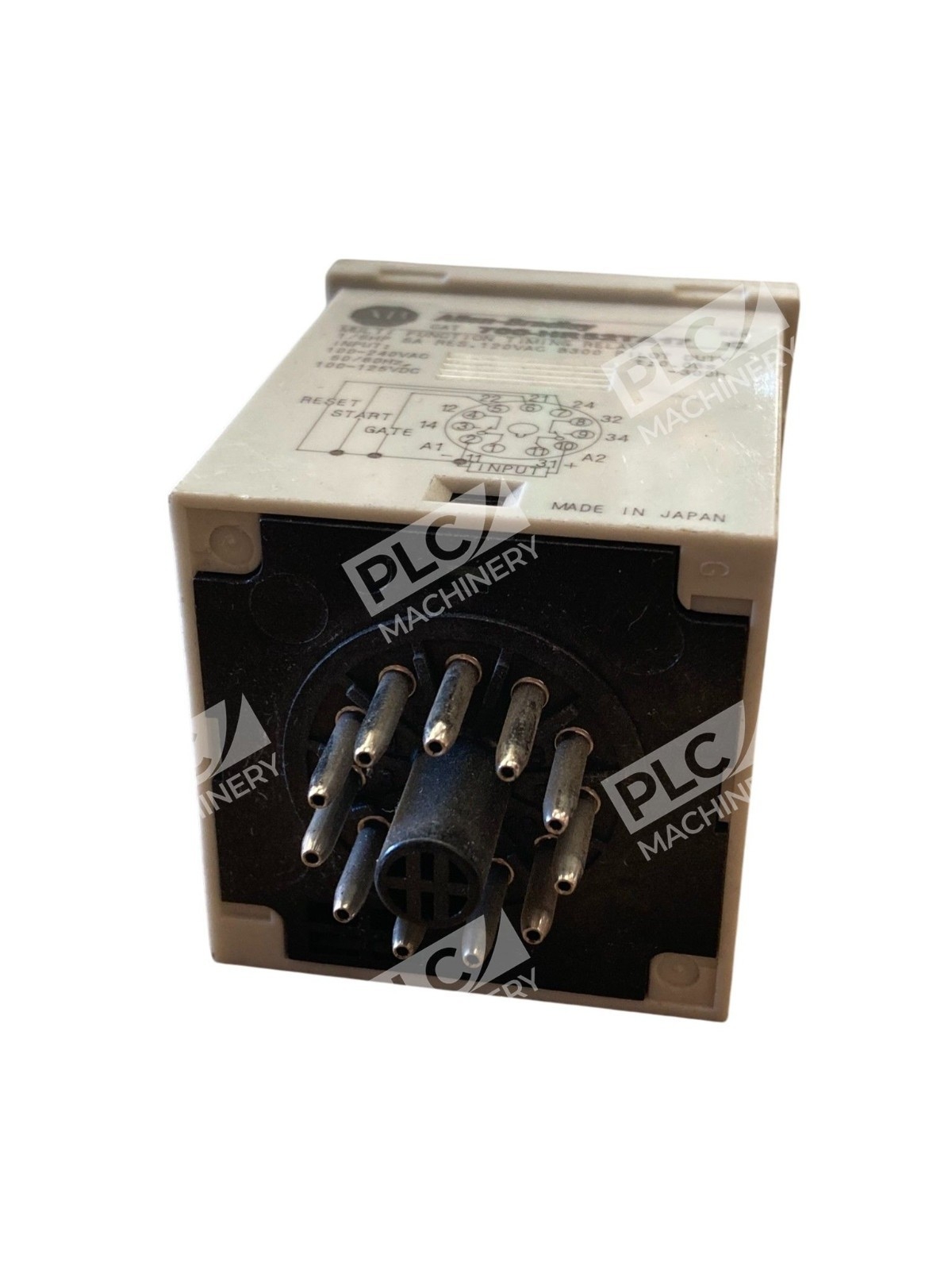

- Pin Configuration: 11-pin tube base
- Connection Type: Plug-in socket mount
- IP Rating: IP40
- Weight: 0.71 lbs (approx. 322g)
- Dimensions: 48 mm W x 81.5 mm D x 48 mm H
- Certifications: CCC, RCM
- Relay Type: Dial timing relay
Typical Applications
- Industrial machine cycle timing and sequencing
- Conveyor belt and assembly line controls
- Pump startup delays and soft-start applications
- Heating and cooling system time management
- Motor protection and thermal overload monitoring
- Signal synchronization and process interlocking
- Panel-mount control cabinets and standalone relay logic
Compatibility & Replacements
Compatible With
- Rockwell Automation Bulletin 700 relay sockets and mounting bases
- Industrial control panels and machinery control circuits
- Equipment requiring 11-pin tube base socket mounts
- Stand-alone relay logic systems and hardwired controls
- Equipment rated for 100-240V AC or 100-125V DC supply voltages
Replaces / Drop-In Replacement For
The 700-HR52TA17 is a direct replacement for other Bulletin 700-HR multi-function timing relays with identical pin configurations and voltage ratings. Verify compatibility with your system integrator before ordering, as pin layout and function assignments may vary with other 700-series relay models.
Works With
- Allen-Bradley ControlLogix and CompactLogix systems (via hardwired I/O interfaces)
- Siemens SIMATIC S5/S7 PLC platforms (relay logic integration)
- Mitsubishi and Omron industrial control systems
- Schneider Electric and ABB equipment (with compatible mounting bases)
- Standard 11-pin relay sockets and DIN-mount control rail systems
- Hardwired relay logic panels and standalone timers
