Overview

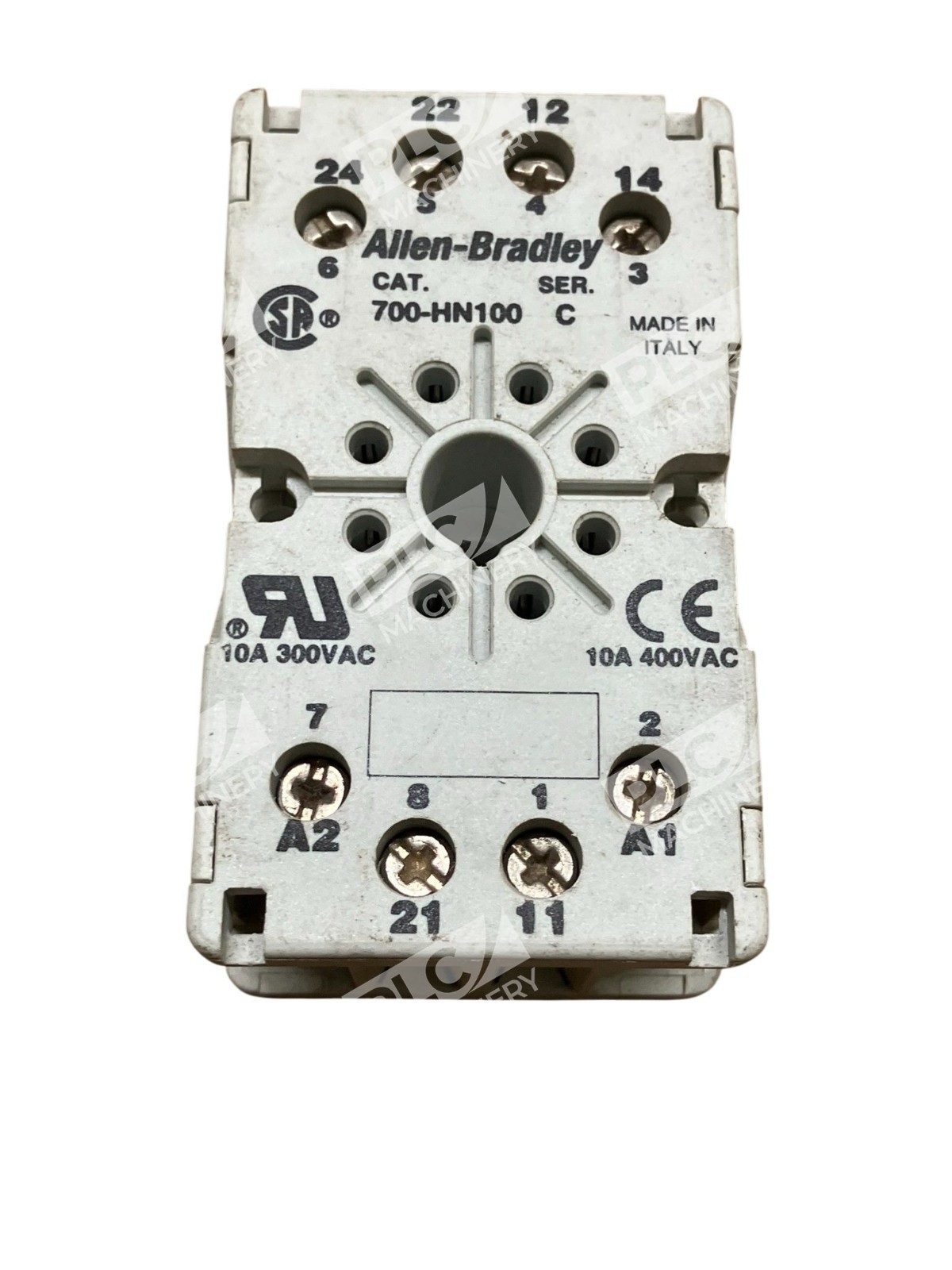

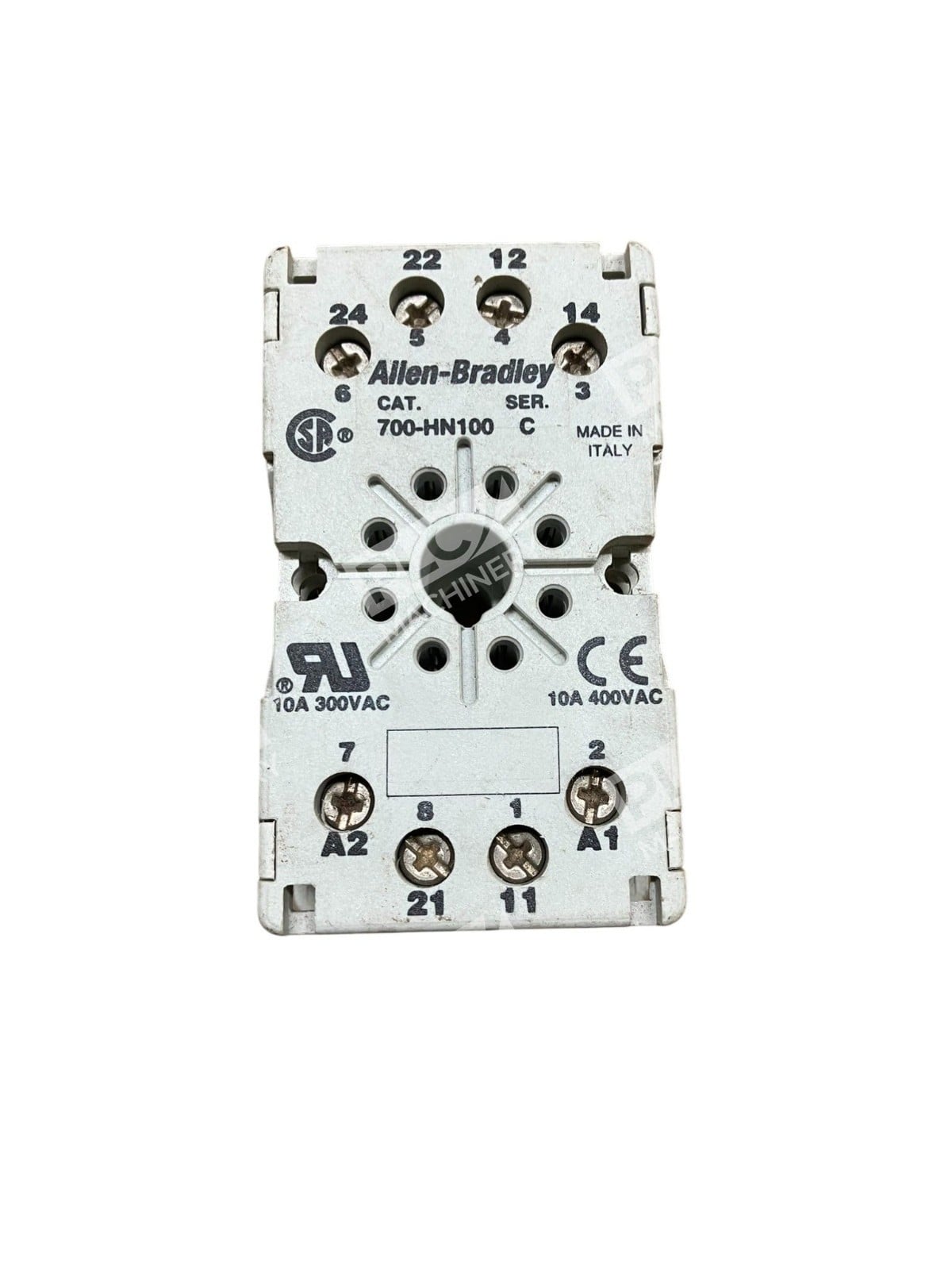

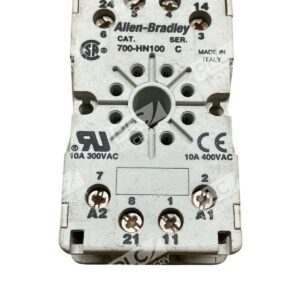

The Allen-Bradley 700-HN100 relay socket is a dependable 8-pin tube base component engineered for panel and DIN rail installations. This guarded, touch-safe socket provides secure screw terminal connections rated for 10 amperes at 300–400 VAC, making it ideal for industrial control panels where space and safety are paramount. The 700-HN100 is part of Allen-Bradley’s robust 700 series relay accessories, widely deployed in factory automation, HVAC systems, and process control equipment.
Key Features
- 8-pin tube base socket with guarded terminal construction for operator safety
- Dual-mount design: compatible with both DIN rail and panel mounting configurations
- Screw terminal connections ensure reliable, maintainable relay installations
- Rated 10 amp at 300–400 VAC for general industrial relay applications
- Certified to CCC, CE, CSA, CUL, KC, and UL standards for global compliance
- Compact footprint (38 × 26 × 65 mm) fits tight control enclosures
Technical Specifications
The 700-HN100 meets stringent industrial reliability standards:
- Pin Configuration: 8-pin tube base
- Amperage Rating: 10 A
- Voltage Rating: 300–400 VAC
- Terminal Type: Guarded screw terminals
- Socket Type: Tube base (octal)
- Mounting Style: DIN rail / panel mount
- Dimensions: 38 mm (W) × 26 mm (D) × 65 mm (H)
- Weight: 0.11 lb (50 g)
- Standards: CCC, CE, CSA, CUL, KC, UL
Typical Applications
The Allen-Bradley 700-HN100 is widely used in:
- Motor control centers (MCCs) and distribution panels
- HVAC and climate control systems requiring relay switching
- Industrial process automation and equipment protection circuits
- Legacy control systems using Allen-Bradley 700-series relays
- Machinery safeguarding and interlocking logic circuits
- Test equipment and panel-mounted control systems
Compatibility & Replacements
Compatible With
- Allen-Bradley 700-HA32 DPDT general-purpose relays
- 700-HR series relays
- 700-HX timing relays
- 700-HT on-delay timing relays
- 700-HRM repeat cycle timing relays
- 700-HRC repeat cycle timing relays
- 700-HV repeat cycle timing relays
- Standard 8-pin octal tube base relay formats
Replaces / Drop-In Replacement For
The 700-HN100 is the direct factory socket for all listed 700-HA and timing relay models above. Verify part number and mounting orientation before installation.
Works With
- DIN rail systems (35 mm top-hat rail)
- Flat panel mounting with threaded fasteners
- Enclosed control enclosures and NEMA/IP-rated cabinets
- All Allen-Bradley 700-series relay ecosystem components
