Overview

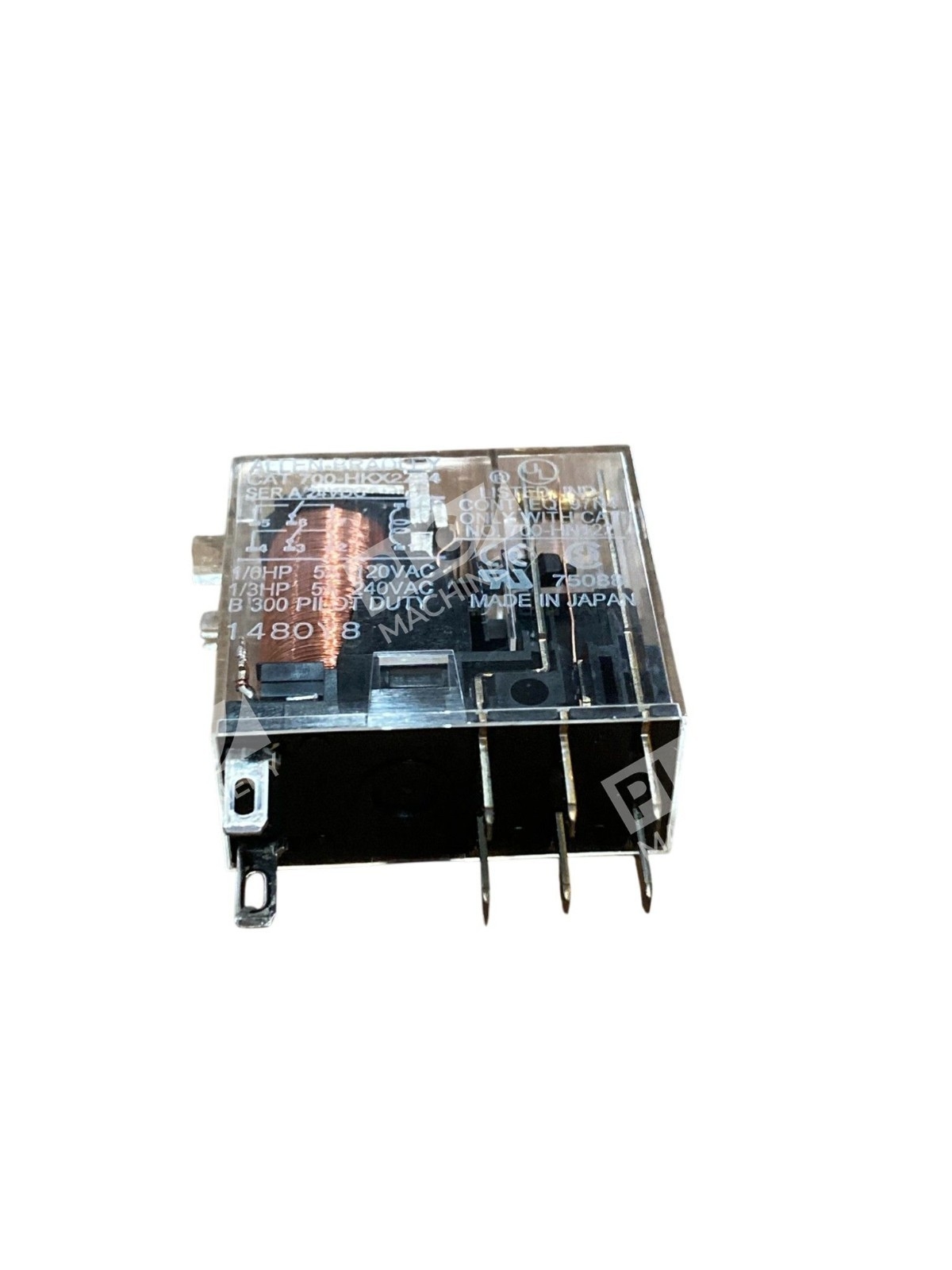

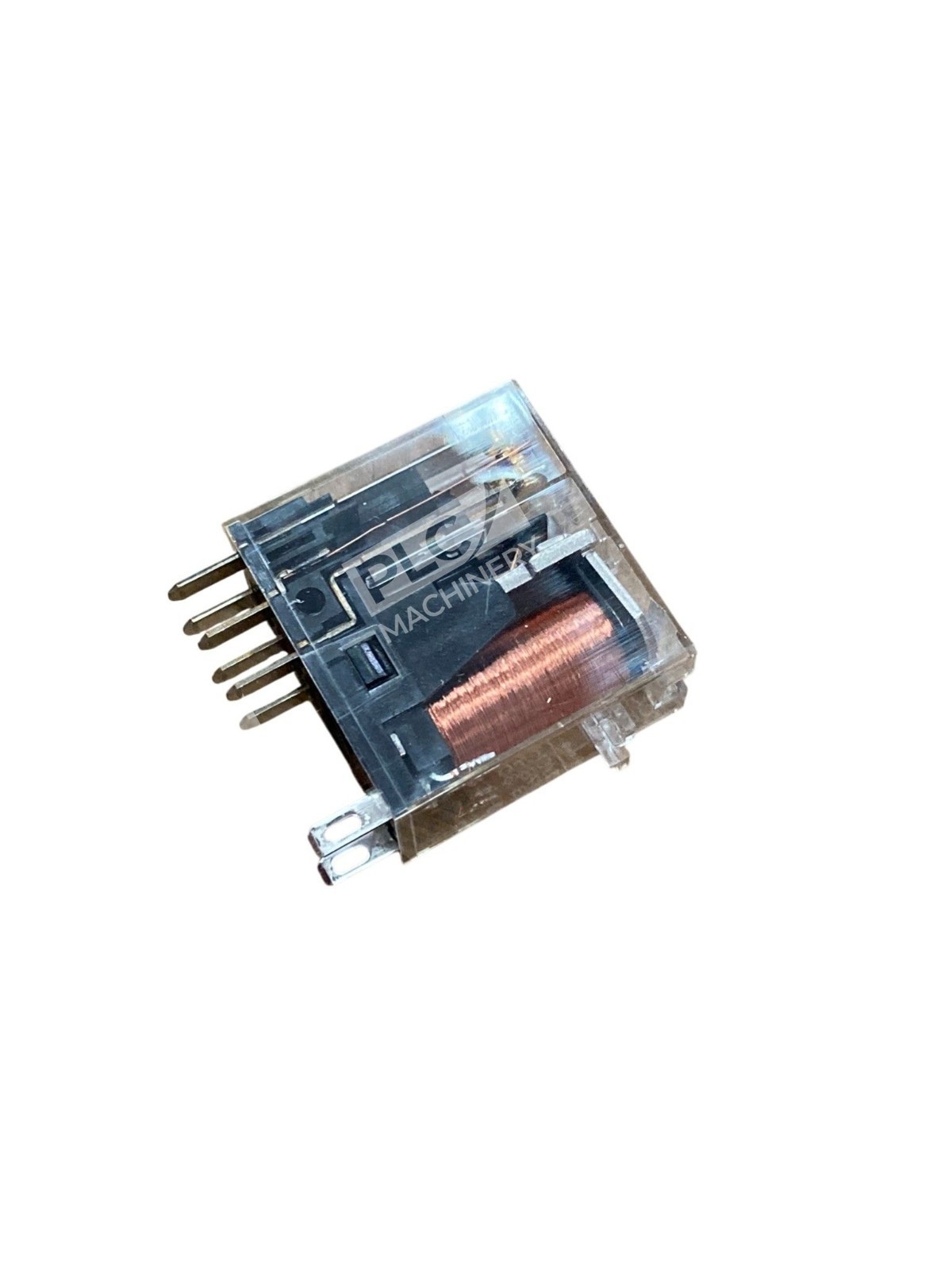

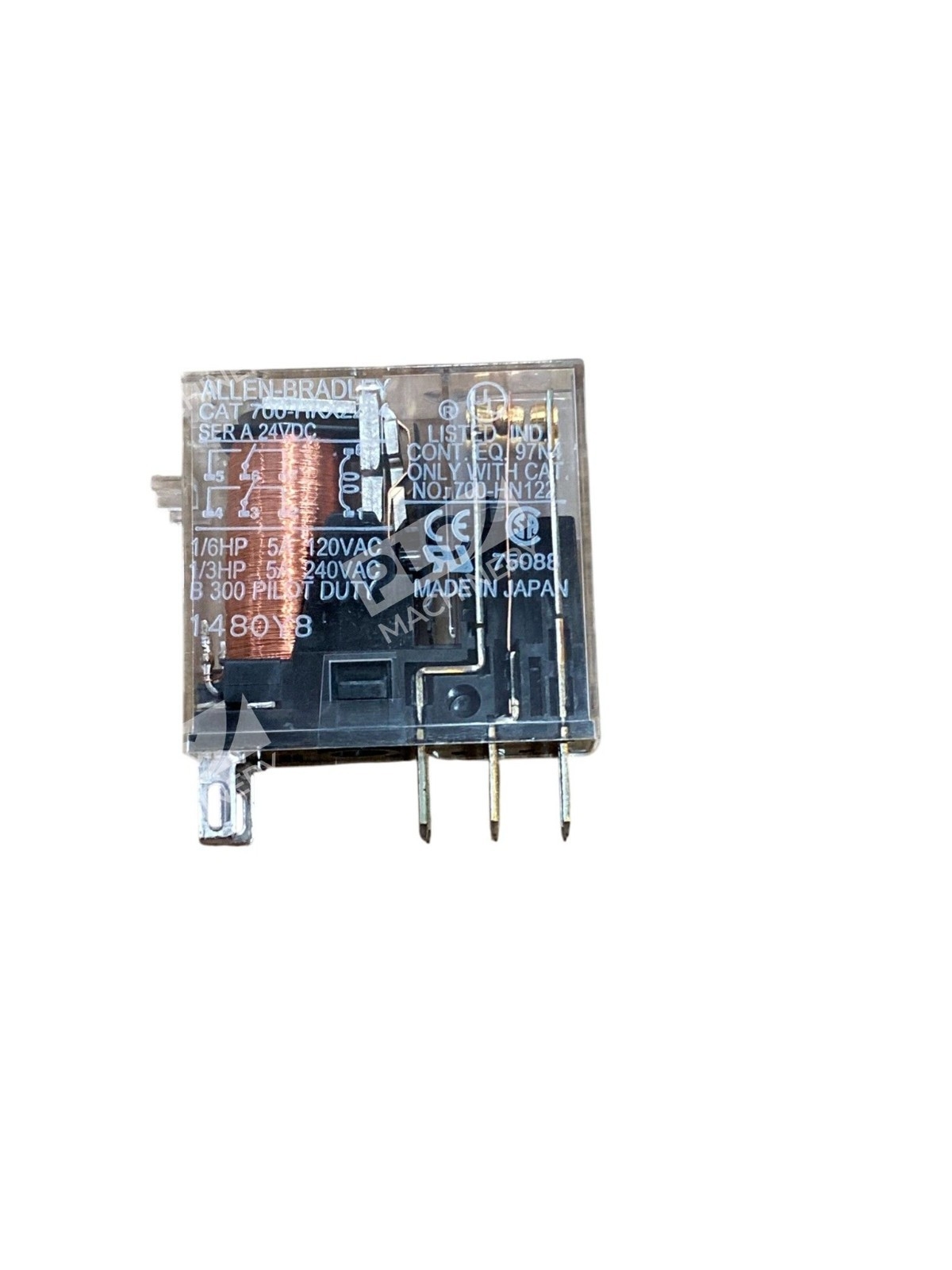

The Allen-Bradley 700-HKX2Z24 is a compact, general-purpose slim line relay designed for industrial control and automation applications. This 24V DC relay features a proven design and reliable performance for switchgear, control panels, and distributed automation systems. New in box condition ensures full functionality and factory specifications.
Key Features
- DPDT (Double Pole Double Throw) contact configuration for flexible switching logic
- Gold-plated silver/nickel contacts for enhanced durability and reduced contact wear
- 8A switching current rating suitable for motor starters, solenoids, and control circuits
- Plug-in blade-style terminals (2.5 × 0.5 mm) for fast, secure mounting
- Low coil power consumption (500 mW) reduces heat generation and extends service life
- Standard ON/OFF flag indicator for visual status confirmation
- 4 kV isolation between coil and contacts for safe operation
Technical Specifications
- Coil Voltage: 24V DC
- Contact Configuration: DPDT (2 Poles, 2 Changeover Contacts)
- Switching Current: 8A
- Contact Material: Gold-plated Silver/Nickel
- Coil Power: 500 mW
- Coil Resistance: 1200 Ω
- Dielectric Strength: 2000 VAC (pole to pole), 4000 VAC (contact to coil)
- Mounting Type: Plug-in with retainer clip
- Operating Cycles: 10,000,000 mechanical, 100,000 electrical
- Terminal Type: Blade-style (2.5 × 0.5 mm)
- Series: 700-HK
- Certifications: UL Listed, CSA Listed, CE Marked
Typical Applications
- Motor control circuits and starter logic
- Solenoid and contactor switching
- Alarm and indicator lamp circuits
- Interlock and safety logic circuits
- Distributed control and PLC I/O switching
- Industrial panel and switchboard control
Compatibility & Replacements
Compatible With
- Allen-Bradley Bulletin 700 relay sockets and sub-bases
- Standard 24V DC industrial control systems
- Rockwell Automation ControlLogix and CompactLogix discrete I/O
- PLC and automation panel retrofit applications
- Universal relay mounting footprints (Type HK)
Replaces / Drop-In Replacement For
The 700-HKX2Z24 directly replaces previous generations of Allen-Bradley 700-HK relays with identical pinout and performance ratings. Verify compatibility with your system integrator before ordering for legacy system retrofits.
Works With
- RSLogix 5, Studio 5000, and Logix platforms (discrete I/O mapping)
- Rockwell Automation AutomationStudio and TechConnect
- NEMA industrial control standards (ANSI C37)
- Standard 24V DC power supplies and uninterruptible power systems
