Overview

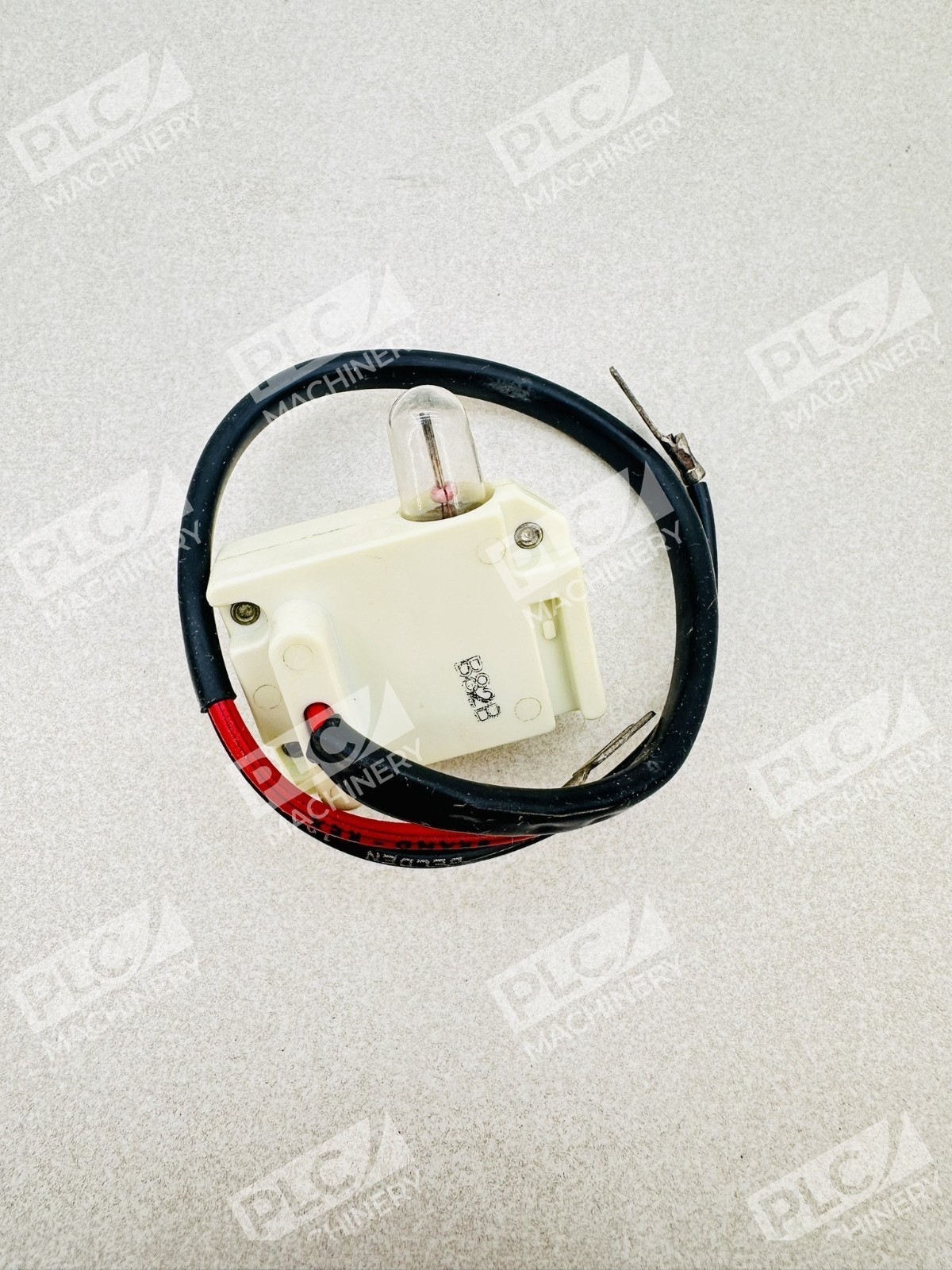

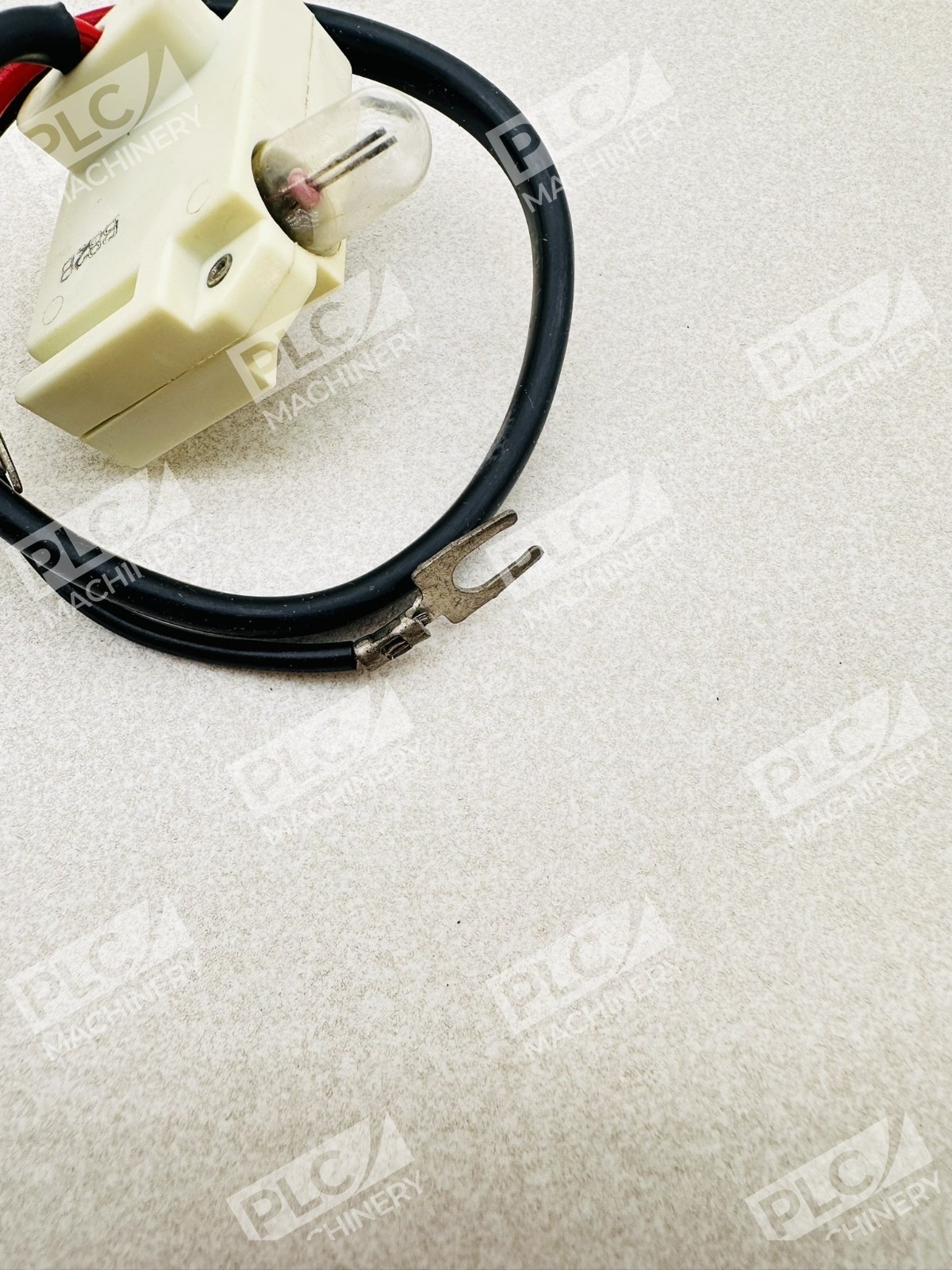

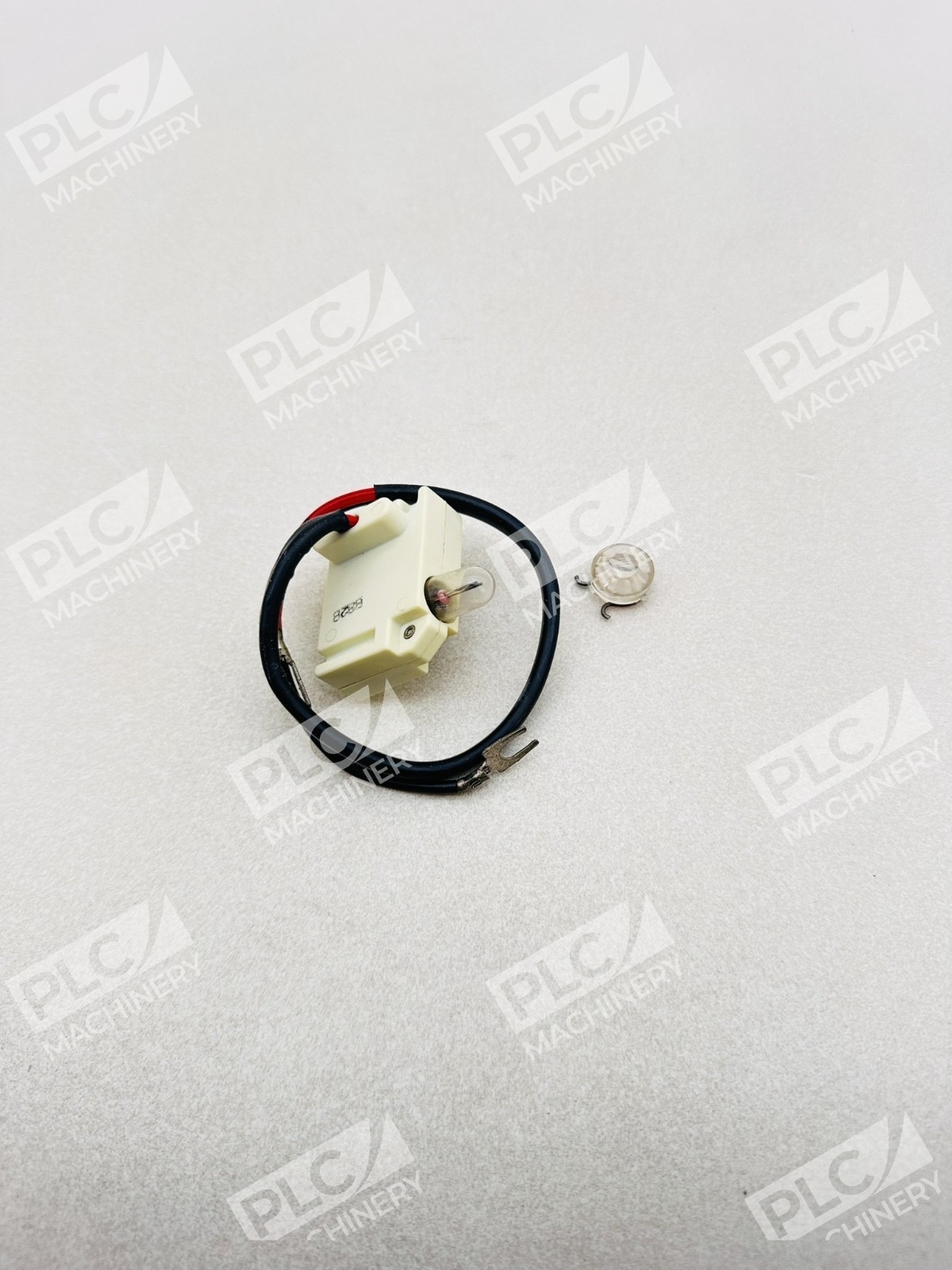

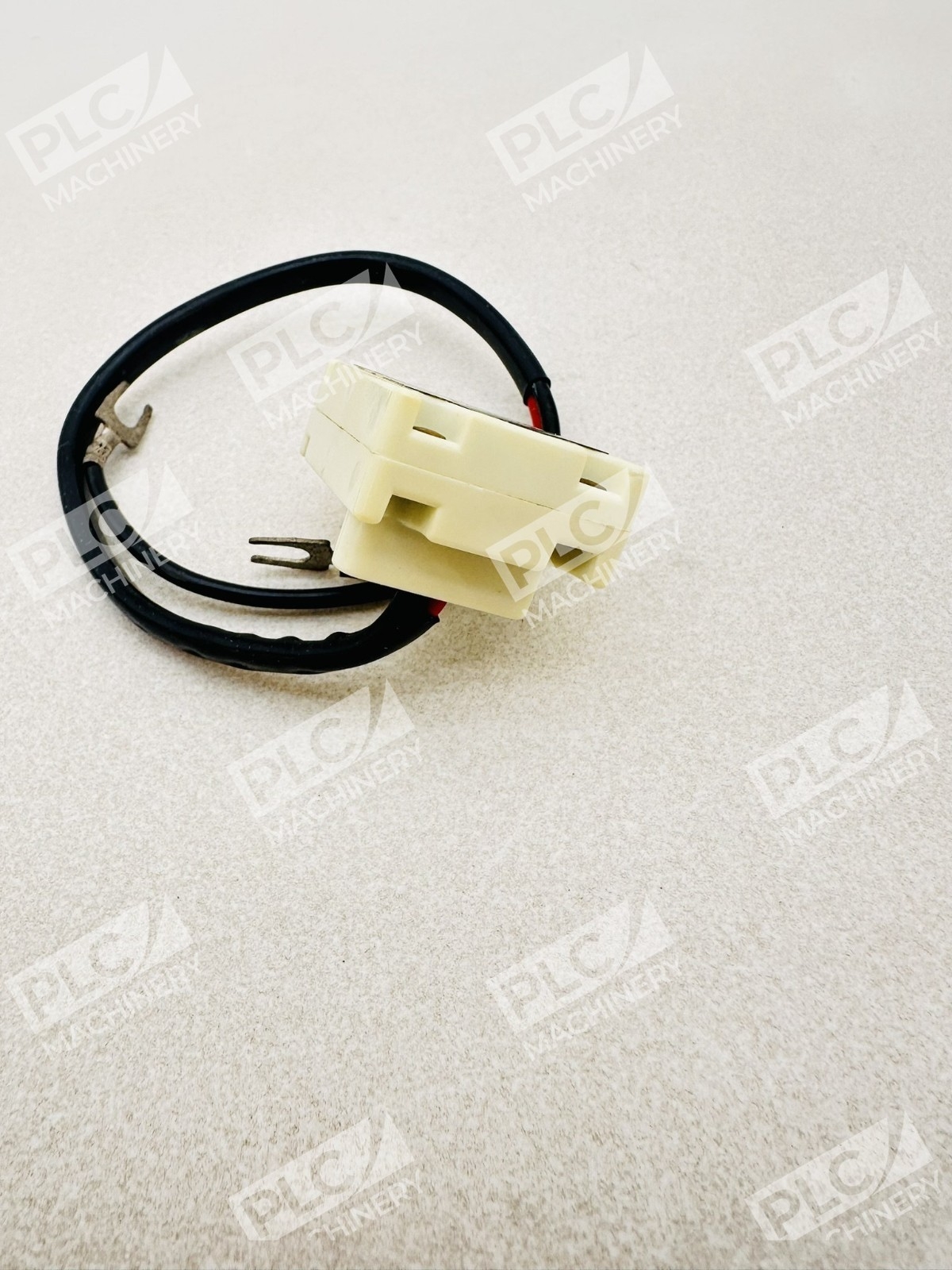

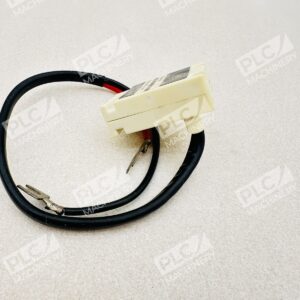

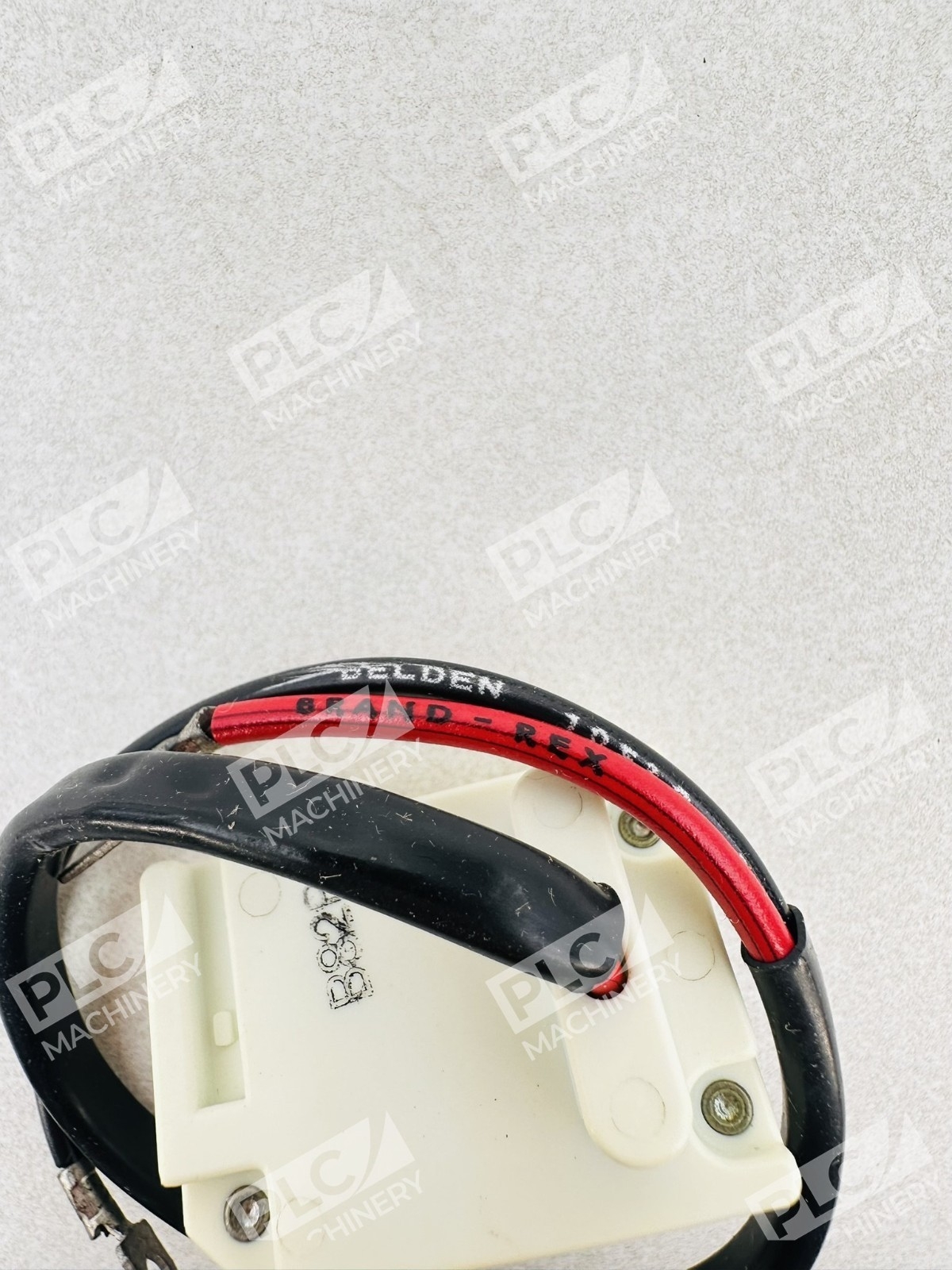

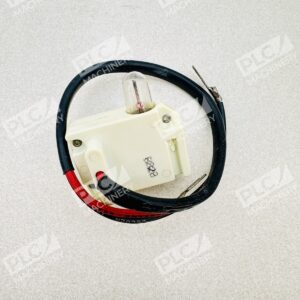

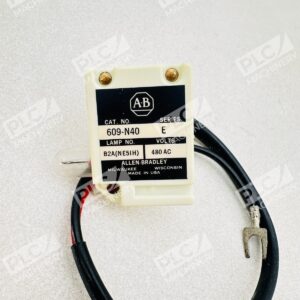

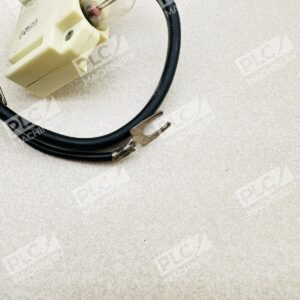

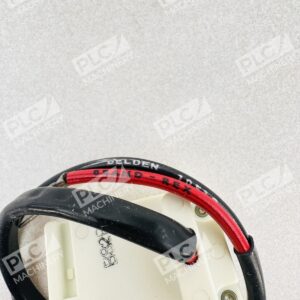

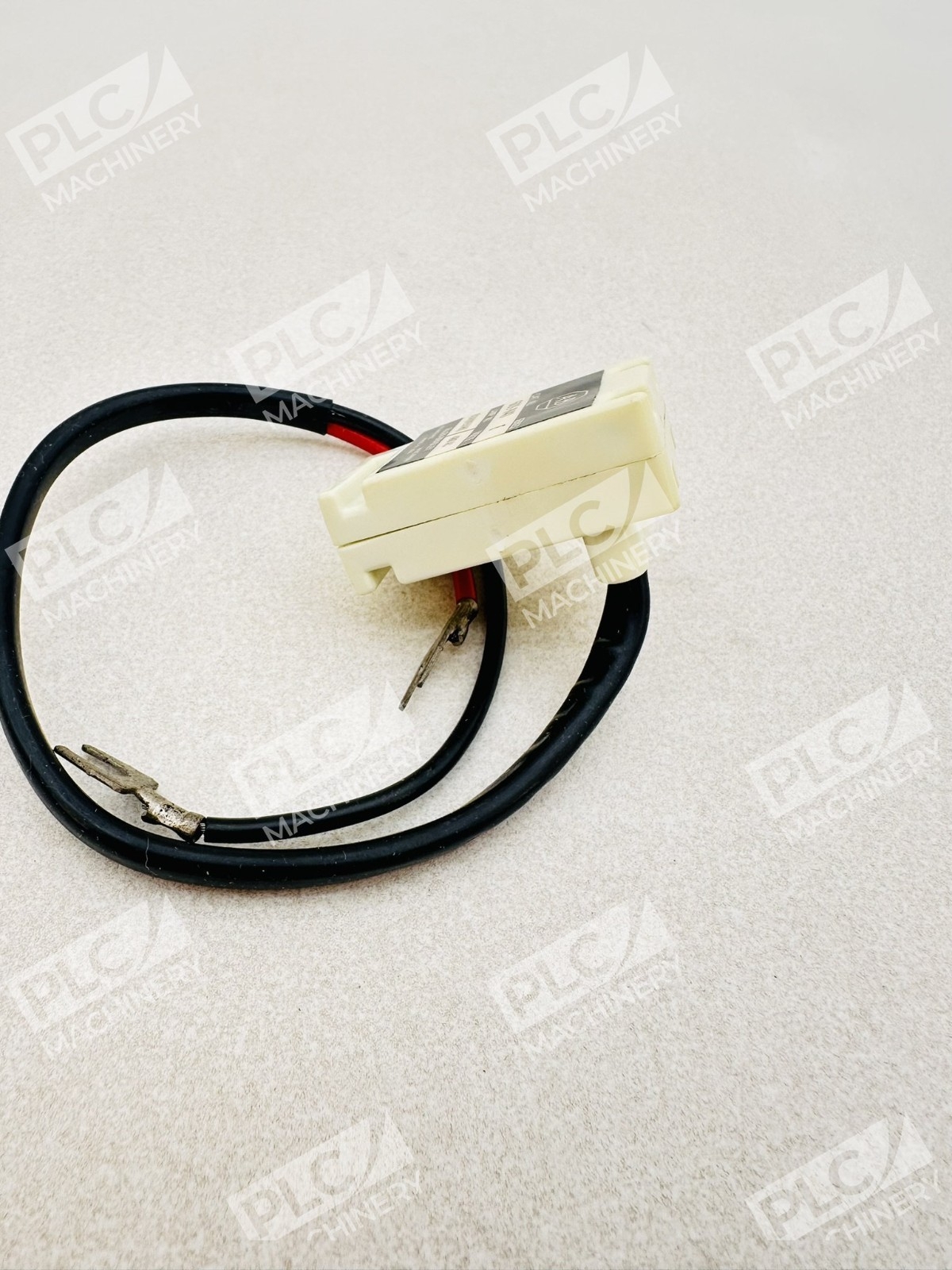

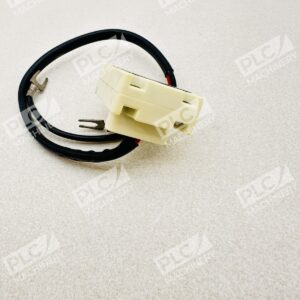

The Allen-Bradley 609-N40 pilot light kit is a field-installable accessory for Bulletin 609 and 609U manual motor starters. Rated for 480V applications, this Series E component integrates seamlessly into NEMA 1 general purpose surface or flush mounting enclosures to provide operator visibility and control feedback in industrial environments.
Key Features
- Field-installable design for quick integration with existing manual motor starters
- 480V rated for industrial three-phase applications
- NEMA 1 general purpose enclosure compatibility (surface and flush mount)
- Series E specification for Bulletin 609 and 609U manual starting switches
- Heavy-duty construction suitable for manufacturing and plant automation environments

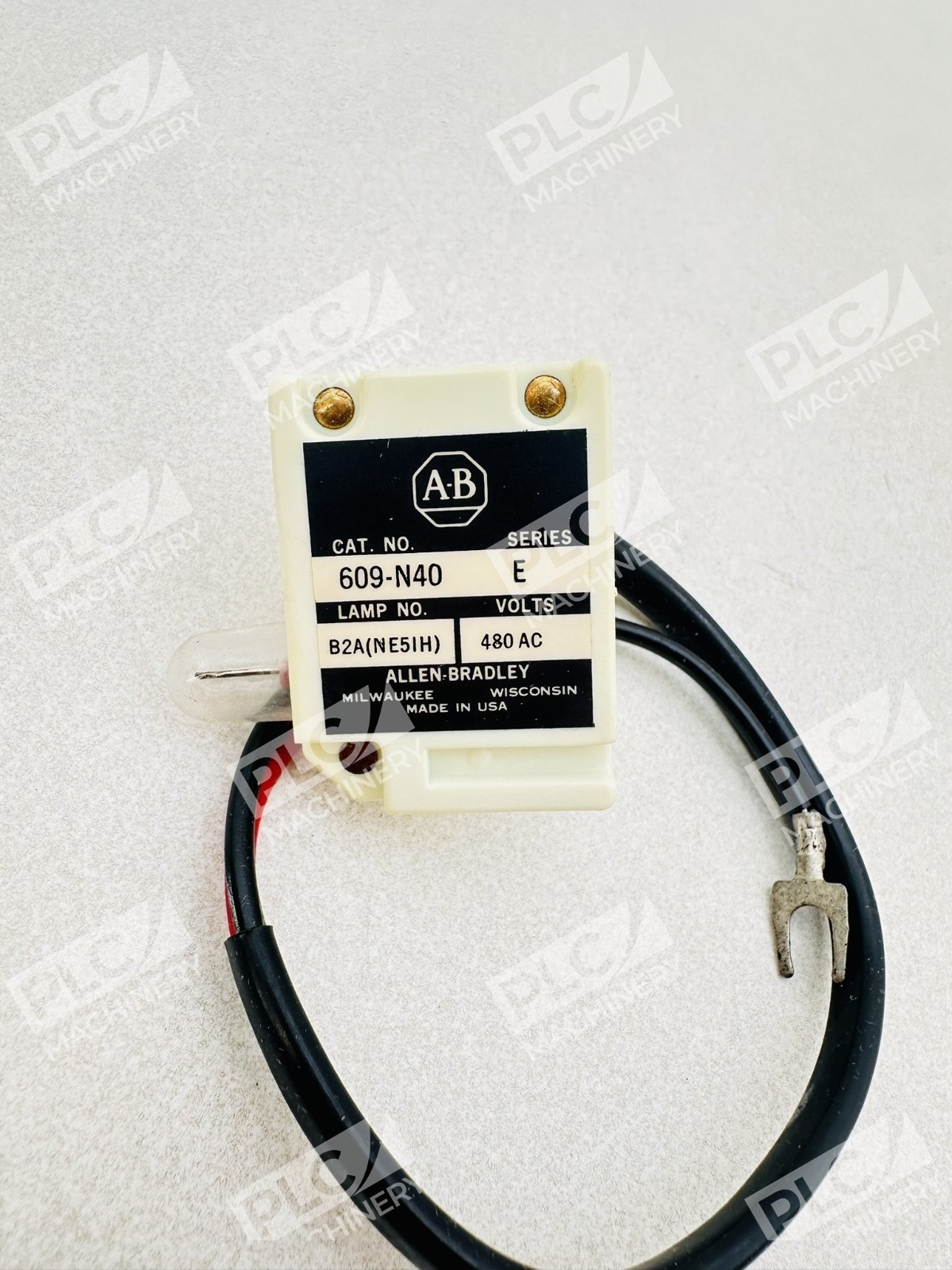

Technical Specifications
- Voltage Rating: 480V AC
- Series: E
- Part Number: 609-N40
- Product Type: Pilot Light Kit
- NEMA Rating: Type 1 (General Purpose)
- Mounting Style: Surface or Flush (field-selectable)
- Manufacturer: Allen-Bradley (Rockwell Automation)

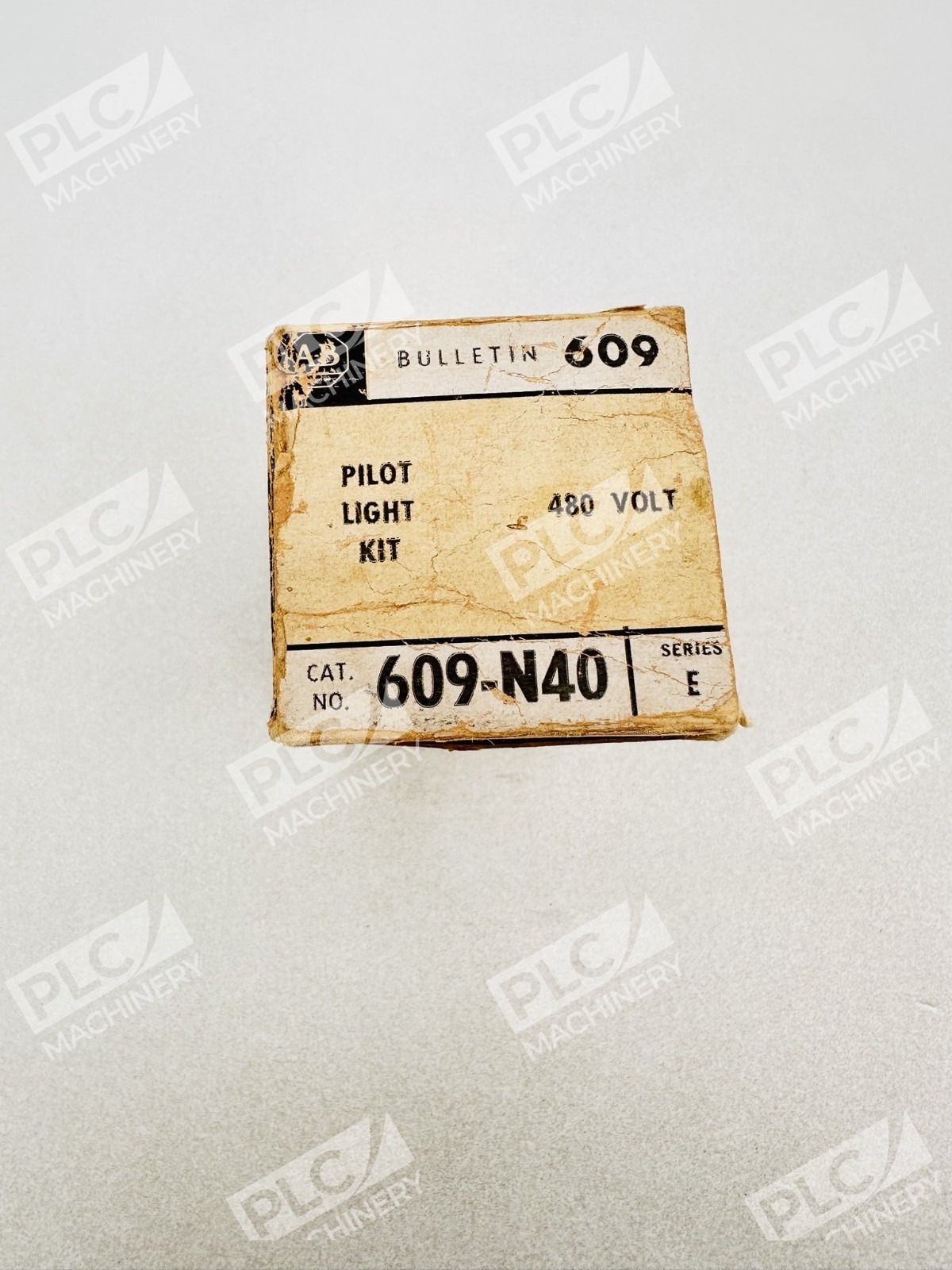

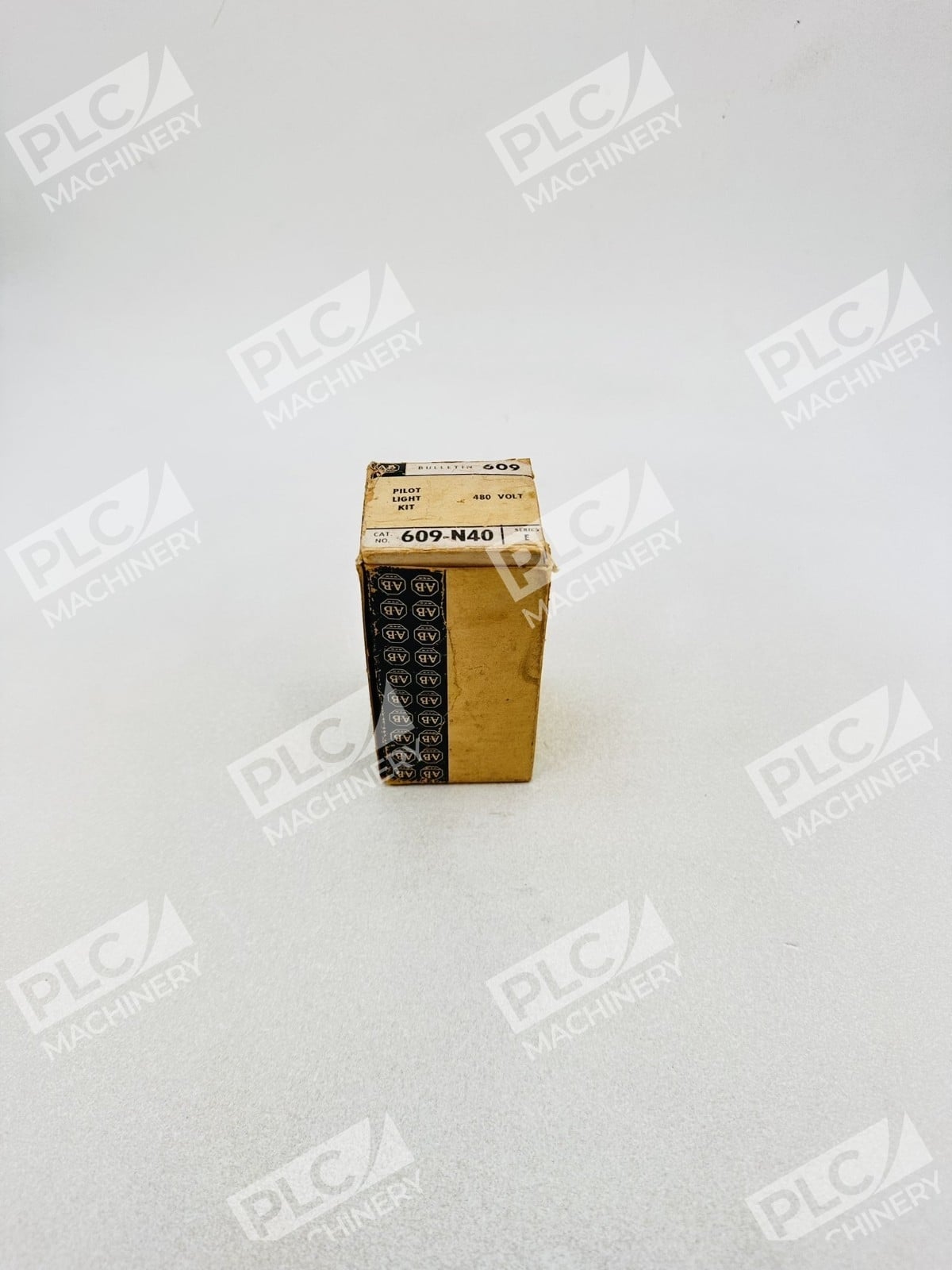

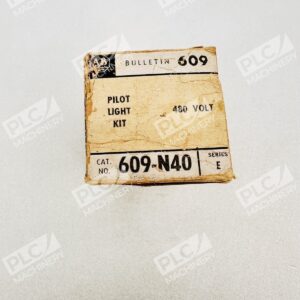

- Condition: New in Box
Typical Applications
- Manual motor starter control panels and enclosures
- Industrial automation and machinery control stations
- NEMA 1 rated electrical distribution and control cabinets
- Three-phase motor starting and protection circuits
- Plant floor equipment status indication and operator feedback
Compatibility & Replacements
Compatible With
- Allen-Bradley Bulletin 609 manual motor starters
- Allen-Bradley Bulletin 609U manual starting switches
- NEMA 1 general purpose surface-mounted enclosures
- NEMA 1 general purpose flush-mounted enclosures
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Direct replacement compatibility with alternative part numbers should be confirmed with the original equipment documentation.
Works With
- 480V three-phase industrial power systems
- Rockwell Automation Bulletin 609 / 609U control platforms
- NEMA-compliant industrial automation networks and control systems
