Overview

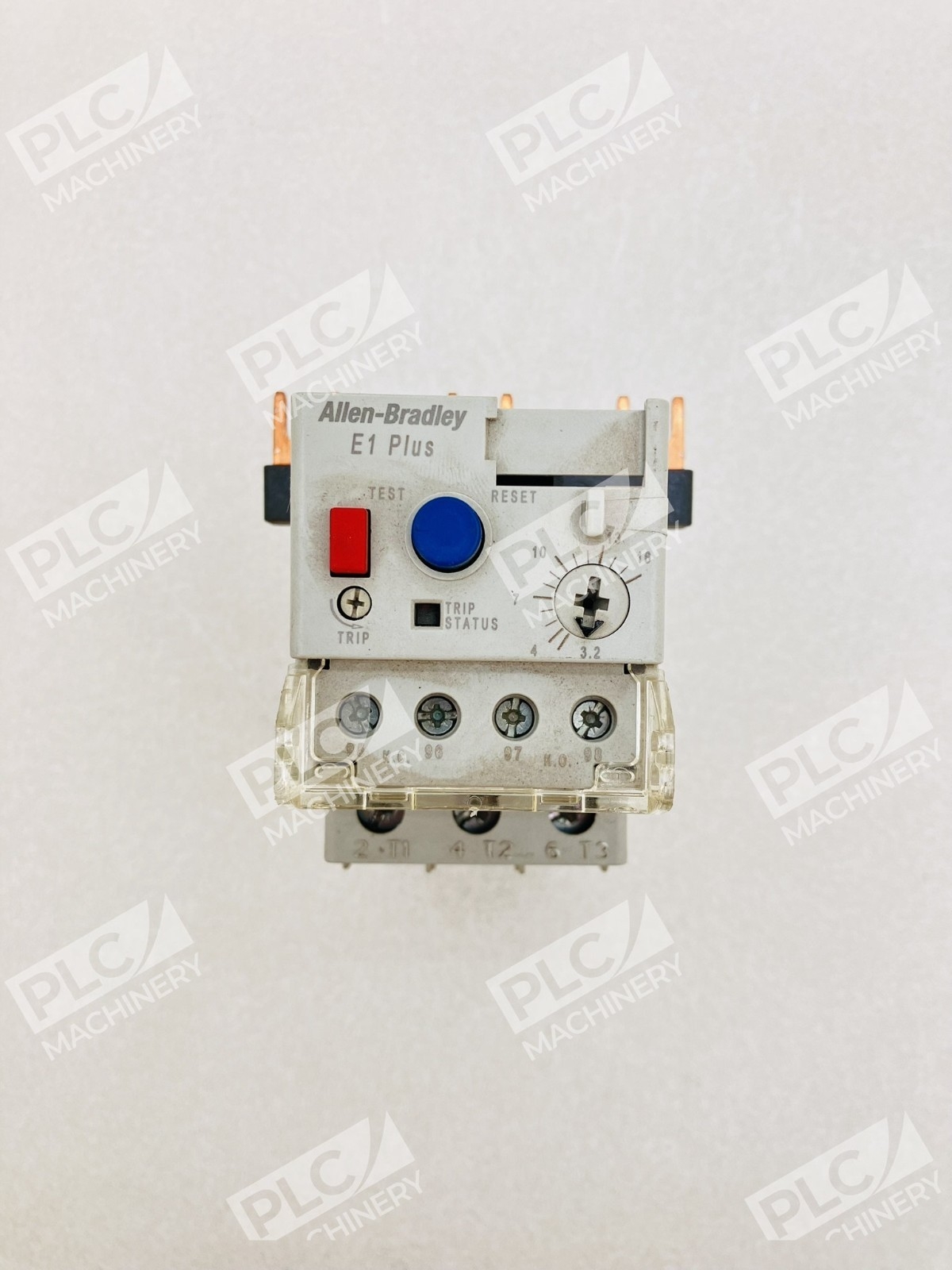

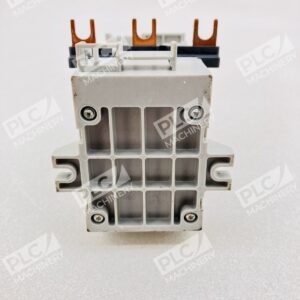

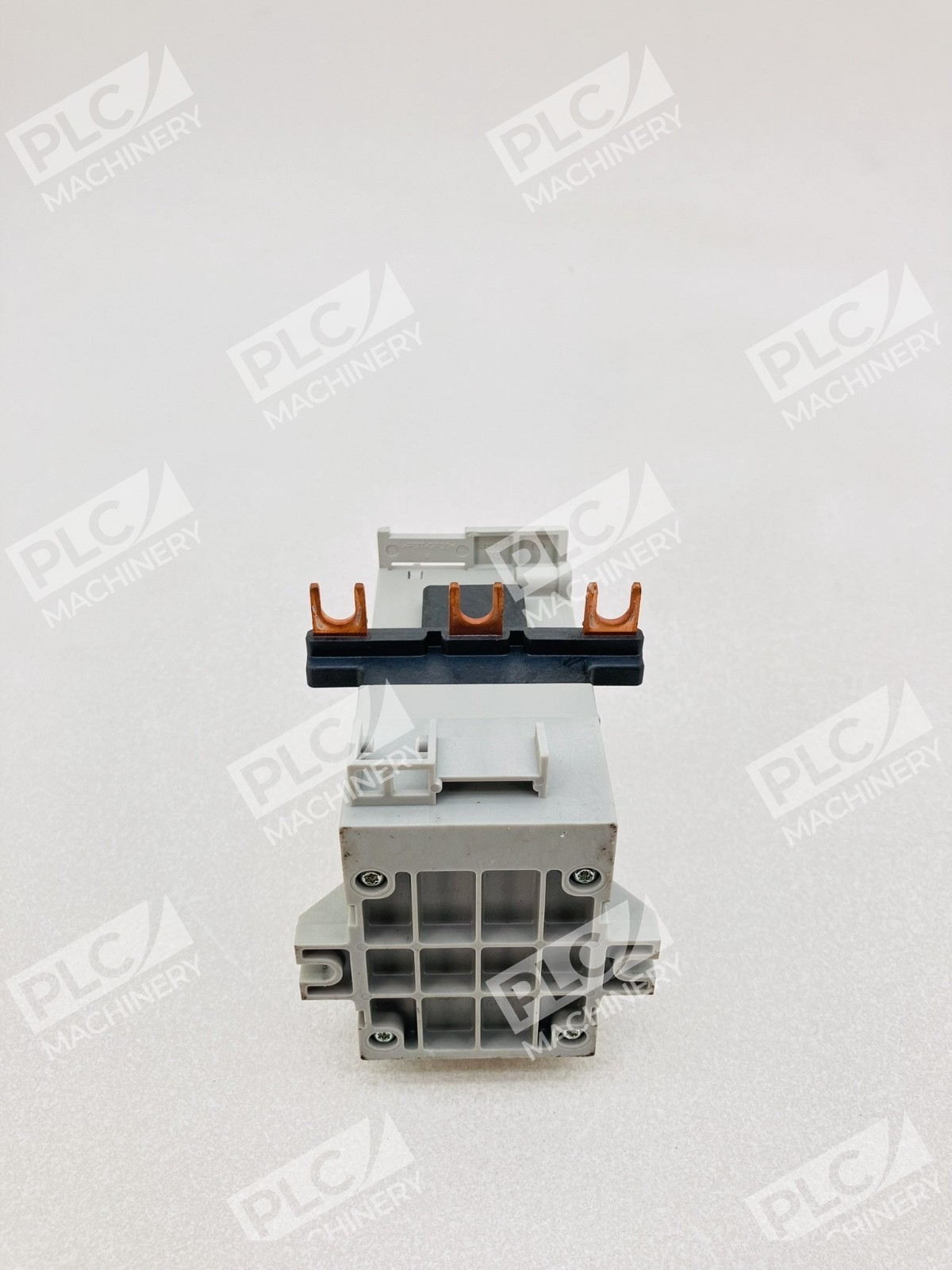

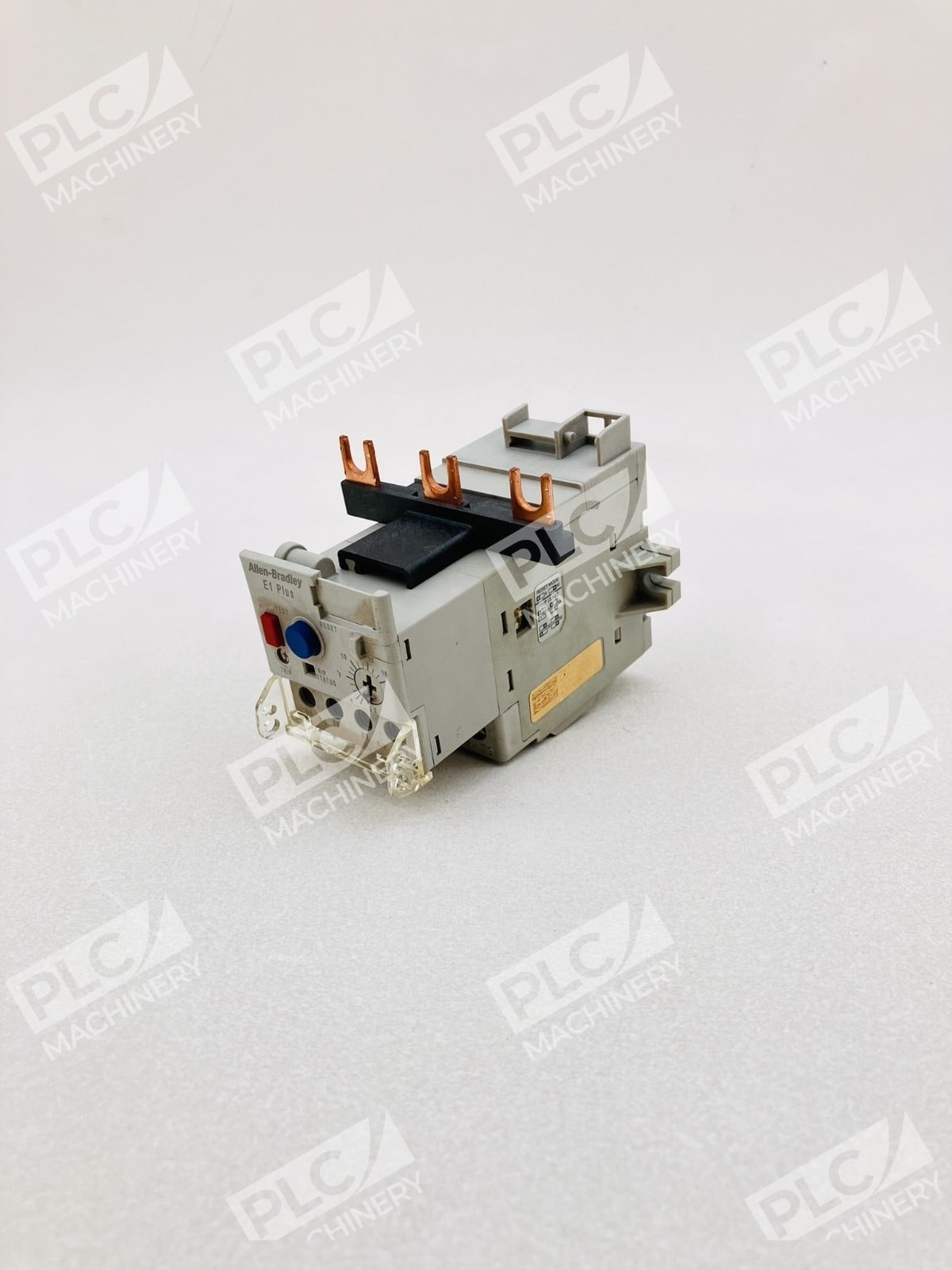

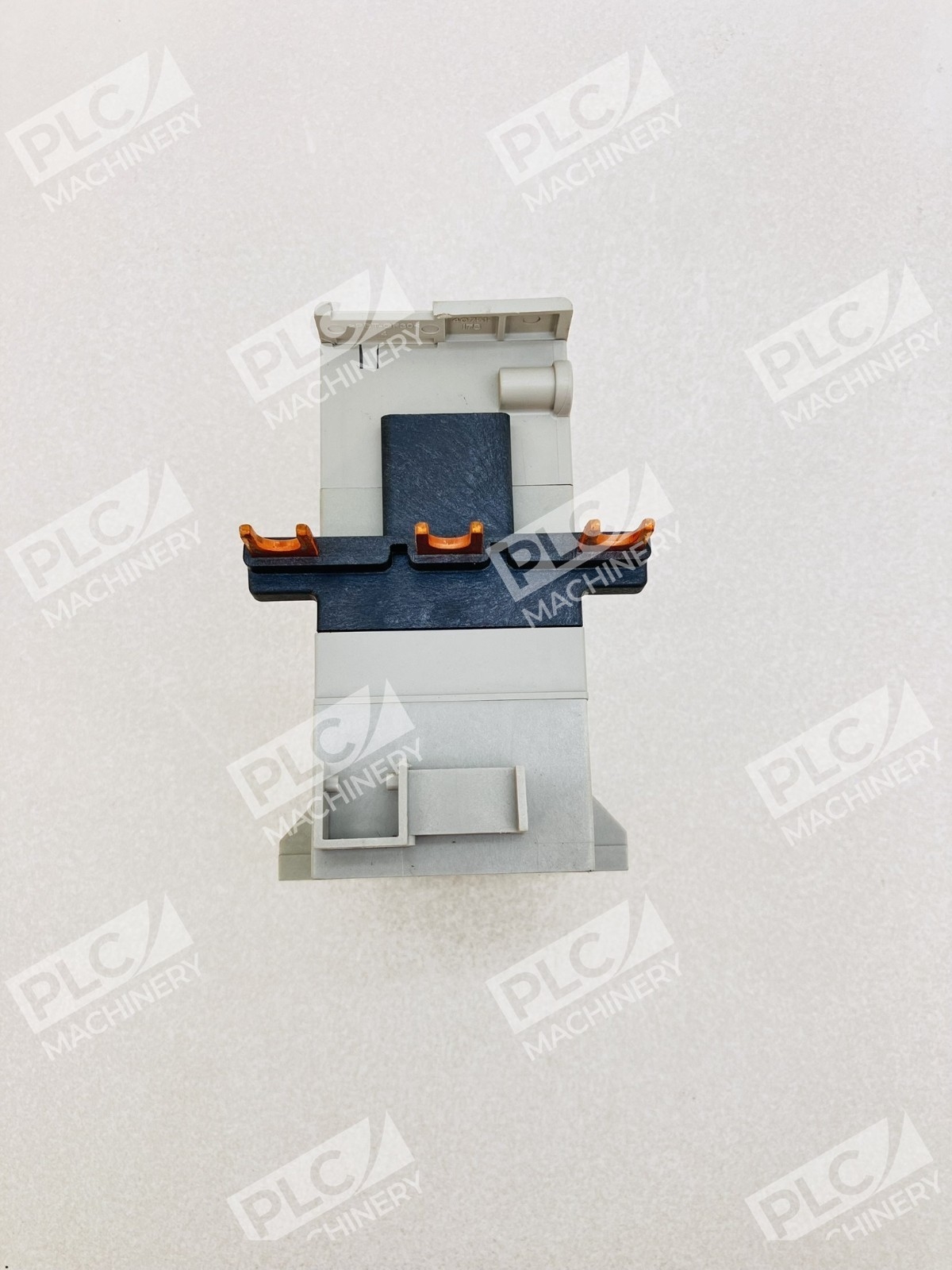

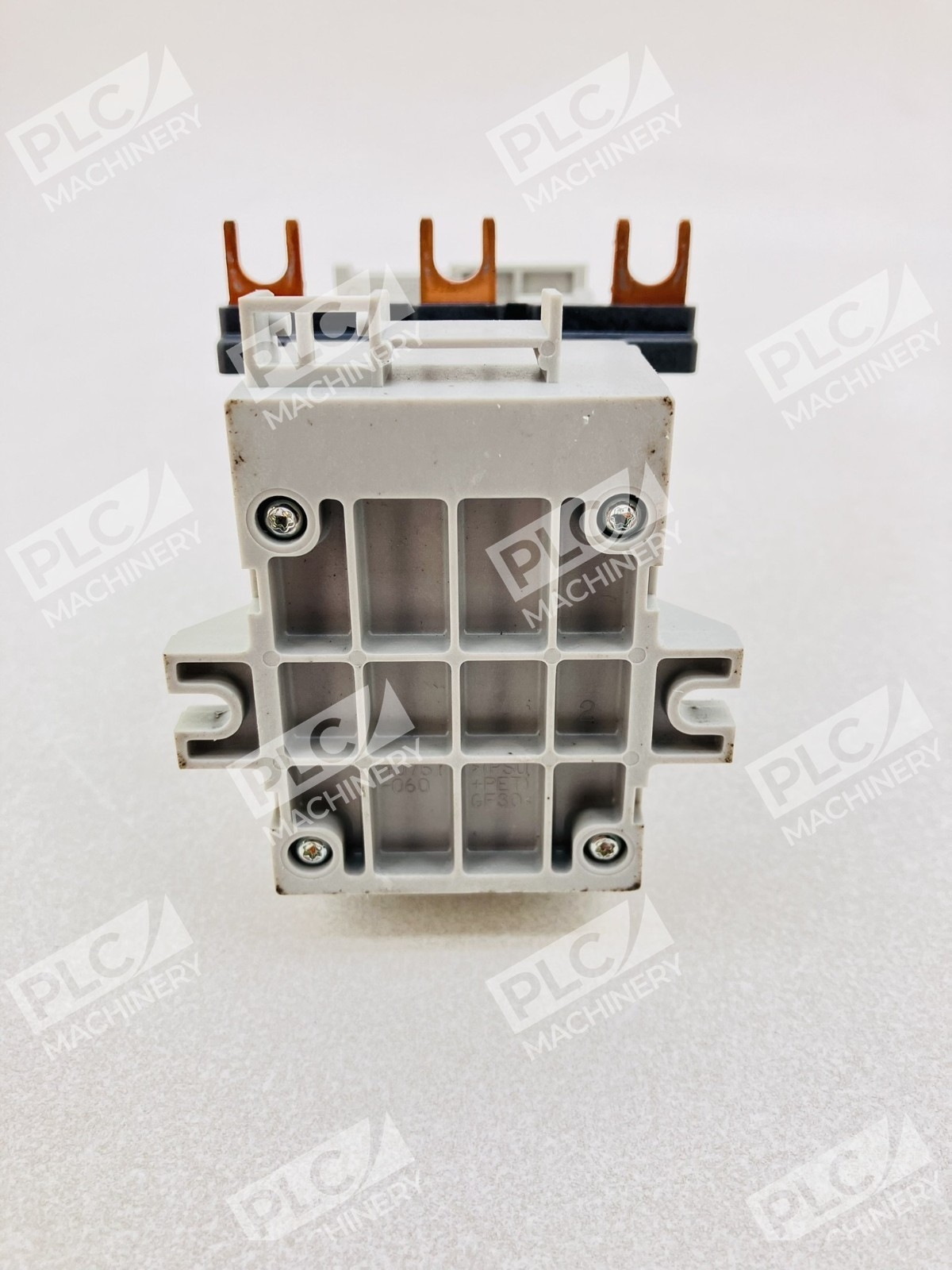

The Allen-Bradley 592-EEDC is an electronic solid-state overload relay from the Bulletin 592 series. This E1 Plus model provides dependable thermal-based motor protection by detecting overcurrent conditions and interrupting power before motor damage occurs. When coordinated with proper short-circuit protection, the 592-EEDC safeguards motors, motor controllers, and power wiring against overheating due to excessive currents.
Key Features
- Electronic solid-state design with thermal sensing for accurate current monitoring
- Adjustable full-load current range: 3.2 to 16 Amps across 5:1 adjustment ratio
- Selectable trip classes: 10, 15, 20, or 30 (adjustable via DIP switches)
- Selectable manual or auto-manual reset options for operational flexibility
- One normally open (NO) and one normally closed (NC) auxiliary contact
- Three-pole configuration with ambient temperature compensation and phase-loss sensitivity
- Rugged latching relay design with molded power connections
- IP20 protection rating suitable for standard motor control enclosures

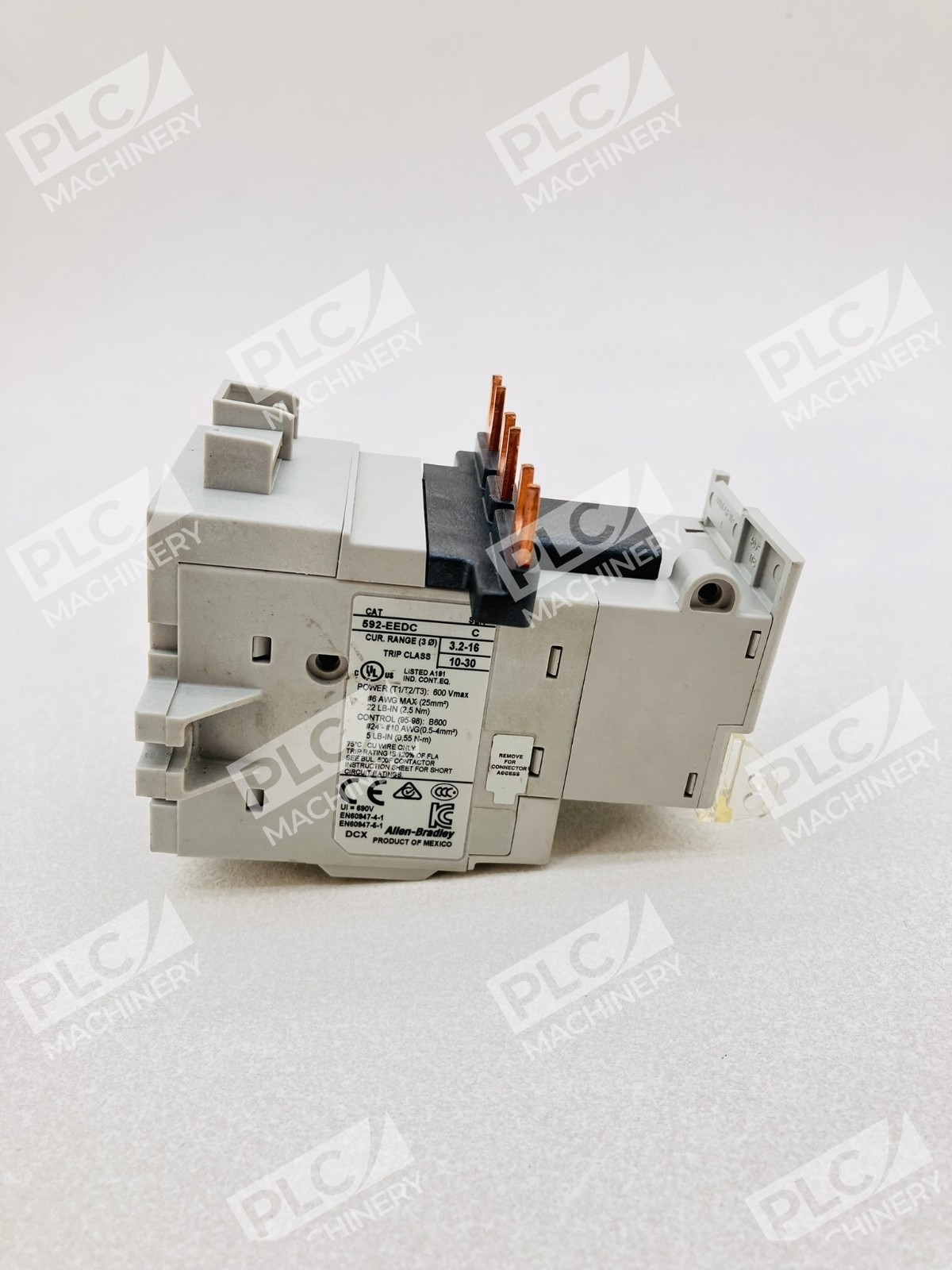

Technical Specifications

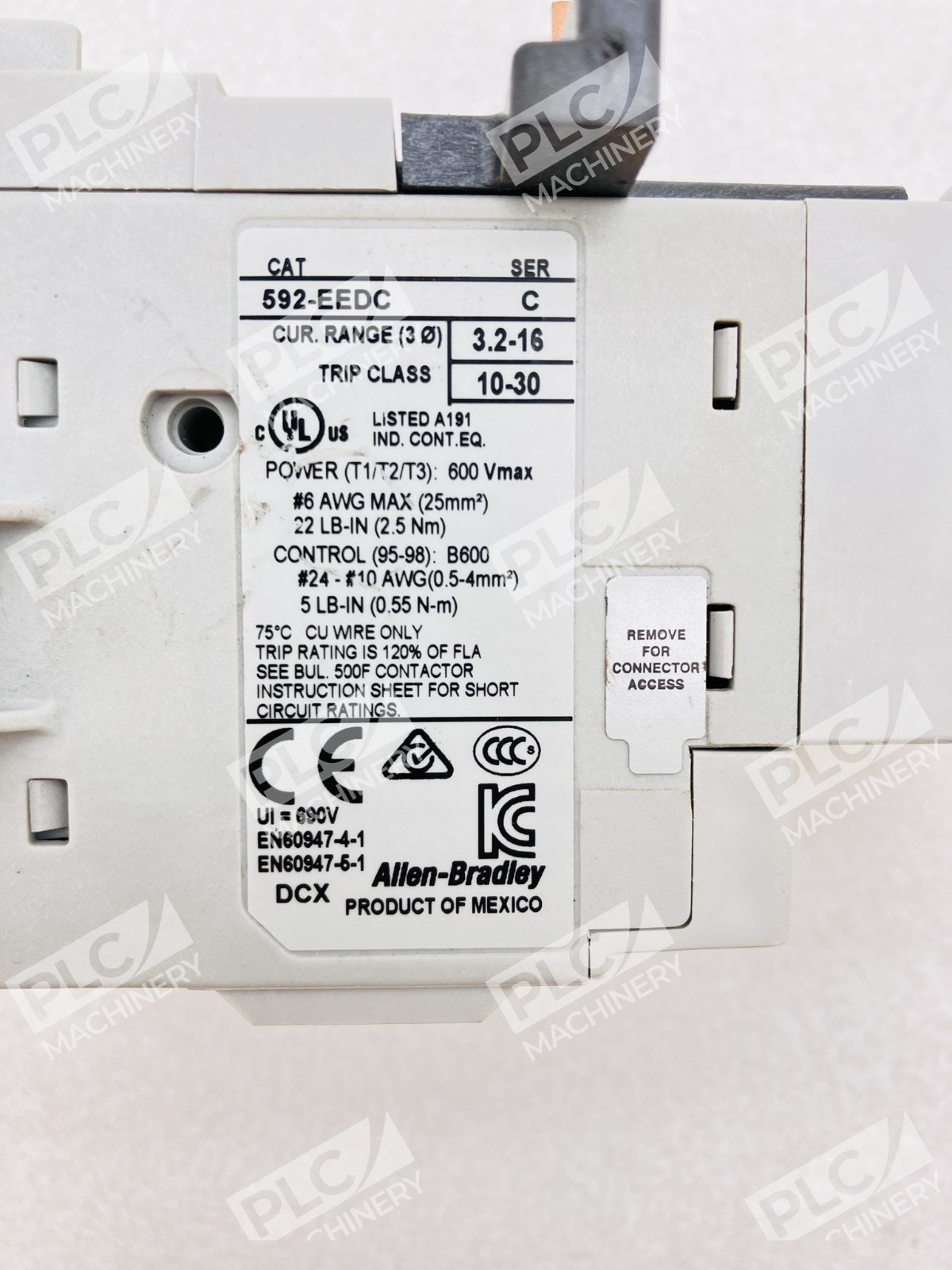

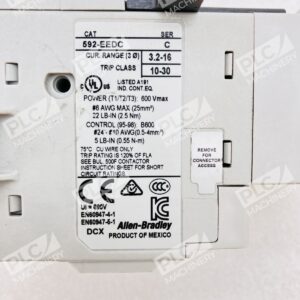

- Full Load Current (FLA) Range: 3.2 to 16 Amps (3-phase)
- Rated Current Range: 0.1 to 800 Amps
- Operating Voltage (NEMA/CSA/UL): 600 Volts AC
- Operating Voltage (IEC): 690 to 1000 Volts AC
- Trip Rating: 120% FLA
- Ambient Operating Temperature: -40°F to +185°F (-40°C to +85°C)
- Storage Temperature: -4°F to +140°F (-20°C to +60°C)
- Insulation Voltage Rating: 690 Volts AC
- Impulse Strength: 6 kVA
- Phase Loss Detection: 3 seconds
- Terminal Type: Screw (M8 recommended)
- Torque Specifications: 24 Nm (single conductor), 4 Nm (2-conductor)
- Certifications: UL, CSA, C-Tick, RCM, CE, cULus
- Product Series: Bulletin 592, E1 Plus
- Origin: Made in Mexico, Series C
Typical Applications
The 592-EEDC is ideal for:
- Three-phase induction motor protection in industrial control systems
- OEM motor control circuits and soft-starter integration
- Machinery and equipment with variable-speed or continuous-duty motors
- Food processing, packaging, HVAC, pumping, and conveyor systems
- Systems requiring adjustable overload protection and phase-loss sensing
- Retrofit applications where existing Bulletin 500 contactors are in place
Compatibility & Replacements
Compatible With
- Bulletin 500 electromechanical contactors (NEMA sizes 0, 1, and 2)
- NEMA motor starters and reversing starters
- Standard three-phase induction motors
- Motor control centers (MCCs) using Bulletin 592 mounting provisions
- Industrial control systems requiring IEC 60947 compliance
Replaces / Drop-In Replacement For
The 592-EEDC directly replaces earlier Bulletin 592 overload relays with identical mounting and contact configurations. Verify your existing relay model and FLA range with documentation before ordering to ensure proper current rating.
Works With
- Bulletin 500 contactors and starters
- Standard NEMA push-button stations and control circuits
- IEC 60947-2 industrial control equipment
- Rockwell Automation motor control systems and drives
- Direct-on-line (DOL) and soft-starter motor protection schemes
