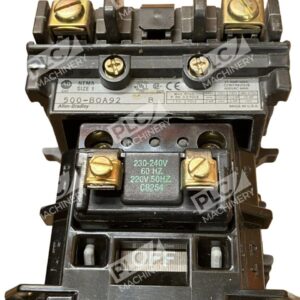

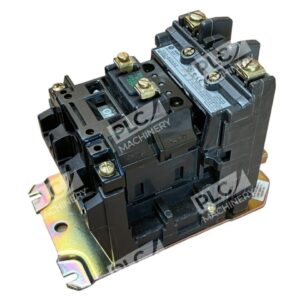

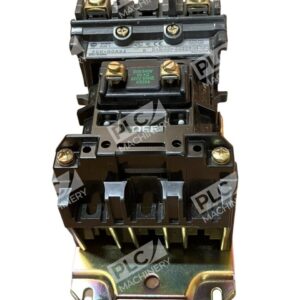

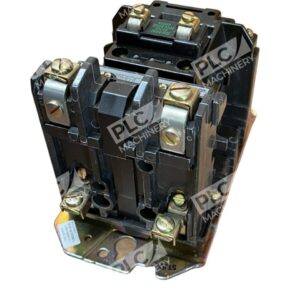

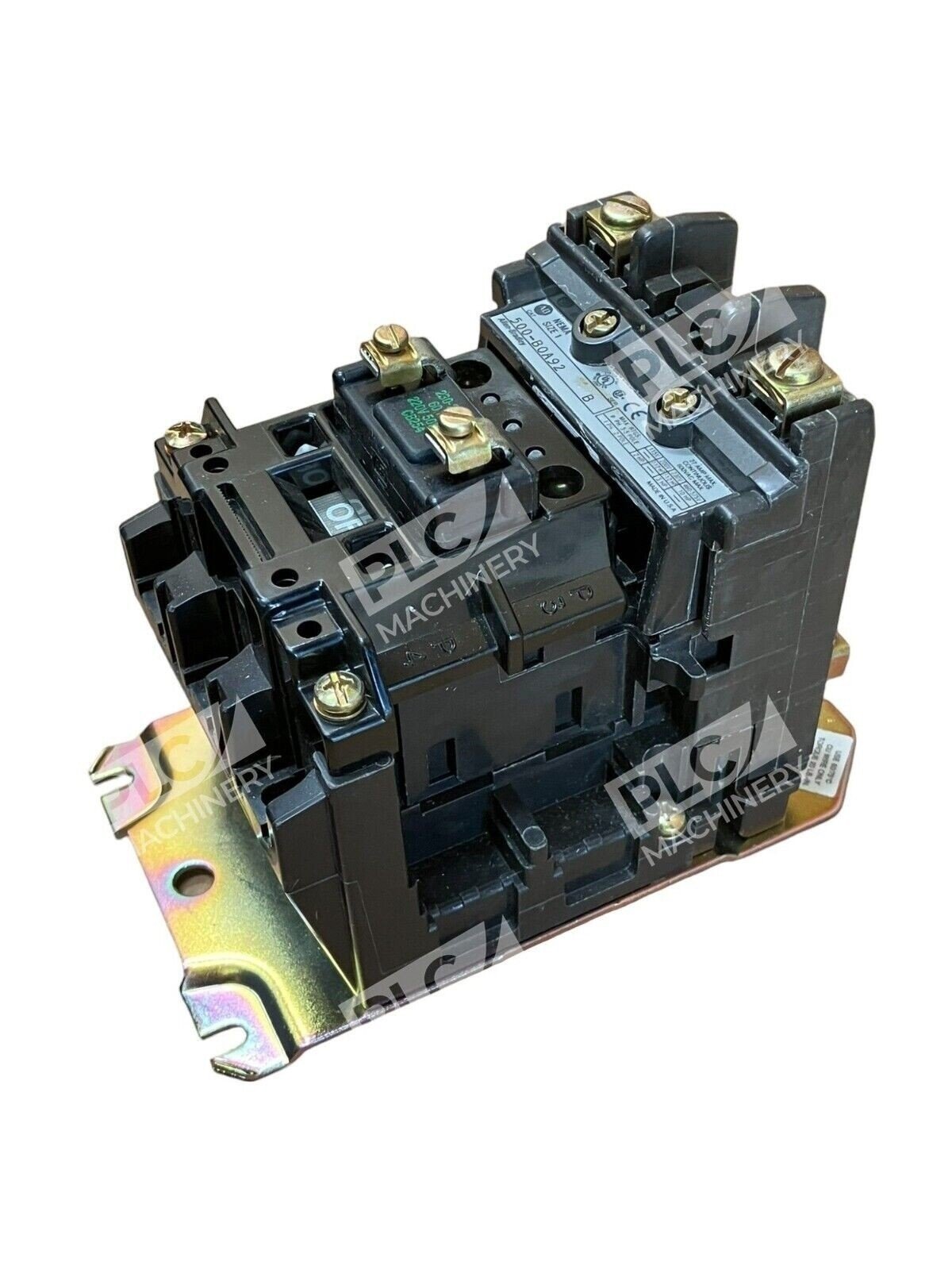

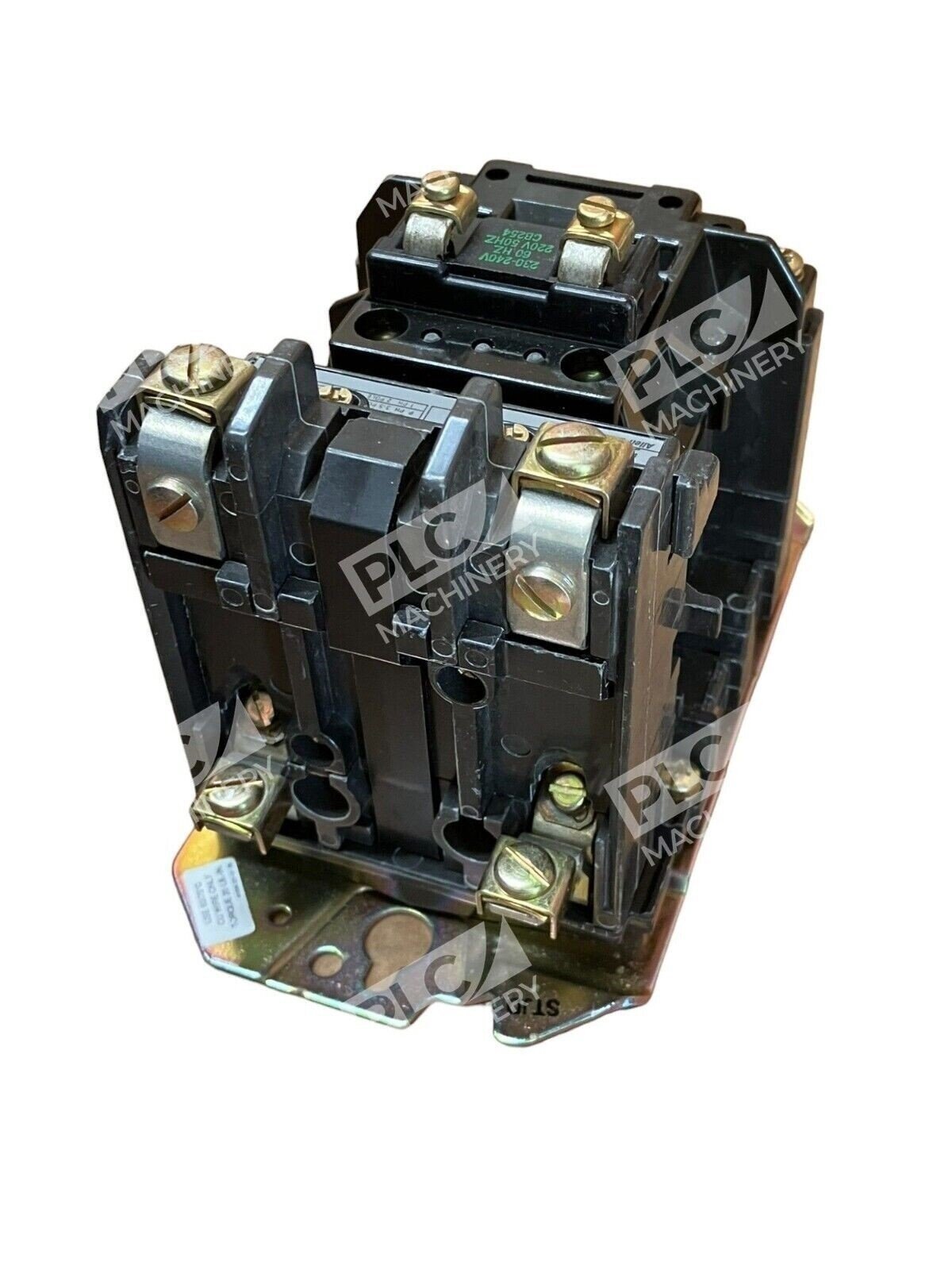

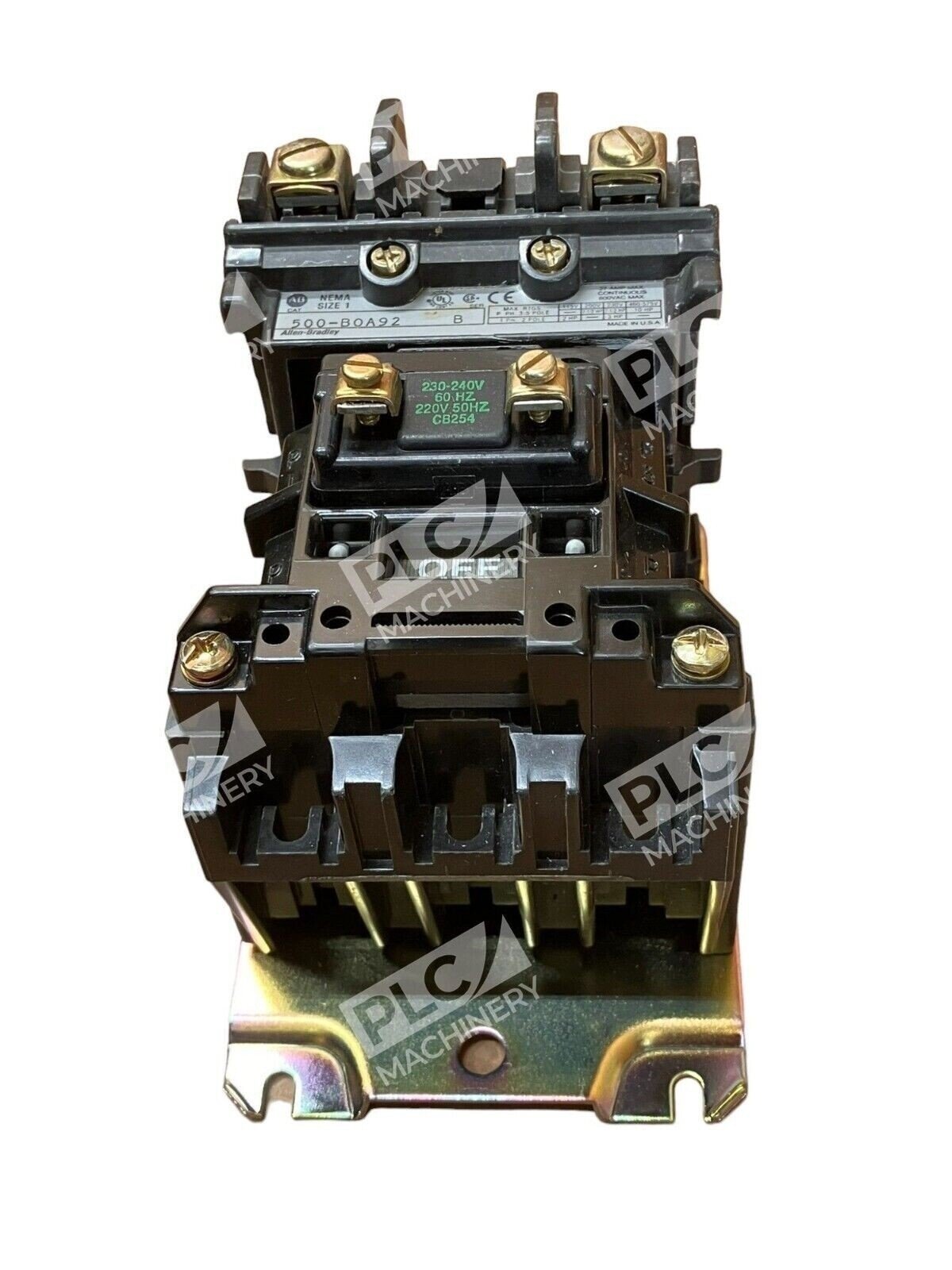

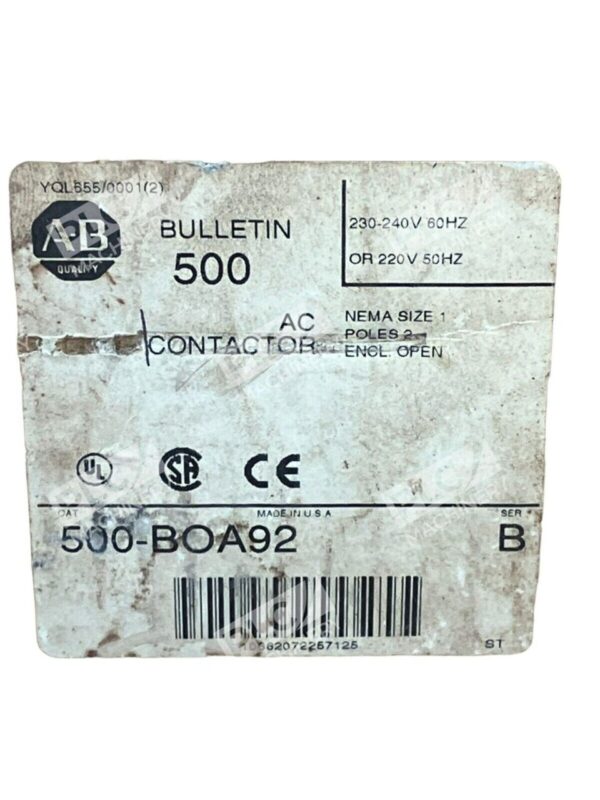

Allen-Bradley 500-BOA92 Series B Contactor

The Allen-Bradley 500-BOA92 Series B is a NEMA Size 1 electrically held lighting contactor, engineered for efficient control of lighting and non-motor loads in industrial applications. This robust device ensures reliable operation and durability, meeting the demands of various electrical control systems.

Key Features

• Voltage Rating: Operates at 230-240V AC, 60 Hz, suitable for standard industrial power systems.
• Current Rating: Supports a maximum continuous current of 30A for non-motor and lighting loads, accommodating a range of applications.
• Pole Configuration: Equipped with 2 power poles, facilitating effective control of connected circuits.
• Enclosure Type: Open type design, allowing for straightforward integration into existing control panels.
• Coil Voltage: Designed with a coil voltage of 230-240V AC at 60 Hz, ensuring compatibility with common industrial power supplies.

Technical Specifications

• Service Limit Current Rating: 32A
• Heat Dissipation: 5.9 W
• Wire Size for Power Terminals: #14 to #8 AWG
• Operating Volt-Amperes Burden: Sealed: 29VA at 60 Hz
• Coil Operating Limits: 85%
• Mechanical Life Operations: 10 million cycles
• Average Operating Time: Pick-up: 22 ms; Drop-out: 14 ms
• Required Torque on Power Terminal Wire Clamps: 20 in-lb
• Dimensions: Width: 90.5 mm; Height: 152 mm; Depth: 113 mm
• Shipping Weight: Approximately 3 lb (1.4 kg)
• Power Contact Material: Silver Alloy
• Auxiliary Contact Material: Silver
• Operating Position: Vertical
• Corrosion Resistance: All metal parts are treated for corrosion resistance

Applications

The 500-BOA92 Series B contactor is ideal for controlling lighting circuits and other non-motor loads in various industrial settings, including manufacturing facilities, commercial buildings, and infrastructure projects. Its robust design and reliable performance make it a preferred choice for ensuring efficient and safe electrical control.

Additional Information

For detailed technical data, installation guidelines, and maintenance instructions, refer to the product’s technical documentation. Ensure compliance with local electrical codes and standards when integrating this contactor into your systems.
