Overview

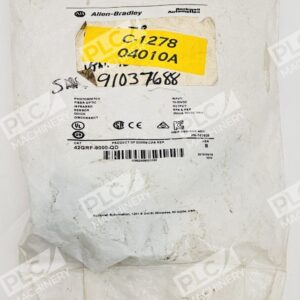

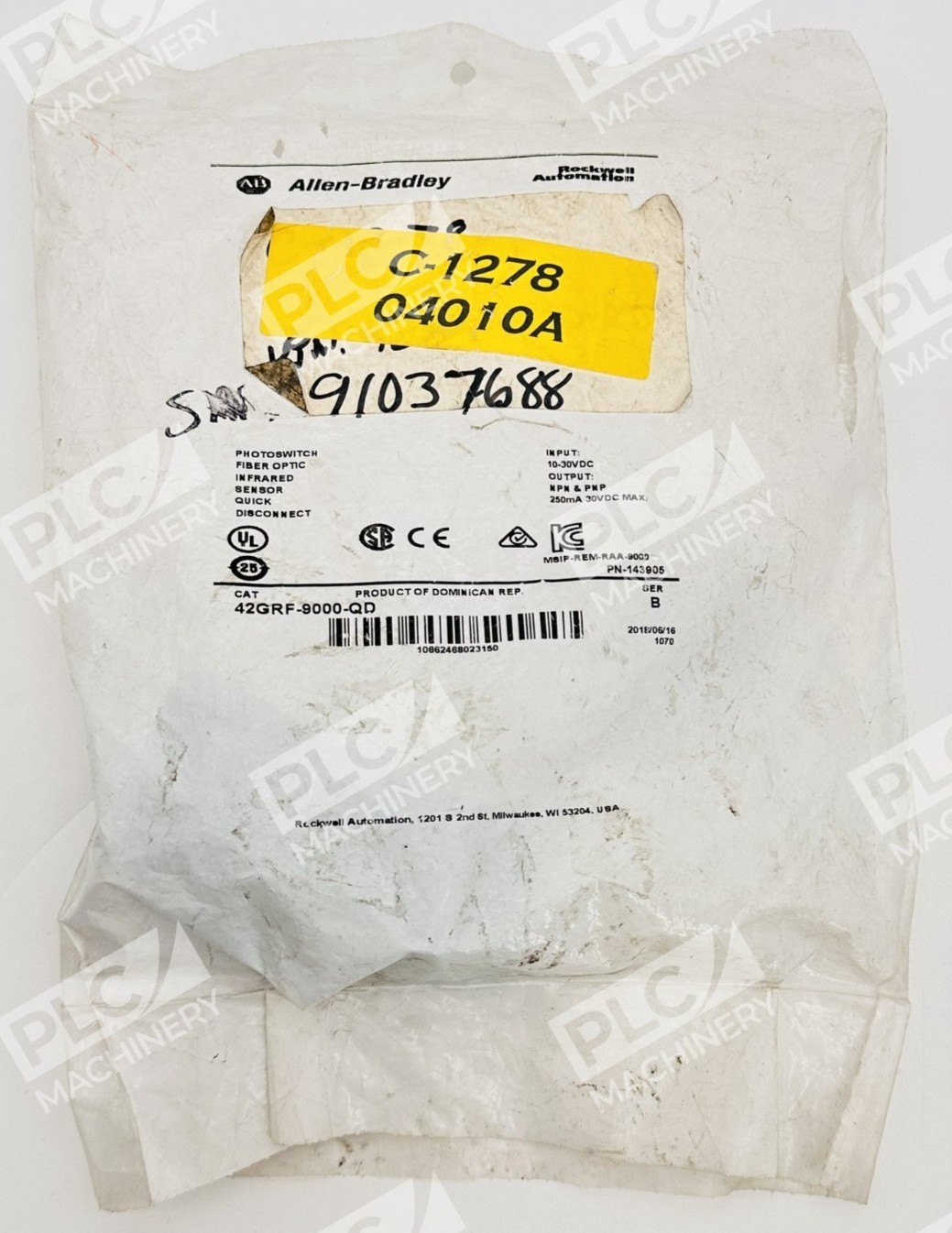

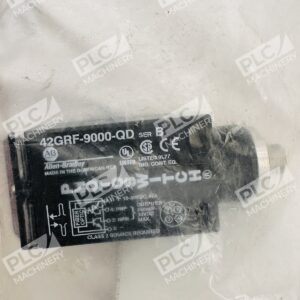

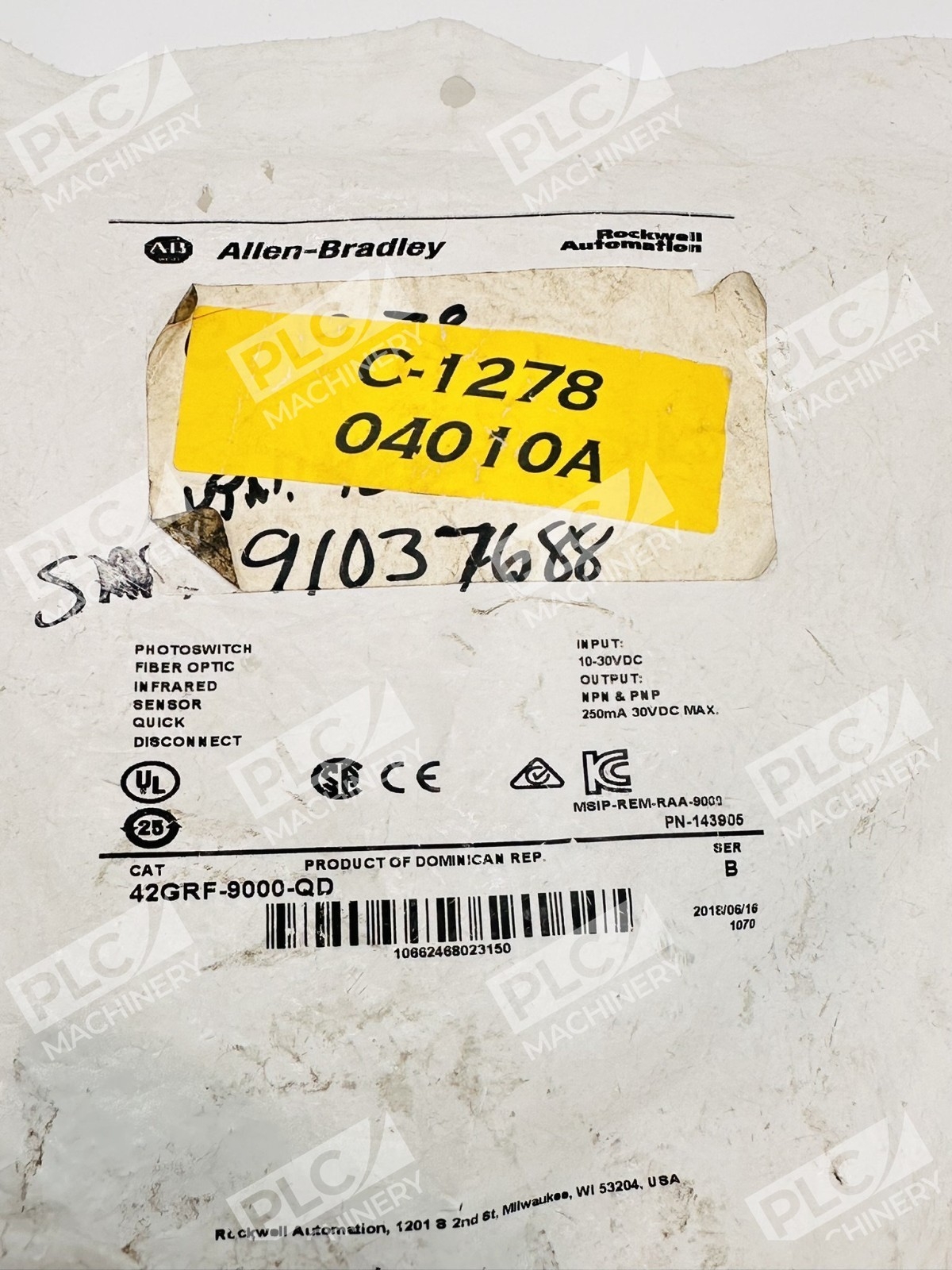

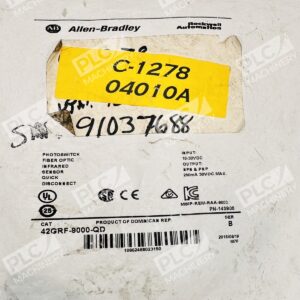

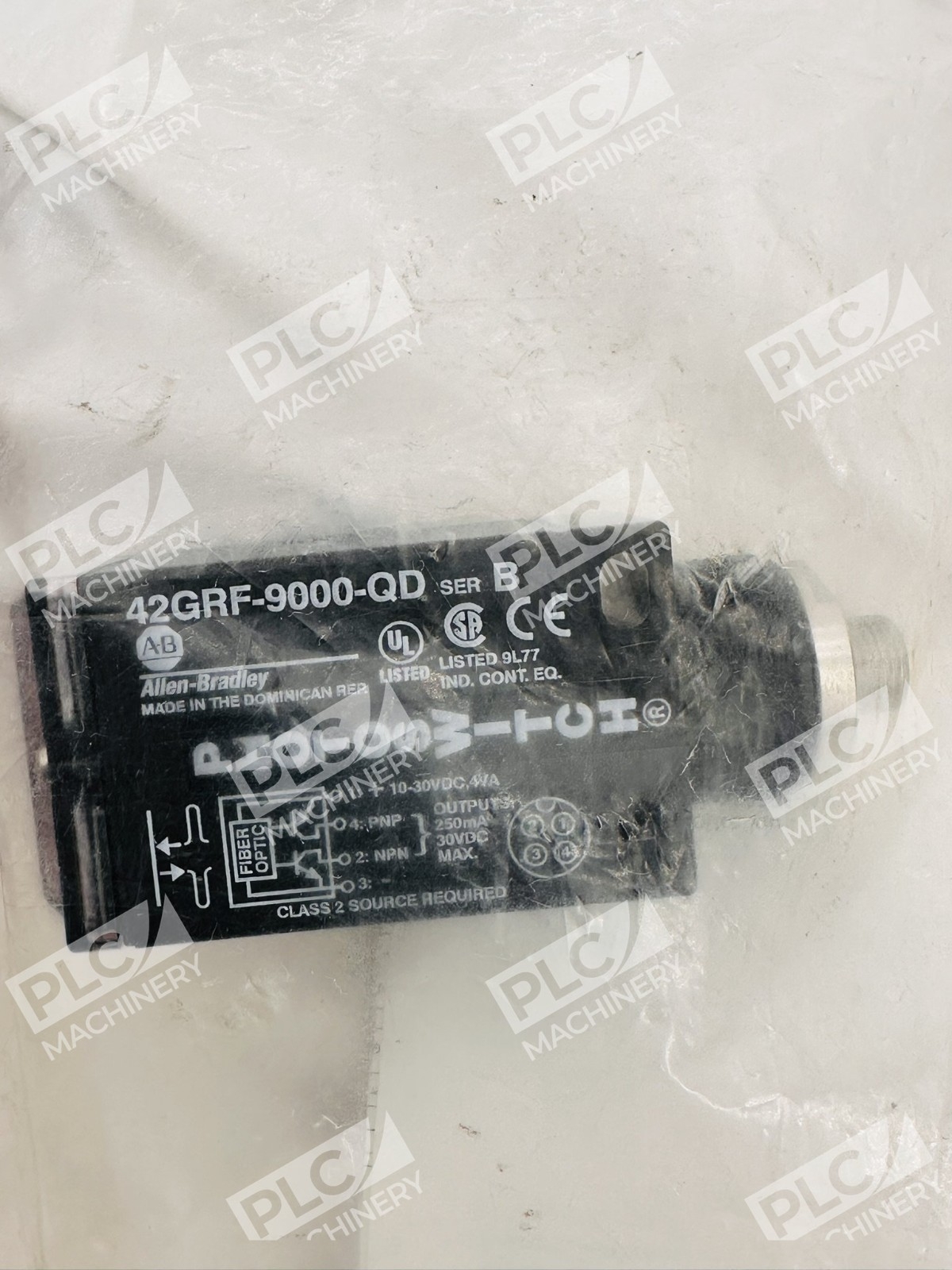

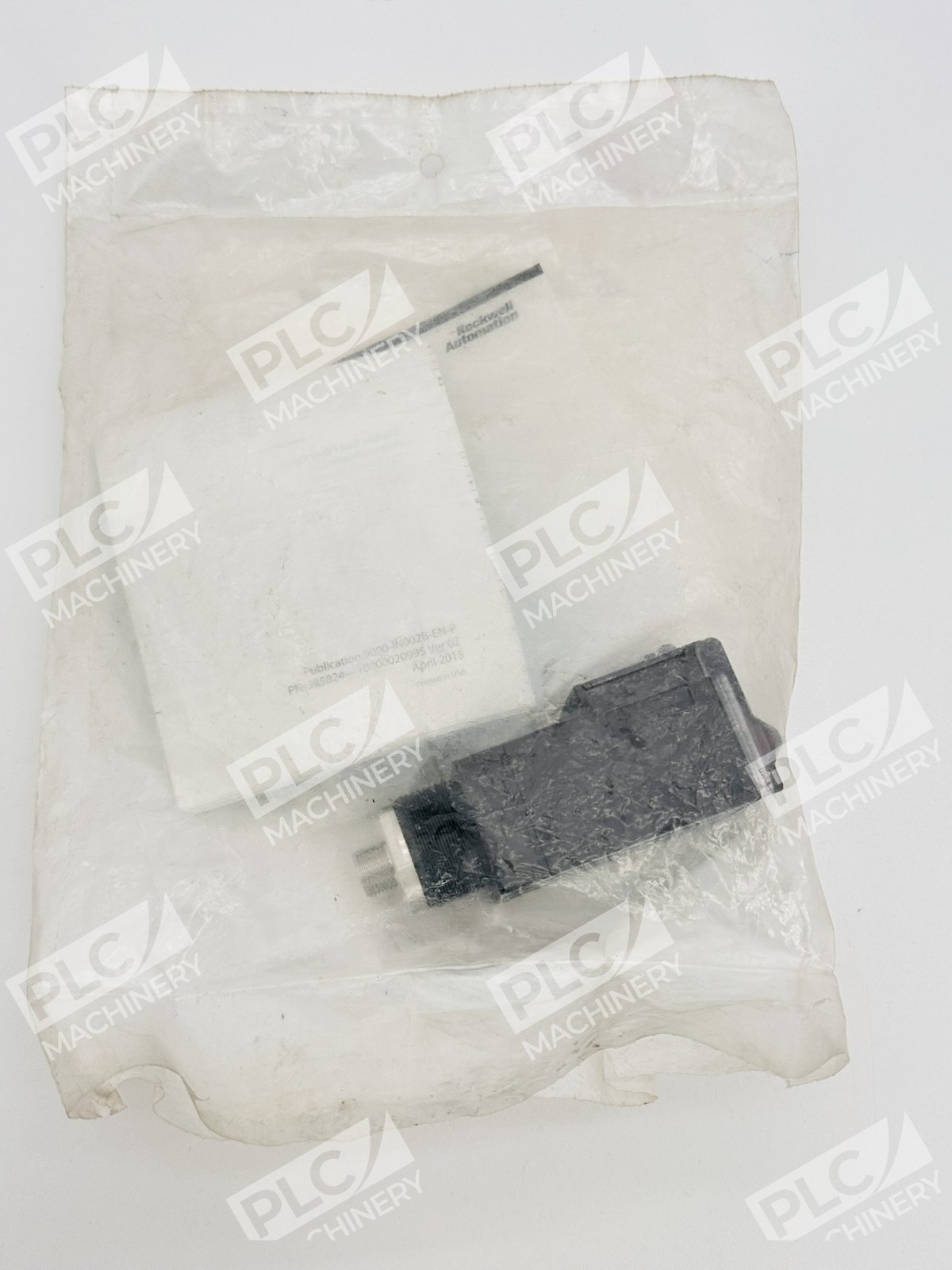

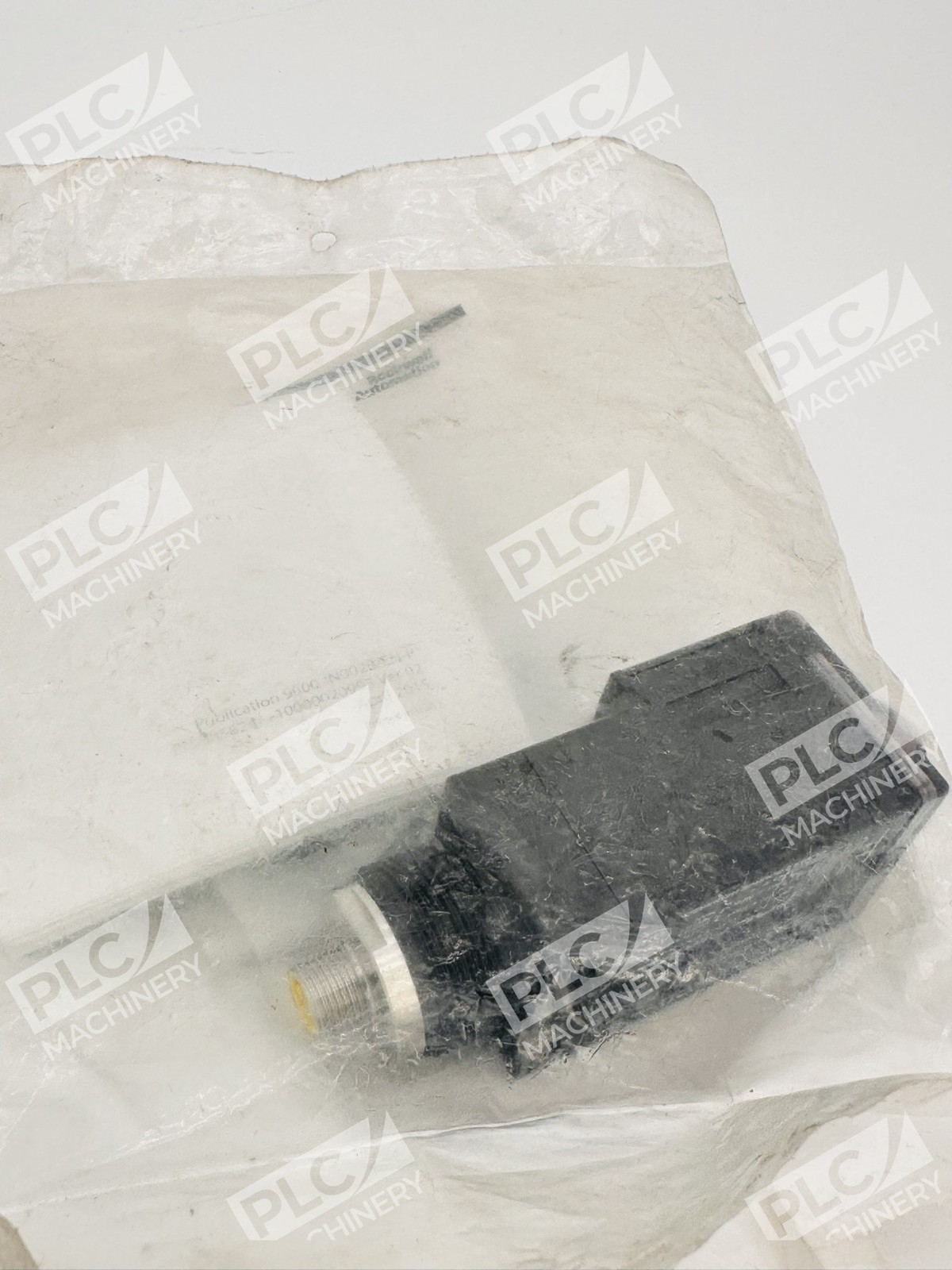

The Allen-Bradley 42GRF-9000-QD is a Series 9000 photoelectric sensor designed for reliable detection in industrial automation and motion control applications. This fiber optic photoswitch features large aperture fiber optic (LAFO) technology with infrared 880 nm light source for consistent performance in challenging environments. The sensor supports both NPN and PNP transistor outputs with a 4-pin DC Micro (M12) integral quick disconnect connector for tool-free installation.
Key Features
- Large aperture fiber optic (LAFO) design for enhanced light collection
- Infrared 880 nm light source for reliable detection in various ambient lighting conditions
- Standard on/off photoelectric sensing with 2 millisecond response time
- 4-pin DC Micro (M12) integral quick disconnect (QD) connector for fast field replacement
- NPN and PNP selectable transistor output
- NEMA 3, 4X, 6P, 12, 13 enclosure ratings for washdown and sealed environments
Technical Specifications
- Input Voltage: 10–40 VDC
- Output Current: 250 mA
- Light Source: Infrared (880 nm)
- Response Time: 2 millisecond
- Operating Temperature: –34 to 70 °C
- Circuit Type: NPN and PNP transistor
- Connector Type: 4-Pin DC Micro (M12) Integral QD
- Sensor Type: Fiber Optic, Large Aperture
- Material: Valox
- Enclosure Type: NEMA 3, 4X, 6P, 12, 13
- Standard: KC
- Series: Allen-Bradley Series 9000 Photoelectric Sensor
Typical Applications
The 42GRF-9000-QD excels in applications requiring fiber optic detection, including:
- Packaging and material handling systems with tight sensing areas
- Presence/absence detection on conveyor lines
- Industrial automation control and sequencing
- Food and beverage processing environments
- Sealed or washdown enclosures (NEMA ratings 4X, 6P)
- OEM machine control systems
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and MicroLogix PLC systems
- Rockwell Automation discrete I/O modules with 24 VDC input capability
- Third-party industrial automation controllers accepting standard photoelectric sensor inputs
- PROFINET, EtherCAT, and fieldbus systems via appropriate gateway modules
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 42GRF-9000-QD is part of the Series 9000 photoelectric sensor family and may directly replace other Series 9000 fiber optic models with the same M12 QD connector configuration.
Works With
- Rockwell Automation Studio 5000 Logix Designer for I/O configuration
- CompactLogix and ControlLogix discrete I/O modules
- Standard 24 VDC industrial control circuits
- Allen-Bradley fiber optic cable assemblies and accessories
