Overview

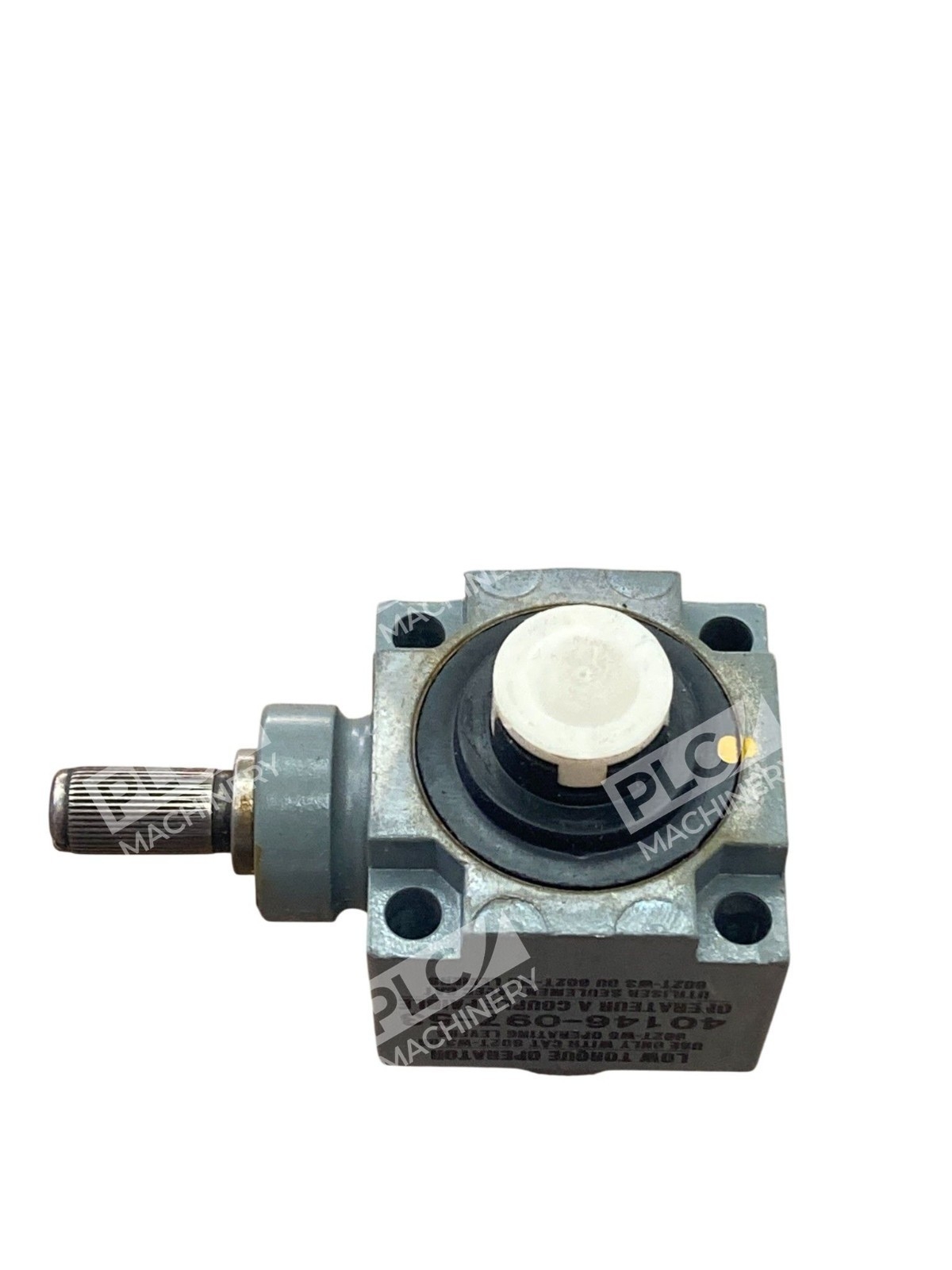

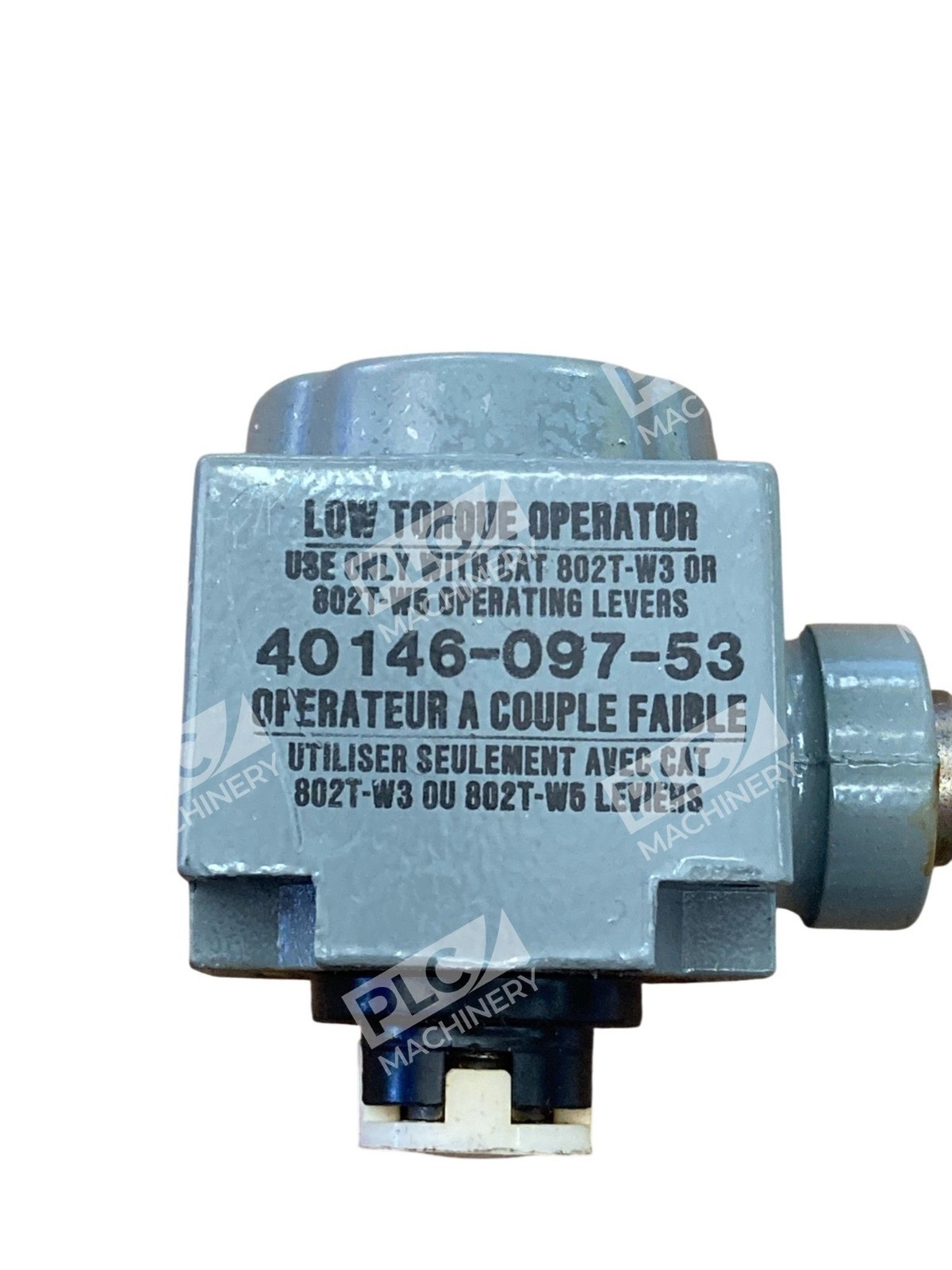

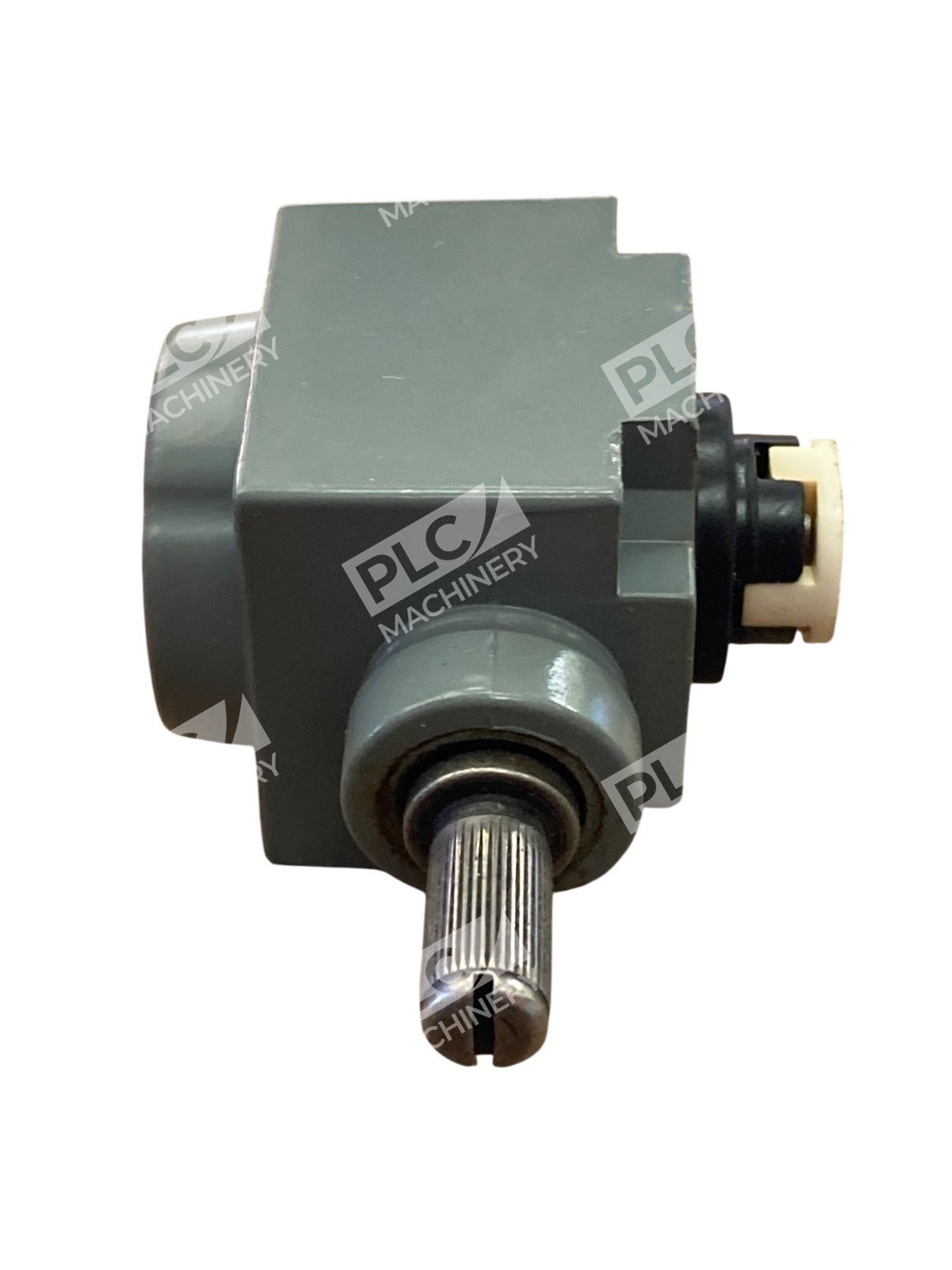

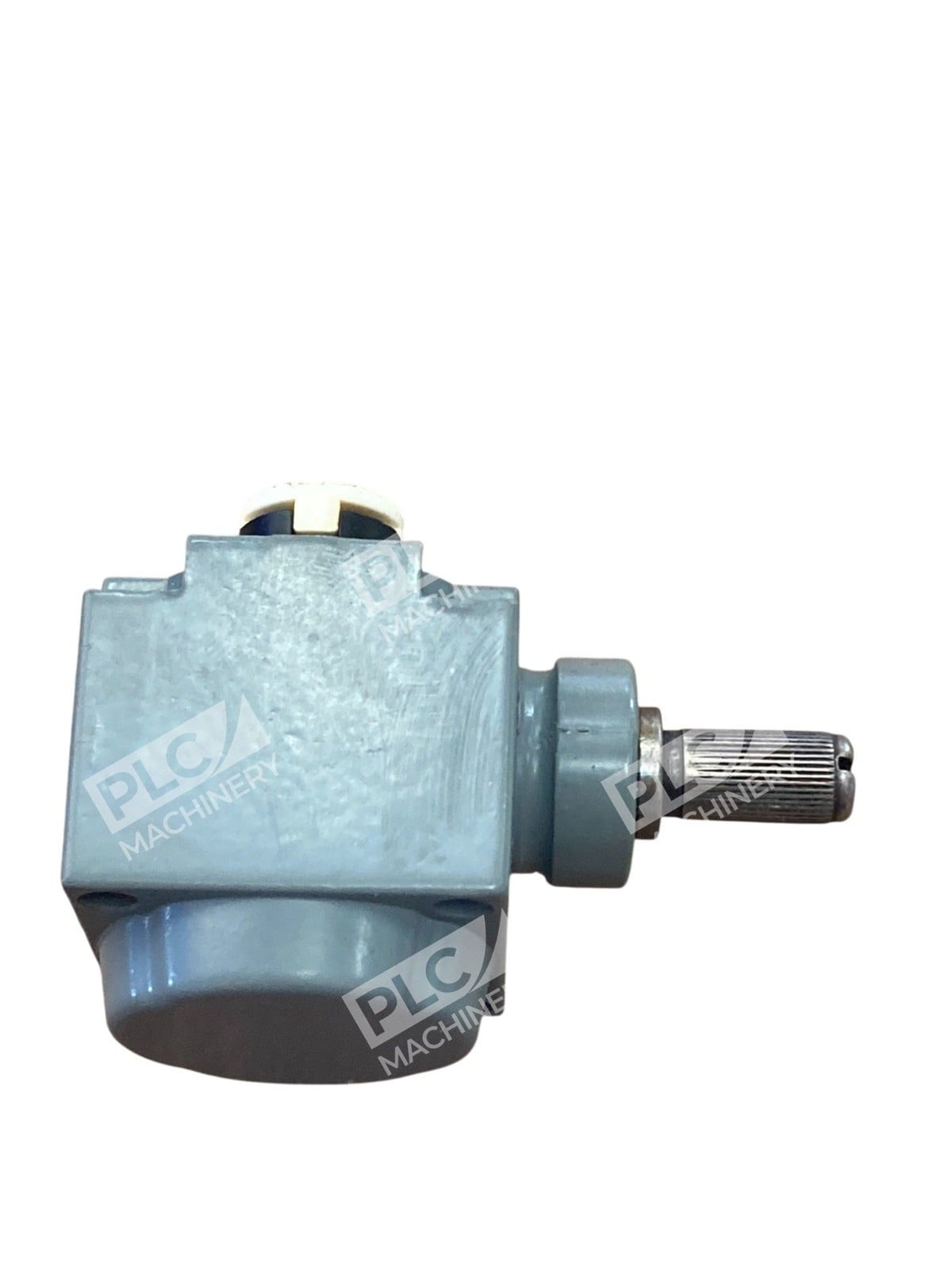

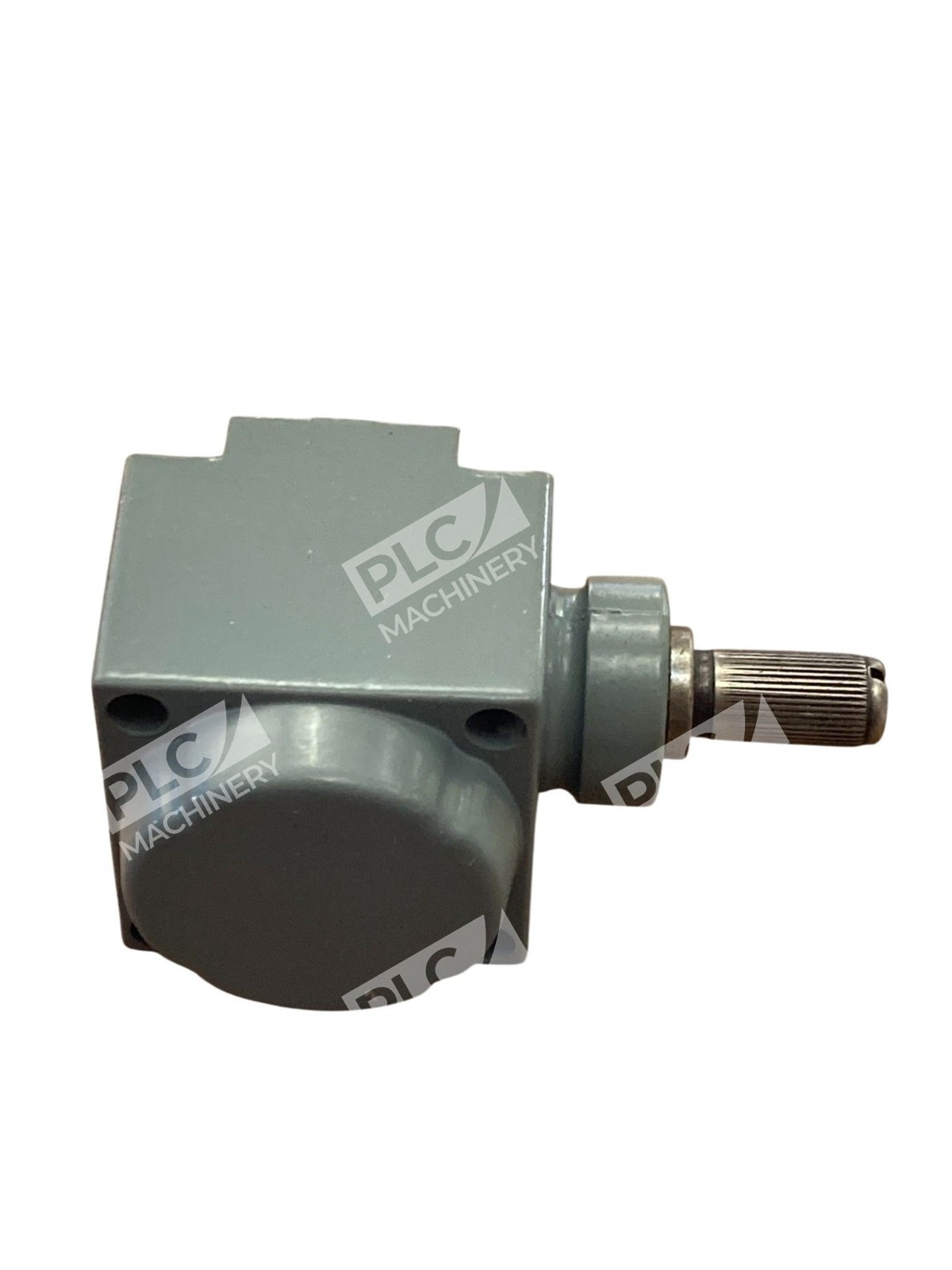

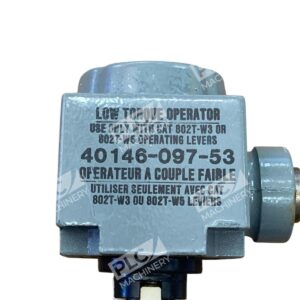

The Allen-Bradley 40146-097-53 is a low torque operator head accessory engineered for the 802T family of limit switches. This component reduces the mechanical force required to trigger switch actuation, making it suitable for applications where light-touch activation is critical. As an OEM replacement part, it maintains Allen-Bradley quality standards for industrial control and automation systems.
Key Features
- Low torque design reduces actuation force requirements
- Direct compatibility with 802T limit switch assemblies
- Precision-engineered for reliable, repeatable performance
- Compact form factor for space-constrained installations
- Allen-Bradley OEM quality and durability
Technical Specifications
- Part Number: 40146-097-53
- Manufacturer: Allen-Bradley / Rockwell Automation
- Product Category: Limit Switch Operator Head
- Torque Rating: Low torque
- Compatibility: 802T Limit Switches
- Type: Accessory / Replacement Part
- Condition: New – No Box
Typical Applications
- Machine tool position sensing and limit detection
- Material handling equipment safety interlock systems
- Conveyor belt load monitoring and end-of-travel stops
- Press brake and punch control circuits
- Door and gate safety limit switches
- Process automation pilot device applications
Compatibility & Replacements
Compatible With
- Allen-Bradley 802T limit switch assemblies
- Rockwell Automation 802T family components
- Industrial control systems using standard limit switch architecture
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or controls engineer before ordering. The 40146-097-53 is designed as a direct replacement for worn or damaged operator heads on existing 802T limit switch installations.
Works With
- Allen-Bradley limit switch platforms
- Rockwell Automation control systems
- Standard industrial pilot device circuits
- Machine safety and interlock applications
