Overview

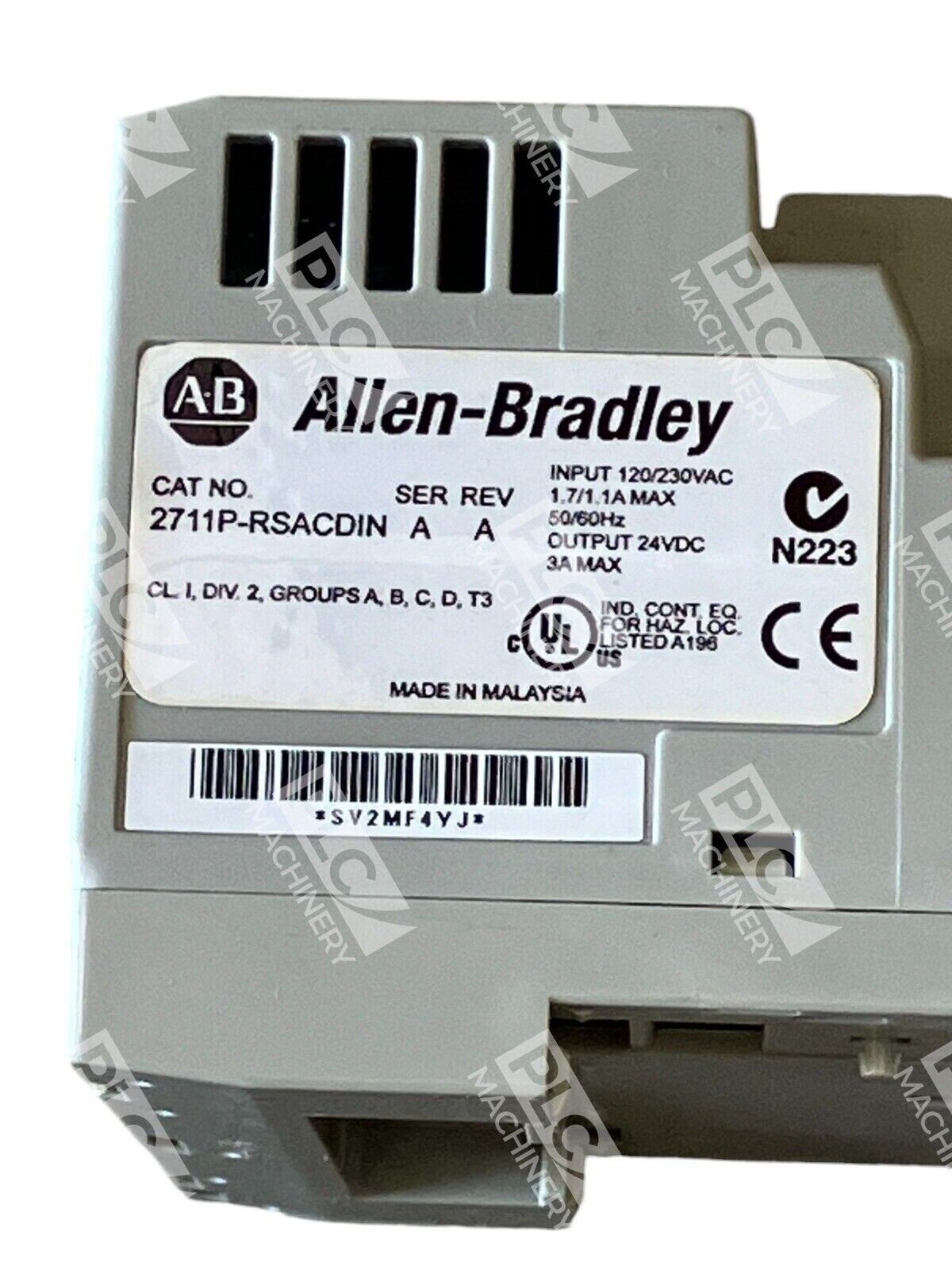

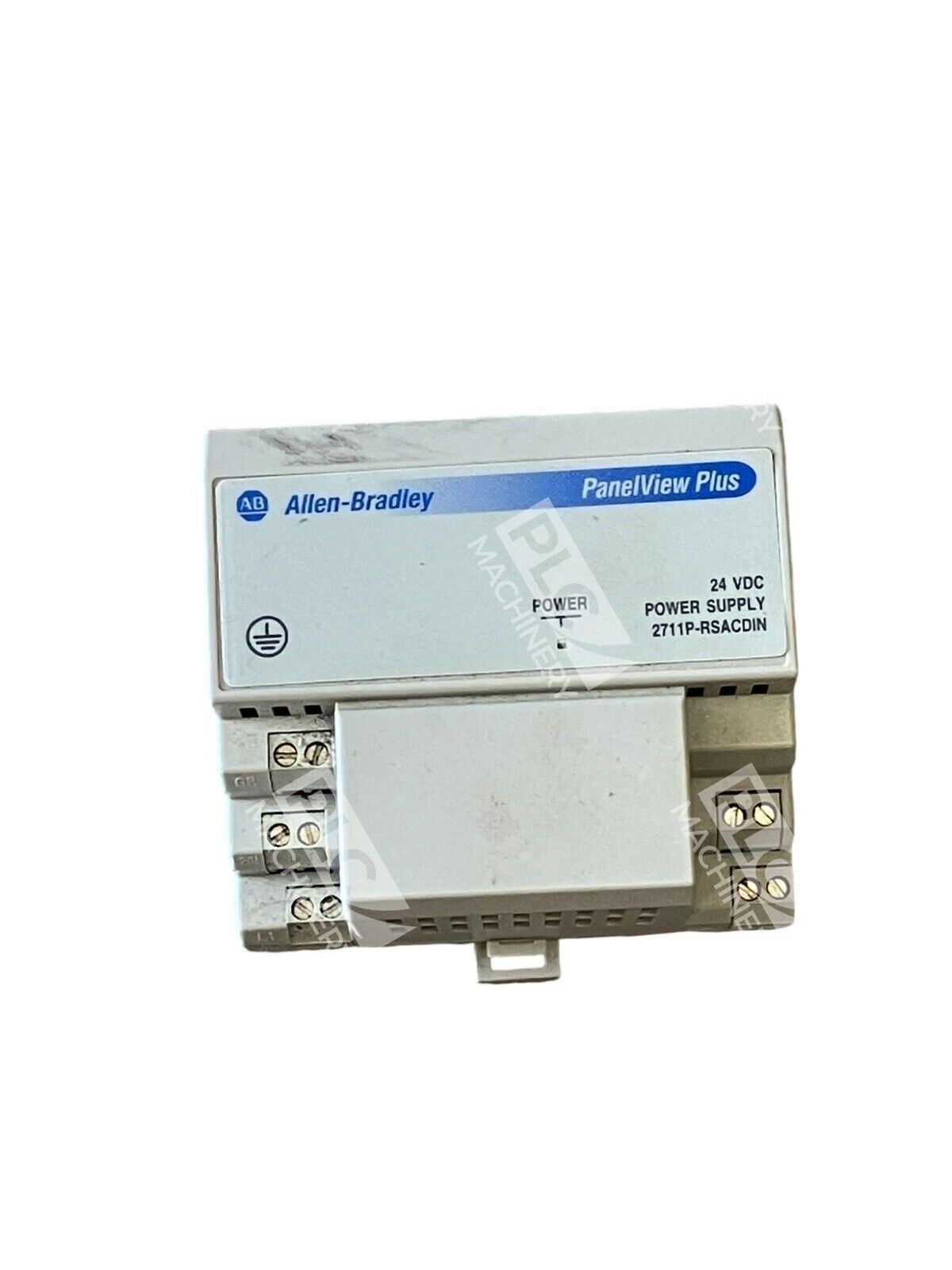

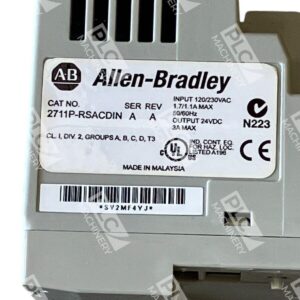

The Allen-Bradley 2711P-RSACDIN is a DIN-rail mounted AC to DC power supply that converts line voltage to 24VDC for PanelView Plus operator interface terminals. This AC to DC converter accepts 85 to 265 Volts AC input power and delivers 24 Volts DC output at 47 to 63 Hertz frequency. The 2711P-RSACDIN power supply module is manufactured by Allen-Bradley/Rockwell Automation, providing safety-certified, industrial-grade power conditioning for PanelView Plus 700 through 1500 series interfaces.
Key Features
- Wide input voltage range: Accepts 85 to 265 Volts AC input, suitable for varied facility electrical standards
- Compact DIN-rail design: Compact design for easy DIN-rail mounting; dimensions are 87 x 68 x 69 millimeters
- Power indicator LED: LED illuminates in green when output voltage exceeds 20.4 Volts DC
- Integrated protection: Provides overvoltage protection and overcurrent protection
- Multiple mounting options: Can be mounted on 35 x 7.5 millimeter DIN rail or with a panel mounting kit
Technical Specifications
- Input voltage: 85-265 volts AC
- Output voltage: 20.4-27.6 V DC
- Output current: 3 amps maximum
- Frequency: 47 to 63 Hertz
- Terminal compatibility: Accepts maximum 12 gauge solid or stranded copper wire rated at 75 degrees Celsius
- Weight: 0.42 lbs
Typical Applications
The 2711P-RSACDIN is designed for the Allen-Bradley PanelView Plus 700 to 1500 series terminals and provides 24 Volts DC power to these PanelView terminals. It is suitable for industrial control systems, manufacturing automation, process monitoring interfaces, and panel-mounted HMI applications requiring safe, regulated DC power distribution.
Compatibility & Replacements
As of December 30, 2024, the PanelView Plus AC to DC 3A Power Supply is discontinued and no longer available for sale. Rockwell Automation has noted no planned replacement. The 2711P-RSACDIN Series A remains available through industrial surplus channels and is compatible with PanelView Plus component interfaces requiring 24VDC auxiliary power.
