Overview

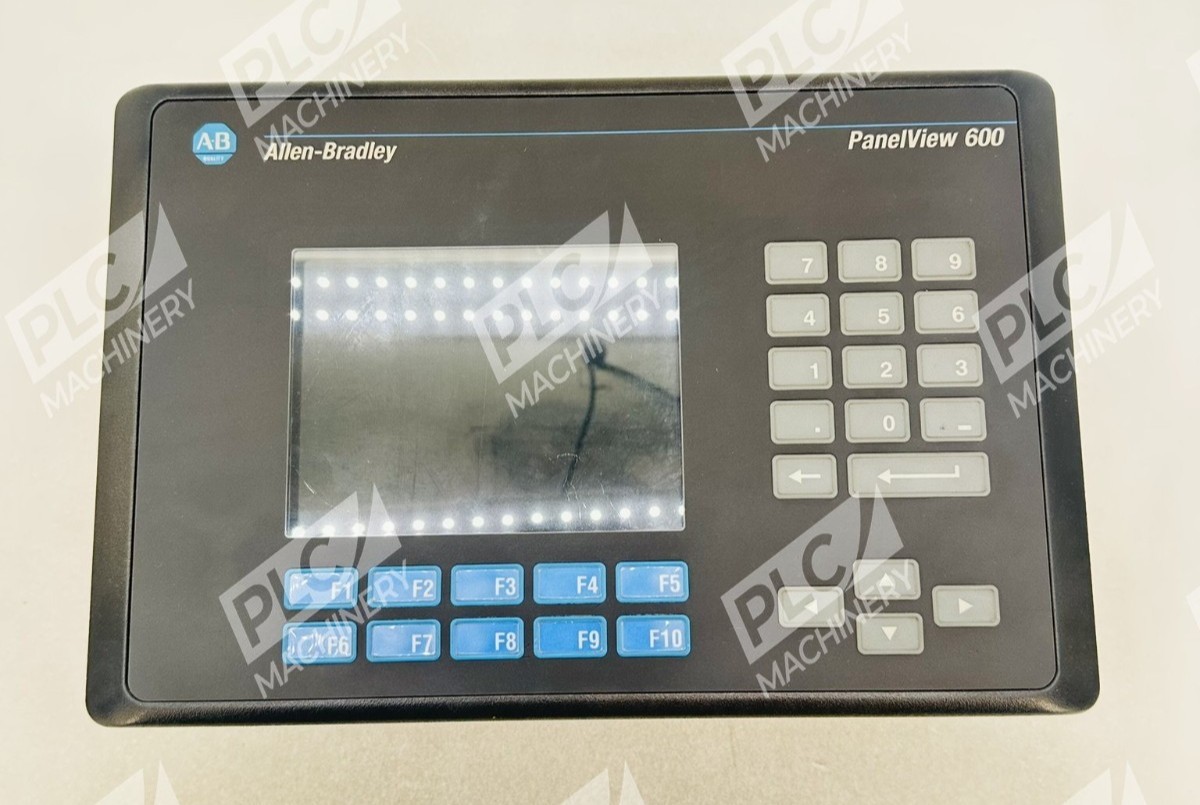

The Allen-Bradley 2711-K6C8 Series C is a compact PanelView 600 operator interface terminal designed for machine-level visualization and control in industrial automation environments. This keypad-based HMI provides real-time monitoring and command entry through a color display and integrated 10-key pad, making it ideal for process control, motion applications, and legacy system integration where tactile input is preferred over touch screens.
Key Features
- 5-inch color display with 320 x 234 pixel resolution for clear process visualization
- DH+ communication protocol for seamless integration with Allen-Bradley PLCs and control systems
- 10-key membrane keypad with domed protection and 1 million cycle actuation rating for reliable operator input
- RS-232 printer port for logging and external device communication
- 240 KB non-volatile memory and 170 KB RAM for application storage and runtime data
- Multi-language support and CE-marked for global deployment
- Rugged industrial enclosure rated NEMA 12/13 (4X indoor) with IP54/IP65 protection
Technical Specifications
- Display: 5-inch color LCD, 320 × 234 pixels
- Input Interface: 10-key programmable keypad with domed membrane
- Communication Ports: DH+, RS-232 (printer/serial)
- Memory: 240 KB non-volatile, 170 KB RAM
- Power Supply: AC input (18–32 VDC standard variants)
- Power Consumption: 25 W maximum, 32 W heat dissipation
- Operating Temperature: 0 to 50°C (standard environment)
- Relative Humidity: 5 to 95% without condensation
- Maximum Altitude: 2000 meters
- Dimensions: 7.55 × 11.4 inches (panel cutout varies)
- Weight: 3.55 pounds
- Enclosure Rating: NEMA 12, 13, 4X (indoor); IEC IP54, IP65
- Certifications: CE marked
- Series: PanelView Standard 600 Color Terminal
Typical Applications
- Machine control panels requiring tactile operator input
- Process monitoring in packaging, bottling, and material handling systems
- Legacy Allen-Bradley DH+ network retrofit and upgrades
- Compact OEM equipment with space-constrained panel designs
- Data entry and recipe management in food and beverage production
- Industrial equipment diagnostics and maintenance interfaces
Compatibility & Replacements
Compatible With
- Allen-Bradley SLC and MicroLogix PLCs via DH+ protocol
- Rockwell Automation ControlLogix systems (with gateway)
- Allen-Bradley DeviceNet and ControlNet networks (adapter-dependent)
- FactoryTalk View and legacy PanelView software platforms
- Standard 115 VAC or 24 VDC industrial power supplies
Replaces / Drop-In Replacement For
- Other PanelView 600 keypad models (2711-K6C1, 2711-K6C2, 2711-K6C3, 2711-K6C5, 2711-K6C9)
- Legacy DH+ operator terminals requiring 5-inch color display upgrade
Works With
- Communication Protocols: DH+, RS-232 (DF1 serial)
- Software: PanelView Standard configuration software, RSLinx Classic for DH+ gateway setup
- Ecosystems: Allen-Bradley CompactLogix, SLC 5/03-5/05, MicroLogix 1100/1500 controllers
- Network: Standalone DH+ terminals or multi-node distributed control networks
