Overview

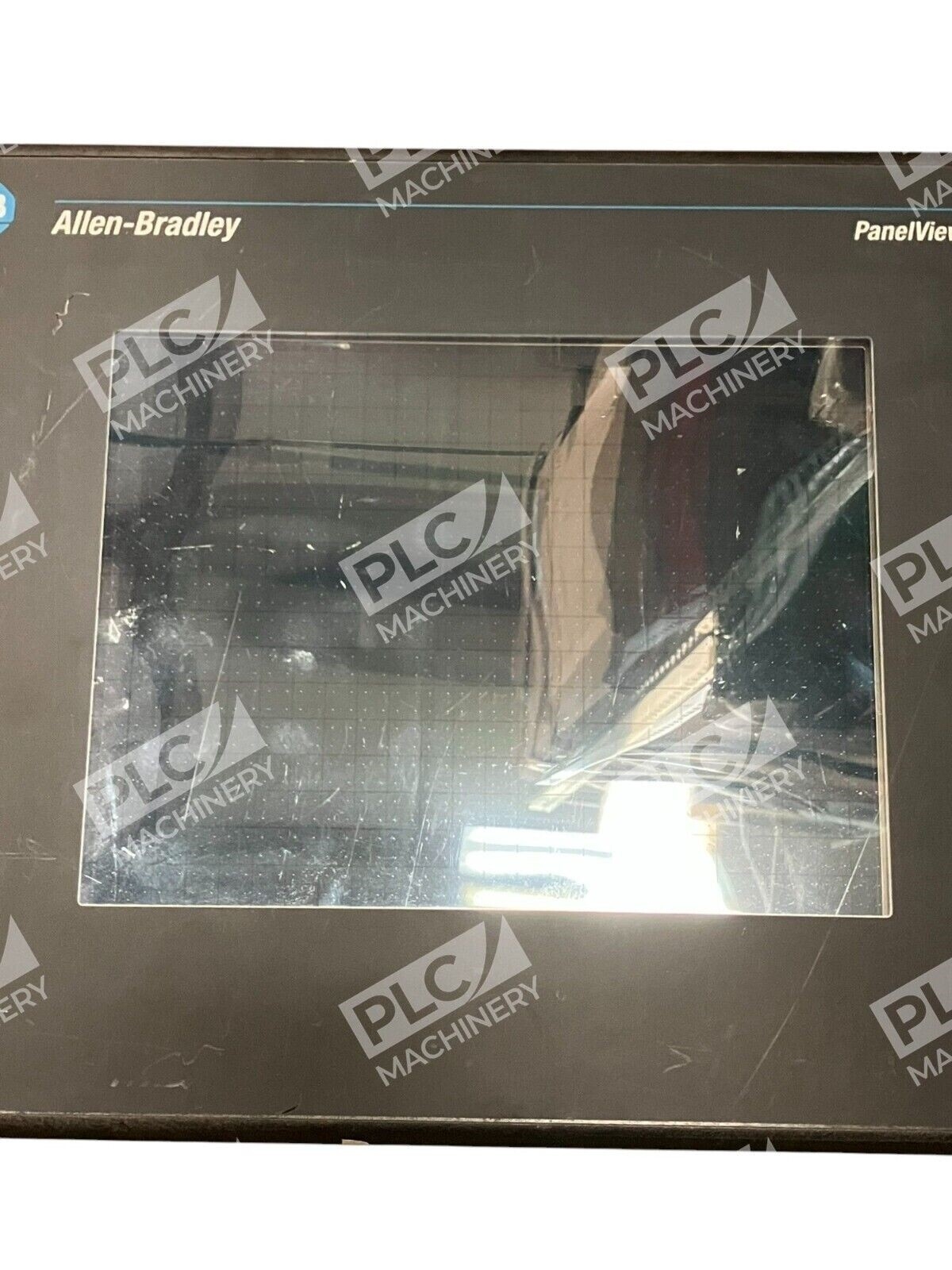

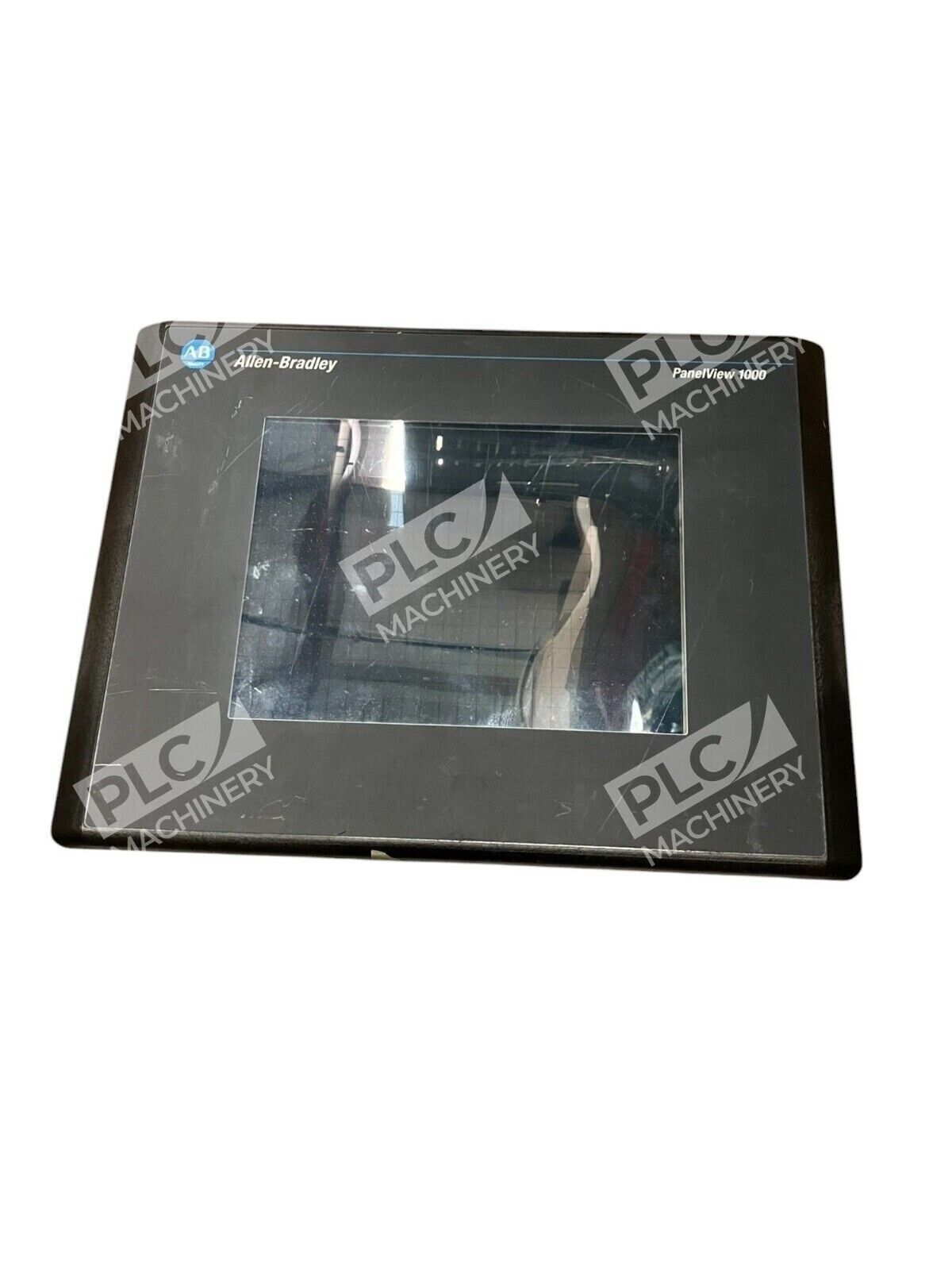

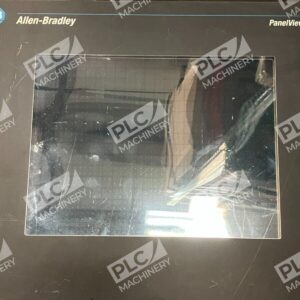

The Allen-Bradley 2711-T10G20L1 is a PanelView Standard 1000 operator terminal designed for reliable human-machine interface (HMI) functionality in industrial control applications. This grayscale display unit combines embedded networking with intuitive touchscreen input, making it a proven choice for manufacturing environments requiring durable, field-tested performance on DC-powered machinery.
Key Features
- 10.4-inch grayscale electro-luminescent touchscreen with 640 × 480 pixel resolution

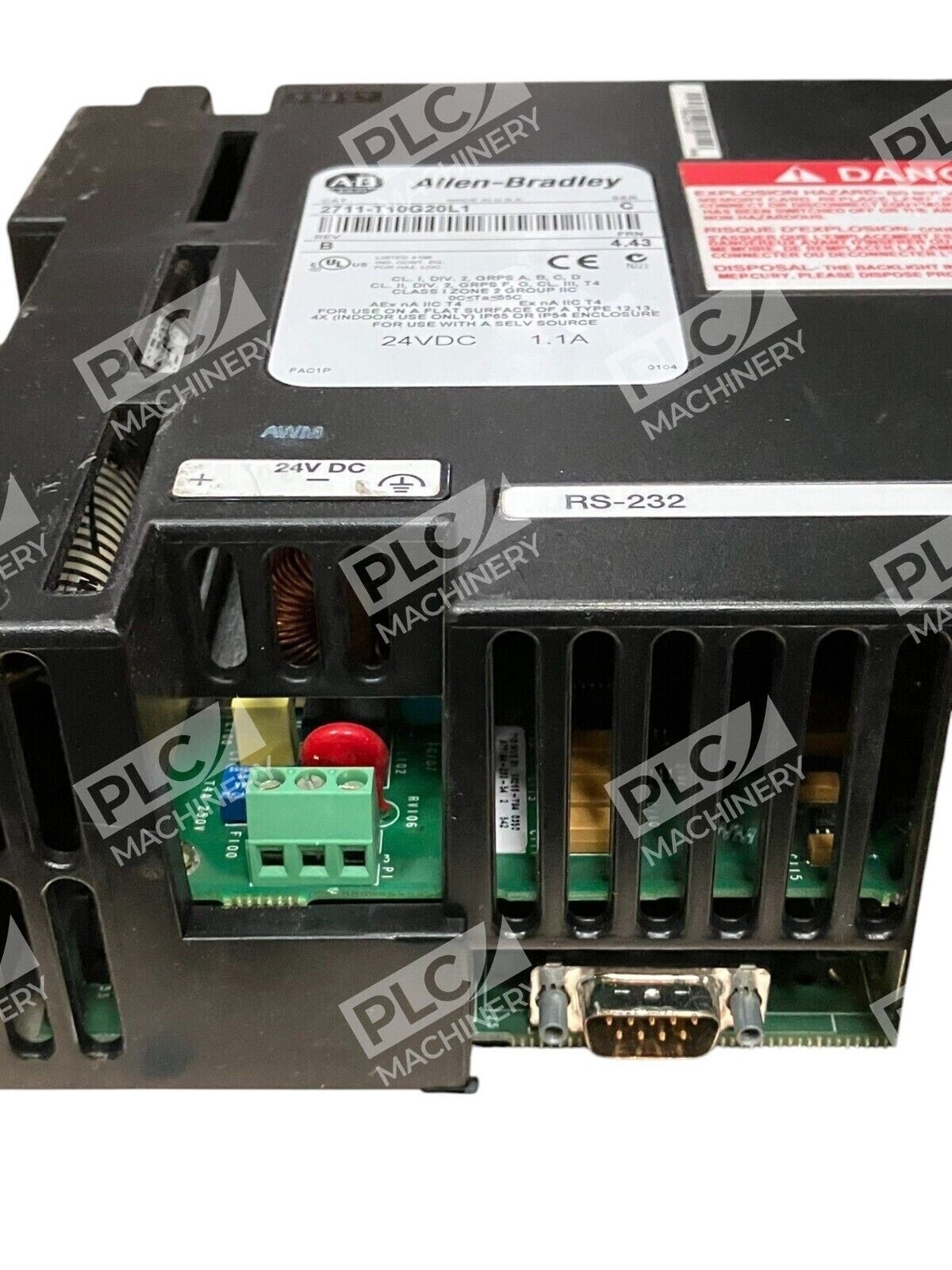

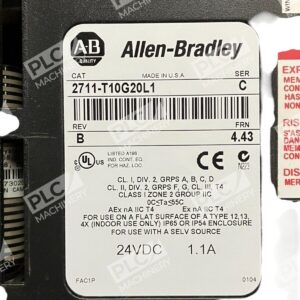

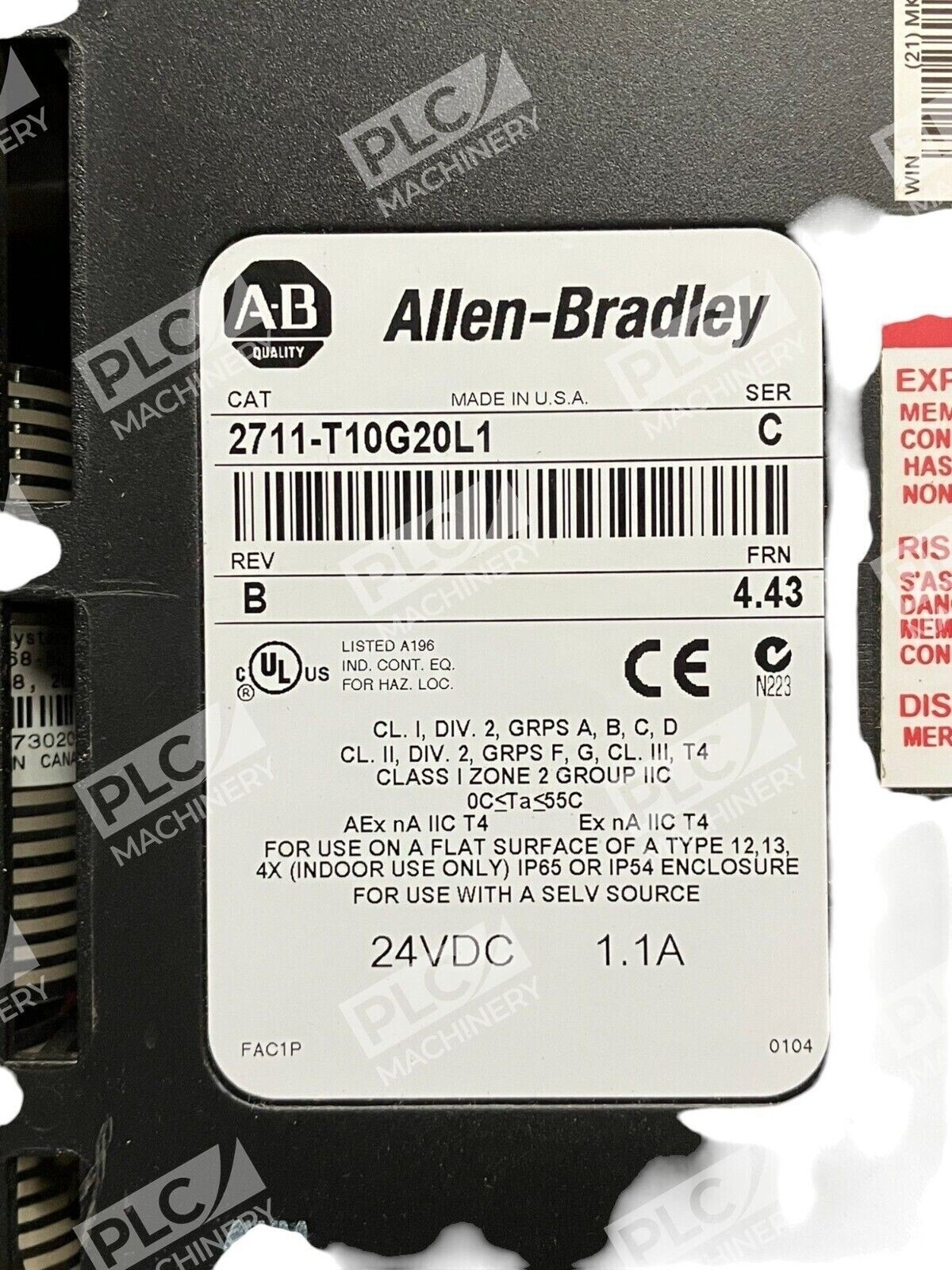

- 24V DC operating voltage (18–32V DC input range)

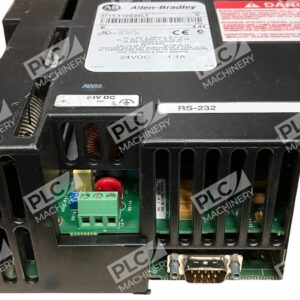

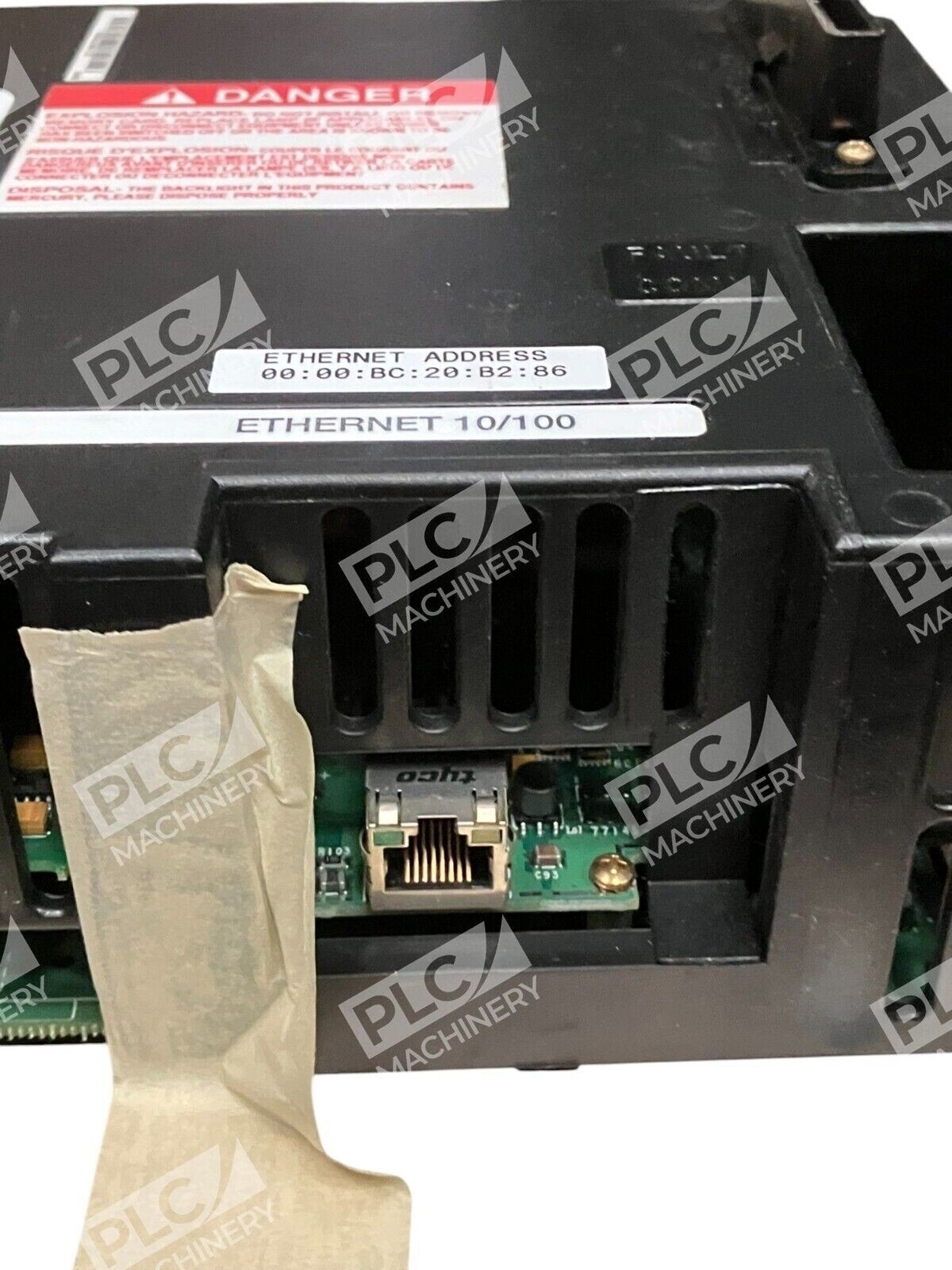

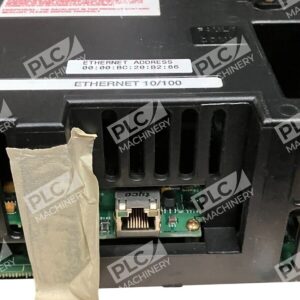

- EtherNet/IP communication with integrated RS-232 printer interface port

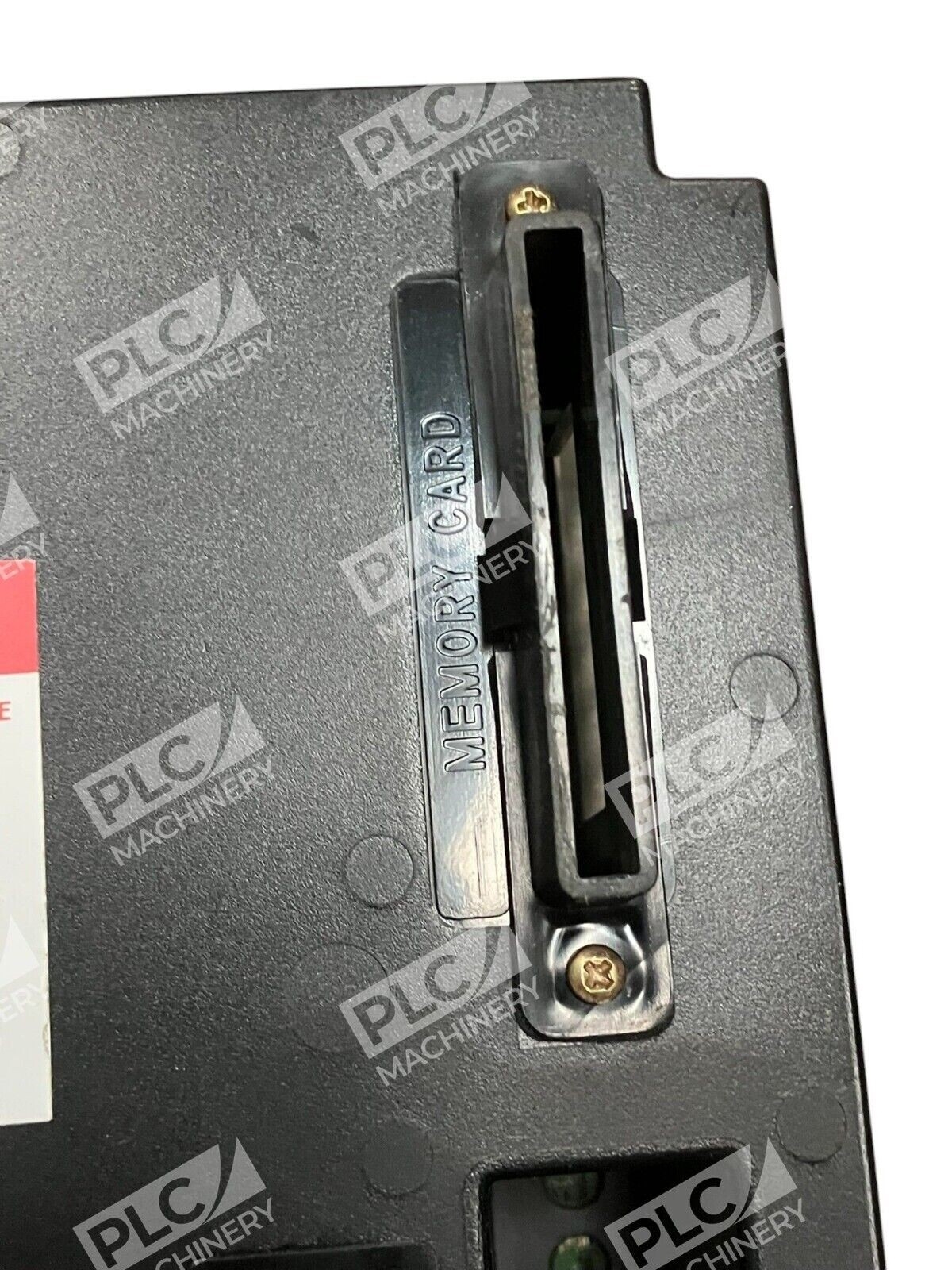

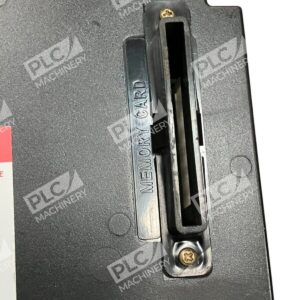

- 256 KB onboard memory for project storage and runtime data
- Resistive touchscreen with high sensitivity (384 touch cells)
- Flat panel design suitable for NEMA Type 12/13 and 4X enclosures
- Password-protected screen access and alarm templating capabilities
Technical Specifications
| Display Type | 10.4-inch grayscale electro-luminescent LCD |
| Resolution | 640 × 480 pixels |
| Input Power | 24V DC (18–32V DC operating range) |
| Power Consumption | Approx. 55 VA maximum |
| Communication Ports | EtherNet/IP, RS-232 printer port |
| Memory | 256 KB |
| Panel Cutout | 11.11 × 14.58 inches |
| Enclosure Rating | NEMA Type 12/13, 4X (indoor use) |
| Operating Temperature | 0–55°C (32–131°F) |
| Display Technology | 4-shade grayscale |
| Touchscreen Type | Resistive (384 touch cells) |
| Series | PanelView 1000 Standard |
Typical Applications
- Industrial machinery control panels and process automation
- Manufacturing line operator interfaces
- Equipment status monitoring and alarm display
- Batch process control and data logging in DC-powered systems
- Retrofit installations where space-efficient, rugged HMI is required
- Food, beverage, pharmaceutical, and packaging production systems
Compatibility & Replacements
Compatible With
- Allen-Bradley ControlLogix, CompactLogix, and SLC 500 series PLCs
- Rockwell Automation controllers and control systems
- EtherNet/IP industrial networks
- NEMA Type 12/13 and 4X rated enclosures
- 24V DC industrial power supplies
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. The 2711-T10G20L1 is a standard-frame PanelView 1000; earlier or variant models may require custom configurations.
Works With
- PanelBuilder 32 design and development software
- EtherNet/IP communication protocol
- RS-232 serial printer interfaces and peripheral devices
- Allen-Bradley RSLinx communication gateway
- Rockwell Studio 5000 project integration (via PanelBuilder32 export)
