Overview

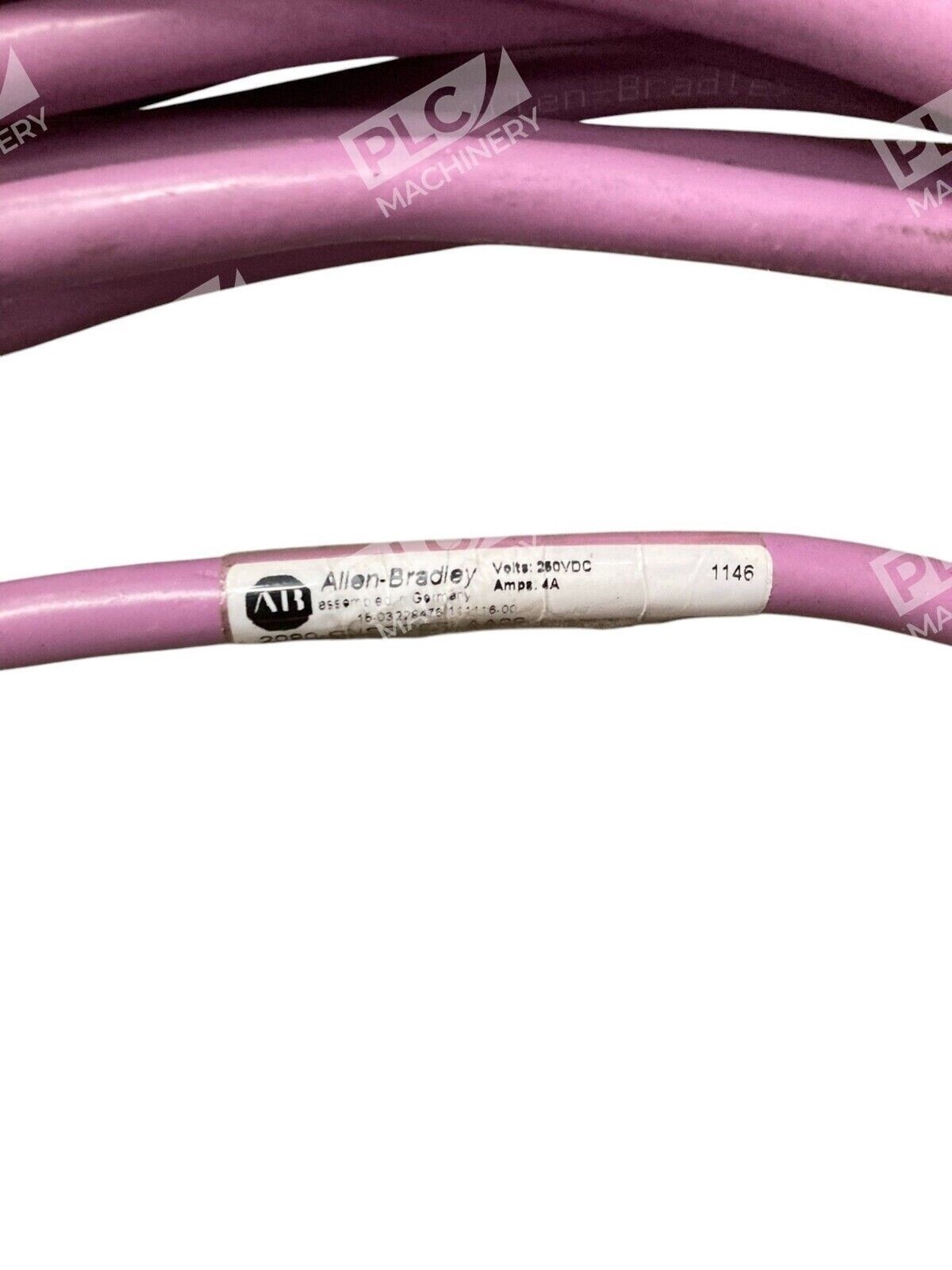

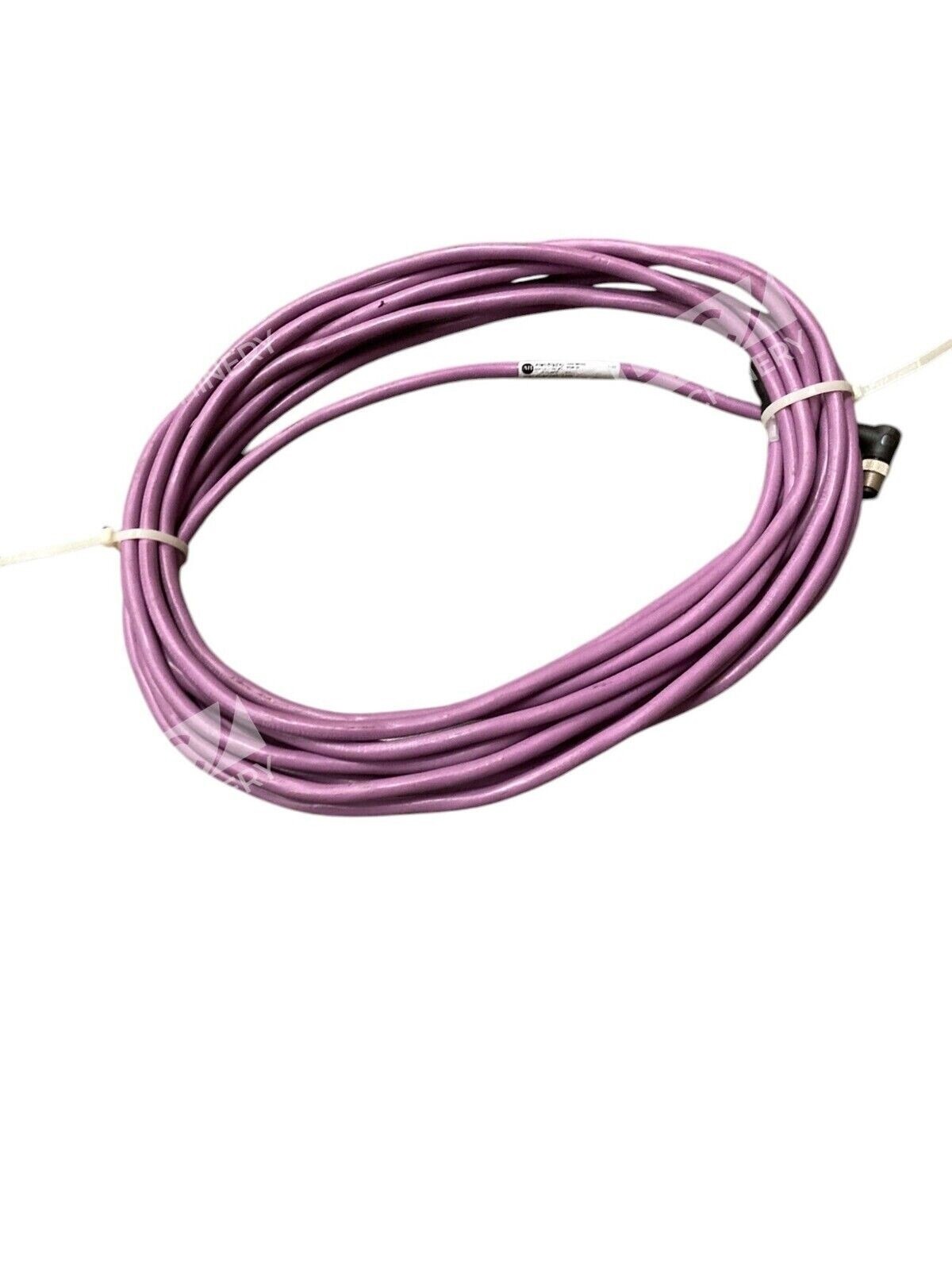

The Allen-Bradley 2090-CNSRPSS-AA09 network cable is a Kinetix 6000M series interconnect designed for multi-axis servo drive systems and industrial motion control applications. This 9-meter cable features a 250VDC voltage rating and 4A current capacity, making it suitable for reliable high-speed data transmission between motion control nodes in demanding industrial environments.
Key Features
- Kinetix 6000M network-compatible architecture for multi-axis servo systems
- 9-meter length accommodates moderate cable run distances in production cells and assembly lines
- 250VDC and 4A rated for robust signal and power distribution
- Shielded construction with aluminum mylar and braided shielding for EMI/RFI immunity
- High-speed data transmission capability for synchronized multi-axis motion control
- Industrial-grade materials for harsh factory floor environments
Technical Specifications
| Part Number | 2090-CNSRPSS-AA09 /A |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | Kinetix 2090 Network Cables |
| Cable Length | 9 meters (29.5 feet) |
| Voltage Rating | 250 VDC |
| Current Capacity | 4 Amperes |
| Shielding Type | Aluminum mylar and braided shield |
| Application | Kinetix 6000M multi-axis servo drives and motion control |
| Condition | Used / Refurbished |
| Certifications | UL Listed (component) |
Typical Applications
- Multi-axis coordinated motion in robotic arms and gantry systems
- Automated assembly lines requiring synchronized servo axis control
- Industrial packaging and material handling equipment
- Machine tool and CNC motion control networks
- Motion control retrofits and system upgrades for existing Kinetix platforms
- Test and measurement systems with distributed servo axis control
Compatibility & Replacements
The 2090-CNSRPSS-AA09 is a network-class cable within the Kinetix 2090 family, designed for use with Kinetix 6000M multi-axis servo drive systems. It is compatible with any system specifying the standard 2090 network cable architecture. Other cable lengths in the same series (AA01, AA02, AA03, AA04, AA05, AA07, AA12, AA15, AA20, AA25) are available as direct replacements for different installation distances. Users upgrading from older motion control networks should verify connector compatibility with their installed drive hardware before installation. Consult Rockwell Automation technical documentation (KNX-TD004) for comprehensive cable specifications and compatibility matrices.
