Overview

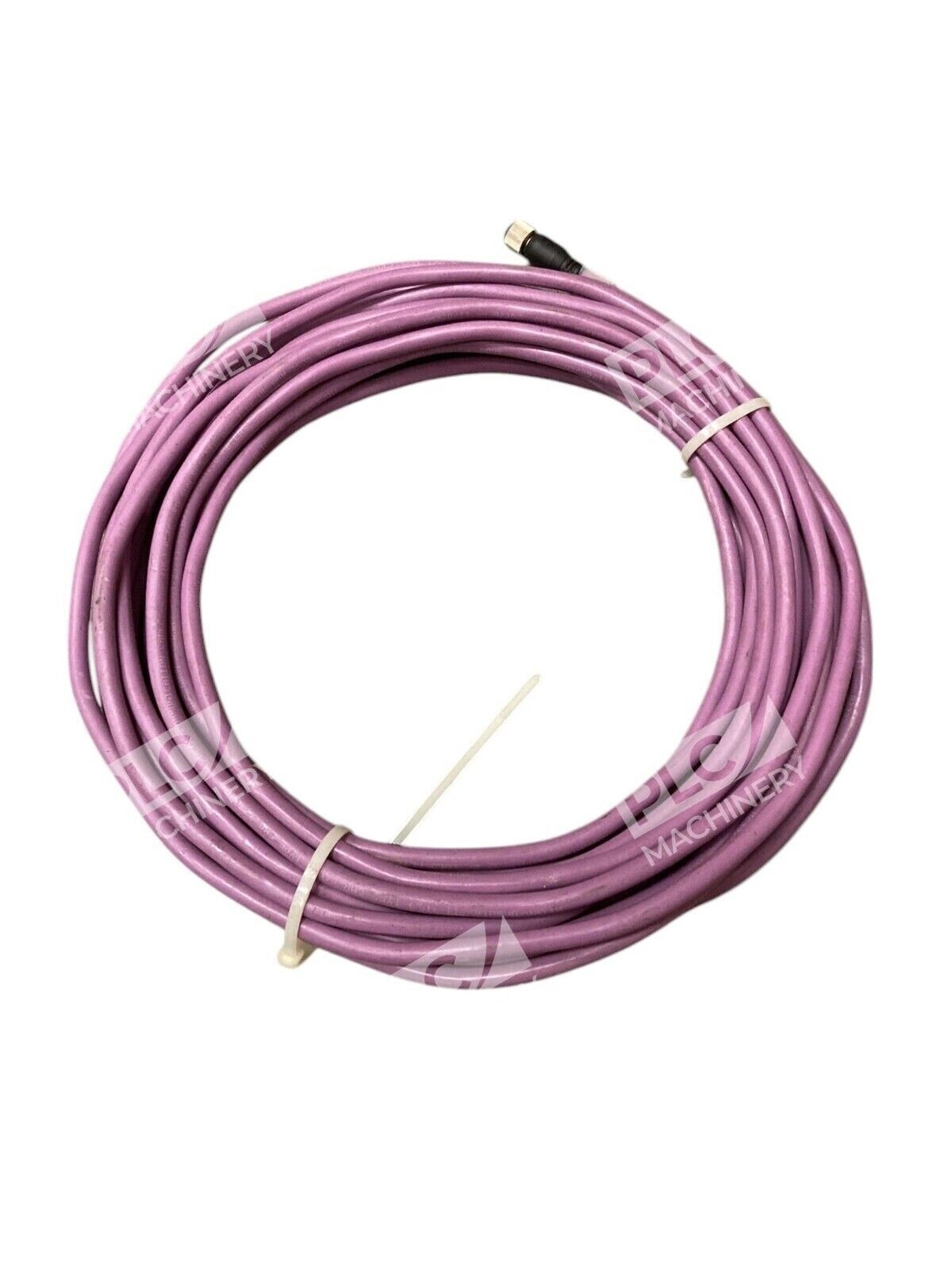

The Allen-Bradley 2090-CNSSPSS-AA12 is a network interconnect cable for the discontinued Kinetix 6000M servo drive family. This 12-meter cable was engineered to connect control modules and servo drives in multi-axis motion systems. As a legacy part, it remains valuable for maintaining and upgrading existing Kinetix 6000M installations.
Key Features
- 12-meter fixed cable length for medium-distance drive-to-controller connections
- 22 AWG conductors for reliable signal transmission
- Shielded design to minimize electromagnetic interference in high-speed motion environments

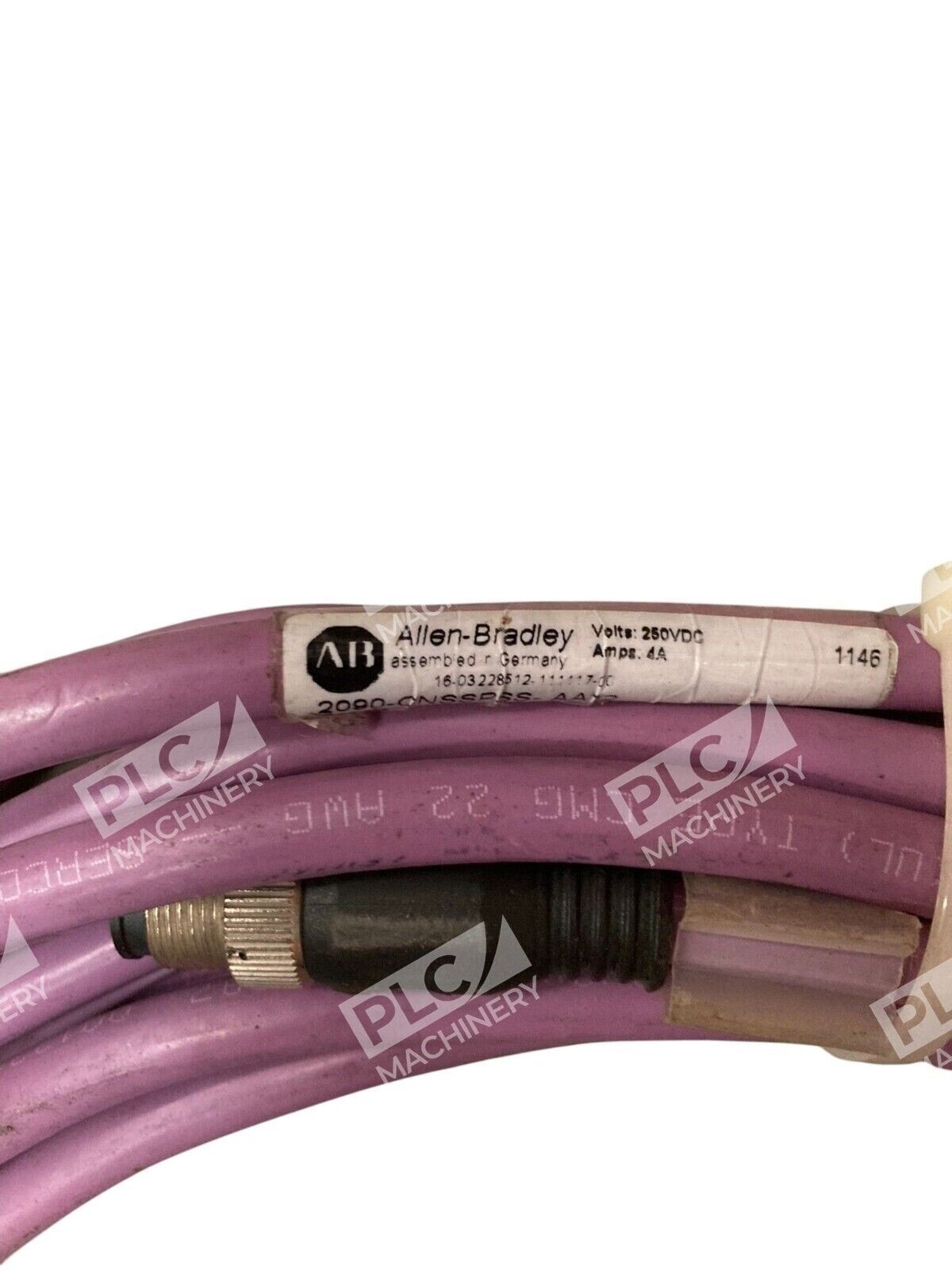

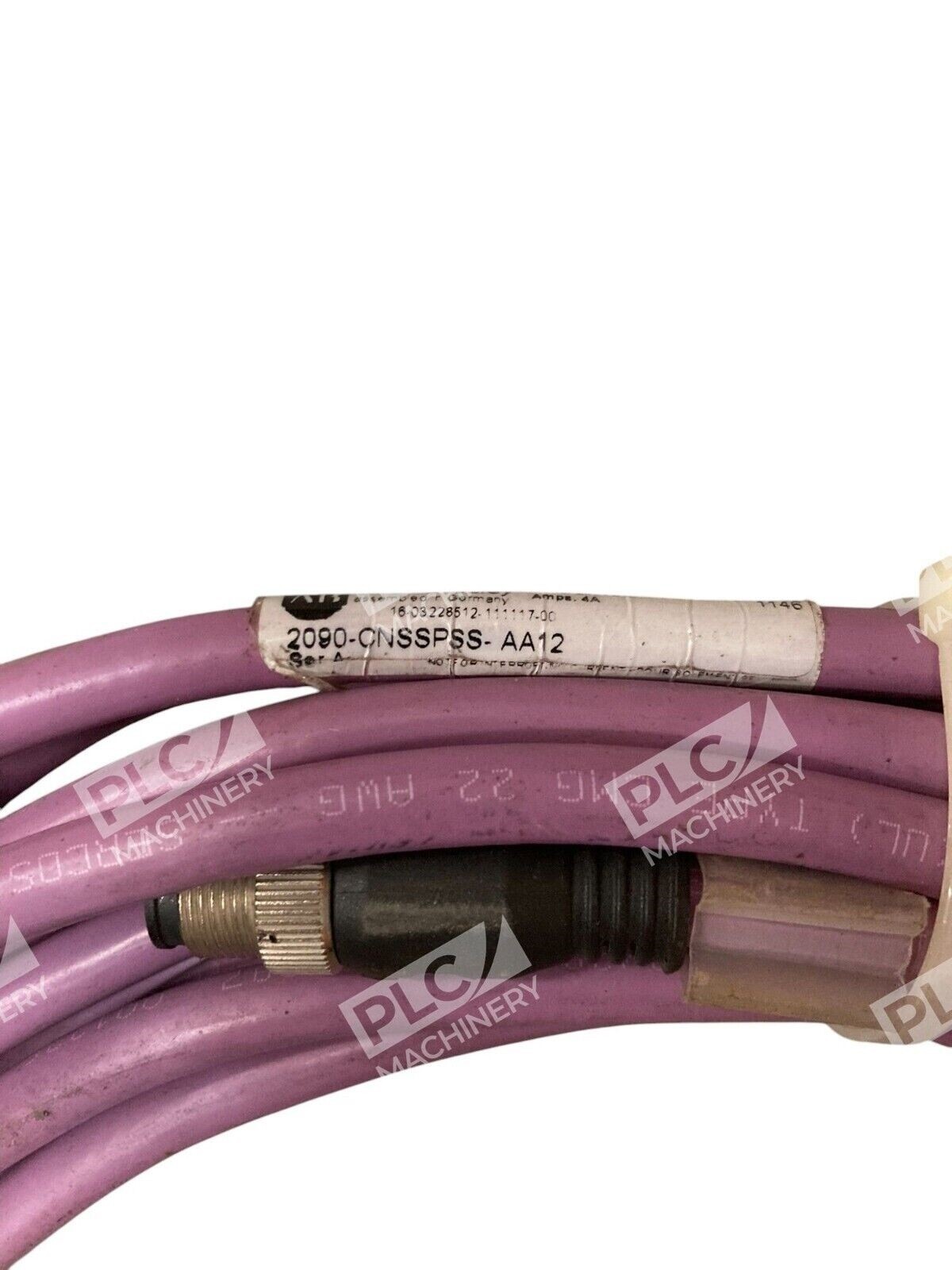

- Straight connector pin-to-socket configuration for standard Kinetix 6000M interfaces
- Industrial-grade construction suitable for factory floor environments
Technical Specifications
- Cable Length: 12 m (39.4 ft)
- Wire Gauge: 22 AWG
- Connector Type: Straight (pin) to Straight (socket)
- Series: Kinetix 6000M Network Cable
- Condition: Used
- Lifecycle Status: Discontinued (May 31, 2021)
Typical Applications
The 2090-CNSSPSS-AA12 is primarily used in multi-axis servo applications requiring medium cable runs between Kinetix 6000M motion controllers and power interface modules. Common installations include coordinated motion systems, assembly machinery, and legacy robotic control platforms that utilize the Kinetix 6000M architecture.
Compatibility & Replacements
This cable is part of the legacy Kinetix 6000M network cable family, which includes variants designated 2090-CNSSPSS-AAxx with different lengths (1m through 25m). Rockwell Automation has not announced a direct replacement product. For modern motion control applications, consult with an authorized Allen-Bradley distributor regarding current Kinetix servo solutions. This used cable is suitable for existing Kinetix 6000M system maintenance and is compatible with original Kinetix 6000M power modules and controller interfaces.
