Overview
The Allen-Bradley 22B-D2P3N104 PowerFlex 40 AC drive is a compact variable-frequency drive designed for reliable motor speed control in industrial applications. This AC drive is designed for 3-phase applications, operates at a voltage rating of 480V AC and supports a current capacity of 2.3 Amps, with output power of 1 horsepower (0.75 kW). The PowerFlex Drives provide innovative, modular design built for fast and easy installation and configuration. Ideal for fans, pumps, conveyors, and small-to-medium industrial machinery, this drive delivers efficient motion control in a space-saving footprint.
Key Features
- Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time
- Drive overload protection, ramp regulation, and flying start
- Configuration and programming via integral LCD keypad, remote keypad, or software
- Three fixed, Four fully programmable discrete inputs, One N.O./N.C. and Two Digital/Optocoupler outputs, Two unipolar and One Bipolar analog inputs and One analog output channels
- Compatible with DriveExplorer & DriveExecutive Software for remote monitoring, programming, and control

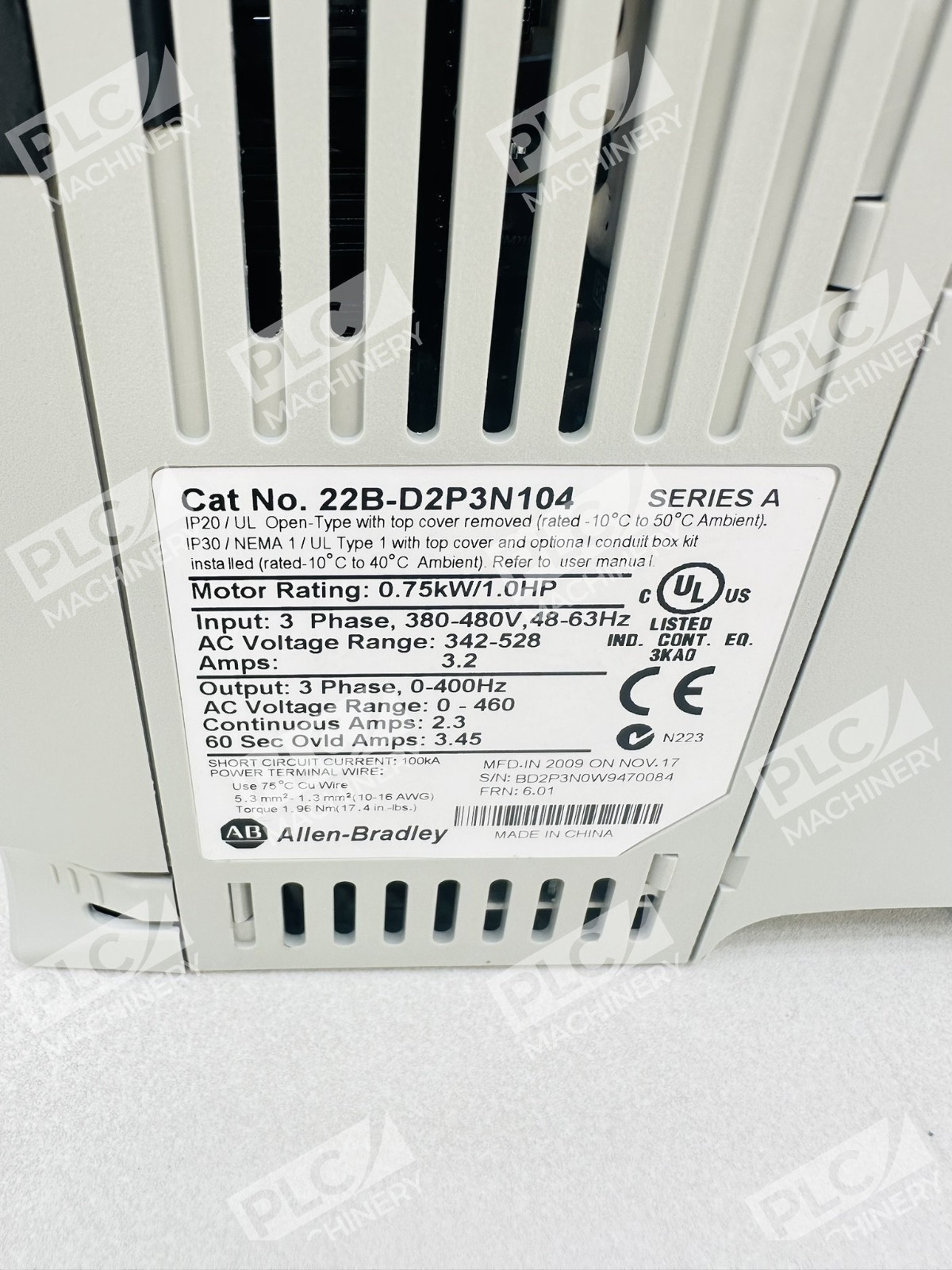

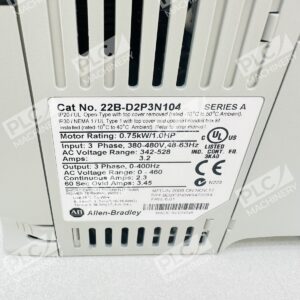

Technical Specifications
- Input Voltage: 480V AC, three-phase
- Output Current: 2.3 Amps
- Output Power: 0.75 kW (1 HP)
- Enclosure: IP20 (open), NEMA Type Open, Panel Mount
- Frame Size B
- Display: LED Display with Digital Keypad
- Communication: DeviceNet, EtherNet/IP, MODBUS, PROFIBUS support
- Operating temperature range: 0 to 40 degrees Celsius
- Brake IGBT: With Brake, Emission Class: Not Filtered
- Connection Type: Fixed Terminal Block
Typical Applications
PowerFlex 40 drives are designed for speed control of applications such as machine tools, fans, pumps and conveyors and material handling systems. The 1 HP output rating makes this drive suitable for smaller, standalone machinery where cost-effective variable-speed control is needed without complex integration requirements.
Compatibility & Replacements
Compatible With
- Logix control platforms (ControlLogix, CompactLogix)
- EtherNet/IP networks
- MODBUS RTU master devices
- PROFIBUS communication
- DeviceNet networks
- RS485 serial communication
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 22B-D2P3N104 is the specified part number for this 0.75 kW, 480V, 3-phase configuration. Related PowerFlex 40 models exist for different voltage and horsepower ratings.
Works With
- DriveExplorer software (configuration and monitoring)
- DriveExecutive software (remote programming and control)
- Studio 5000 (via Logix integration)
- Remote keypad module (optional)
- DF1 messaging (with optional serial converter)
