Overview

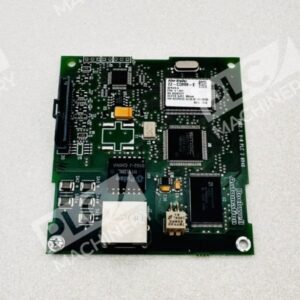

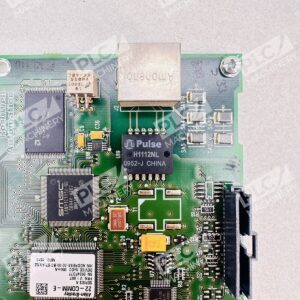

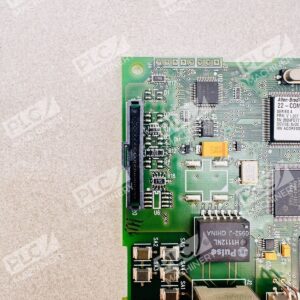

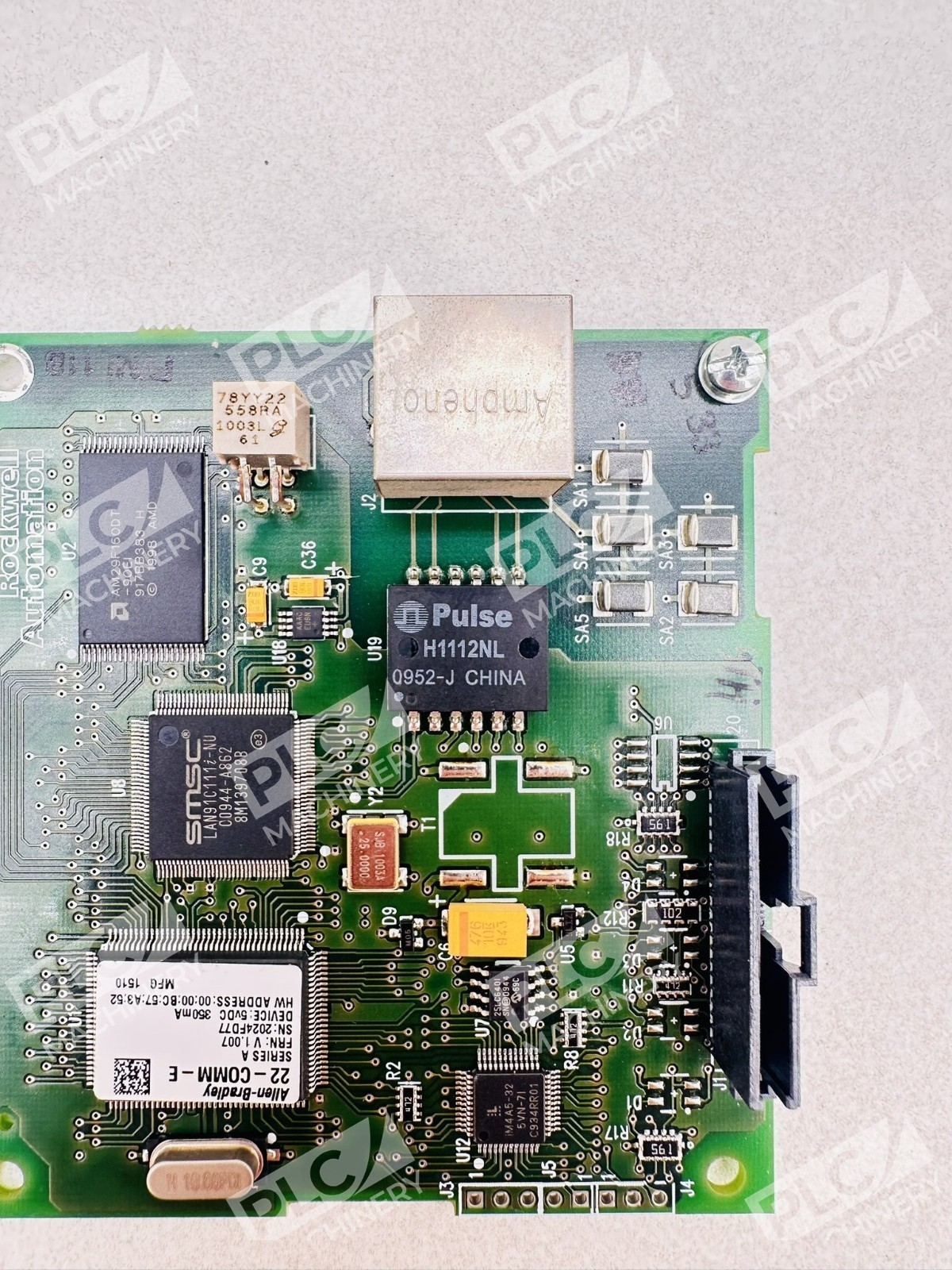

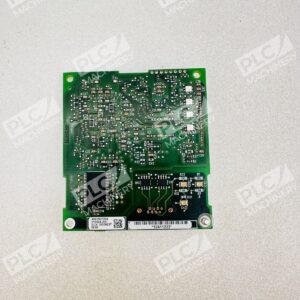

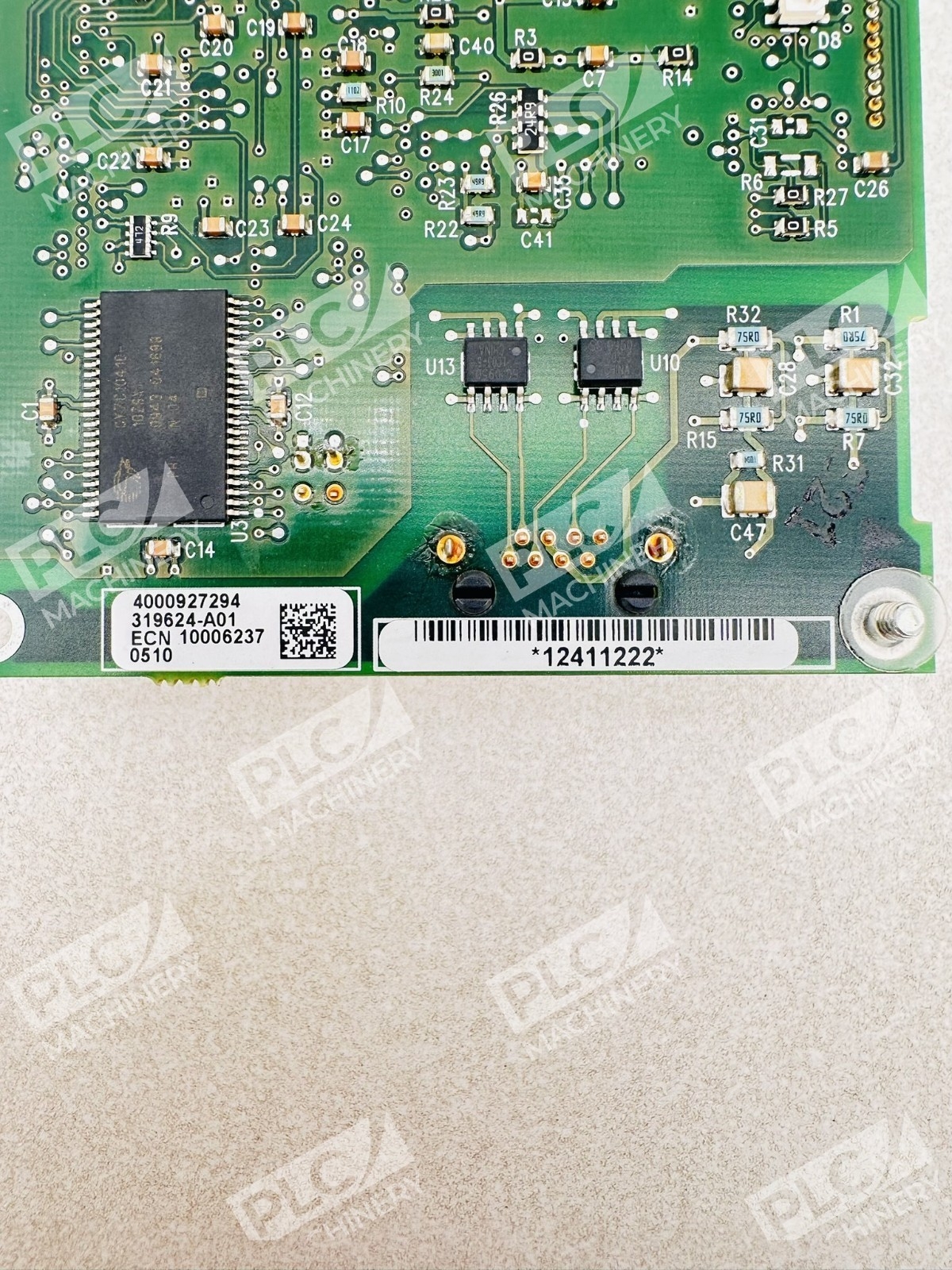

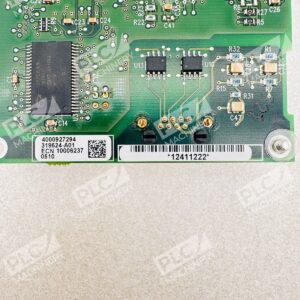

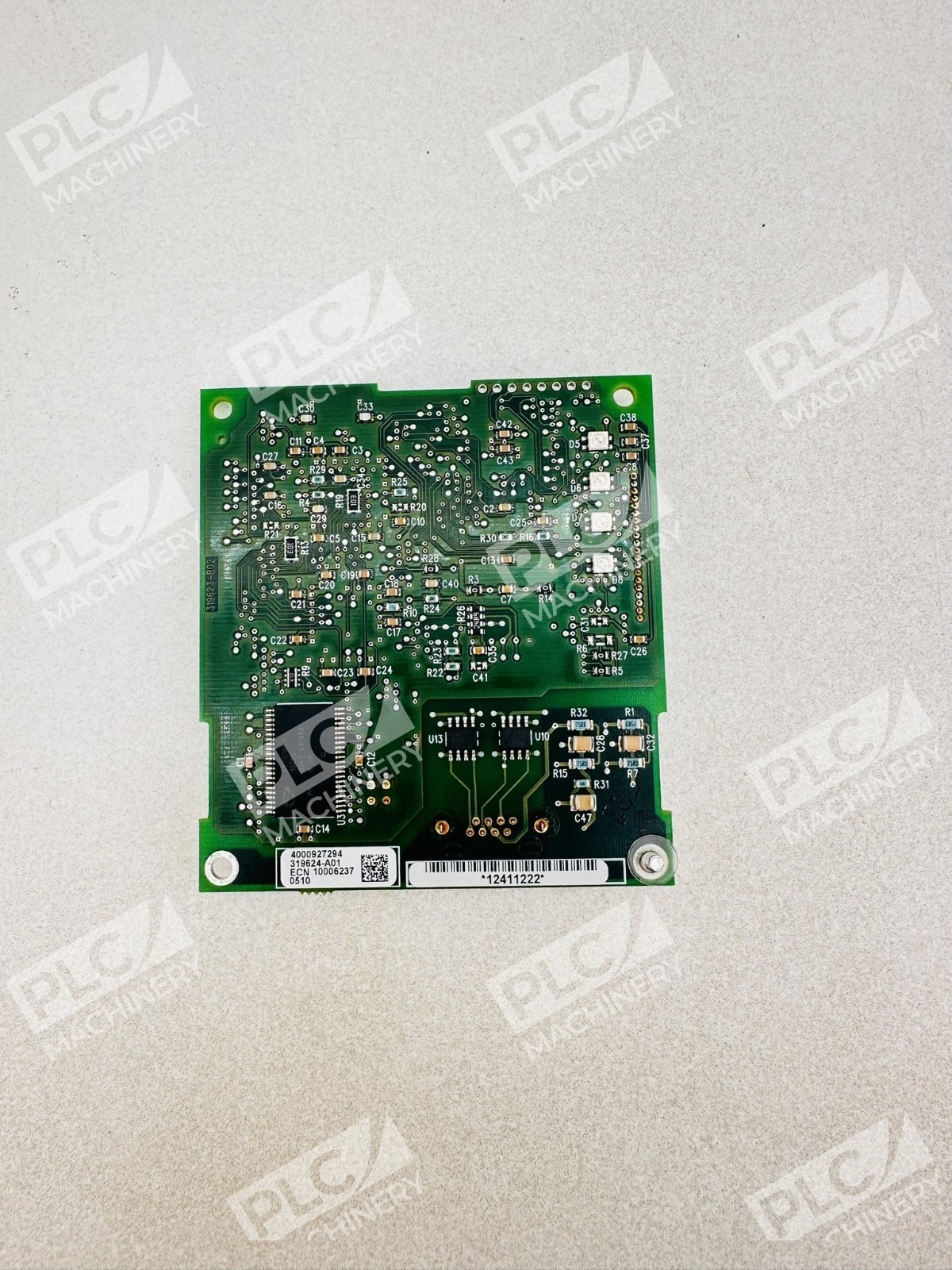

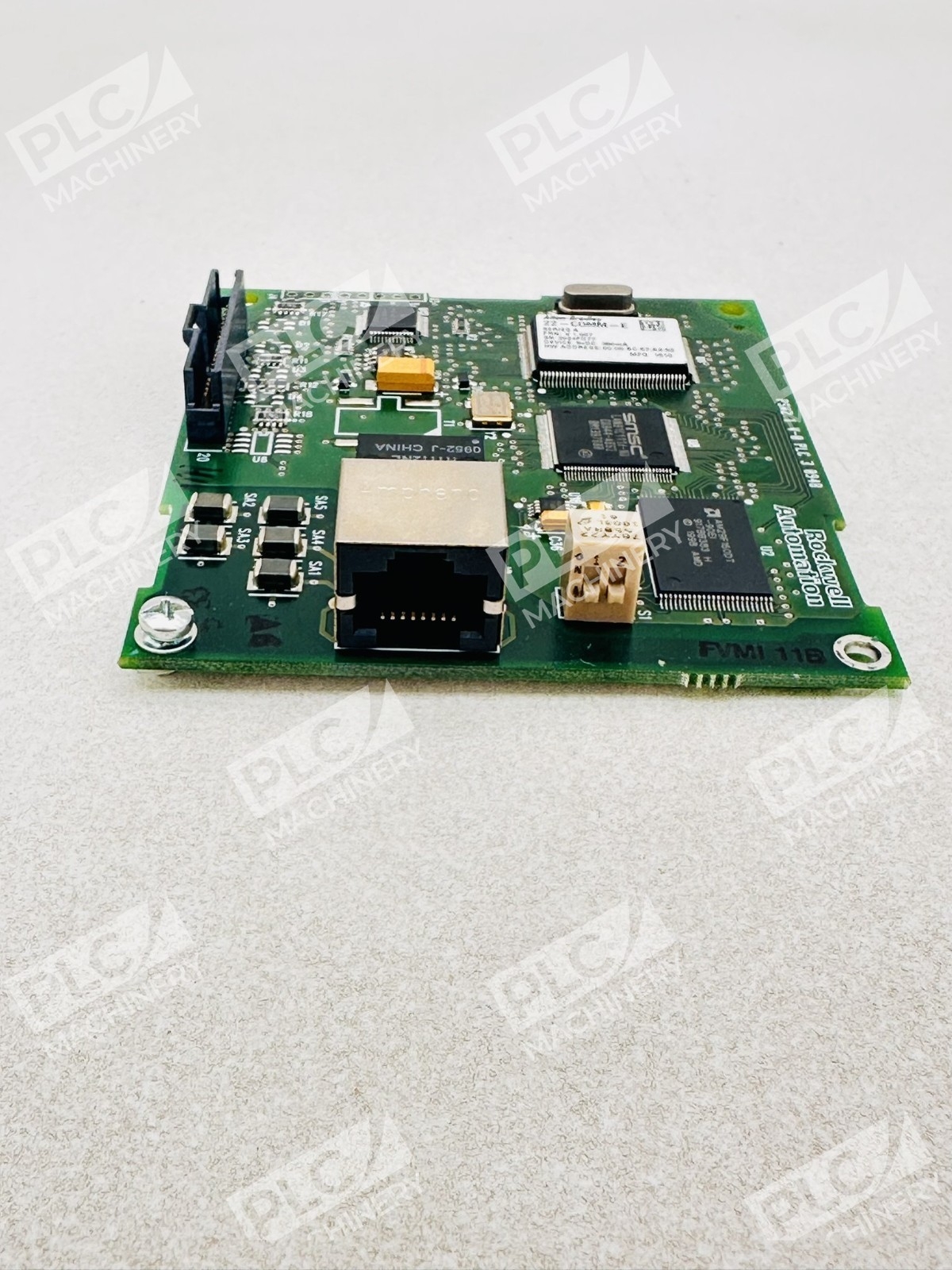

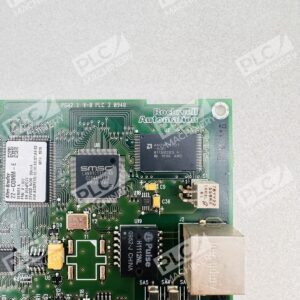

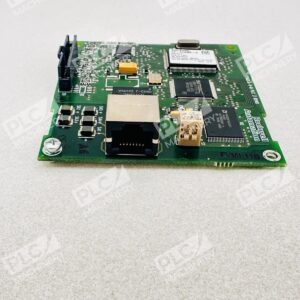

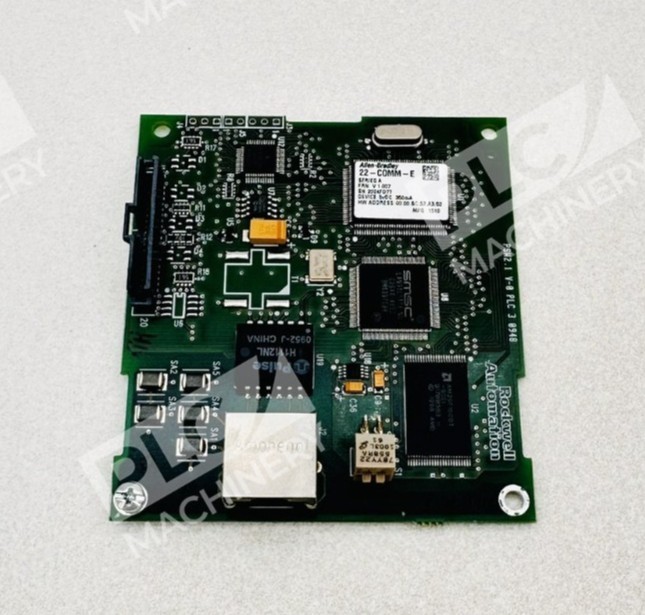

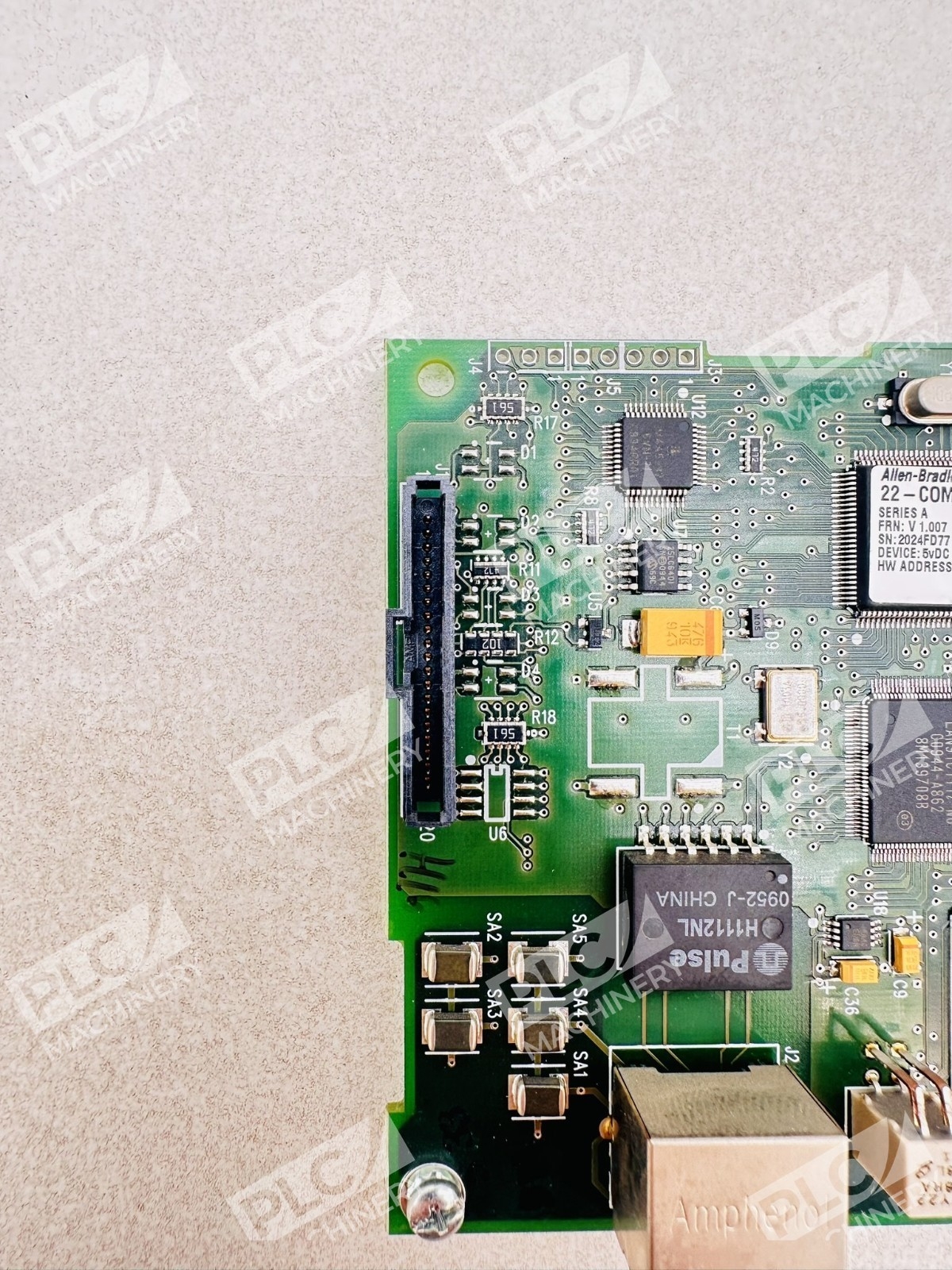

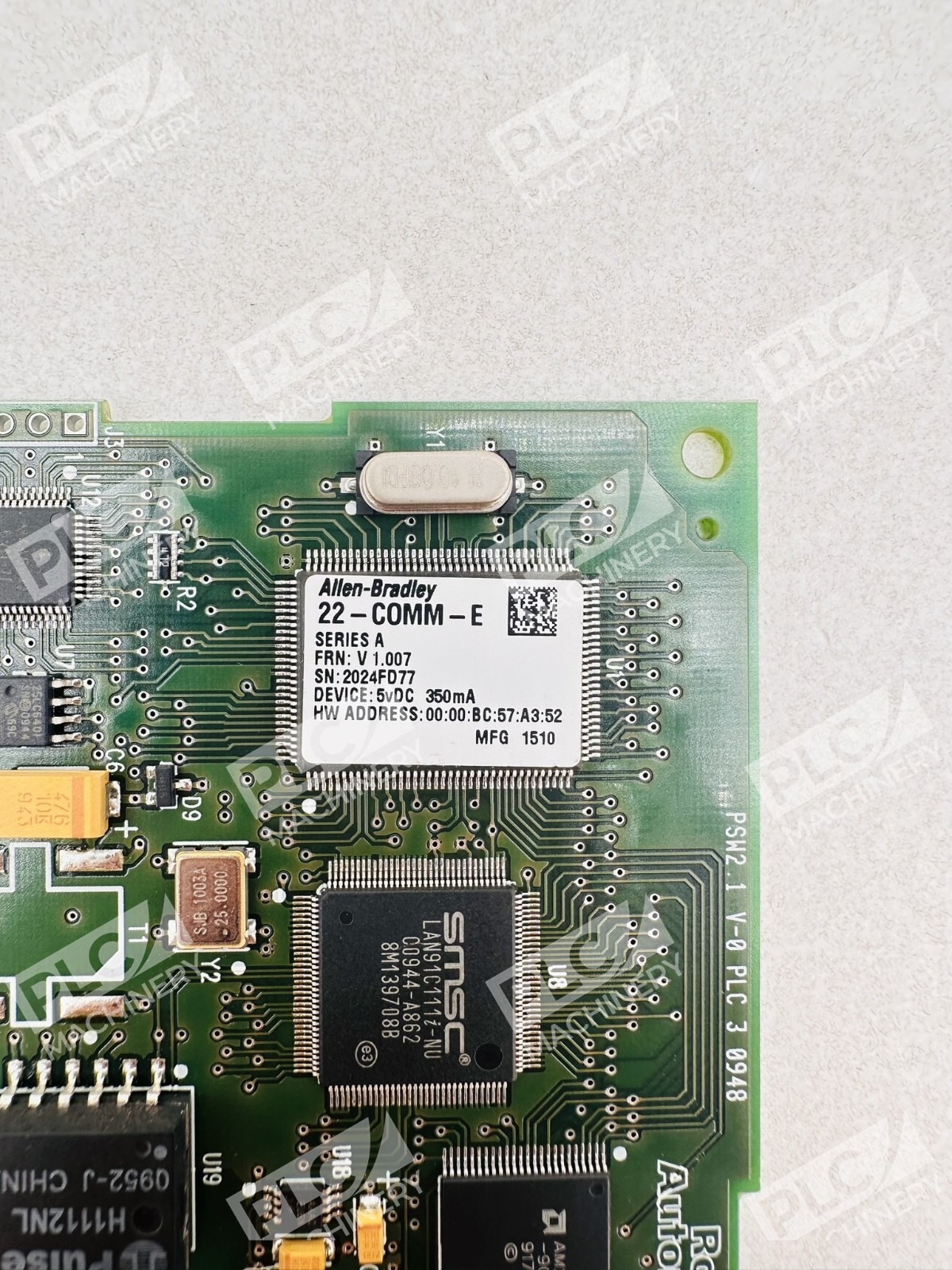

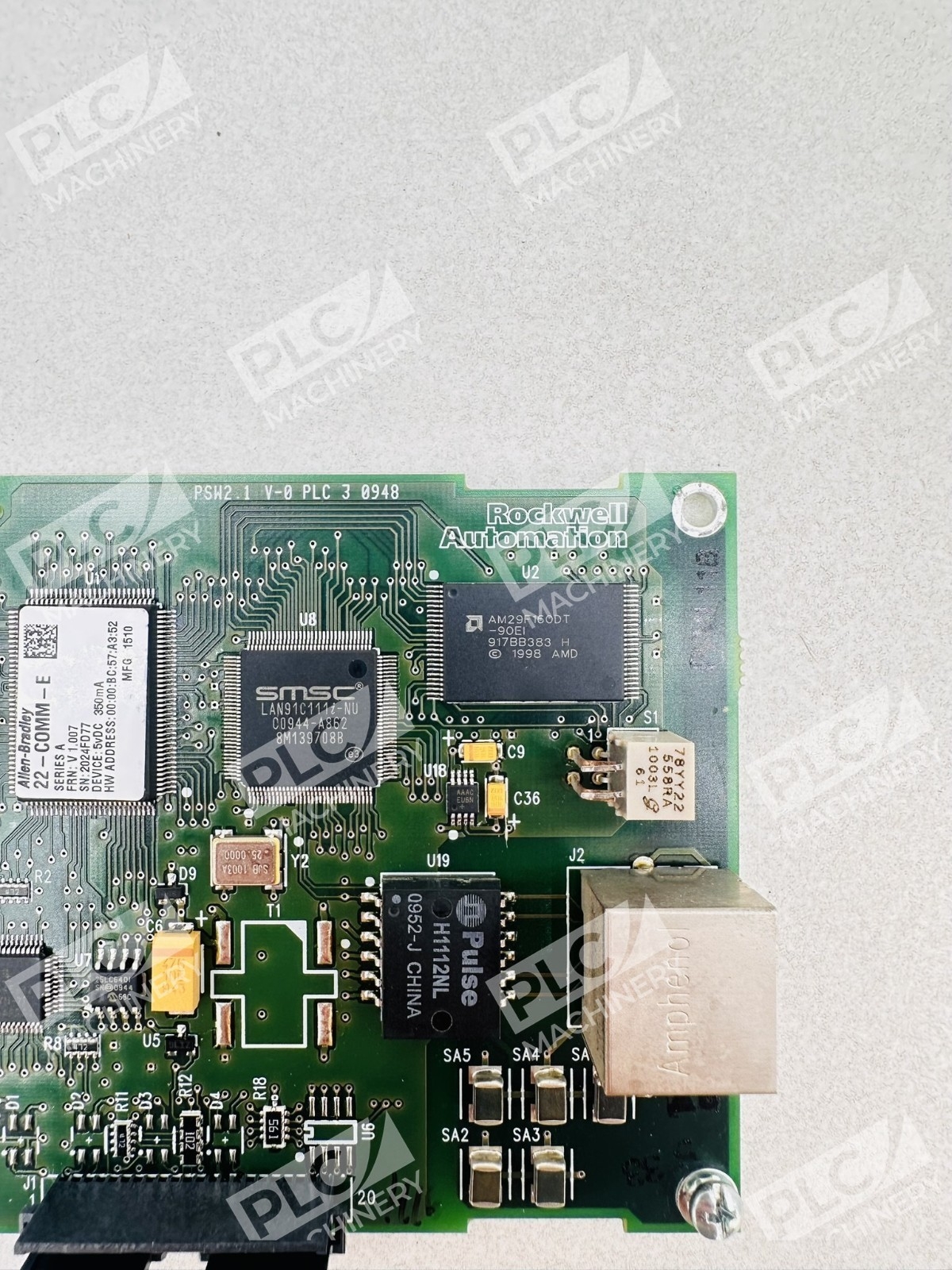

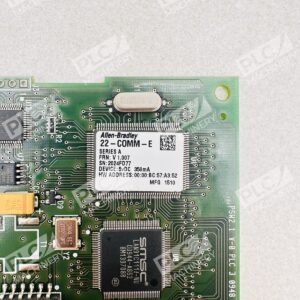

The Allen-Bradley 22-COMM-E is an EtherNet/IP adapter card designed for seamless integration of PowerFlex component-class drives into Ethernet-based industrial automation systems. This compact communication module installs directly into the drive’s communication slot via a ribbon cable, enabling real-time control and monitoring of drives over standard Ethernet networks. It is designed for PowerFlex 4, 40, and 400 AC drives and installs directly into the drive’s communication slot to enable high-speed Ethernet connectivity.
Key Features
- Dual Data Rate Support: Allows drives to communicate over EtherNet/IP at speeds of 10 or 100 Mbps, supporting both full- and half-duplex modes
- Multi-Drive Capability: In single-drive mode, the adapter accommodates one drive per node, while in multi-drive mode, it can manage up to five drives per node
- Built-In Diagnostics: Includes built-in diagnostic web pages for drive and adapter information, configuration options, and status monitoring, with four onboard status LEDs for quick network and module health verification
- Network Performance: Provides up to 30 simultaneous TCP connections, handles up to 400 total I/O packets per second, and supports a minimum Requested Packet Interval (RPI) of 5 ms
- PLC Integration: Fully compatible with standard Ethernet tools such as BOOTP/DHCP utilities and integrates seamlessly with Allen-Bradley PLCs via EtherNet/IP
Technical Specifications
- Communication Protocol: EtherNet/IP
- Network Interface: RJ-45 for Ethernet connections
- Data Rates: 10/100 Mbps
- Duplex Operation: 10 Mbps Full Duplex, 10 Mbps Half Duplex, 100 Mbps Full Duplex, and 100 Mbps Half Duplex
- Power Requirements: 24V DC (typically powered by the drive)
- Electrical Consumption: 350 mA at 5 VDC supplied through the drive
- Mounting Type: Internal Mount
- Dimensions: 10.2 cm x 10.2 cm x 5.1 cm
- Weight: 2.3 kg
- Status Indicators: PORT, MOD, NET A, NET B for module and network status monitoring
Typical Applications
The adapter is primarily used in industrial automation environments where centralized drive control is essential, such as manufacturing plants, conveyors, pumps, and HVAC systems. It is commonly deployed in facilities requiring coordinated motor control across multiple PowerFlex drives using a single EtherNet/IP network backbone.
Compatibility & Replacements
Compatible With
- PowerFlex 4, 40, and 400 AC Drives
- EtherNet/IP industrial control networks
- Rockwell Automation PLCs (CompactLogix, ControlLogix, Micro800, others)
- Standard BOOTP/DHCP network configuration utilities
- Allen-Bradley HMIs and visualization systems
Replaces / Drop-In Replacement For
The 22-COMM-E is a standard communication option for PowerFlex 4-class component drives. Verify compatibility with your specific drive model and series before ordering. When replacing a failed or older adapter, ensure your PowerFlex drive firmware version supports this communication module.
Works With
- EtherNet/IP protocol and networks
- Rockwell Studio 5000 Logix Designer (PowerFlex drive programming and configuration)
- PowerFlex Manager Plus (multi-drive management software)
- DHCP and static IP address assignment modes
- Email notification configuration for fault and communication events
[
{“label”: “Manufacturer”, “value”: “Allen-Bradley / Rockwell Automation”},
{“label”: “Part Number”, “value”: “22-COMM-E”},
{“label”: “Product Type”, “value”: “EtherNet/IP Communication Adapter”},
{“label”: “Communication Protocol”, “value”: “EtherNet/IP”},
{“label”: “Data Rates”, “value”: “10 Mbps / 100 Mbps (Full/Half Duplex)”},
{“label”: “Compatible Drives”, “value”: “PowerFlex 4, 40, 400 AC Drives”},
{“label”: “Drive Modes”, “value”: “Single or Multi-Drive (up to 5 drives)”},
{“label”: “Network Interface”, “value”: “RJ-45 Ethernet”},
{“label”: “Power Supply”, “value”: “24V DC (via drive)”},
{“label”: “Power Consumption”, “value”: “350 mA at 5V DC”},
{“label”: “Mounting”, “value”: “Internal Mount (via ribbon cable)”},
{“label”: “Dimensions”, “value”: “10.2 cm × 10.2 cm × 5.1 cm”},
{“label”: “Weight”, “value”: “2.3 kg”},
{“label”: “Status Indicators”, “value”: “PORT, MOD, NET A, NET B LEDs”},
{“label”: “Max TCP Connections”, “value”: “30 simultaneous”}
]
