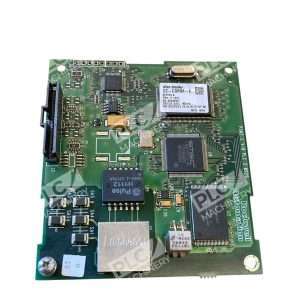

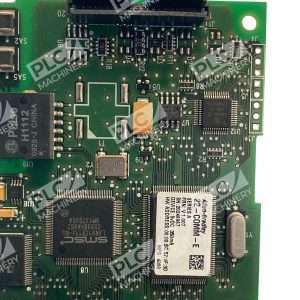

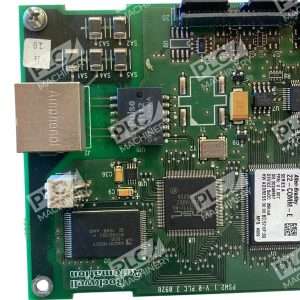

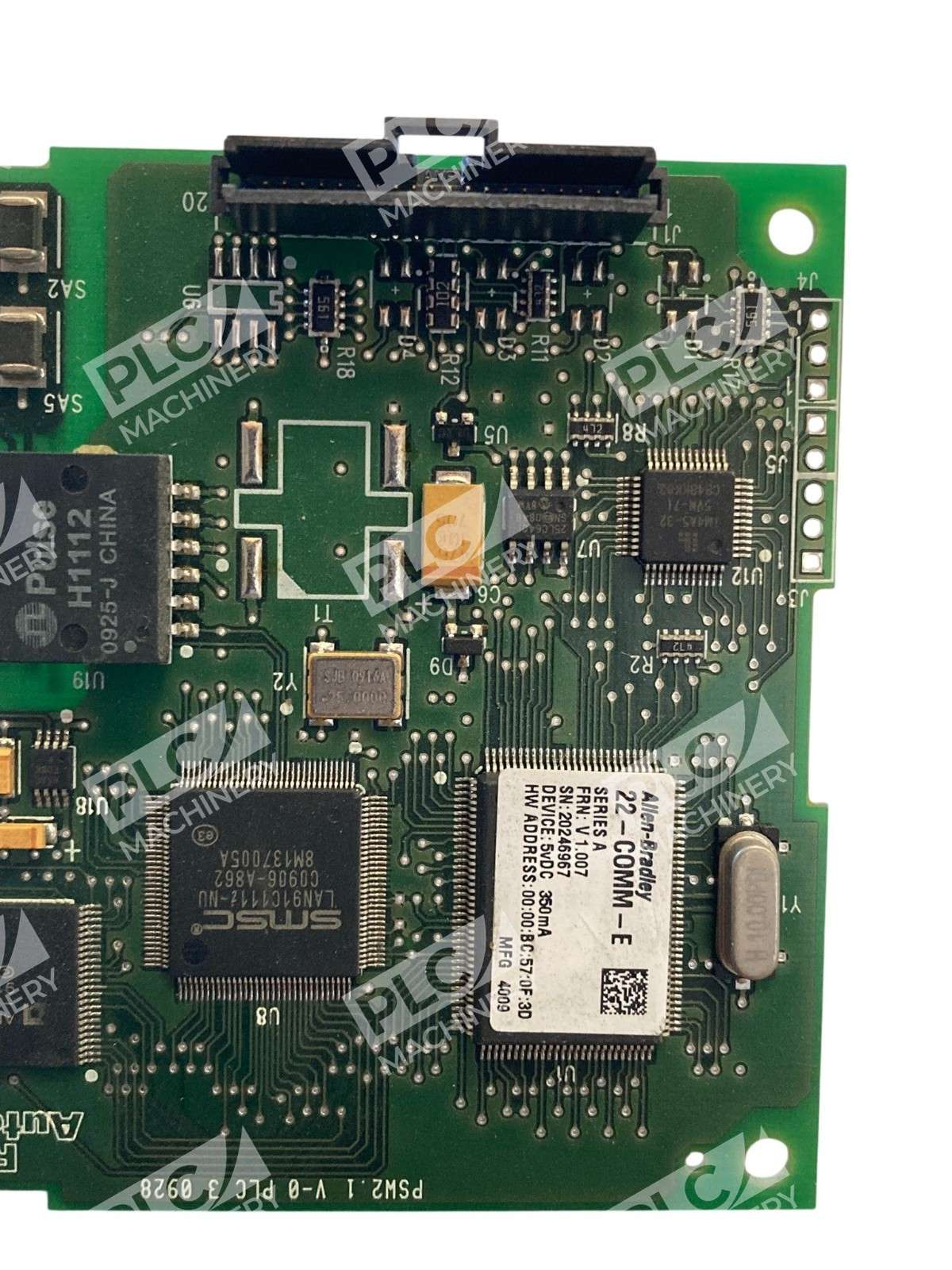

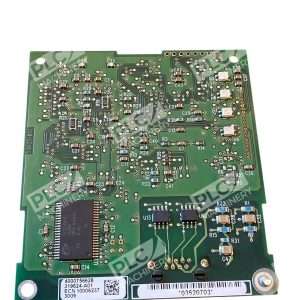

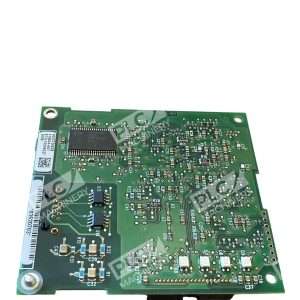

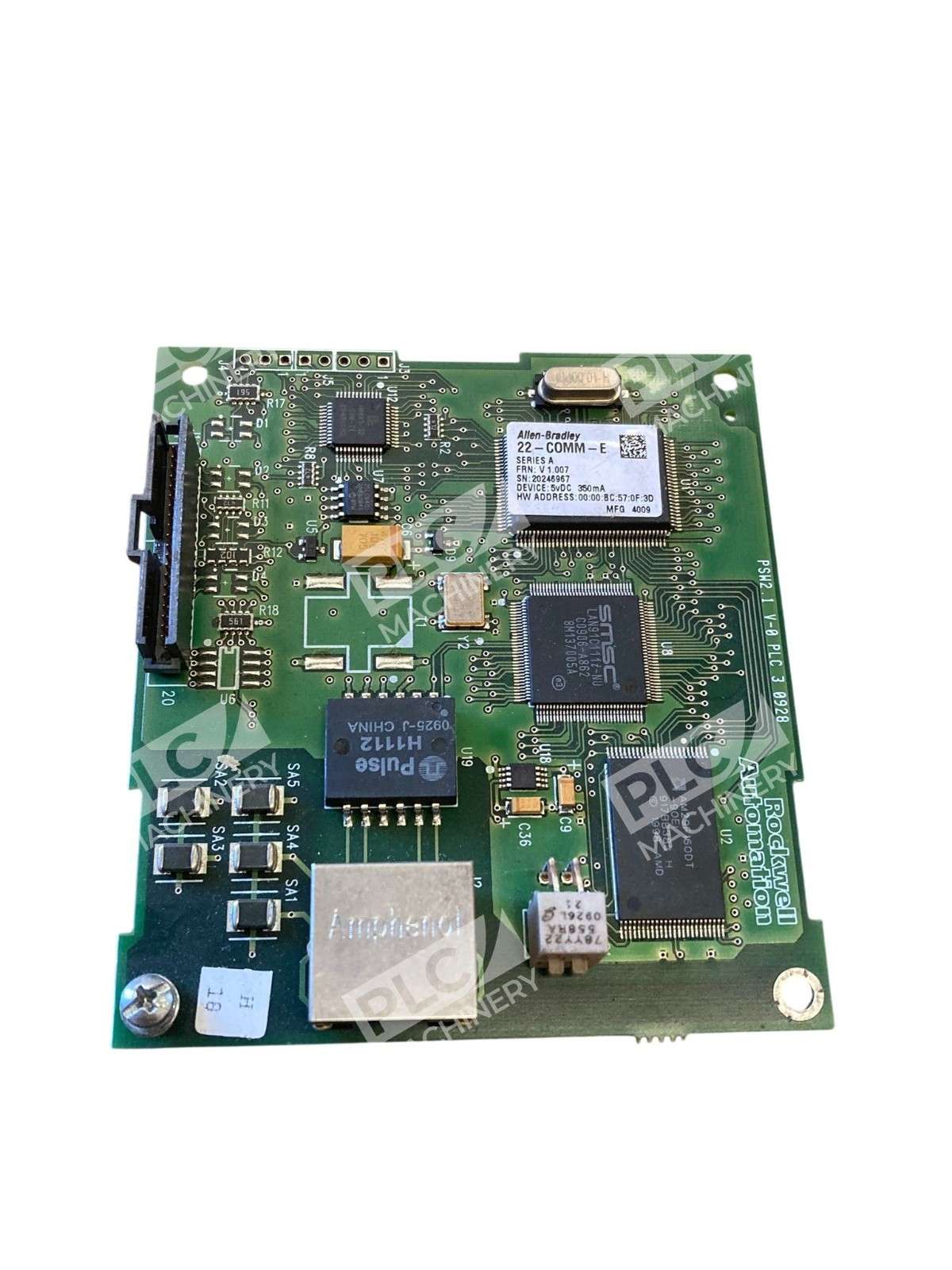

Allen-Bradley 22-COMM-E EtherNet/IP Adapter

The Allen-Bradley 22-COMM-E is an EtherNet/IP communication adapter designed to integrate PowerFlex 4, 40, and 400 adjustable frequency drives into Ethernet/IP networks. This adapter facilitates seamless connectivity, enabling efficient control and monitoring of drives within industrial automation systems.

Key Features

• High-Speed Communication: Supports data rates of 10 Mbps and 100 Mbps in both full and half-duplex modes, ensuring rapid and reliable data exchange.
• Embedded Web Pages: Provides built-in web pages for comprehensive monitoring and configuration of the adapter and connected drives.
• Email Notifications: Capable of sending email alerts for drive fault events, enhancing proactive maintenance and system reliability.
• Status Indicators: Equipped with four LED indicators to display module, network, and drive status, facilitating quick diagnostics.
• Flexible Mounting: Designed for internal mounting within the drive, ensuring a compact and streamlined installation.

Technical Specifications

• Part Number: 22-COMM-E
• Compatible Drives: PowerFlex 4, 40, and 400 series
• Communication Port: One RJ45 Ethernet port
• Data Rates: 10 Mbps Full/Half Duplex, 100 Mbps Full/Half Duplex
• TCP Connections: Supports up to 30 simultaneous TCP connections
• Packet Rate: Handles up to 400 total I/O packets per second (200 in and 200 out)
• Power Consumption: 350 mA at 5V DC, supplied by the host drive
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Dimensions: Height: 19 mm (0.75 inches), Length: 86 mm (3.39 inches), Width: 78.5 mm (3.09 inches)
• Regulatory Compliance: UL508C, CAN/CSA C22.2 No. 14-M91, EN50178, EN61800-3

Applications

The 22-COMM-E adapter is ideal for various industrial applications, including:

• Factory automation systems
• Process control applications
• Material handling systems
• Packaging machinery
• Water and wastewater treatment facilities

By integrating the 22-COMM-E adapter, industries can achieve enhanced network control, improved diagnostics, and streamlined communication between PowerFlex drives and EtherNet/IP networks, leading to increased operational efficiency and reduced downtime.
