Overview

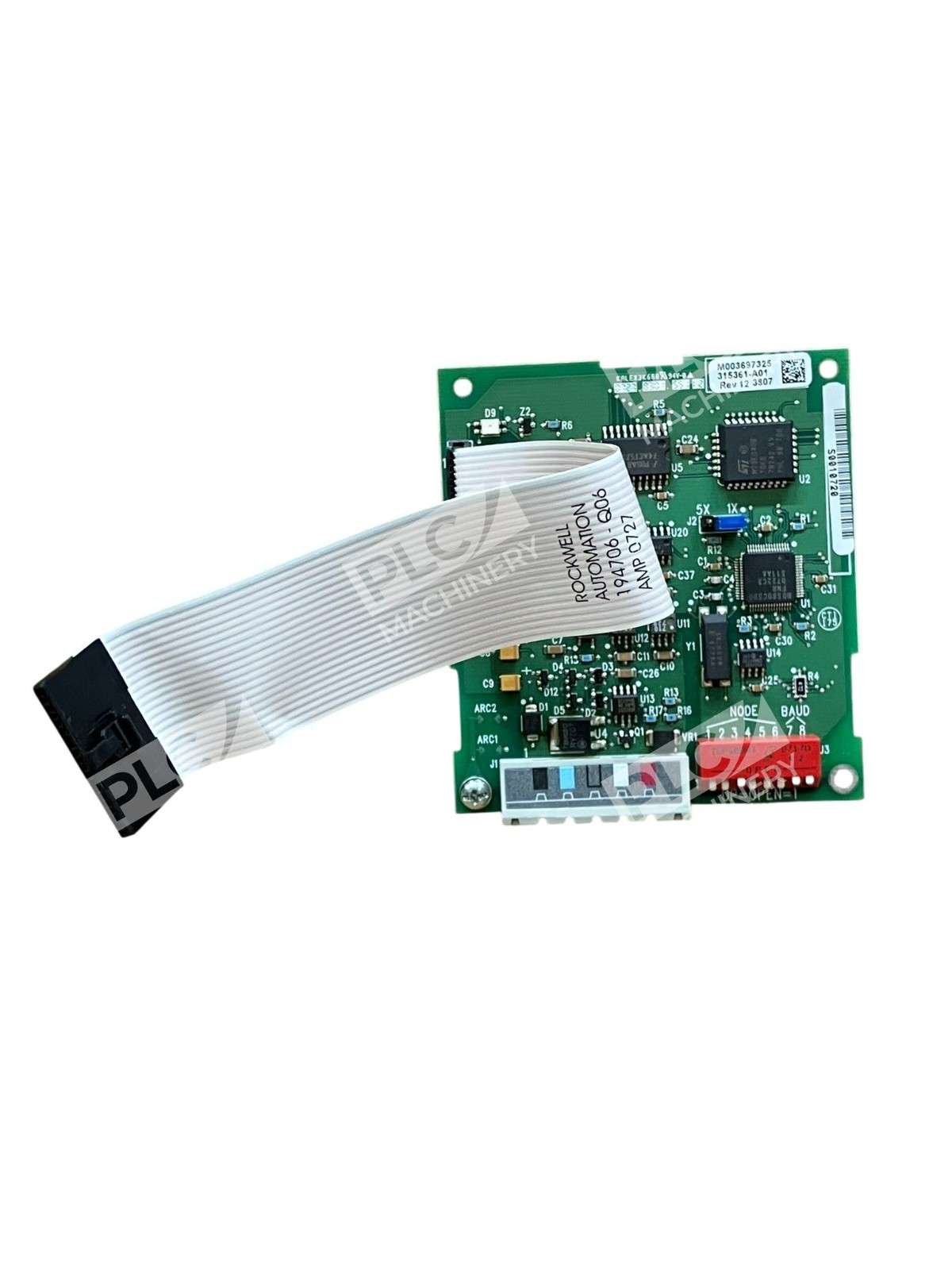

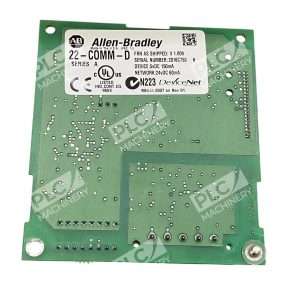

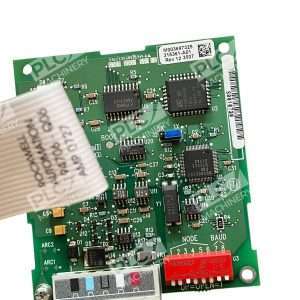

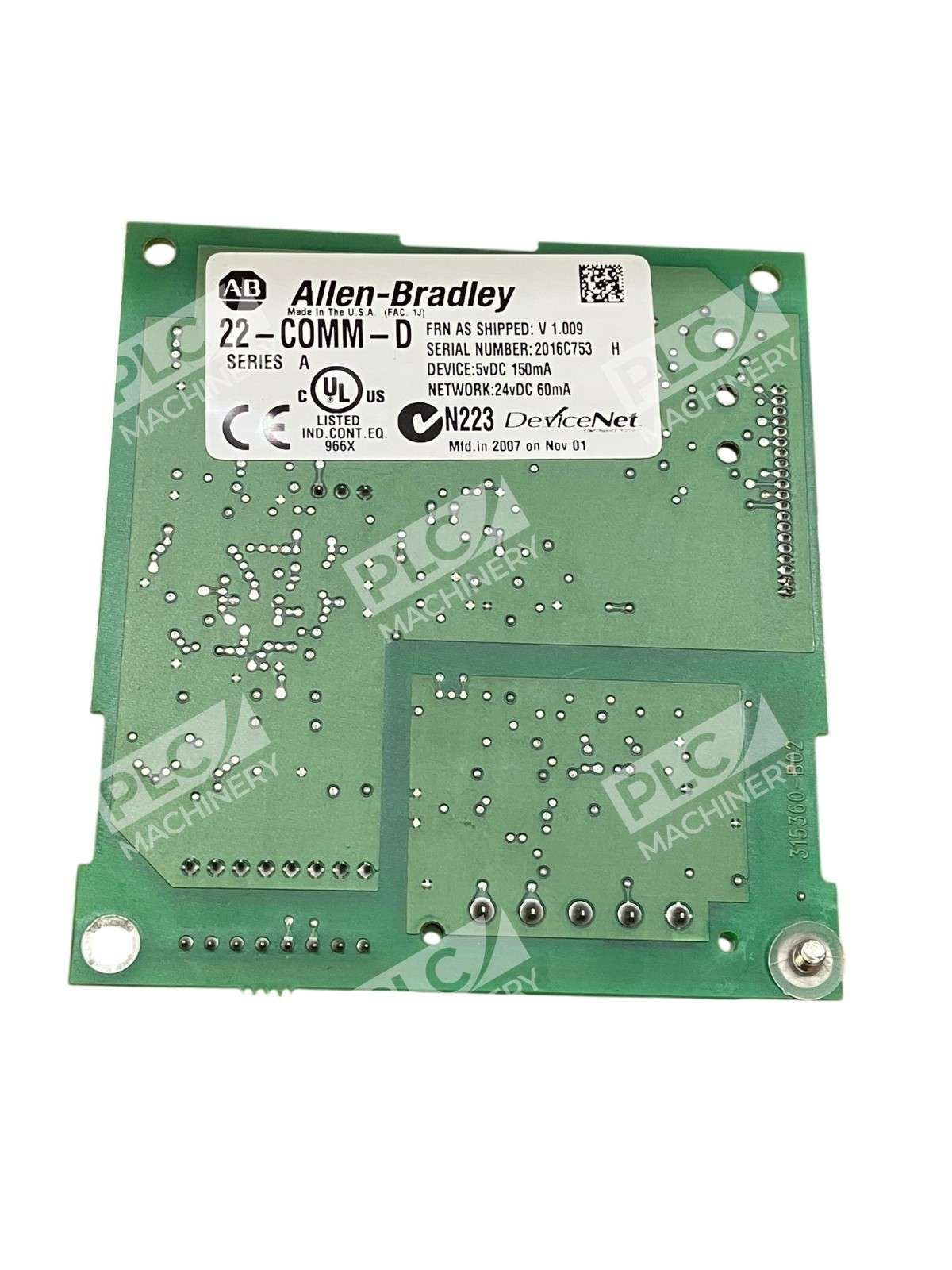

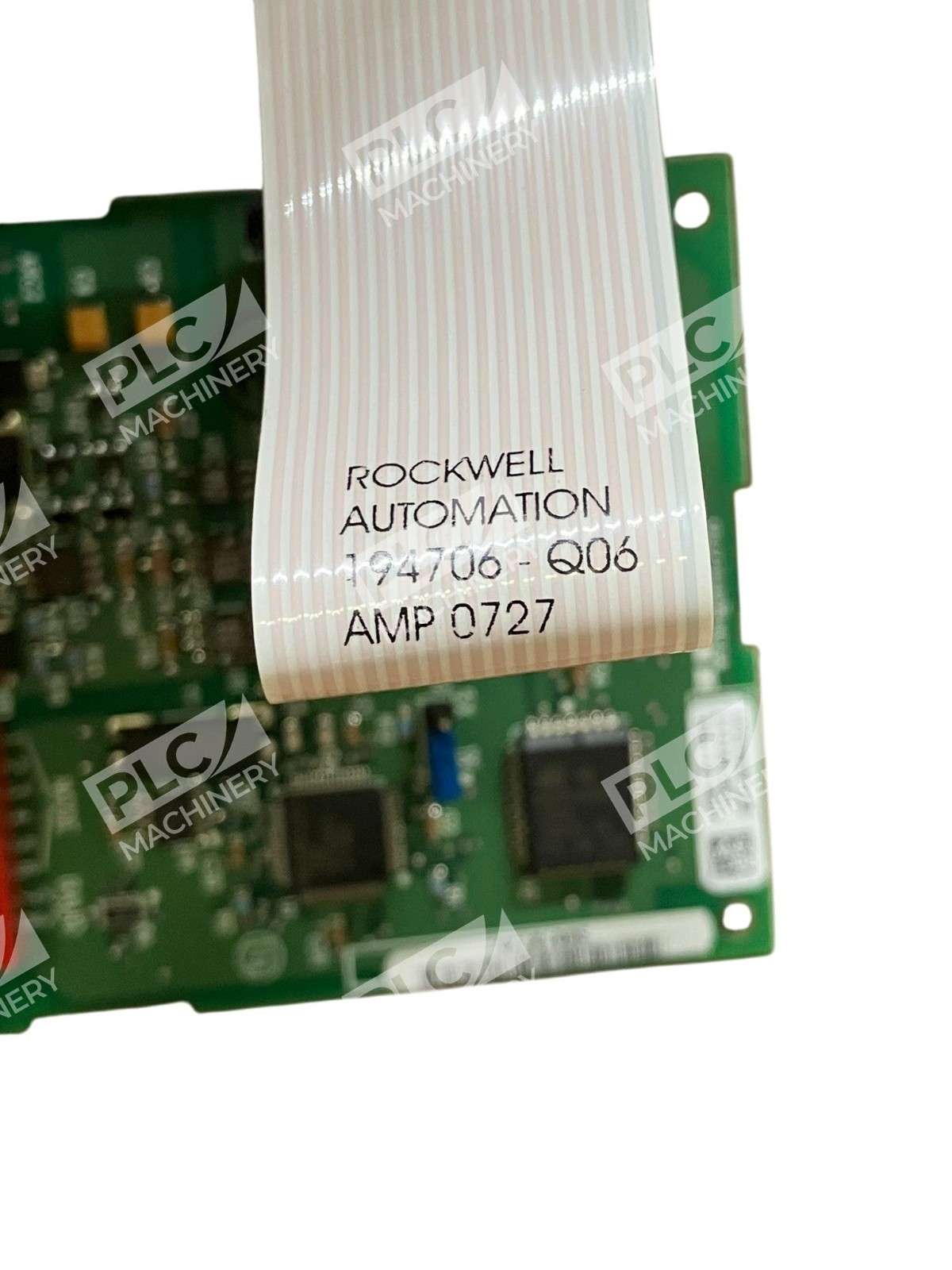

The Allen-Bradley 22-COMM-D DeviceNet adapter is a communication module that enables PowerFlex AC drives to integrate seamlessly into DeviceNet automation networks. Designed for use with PowerFlex 4, 40, 40P, 400, and 523/525 series AC drives, this module enables integration of PowerFlex drives into a DeviceNet network, providing control and diagnostic data exchange with Rockwell Automation or other DeviceNet-enabled systems. The adapter supports both single and multi-drive topologies, allowing flexibility in system architecture for controls engineers and system integrators.
Key Features
- DeviceNet Communication: Supports a range of data rates, including 125K, 250K, and 500K, enabling configuration to match network requirements
- Multi-Drive Support: Supports single drive or multi drive operation, with single drive operation supporting a single drive installed with one adapter, while multi-drive operation supports both PowerFlex 40 and PowerFlex 4 drives
- DSI Bridge: Serves as a bridge between DeviceNet networks and DSI (Drive Serial Interface) devices, ensuring compatibility and interoperability across different automation components within the PowerFlex 40 series

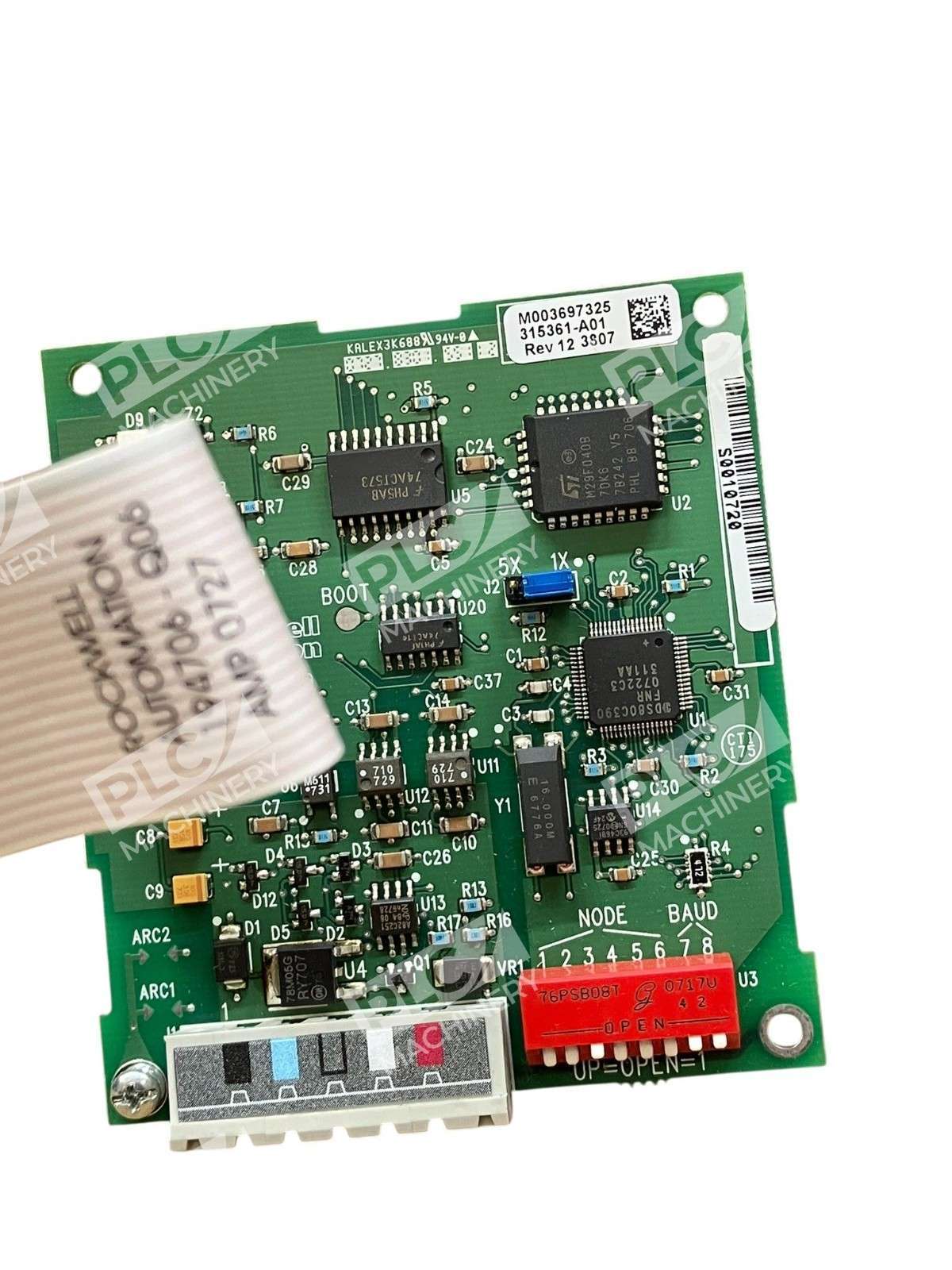

- Status Monitoring: Comes with three (3) LED status indicators, 20-pin DSI connector, 5-pin DeviceNet connector, node address selector switches and mode jumper for multi-drive operation
- Protocol Support: Supports explicit messaging and automatic device replacement (ADR), polled cyclic and change-of-state data exchange methods
- Configuration: Node addressing via rotary switches or software configuration through RSLogix or Connected Components Workbench (CCW)
Technical Specifications
- Part Number: 22-COMM-D
- Adapter Type: DeviceNet to DSI (Drive Serial Interface) Communication Adapter
- Communication Protocol: DeviceNet with support for polled, cyclic, and change-of-state data exchange
- Data Rates: 125K, 250K, and 500K baud rates
- Device Voltage: 5 VDC / 150 MA
- Network Voltage: 24 VDC / 60 MA
- Multi-Drive Capability: Up to 5 drives on 1 node
- Connectors: 5-pin DeviceNet open-style connector and 20-pin DSI connector
- Dimensions: 86 mm (L) x 78.5 mm (W) x 19 mm (D)
- Weight: Approx. 0.163 kg
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -40 to 85°C
- Certifications: CE, UL, cUL, C-Tick
- Mounting: Internal to supported PowerFlex drives
- Status Indicators: LEDs for status and communication monitoring
Typical Applications
Designed to integrate PowerFlex drives into DeviceNet communication networks for real-time control, diagnostics, and configuration, this adapter is used in industrial environments for managing drive operations, optimizing performance, and ensuring seamless communication across automation systems. Common applications include:
- Material handling and conveyor systems requiring networked drive control
- Manufacturing automation with multiple coordinated AC motor drives
- Machine tool installations requiring diagnostic feedback and remote monitoring
- HVAC and pump systems with centralized DeviceNet control
- Production lines where drives must communicate with Logix controllers
Compatibility & Replacements
The 22-COMM-D is designed for use with PowerFlex 4, 40, 40P, 400, and 523/525 series drives, enabling configuration through RSLogix or Connected Components Workbench (CCW). Compatible with 1784-PCD, 1784-PCID, 1784-PCIDS, or 1770-KFD communication adapters for alternative network gateway options. The adapter is a drop-in module for any PowerFlex drive requiring DeviceNet connectivity, eliminating the need for external gateway devices in many applications. For RS485-based systems requiring DeviceNet integration, the 22-COMM-D provides a compact, single-node solution supporting up to five drives per node.
