Overview

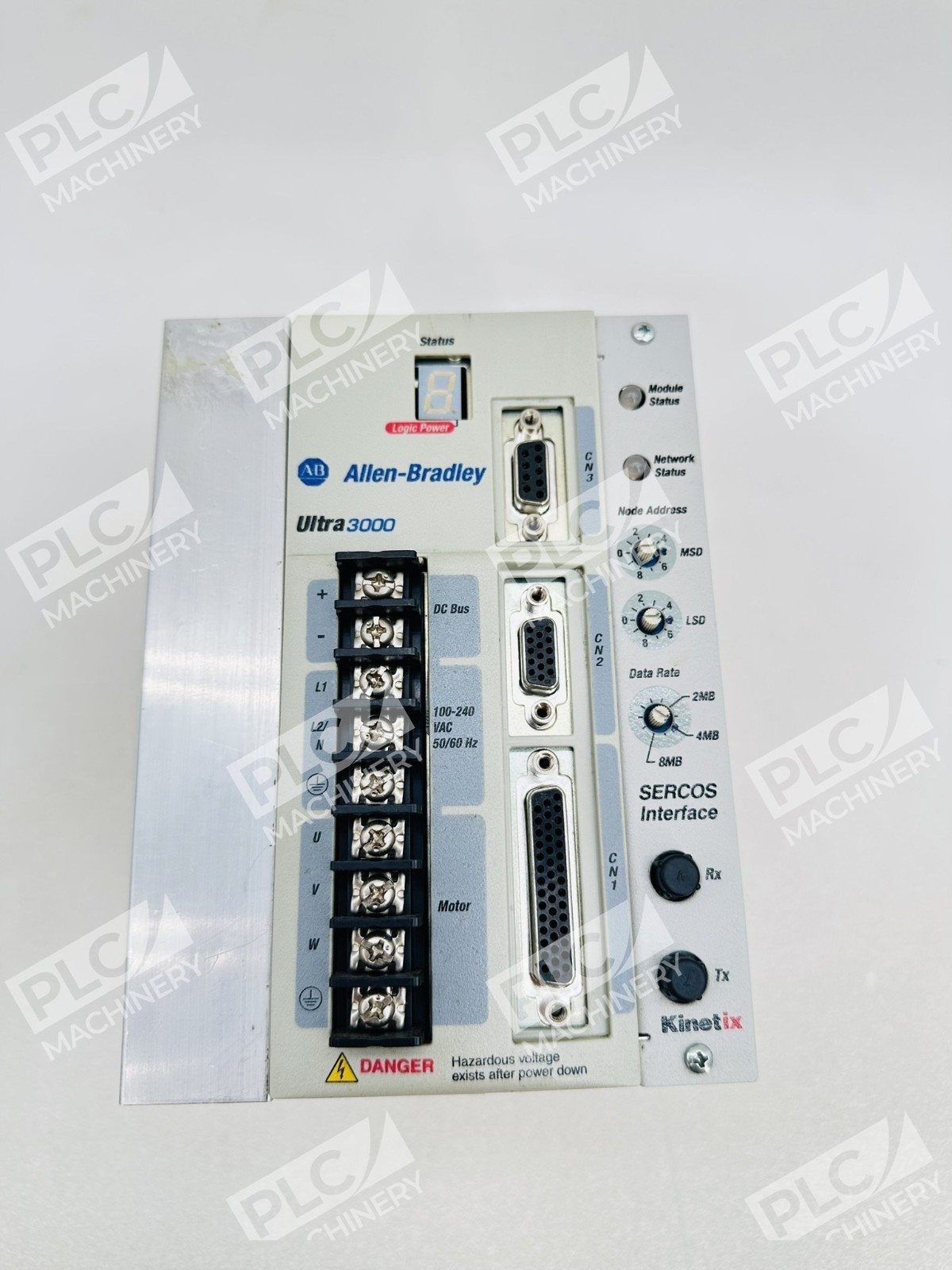

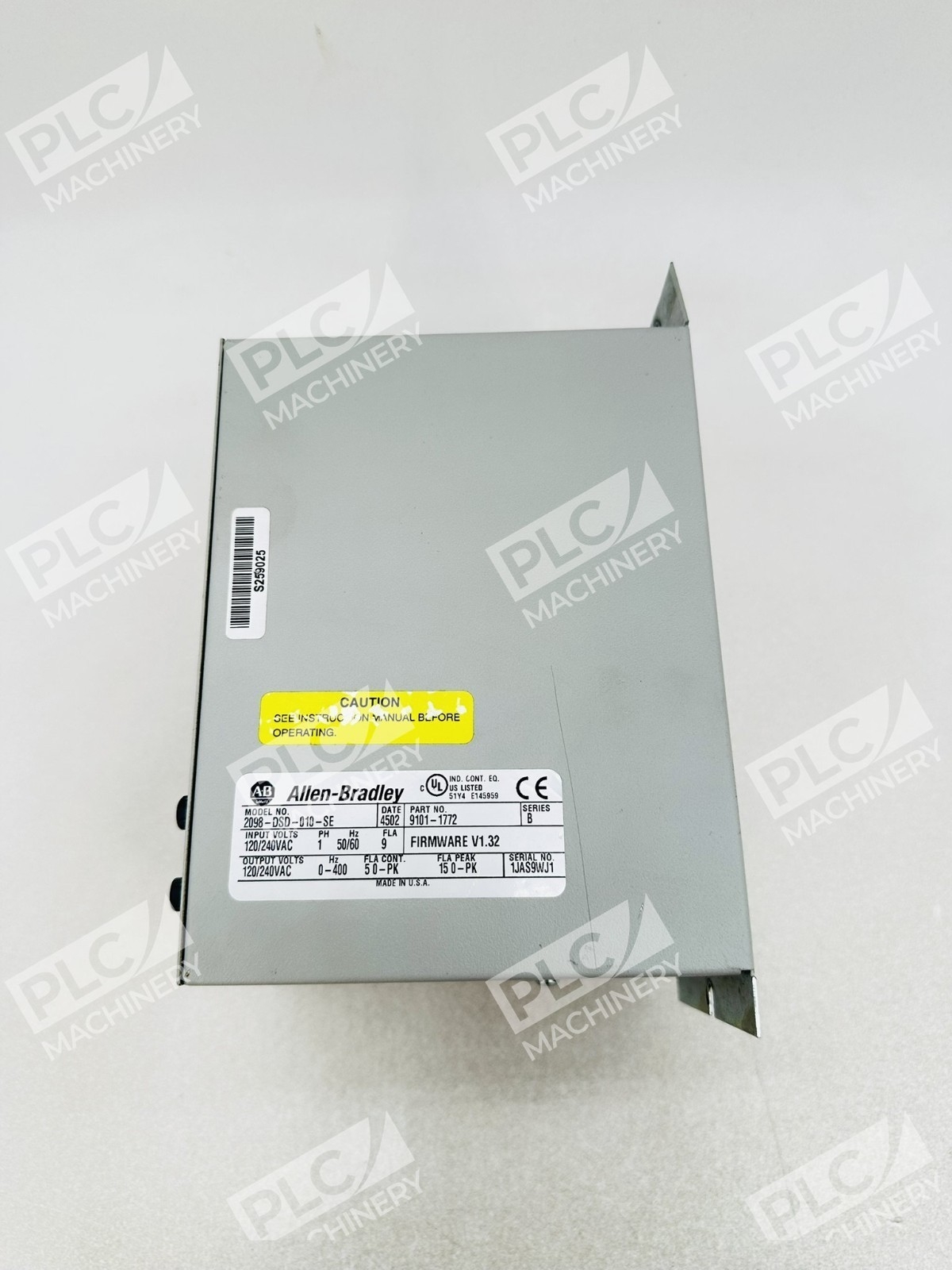

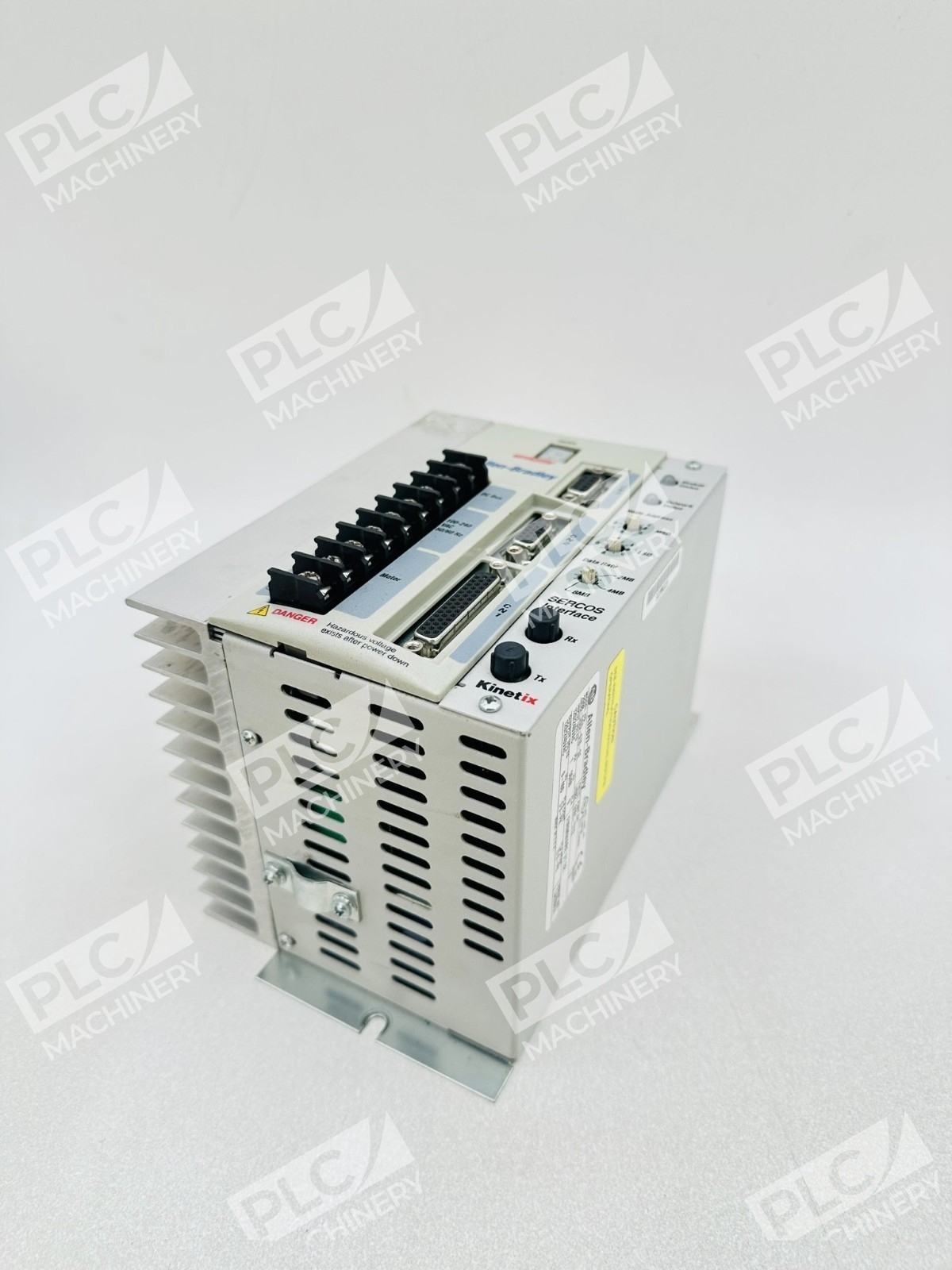

The Allen-Bradley 2098-DSD-010-SE is a high-performance digital servo drive from the Ultra3000 family designed for precision motion control in industrial automation. This 1kW SERCOS interface drive operates on 100-240VAC single-phase power (47-63 Hz) and delivers continuous 5A output with peak intermittent current of 15A. It integrates seamlessly into Logix-based and third-party motion control architectures, supporting both standalone indexing and multi-axis integrated applications.
Key Features
- SERCOS Communication: Industry-standard fiber-optic interface for real-time servo synchronization and deterministic motion control
- Flexible Power Input: Universal 100-240VAC single-phase (47-63 Hz) accommodates global installations
- Integrated Indexing Capability: Supports standalone point-to-point motion with built-in logic for simple applications
- Multi-Axis Ready: Compatible with Logix controllers for coordinated multi-axis motion profiles
- Compact Design: Space-efficient footprint suitable for OEM and retrofit installations
- Absolute Encoder Support: Embedded multi-turn absolute encoder compatibility eliminates homing cycles on power loss

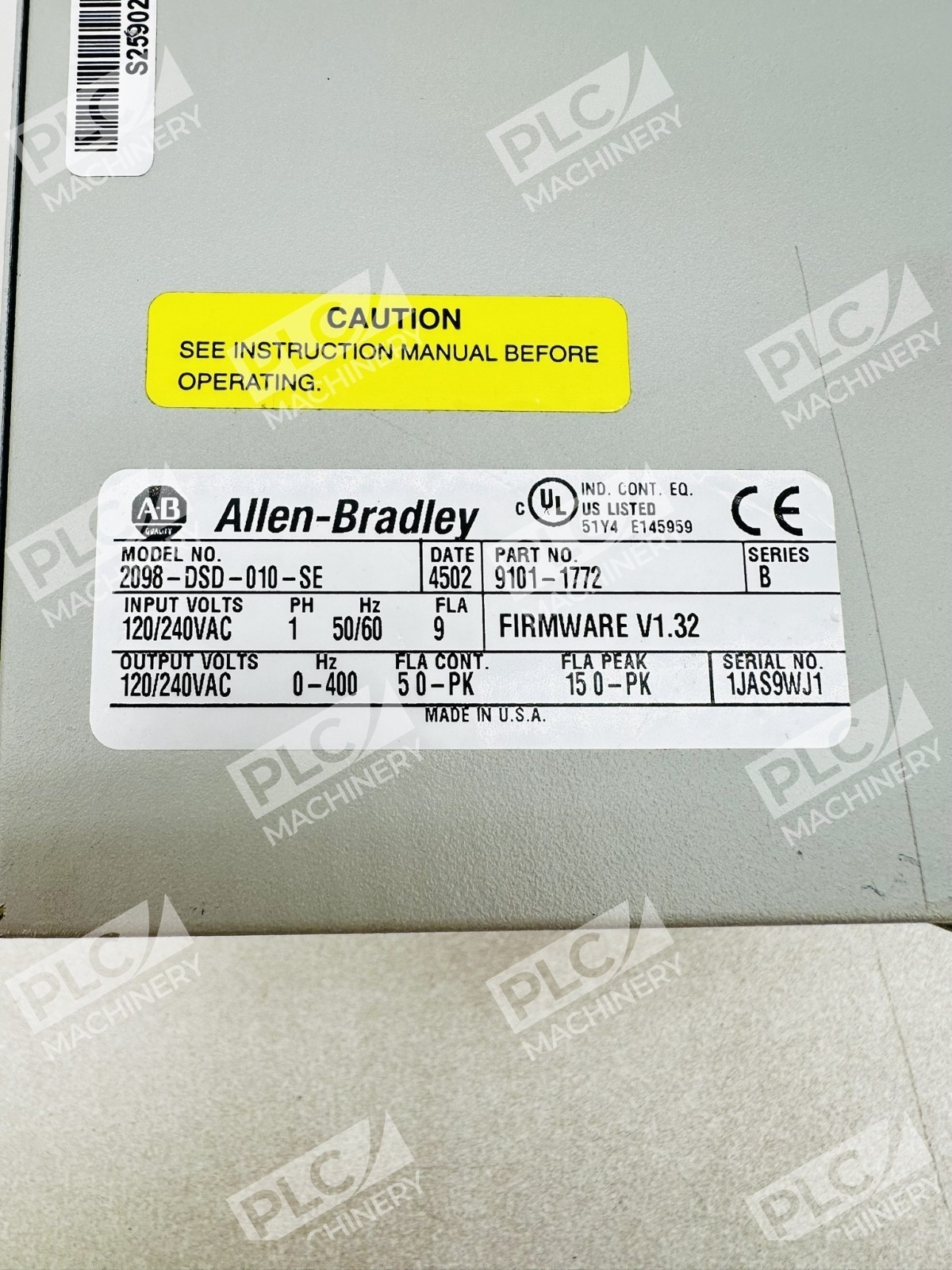

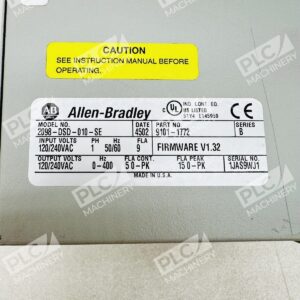

Technical Specifications
Key electrical and mechanical parameters for the Allen-Bradley 2098-DSD-010-SE:
- Input Voltage: 100-240VAC RMS, single-phase
- Input Frequency: 47-63 Hz
- Continuous Output Power: 1 kW
- Continuous Output Current: 5A
- Intermittent (Peak) Output Current: 15A

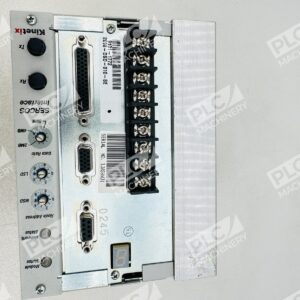

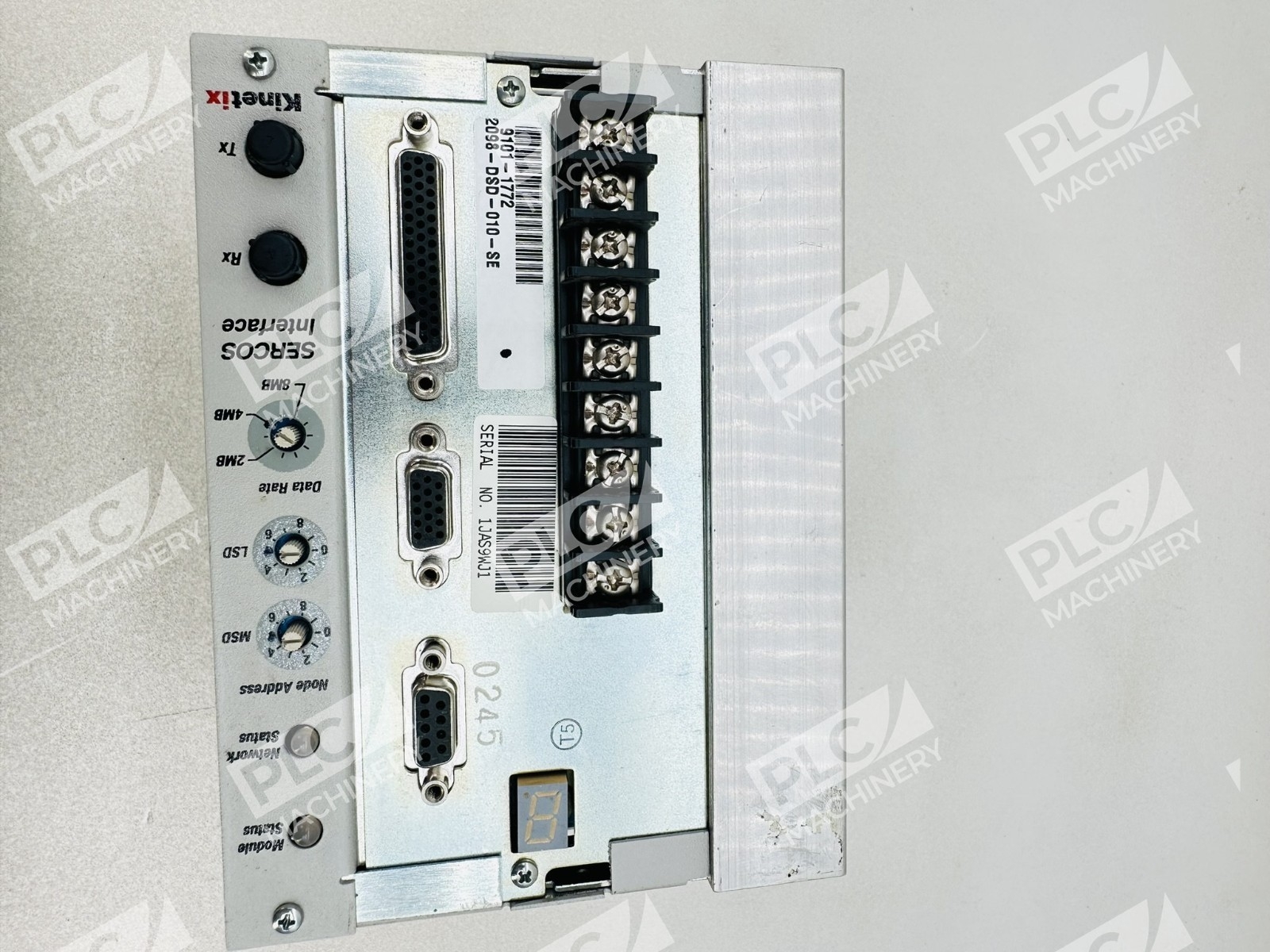

- Communication Interface: SERCOS (fiber-optic)
- General Purpose Inputs: Eight (8) selectable inputs
- General Purpose Outputs: Four (4) selectable outputs plus relay output
- Serial Communication: RS-232 and RS-485 support
- Encoder Support: Multi-turn absolute encoder compatible
- External Logic Power: 12-24VDC (external power supply required for I/O operation)
- Temperature Range: 0–50°C (32–122°F) operating
Typical Applications
The Allen-Bradley 2098-DSD-010-SE is well-suited for:
- Multi-axis coordinated motion (gantries, XY stages, rotary indexing)
- Precision positioning and material handling equipment
- OEM integrated motion control architectures
- Standalone indexing drives with external logic control
- Retrofit servo control in legacy equipment requiring modern SERCOS synchronization
- Machine tool spindle and feed axis control
Compatibility & Replacements
Compatible With
- ControlLogix and Logix 5000 controllers with Kinetix motion modules
- CompactLogix systems with appropriate motion configuration
- Allen-Bradley MP-Series, TL-Series, LDC-Series, and LDL-Series servo motors
- SERCOS master interfaces (fiber-optic communication)
- Bulletin 2090 shunt modules and resistive brake modules
- RSLogix 5000 / Studio 5000 programming environments
Replaces / Drop-In Replacement For
- 2098-DSD-010 (non-SERCOS variant) — verify I/O and communication requirements before substitution
- Earlier Ultra3000 indexing drives in 1kW power class
Works With
- Communication Protocols: SERCOS interface (IEC 61491), RS-232, RS-485
- Programming Software: Studio 5000 (RSLogix 5000), Logix Designer
- Motion Control Ecosystems: Kinetix Integrated Motion framework
- Encoder Standards: Allen-Bradley absolute multi-turn encoders
- Power Management: External 12-24VDC logic power supplies for I/O circuits
