Overview

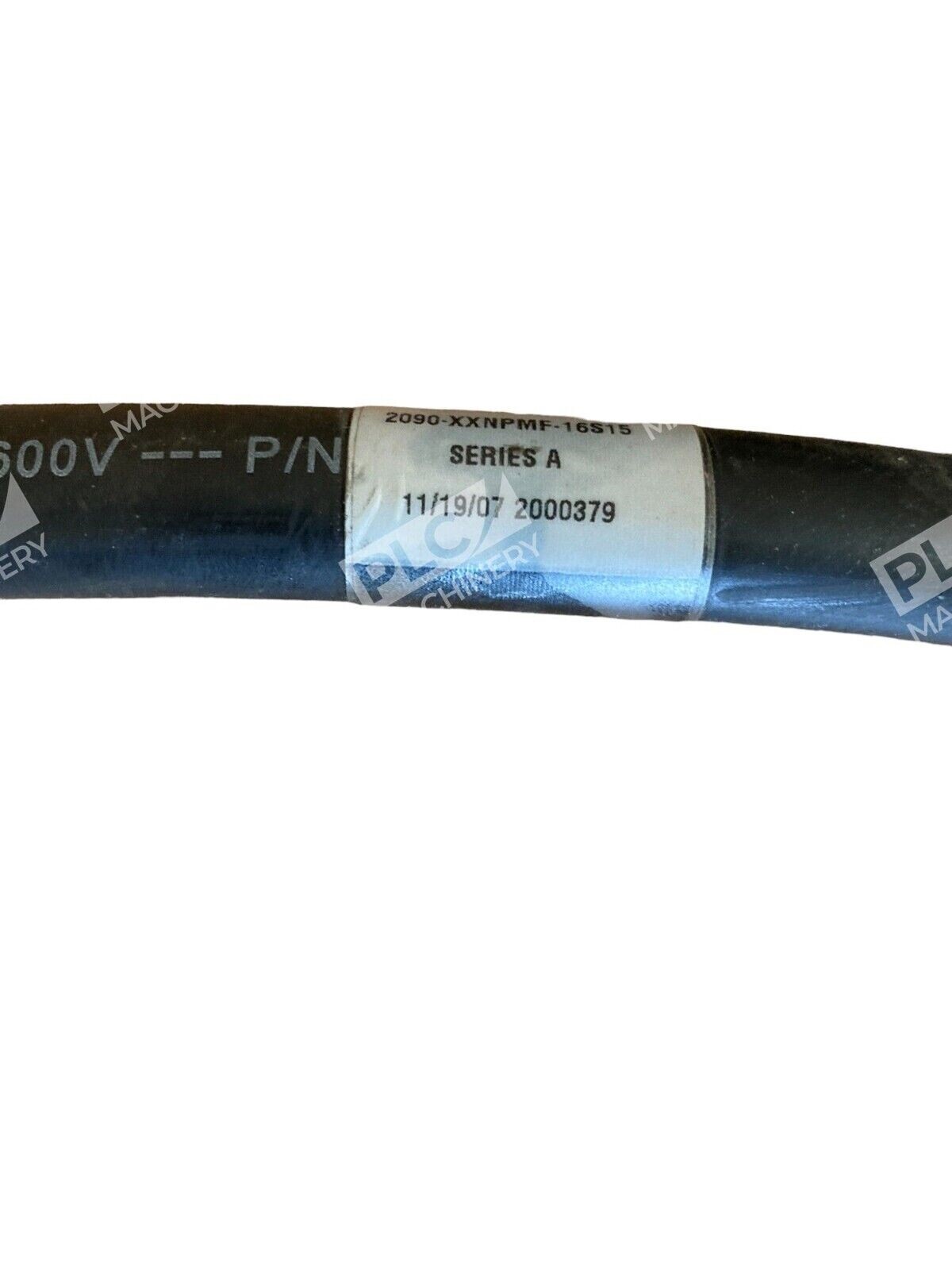

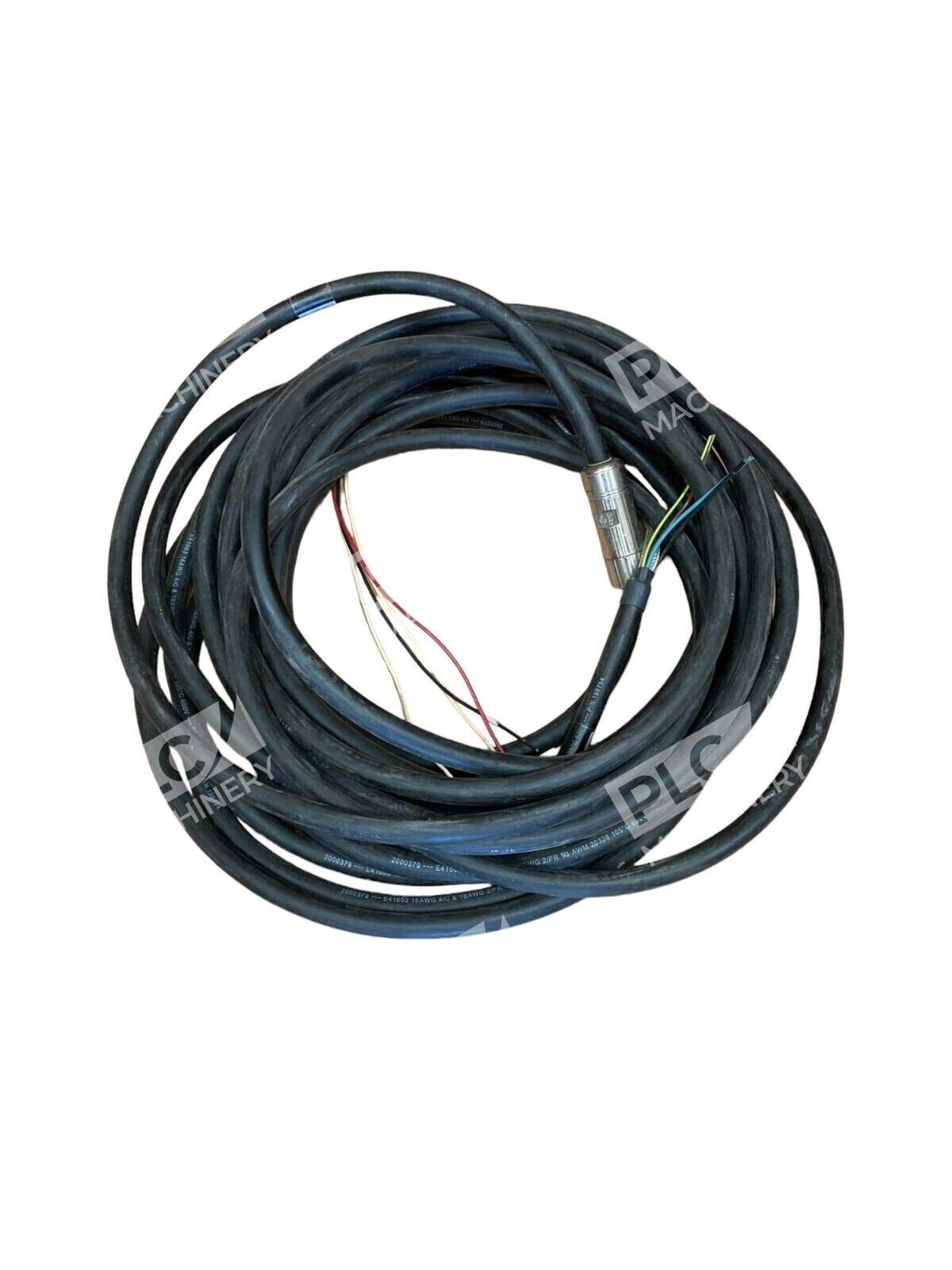

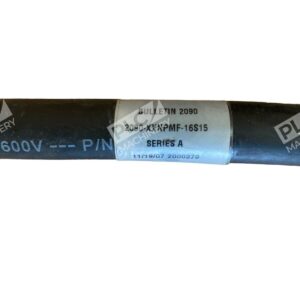

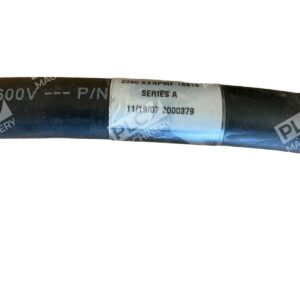

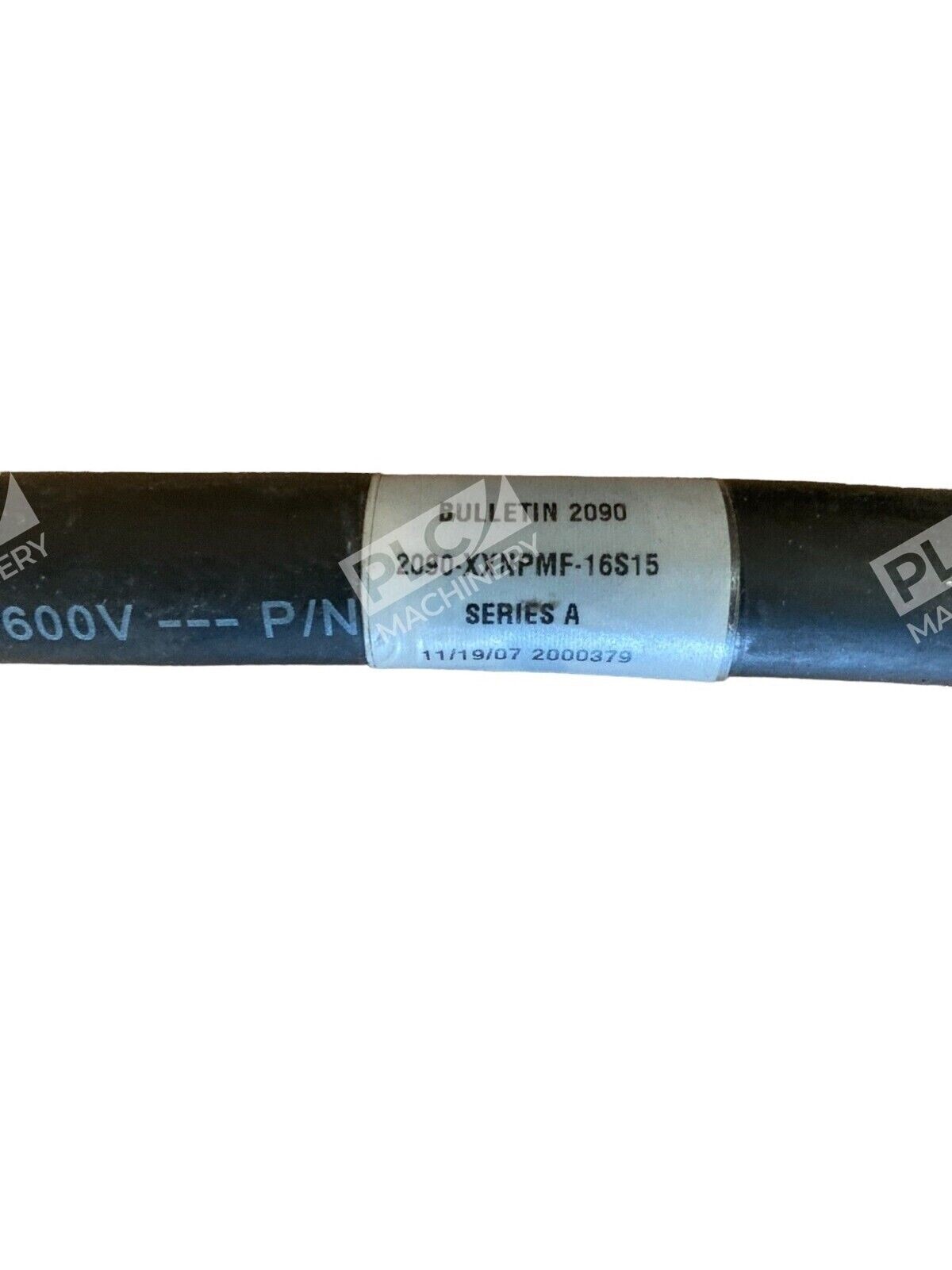

The Allen-Bradley 2090-XXNPMF-16S15 is a standard, non-flexible Kinetix motion control cable designed for servo motor power and brake applications. This 15-meter cable features a robust design with shielded 16 AWG power conductors and 18 AWG brake conductors, making it ideal for industrial automation systems requiring reliable motor connectivity. The cable is constructed with an industrial-grade thermoplastic elastomer jacket and straight DIN M23 Type 4 connectors, suitable for integration with Kinetix drives and compatible motion control systems.
Key Features
- 15-meter length with straight DIN M23 Type 4 connector for Kinetix drives

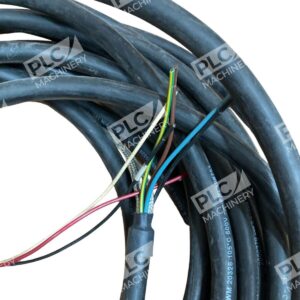

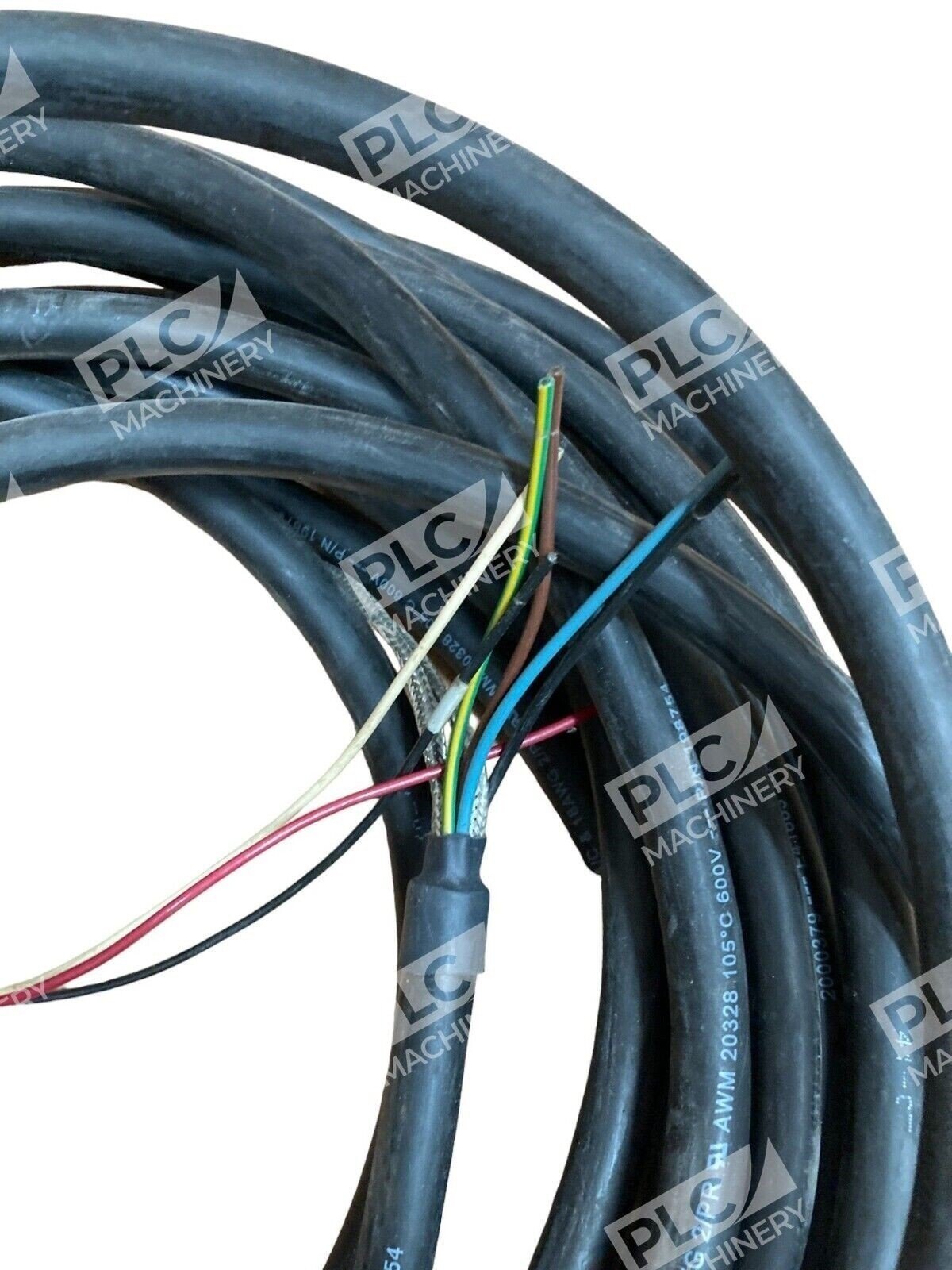

- 4-conductor 16 AWG shielded power cable plus 4-conductor 18 AWG shielded brake cable
- Non-flexible construction with industrial-grade thermoplastic elastomer jacket
- Designed for 3-phase power applications with motor brake and spare conductors
- Standard KC certification for industrial automation environments
Technical Specifications
- Conductor Size (Power): 16 AWG, 4-conductor shielded
- Conductor Size (Brake): 18 AWG, 4-conductor shielded

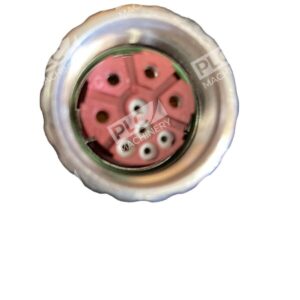

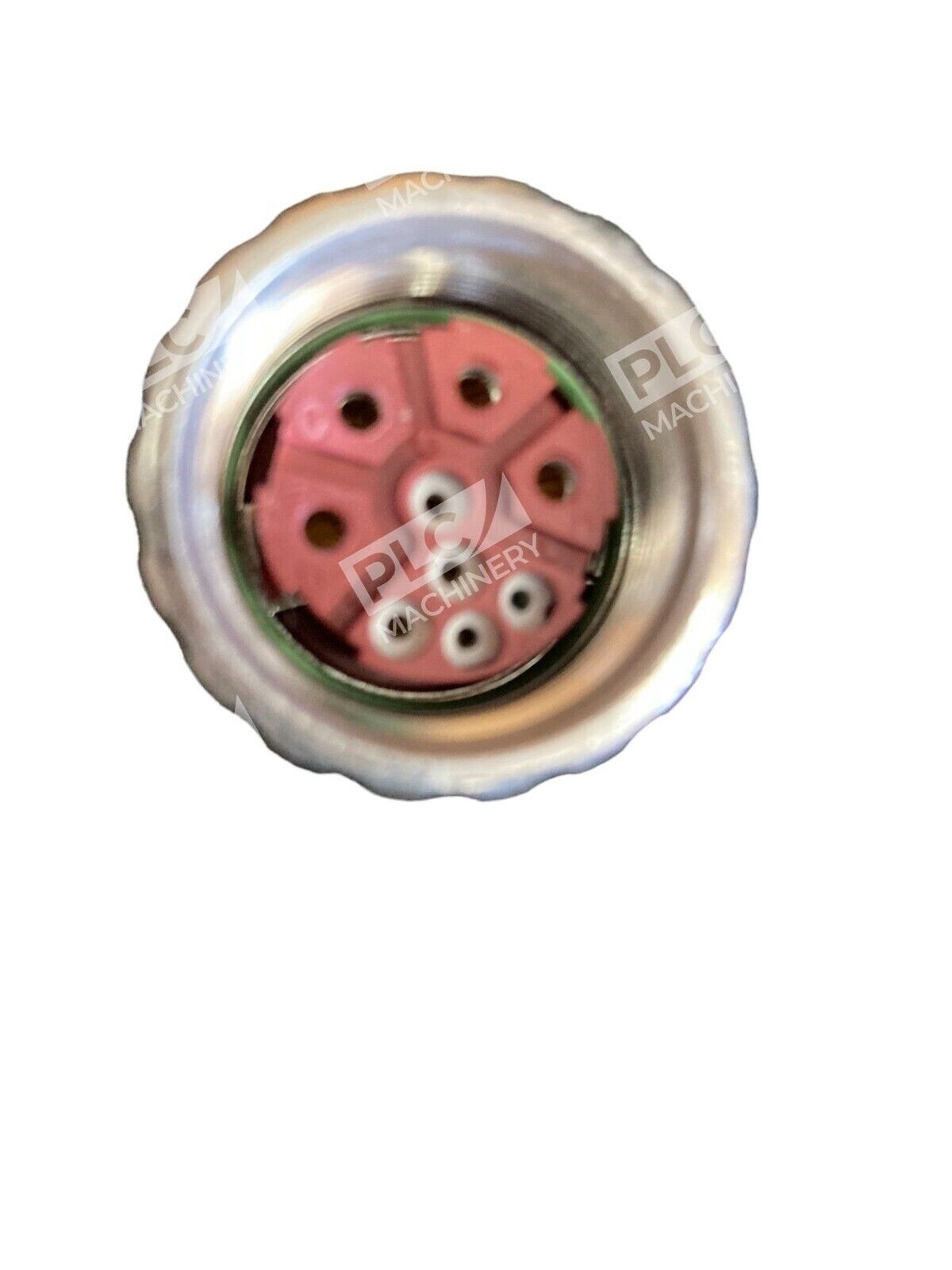

- Connector Type: DIN M23 Type 4, straight
- Cable Length: 15 meters
- Jacket Material: Industrial-grade thermoplastic elastomer
- Flexibility: Non-flexible (standard)
- Color: Black
- Weight: 12.125 lbs
- Voltage Rating: 600V
- Certifications: KC standard
Typical Applications
The 2090-XXNPMF-16S15 cable is commonly used in the following applications:
- Kinetix servo drive motor power connections
- Motion control systems in packaging machinery
- Assembly and robotics automation
- Industrial motion platforms and transfer systems
- Multi-axis positioning and control systems
Compatibility & Replacements
This Allen-Bradley cable is compatible with Kinetix drives and related motion control systems requiring standard 15-meter non-flexible power and brake cables. The 2090-XXNPMF-16S15 is a direct replacement for equivalent Kinetix cable configurations. For MP-Series drives, the similar part number 2090-XXNPMP-16S15 may be used as an alternative. Always verify connector type and conductor configuration with your system documentation before ordering replacement cables.
