Overview

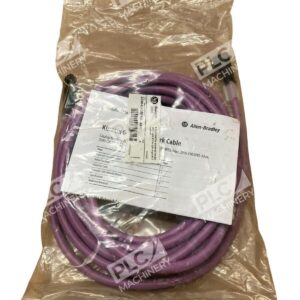

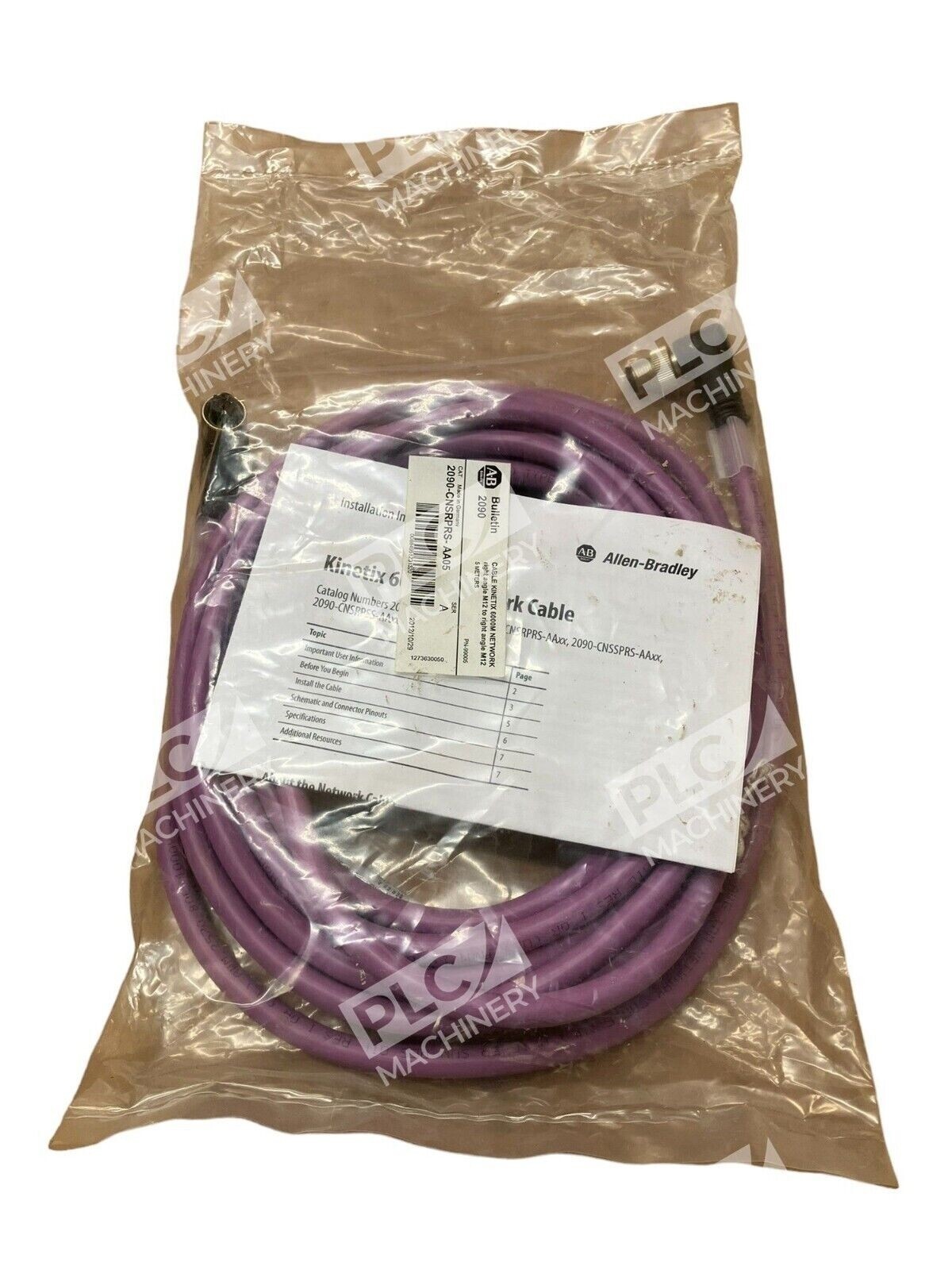

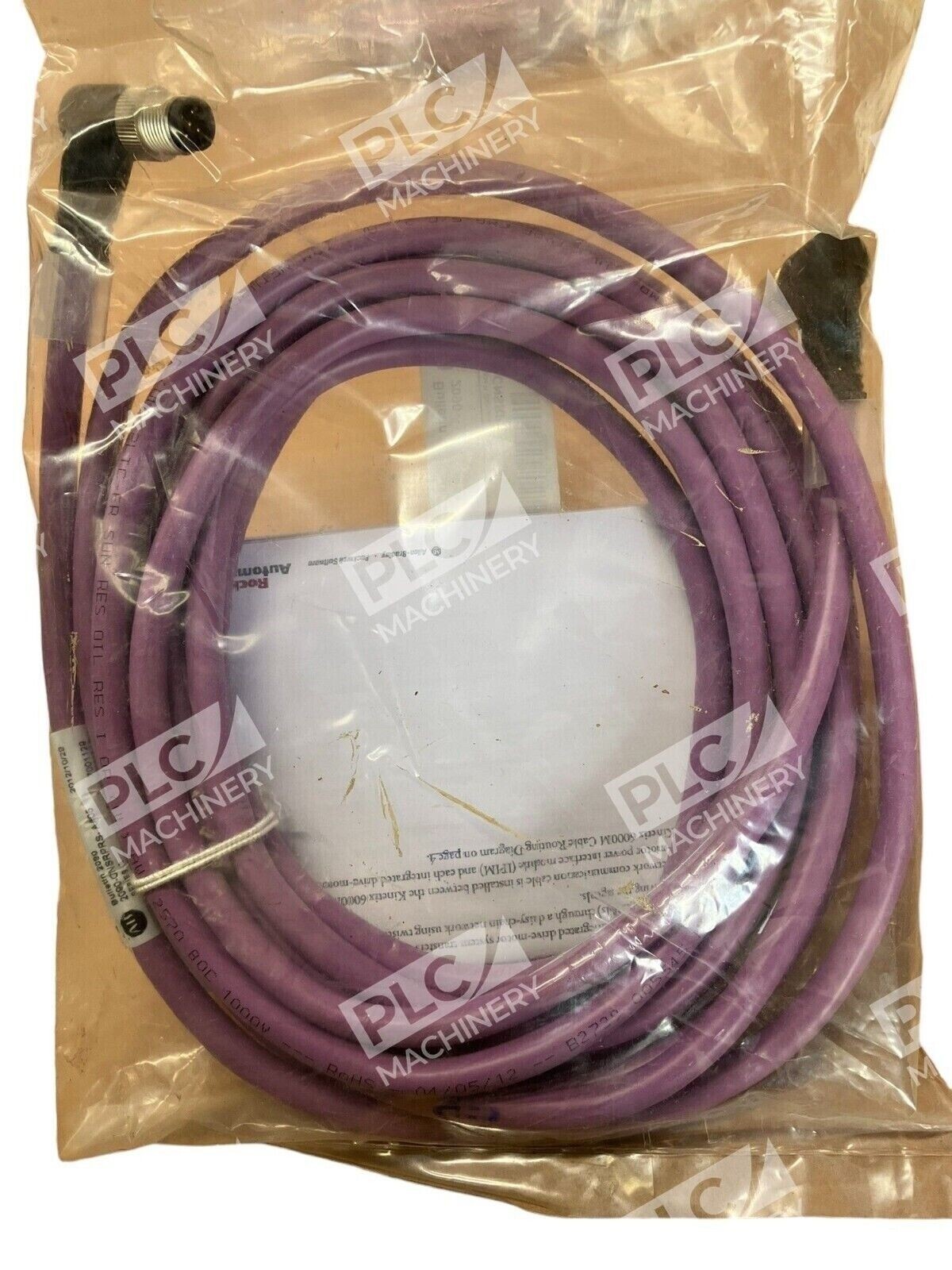

The Allen-Bradley 2090-CNSRPRS-AA05 is a high-performance network cable engineered for the Kinetix 6000M series servo motion control platform. As a critical connectivity component, this cable facilitates reliable real-time communication between servo drives and motion controllers in industrial automation systems. The cable is available in a standard 5-meter (approximately 16.4 feet) configuration, making it ideal for typical machine layouts without requiring custom lengths.
Key Features
- Kinetix 6000M series compatibility—verified for all standard 6000M servo drive implementations
- 5-meter (5m) fixed length with factory-terminated connectors for tool-free installation
- Engineered for servo network communication in real-time control environments
- RoHS-compliant and designed to industrial automation standards
- Reliable shielded construction to minimize EMI in mixed electrical environments
Technical Specifications
- Cable Length: 5 meters (16.4 feet)
- Series: Kinetix 6000M

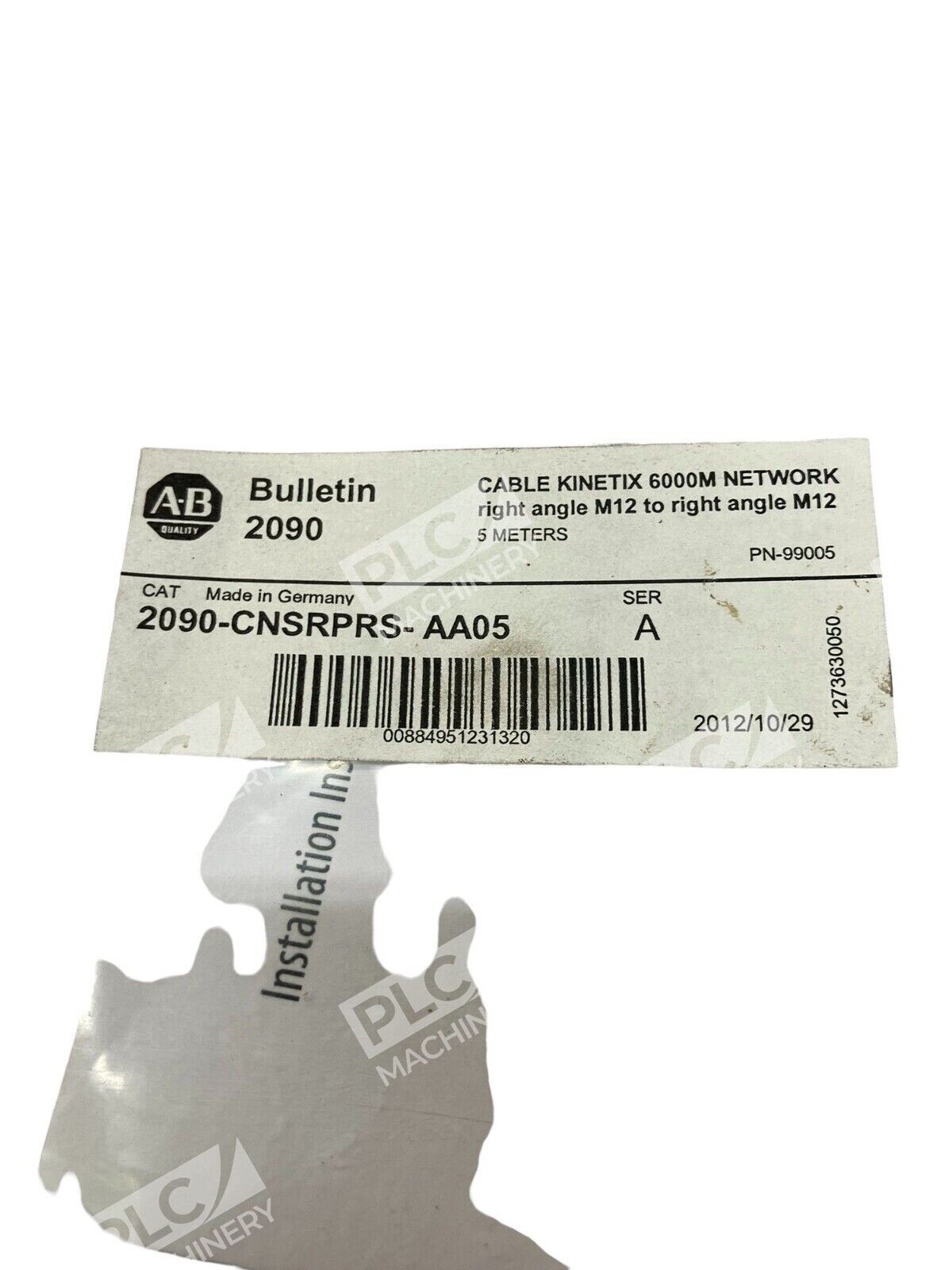

- Part Number: 2090-CNSRPRS-AA05
- Connector Type: Sealed circular connector (drive end)
- Cable Material: Shielded industrial-grade cable
- Certification: RoHS compliant
- Operating Temperature: -20°C to +60°C
- Humidity: 5% to 95% non-condensing
Typical Applications
- CNC and machining centers – connecting servo drives to motion controllers
- Packaging and material handling – reliable multi-axis coordination
- Industrial robots and automation – real-time motion feedback networks
- Textile and printing equipment – high-speed synchronized motion control
- System upgrades and expansions – direct replacement for existing Kinetix 6000M installations
Compatibility & Replacements
The 2090-CNSRPRS-AA05 is a direct plug-and-play replacement for any Kinetix 6000M system requiring a 5-meter network interconnect cable. It is compatible with all standard Allen-Bradley servo drives in the 2090 product family and integrates seamlessly with RSLogix and Studio 5000 control environments. For different cable lengths, the same product family offers variants such as the 2090-CNSRPRS-AA01 (1m), 2090-CNSRPRS-AA15 (15m), and other configurations. Always verify connector orientation and application-specific requirements before installation. Original Allen-Bradley part number—no substitutions required.
