Overview

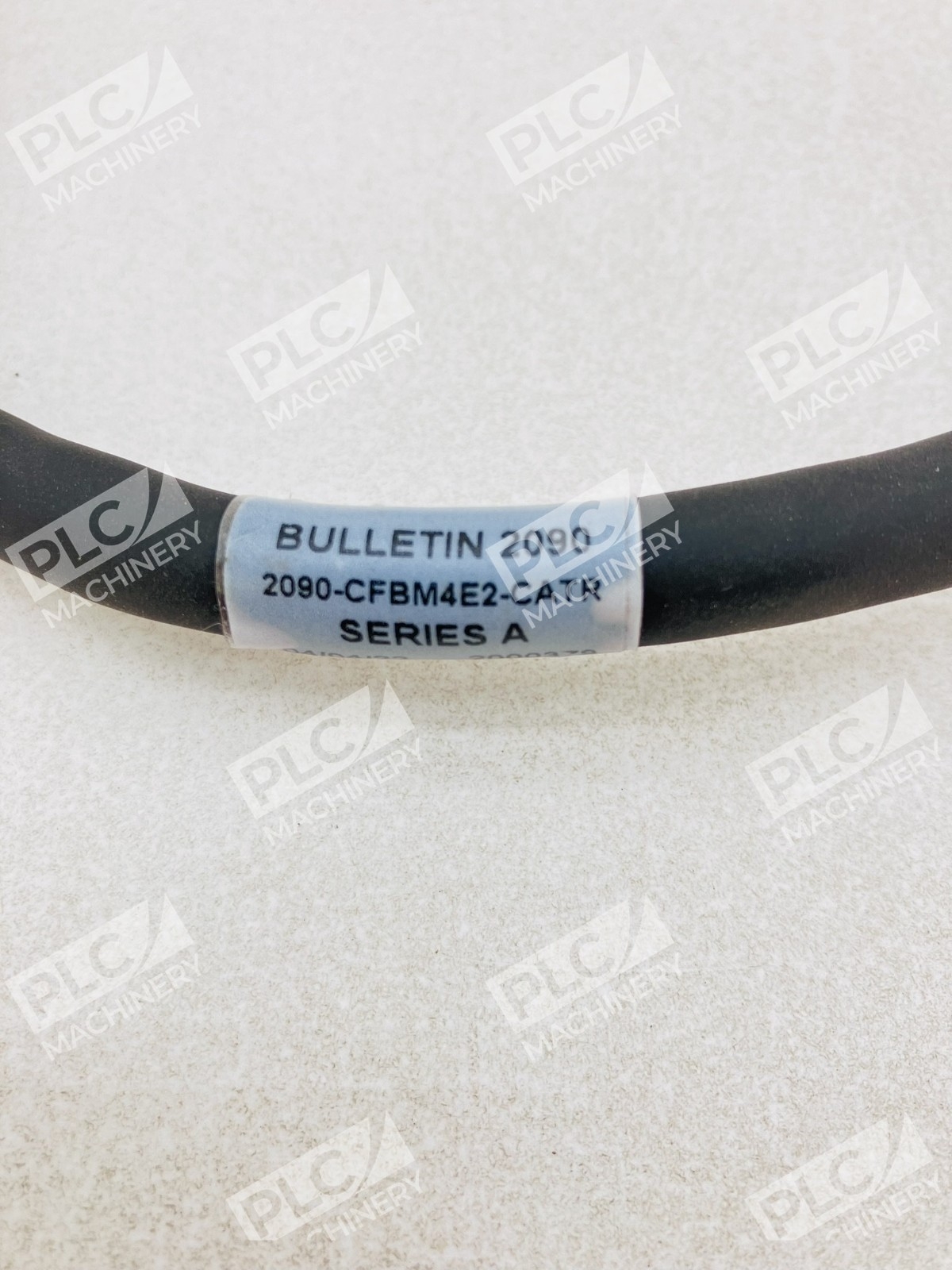

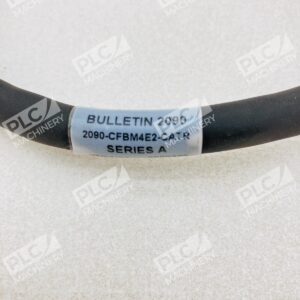

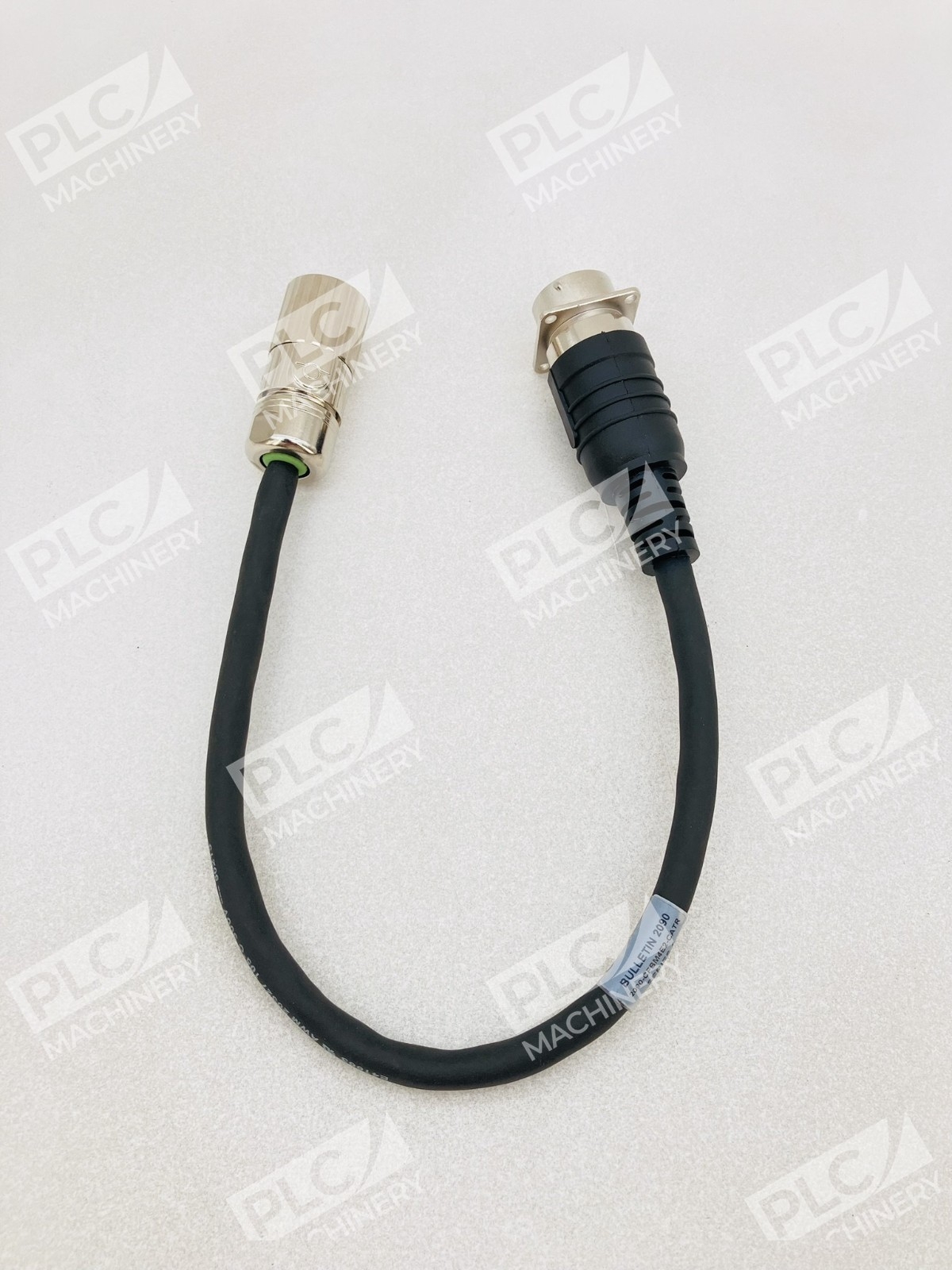

The Allen-Bradley 2090-CFBM4E2-CATR is a motor feedback transition cable engineered for integration with Kinetix rotary and linear motion control platforms. This standard (non-flex) cable connects motion control drives to servo motors and feedback devices using proven DIN connector technology. With its 0.5-meter length, this transition cable bridges drive-end bayonet receptacles (E2) to motor-end threaded DIN connectors (M4), ensuring precise signal integrity in motion control applications.
Key Features
- Non-flex rated cable jacket for stationary applications

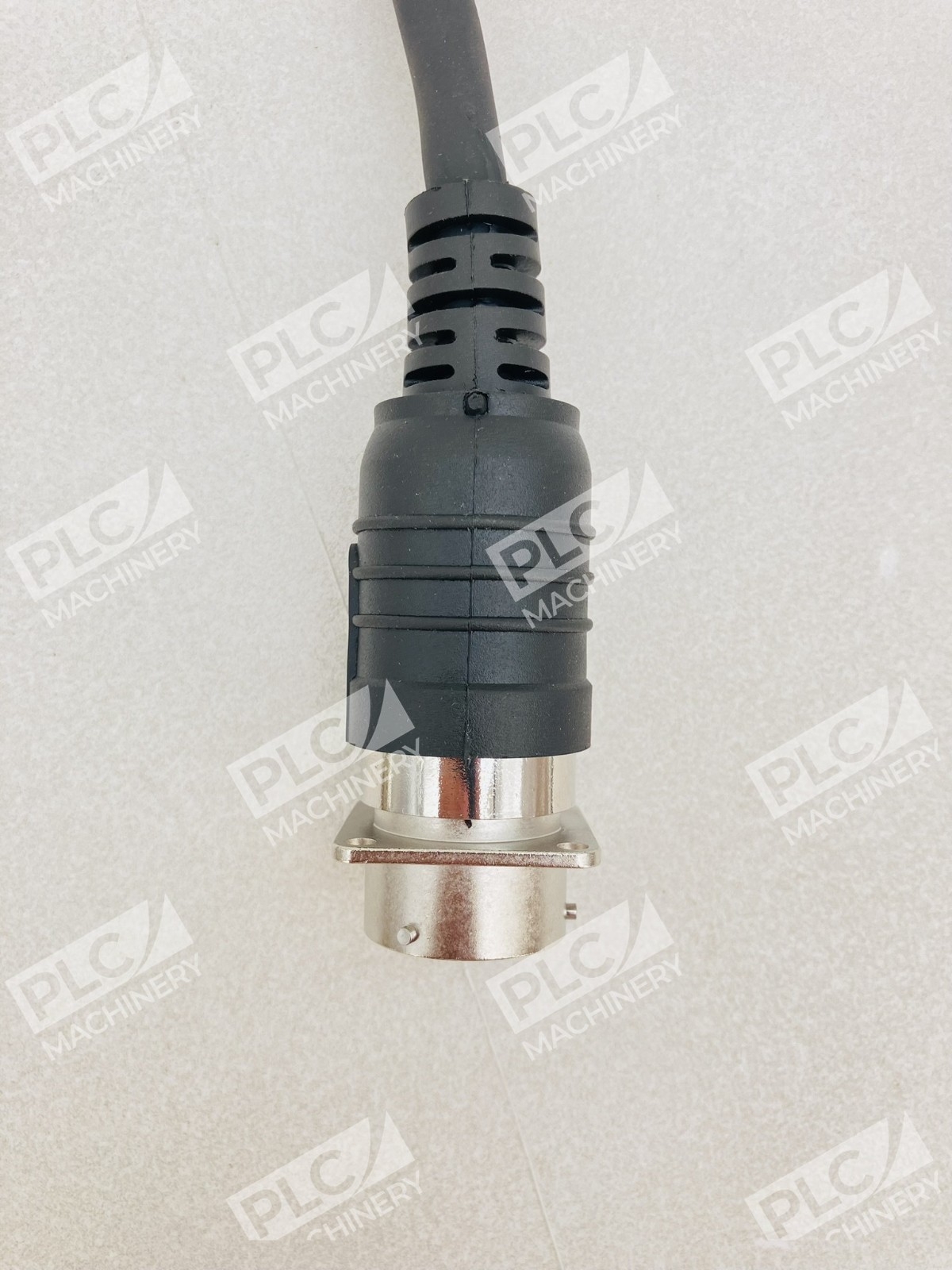

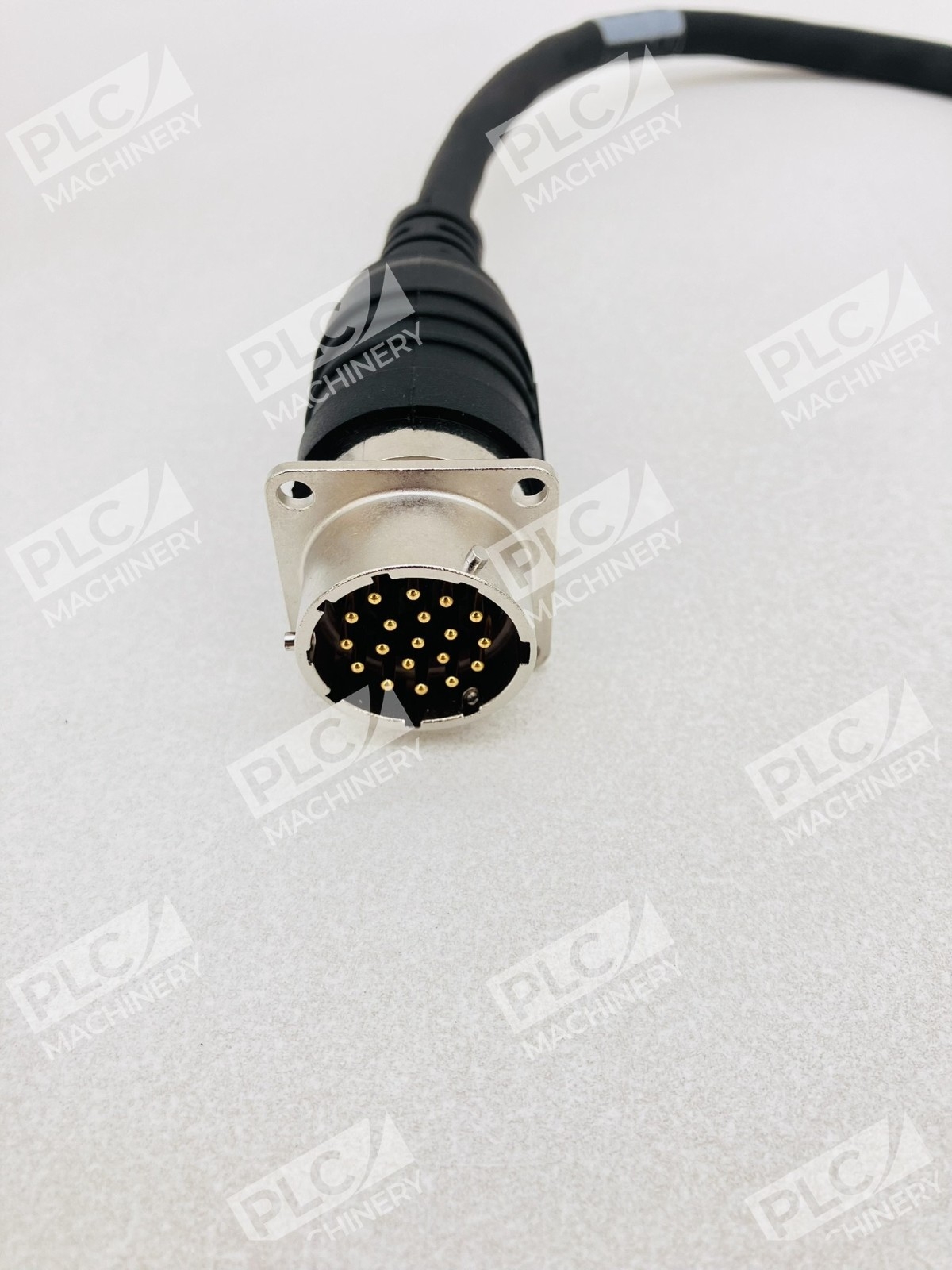

- Drive-end bayonet (E2) connector for existing drive-mounted receptacles

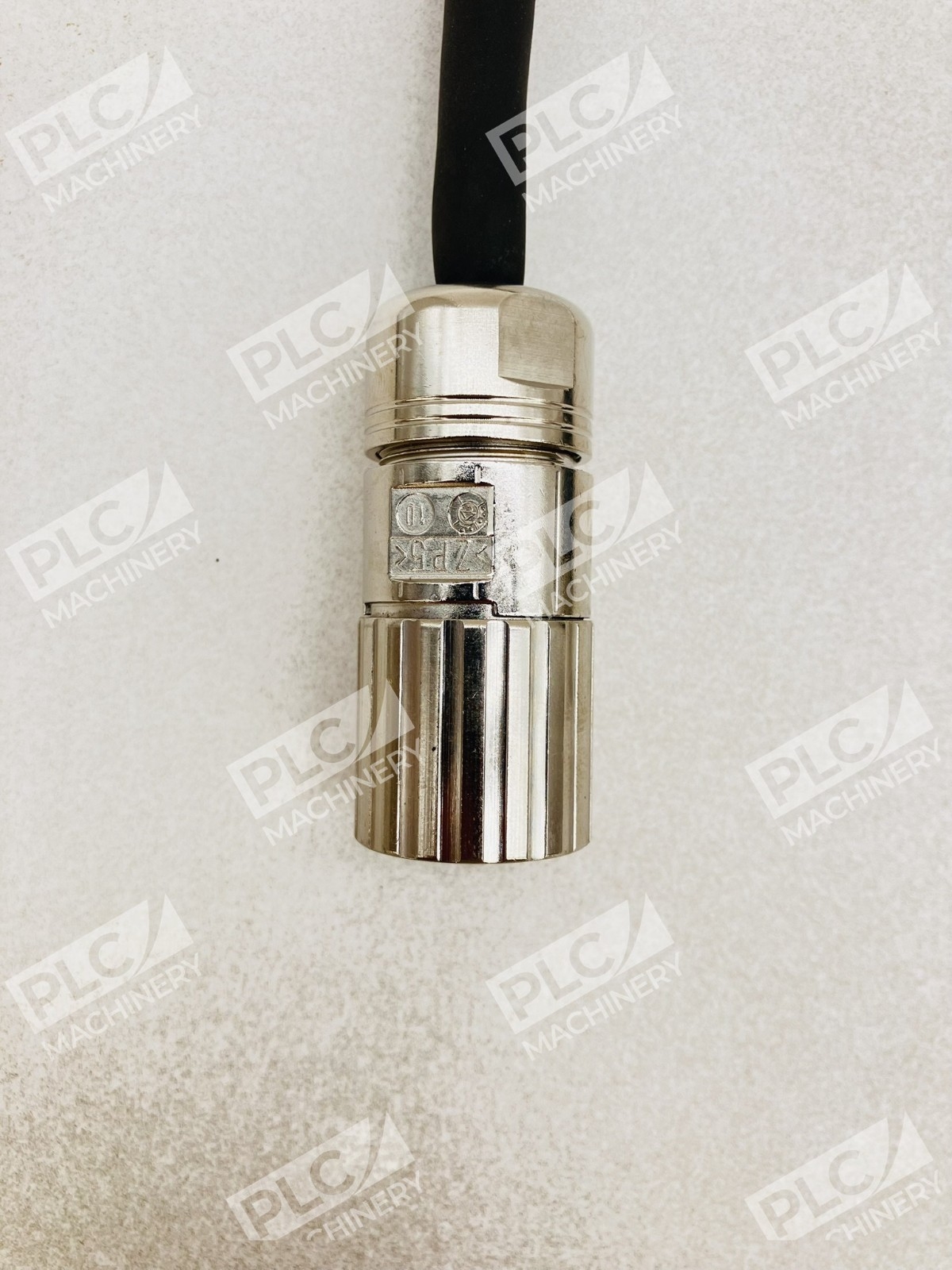

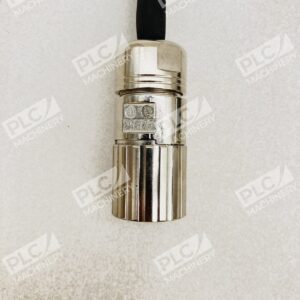

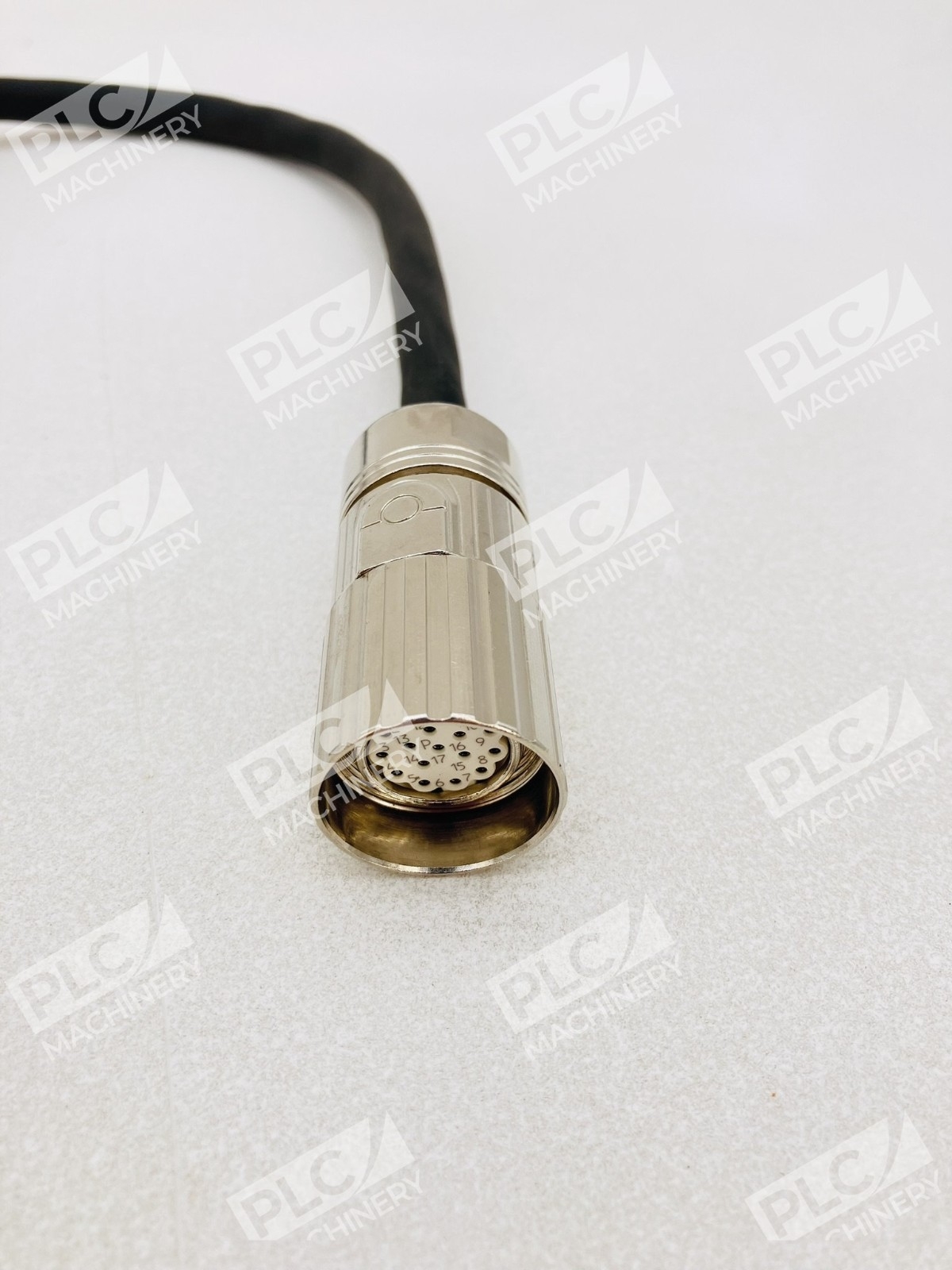

- Motor-end threaded DIN (M4) connector for servo motor feedback connections
- Industrial Thermoplastic Elastomer (TPE) jacket for chemical and moisture resistance
- Black cable jacket for standard industrial environments
- 0.5-meter (19.7 inch) length for compact motor-to-drive spacing
Technical Specifications
- Cable Length: 0.5m (19.7 inches)
- Maximum Voltage Rating: 300 V
- Cable Diameter: 9.6mm (0.38 inches)
- Static Bend Radius: 67.2mm (2.6 inches)
- Cable Jacket Material: Industrial Thermoplastic Elastomer (TPE)
- Cable Type: Non-flex (standard)
- Drive-End Connector: Bayonet (E2)
- Motor-End Connector: Threaded DIN (M4)
- Color: Black
Typical Applications
- Kinetix servo motor feedback signal transmission
- Industrial robot motion control systems
- Precision machine tool positioning
- Material handling and conveyor automation
- Packaging machinery servo feedback circuits
- Linear actuator motion control feedback
Compatibility & Replacements
Compatible With
- Kinetix MPM-A115xxx series servo motors (200V)
- Kinetix MPM-A1302F, MPM-A1304F, MPM-A1651F, MPM-A1652F, MPM-A1653F servo motors
- Kinetix MPM-A2152F, MPM-A2153F, MPM-A2154C, MPM-A2154E servo motors
- Kinetix MPM-B series servo motors (400V class)
- Allen-Bradley drive systems with bayonet feedback receptacles
- Servo feedback circuits requiring 300V maximum rating
Replaces / Drop-In Replacement For
- This is a transition cable not typically replaced as a drop-in; however, it serves as an adapter from threaded DIN motor connectors to bayonet drive receptacles for legacy or mixed-connector Kinetix systems.
Works With
- CompactLogix controllers with servo motion modules
- ControlLogix systems with motion control add-ons
- Allen-Bradley Studio 5000 (RSLogix 5000) programming environments
- CompactLogix and ControlLogix integrated motion instruction sets
- EtherNet/IP networked motion applications
- MECHATROLINK servo communication protocols
