Overview

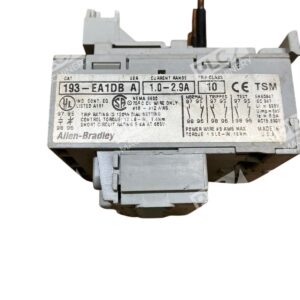

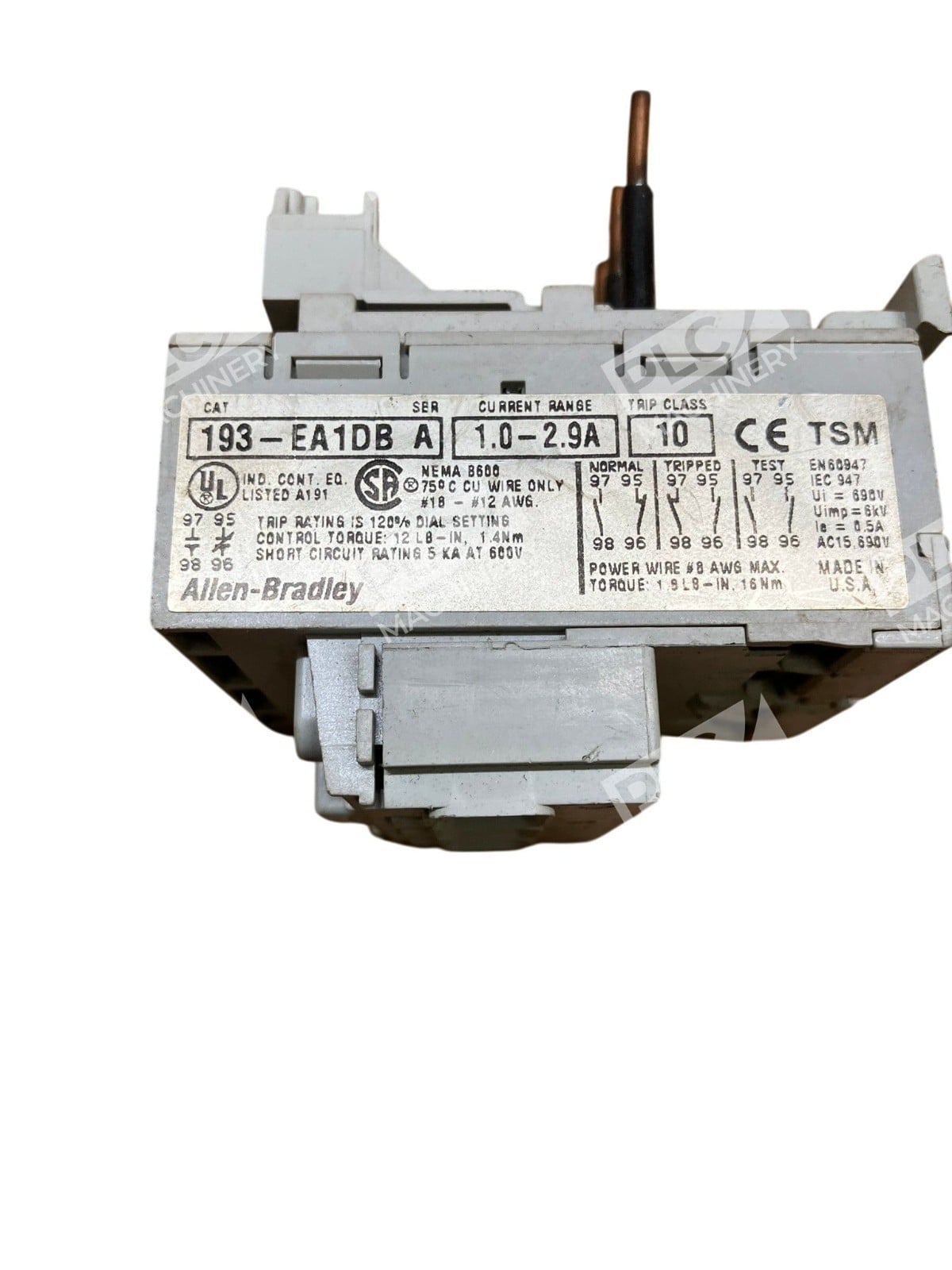

The Allen-Bradley 193-EA1DB is a solid-state electronic overload relay designed to protect motors from thermal overload conditions. Built to Class 10 standards, this relay delivers rapid, accurate trip response for motors operating at 1–2.9 amperes. Part of the Bulletin 193 family, the 193-EA1DB features manual reset capability and is rated for use with NEMA Size 00 and 100-M05/100-C23 contactors, making it ideal for small to medium industrial motor circuits.
Key Features
- Solid-State Electronic Protection: Electronic motor protection with solid-state design
- Adjustable Current Range: Current rating of 1.0–2.9 amperes with Class 10 trip characteristics for precise overload detection
- Manual Reset Design: Manual reset allows operator control over relay restart after a trip event
- Compact Form Factor: Low-profile design integrates directly onto compatible contactors without requiring external mounting hardware
- Industrial-Grade Reliability: Solid-state construction eliminates moving parts, extending service life and reducing false trips in demanding applications
Technical Specifications
- Current Rating: 1.0–2.9 amp
- Protection Type: Electronic motor protection
- Relay Type: Solid state
- Trip Class: Class 10
- Reset Type: Manual reset
- Compatible Contactors: For use with 100-M05/100-C23 NEMA Size 00
- Product Series: Bulletin 193
- Weight: 0.31 lbs
- Condition: Used surplus
- Manufacturer: Allen-Bradley (Rockwell Automation)
Typical Applications
The relay is ideal for protecting three-phase motors in manufacturing, assembly lines, and material handling systems. Common uses include:
- Small fractional and integral horsepower motor circuits
- Industrial automation control panels
- HVAC and refrigeration motor circuits
- Conveyor and pump motor protection
- Machine tool and production equipment motor protection
- Harsh industrial environments due to robust construction
Compatibility & Replacements
Compatible With
- Allen-Bradley 100-M05 NEMA Size 00 contactors
- Allen-Bradley 100-C23 contactors
- NEMA Size 00 motor control circuits
- Three-phase motor protection systems
- Small-frame fractional and integral horsepower motors
Replaces / Drop-In Replacement For
Alternate part number 193-EA1DB/B is an equivalent variant. This unit serves as a direct replacement for other discontinued 193-EA1DB models when Class 10 protection and 1–2.9A ratings are required. Verify compatibility with your system integrator before ordering, as mounting and terminal configurations may vary between revisions.
Works With
- Allen-Bradley Bulletin 193 motor control systems
- NEMA-rated motor starters and contactors
- Standard industrial three-phase motor circuits
- Manual and automatic motor control panels
- Legacy automation equipment requiring Class 10 overload protection
