Overview

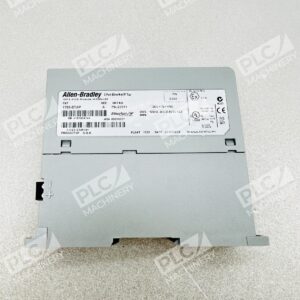

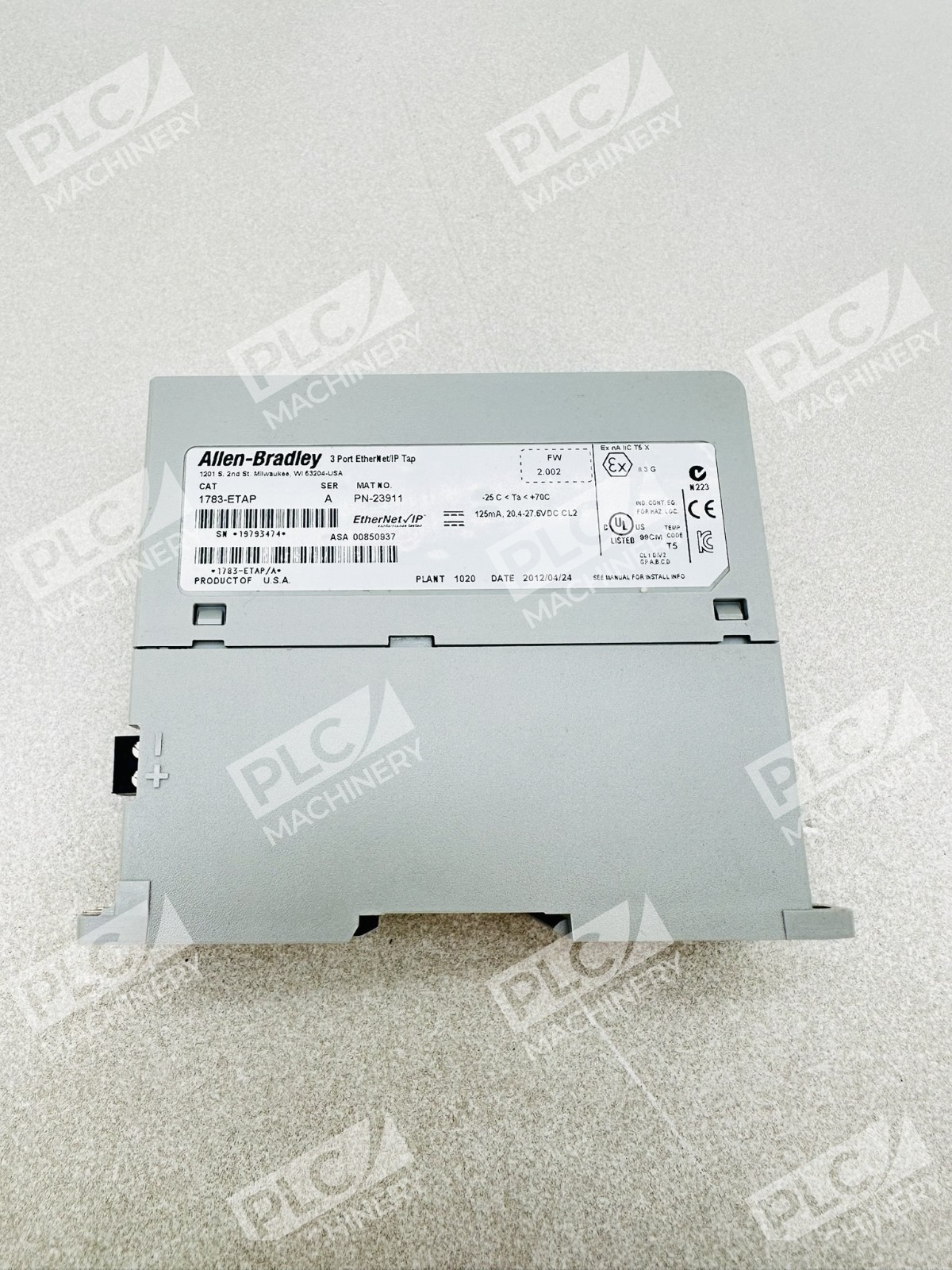

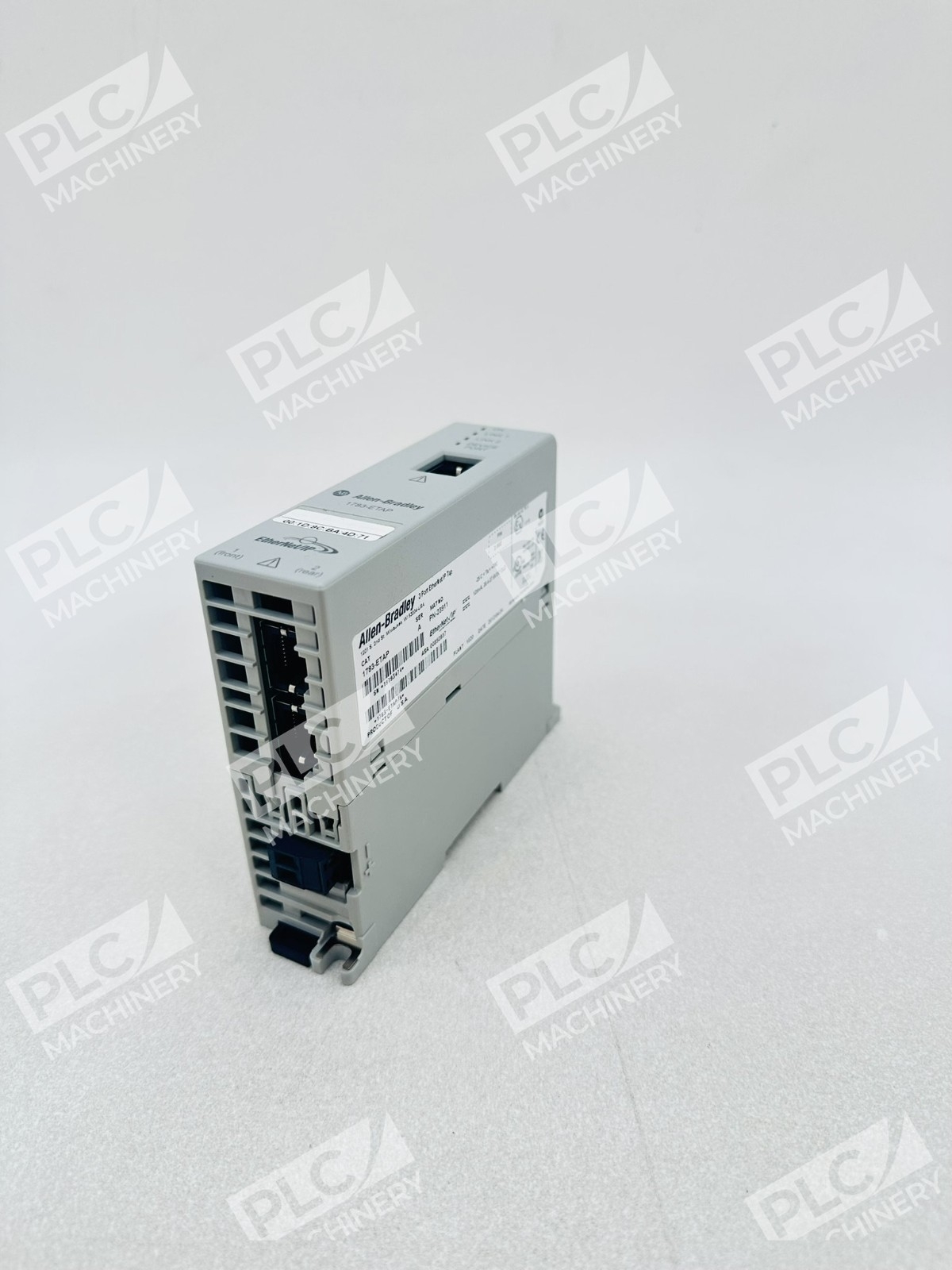

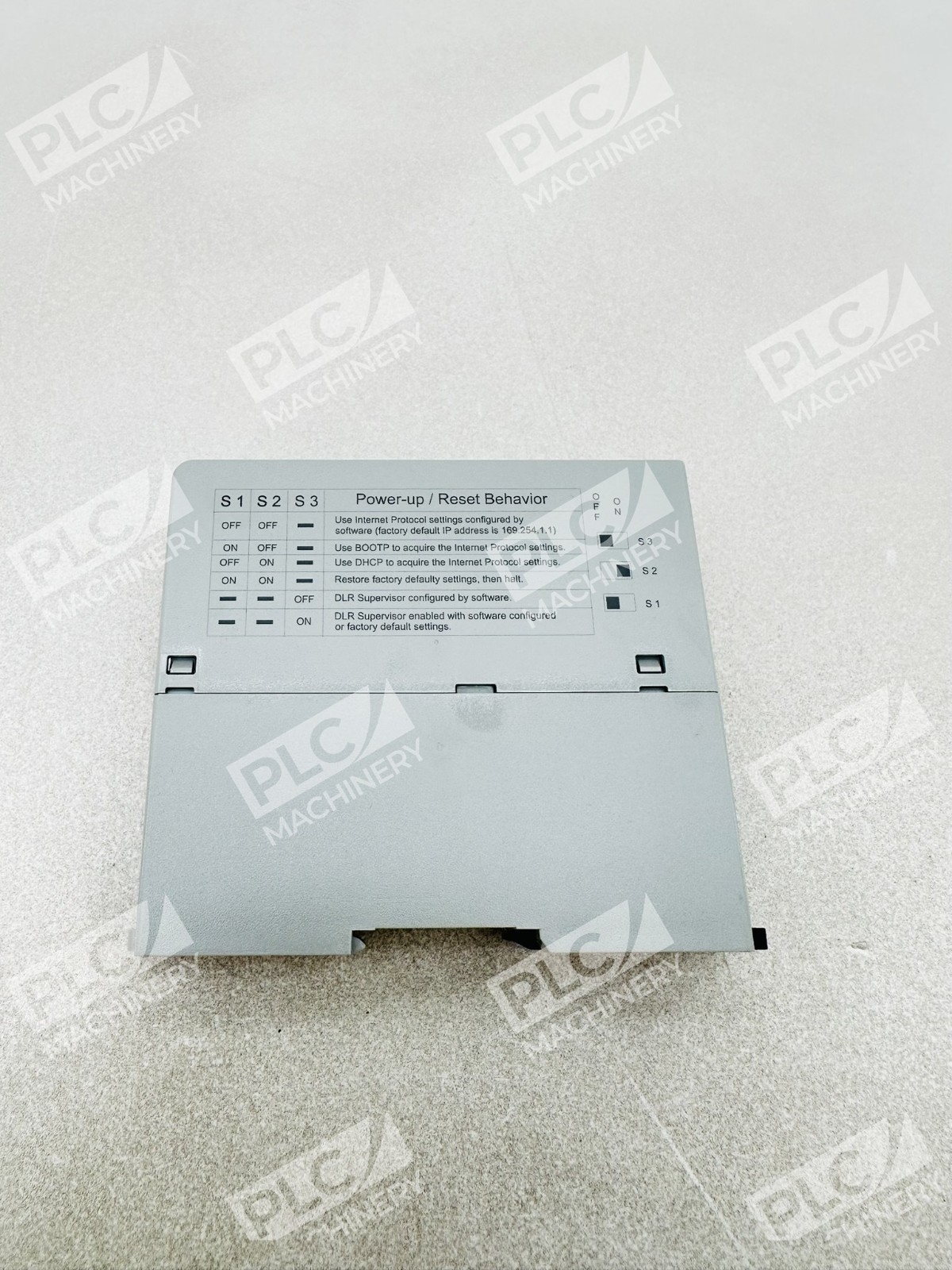

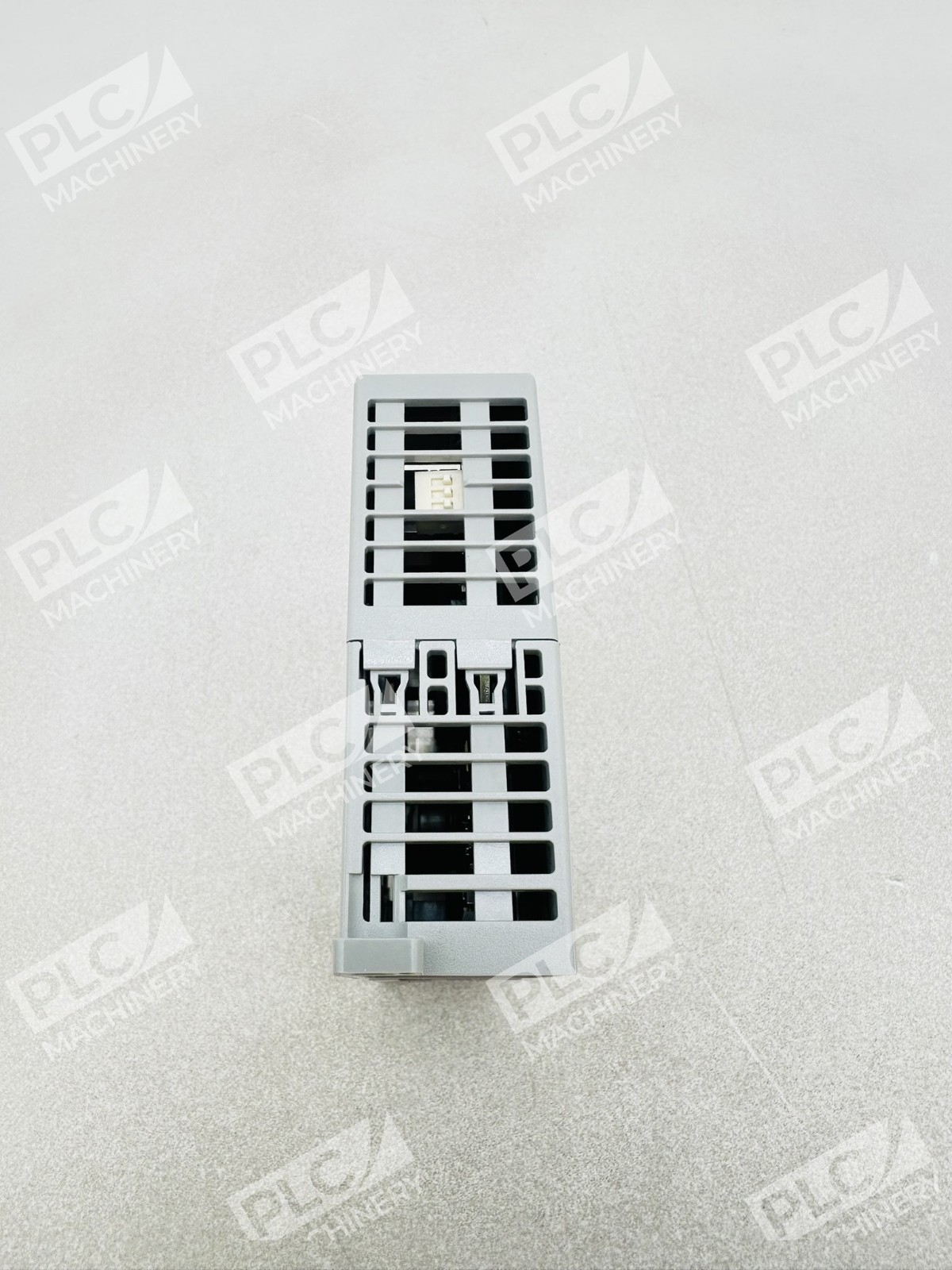

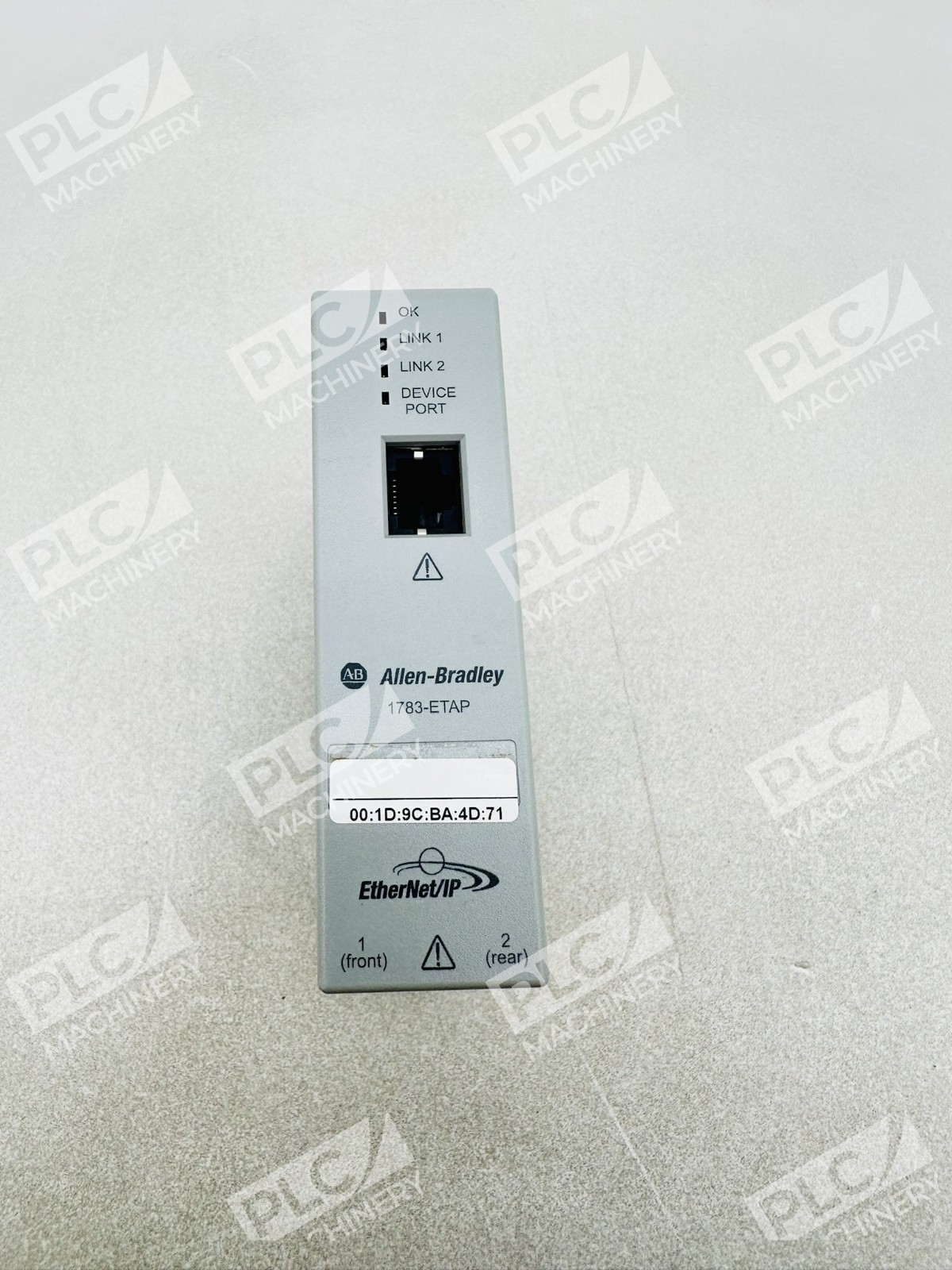

The Allen-Bradley 1783-ETAP is a compact 3-port EtherNet/IP tap module designed for industrial automation networks requiring device-level ring topology. This module functions as an Ethernet/IP network tap with three copper ports supporting both linear and Device Level Ring (DLR) network topologies at Ethernet speeds of 10/100 Mbps. The embedded Ethernet switch technology supports high performance applications. The tap features 1 device port and 2 ring ports for single-device connection to a DLR with sub-3 ms recovery.
Key Features

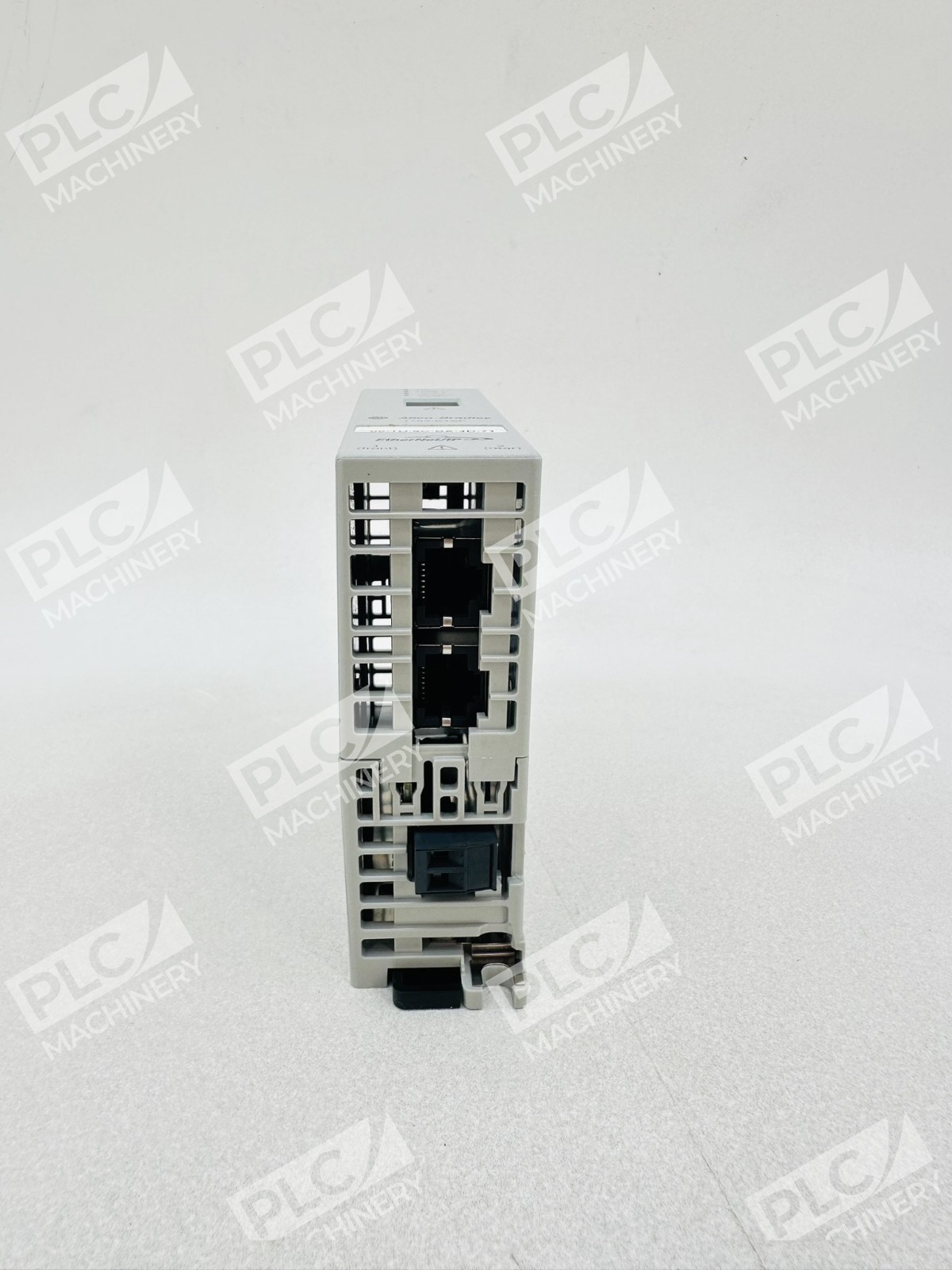

- Three copper ports with support for both linear and DLR network topologies operating at 10/100 Mbps
- Device Level Ring (DLR) topology with sub-3 ms fault recovery
- 24 VDC power supply rated at 20.4 to 27.6 volts input range
- DIN rail (top hat rail) mounting with IP20 enclosure rating
- Certifications: CE, CUL, KC, MARINE, RCM, UL
- Allows direct device connection to network without separate Ethernet switch, reducing overall cost and simplifying system configuration
Technical Specifications
- Ports: 3 copper ports, 10/100 Mbps
- Power Supply: 24 VDC (20.4–27.6 V input range), 125 mA maximum current
- Power Consumption: 4.8 watts
- Network Topology: Linear and Device Level Ring (DLR)
- Link Speed: Auto-negotiate 10 Mbps or 100 Mbps with full or half duplex
- Operating Temperature: −13 to 158°F (−10 to 70°C)
- Enclosure Rating: IP20

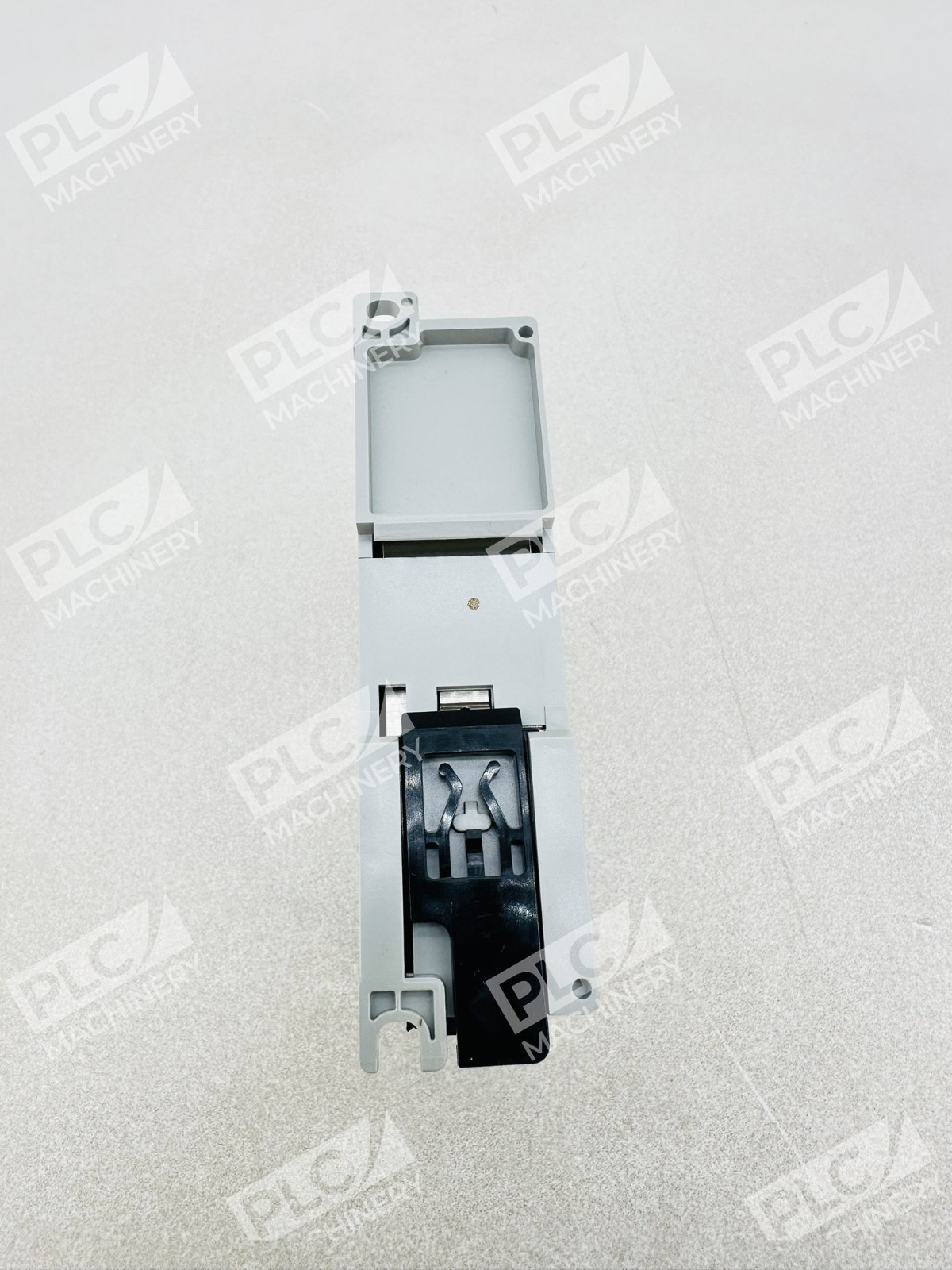

- Mounting: DIN rail (top hat rail)
- Dimensions: Width 1.36 in., Height 5.16 in., Depth 4.13 in. (105 mm length)
- Cable: 0.33–3.3 mm² (22–12 AWG) or 0.33–1.3 mm² (22–16 AWG) solid or stranded copper wire
- Certifications: CE, CUL, KC, MARINE, RCM, UL
- Brand/Series: Allen-Bradley Stratix
Typical Applications
The 1783-ETAP is designed for use in Device Level Ring (DLR) networks, providing a dedicated connection point for a single device and enabling fault-tolerant ring architectures. Common uses include:
- Integration of single EtherNet/IP devices into ring topology networks
- Temporary network access without breaking DLR ring continuity
- Part of the Allen-Bradley Stratix infrastructure family for robust and reliable EtherNet/IP connectivity
- Motion control and distributed I/O applications requiring ring-redundant networks
- Maintenance and diagnostic connections in production environments
Compatibility & Replacements
Compatible With
- Logix-family controllers (CompactLogix, ControlLogix)
- Works with Logix controllers, drives, and distributed devices
- EtherNet/IP–enabled devices and networks
- Studio 5000 / RSLogix 5000 programming environments
- Stratix industrial networking switches and modules
Replaces / Drop-In Replacement For
The 1783-ETAP Series A is the current active model. Verify compatibility with your system integrator before ordering if replacing legacy tap models.
Works With
- EtherNet/IP protocol and topology
- Device Level Ring (DLR) redundancy standard
- Linear and ring network topologies
- Studio 5000 Logix Designer software
- RSLinx Classic / RSLinx Enterprise
- Rockwell Automation CompactLogix, ControlLogix, and DriveLogix controllers
