<h2>Overview</h2>

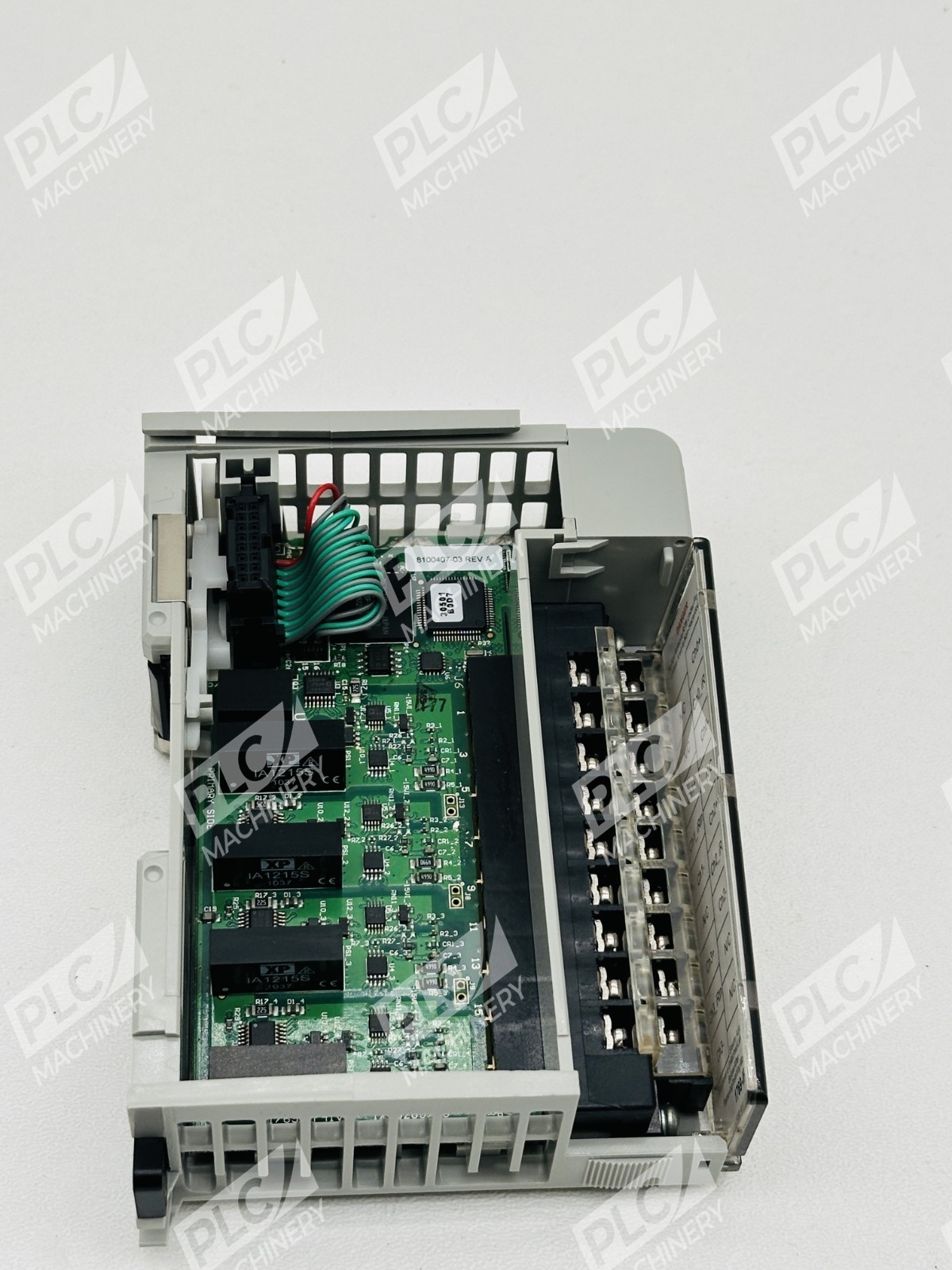

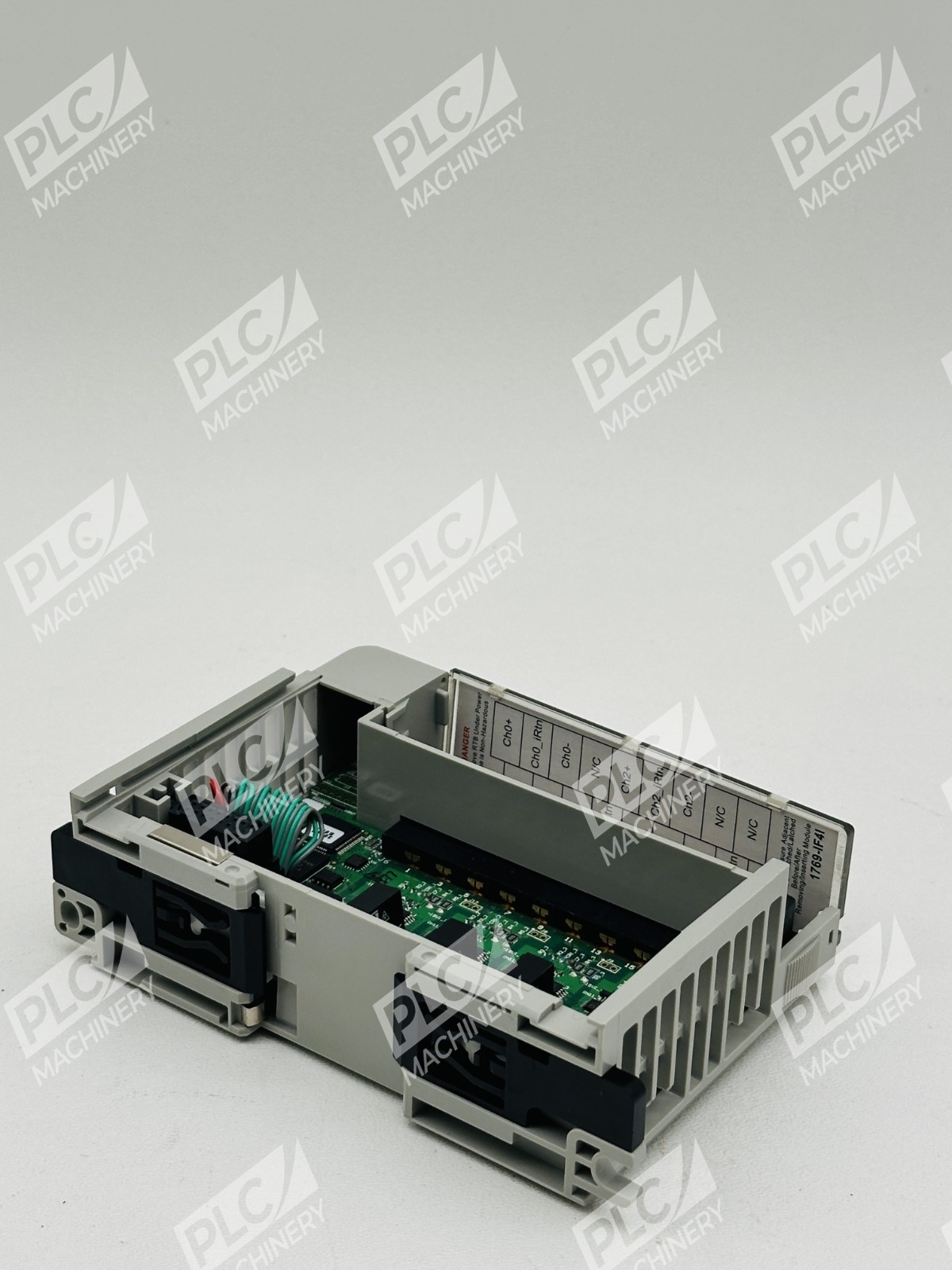

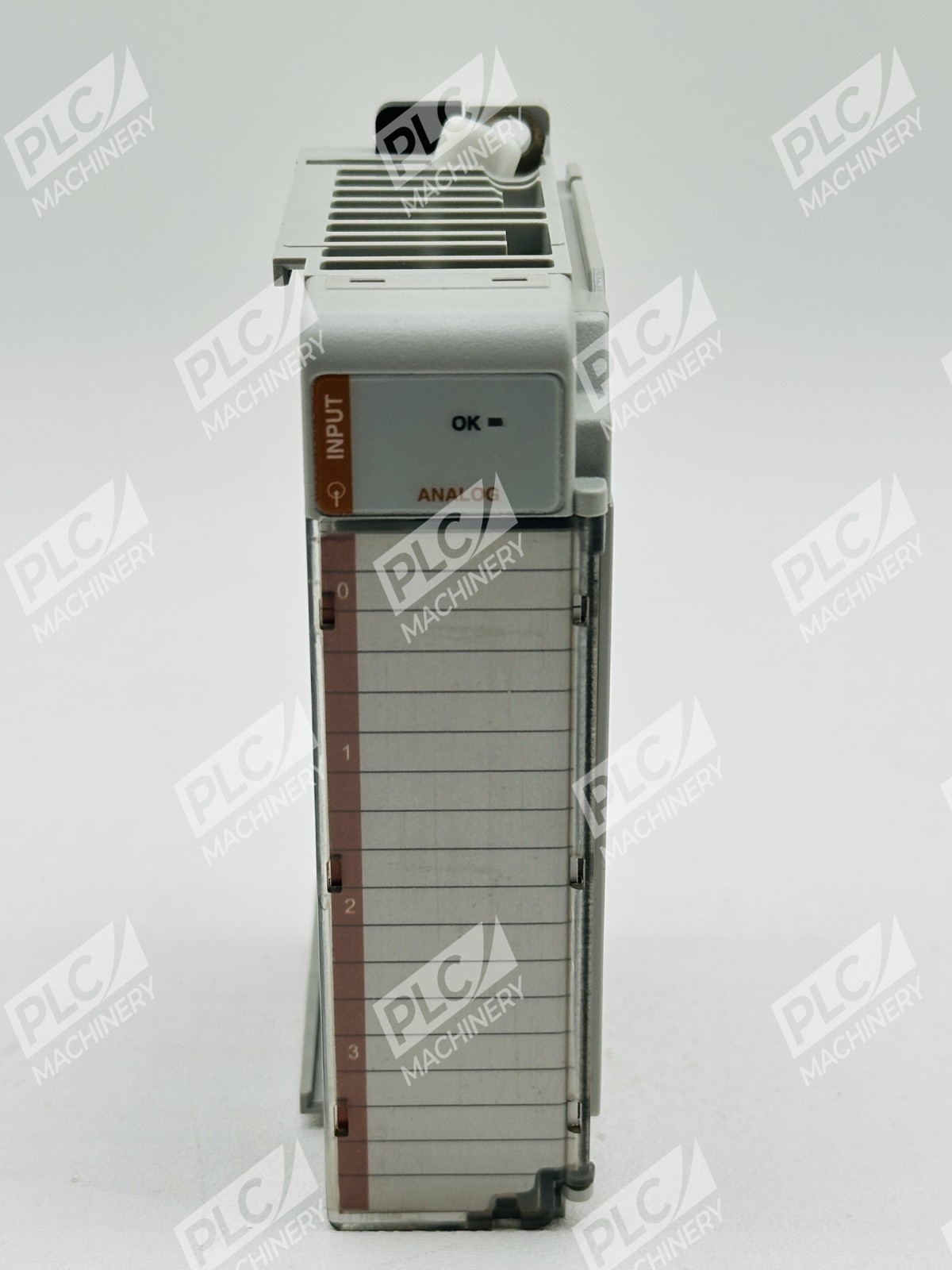

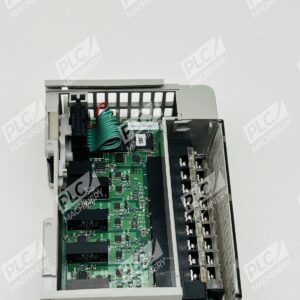

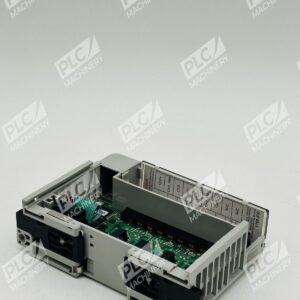

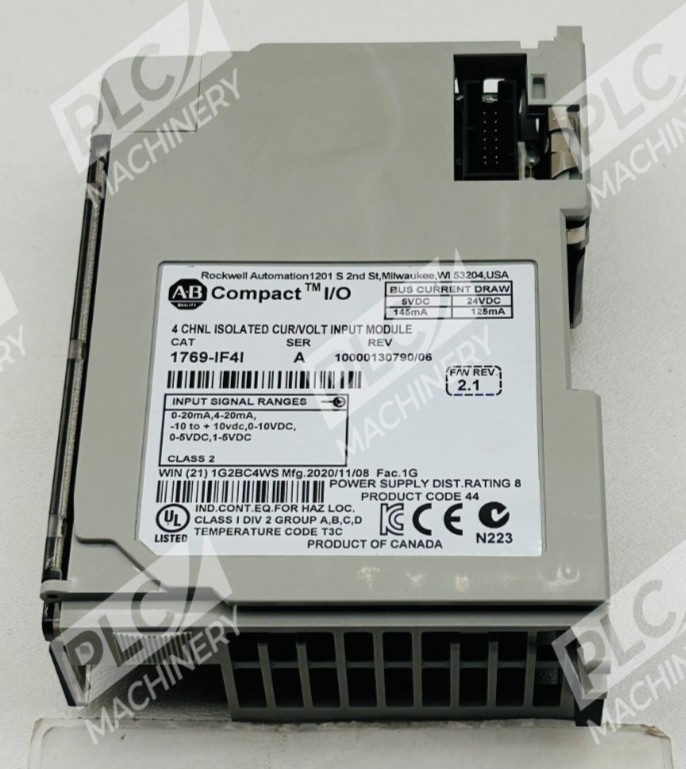

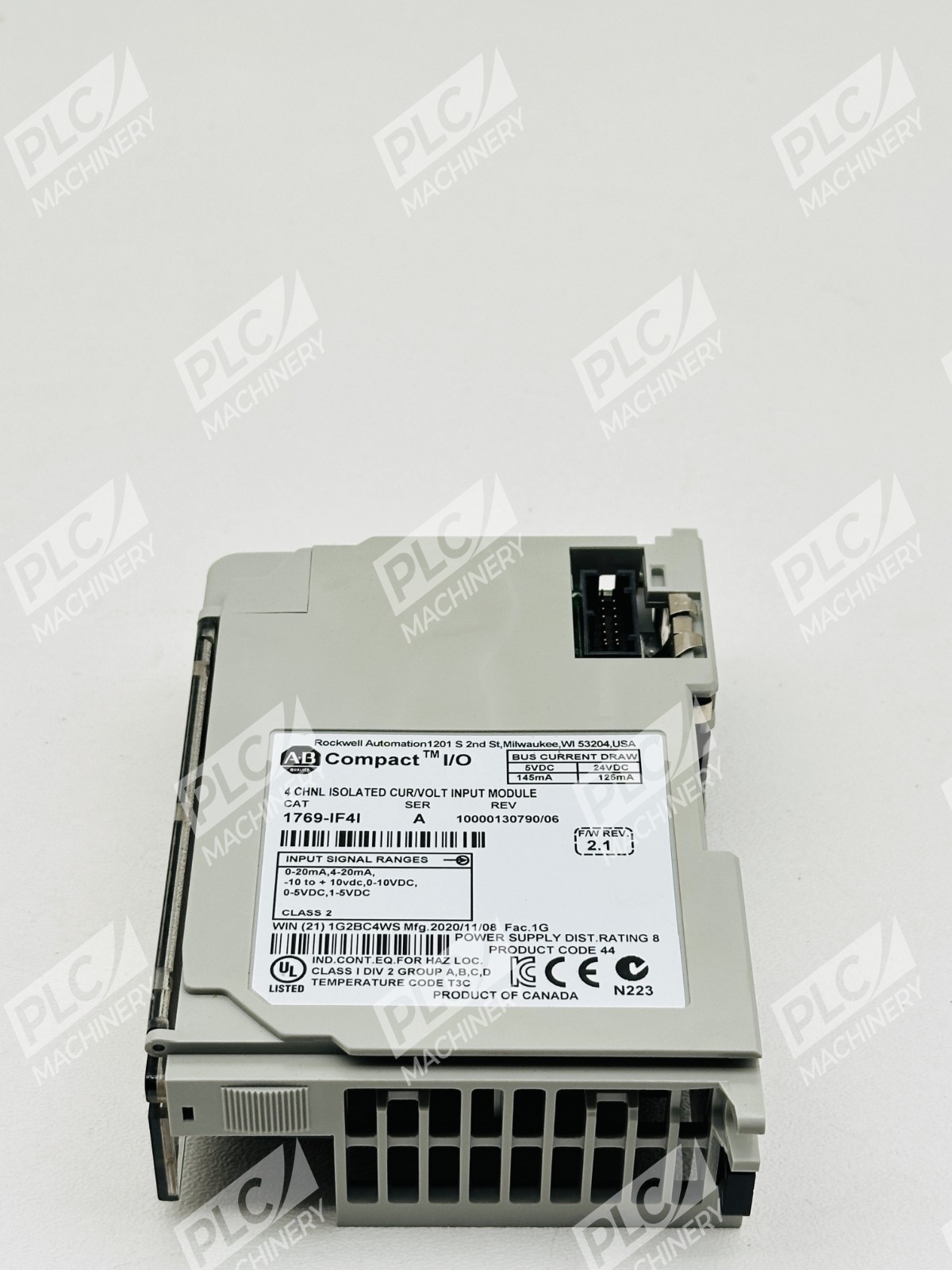

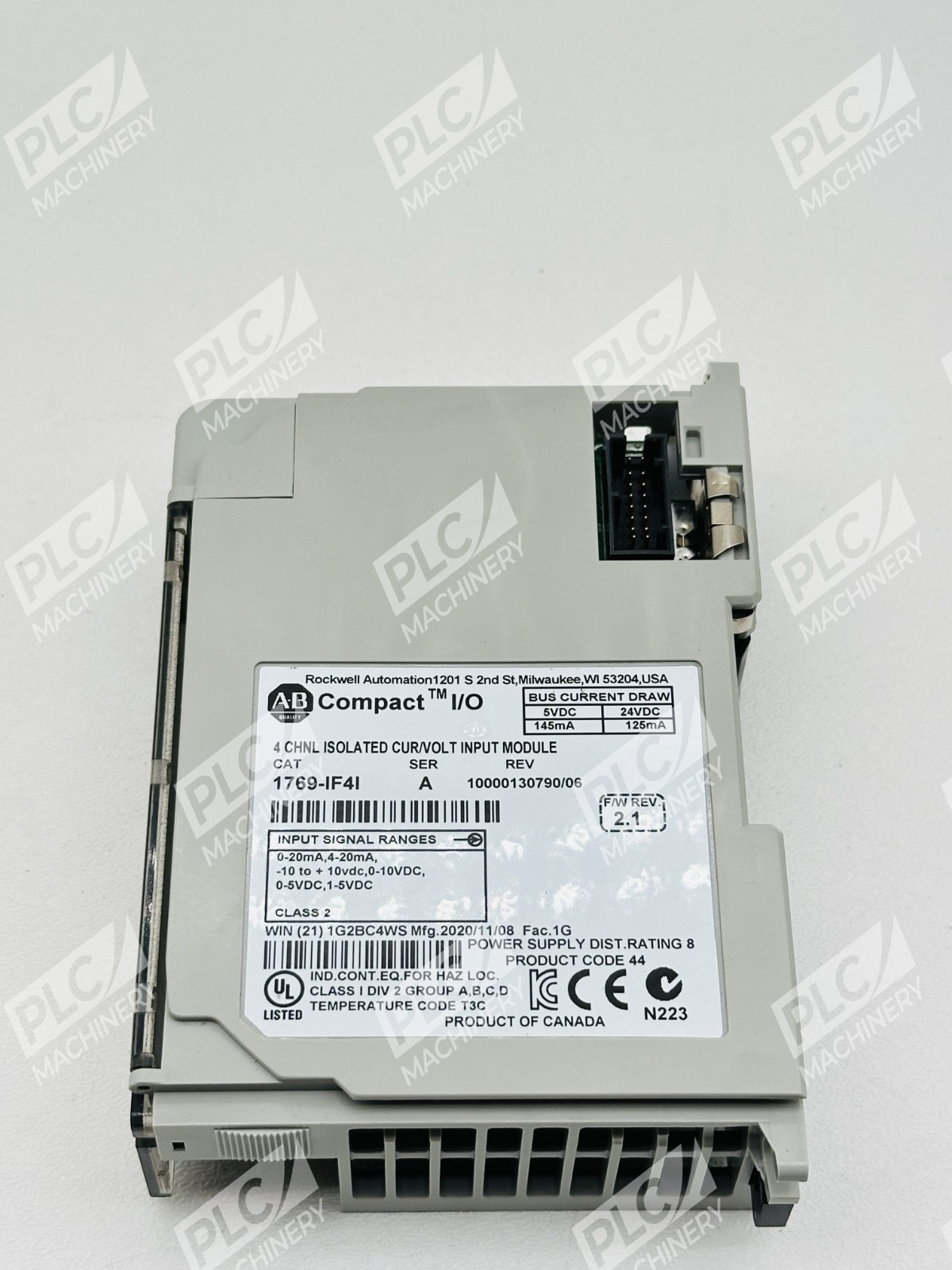

<p>The <strong>Allen-Bradley 1769-IF4I</strong> is a CompactLogix four-channel isolated analog input module designed to acquire accurate current and voltage signals from field devices. <cite index=”1-1,1-2″>This module is a CompactLogix four-point analog input module that is isolated and handles both current and voltage with 16-bit resolution.</cite> It digitizes analog data for direct use by CompactLogix and MicroLogix controllers, eliminating the need for external signal conditioning in many applications.</p>
<h2>Key Features</h2>
<ul>
<li><cite index=”3-6″>Four isolated, differential input channels</cite></li>
<li><cite index=”1-2″>16-bit resolution for precise analog acquisition</cite></li>
<li><cite index=”3-7″>Designed to interface field devices that send 0-21 mA and +/- 10VDC analog signals</cite></li>

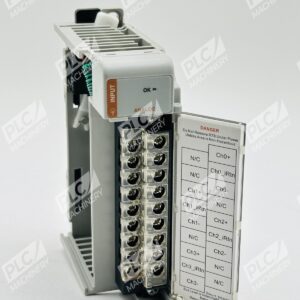

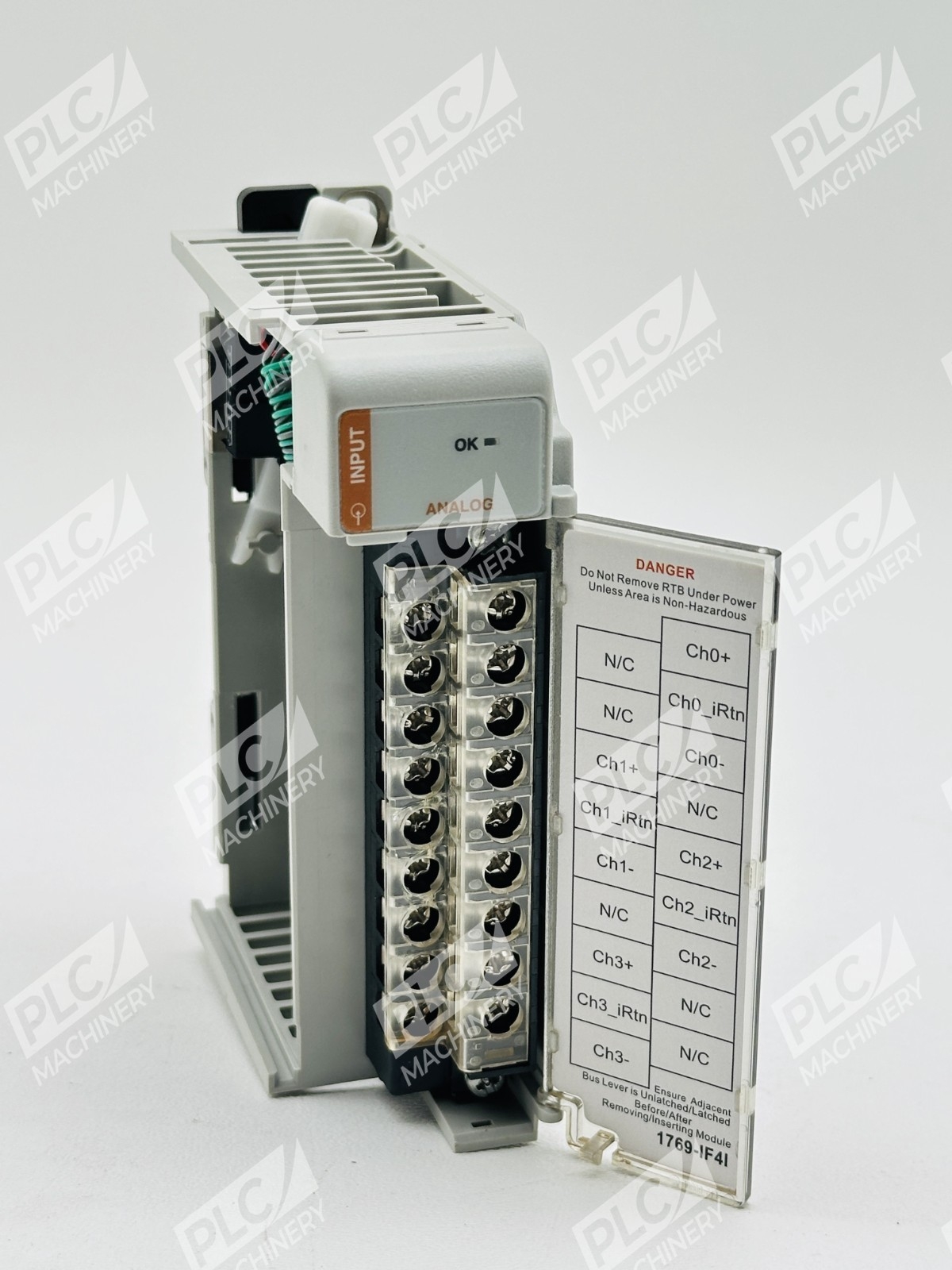

<li><cite index=”3-25″>Removable terminal blocks for flexible installation</cite></li>
<li><cite index=”3-23″>Panel or DIN Rail mounting options</cite></li>
</ul>

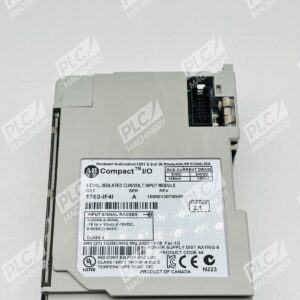

<h2>Technical Specifications</h2>
<ul>
<li><cite index=”3-7″>Input Signal Range: 0-21 mA and +/- 10VDC</cite></li>
<li><cite index=”1-2″>Resolution: 16-bit</cite></li>
<li><cite index=”9-4″>Operating Temperature: 0 to 60°C</cite></li>
<li><cite index=”9-4″>Power Supply: 45 mA at 5VDC, 125 mA at 24VDC</cite></li>
<li><cite index=”3-22″>Maximum Heat Dissipation: 3 Watts</cite></li>
<li><cite index=”3-19,3-20″>Dimensions: 4.65 x 3.43 x 1.38 inches; Weight: 0.65 lbs</cite></li>
</ul>
<h2>Typical Applications</h2>
<p>The 1769-IF4I is ideal for:</p>
<ul>
<li>Pressure and temperature monitoring with 4-20mA transmitters</li>
<li>Process control feedback acquisition</li>
<li>Sensor signal conditioning in noisy industrial environments (isolation reduces noise coupling)</li>
<li>Multi-channel data logging in CompactLogix systems</li>
<li>Flow rate, weight, and displacement measurement integration</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li><cite index=”1-3″>CompactLogix and Compact GuardLogix controllers</cite></li>
<li><cite index=”3-8″>1769 CompactLogix chassis or MicroLogix 1500</cite></li>
<li>1769 Compact I/O backplane systems</li>
<li>Studio 5000 Logix Designer configuration software</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>Verify compatibility with your system integrator before ordering.</p>
<h3>Works With</h3>
<ul>
<li>Studio 5000 Logix Designer and Logix5000 platform</li>
<li>EtherNet/IP communication (when used in networked chassis)</li>
<li>Standard 4-20mA industrial sensors and transducers</li>
<li>Voltage-output sensors (+/- 10V DC compatible)</li>
</ul>
