Overview

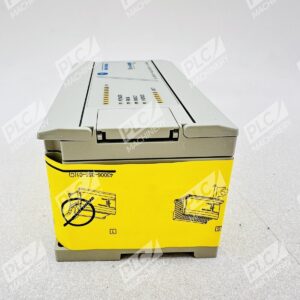

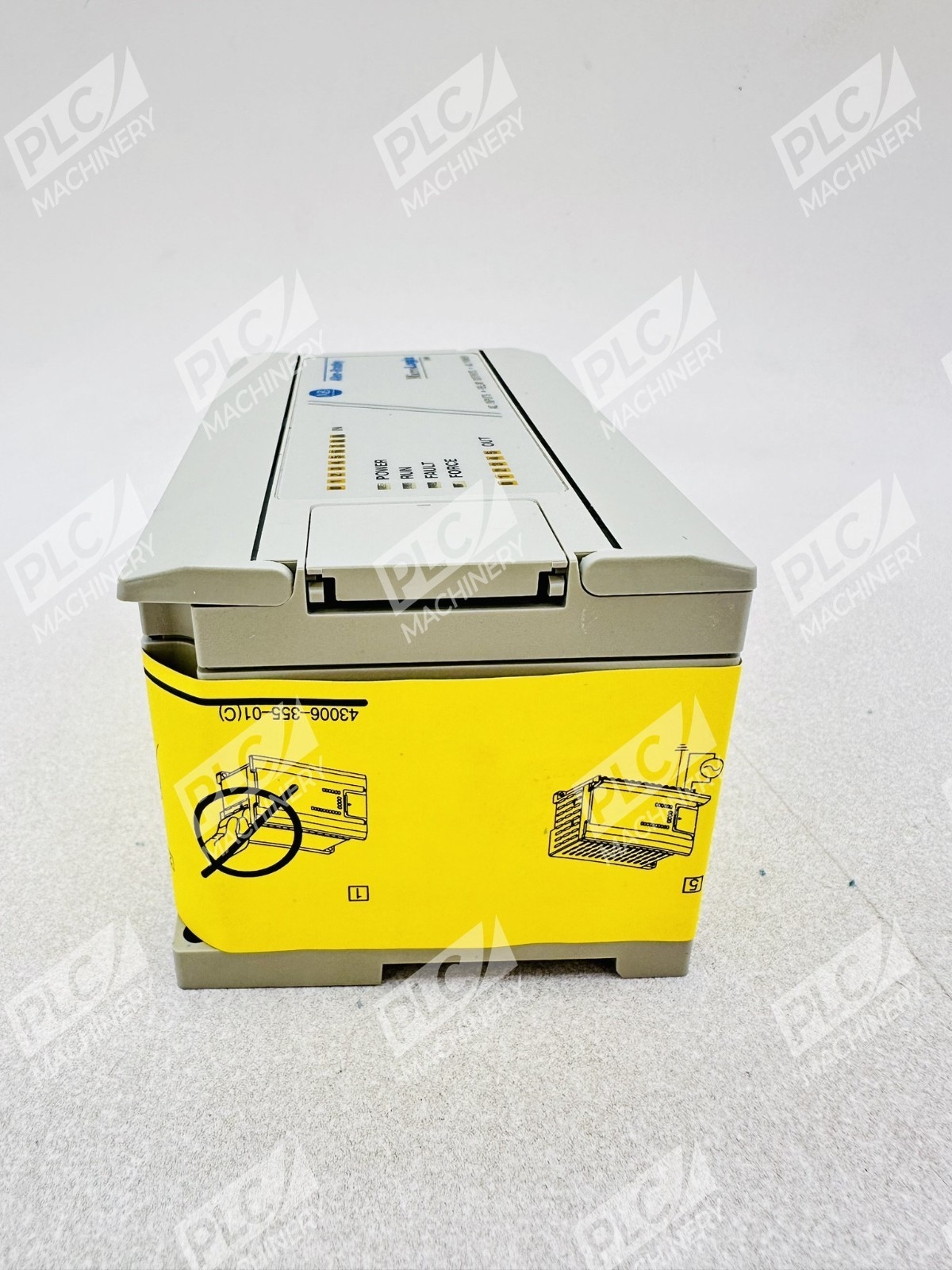

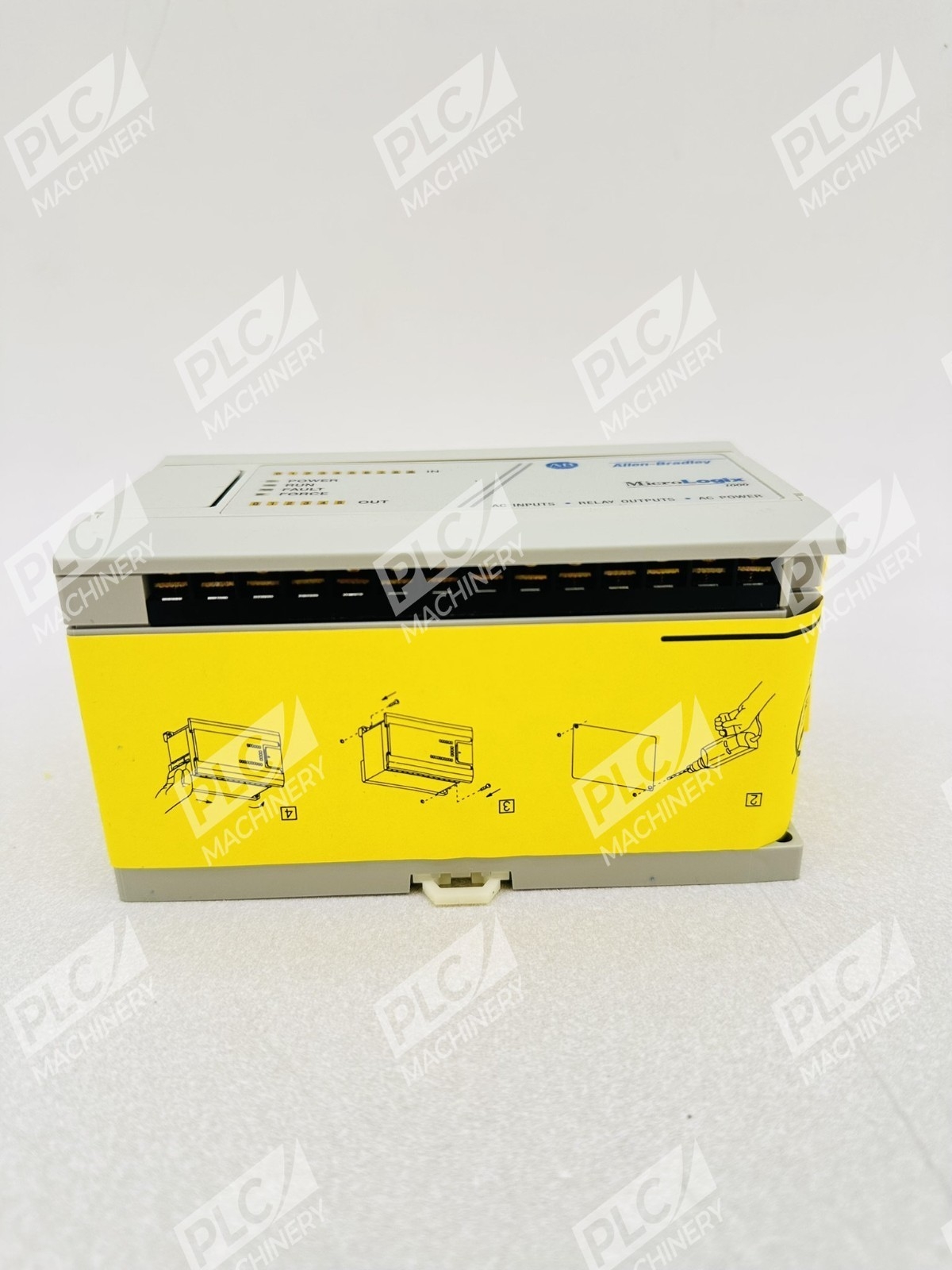

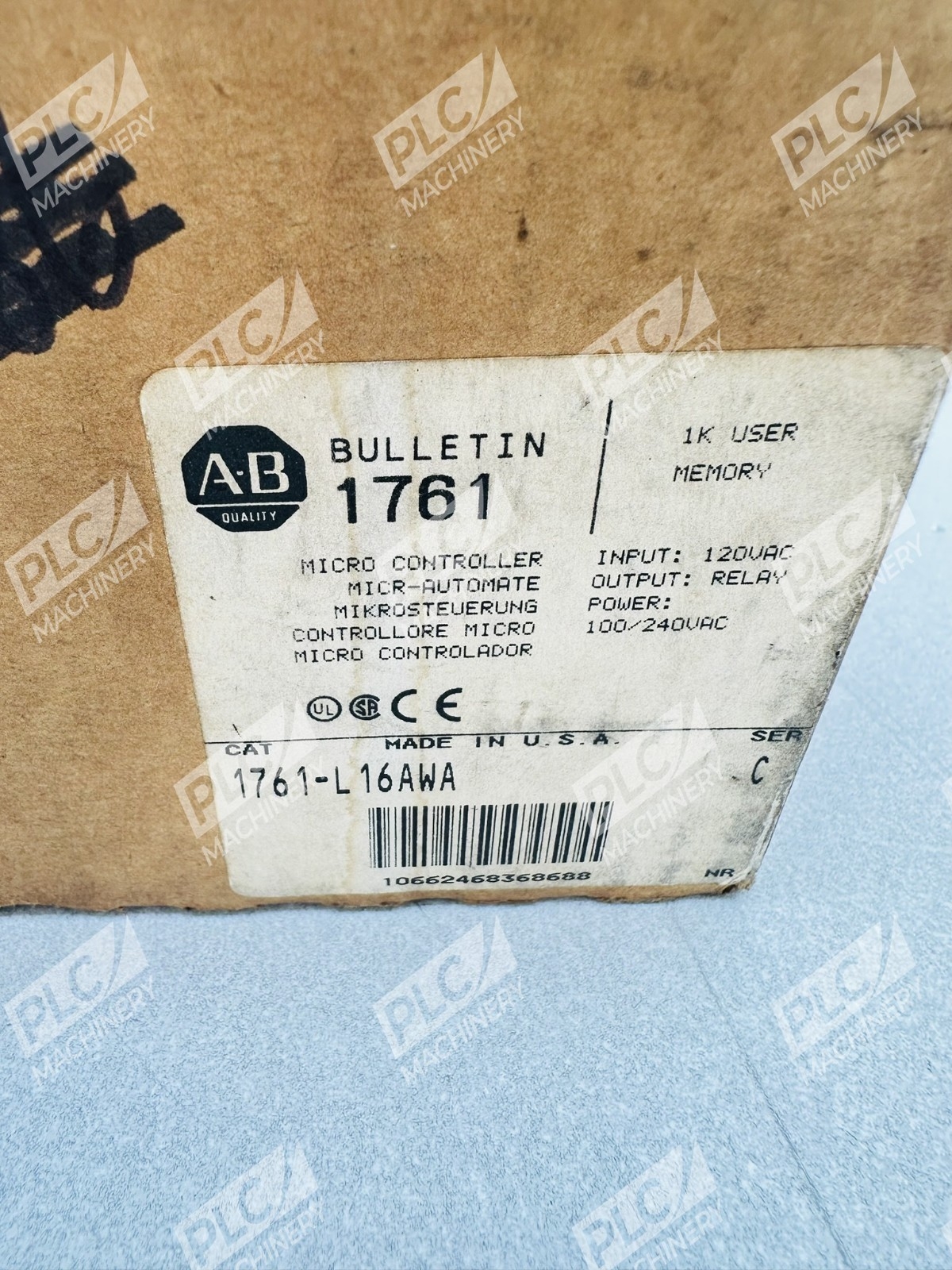

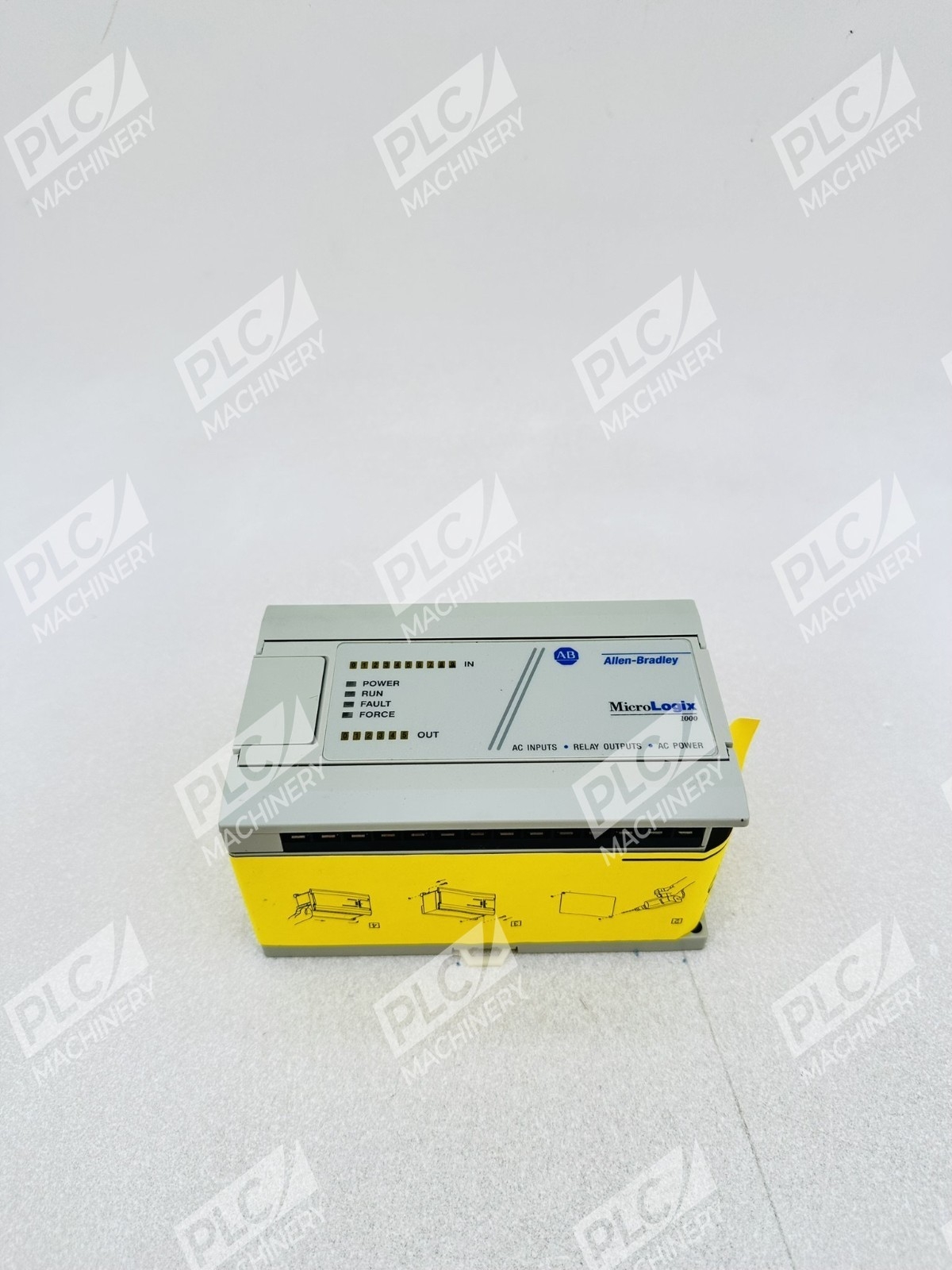

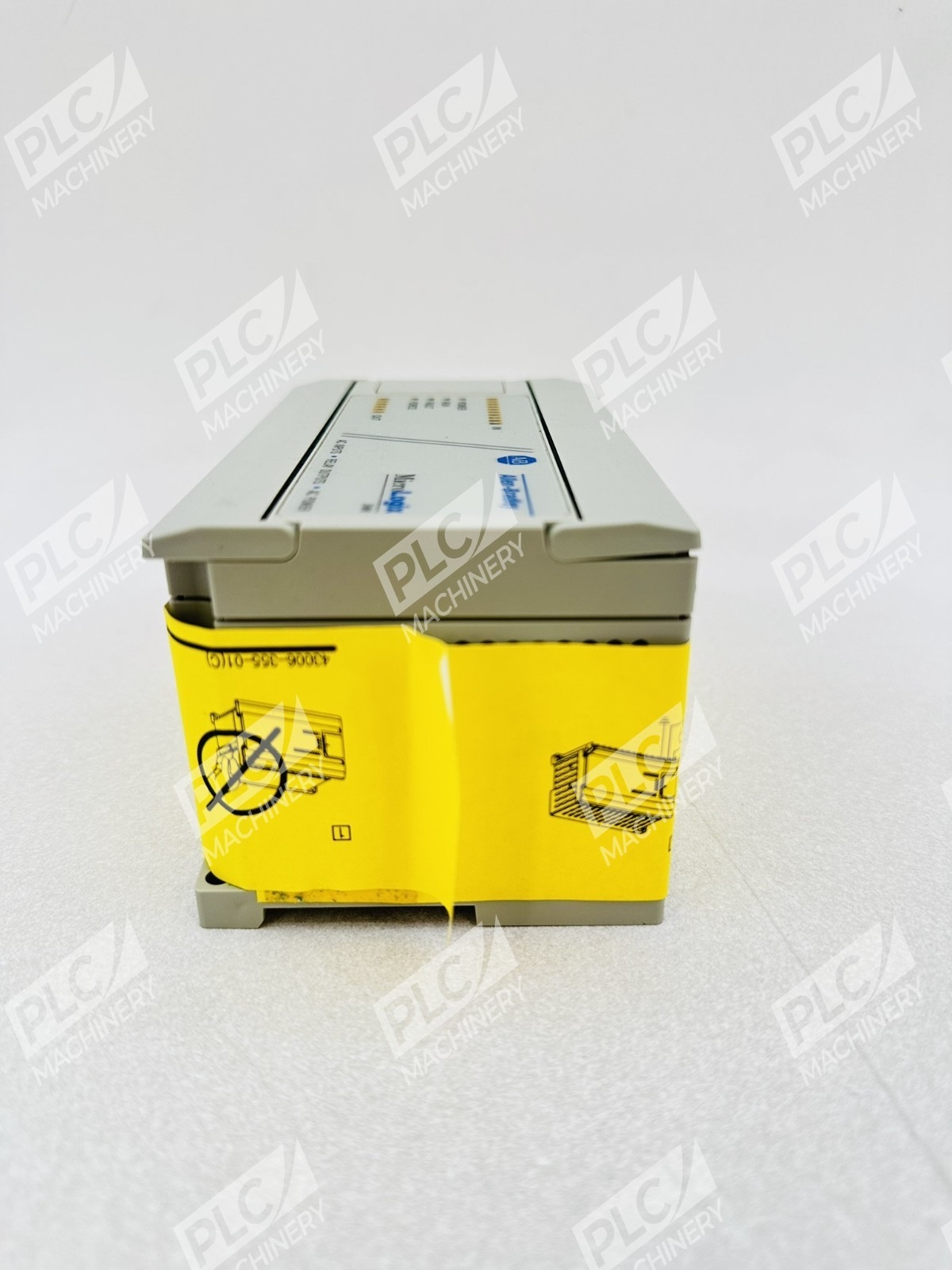

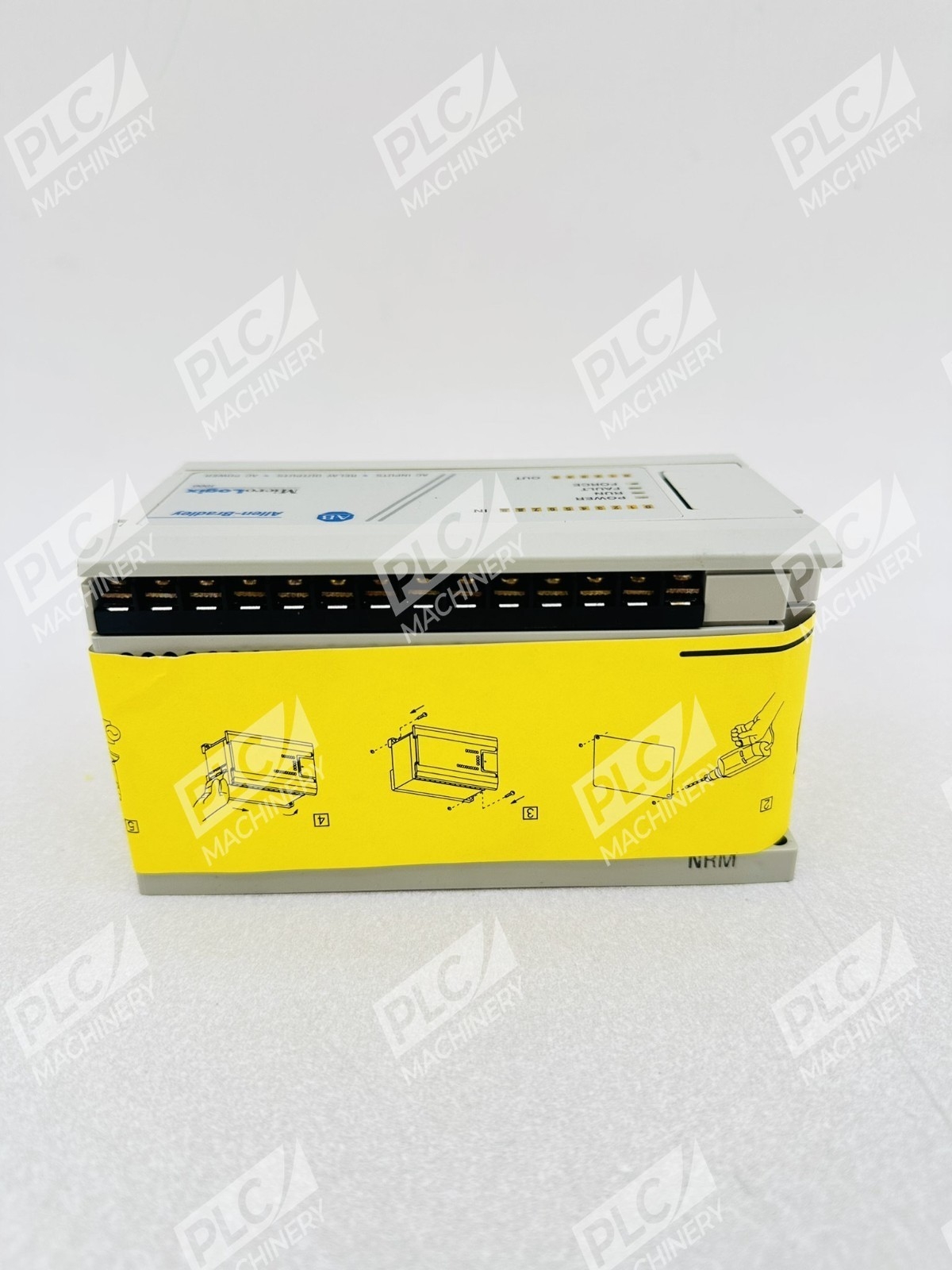

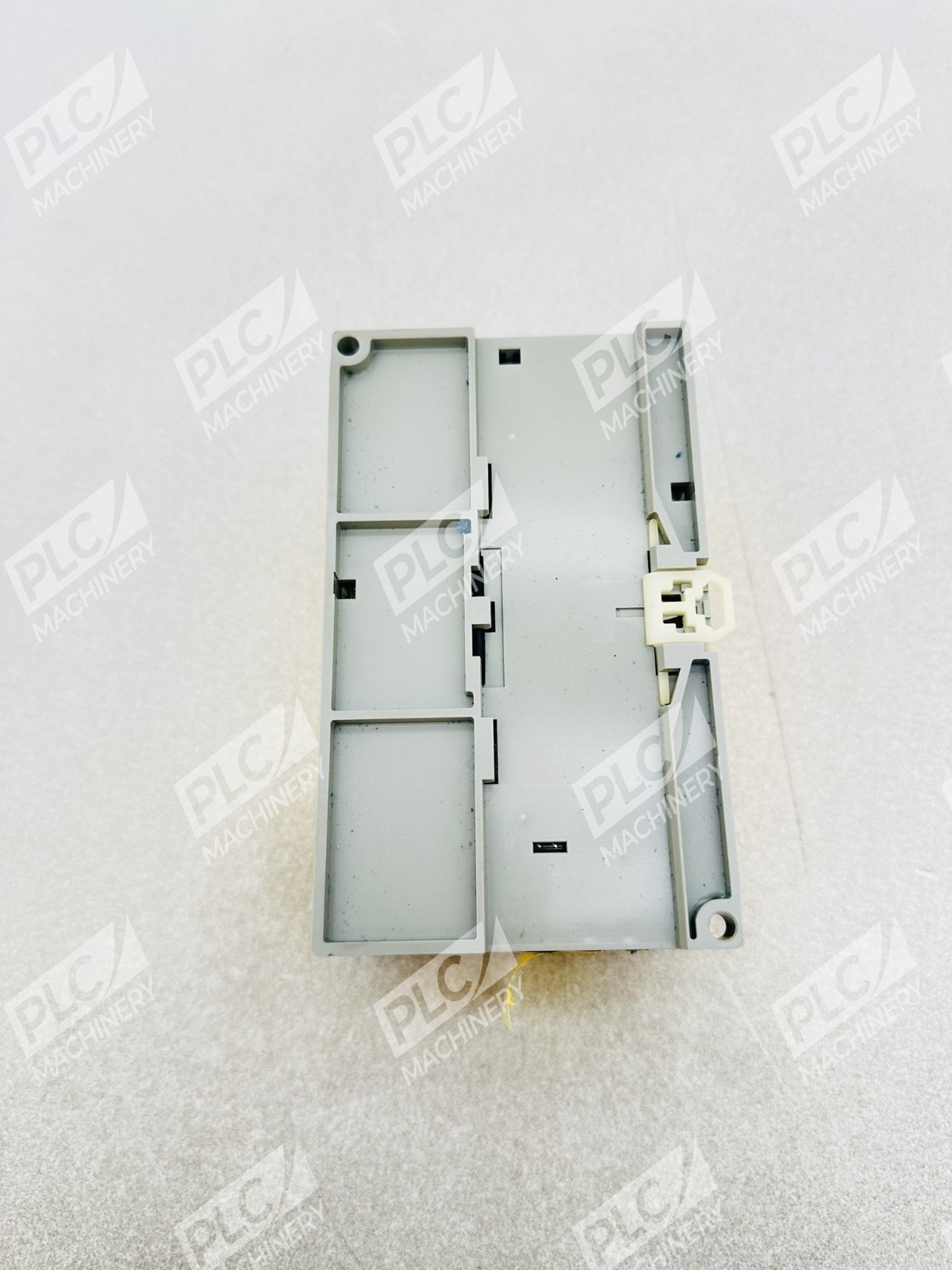

The Allen-Bradley 1761-L16AWA is a compact programmable logic controller (PLC) in the MicroLogix 1000 series, designed for small to mid-sized industrial automation and discrete control applications. This controller features 16 total I/O channels, with 10 AC input points and 6 relay output points. It includes an EEPROM memory with 1K capacity, supporting approximately 737 instructions and 437 data words. The unit is powered by an AC source rated 85-264VAC, making it compatible with standard industrial power supplies.
Key Features
- 10 AC inputs rated 79-132VAC and 6 relay outputs supporting 24-125VDC and 120-240VAC
- EEPROM memory with 1K user program storage
- Supports 40 timers with average program scan time of 2 milliseconds

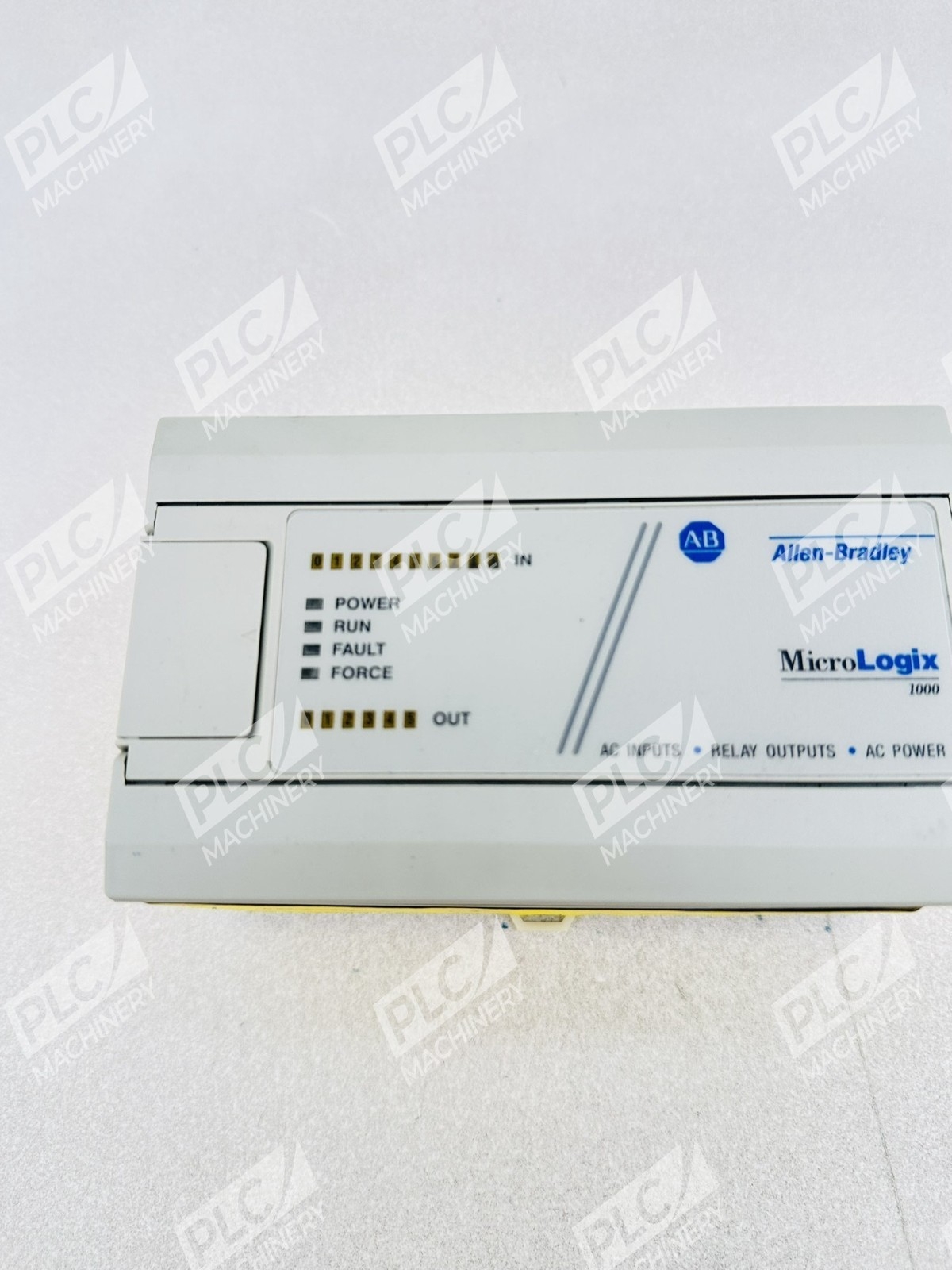

- LED status indicators for monitoring controller condition
- Single RS232 8-pin mini DIN communication port supporting DF1, MODBUS RTU slave protocol
- Capable of implementing discrete and analog control, time and counter-based, and simple motion control applications
Technical Specifications
- Power Supply: 120/240VAC (85-264VAC input range)
- Digital Inputs: 10 points, 79-132VAC rated
- Relay Outputs: 6 points, 24-125VDC and 120-240VAC rated
- Output continuous current ratings: 2.0A @ 24VDC, 1.0A @ 125VDC, 2.5A @ 120/240VAC
- Memory: 1K EEPROM with 737 instruction and 437 data word capacity
- Program scan time: 2 milliseconds average
- Operating temperature: 0–55°C (32–131°F)
- Physical dimensions: 5.24 × 2.87 × 3.15 inches
- Weight: 0.85 lbs
- Communication: RS232 with DF1 protocol
- Standards: C-TICK, CE, GOST, KC
Typical Applications
The 1761-L16AWA is capable of implementing discrete and analog control as well as time-based, counter-based and simple motion control applications. Common uses include small machinery control, conveyor systems, basic sequencing, starter panels, and equipment diagnostics in manufacturing, HVAC, and facility automation environments.
Compatibility & Replacements
Compatible With
- MicroLogix 1000 series ecosystem
- Allen-Bradley programming and diagnostic software
- RS232 serial communication networks
- DF1 and MODBUS RTU industrial protocols
- Standard 120/240VAC industrial power systems
Replaces / Drop-In Replacement For
The 1761-L16AWA was discontinued by Rockwell Automation as of June 30, 2017, and is no longer available for new orders from the manufacturer. Direct OEM replacements within the MicroLogix 1000 line may include similar 16-point configurations. Verify compatibility with your system integrator before ordering migration alternatives.
Works With
- MicroLogix Hand-Held Programmer (HHP)
- Allen-Bradley RSLogix programming software
- Communication cables: 1761-CBL-PM02, 1761-CBL-HM02, 1761-CBL-AM00, 1761-CBL-AP00 Series C, and Series A variants
- RS232 serial terminal and programming workstations
- Industrial automation networking via DF1 or MODBUS protocols
