Overview
The Allen-Bradley 1756-OF8 is a ControlLogix 8 point analog output module designed for flexible voltage and current signal generation in industrial automation systems. This module within the ControlLogix series features 8 outputs with flexibility for either voltage or current use, operating with an output voltage range of -10 to 10 volts and supporting an output current range of up to 20 milliamperes. The unit is part of ControlLogix series and uses an R-Ladder DAC module conversion method.
Key Features
- Eight (8) analog output channels
- 15 bits resolution across 21 mA and 10.4V signal ranges
- Single slot installation compatible with removable terminal blocks (1756-TBNH, 1756-TBSH)
- Electronic short-circuit protection limiting current to 21 milliamps or less and overvoltage protection rated at 24 Volts DC
- FM Approved, IECEx, ATEX, Australian RCM, CE, and UL Listed Hazardous certifications

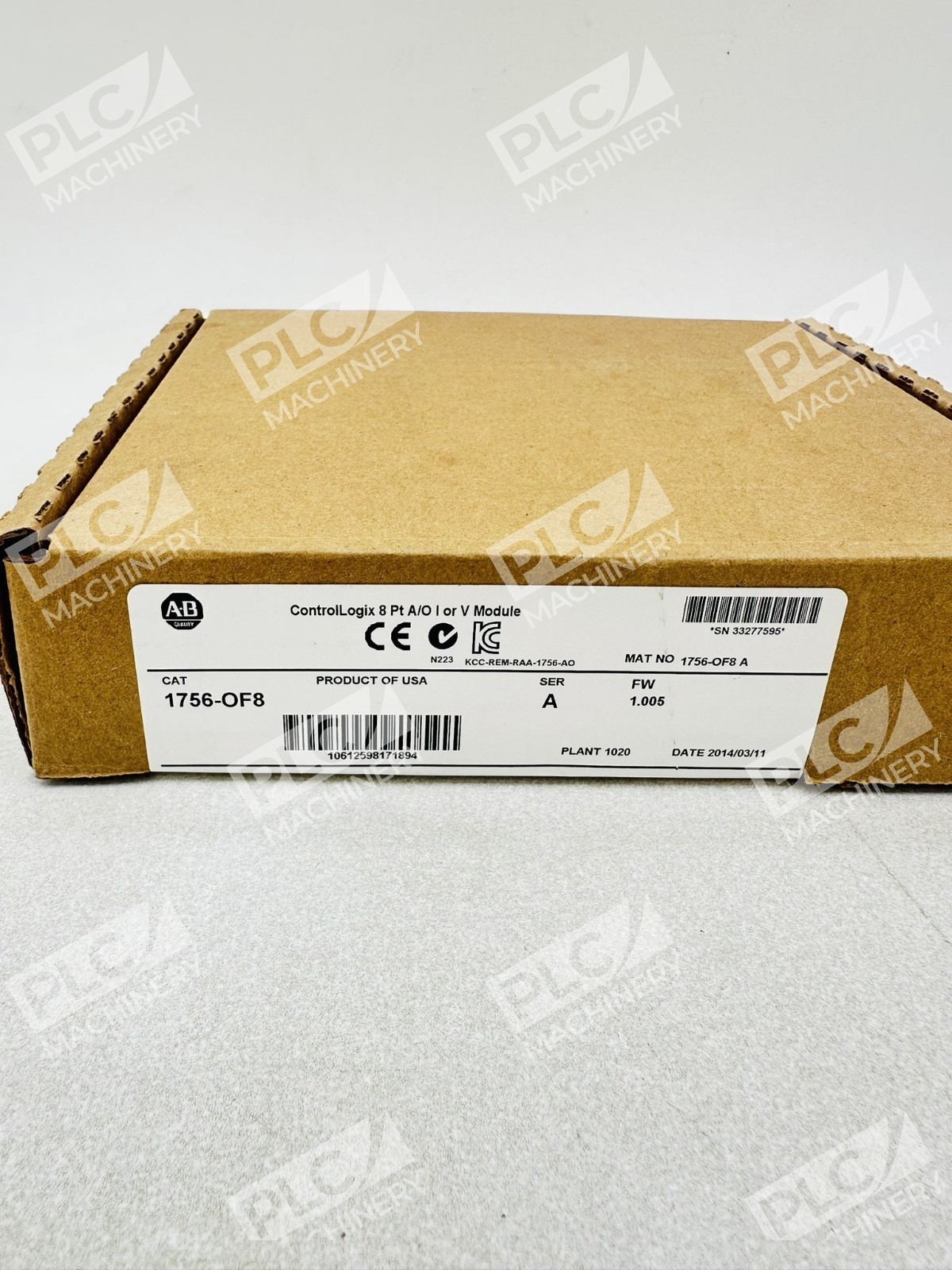

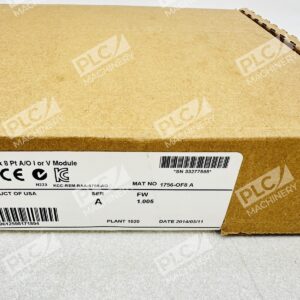

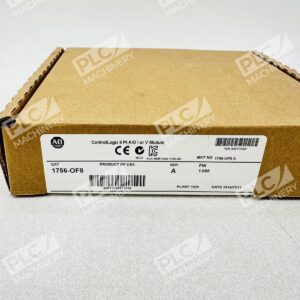

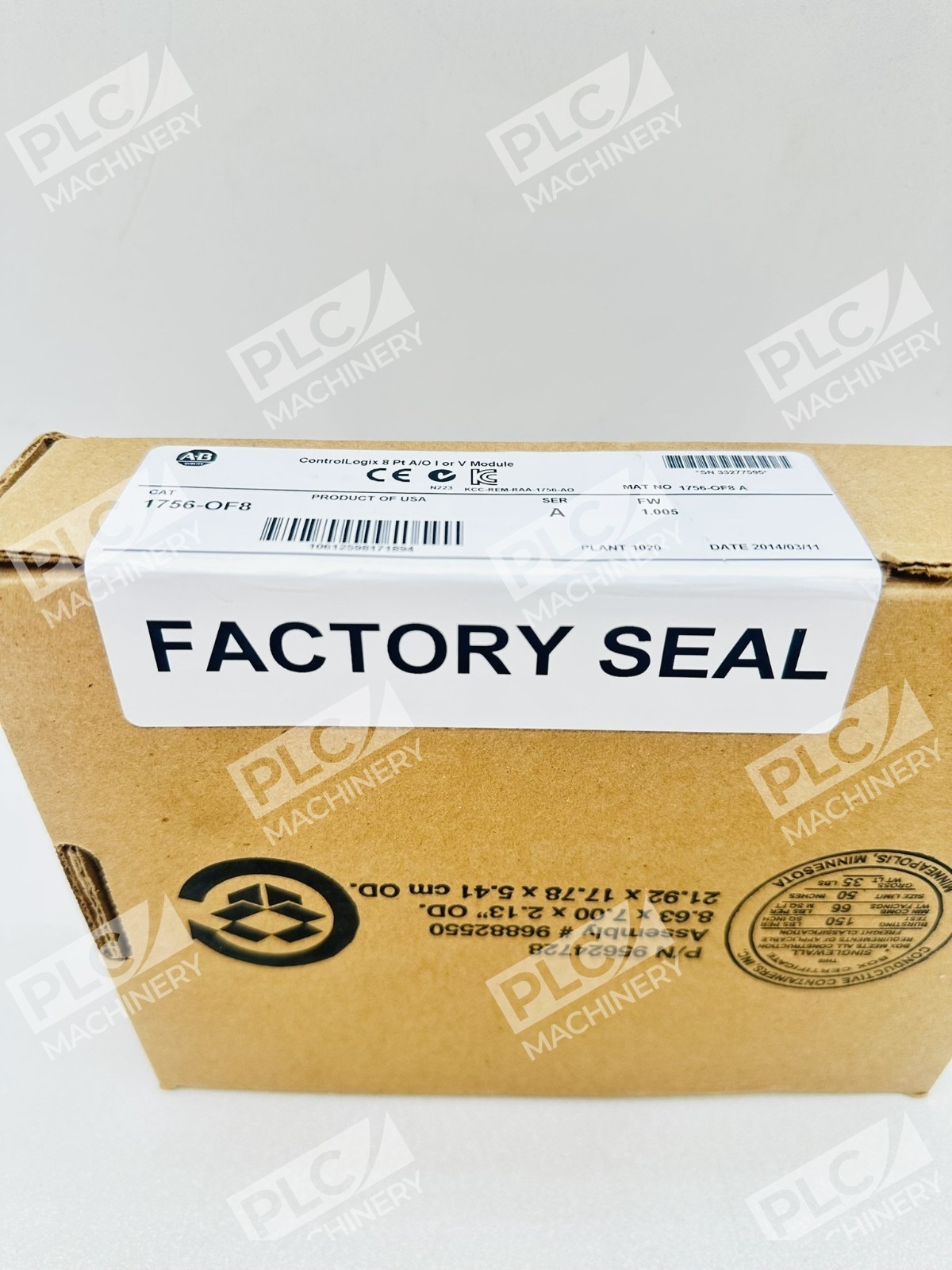

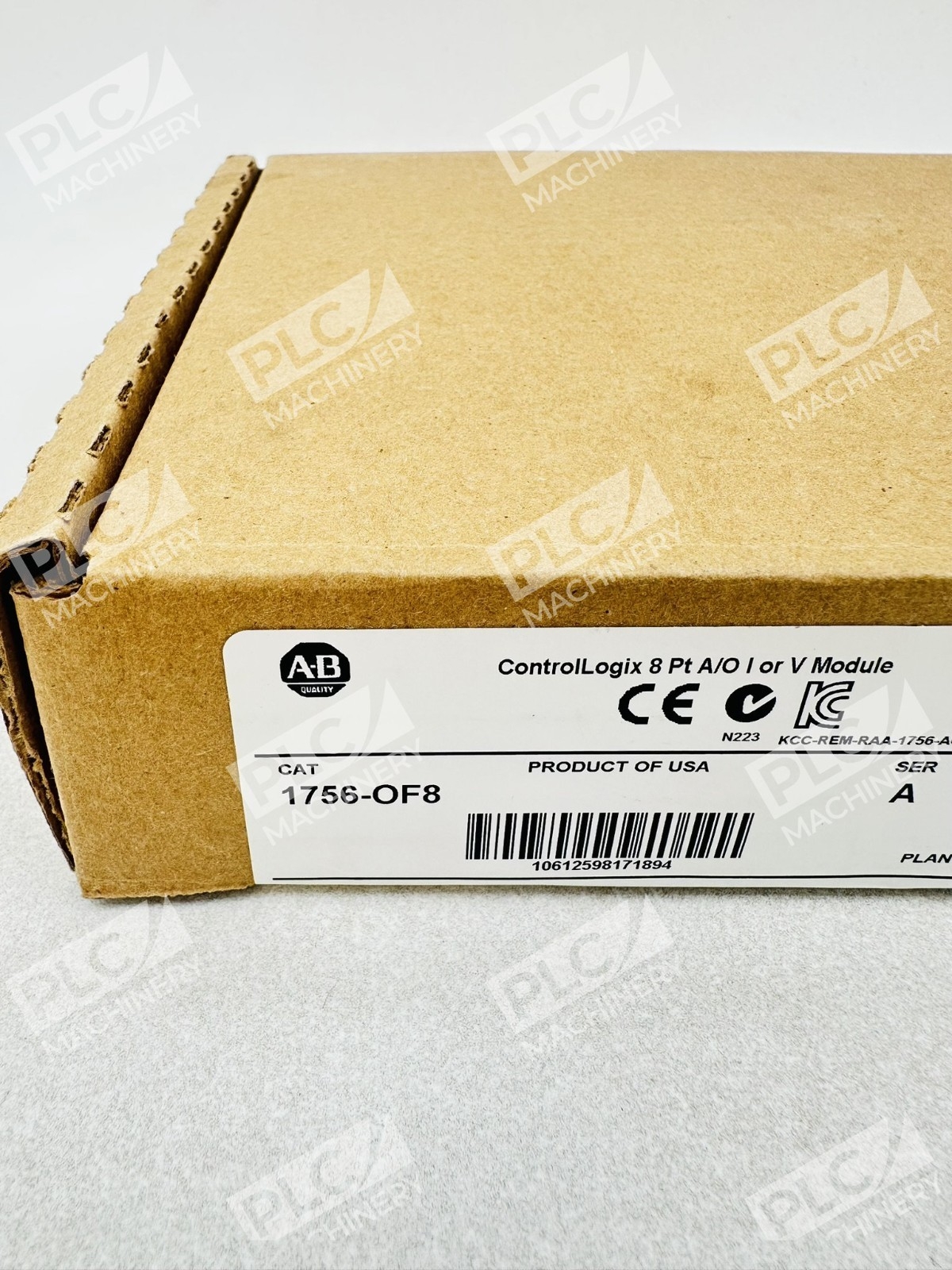

- Open-style enclosure with sealed design for transport and storage protection
Technical Specifications
Output voltage range: -10 to +10 volts; current range: 0 to 20 milliamperes
Backplane current draw: 150 milliamperes at 5.1 volts and 210 milliamperes at 24 volts
Power consumption: 5.8 watts total from backplane; thermal output approximately 16.78 BTU per hour
Typical Applications
- Motion control systems and servo drive command signals
- Process instrumentation and control loop output
- Analog valve and pump speed control
- Data acquisition and monitoring systems
- Industrial automation and PLC-based machine control
Compatibility & Replacements
Compatible With
- ControlLogix 5570 and 5580 controllers
- 1756-series chassis and backplane systems
- Studio 5000 and RSLogix 5000 programming environments
- EtherNet/IP networks
Replaces / Drop-In Replacement For
The 1756-OF8 is the standard voltage/current output module for ControlLogix. For individual isolation requirements, see 1756-OF8I. For HART communication capability, see 1756-OF8H.
Works With
- Studio 5000 Logix Designer (firmware v3.013 and compatible versions)
- RSLogix 5000 programming software
- ControlLogix chassis-based I/O architecture
- EtherNet/IP communication protocol
- Removable terminal blocks: 1756-TBNH, 1756-TBSH
