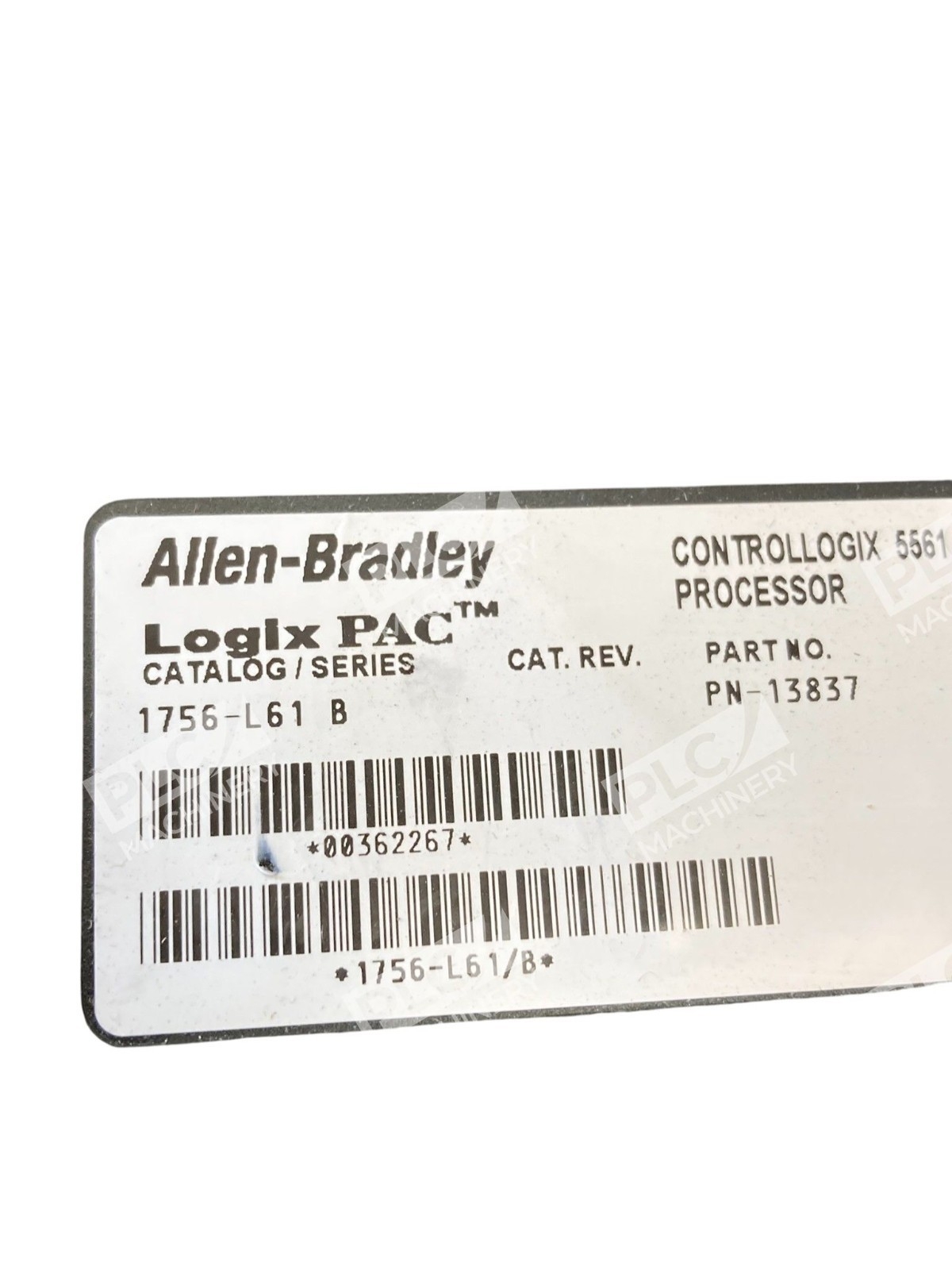

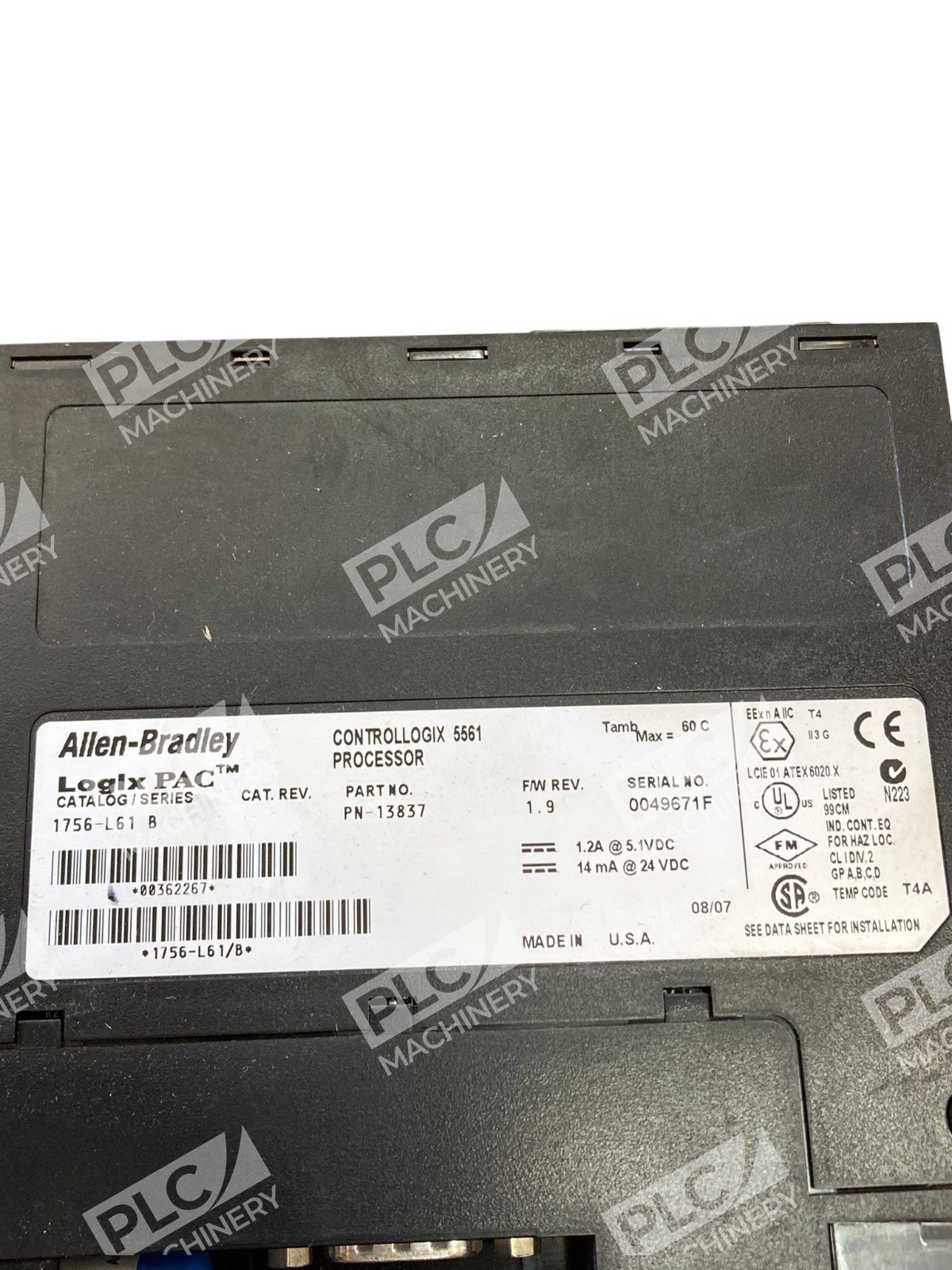

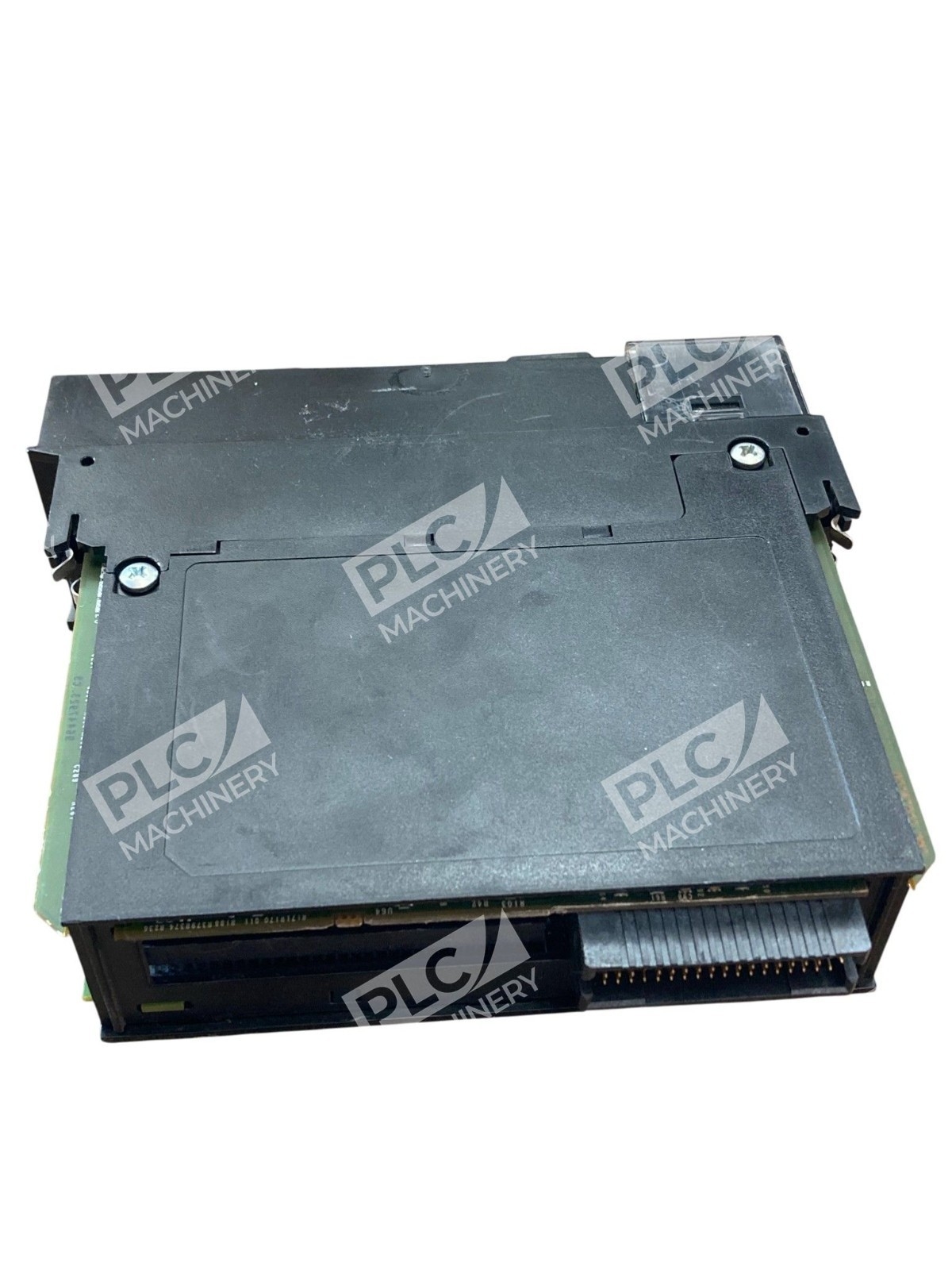

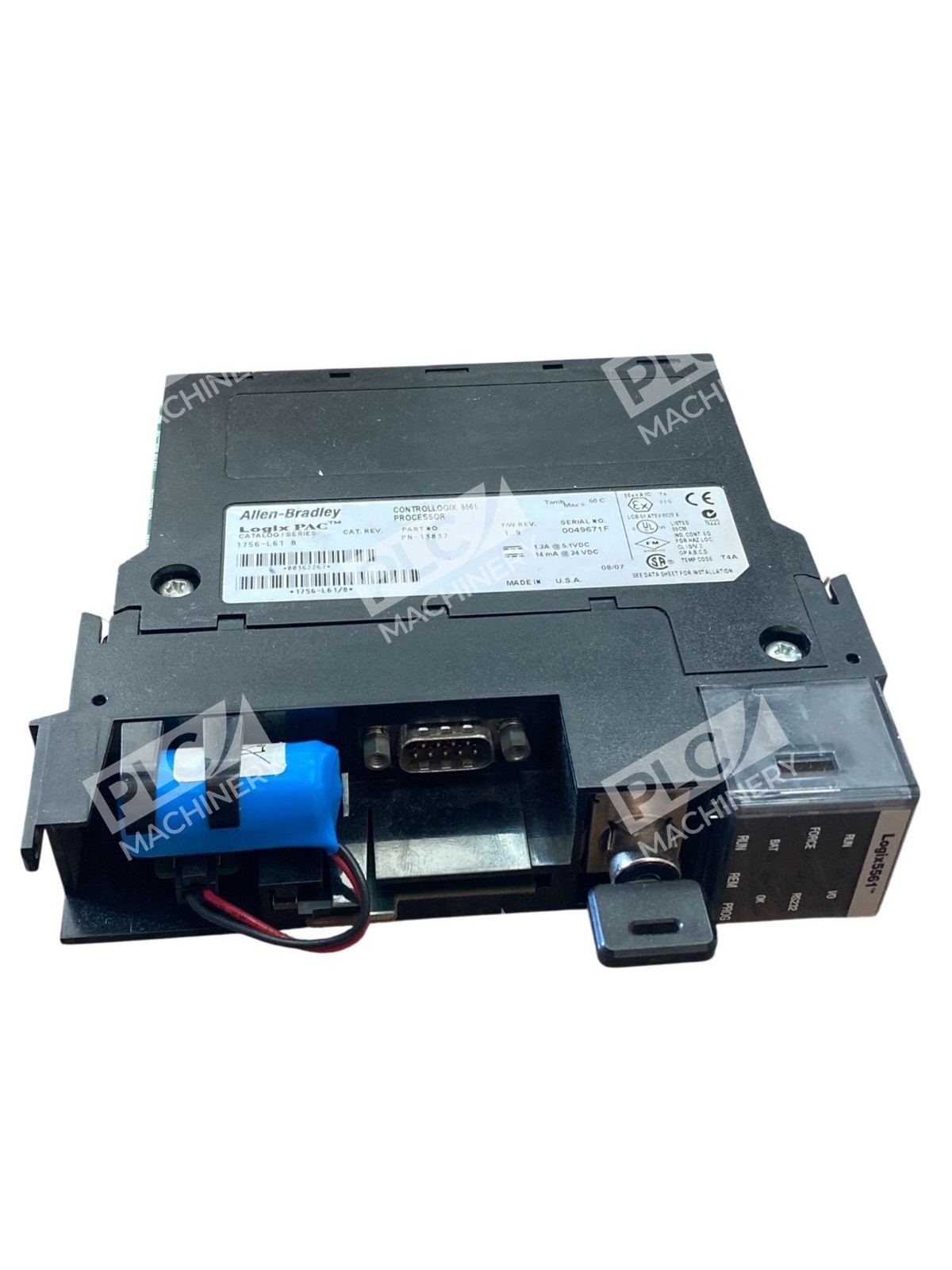

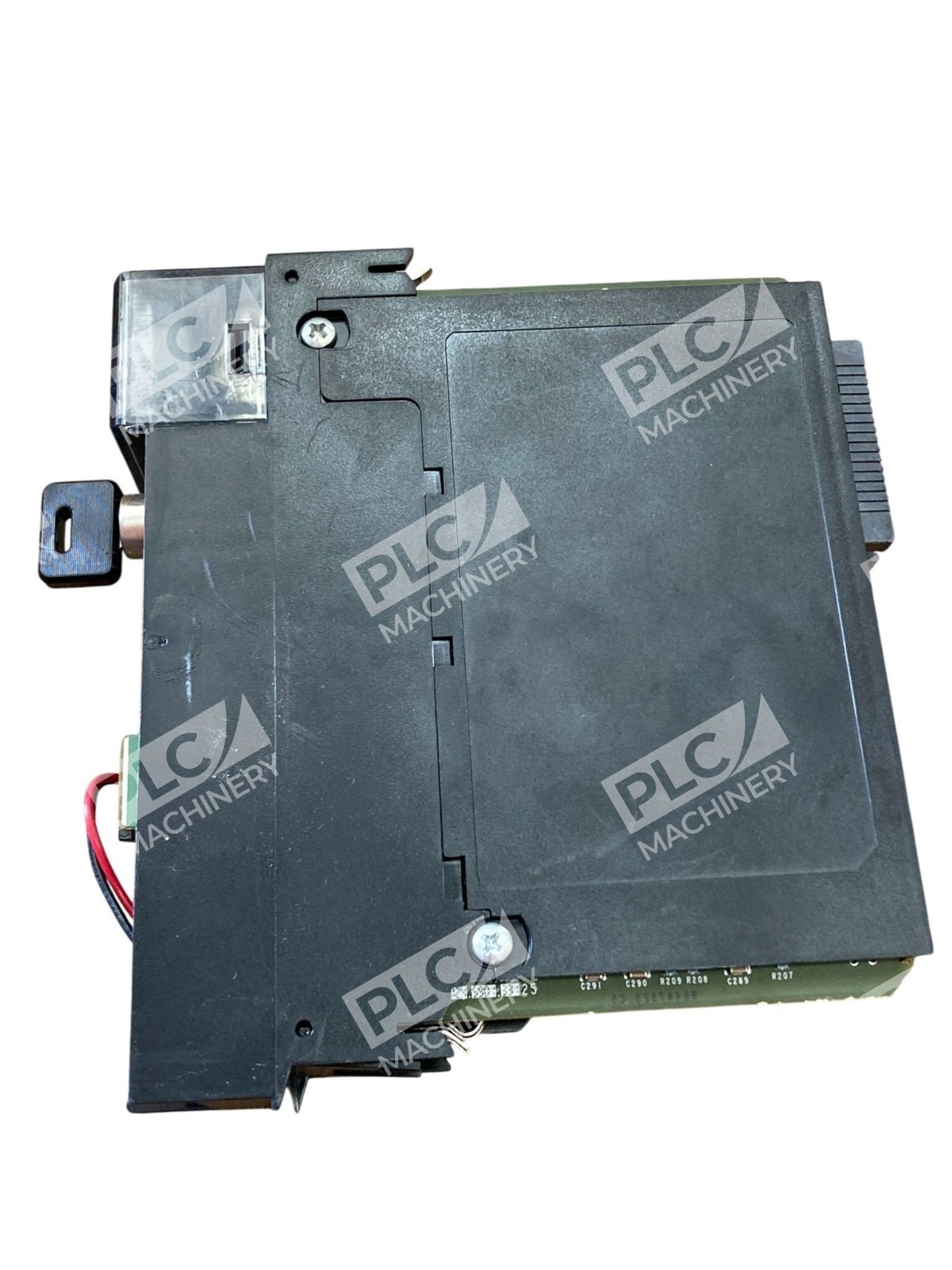

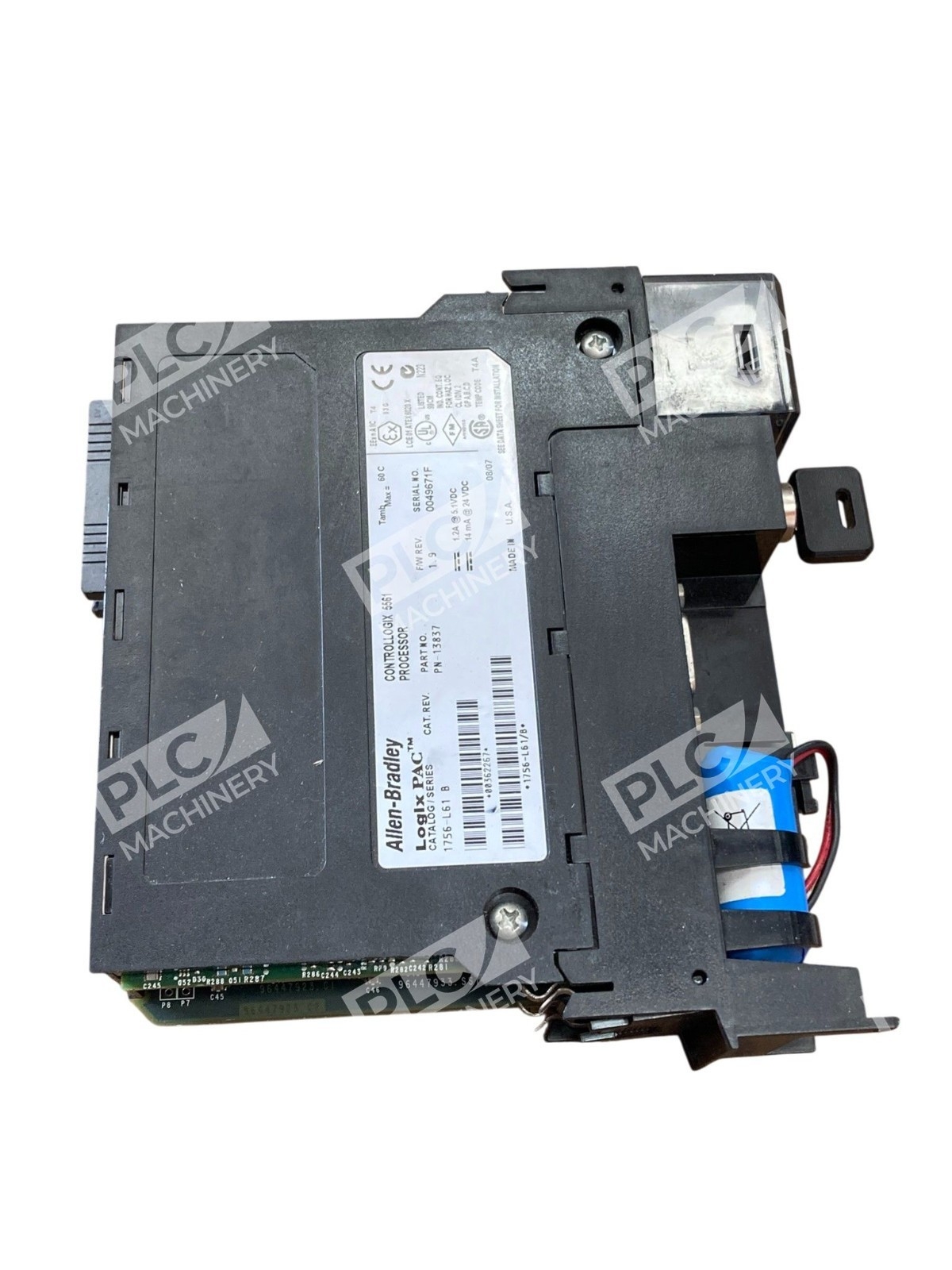

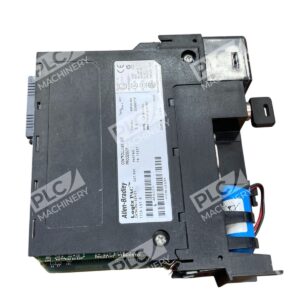

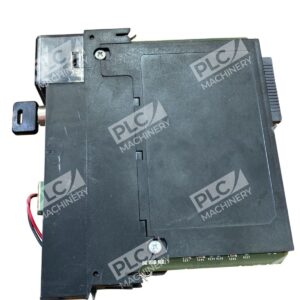

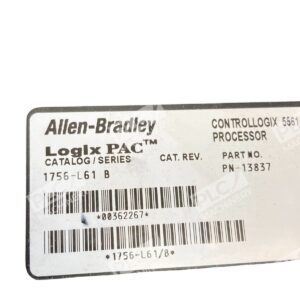

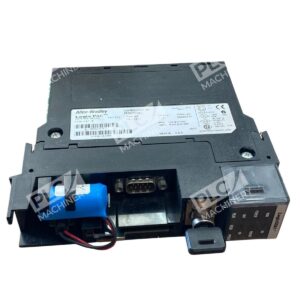

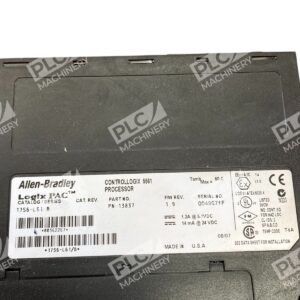

Overview
The Allen-Bradley 1756-L61 is a ControlLogix 5561 processor designed for modular control within the 1756 chassis platform. With 2MB of user memory and 478KB of I/O memory, this processor delivers the performance required for mid-scale discrete and analog I/O applications. Built-in RS-232 communication enables direct serial connectivity for configuration, diagnostics, and legacy system integration. Although discontinued by Rockwell Automation as of June 2017, the 1756-L61 remains a trusted option for replacement and maintenance in established ControlLogix systems.
Key Features
- 2MB User Memory — sufficient for complex ladder logic, structured text, and function block programs
- Integrated RS-232 Port — supports DF1 (half/full duplex), ASCII, DF1 radio modem, DH-485, and Modbus via logic
- Up to 128,000 Digital I/O and 4,000 Analog I/O — scalable via communication modules and remote I/O
- 32 Concurrent Tasks — each task can host up to 100 programs for sophisticated control logic
- SERCOS Motion Interface — integrated motion control for servo and stepper systems
- 250 Simultaneous Network Connections — supports distributed I/O and redundancy
- Optional Nonvolatile Storage — expand memory with 128MB CompactFlash (1784-CF128)
Technical Specifications
- User Memory: 2048 KB
- I/O Memory: 478 KB
- Maximum Digital I/O: 128,000
- Maximum Analog I/O: 4,000
- Maximum Total I/O: 128,000
- Concurrent Tasks: 32
- Programs per Task: 100
- Built-in Communication: RS-232 serial port
- RS-232 Protocols: DF1, ASCII, DH-485, Modbus, radio modem
- Network Connections: Up to 250 simultaneous
- Power Dissipation: 3.5W
- Optional Memory: 128MB nonvolatile (CompactFlash card)
- Series: ControlLogix 5561 (Logix5561)
- Status: Discontinued (June 1, 2017)
Typical Applications
- Manufacturing Automation — machine sequencing, process control, and material handling
- Motion Control — servo and stepper drive coordination via SERCOS interface
- Process Industries — medium-scale discrete and analog I/O supervision
- Distributed Systems — centralized controller with remote I/O and redundancy
- System Upgrades & Replacements — drop-in module for existing 1756 ControlLogix installations
Compatibility & Replacements
Compatible With
- 1756 ControlLogix Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
- Communication Modules: EtherNet/IP, ControlNet, DeviceNet, and other 1756 interface modules
- I/O Modules: Discrete, analog, specialty, and intelligent modules in the 1756 family
- Studio 5000 — Rockwell Automation’s integrated development environment for programming
- Legacy Systems: DF1, DH+, DH-485, and other classic Allen-Bradley networks
- CompactFlash Card: 1784-CF128 (128MB optional nonvolatile memory)
Replaces / Drop-In Replacement For
- 1756-L61 Series A — earlier revision of the same processor
- Legacy ControlLogix 2MB Controllers — other 2MB ControlLogix variants in 1756 form factor
- Rockwell Automation Recommended Upgrade: 1756-L62 or higher-memory variants for expanded capacity. Verify compatibility with your system integrator before ordering.
Works With
- Studio 5000 Logix Designer — standard Rockwell programming platform
- EtherNet/IP — via optional 1756-ENBT or similar communication modules
- SERCOS Interface — built-in for motion control applications
- ControlNet, DeviceNet, Remote I/O — scalable via additional modules
- Redundancy — supports hot standby and dual-processor configurations
