Overview

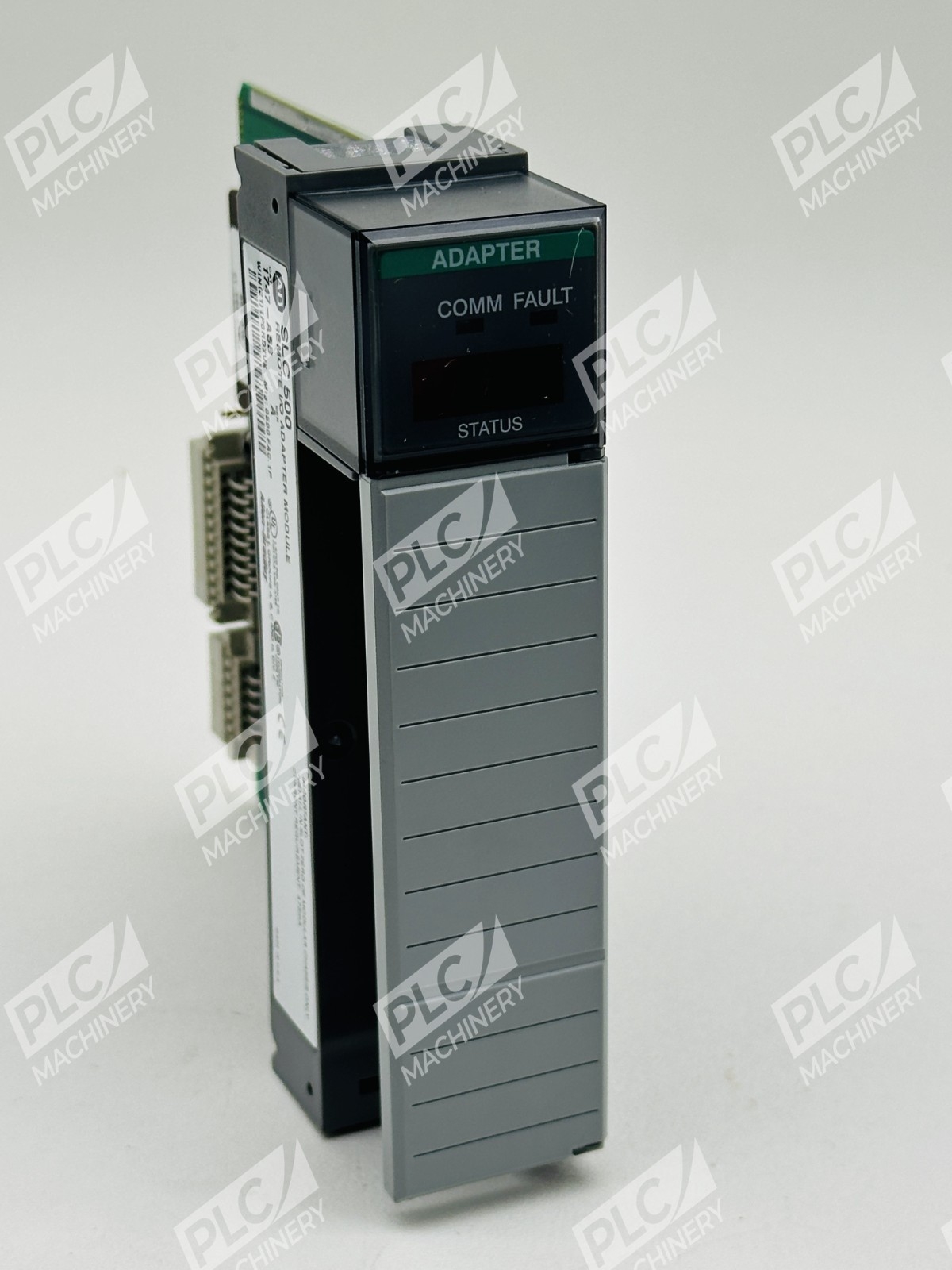

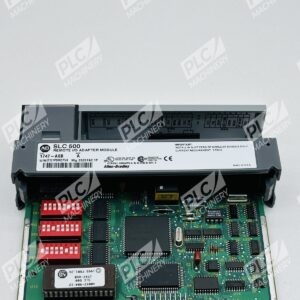

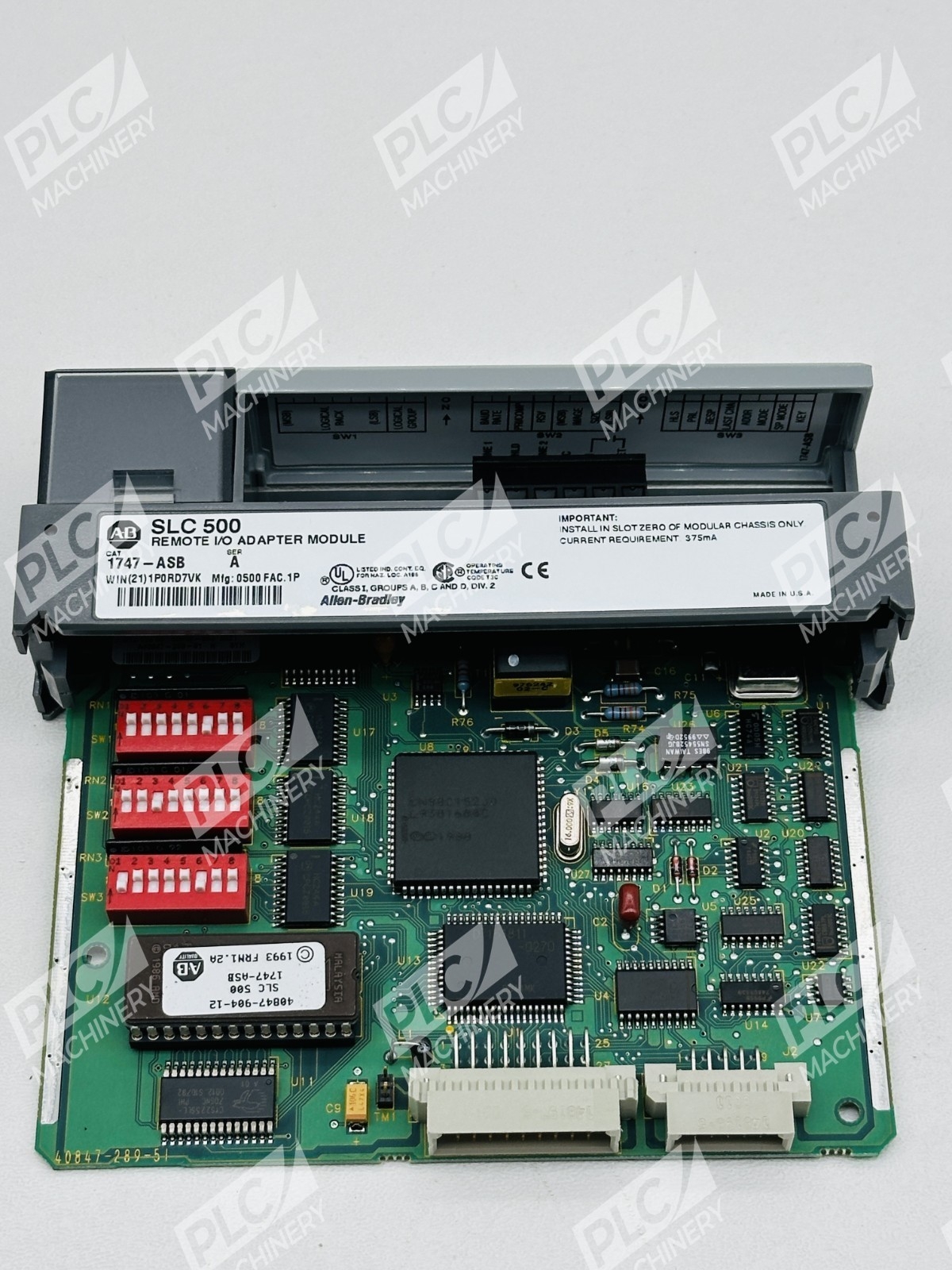

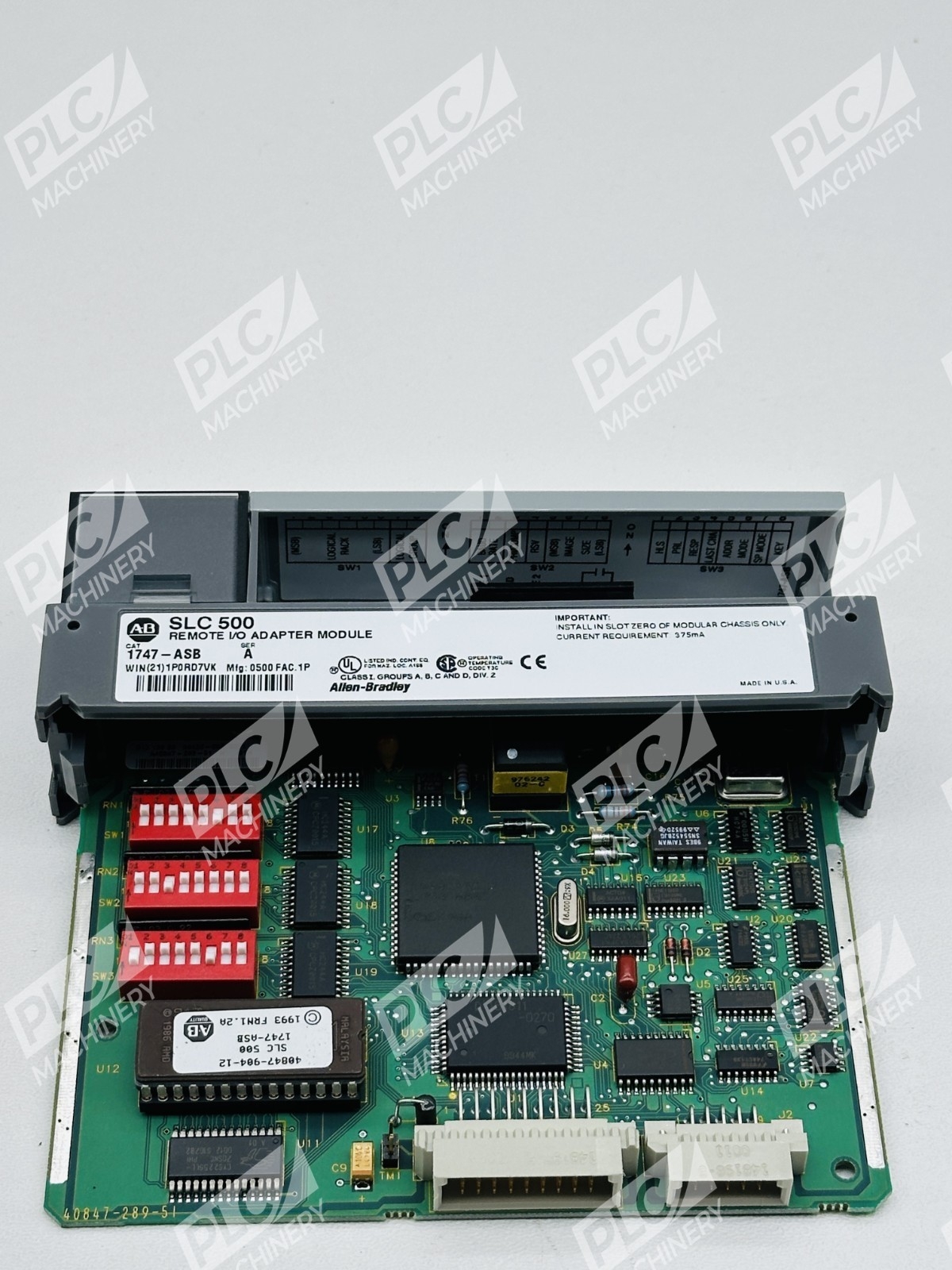

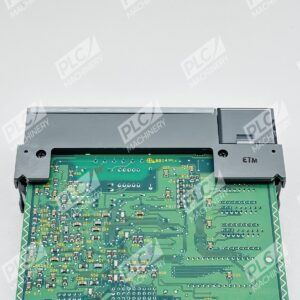

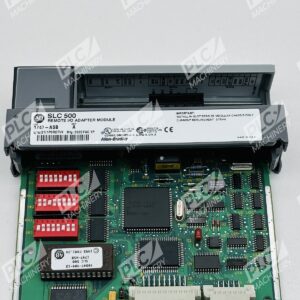

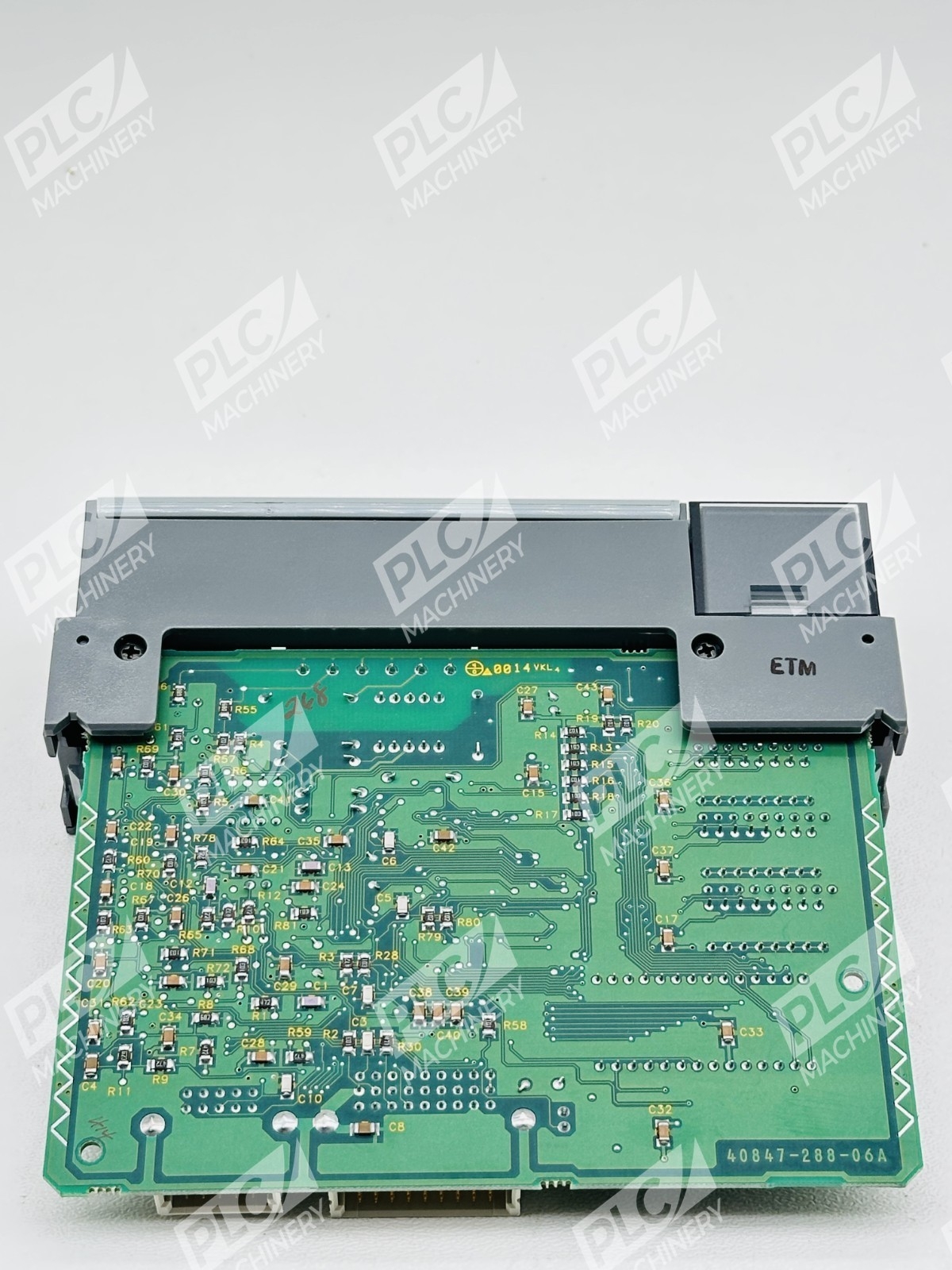

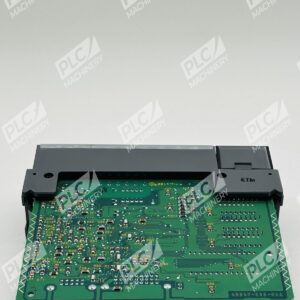

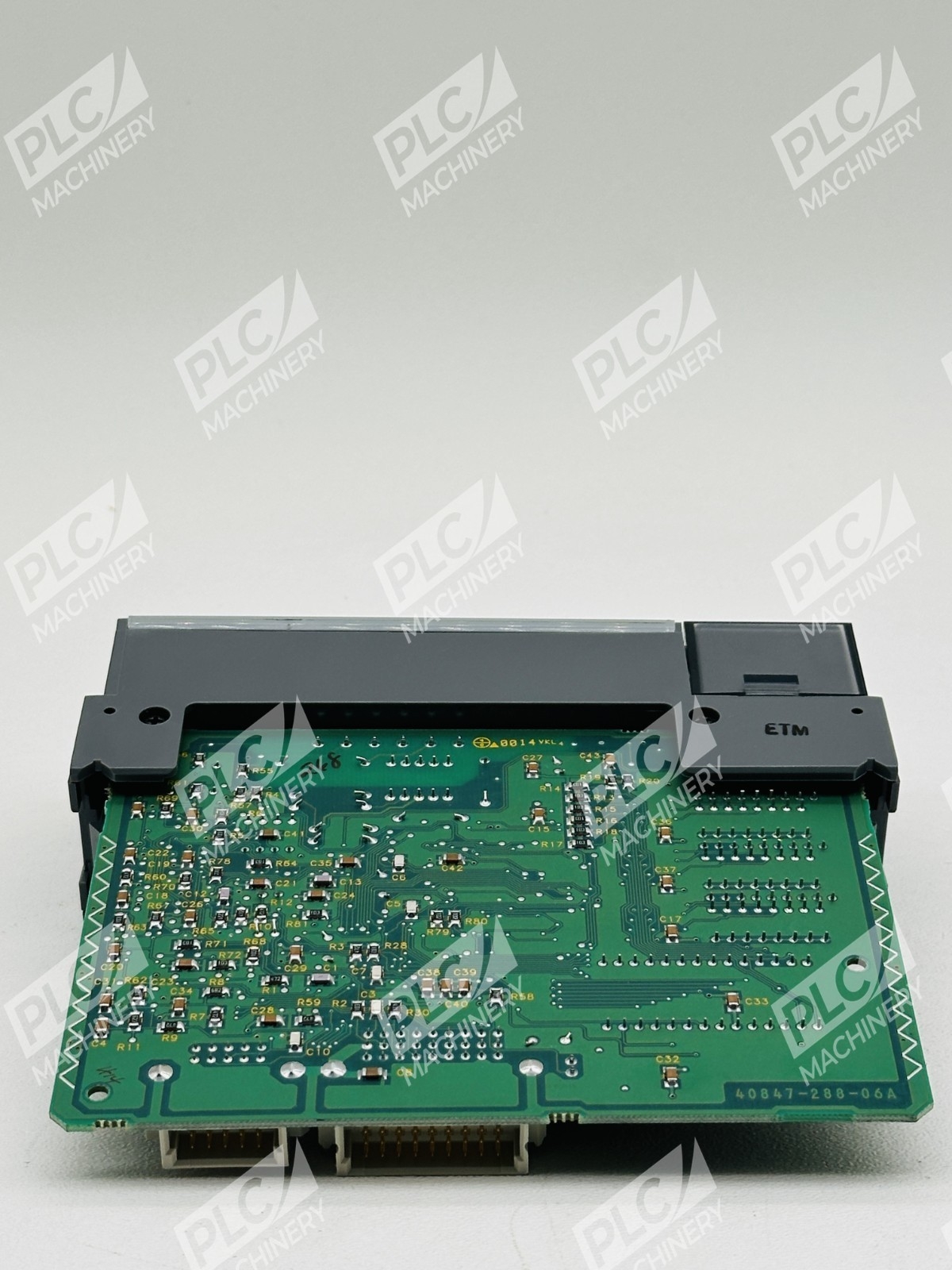

The Allen-Bradley 1747-ASB is a single-slot RIO communication link module that bridges SLC and PLC scanners with remote I/O racks. This module is a single-slot RIO communication link module that occupies the first slot (slot 0) of a 1746 remote chassis. The module acts as an adapter, or slave, on the RIO link and the master of the remote chassis and remote expansion chassis in which it is installed. The module acts as a gateway between the scanner and the I/O modules residing in the remote chassis and remote expansion chassis, mapping the image of the I/O modules in its remote chassis directly to the SLC or PLC processor image.
Key Features
- Communication protocol: Allen-Bradley Remote I/O (RIO) with baud rates of 57.6 kbps, 115.2 kbps, and 230.4 kbps
- No user programming required—automatic data transfer and input collection
- Supports both discrete and block transfer data mapping
- Supports 1/2-slot, 1-slot, and 2-slot addressing with efficient image utilization
- Supports up to three racks per adapter for large-scale distributed I/O control
- LED diagnostics provide clear module and communication status for troubleshooting
Technical Specifications
Backplane current: 375 mA at 5V; 0 mA at 24V
Thermal dissipation: 1.875 W minimum and maximum
Maximum communication distance: up to 3040 meters
Typical Applications
- Distributed control systems requiring remote I/O rack integration
- Multi-chassis SLC 500 automation networks
- Industrial facilities with geographically dispersed input/output devices
- Equipment retrofits requiring remote adapter functionality
- Legacy automation system expansions and upgrades
Compatibility & Replacements
Compatible With
- SLC 500 processors and controllers
- PLC-5 systems via RIO gateway
- ControlLogix bridges
- Allen-Bradley Remote I/O (RIO) networks
- 1746 remote I/O chassis
- 1746 remote expansion chassis
Replaces / Drop-In Replacement For
The 1747-ASB Series A is a standard replacement for earlier SLC 500 remote I/O adapter configurations. Verify specific interchangeability with your system integrator before ordering.
Works With
- RSLogix 500 programming software
- Allen-Bradley Remote I/O (RIO) protocol stack

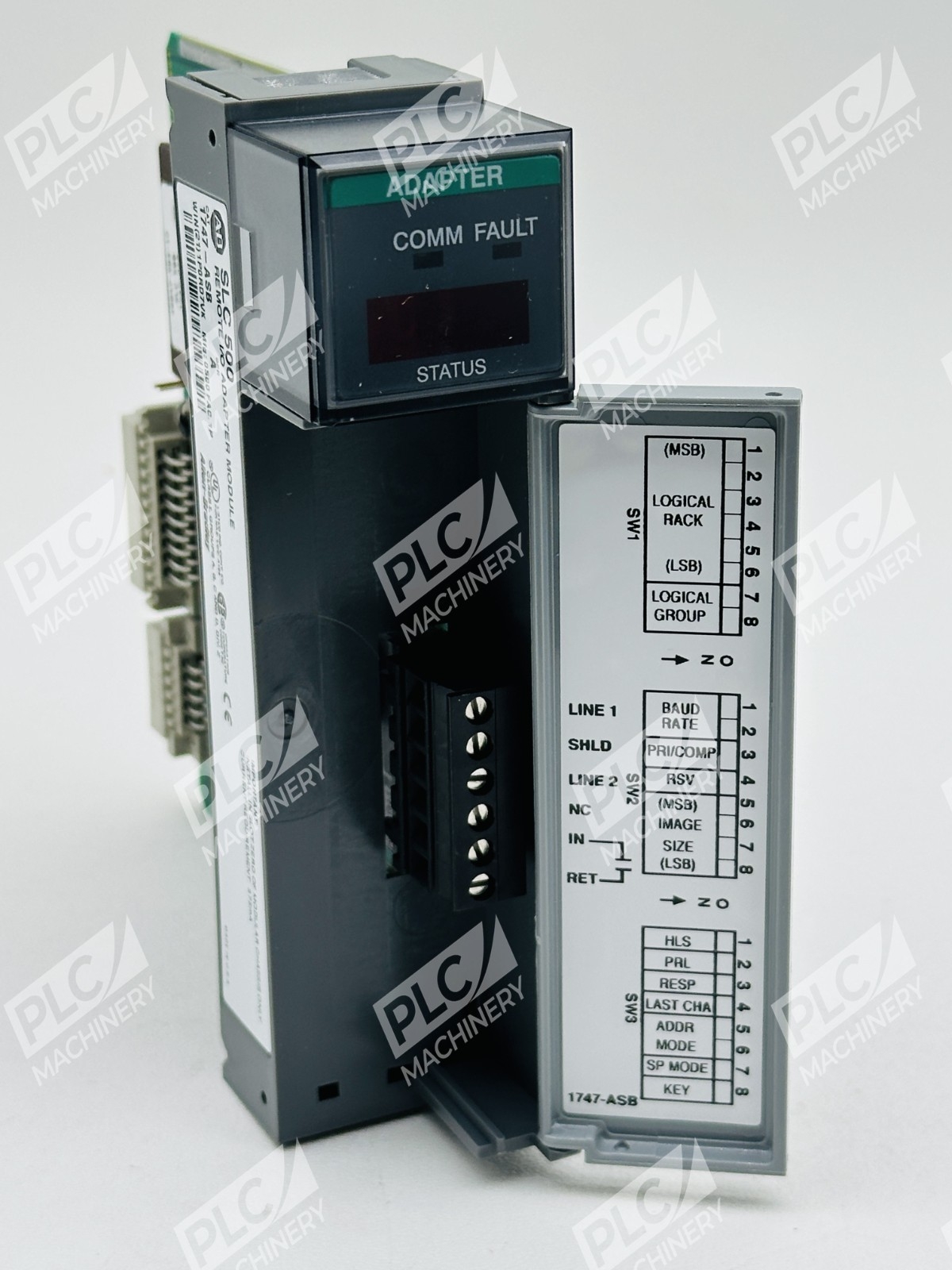

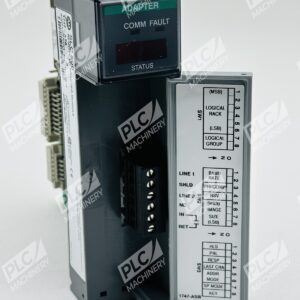

- Configurable DIP switch network addressing
- Studio 5000 via legacy compatibility
