Overview

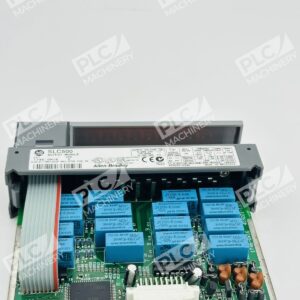

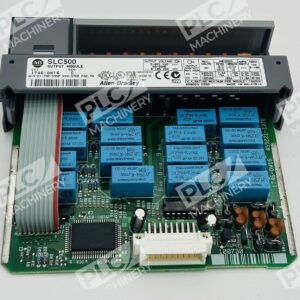

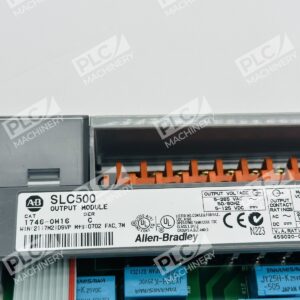

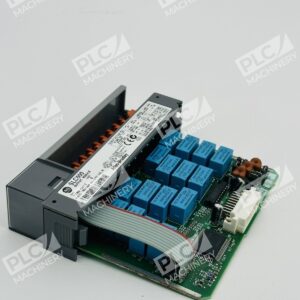

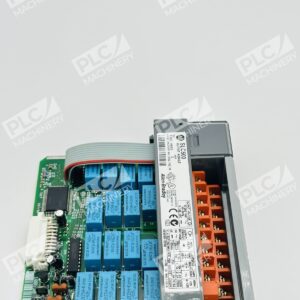

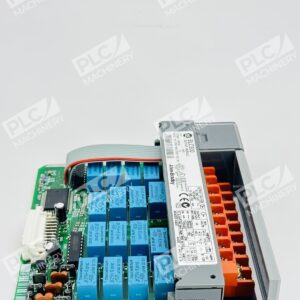

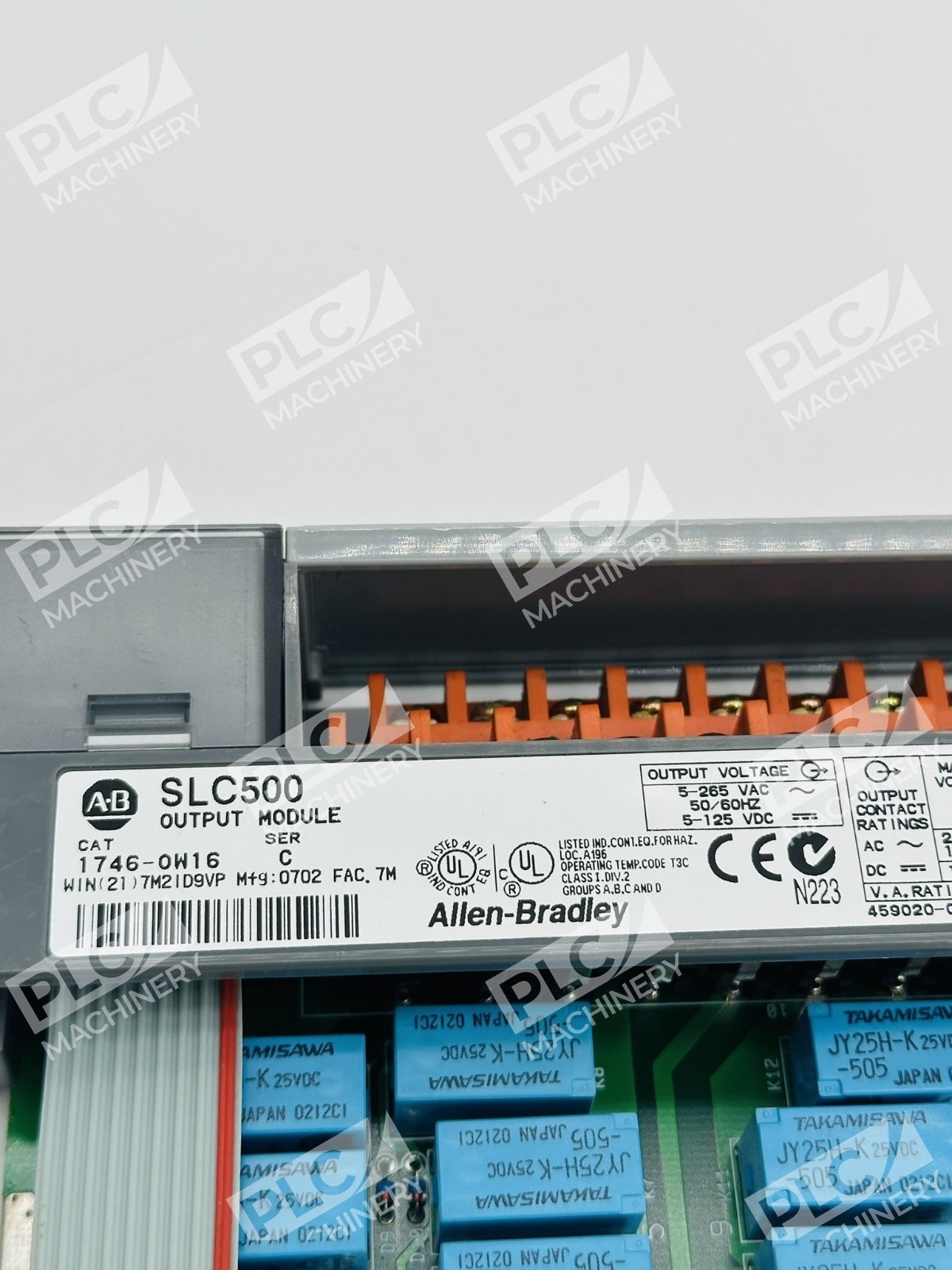

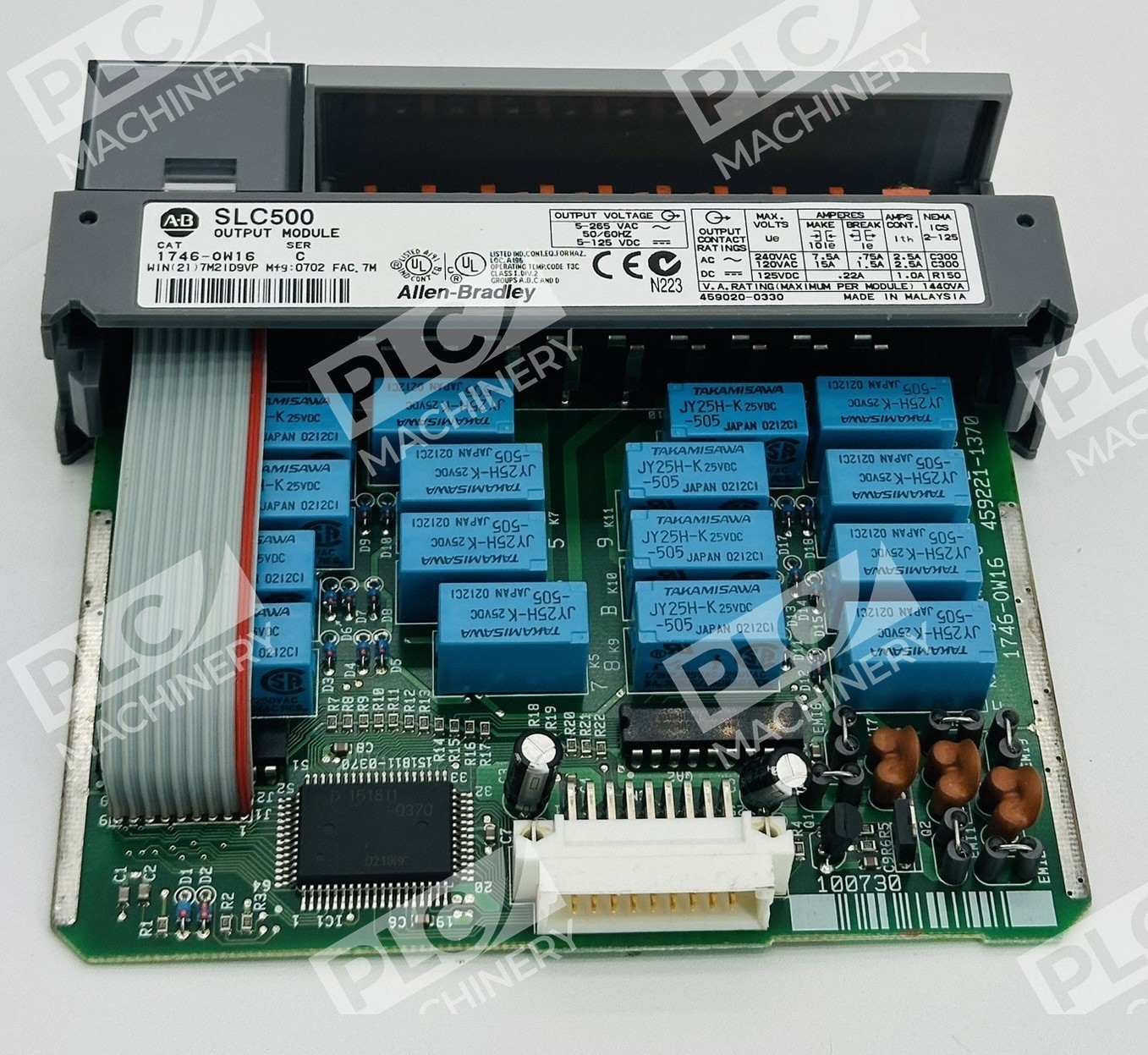

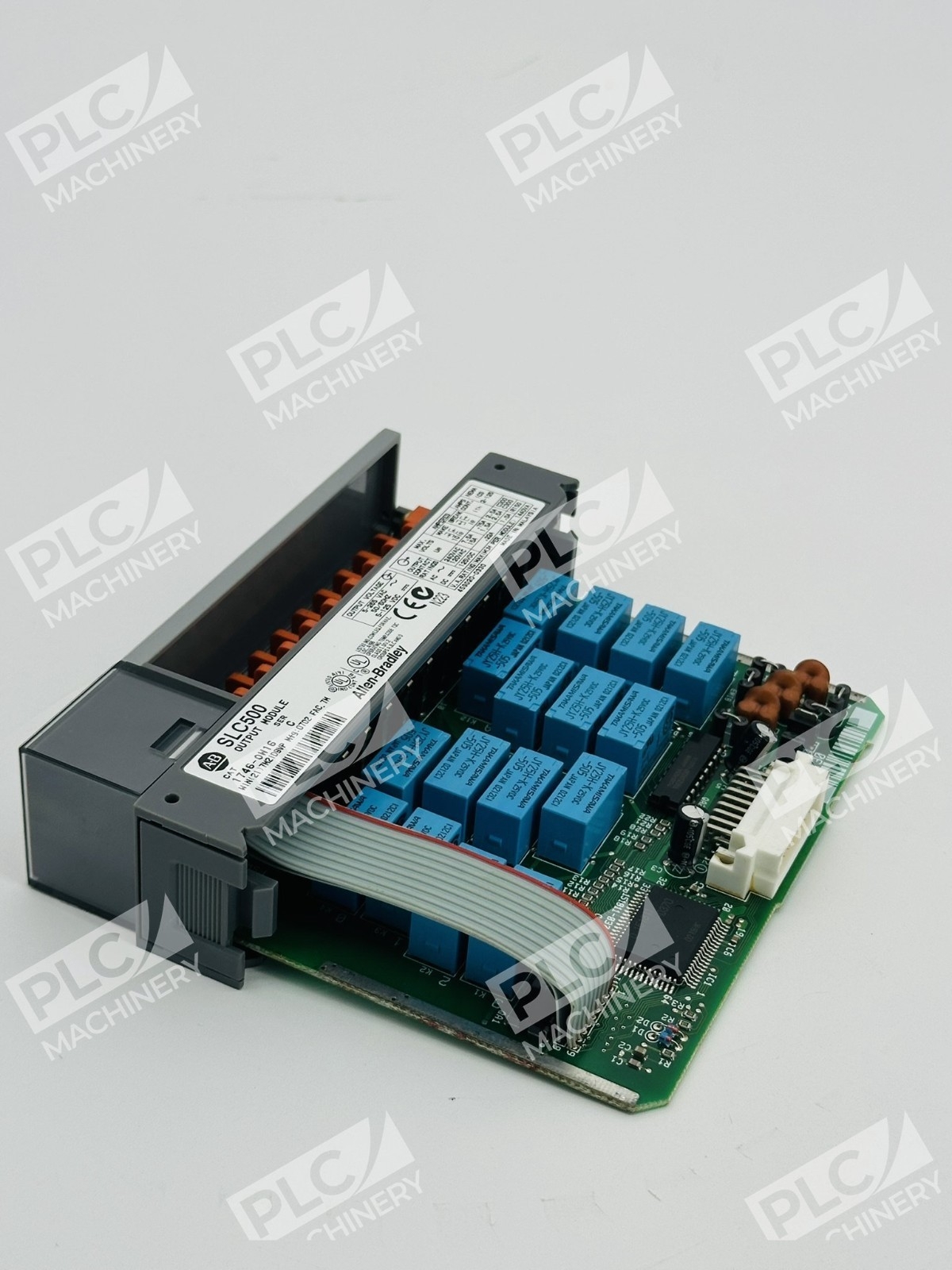

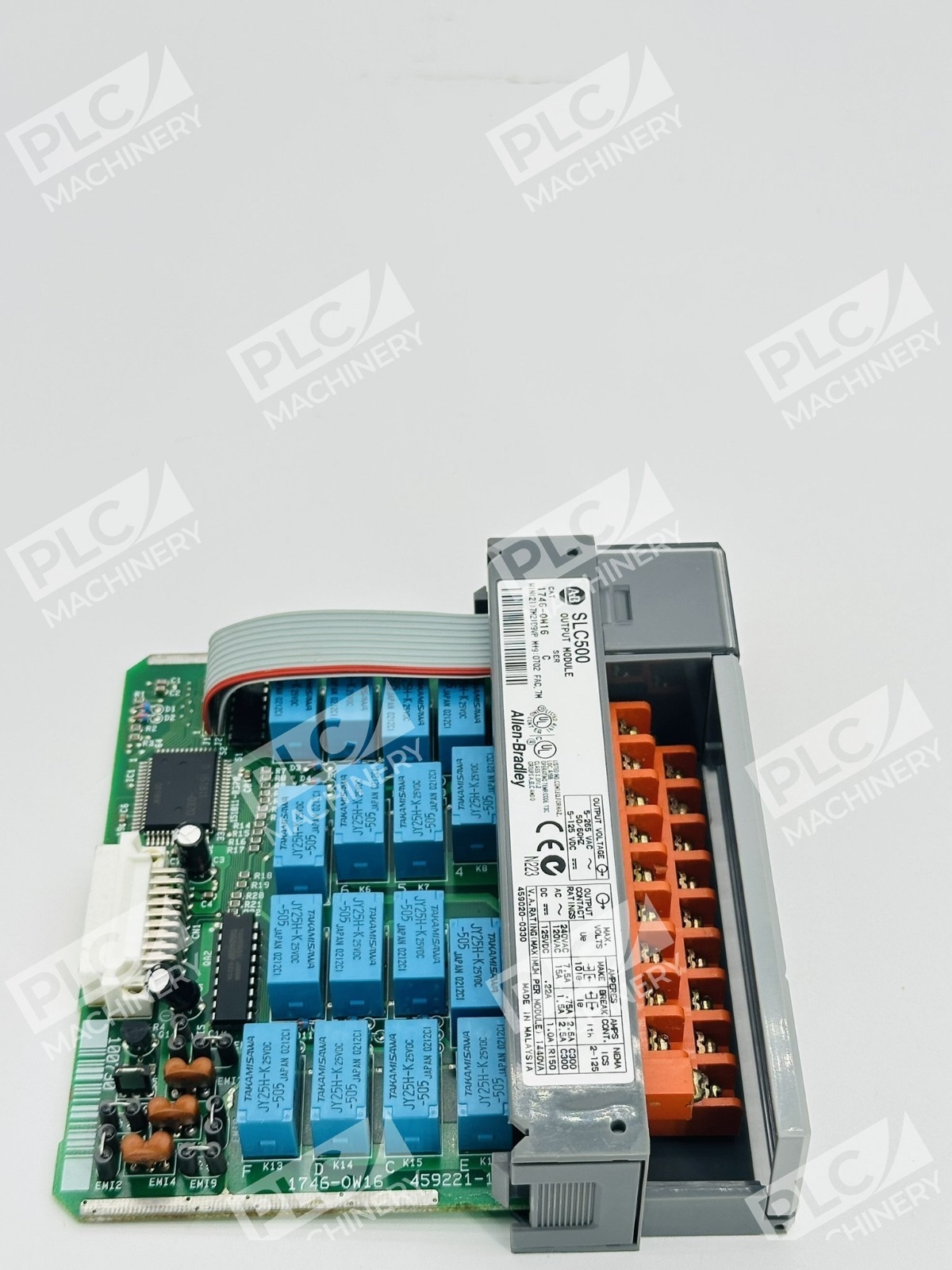

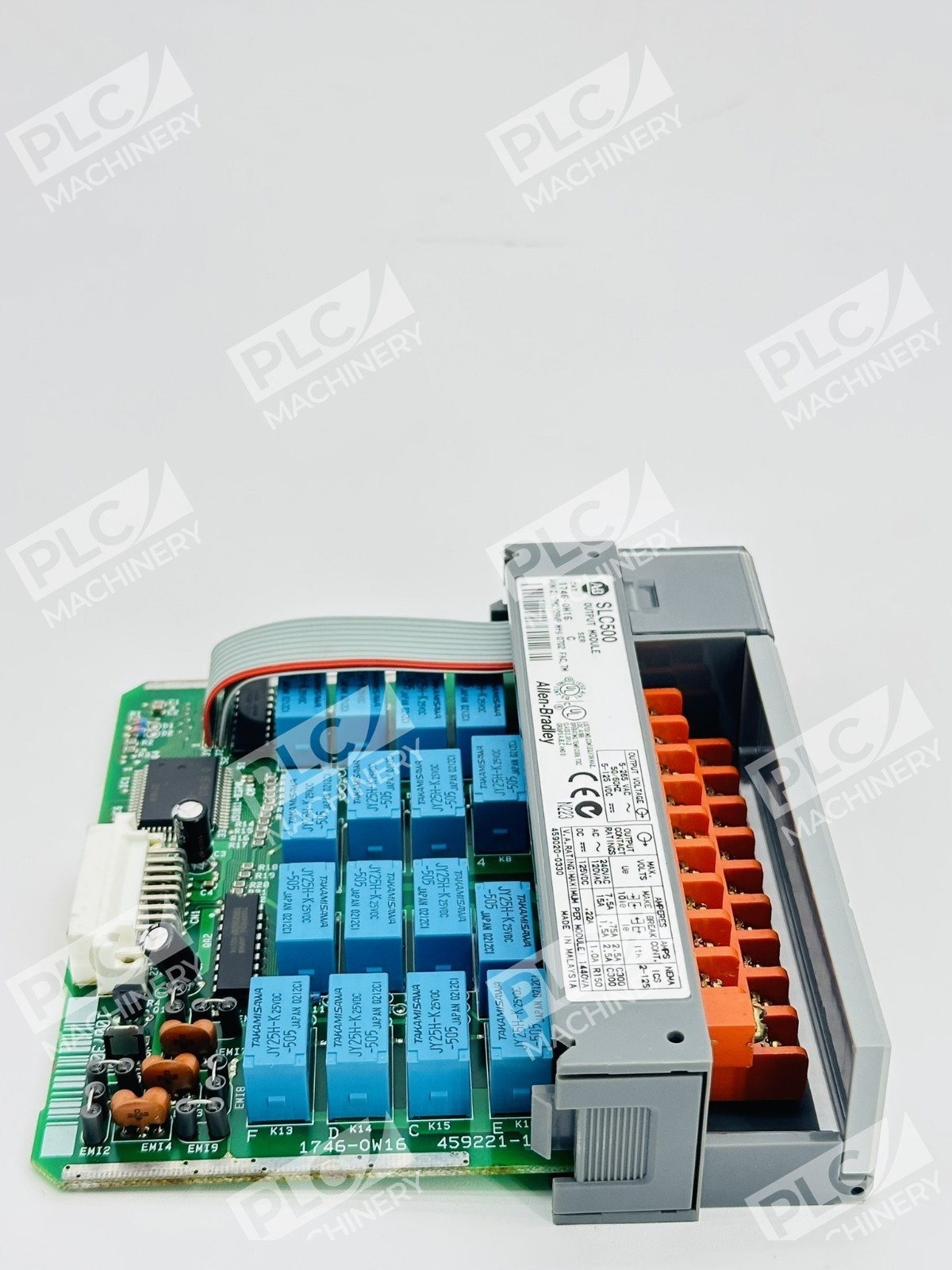

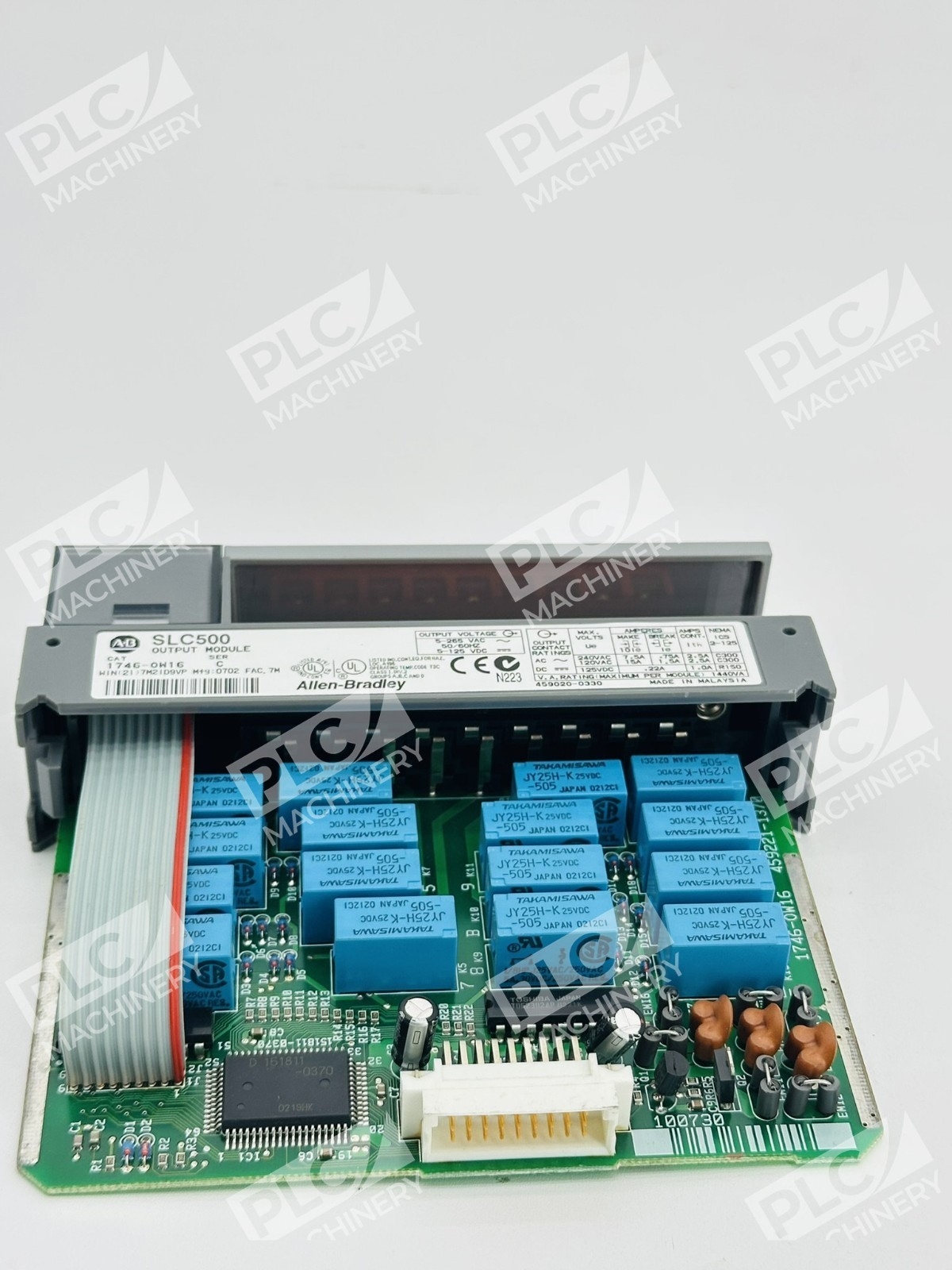

The Allen-Bradley 1746-OW16 Series C is a digital output module featuring 16 outputs designed for SLC 500 series systems. This module is a relay output module, sometimes referred to as a dry contact output module, making it ideal for controlling AC and DC loads in industrial automation applications.
Key Features
- 16 relay outputs with each section divided into groups of 8 points for common connections
- Operating voltages of 5–125V DC and 5–265V AC
- Operates under Normally Open conditions for versatile circuit configurations
- 10 ms signal delay in both ON and OFF states at maximum resistive load
- Removable color-coded terminal block that eliminates the need to disconnect wiring during replacement, with wiring barriers and self-lifting pressure plates for secure connections
- Ideal for mixed voltage applications where one group operates with DC voltage while the other operates with AC voltage
Technical Specifications

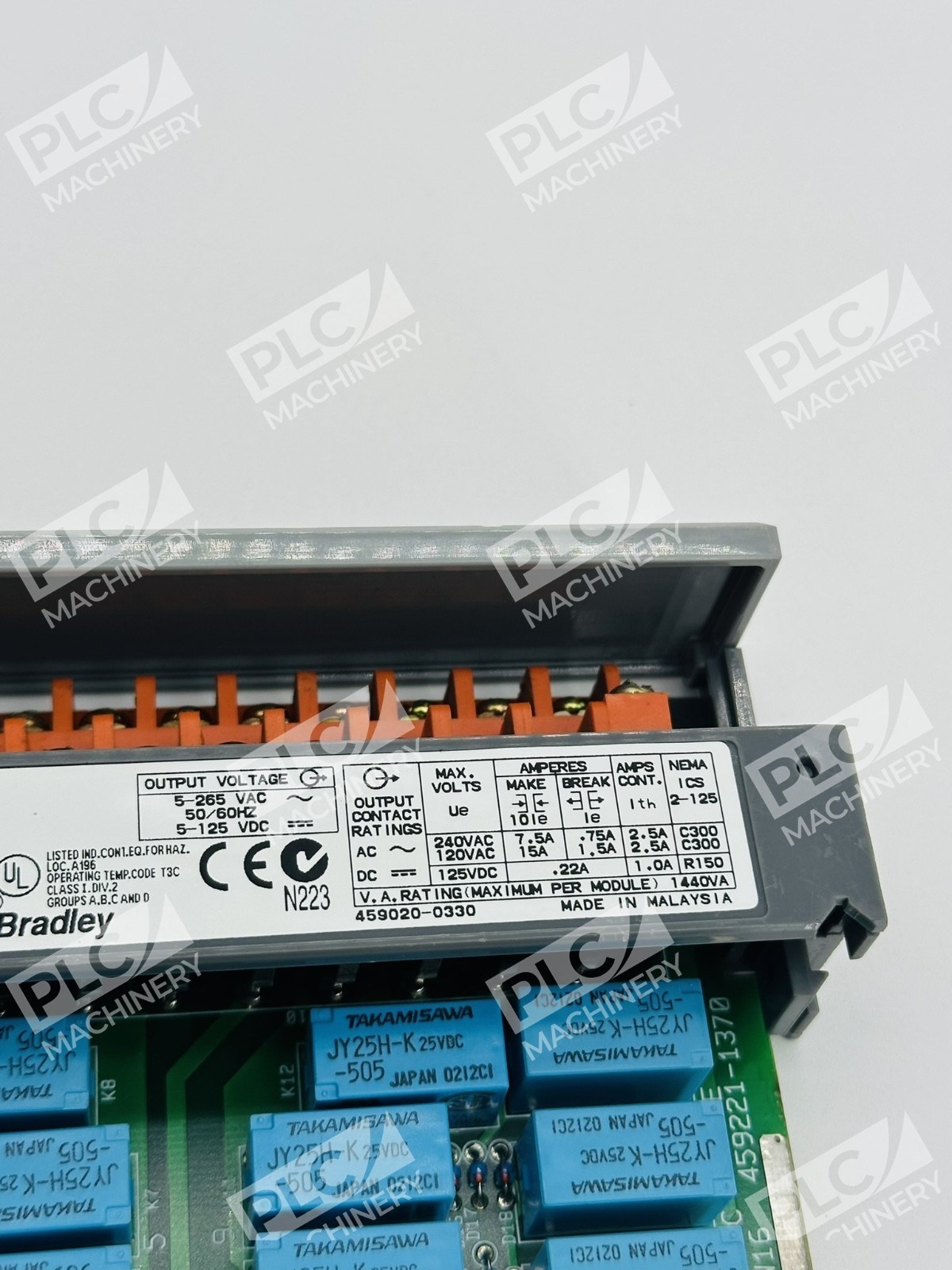

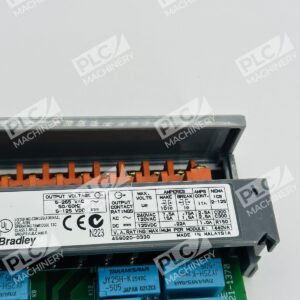

At 120VAC, the break rating is 15 A and make rating is 1.5 A; at 240VAC, the make rating is 7.5 A and break rating is 0.75 A, with continuous current for AC operation at 2.5 A.
Typical Applications
- Motor starter and solenoid control
- Switching lights, alarms, and indicator devices
- Relay logic and automation circuits
- HVAC and facility control systems
- High-speed assembly and manufacturing operations
Compatibility & Replacements
Compatible With
- Allen-Bradley SLC 500 Fixed and Modular Processors
- SLC 500 Rack-Based Systems
- Industrial Control and Automation Networks
- AC and DC Load Control Circuits
Replaces / Drop-In Replacement For
- Allen-Bradley 1746-OW16 Series A and Series B modules (cross-generation compatibility)
- Direct replacement when SLC 500 systems require 16-point relay output capability
Works With
- Allen-Bradley RSLogix 500 Programming Software
- SLC 500 Instruction Set
- Discrete Output I/O Addressing
- Removable Terminal Block Interface
