Overview

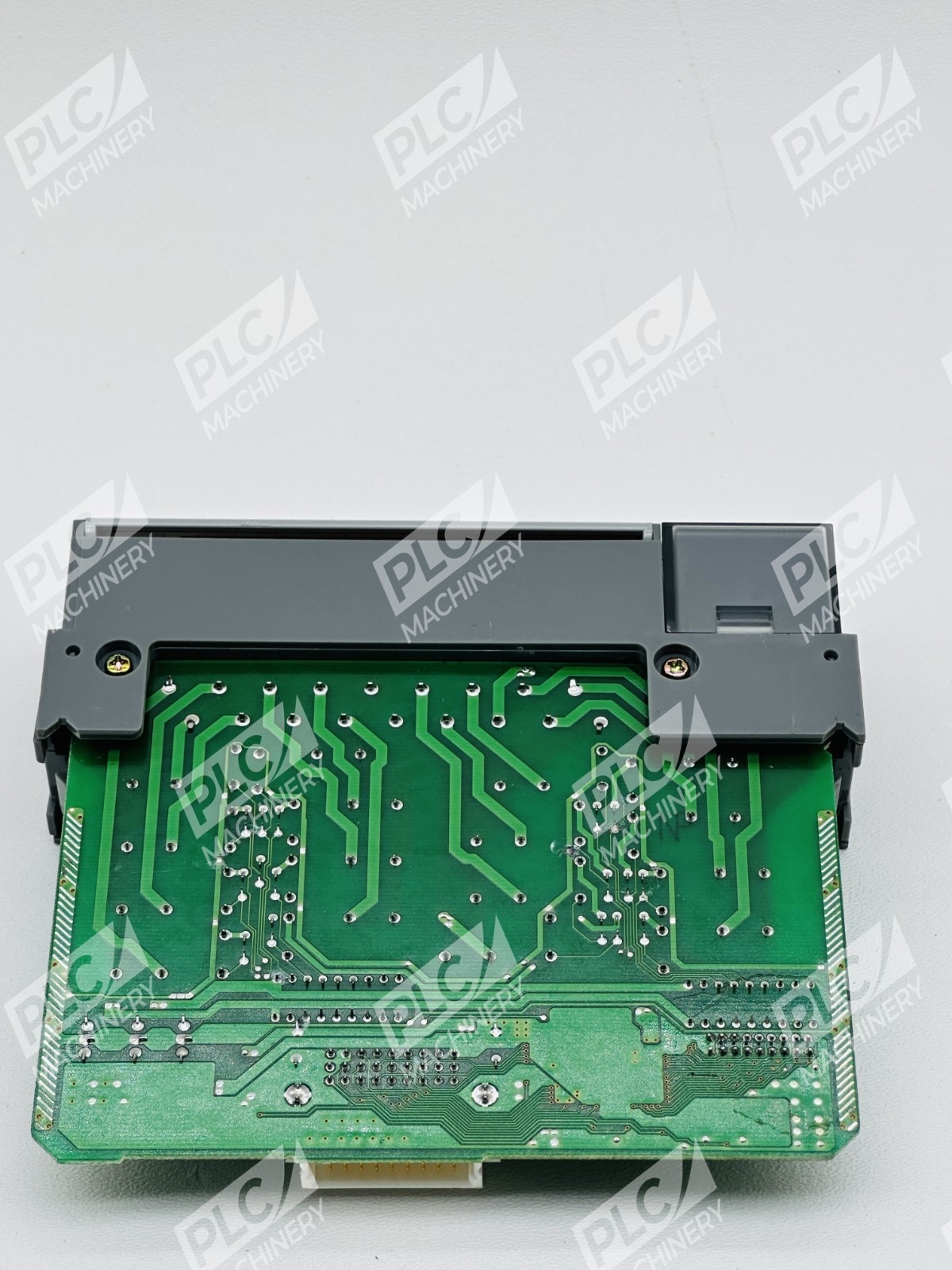

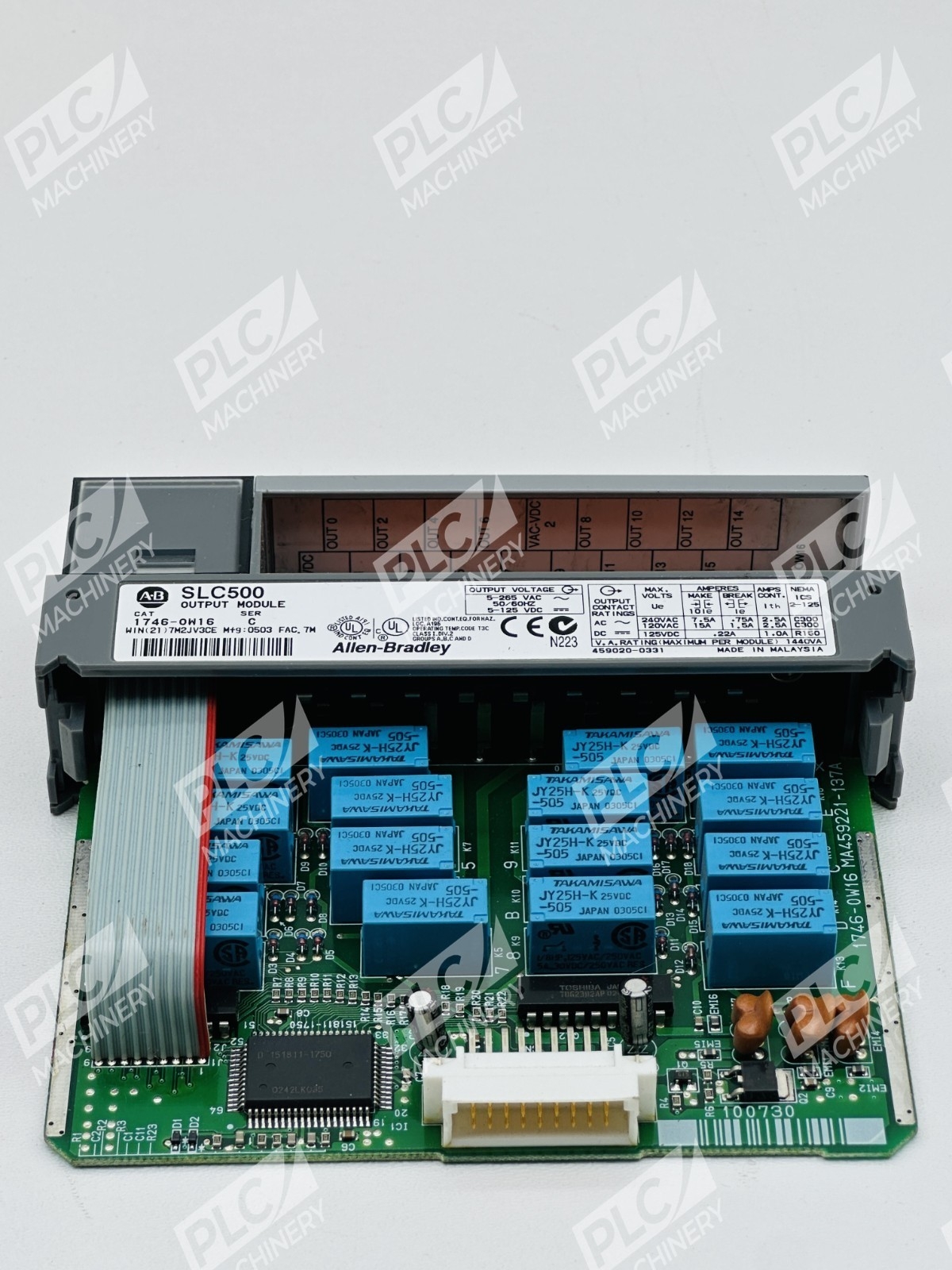

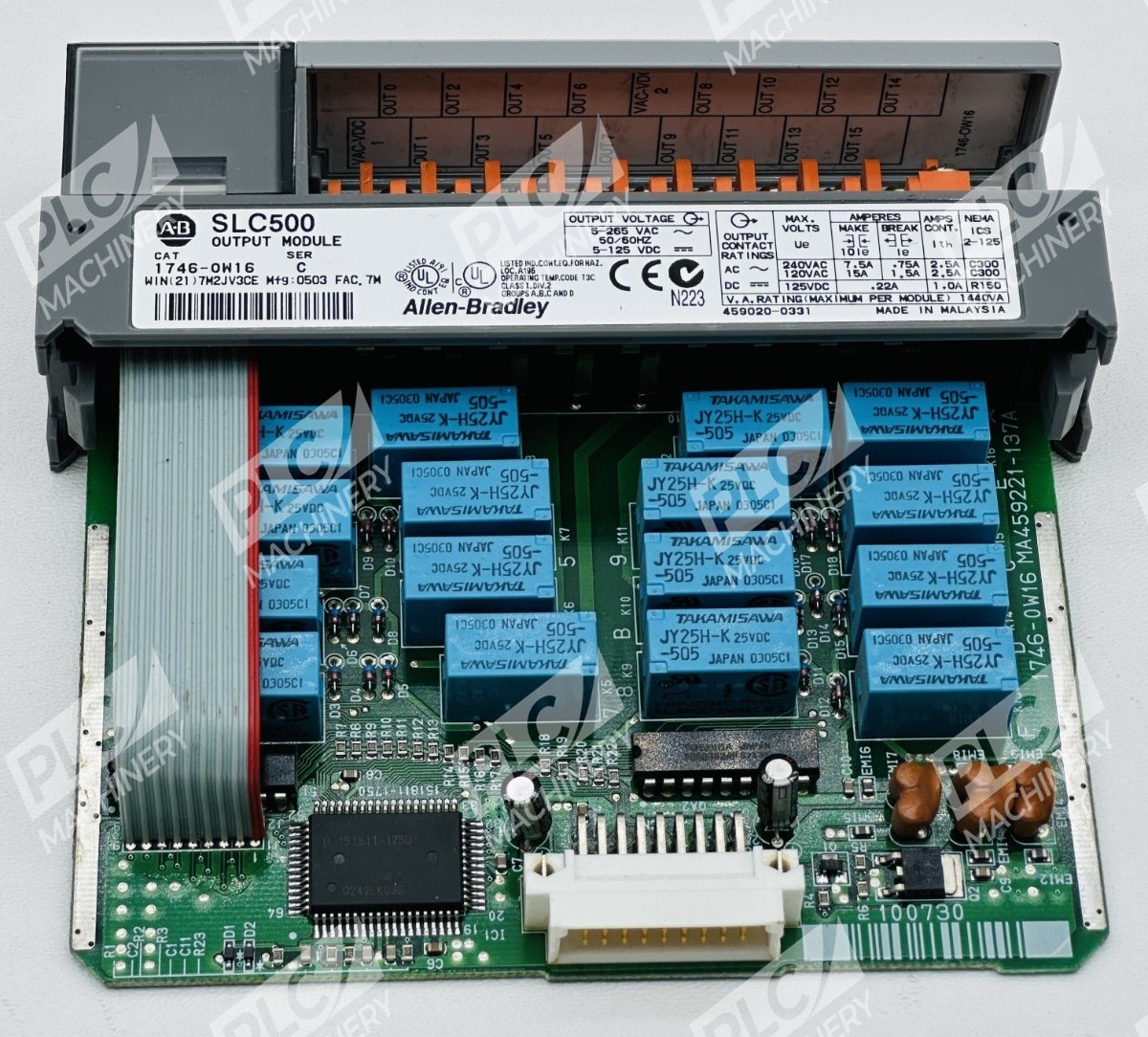

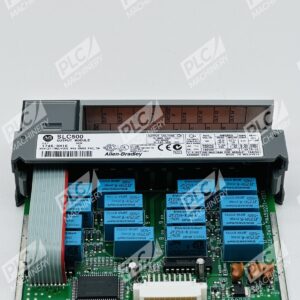

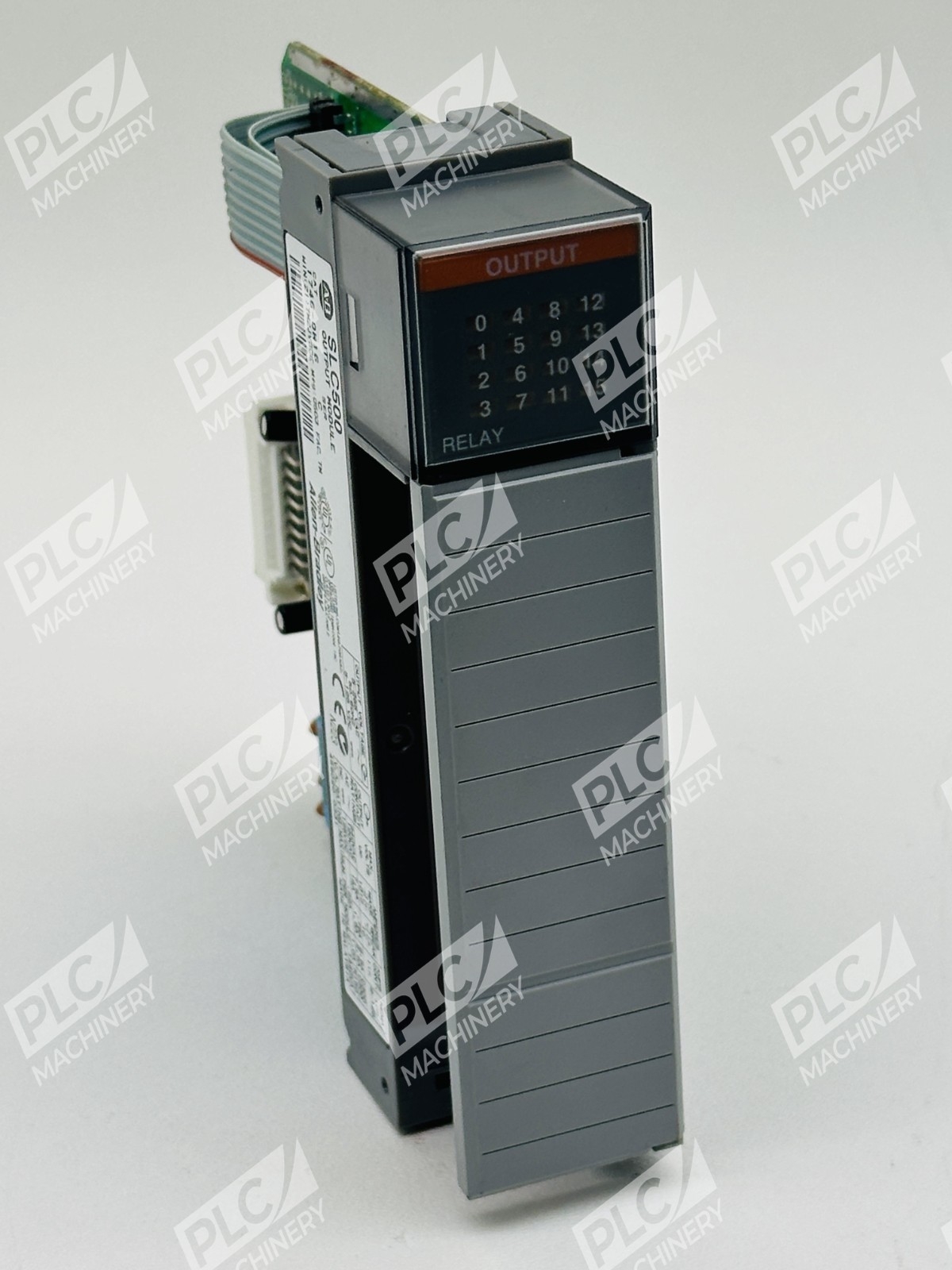

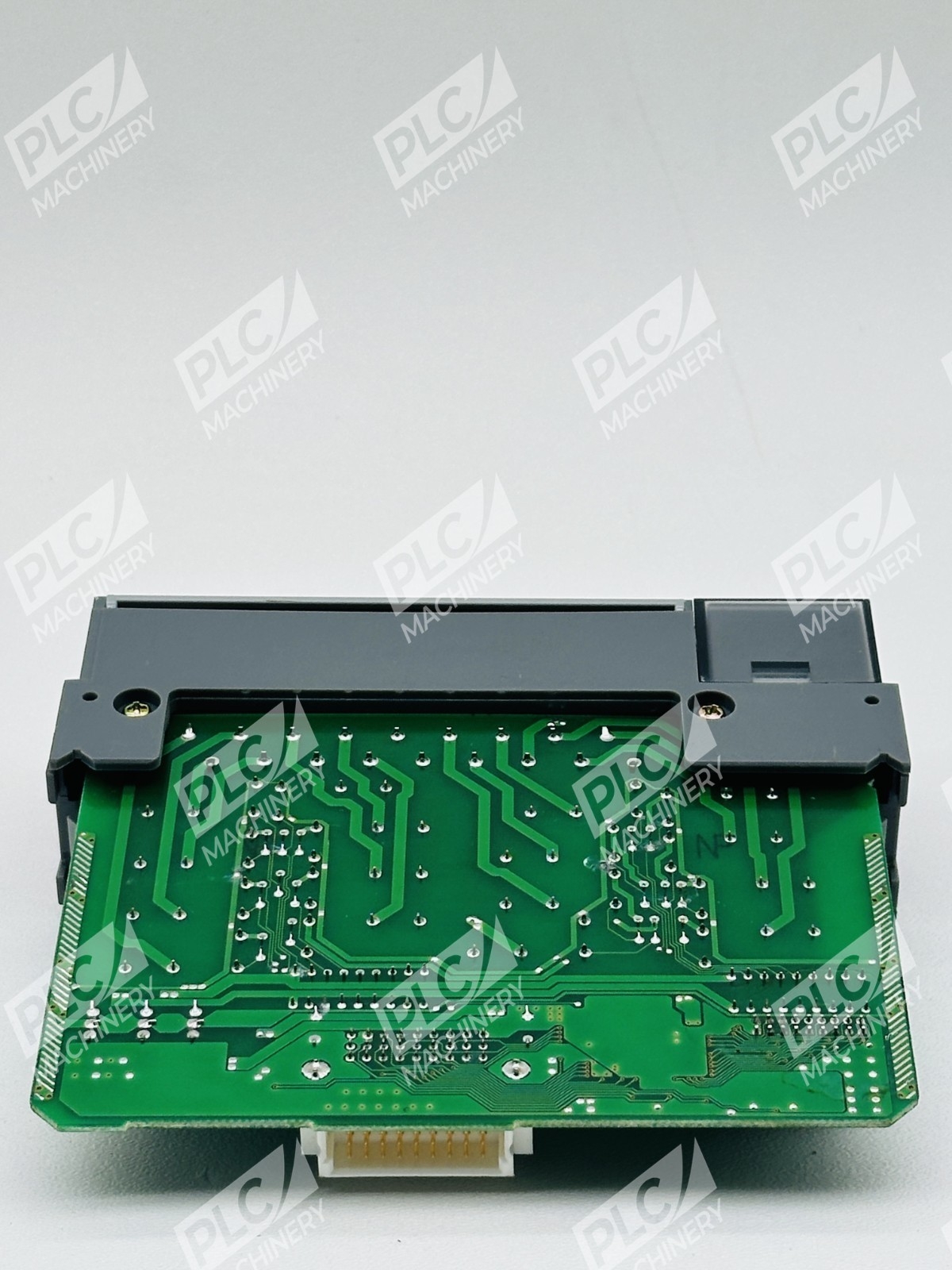

The Allen-Bradley 1746-OW16 is a discrete relay output module engineered for the SLC 500 family of programmable controllers. This digital output module features 16 outputs to facilitate a variety of control applications. This module is a relay output module or sometimes referred as dry contact output module. The modular design with removable terminal blocks enables fast installation and maintenance without full system rewiring.
Key Features
- 16 outputs with each section divided into groups of 8 points for common connections.
- Two input groups with One common terminal per group, allowing one group to operate with a DC voltage while the other group with an AC voltage.

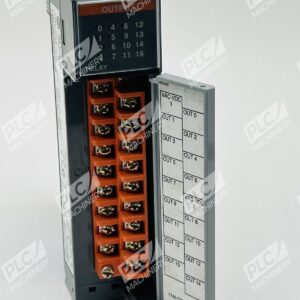

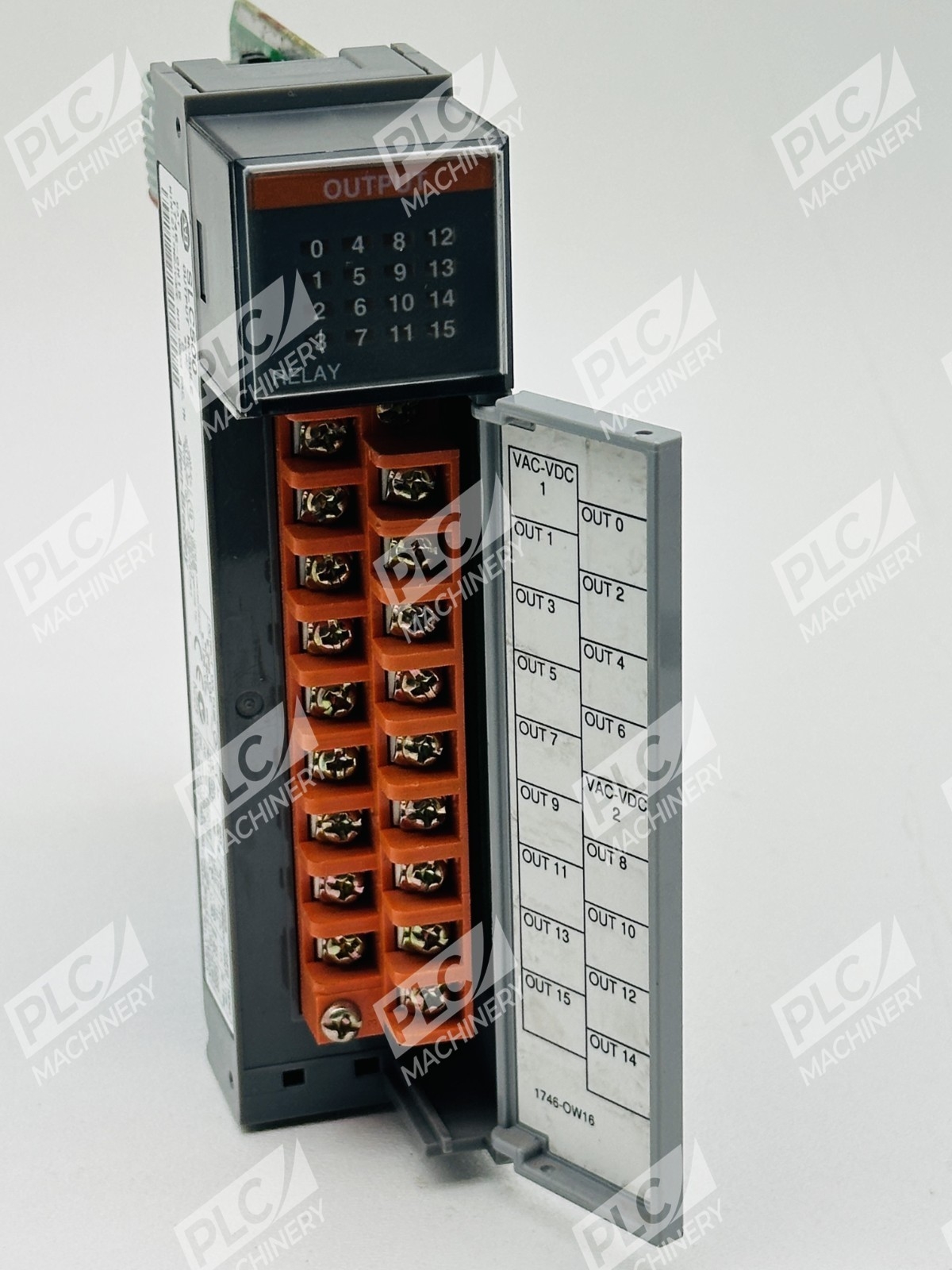

- Removable terminal block which is color-coded for easy identification, eliminating the concern of having to disconnect wiring to replace a module.
- 120VAC break rating of 15 A, 240VAC make rating of 7.5 A, and continuous AC current of 2.5 A.
- Normally Open relay contacts for general-purpose industrial switching
Technical Specifications
- Output Type: Relay (Normally Open)
- Number of Points: 16 outputs, with each section divided into groups of 8 points for common connections
- Operating Voltage Range – AC: 5–265V AC
- Operating Voltage Range – DC: 5–125V
- Minimum Load Current: 10 mA at 5 volts DC
- Signal Delay (max, resistive load): 10 ms signal delay in both the ON and OFF states at the maximum resistive load
- Heat Dissipation: 0.033 Watts per output point, 5.17 Watts minimum, and 5.7 Watts total
- Backplane Current Consumption: 0.17A backplane current consumption at 5V DC and 0.18A at 24V DC
- Common Configuration: Two input groups with One common terminal per group
Typical Applications
Designed for SLC 500 series systems, it offers both Normally Open operation and flexibility with multiple common points for a broad range of automation tasks. SLC 500 programmable controllers provide excellent value with extensive capabilities to address a broad range of applications including material handling, HVAC control, high speed assembly operations, small process control, simple motion control, and SCADA.
The dual-voltage configuration makes this module ideal for systems requiring both AC and DC relay switching without interposing relays or external circuits.
Compatibility & Replacements
Compatible With
- Allen-Bradley SLC 500 fixed processors
- Allen-Bradley SLC 500 modular processors
- SLC 500 chassis and backplane systems
- RSLogix 500 programming software
Replaces / Drop-In Replacement For
- Earlier 1746-OW16 Series A/B modules (Series C compatible upgrade)
- Legacy Allen-Bradley discrete relay output modules within SLC 500 family
Works With
- RSLogix 500 configuration and programming
- SLC 500 I/O scanner networks
- Industrial automation control strategies for relay switching
- 24V DC backplane systems
- AC voltage control circuits (5-265V AC)
