Overview

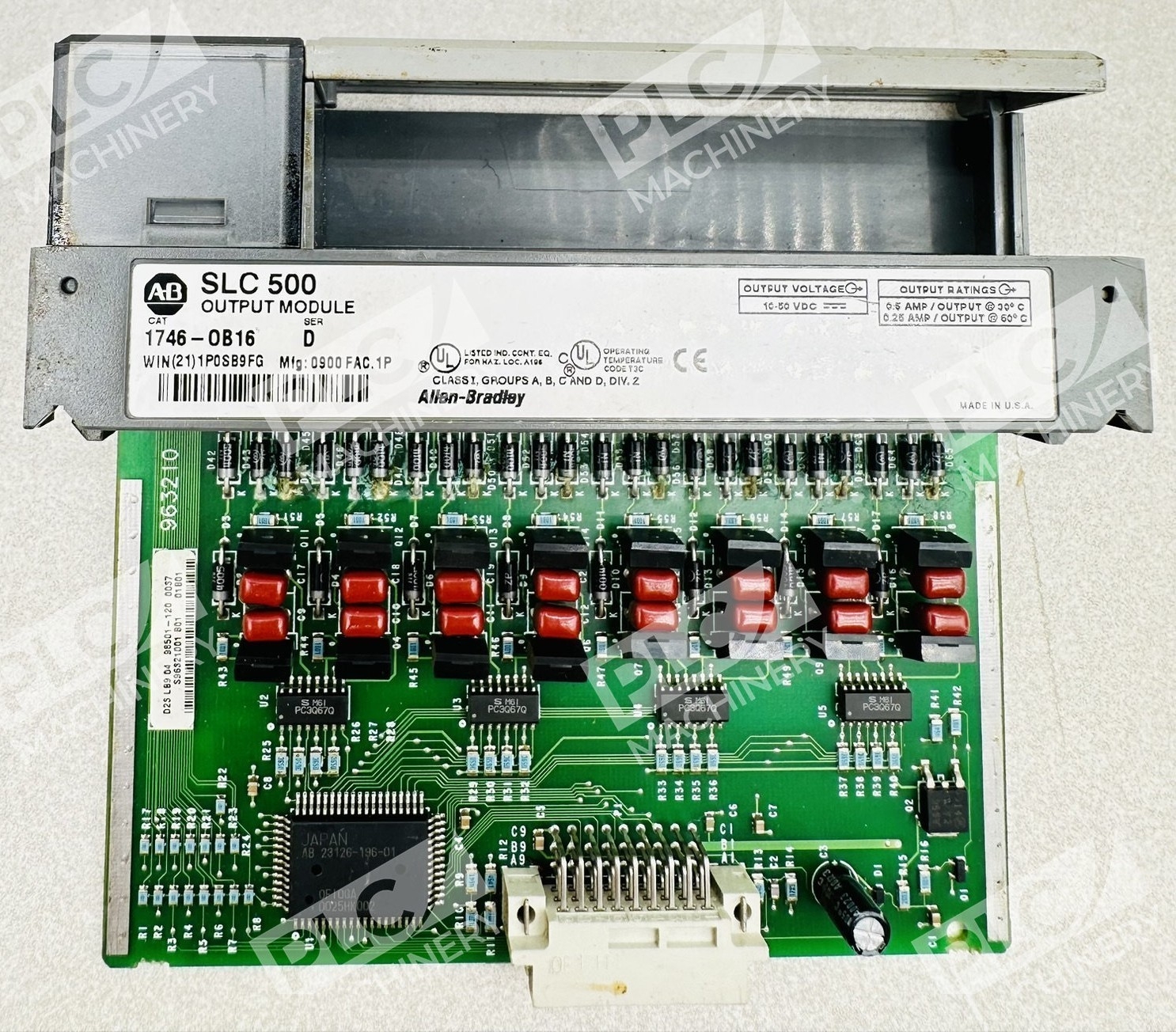

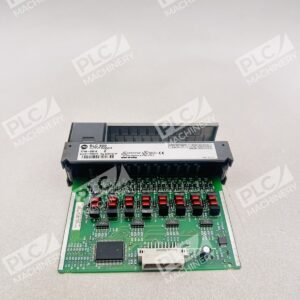

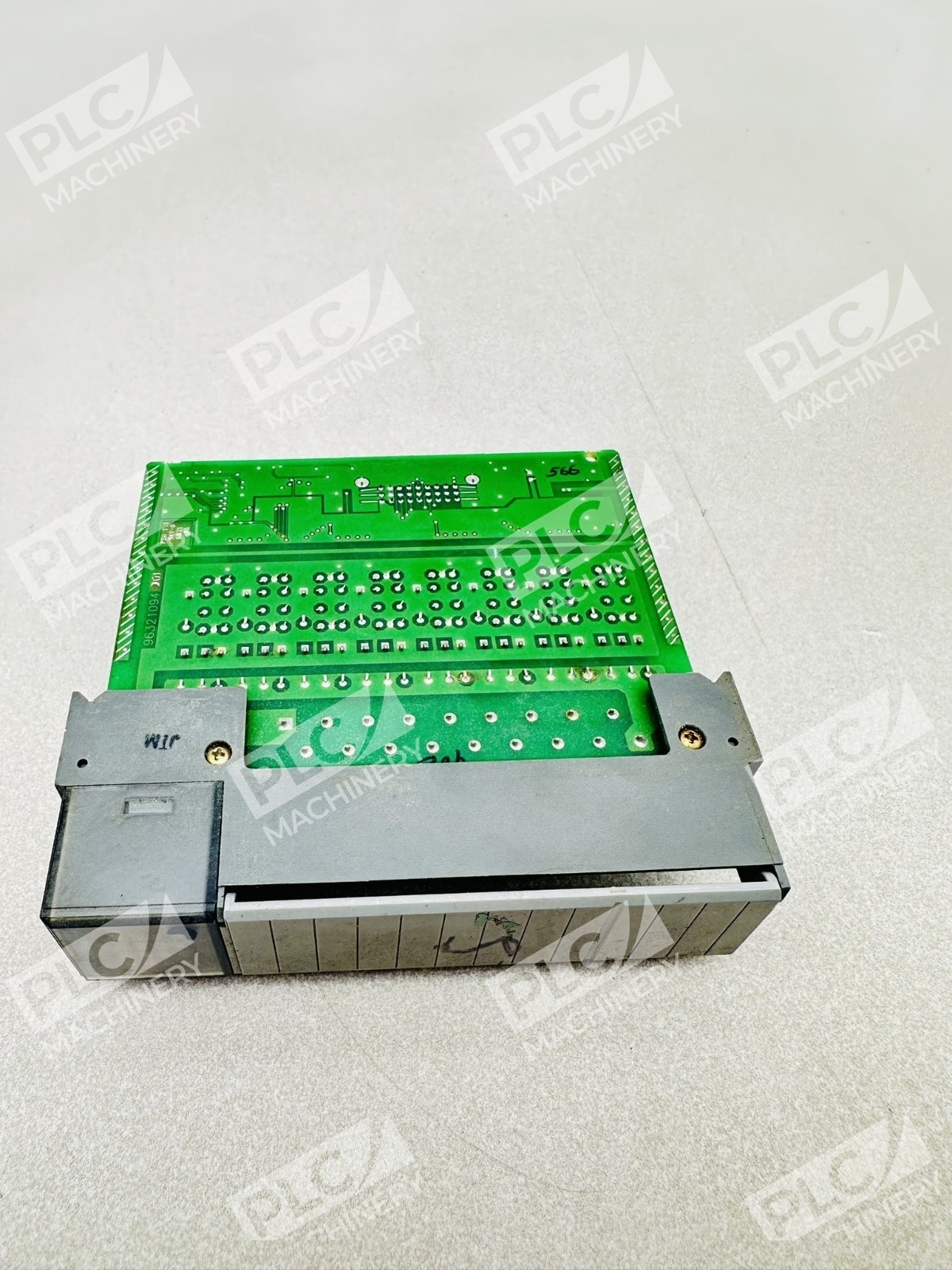

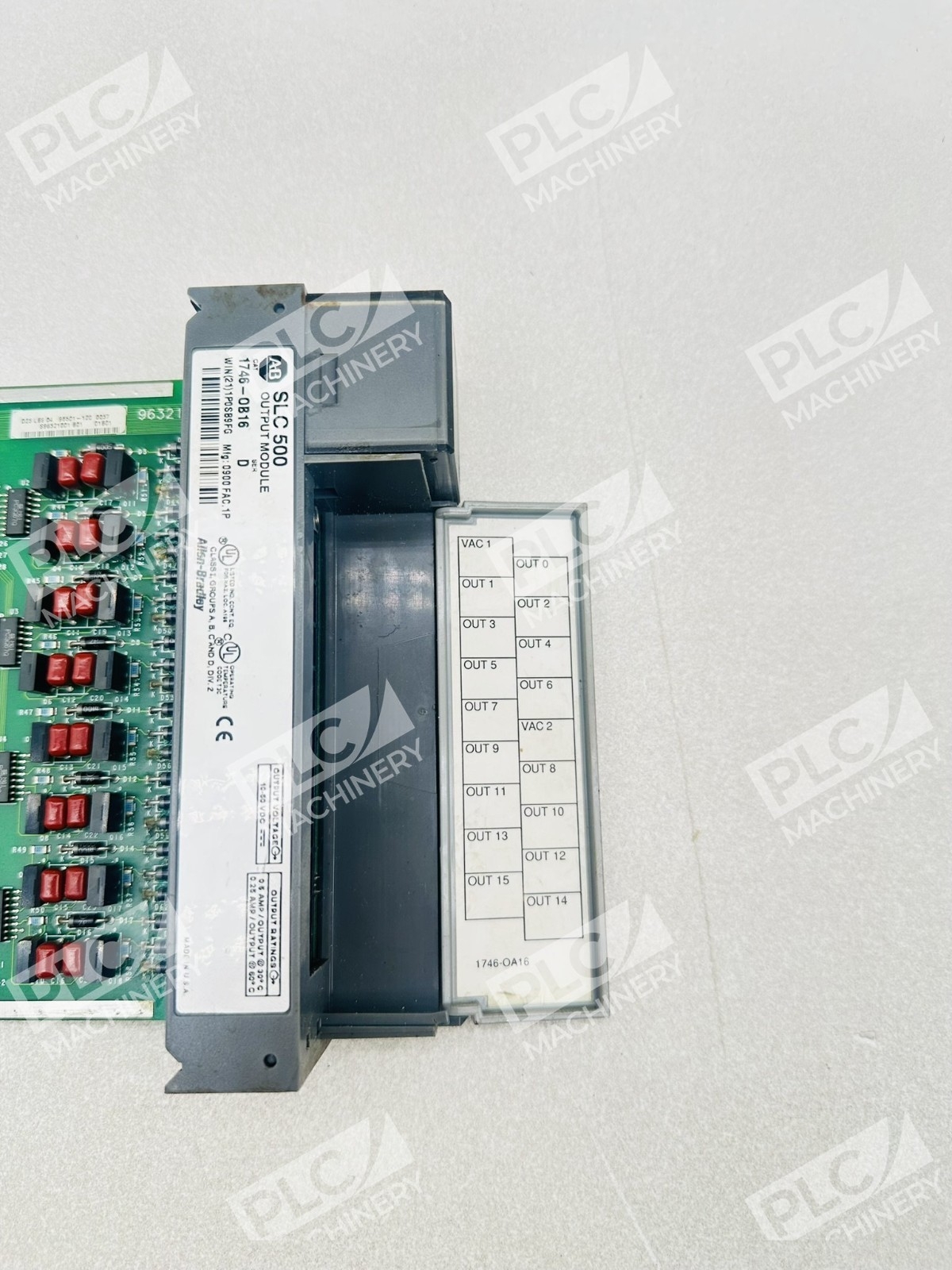

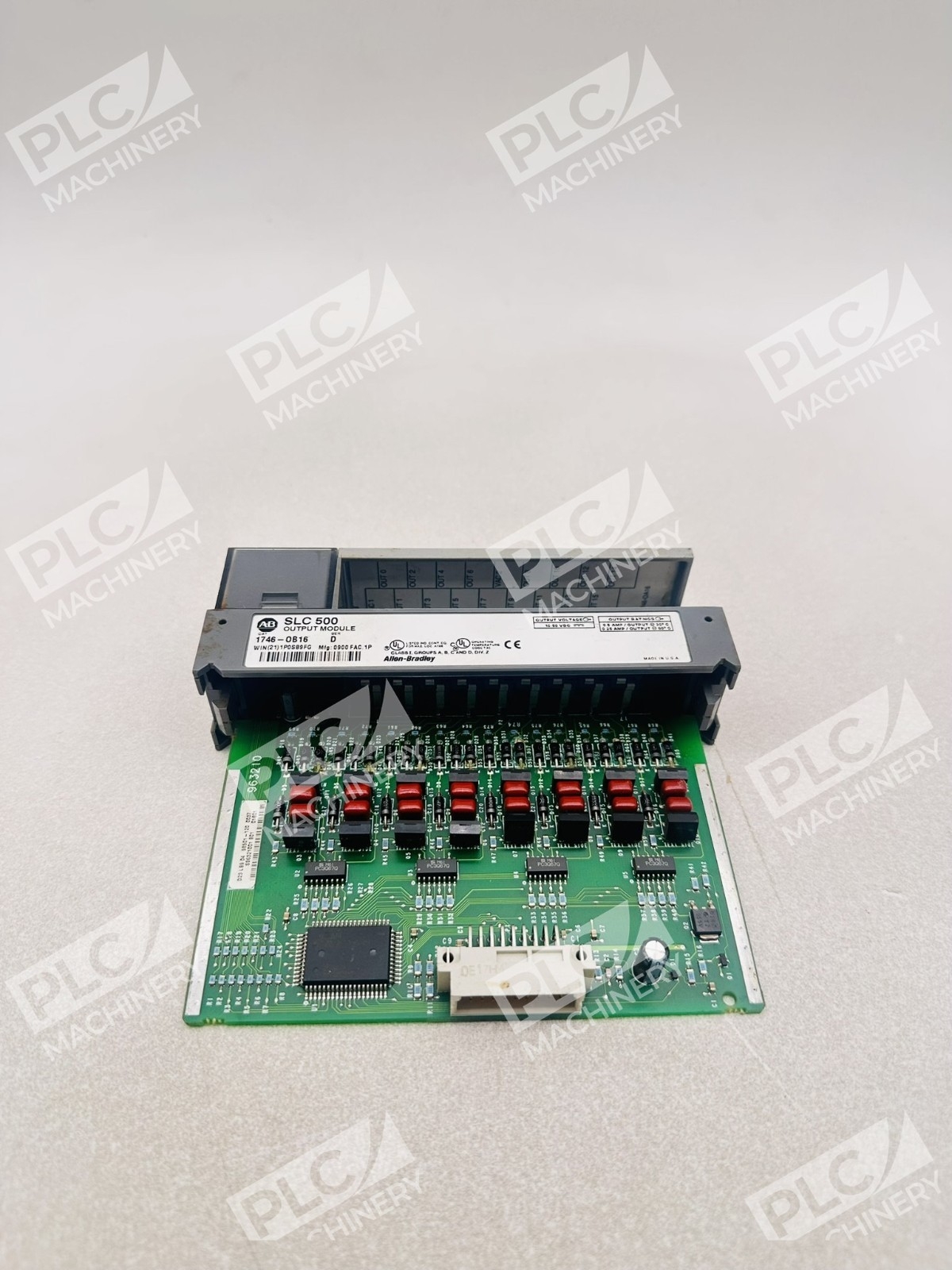

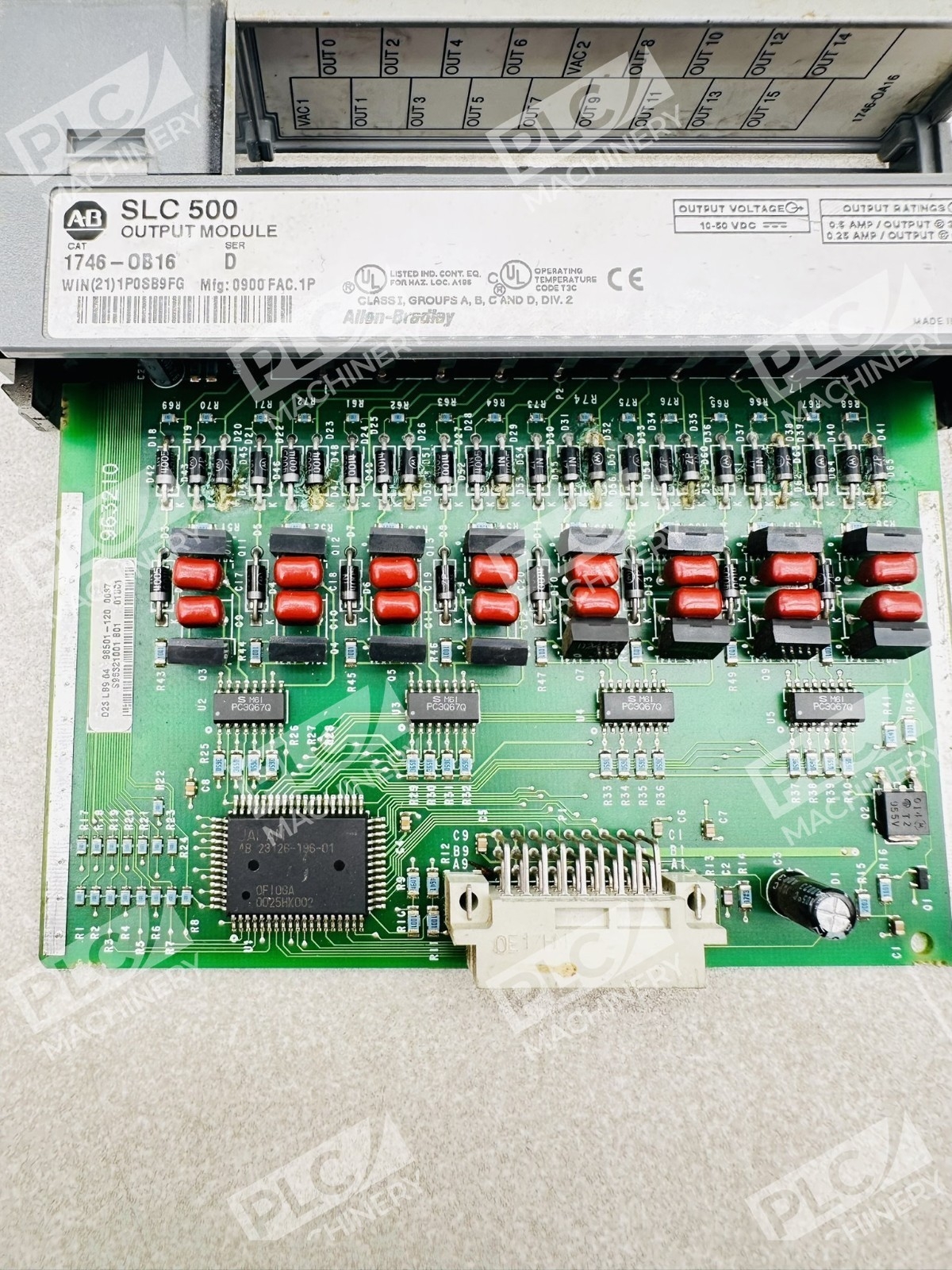

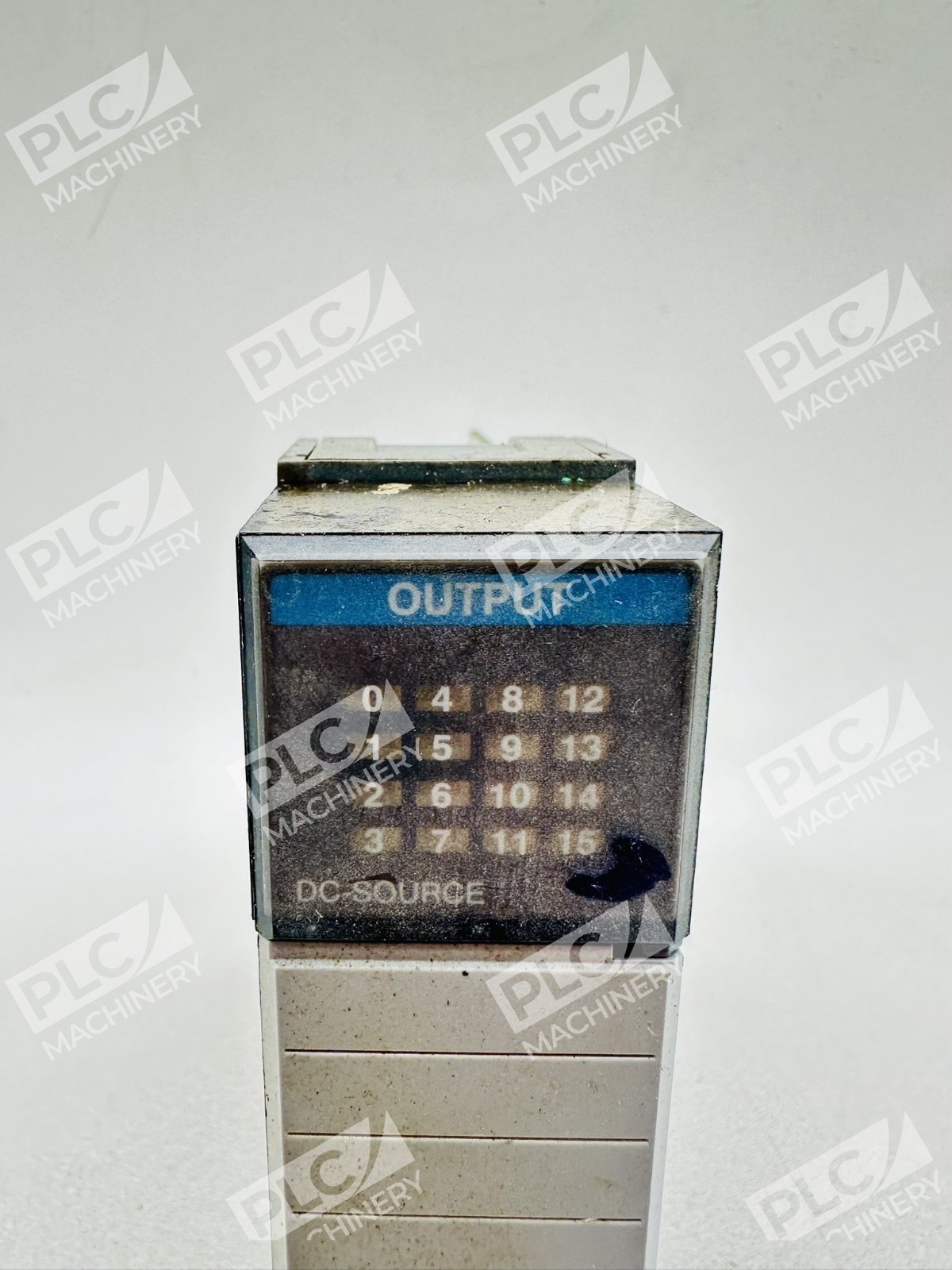

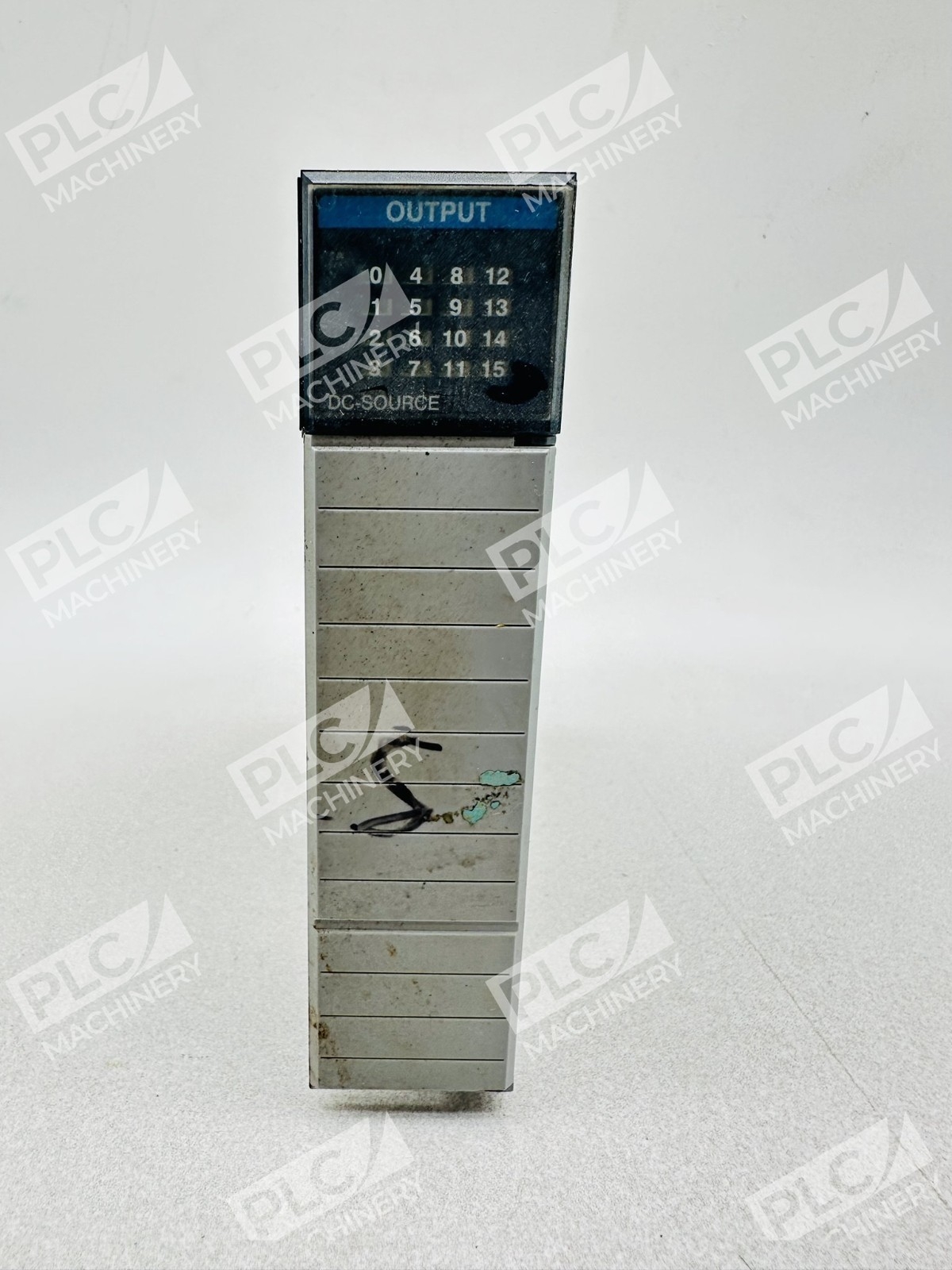

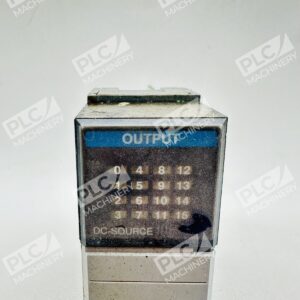

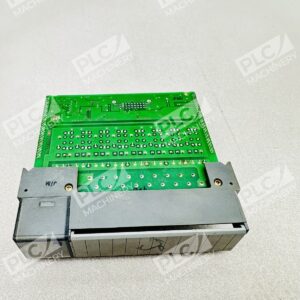

The Allen-Bradley 1746-OB16 Series D is a digital DC output module engineered for the SLC 500 family of programmable logic controllers. This module features sixteen 24 Volts DC outputs and can be mounted on any of the 1746 I/O chassis’s free slots. The 1746-OB16 is a DC output module which features electronic protection against current overload and short circuit conditions through a thermal cut-out principle that limits channel current within milliseconds once the temperature threshold is reached.
Key Features
- 16 Discrete DC Outputs — Supports 10-50 Volts DC source with 16 output channels designed for 24V DC signal operations.

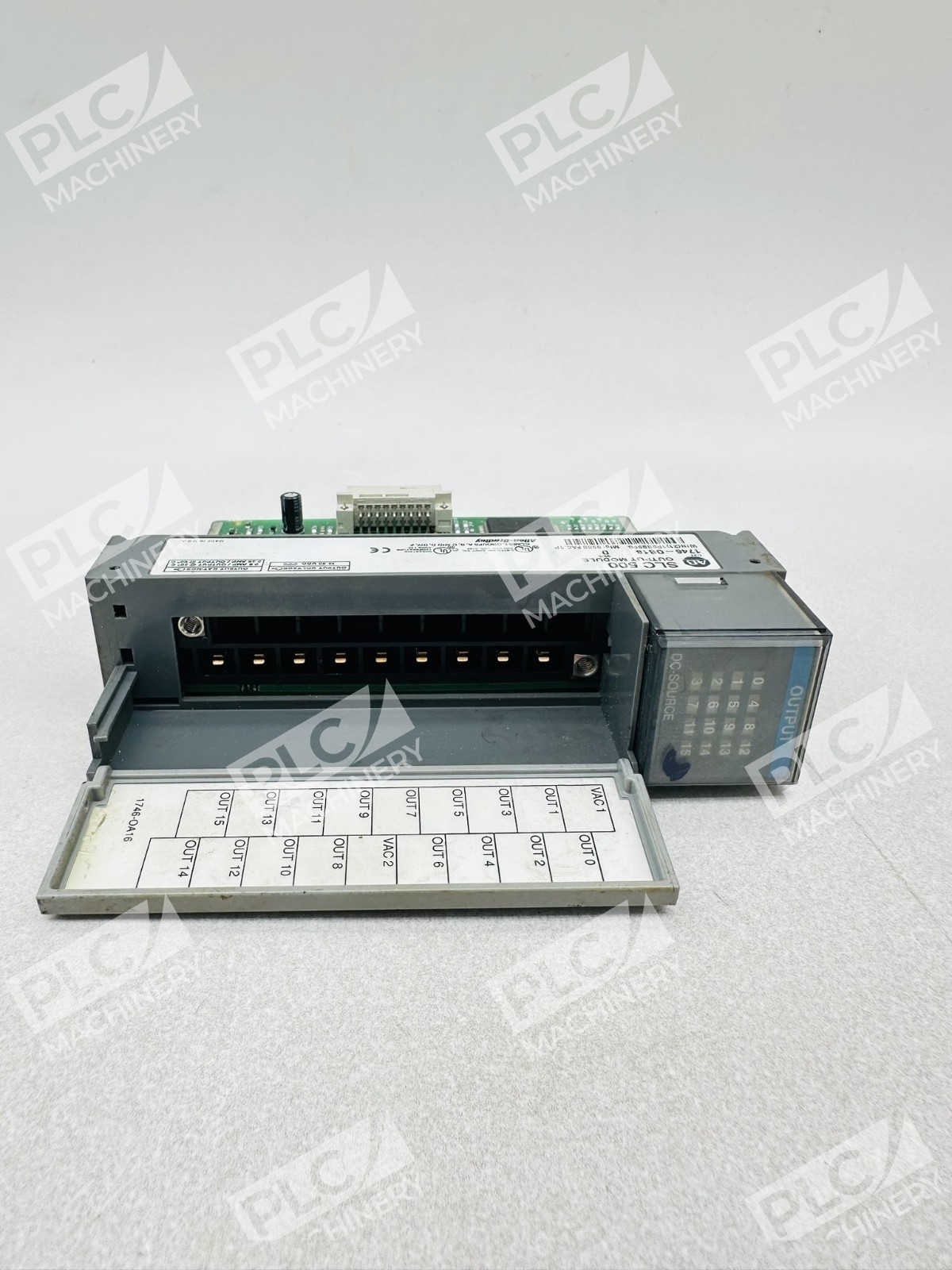

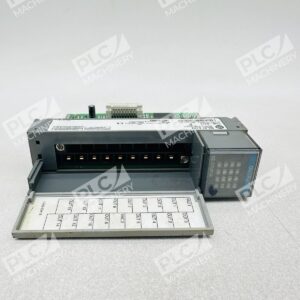

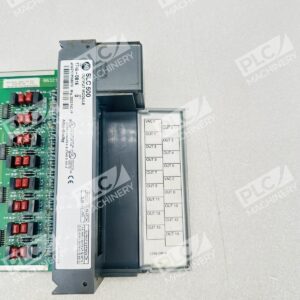

- Removable Terminal Block — Equipped with removable terminal block for accessible connections and maintenance.

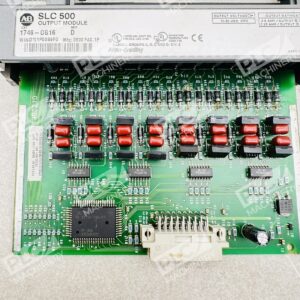

- Built-in Electronic Protection — Channels without overload or short circuit conditions will continue to operate normally.
- Fast Response Times — Features a load-dependent total signal delay time of 0.1 milliseconds for the on state and 1 millisecond for the off state.
- Surge Capability — Rated at 3 Amps for a duration of 10 milliseconds per output for handling transient conditions.
Technical Specifications
The module features 16 outputs with 24 VDC operation and a backplane current rating of 280 mA @ 5 VDC, 0 mA @ 24 VDC. On maximum resistive load, the 1746-OB16 has a signal ON delay of 0.1ms and OFF delay of 1.0ms, with a maximum off-state leakage current of 1mA and a maximum ON-state voltage drop of 1.2V at 0.50A. The module supports a continuous current of 8.0A at 30°C (86°F) and 4.0A at 60°C (140°F).
Typical Applications
The Allen-Bradley 1746-OB16 Series D is ideal for discrete output control in industrial automation systems including:
- Machine control and sequential logic applications
- Solenoid valve and motor starter activation
- Status indicator lighting and alarm annunciation
- Conveyor and material handling system control
- Process automation and production line switching
Compatibility & Replacements
Compatible With
- SLC 500 programmable logic controllers
- 1746 I/O chassis and backplane systems
- Allen-Bradley legacy control platforms
- RSLogix 500 programming software
Replaces / Drop-In Replacement For
- Functional replacement for 1746-OB8 module.
Works With
- RSLogix 500 development environment
- Allen-Bradley SLC 500 communication networks
- 24V DC discrete field devices and loads
- Standard DIN rail and panel mounting configurations
