Overview

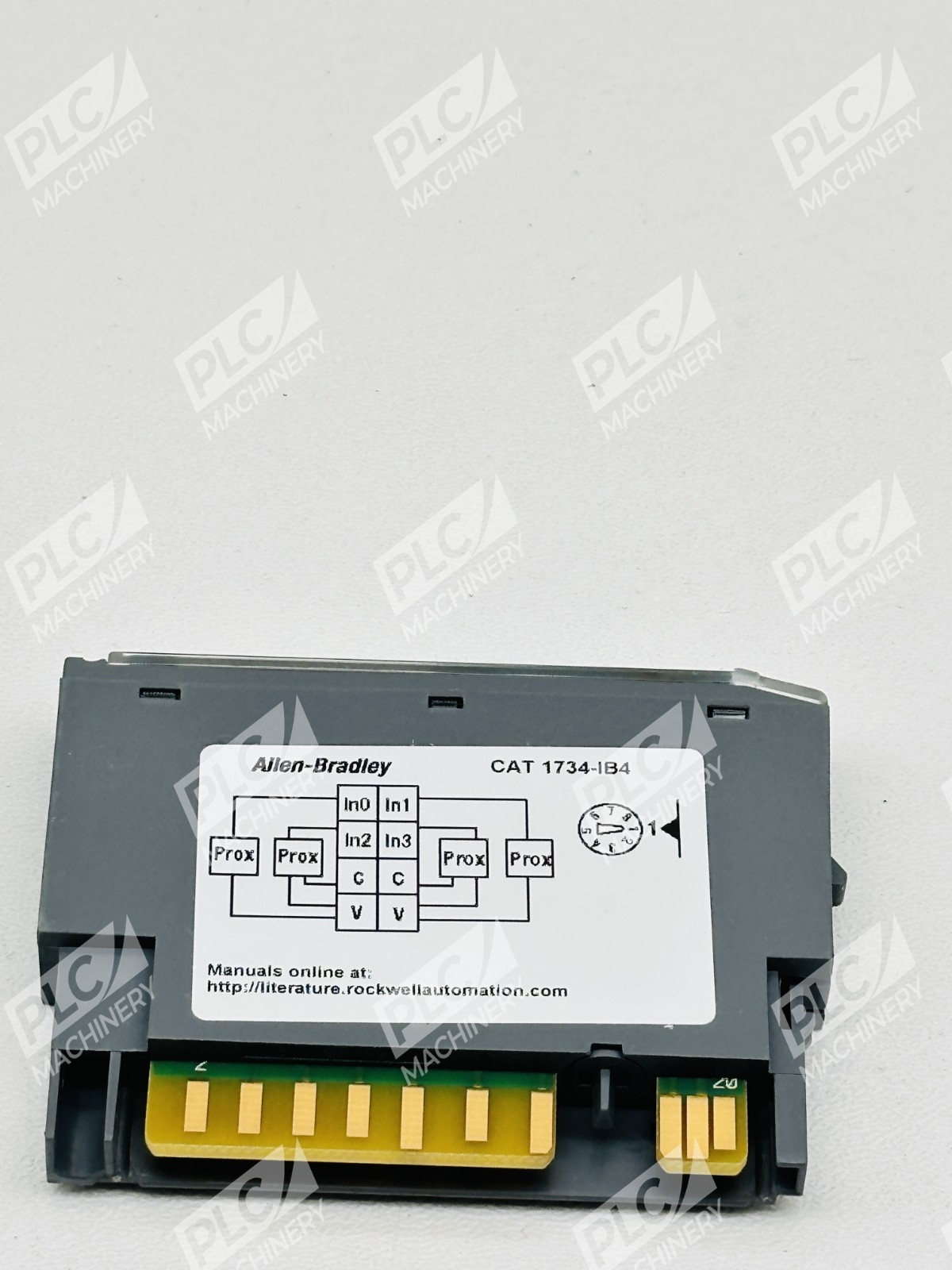

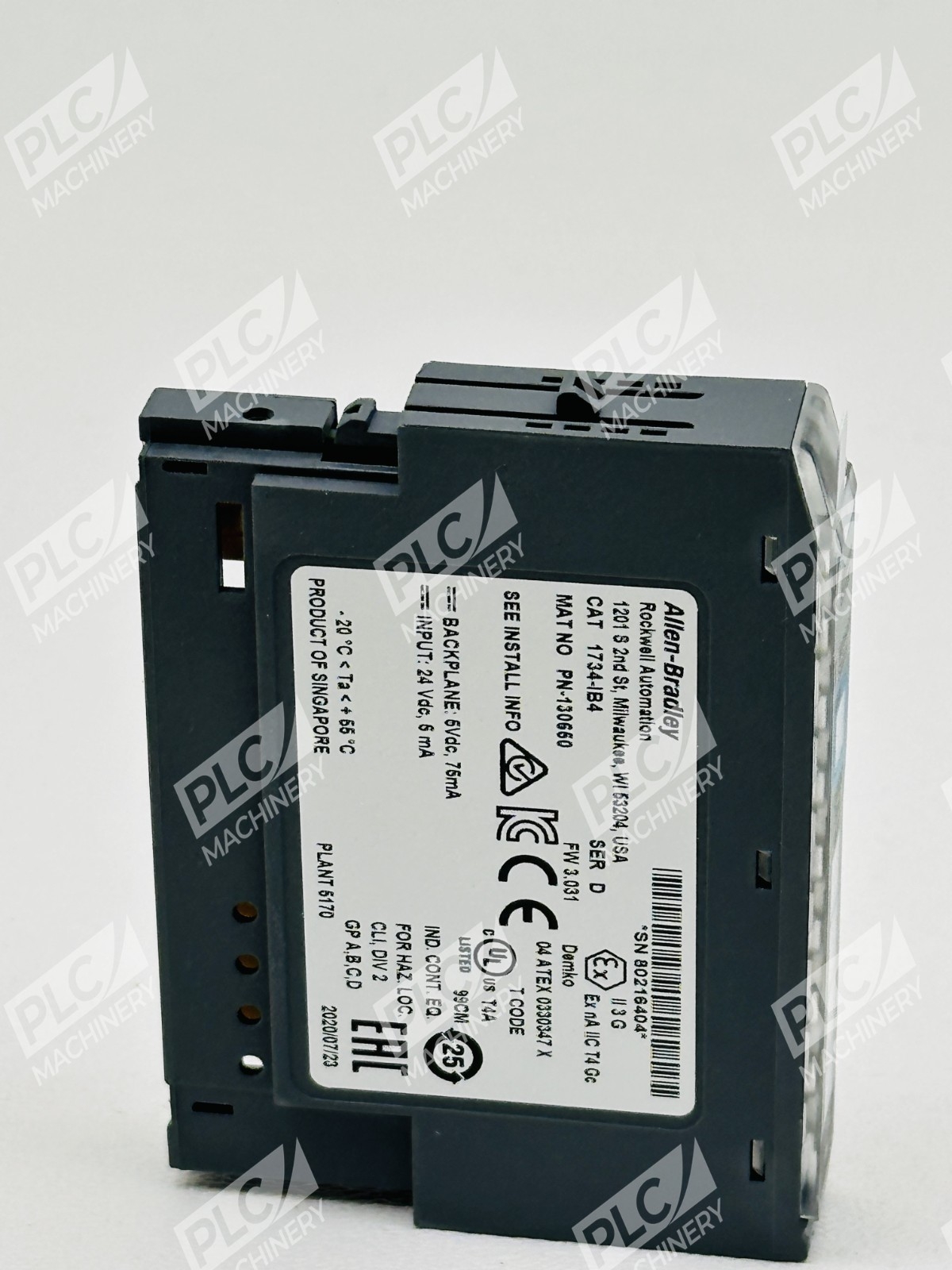

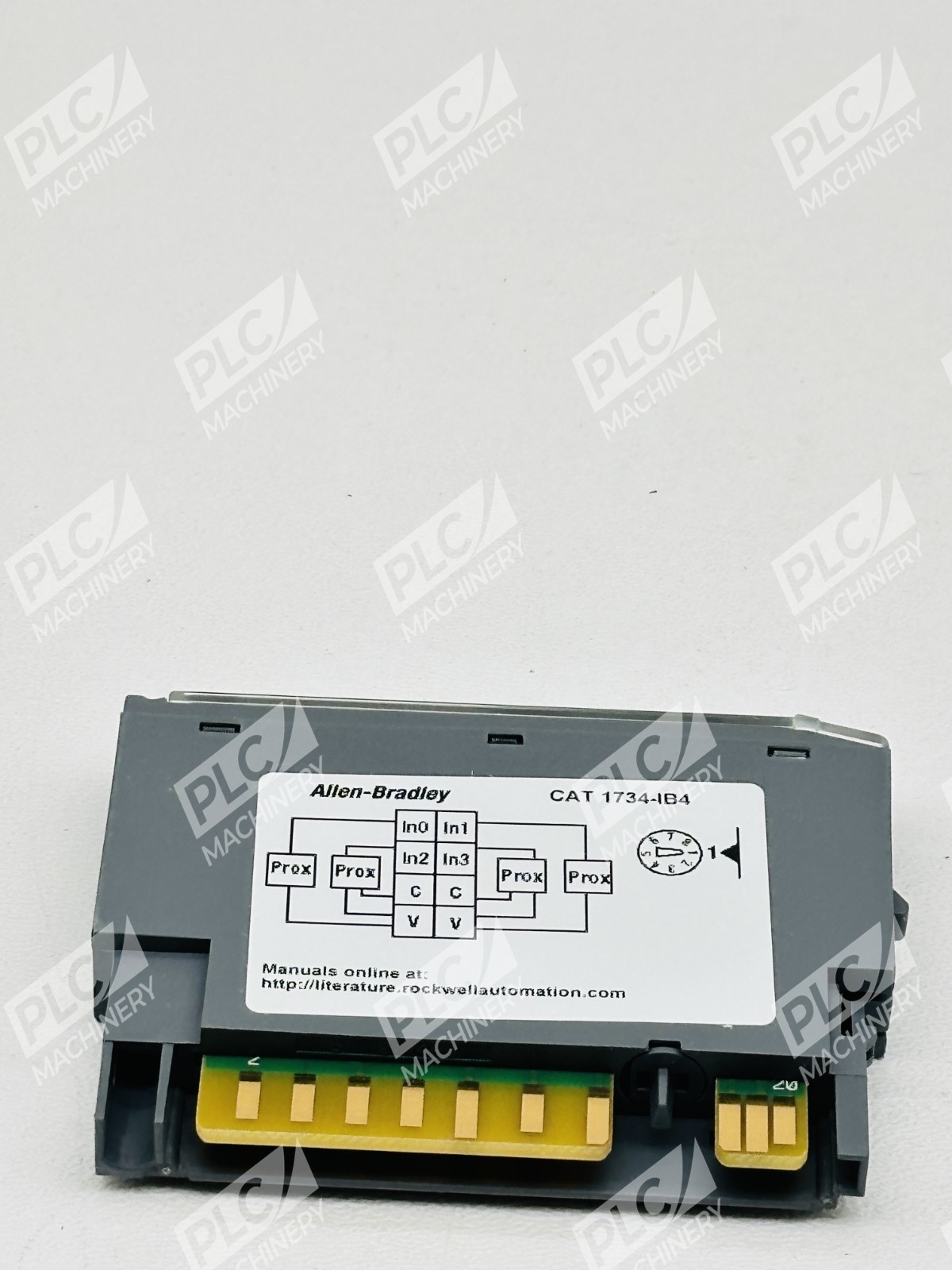

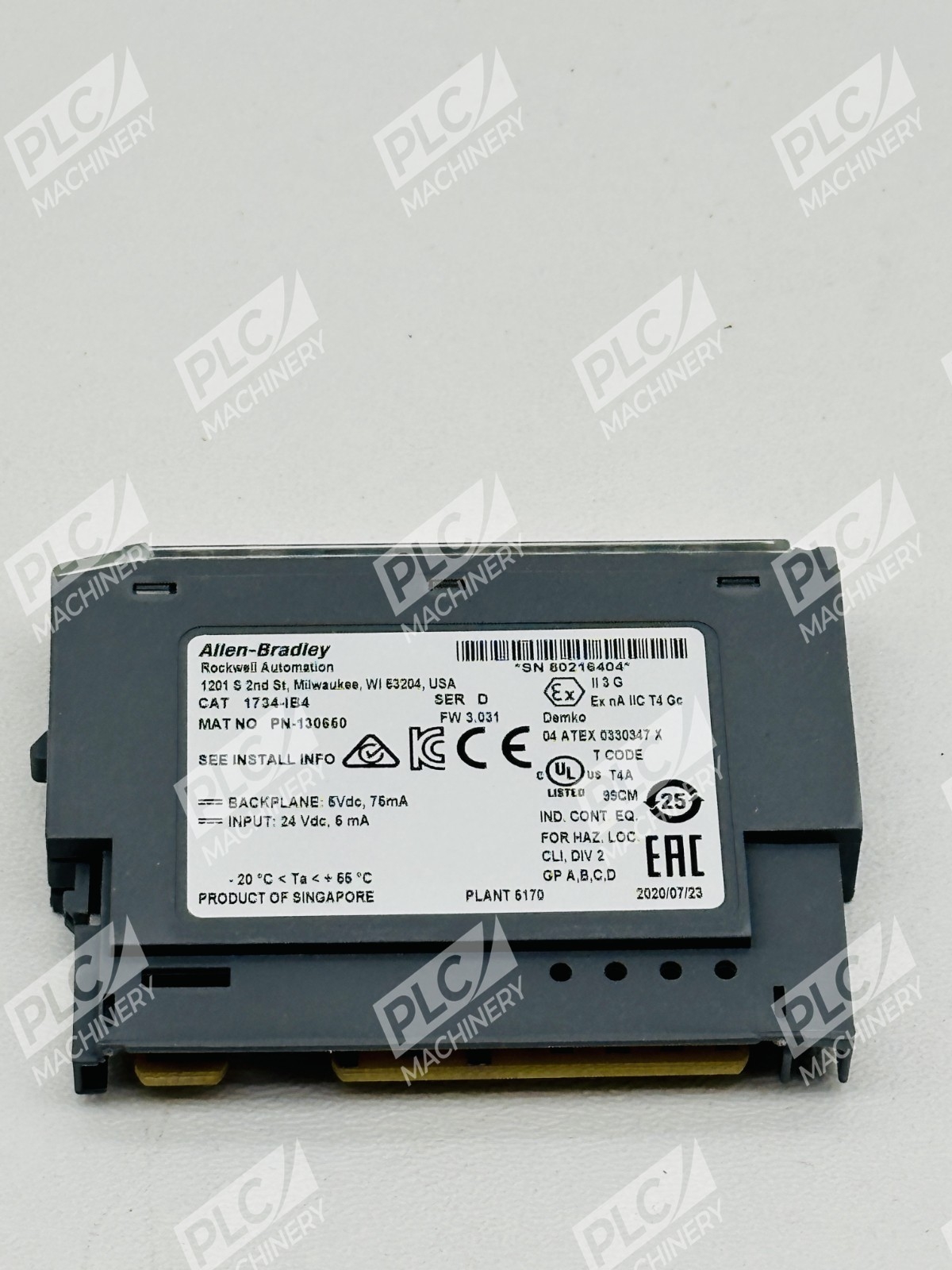

The Allen-Bradley 1734-IB4 is a 24V DC 4-point digital input sink module designed for the POINT I/O distributed I/O architecture. This compact DIN rail-mounted module accepts field-level sinking digital inputs and communicates through DeviceNet, PROFIBUS, ControlNet, or Ethernet adapters. It provides real-time input status monitoring with four independent LED indicators and integrates seamlessly into CompactLogix, ControlLogix, and other Rockwell Automation controllers via the appropriate communication adapter.

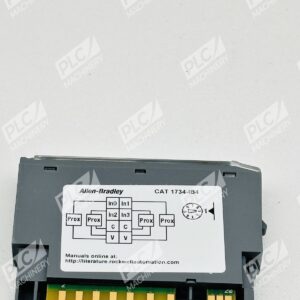

Key Features
- Four (4) independent 24V DC sinking digital input channels
- DIN rail mount in open-style enclosure for cabinet integration

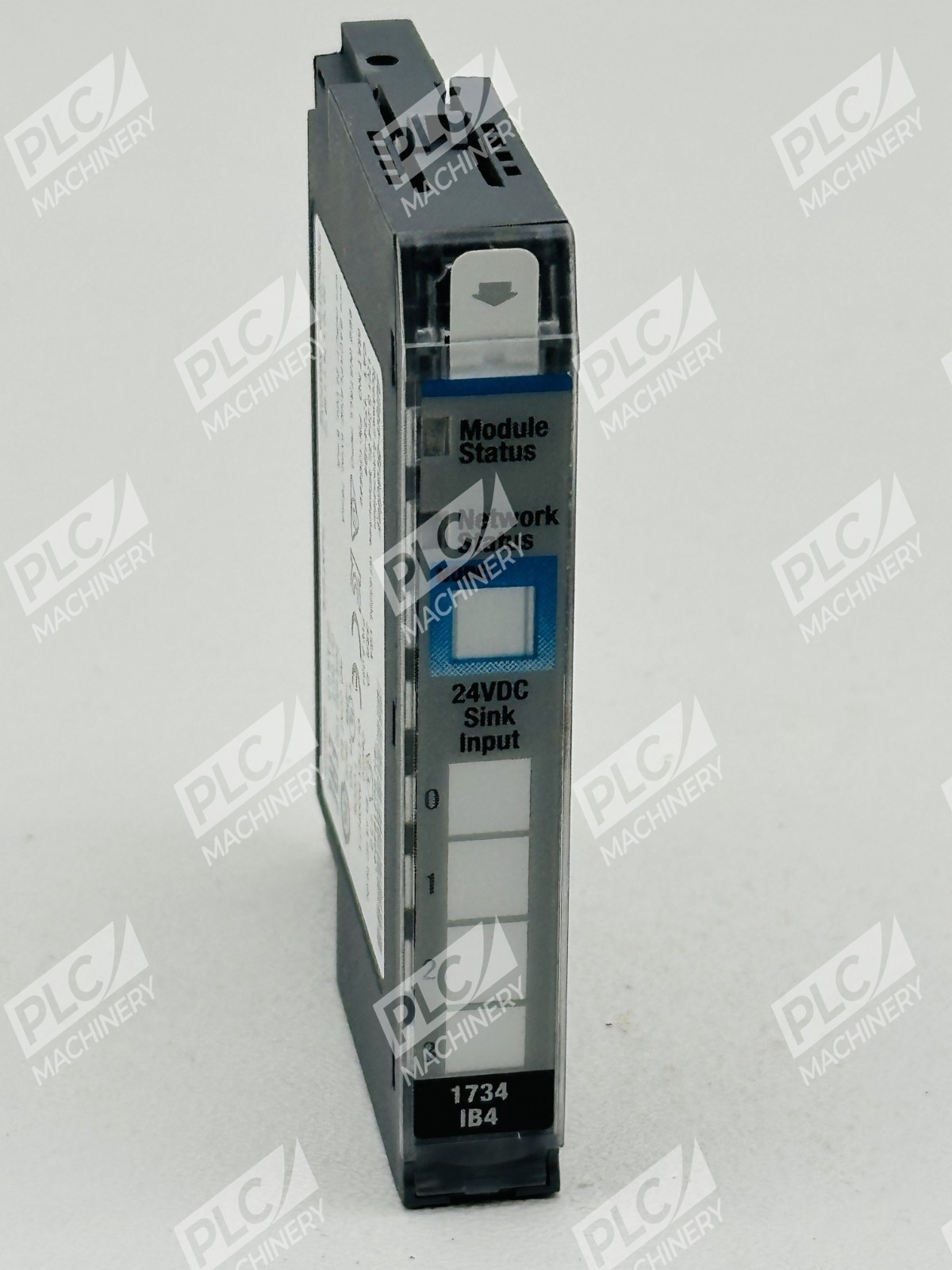

- Yellow LED status indicators for each input channel
- Pluggable connection to POINT I/O communication adapters
- Supports DeviceNet, PROFIBUS, ControlNet, and Ethernet connectivity
- Fast 0.5 millisecond response time per input
- Low power consumption: ~1 Watt dissipation

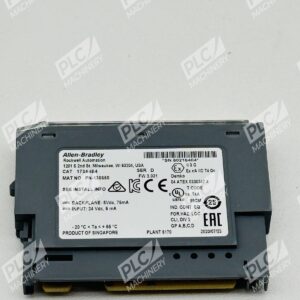

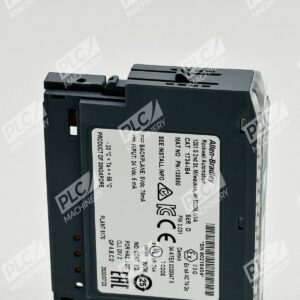

Technical Specifications
- Input Voltage (Nominal): 24V DC
- Input Voltage (Range): 10V DC to 28.8V DC
- Input Current (On-State): 4 mA typical, maximum 5 mA
- Input Current (Minimum On-State): 2 mA
- Off-State Voltage (Maximum): 5V DC
- Off-State Current (Minimum): 1.5 mA
- Number of Input Points: 4 channels in 1 group
- Response Time: 0.5 milliseconds
- Power Dissipation: 1 Watt
- Mounting: DIN Rail
- Connectors: Screw-type terminal blocks
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
