Overview

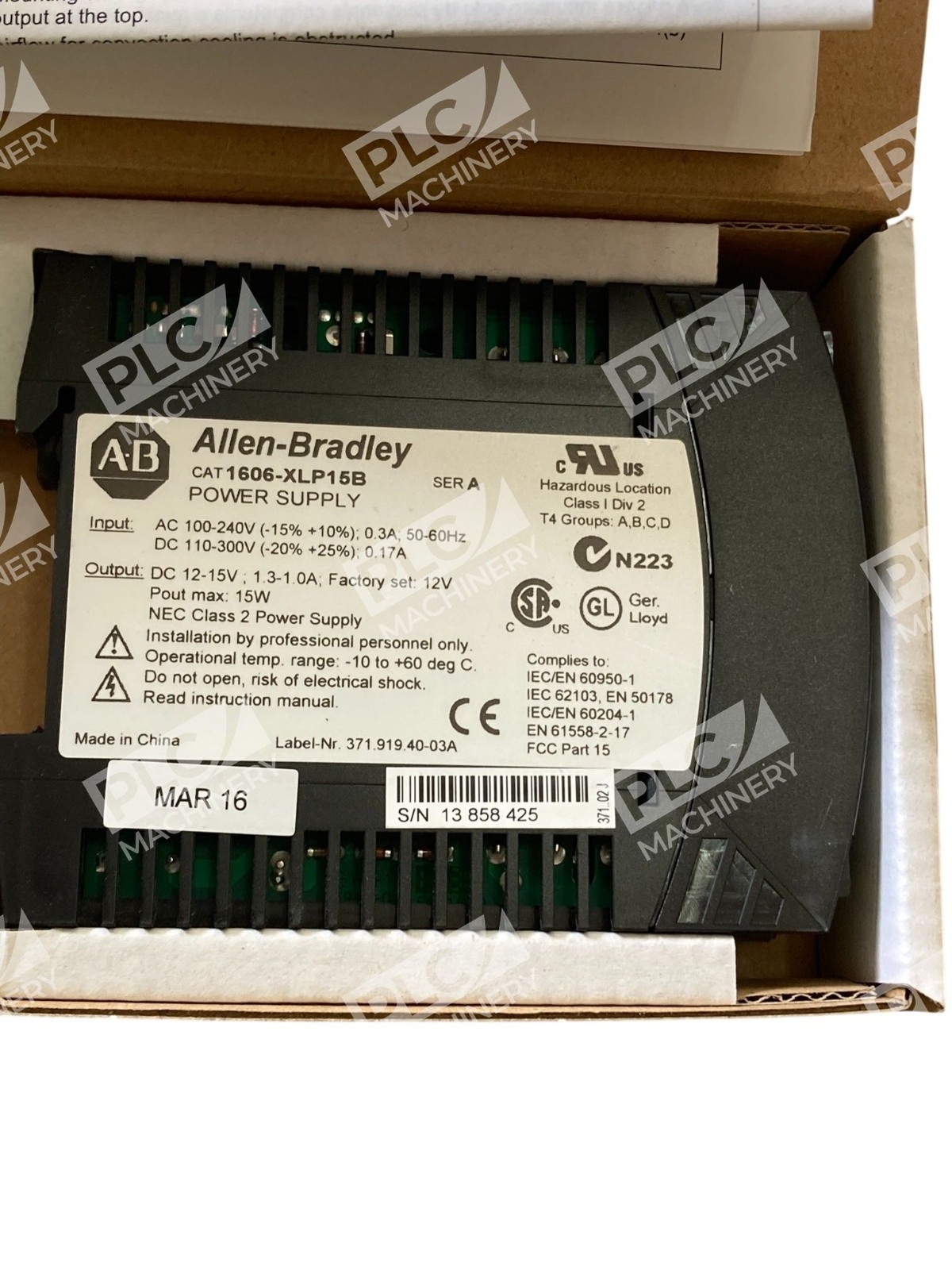

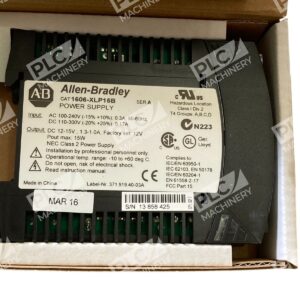

The Allen-Bradley 1606-XLP15B is a compact, switched mode power supply (SMPS) engineered for industrial control, instrumentation, and communication equipment. Rated at 15W with a nominal output of 12-15V DC, this supply accepts both AC 100–240V and DC 110–300V inputs, making it ideal for global installations. Built to Rockwell Automation quality standards and certified to UL, CSA, CE, and marine specifications, it delivers reliable power in space-constrained control cabinets.
Key Features
- Compact Design: DIN rail mounting with minimal footprint for tight enclosures
- Wide Input Range: AC 100–240V or DC 110–300V operation from single unit
- Adjustable Output: 12–15V DC with user-accessible potentiometer adjustment
- Low Ripple: 100 mV peak-to-peak maximum noise for sensitive loads
- Global Certifications: UL 508, UL 60950-1, CSA, CE, GOST, RINA marine, C-TICK
- Short-Circuit Protected: Built-in overcurrent protection; no external fuse required
Technical Specifications
- Output Voltage: 12–15V DC (adjustable)
- Output Current: 1.3 A nominal
- Output Power: 15W / 39.1 VA
- Input Voltage: AC 100–240V (50/60 Hz) or DC 110–300V
- Ripple & Noise: 100 mV peak-to-peak (typical)
- Hold-up Time: Per reference manual (no voltage sag during brief input interruptions)
- Operating Temperature: 0–60°C (ambient); derating above 60°C
- Mounting: DIN rail, screw/spring clamp terminals
- Weight: 0.35 lbs (158 g)
- Certifications: UL 508, UL 60950-1, CSA 22.2 No. 107.1, NEC Class 2, Class I Div 2, CE, GOST R, Marine RINA, C-TICK
Typical Applications
- Industrial control enclosures and automation cabinets
- PLC and I/O module power conditioning
- Instrumentation and test equipment
- Building automation and HVAC controls
- Communication and office equipment in industrial settings
- Safety-critical 24V DC system auxiliary power
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, MicroLogix, and ControlLogix systems
- Rockwell Automation EtherNet/IP networks
- Standard industrial 12V DC loads (sensors, solenoids, indicator lights)
- DIN rail enclosures (35mm rail)
- AC/DC mixed-voltage control environments
Replaces / Drop-In Replacement For
- 1606-XLP15B /A (revision superseded)
- Earlier 1606 series compact supplies requiring 15W 12-15V output
- OEM equivalents with identical terminal layouts and mounting footprints
Works With
- Studio 5000 / FactoryTalk control environments (indirect power dependency)
- EtherNet/IP communication networks
- DC 24V logic circuits and auxiliary control systems
- Third-party HMI and sensor platforms requiring 12–15V auxiliary power
