Overview

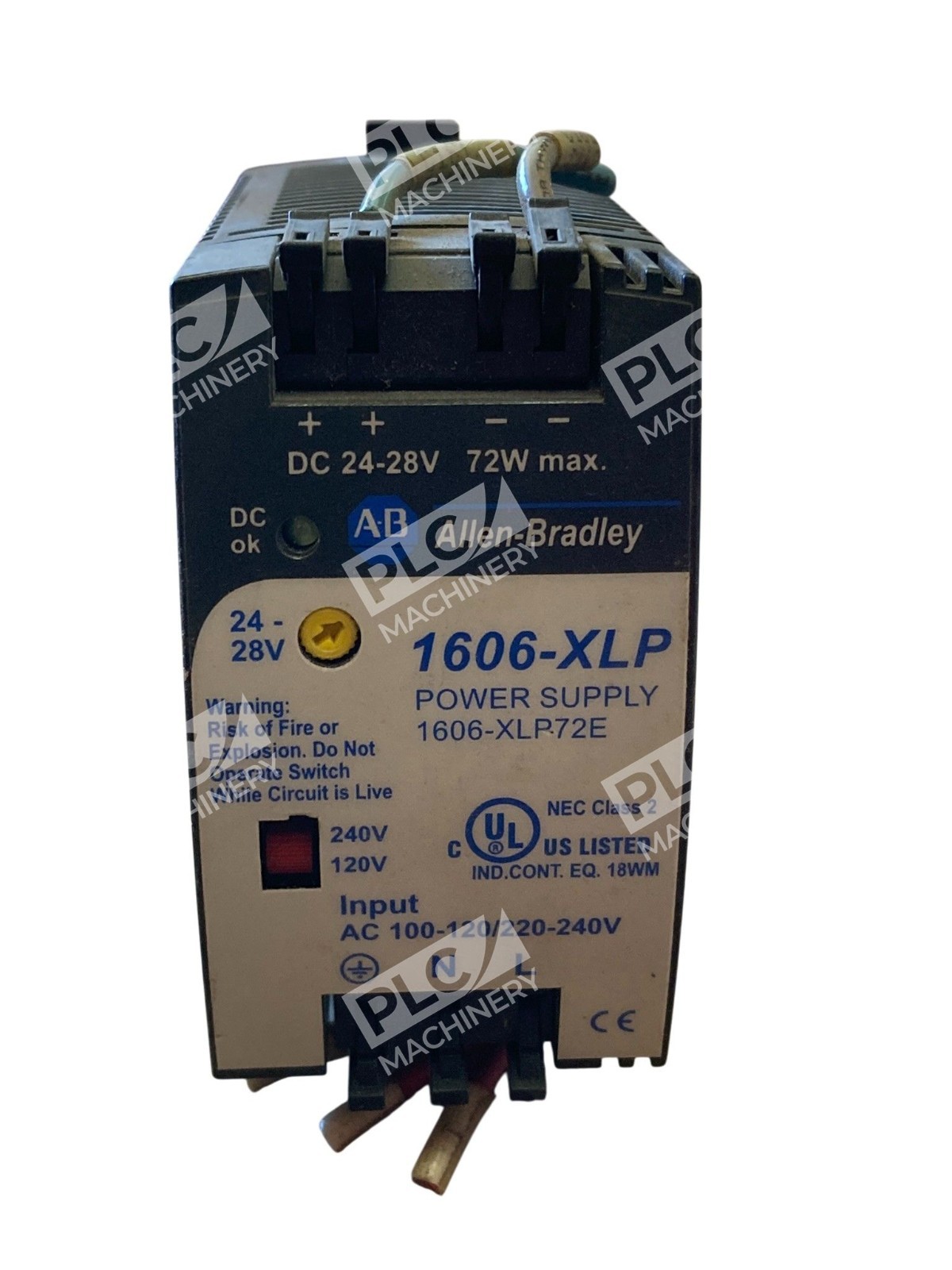

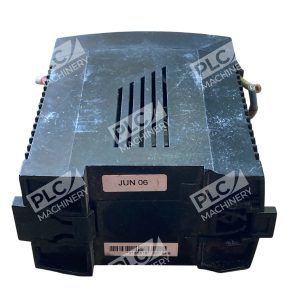

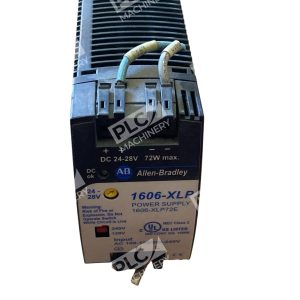

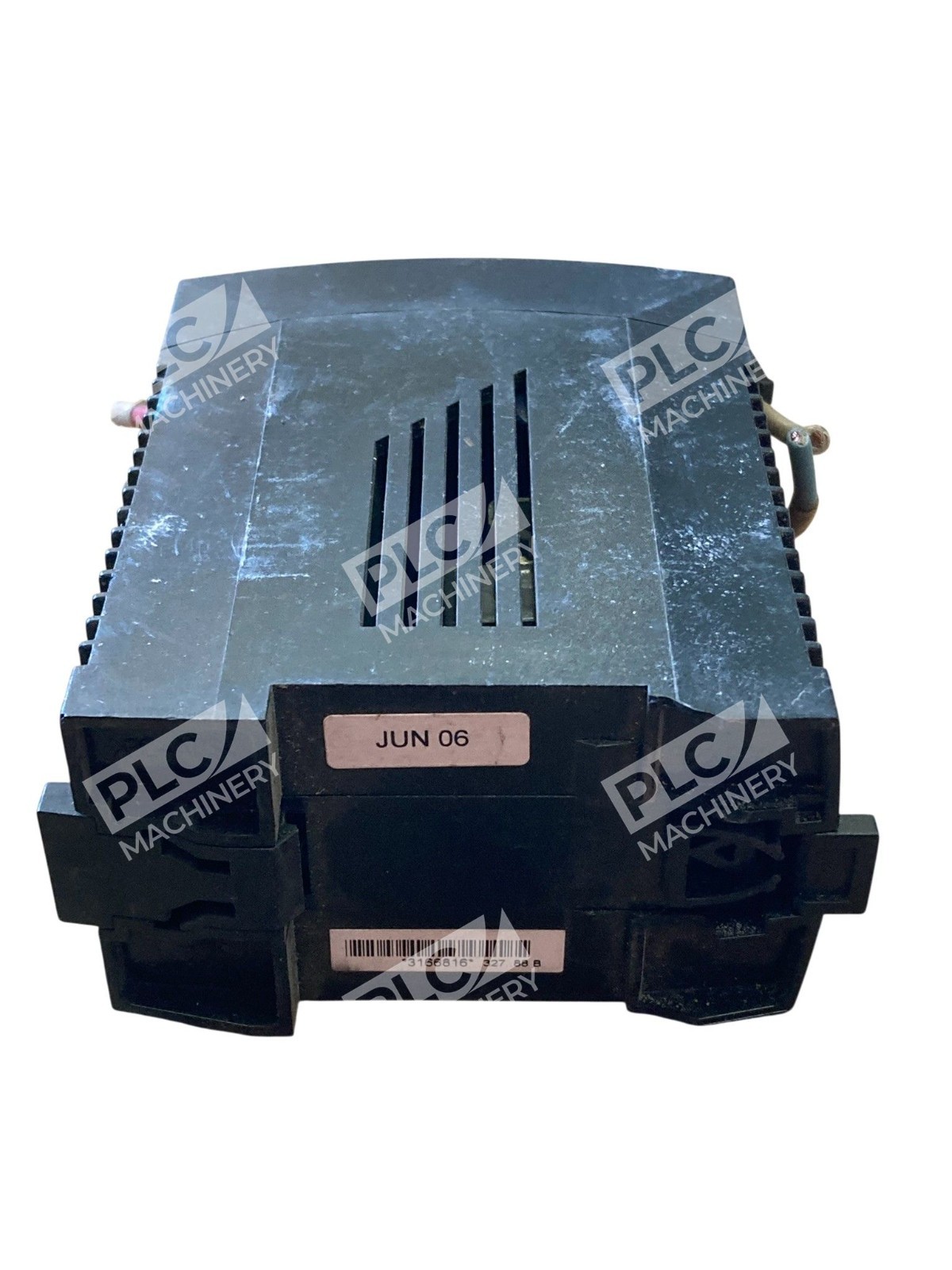

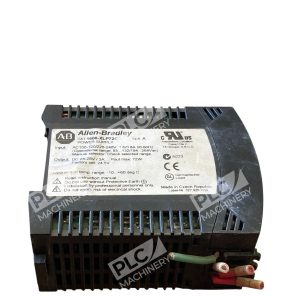

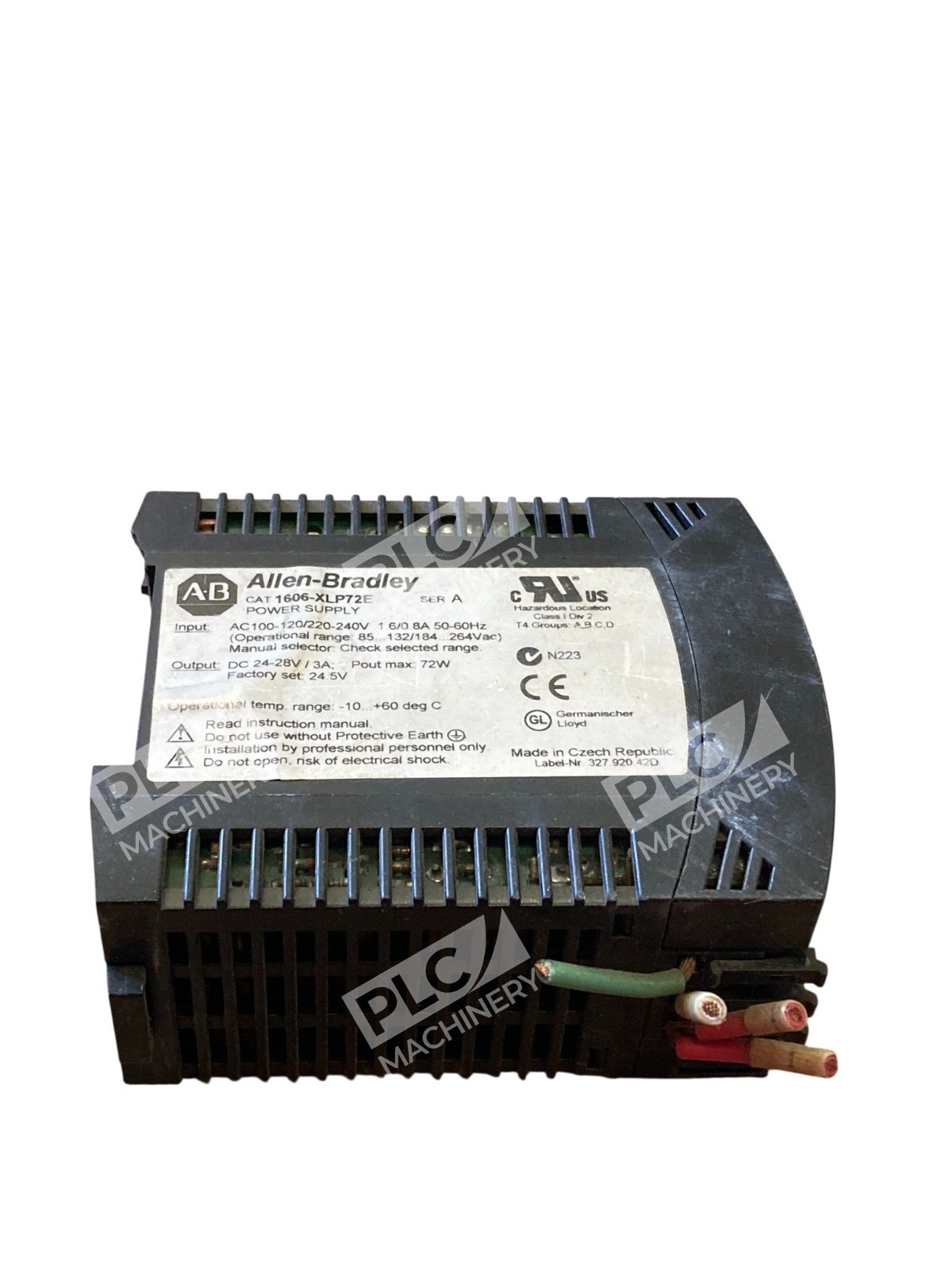

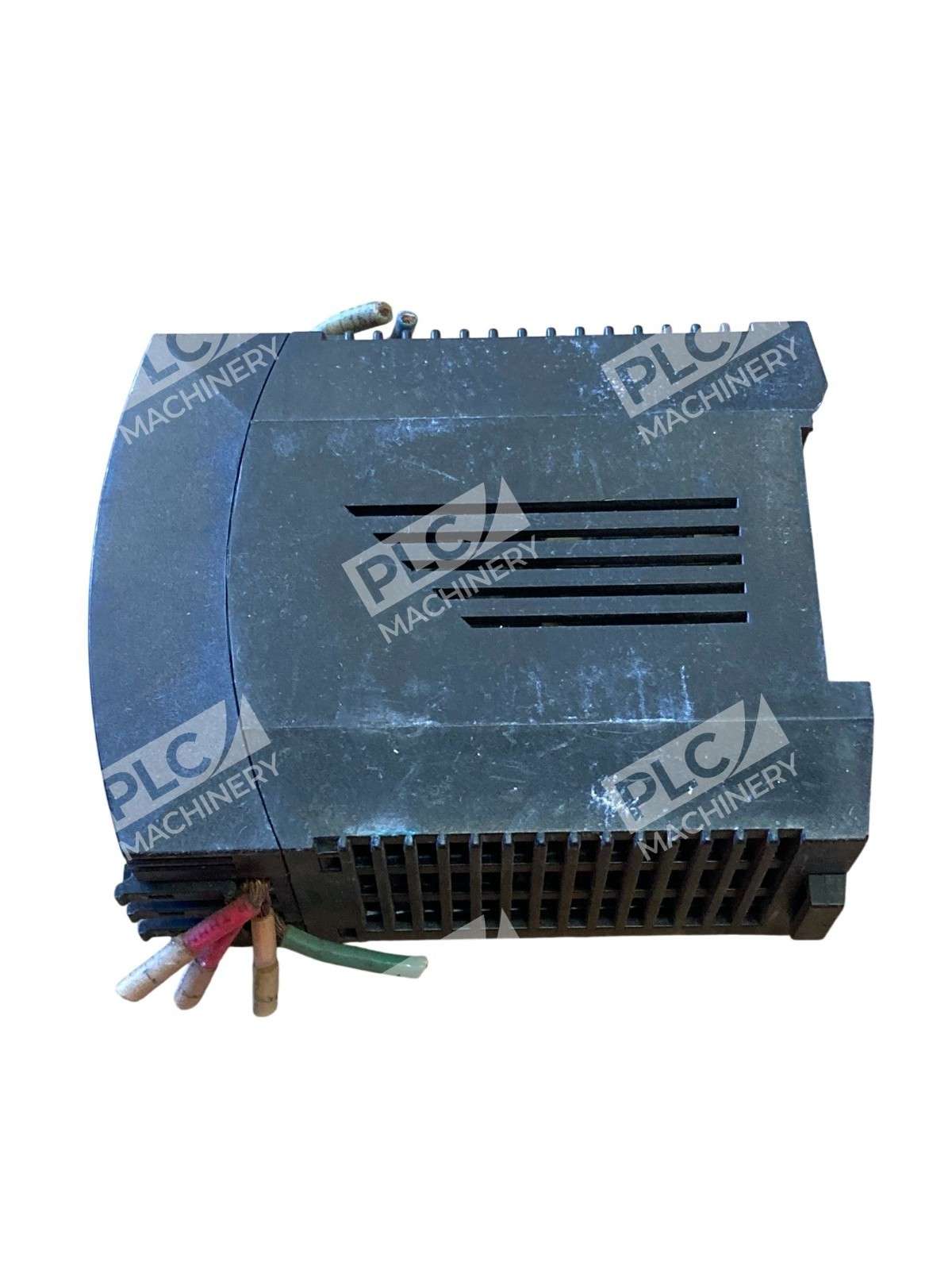

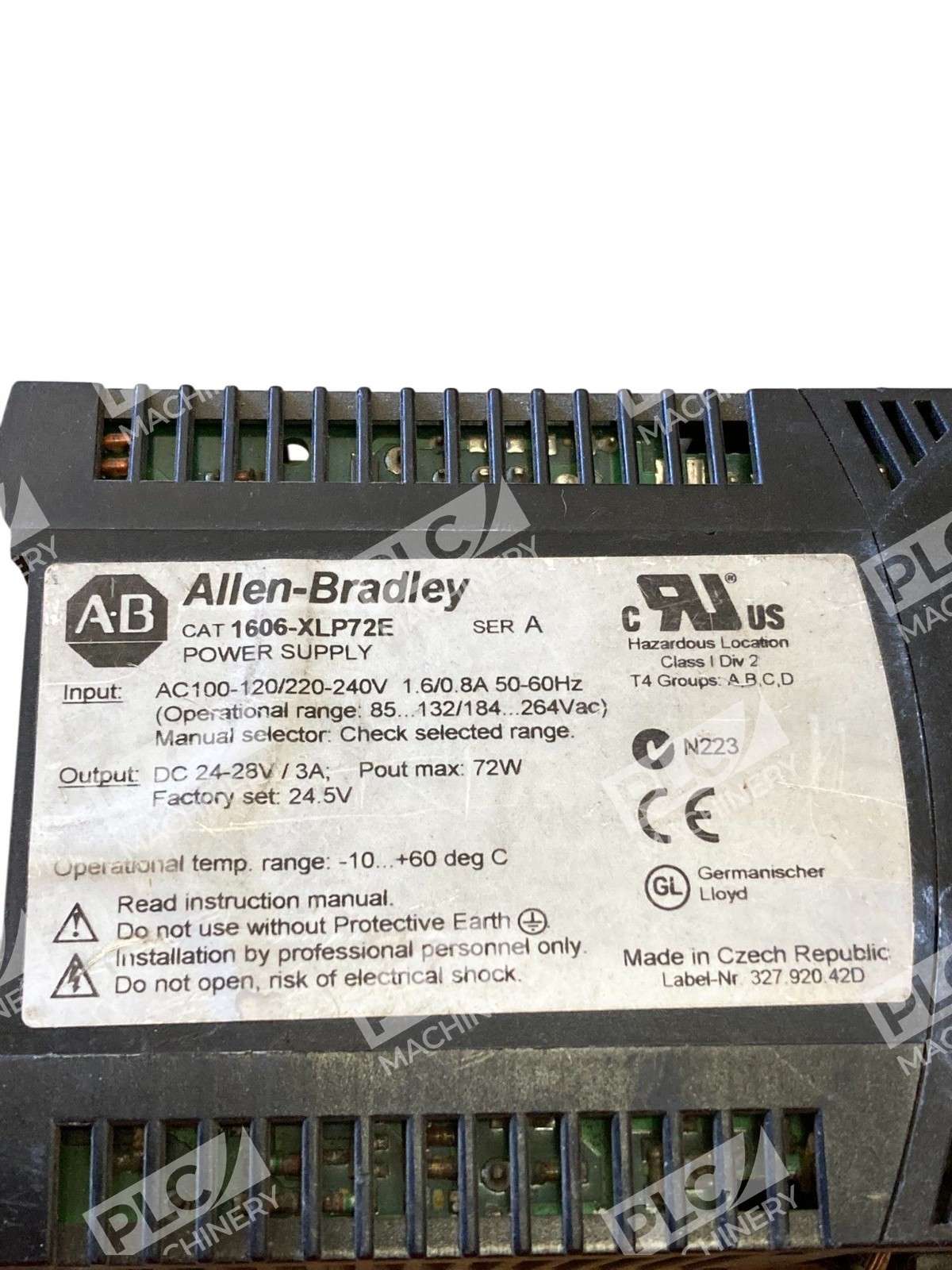

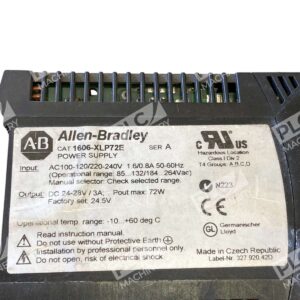

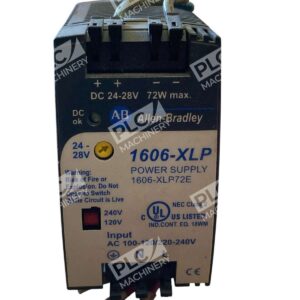

The Allen-Bradley 1606-XLP72E is a compact switching mode power supply from the 1606 XLP series, engineered for industrial automation, safety-rated control systems, and low-power applications. This 72W unit delivers stable 24–28V DC output from a wide range of global input voltages, making it suitable for machine builders and system integrators who need reliable, space-efficient power in cabinet-constrained environments.
Key Features
- Compact form factor ideal for space-limited panel installations
- Global input voltage support: 100–240V AC (50/60 Hz) or 220–375V DC
- Rated 3A continuous output current with 72W power capacity
- Short-circuit proof design protects connected equipment
- Long-life electrolytic capacitors with minimal heat generation
- DIN rail mounting for quick installation and serviceability
Technical Specifications
- Output Voltage: 24–28V DC
- Output Power: 72W (184 VA)
- Output Current: 3A nominal
- Input Voltage (AC): 100–120V AC, 220–240V AC at 50/60 Hz
- Input Voltage (DC): 220–375V DC
- Mounting: DIN rail
- Terminal Type: Screw/Spring clamp
- Protection: Short-circuit proof
- Certifications: CE, cUL, cUR, C-TICK, CCC, GOST, KC, Marine
- Weight: 0.77 lb
Typical Applications
- Industrial safety control circuits and safety-rated I/O modules
- Compact PLC and HMI systems in tight enclosures
- Distributed I/O and remote terminal unit (RTU) power
- Machine automation and motion control auxiliary power
- Building automation and process control networks
Compatibility & Replacements
The 1606-XLP72E is part of Allen-Bradley’s 1606 Bulletin power supply line, which is widely used in Rockwell Automation control systems. Direct drop-in replacement for failed or aging 1606-XLP units with identical form factor and connector pinout. Compatible with ControlLogix, CompactLogix, and legacy SLC 500 systems using standard 24V DC auxiliary power. For higher power requirements, consider the 1606-XLP100E (100W) or 1606-XLP150E (150W) variants.
