Overview

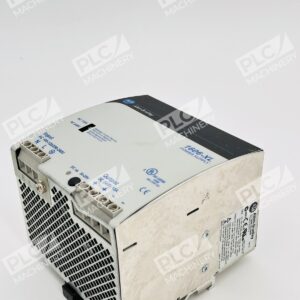

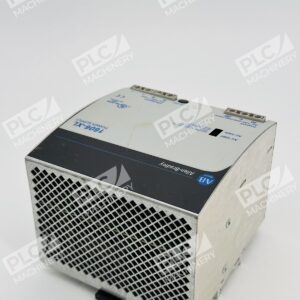

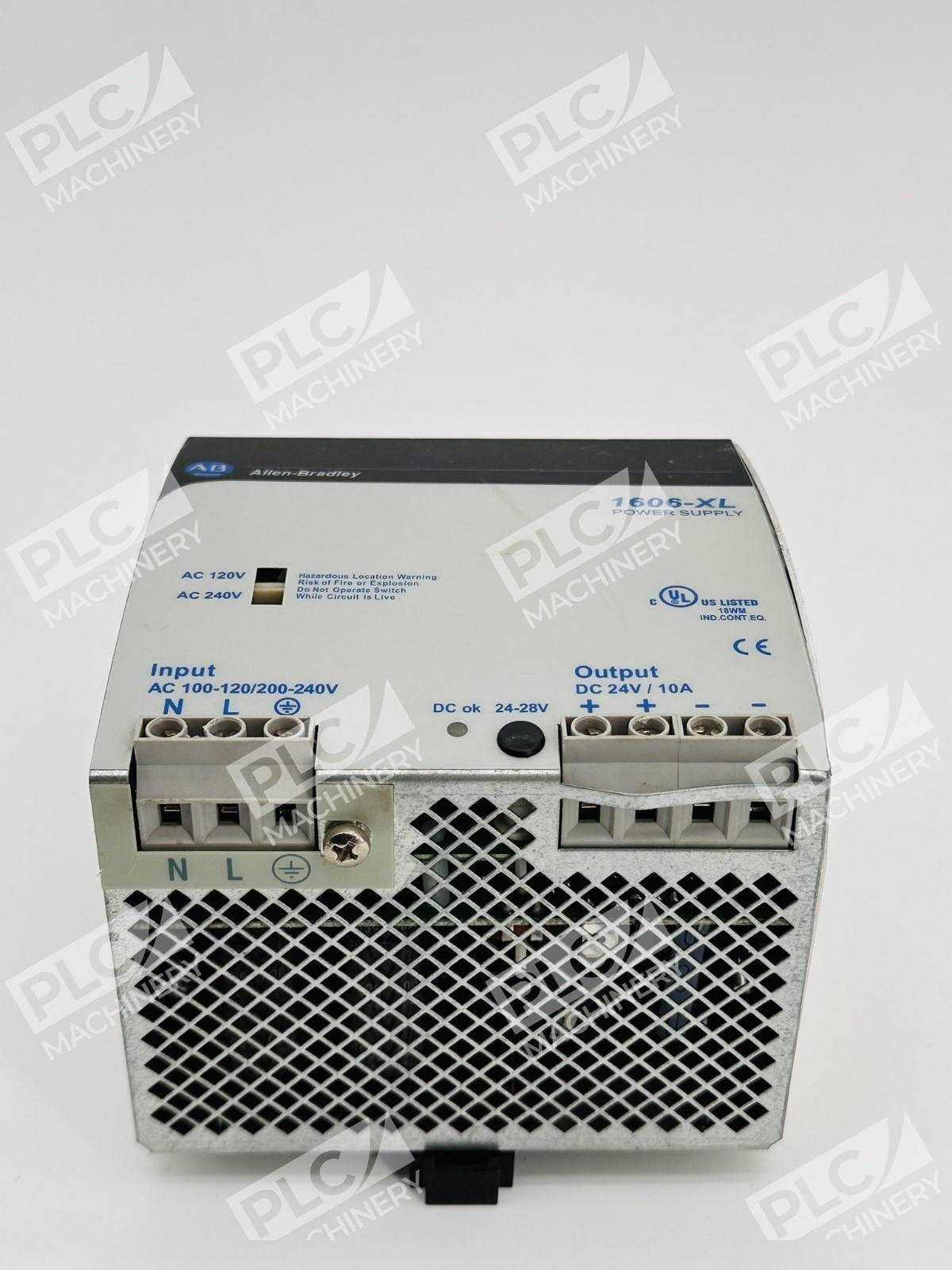

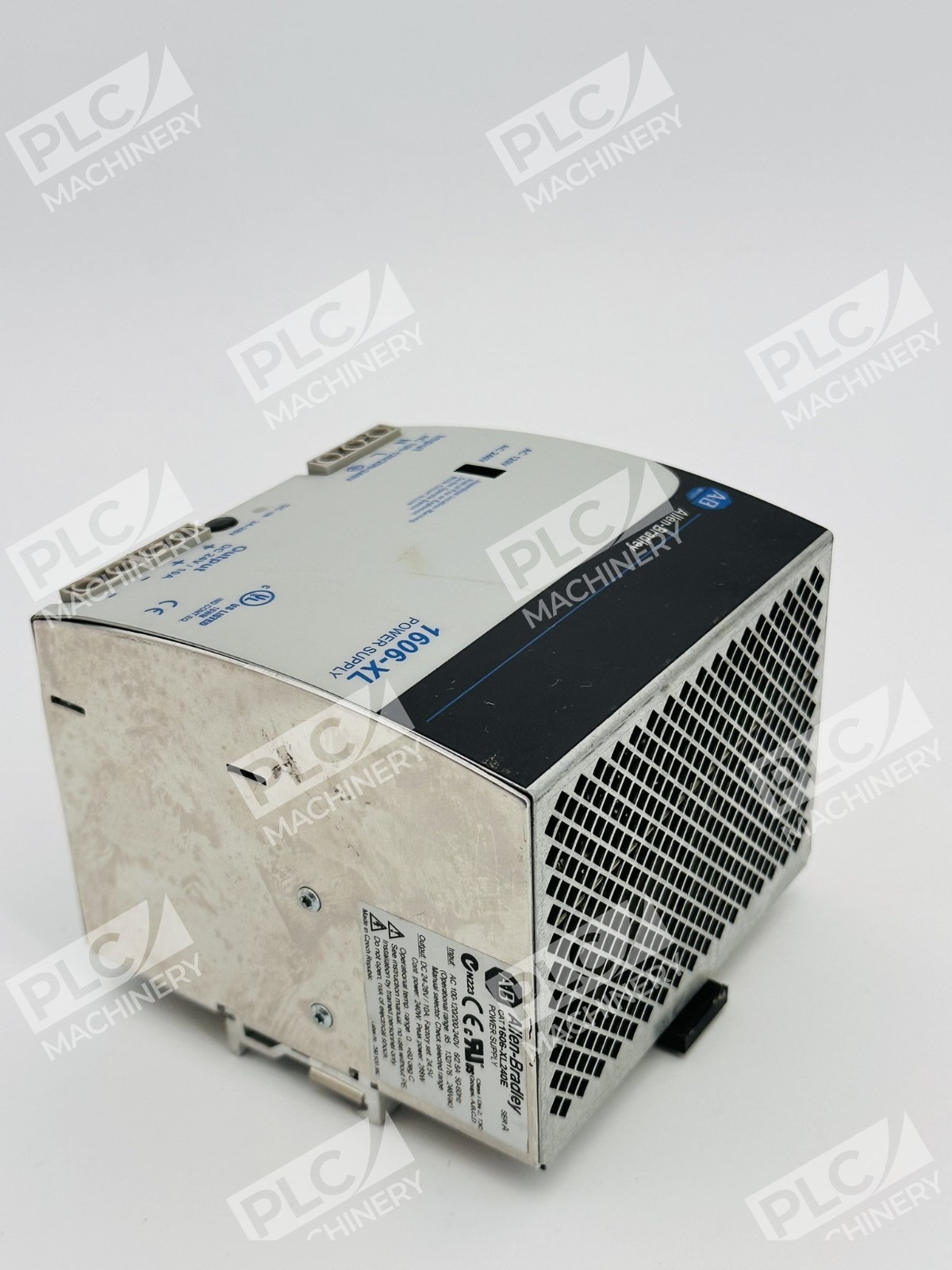

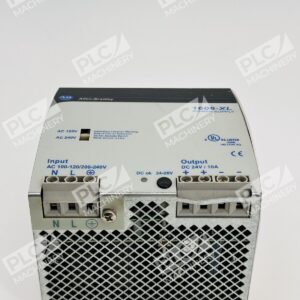

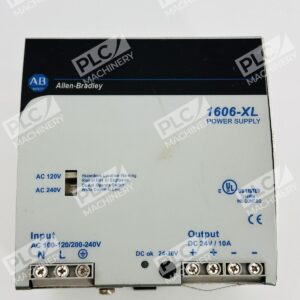

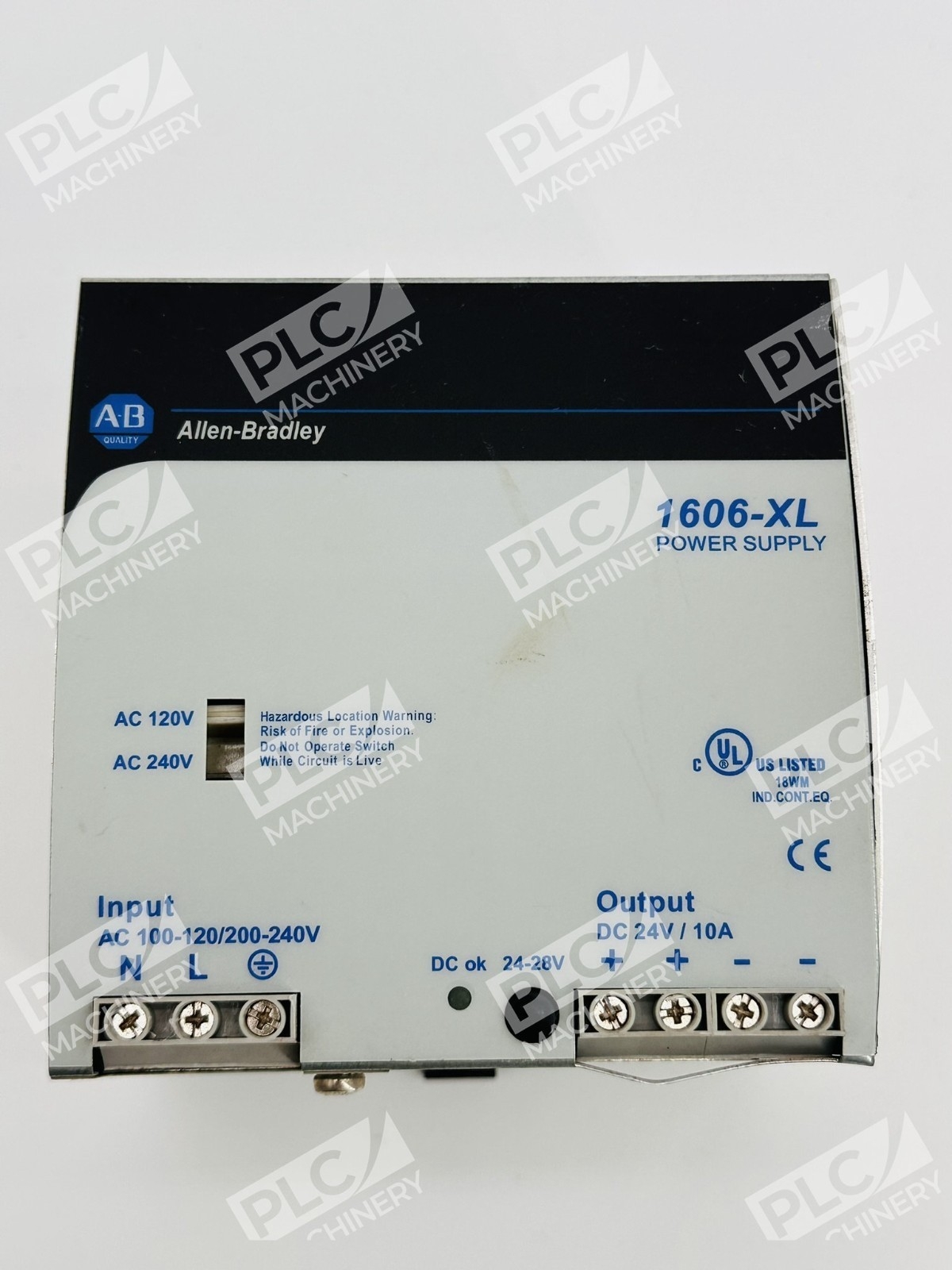

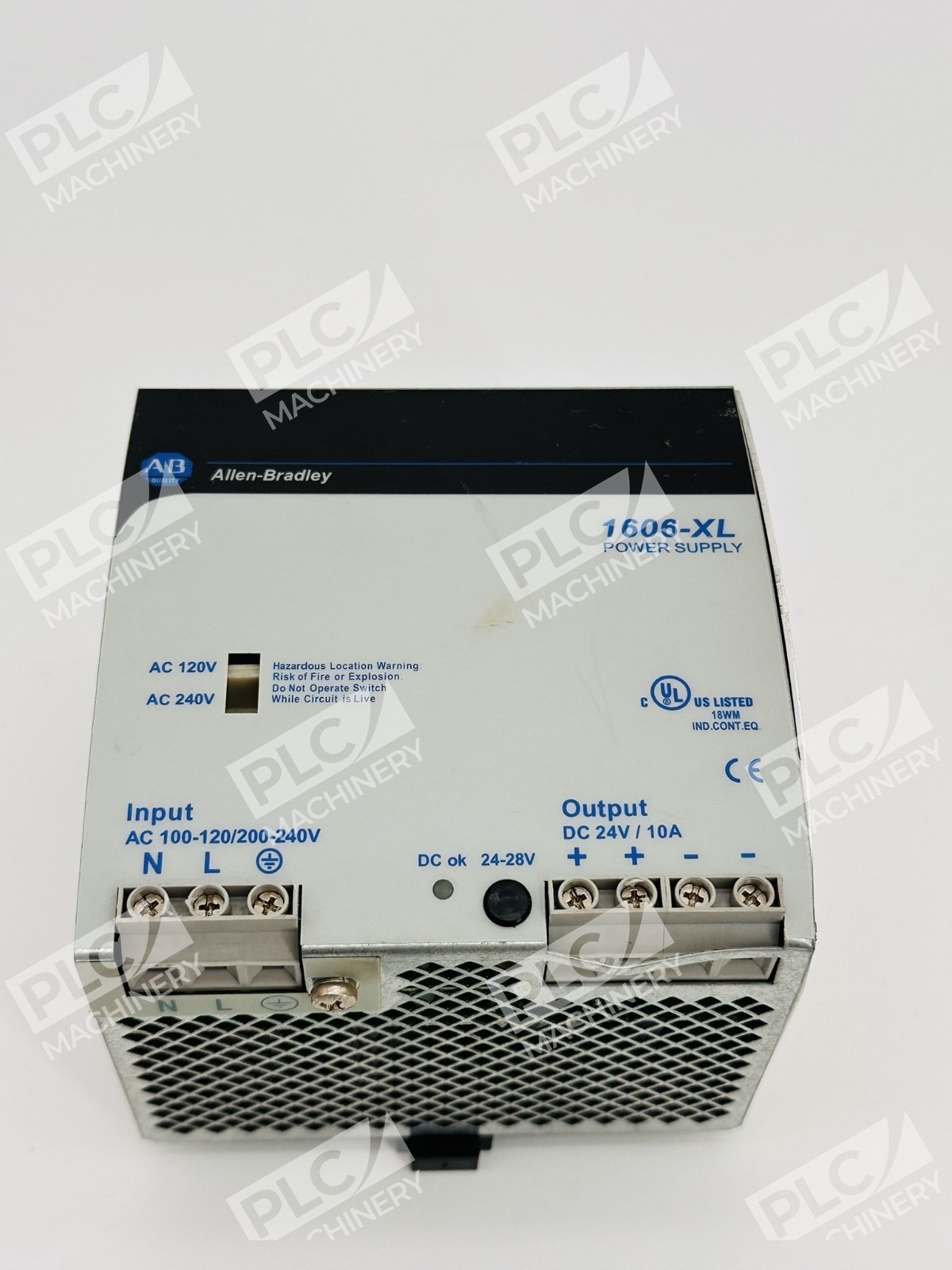

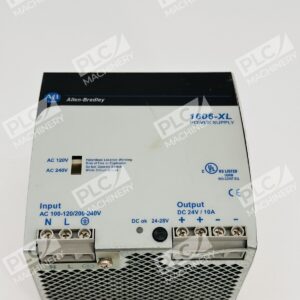

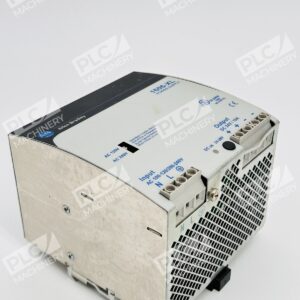

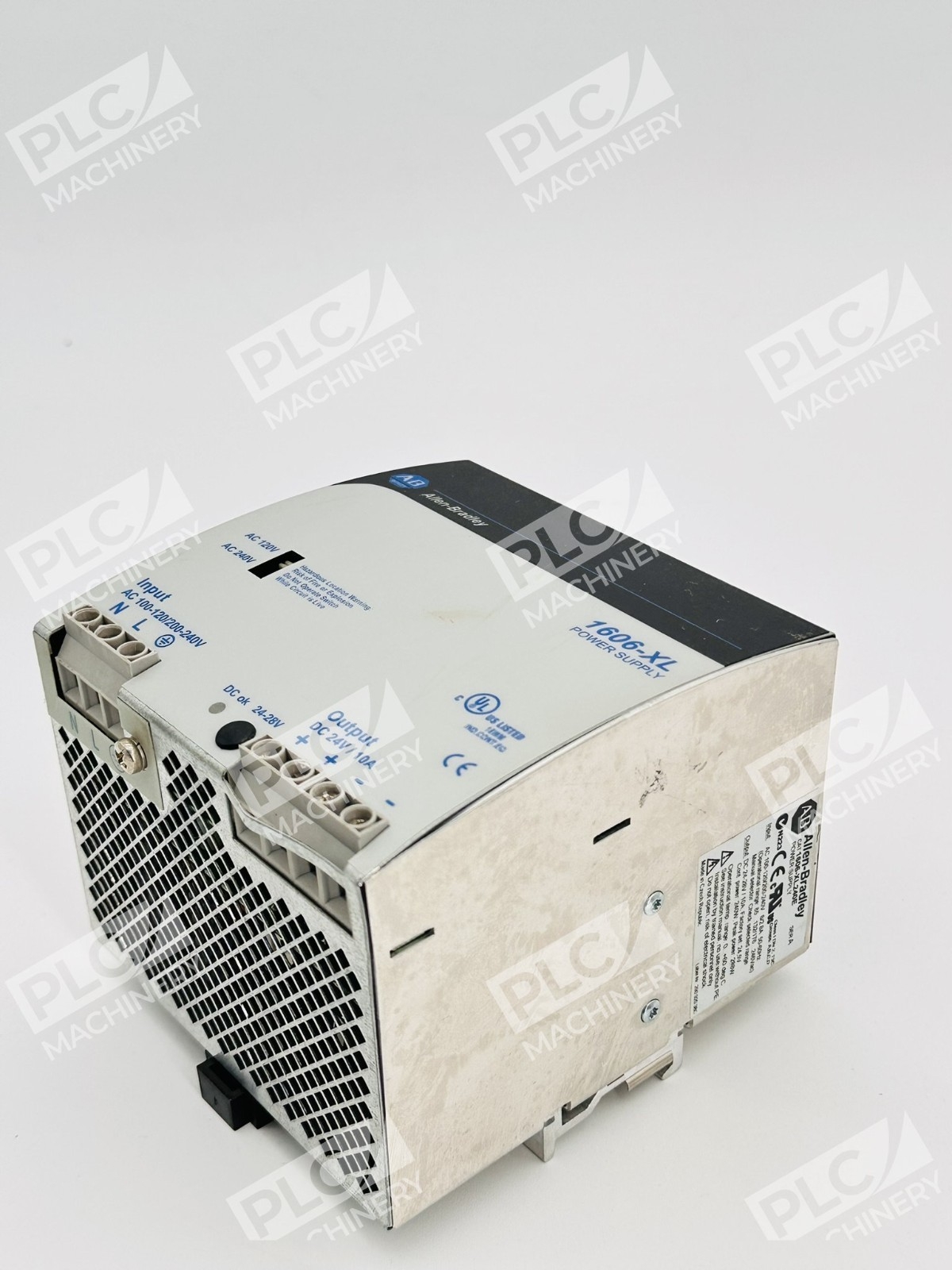

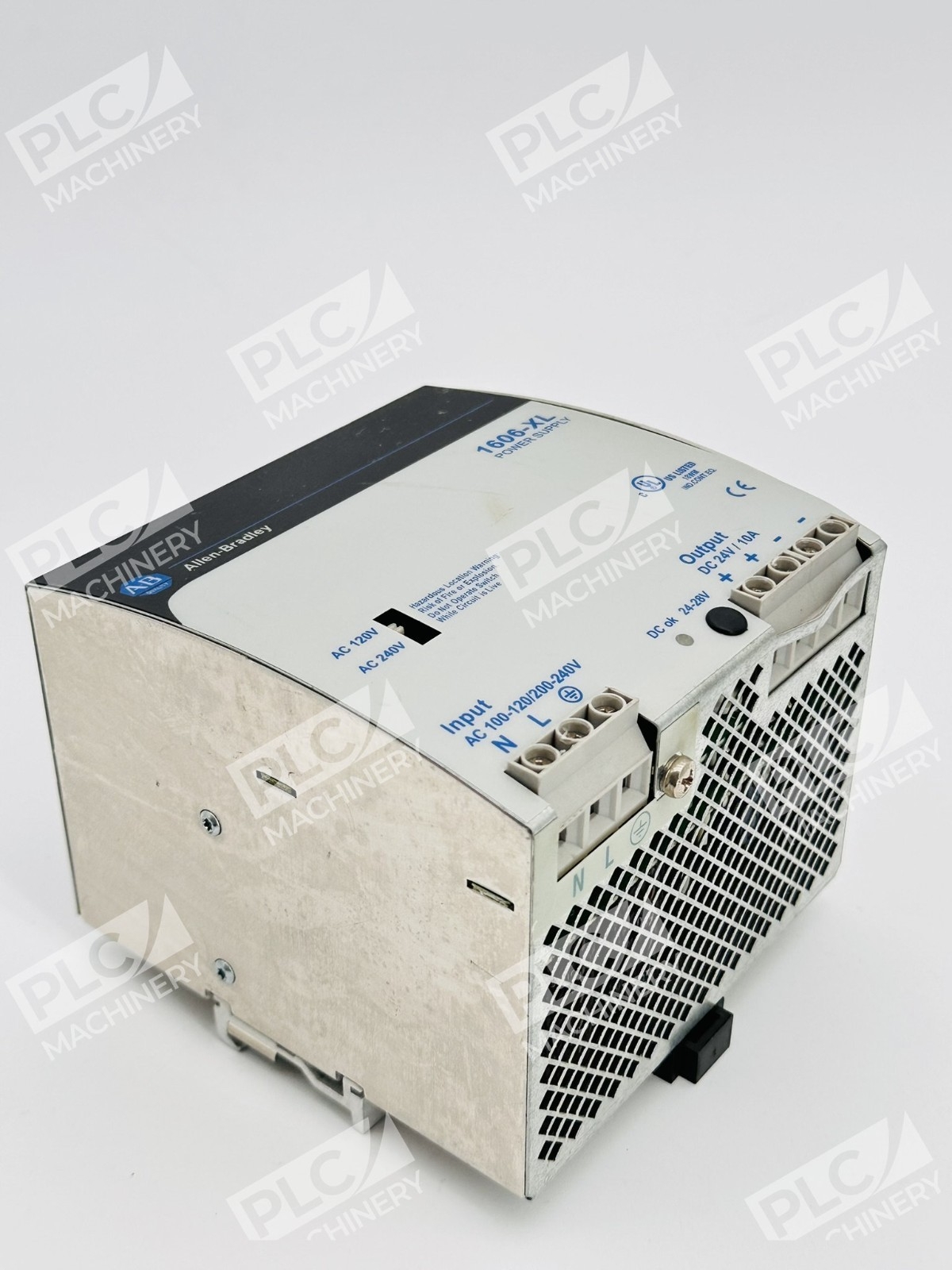

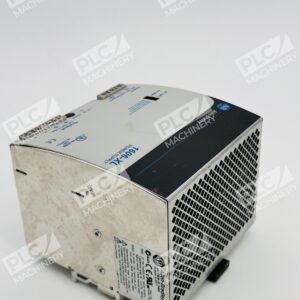

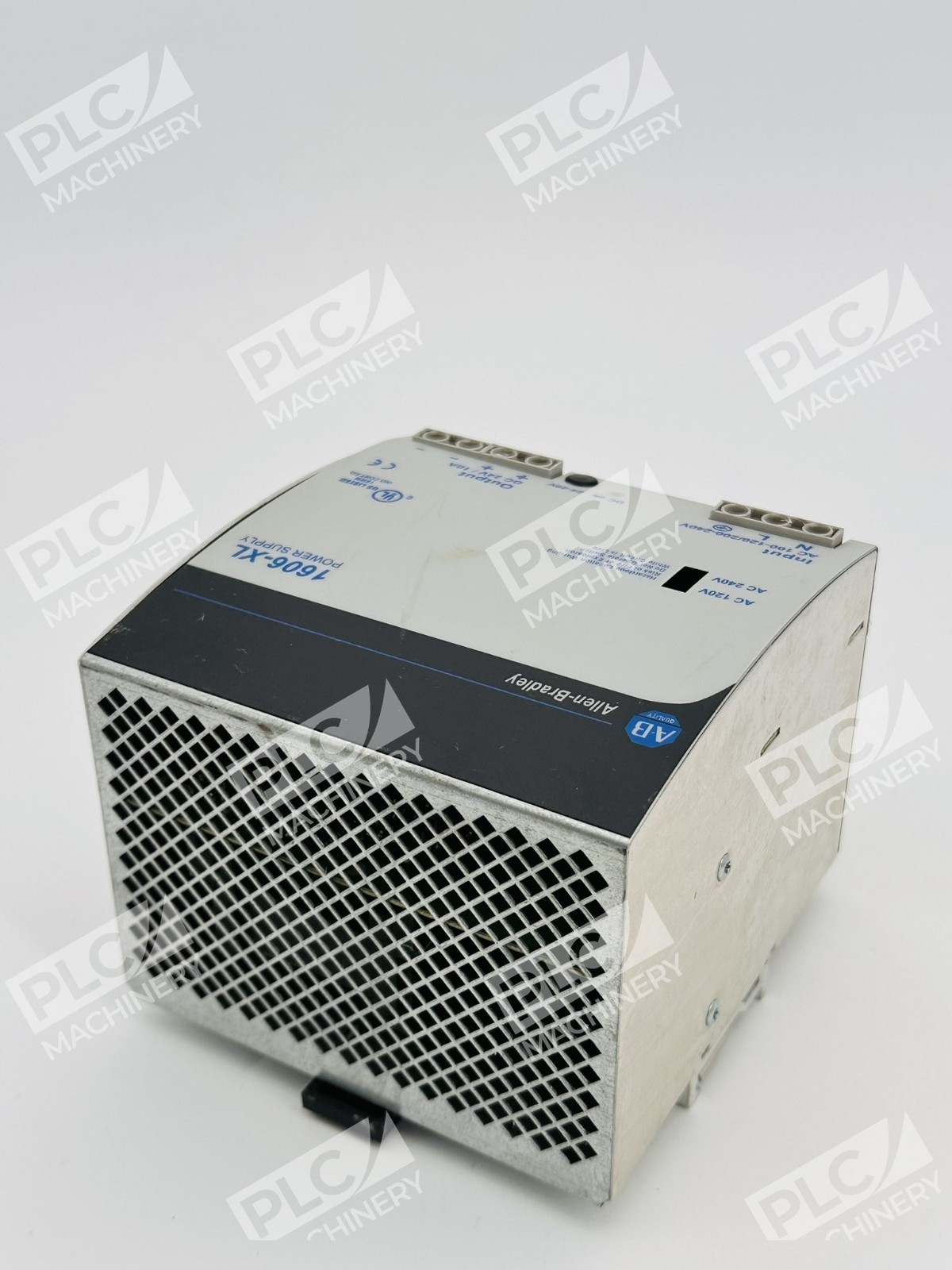

The Allen-Bradley 1606-XL240E Series A is a compact switched-mode power supply from the Bulletin 1606 product line, designed for PLC processors, programmable logic controllers, and industrial control systems. This unit is used and fully functional, offering exceptional value for controls engineers and system integrators seeking dependable backup or replacement inventory. The 1606-XL240E delivers 240 watts of regulated DC power with optional power boost to 288 watts, making it suitable for demanding automation applications.
Key Features
- Compact DIN rail-mount design for space-efficient installation
- Wide input voltage range: 100-240V AC autoselect (85-132V / 176-246V)
- Switchable single/parallel operating modes; supports up to 5 units in parallel
- Front panel potentiometer preset at 24.5V with adjustable output
- Power boost capability: 288W maximum output
- Status LEDs (green and red) for operational monitoring
- Rugged electronics rated for 105°C and MTBF exceeding 500,000 hours
- Global certifications: UL, CE, CSA, C-Tick standards
Technical Specifications

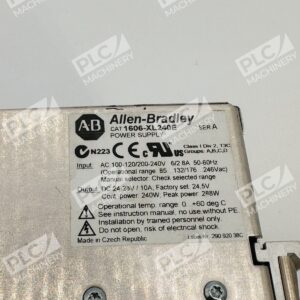

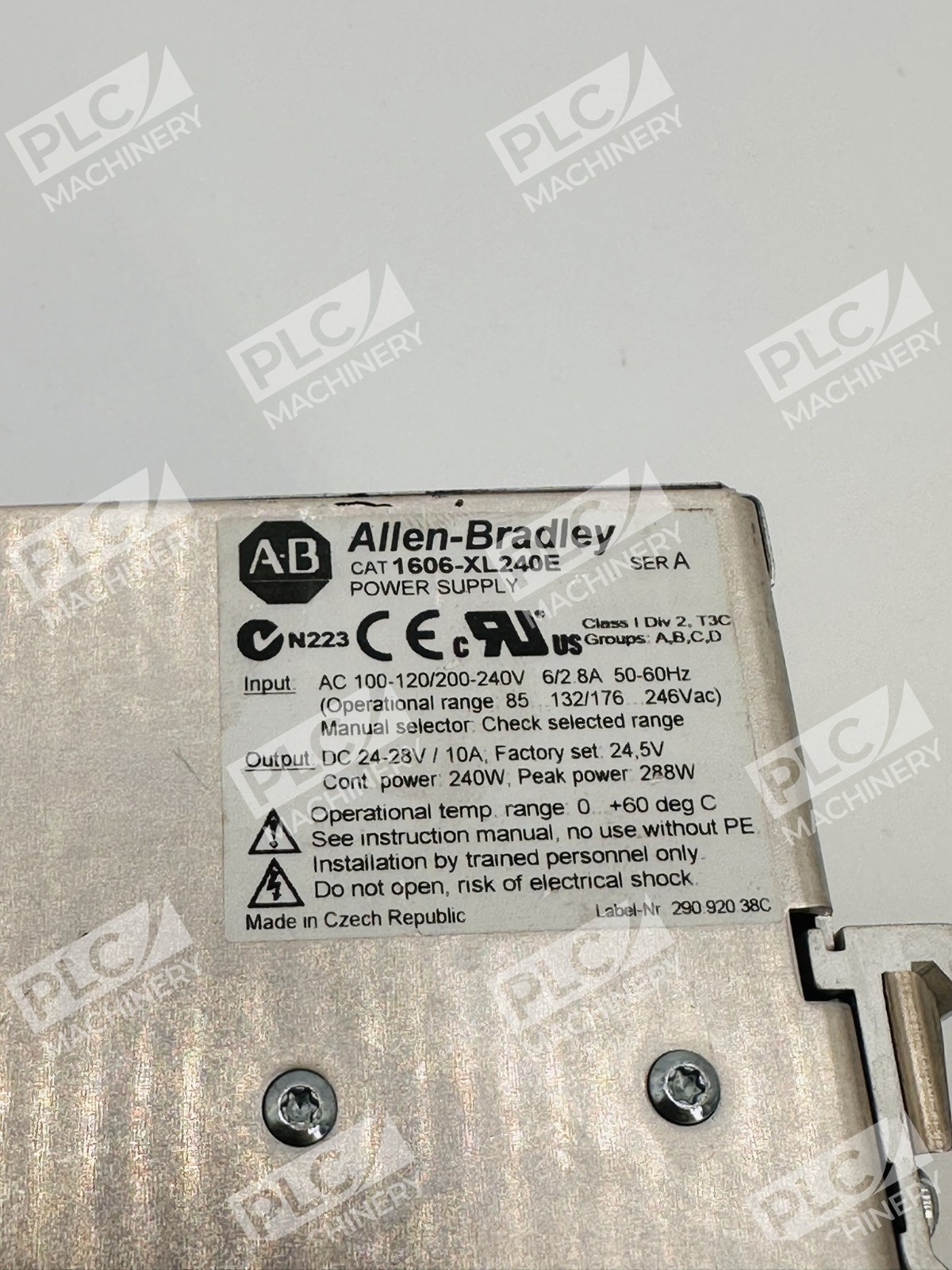

- Input Voltage: 100-240V AC, 50-60Hz, 6A / 2.8A (single/dual range selector)
- Output Voltage: 24-28V DC nominal
- Rated Output Power: 240W (boost to 288W)
- Output Current: 10A
- Operating Temperature: 0-70°C (derates above 60°C)
- Storage Temperature: -25 to +85°C
- Overvoltage Protection: 36-39V range

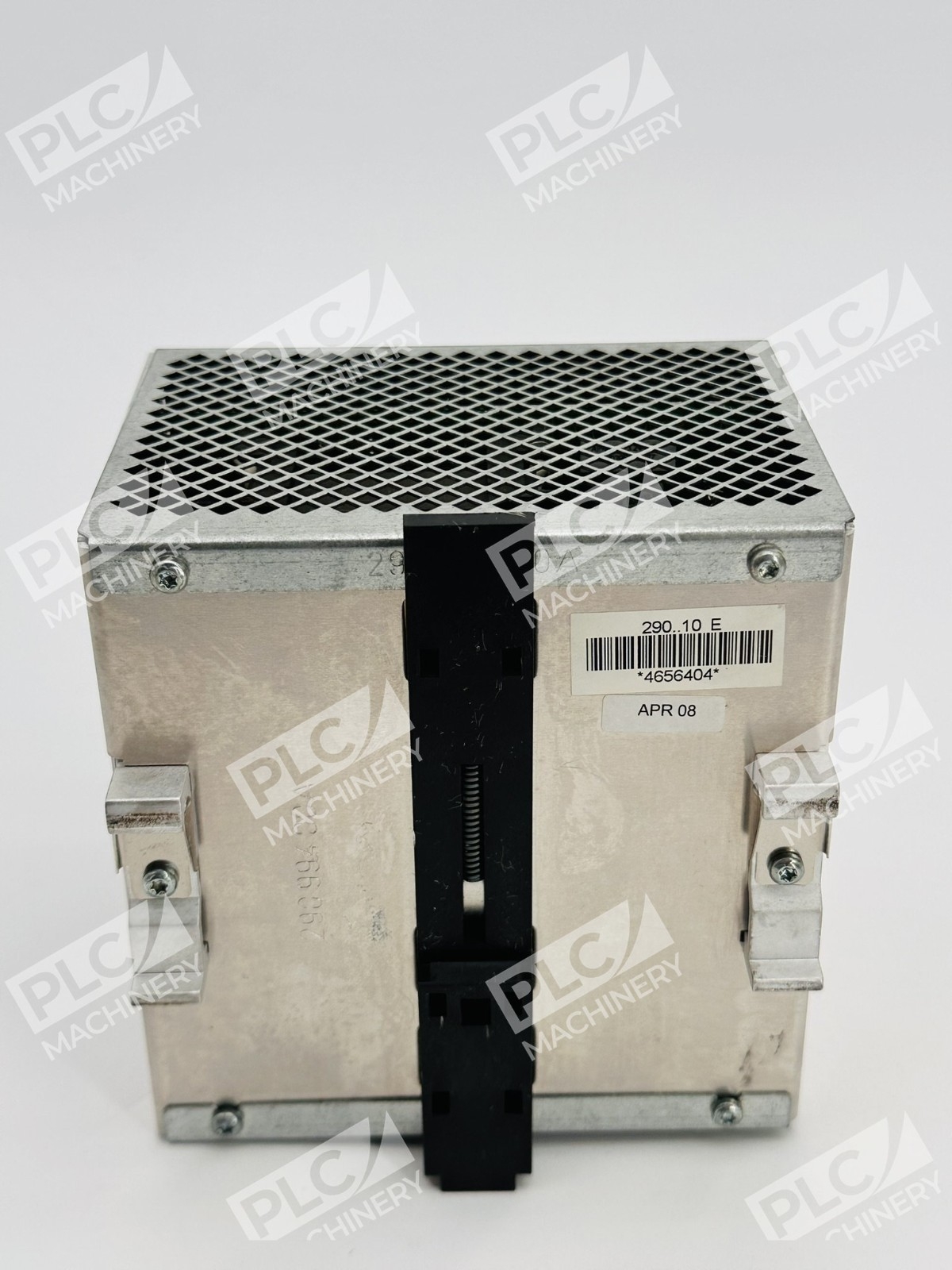

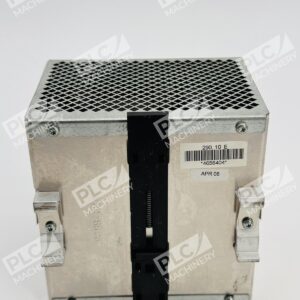

- Mounting: DIN rail base
- Weight: 2.10 lbs (0.95 kg)
- Startup Delay: 100 milliseconds
- Output Regulation: ±2% line and load
Typical Applications
The 1606-XL240E is well-suited for:
- CompactLogix and ControlLogix PLC power supply backup
- Industrial machinery control and panel automation
- Distributed I/O and remote terminal units
- Process control systems and production line equipment
- Motion control and servo system power distribution
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLC systems
- Bulletin 1600 and 1700 series I/O modules
- Remote I/O terminals and distributed control networks
- EtherNet/IP and ControlNet systems
- Industrial 24V DC control circuits
Replaces / Drop-In Replacement For
- 1606-XL240E (all Series A variants)
- Previous generation single-phase 240W power supplies in Bulletin 1606 series
Works With
- Studio 5000 Logix Designer configuration and commissioning
- Allen-Bradley PowerFlex drives and motion controllers
- EtherNet/IP and PROFINET industrial networks
- Standard 24V DC automation components and accessories
- Single and parallel redundancy configurations
