Overview
The Allen-Bradley 160-P1 is a program keypad module designed for the Bulletin 160 SSC variable speed drive family. This operator interface provides local, front-panel control and parameter management, making it essential for technicians and operators who need to configure, monitor, and troubleshoot AC drives in industrial automation environments.
Key Features
- Local keypad control with Start, Reverse, and Stop functions
- Real-time monitoring and modification of drive parameters
- LED indicators and 6-digit 7-segment display for status feedback
- Display mode and programming mode operation
- Drive status, input status, and fault code reporting
- Factory-installed option or field-installable retrofit
Technical Specifications

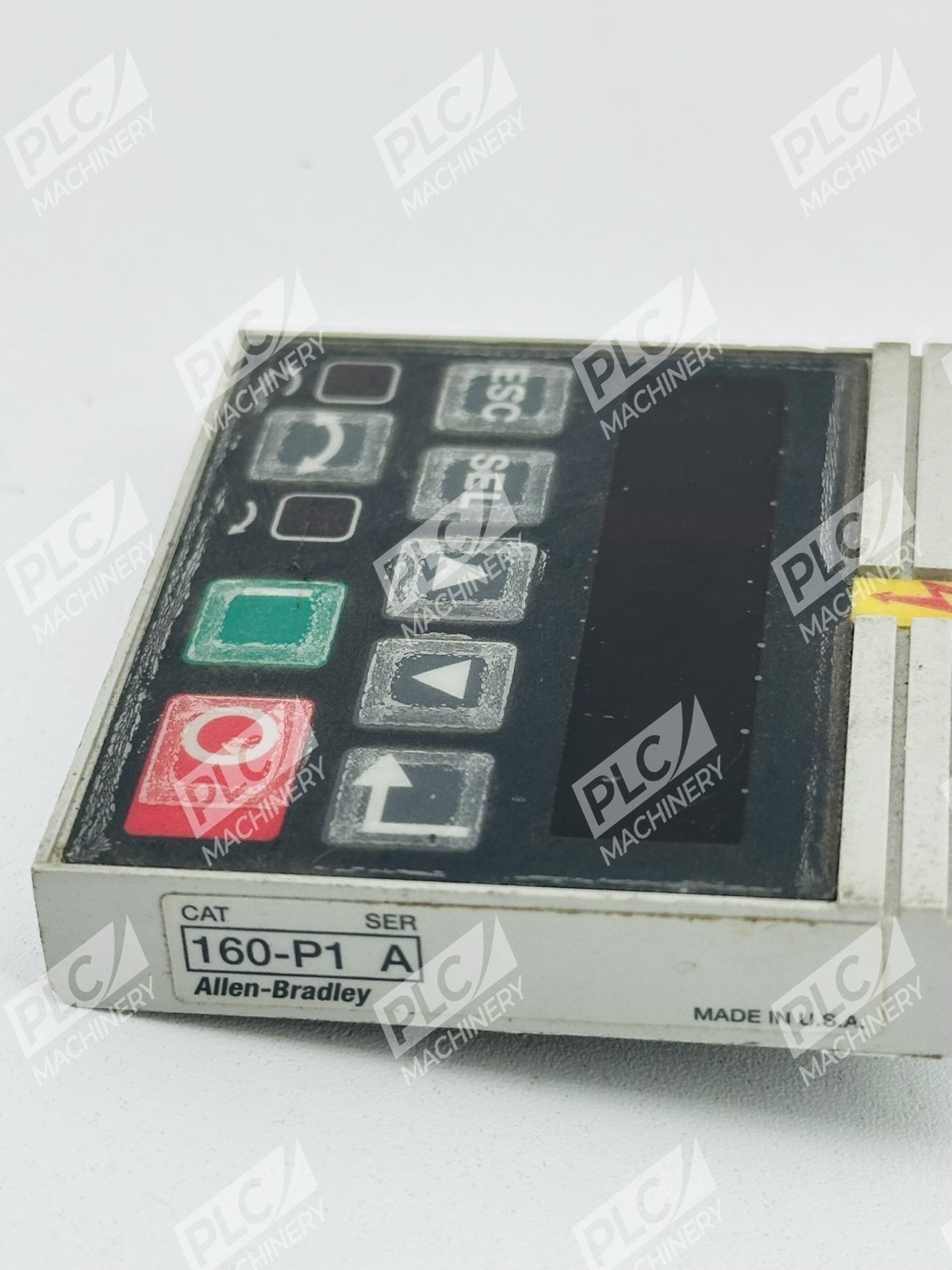

- Part Number: 160-P1
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Product Type: Program Keypad Module
- Compatible Drive Series: Bulletin 160 SSC
- Control Functions: Start, Stop, Reverse
- Display: 6-digit 7-segment LED
- Operating Temperature Range: 0 to 50°C
- Enclosure Rating: IP20
- Mounting: Direct panel mount or optional remote adapter
Typical Applications
The 160-P1 keypad module is ideal for:
- Local motor speed control and startup/shutdown operations
- Parameter tuning and fault diagnostics on AC variable speed drives
- Integration into NEMA and industrial panel installations
- Retrofit applications where remote control is not required
- Multi-drive facilities where portable programming is beneficial
Compatibility & Replacements
Compatible With
- Bulletin 160 SSC variable speed drives (all models)
- Allen-Bradley 160-AA series drives
- Allen-Bradley 160-BA series drives
- Allen-Bradley 160S series drives
- Industrial automation control panels with DIN rail or panel mounting
Replaces / Drop-In Replacement For
The 160-P1 is a direct replacement for OEM program keypad modules used on discontinu or legacy Bulletin 160 SSC drives where the original keypad is damaged or missing. Verify specific model compatibility with your drive nameplate before ordering.
Works With
- Bulletin 160 SSC preset speed and adjustable frequency drives
- 3-phase and single-phase input voltage configurations
- Optional remote programming adapters (160-P2 remote keypad)
- DeviceNet and RS-232 communication modules
- DIN rail and panel-mount hardware kits
