Overview

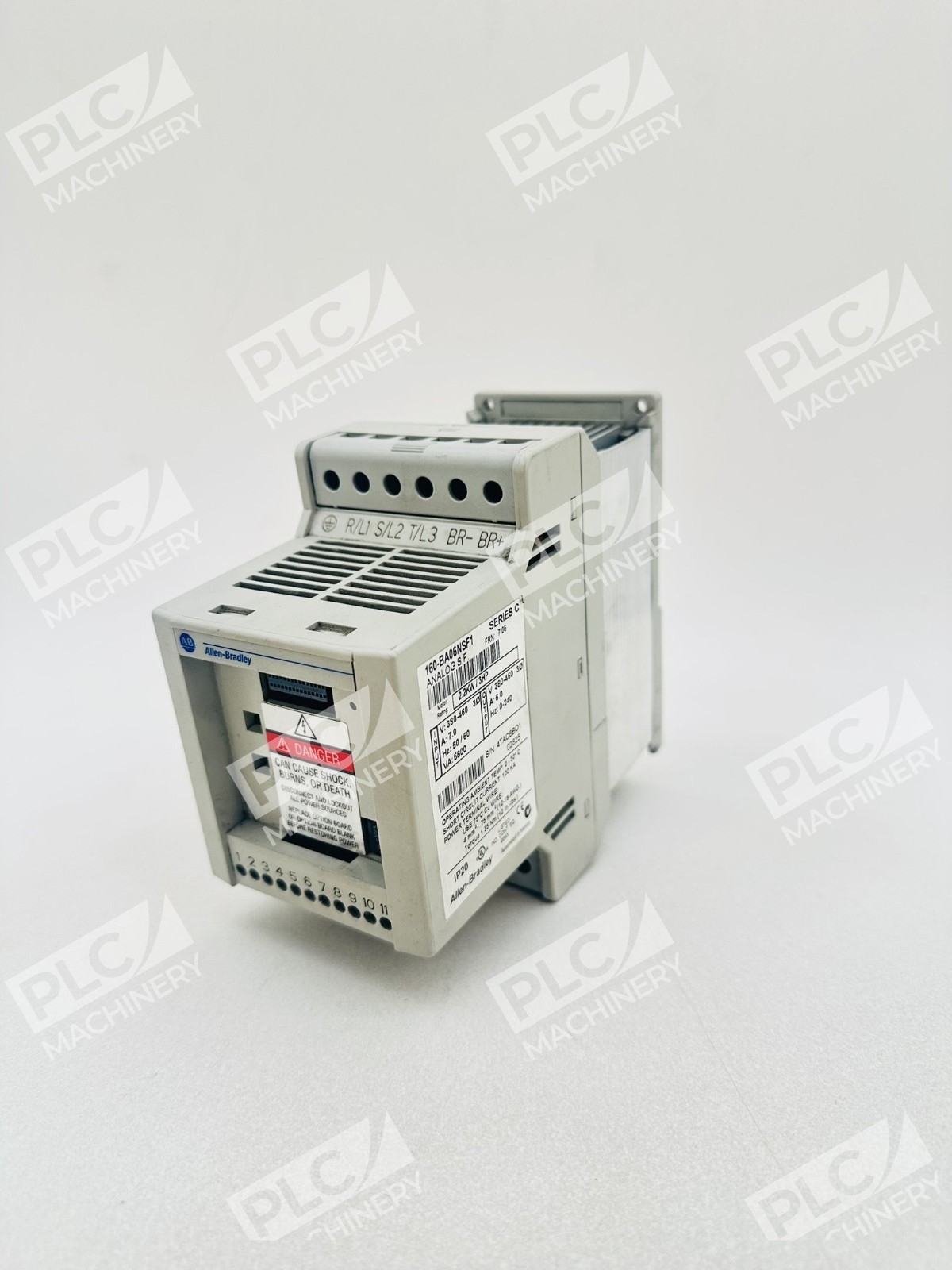

The Allen-Bradley 160-BA06NSF1 is a Series C Smart Speed Controller (SSC) variable speed drive from the Bulletin 160 series, engineered for compact, efficient control of AC induction motors up to 3 HP (2.2 kW). This 160-BA06NSF1 analog signal follower drive accepts external control signals for smooth speed adjustment, making it ideal for retrofit applications and installations requiring analog speed control without complex external logic.
Key Features
- Analog signal follower design—external analog input controls motor speed (0–240 Hz output frequency)
- High efficiency: 97.5%, reducing operational losses and heat generation

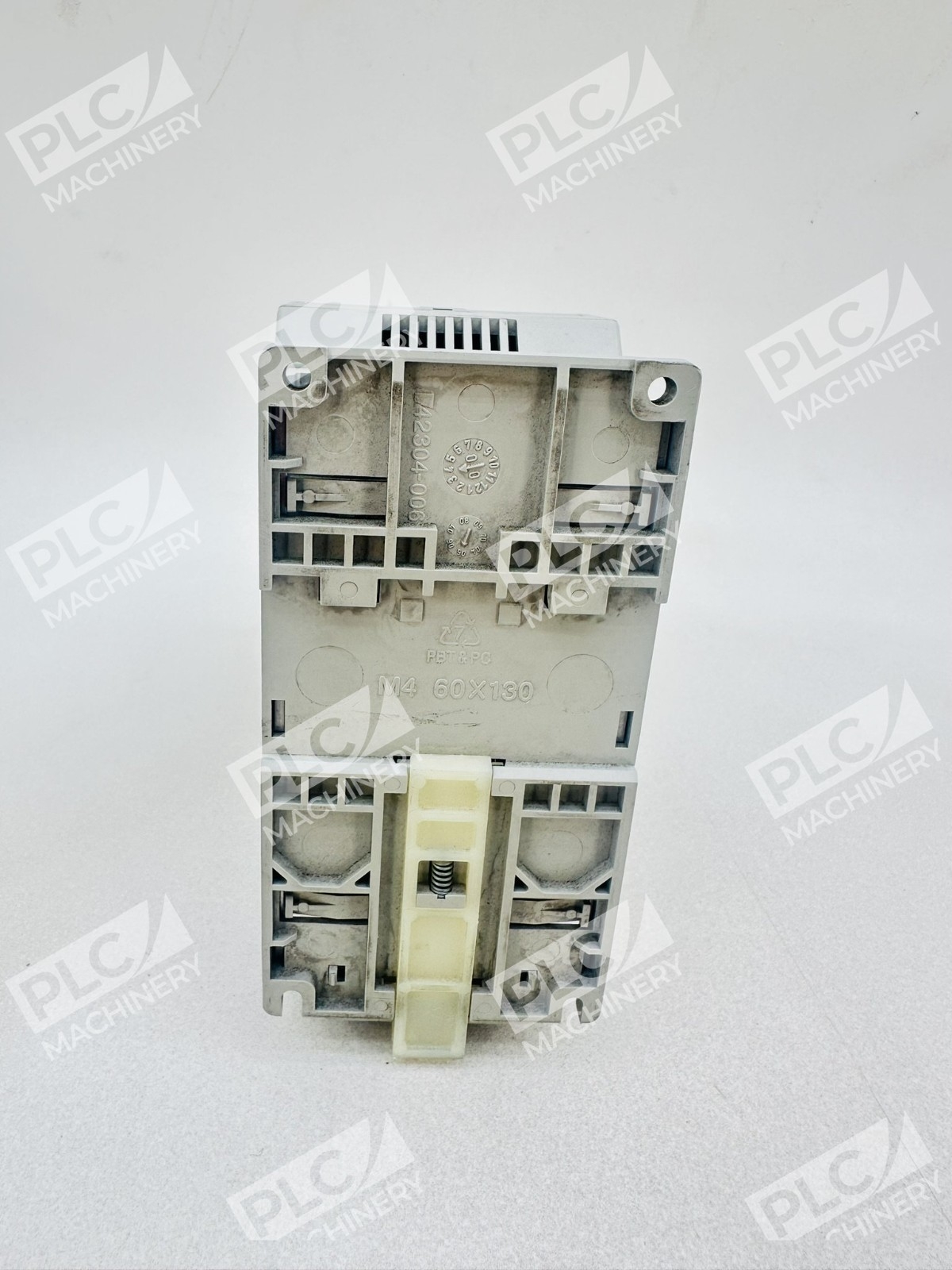

- Compact form factor with DIN rail mounting—minimal panel space required
- Cooling fan for continuous thermal management and reliable operation

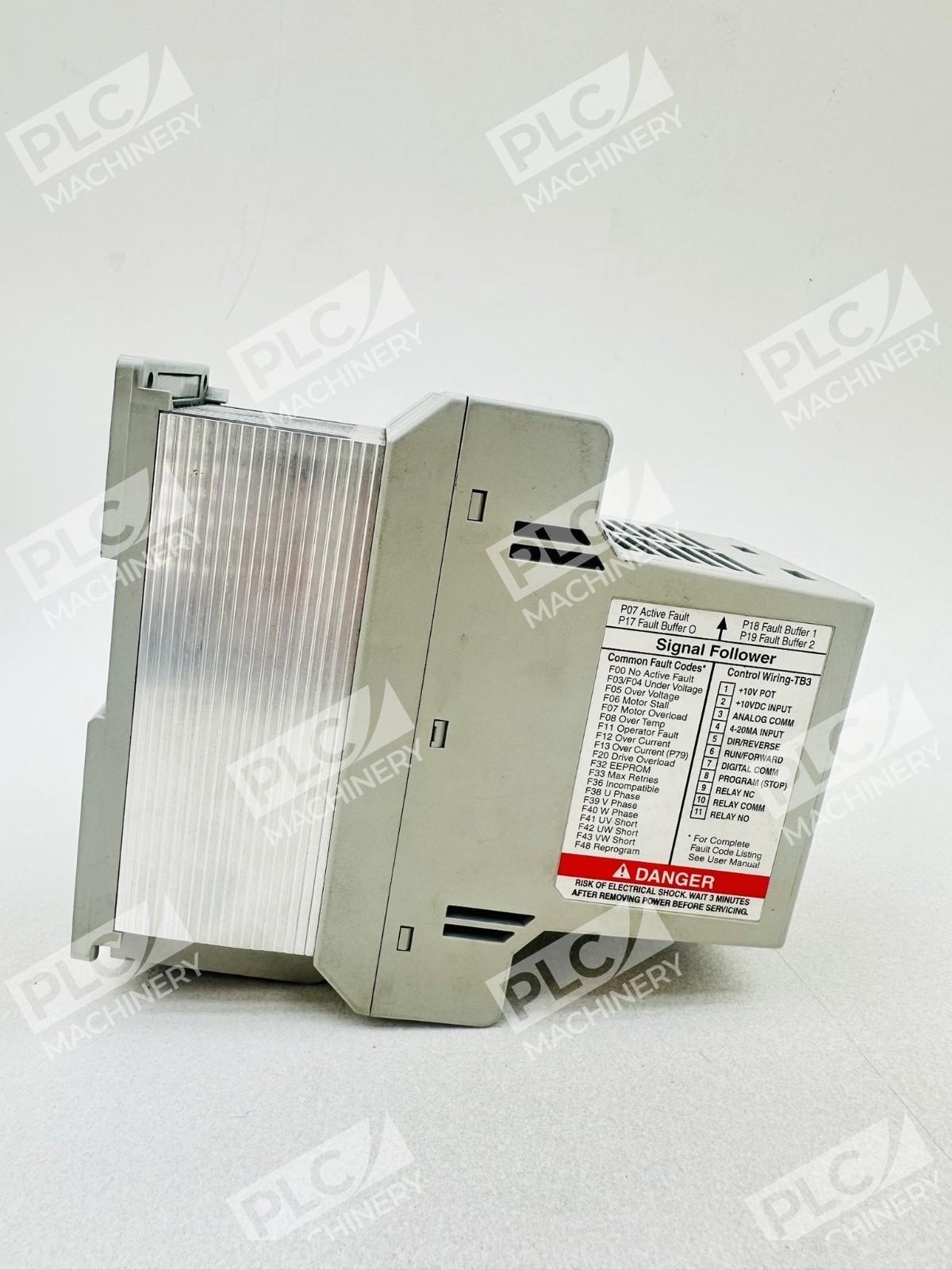

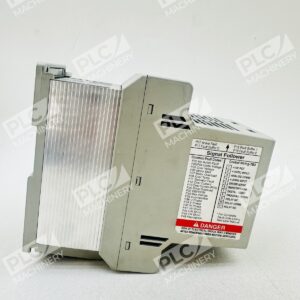

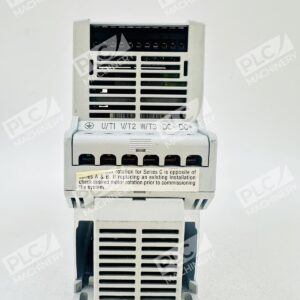

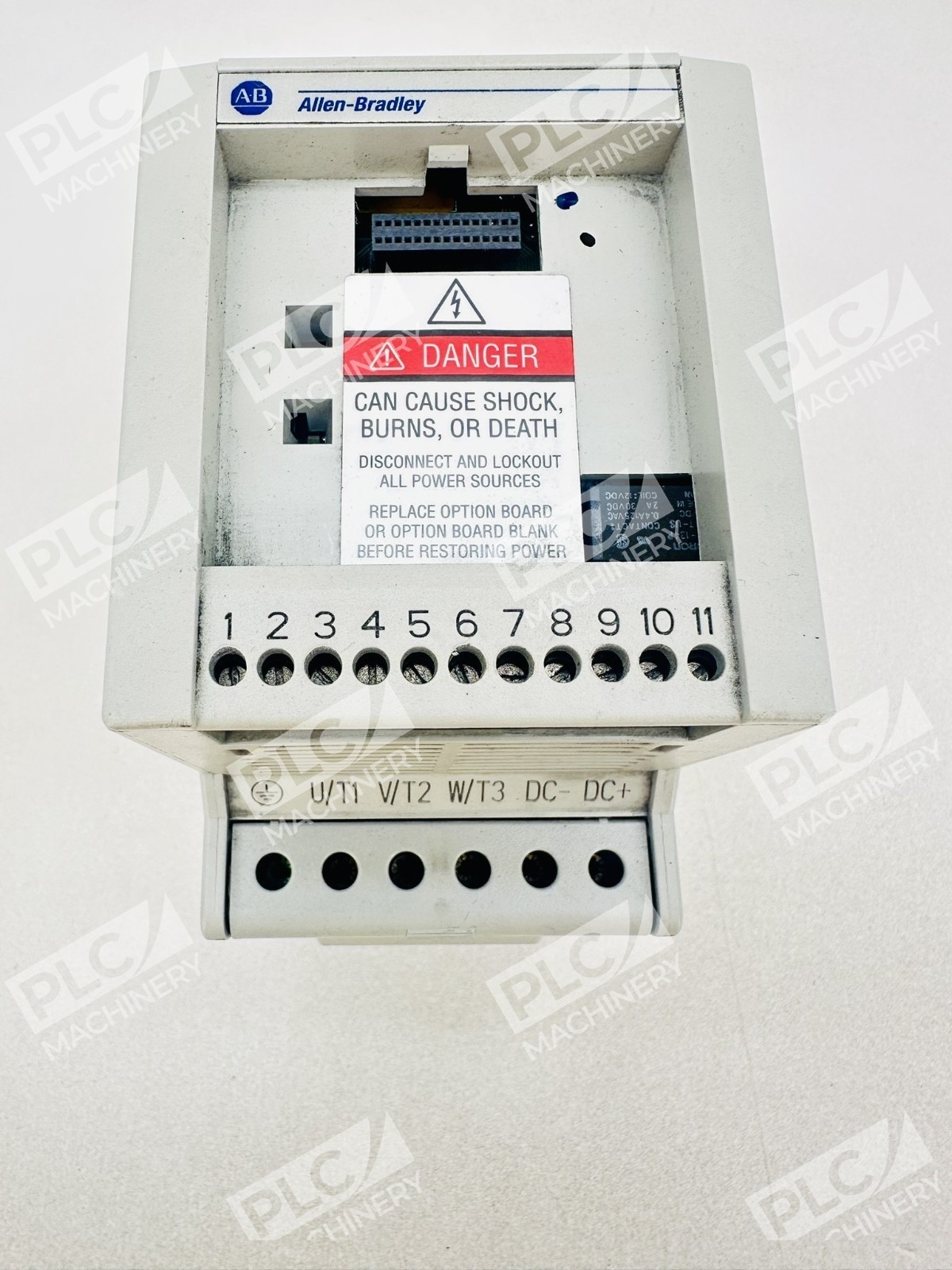

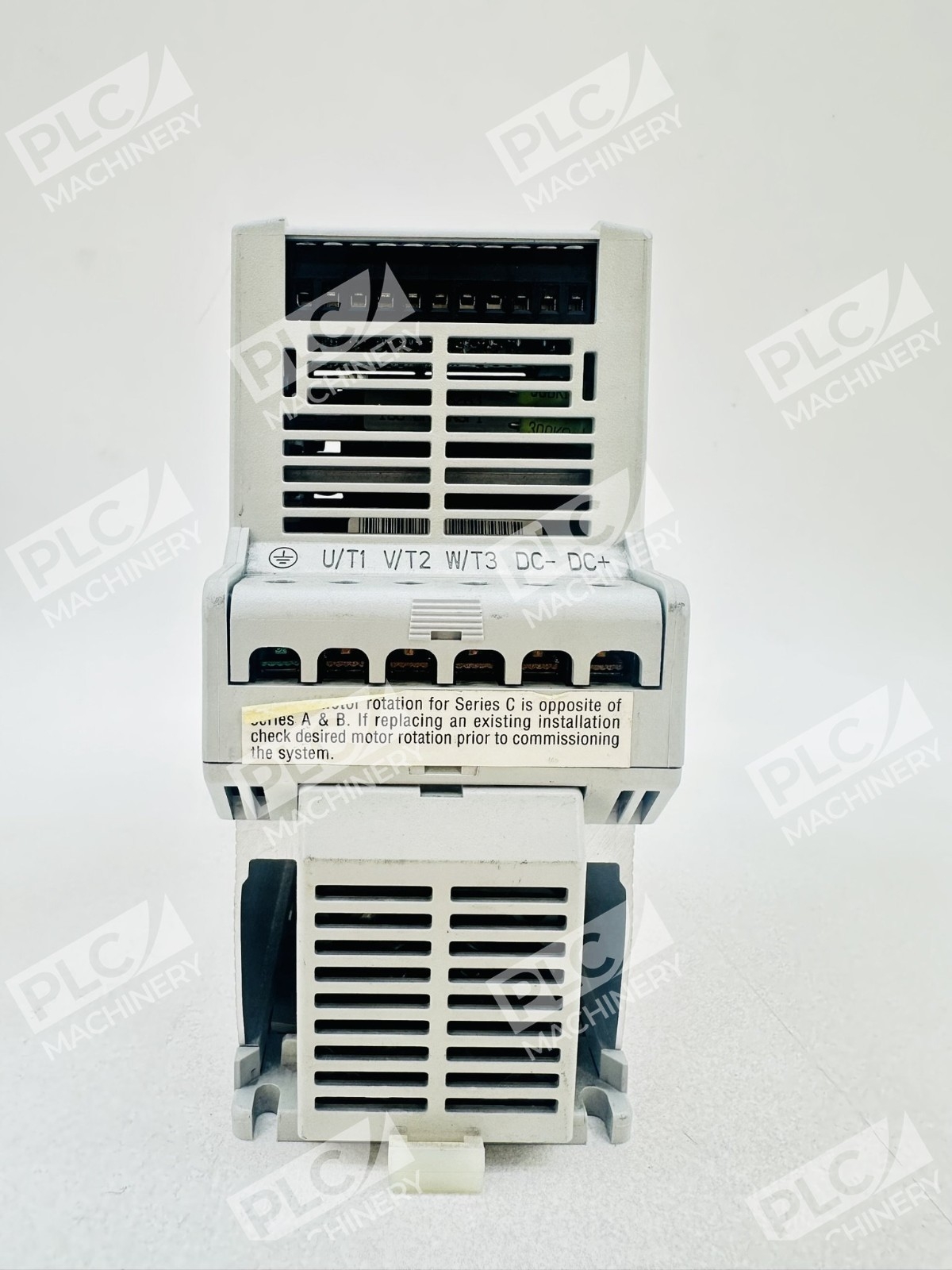

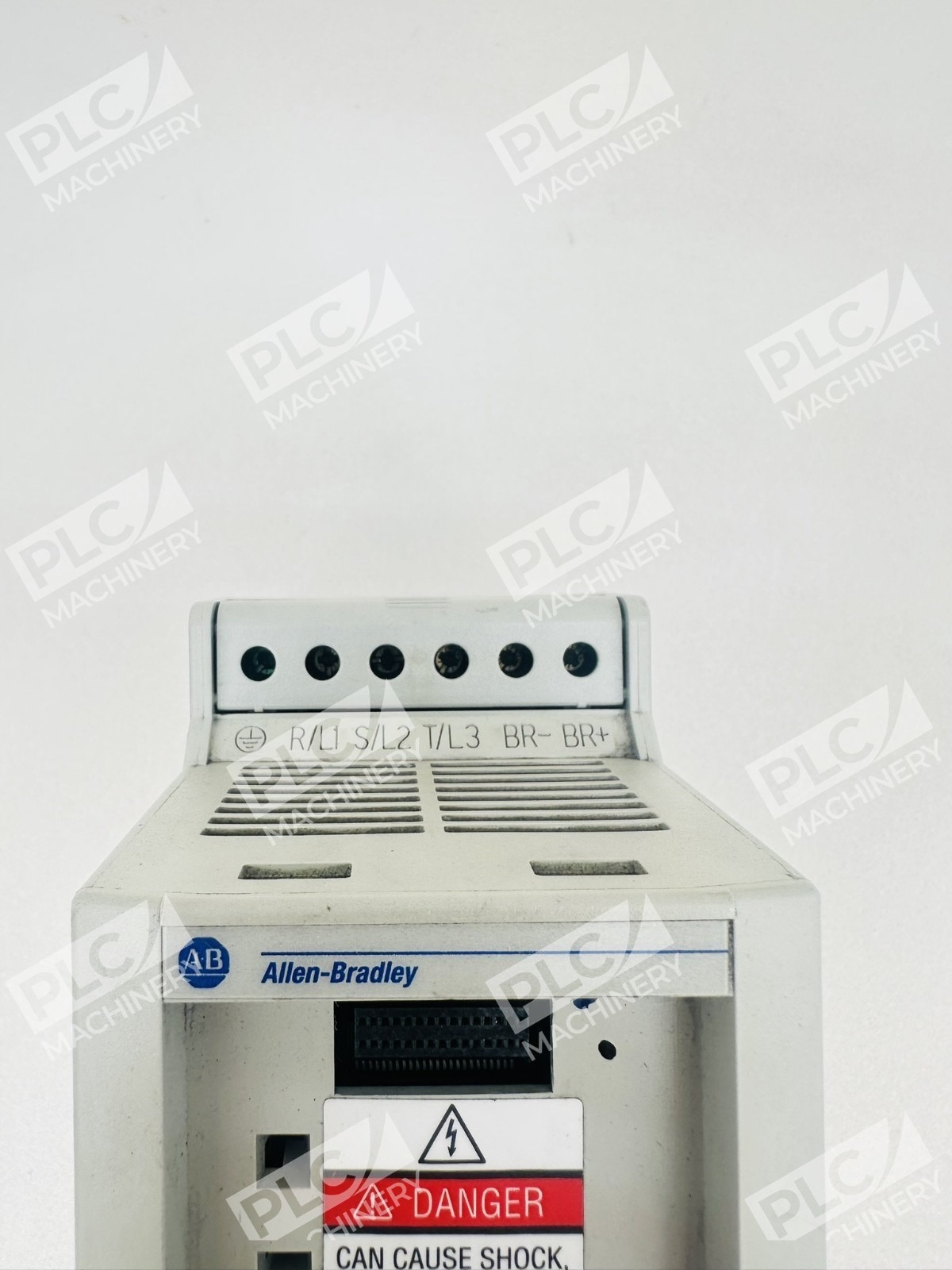

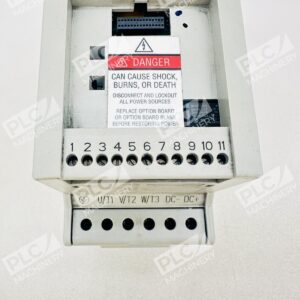

- IP20 open enclosure with power terminals optimized for direct wiring and grounding
- Optional accessories: DeviceNet, RS-232, ProfiBus, or Interbus communication adapters; dynamic brake modules; line filters and reactors

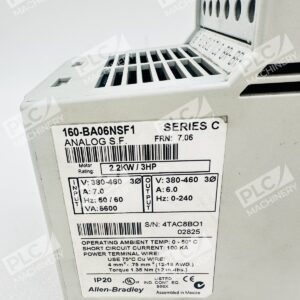

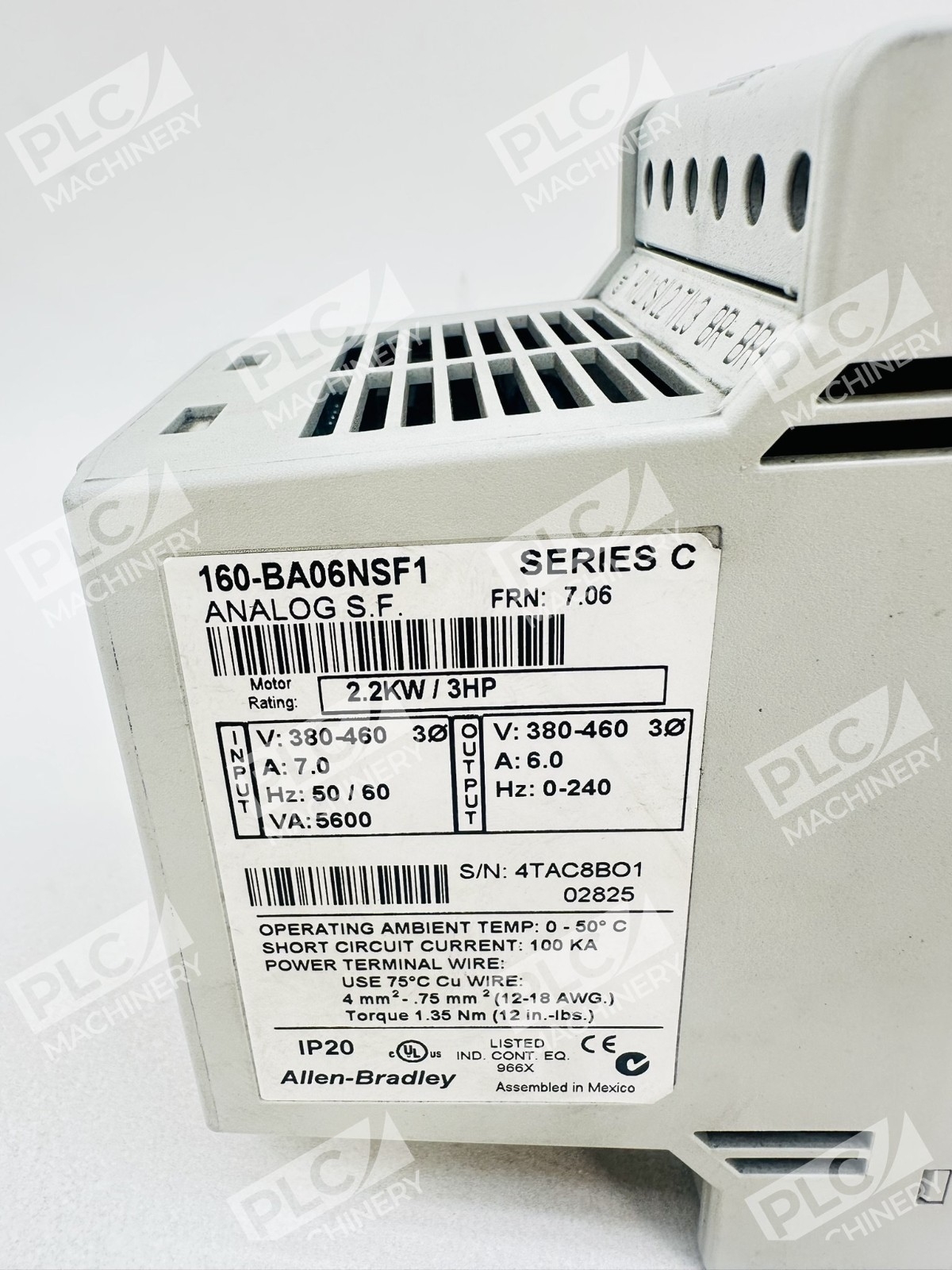

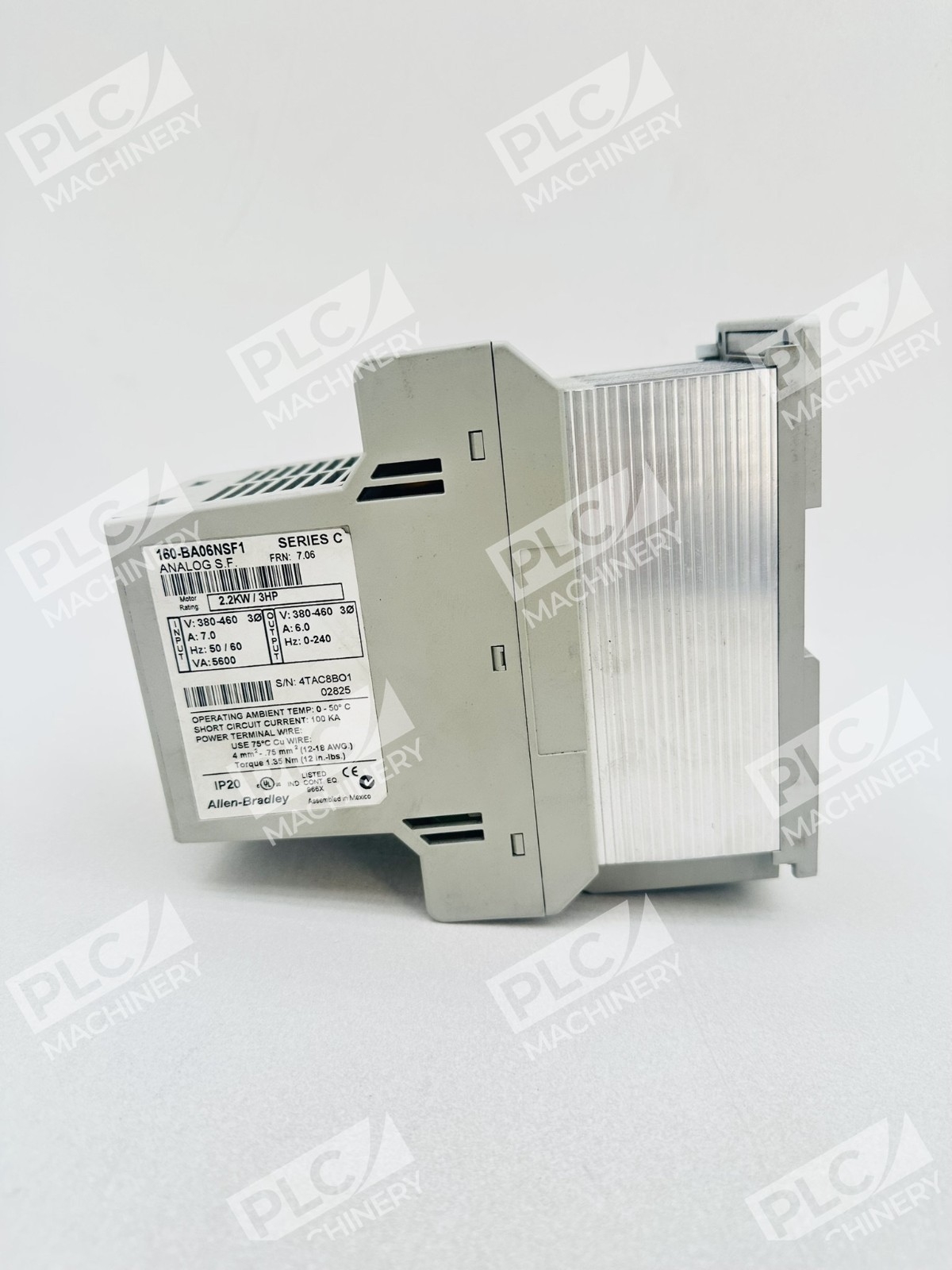

Technical Specifications
- Input Voltage: 380–460 VAC, 3-phase, 50/60 Hz
- Input Current: 7.0 A
- Output Voltage: 380–460 VAC, 3-phase
- Output Current: 6.0 A
- Power Rating: 2.2 kW / 3.0 HP
- Output Frequency Range: 0–240 Hz
- Efficiency: 97.5%
- Heat Dissipation: 25 W
- Enclosure Type: IP20 open enclosure
- Operating Temperature: 0–50°C
- Dimensions: Approximately 7.58 × 3.62 × 7.6 inches (L × W × H)
- Weight: 1.10 kg (2.50 lbs)
- Control Model: Analog Signal Follower (SF1)
- Series: Bulletin 160 SSC (Smart Speed Controller)
Typical Applications
The 160-BA06NSF1 is widely used in:
- Small-capacity AC motor speed control in HVAC, pump, and fan applications
- Retrofit installations requiring drop-in variable speed control without external PLC or controllers
- Conveyor systems and material handling equipment requiring adjustable output frequency
- Industrial processes where analog voltage or current signals dictate motor speed demand
- Compact control panels with space constraints due to its minimal footprint
Compatibility & Replacements
Compatible With
- Bulletin 160 SSC drive ecosystem and accessories
- External analog control signals (0–10 VDC or 0–20 mA)
- DeviceNet fieldbus networks (with optional adapter)
- RS-232 serial communication (with optional adapter)
- ProfiBus and Interbus networks (with optional adapters)
- DIN-rail mounting systems and standard control panel layouts
- AC induction motors rated 2.2 kW or 3.0 HP
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 160-BA06NSF1 is a legacy Series C drive; replacement models and direct substitutes vary by application and communication requirements.
Works With

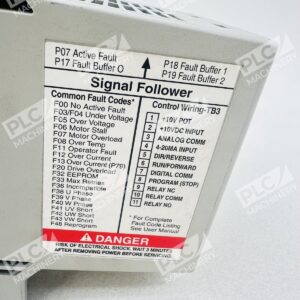

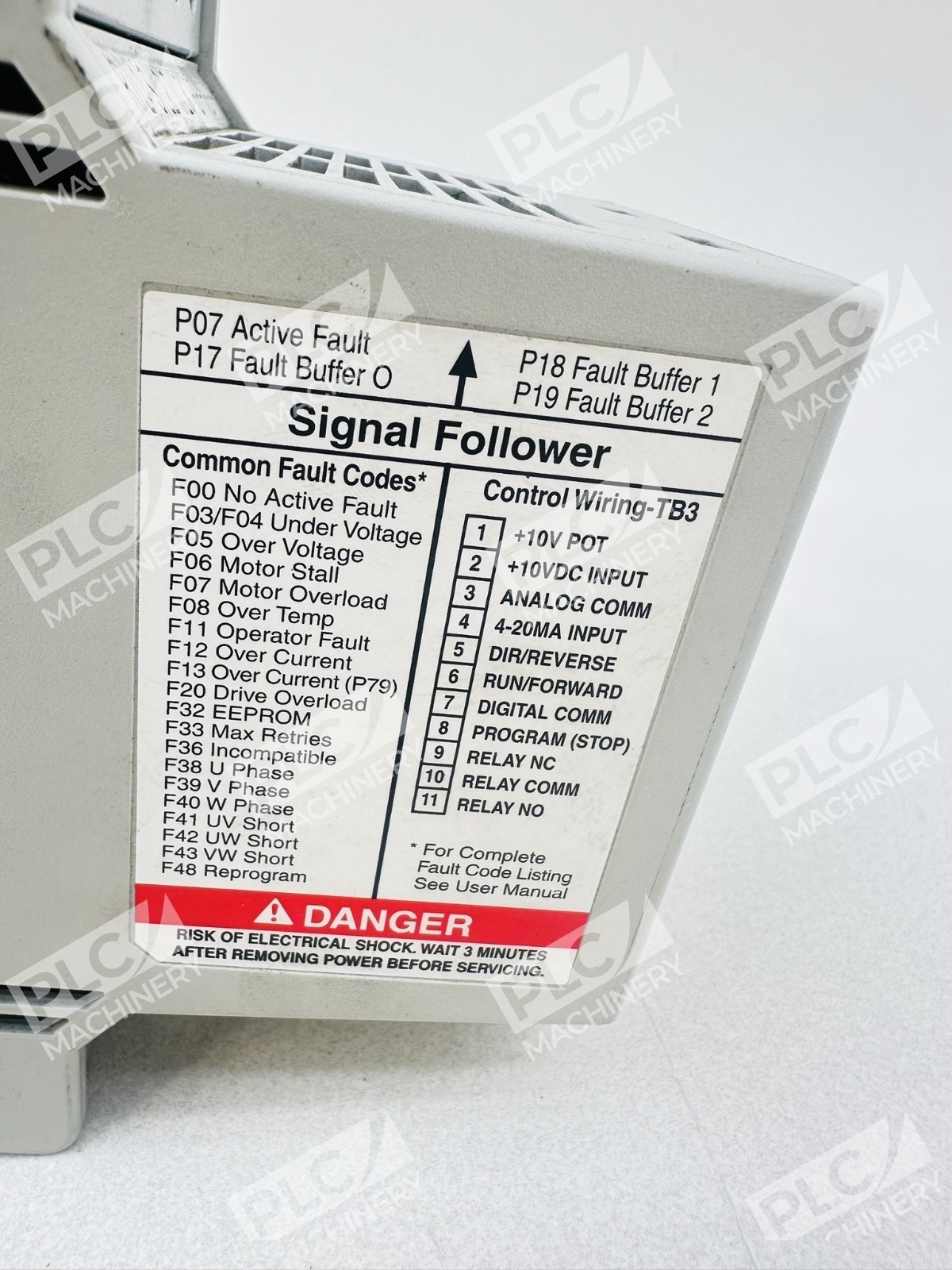

- Analog control input (external 0–10 VDC or 4–20 mA signal)
- Optional communication modules: DeviceNet, RS-232, ProfiBus, Interbus
- Dynamic brake modules (configurable via Parameter 52 or DB enable)
- Line filter and reactor modules for EMI suppression
- Capacitor modules for ride-through capability and brake performance
- Standard programmable keypad or handheld remote (optional)
