Overview
The Allen-Bradley 1494F-L4 is a door hardware kit engineered for NEMA Type 12 industrial enclosures. Designed specifically for 1494F and 1494D disconnect switches, this kit provides all necessary components for secure door mounting in enclosures exceeding 48 inches in height. Right-hand installation configuration with top, side, and bottom mounting points ensures compatibility with standard industrial control panel layouts.
Key Features

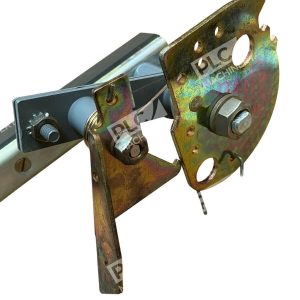

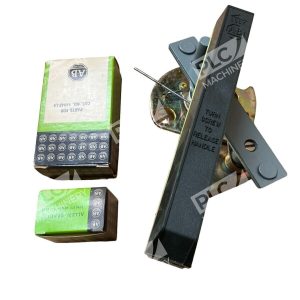

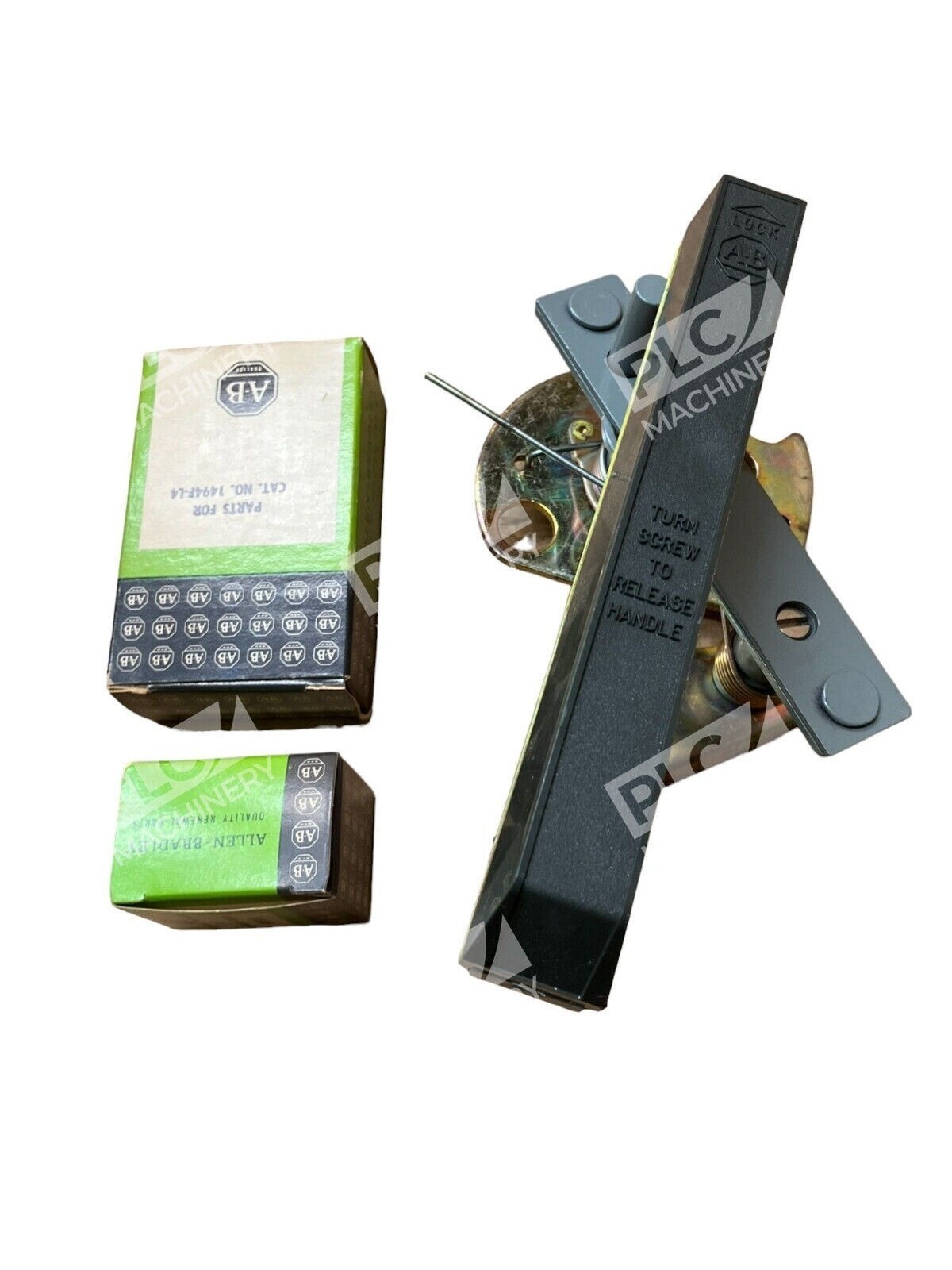

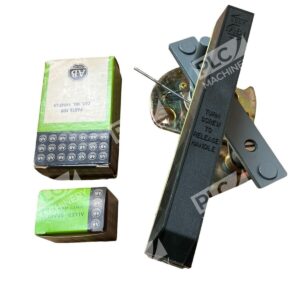

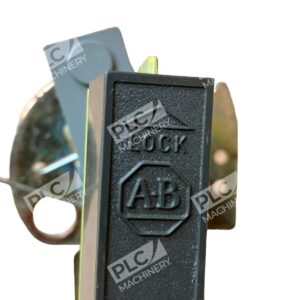

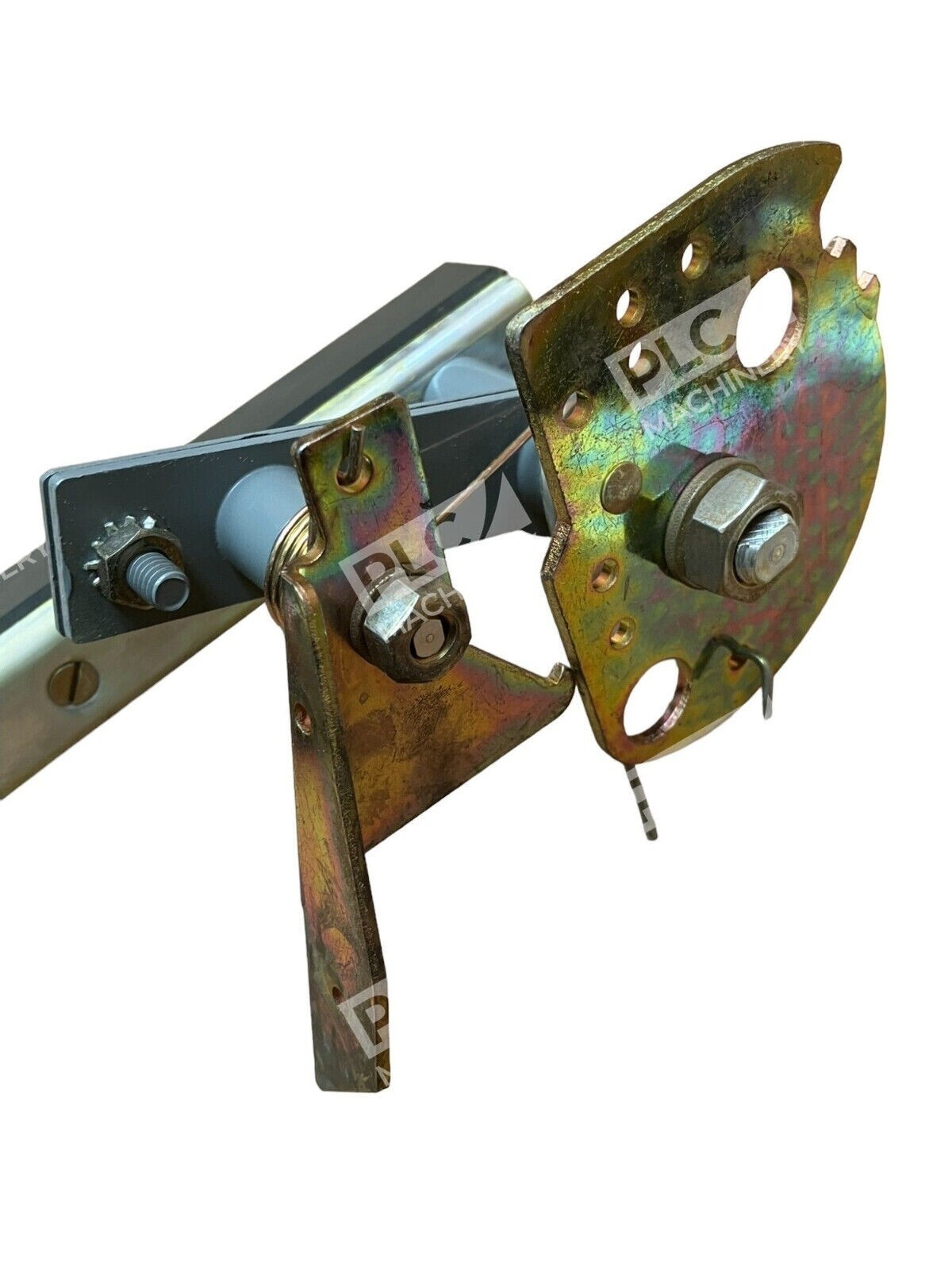

- Complete door hardware assembly with handle, cam, and defeater actuator lever
- Includes rollers and shims for precise alignment and smooth door operation
- Right-hand configuration with top, bottom, and side mounting capabilities
- Rated for NEMA Type 12 enclosures (industrial, washdown-resistant construction)
- Designed for mounting on flat surfaces of Type 12 enclosure doors
- UL, CUL, and CSA certified for safety and compliance
Technical Specifications
- Part Number: 1494F-L4
- Manufacturer: Allen-Bradley (Rockwell Automation)
- NEMA Rating: Type 12
- Enclosure Height: Greater than 48 inches
- Hand Orientation: Right Hand
- Mounting Points: Top, Bottom, and Sides
- Weight: 3.24 lbs
- Certifications: UL, CUL, CSA, KC
- UPC: 781180126840
Typical Applications
The Allen-Bradley 1494F-L4 hardware kit is essential for:
- Industrial disconnect switch installations in control panels and motor control centers
- NEMA 12 rated enclosure door assemblies in manufacturing facilities
- Electrical room and substation equipment enclosures
- Heavy-duty commercial and industrial environments requiring washdown resistance
- Retrofit installations requiring replacement door hardware for legacy 1494F/1494D switches
Compatibility & Replacements
Compatible With
- 1494F Flange Mounted Disconnect Switches (all series)
- 1494D Disconnect Switches
- NEMA Type 12 industrial enclosures (flat door surfaces)
- Rockwell Automation disconnect switch assemblies
Replaces / Drop-In Replacement For
Verify with your system integrator for legacy part interchangeability, as door hardware specifications may vary by enclosure depth and mounting configuration.
Works With
- Allen-Bradley 1494 series disconnect switches
- NEMA Type 12 enclosure installations
- Industrial control systems and motor control centers (MCC)
- Manual disconnect and isolation applications per NEC standards
