Overview

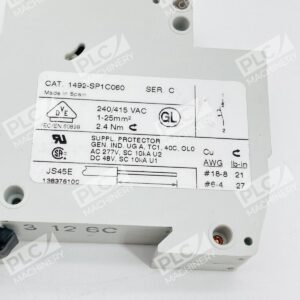

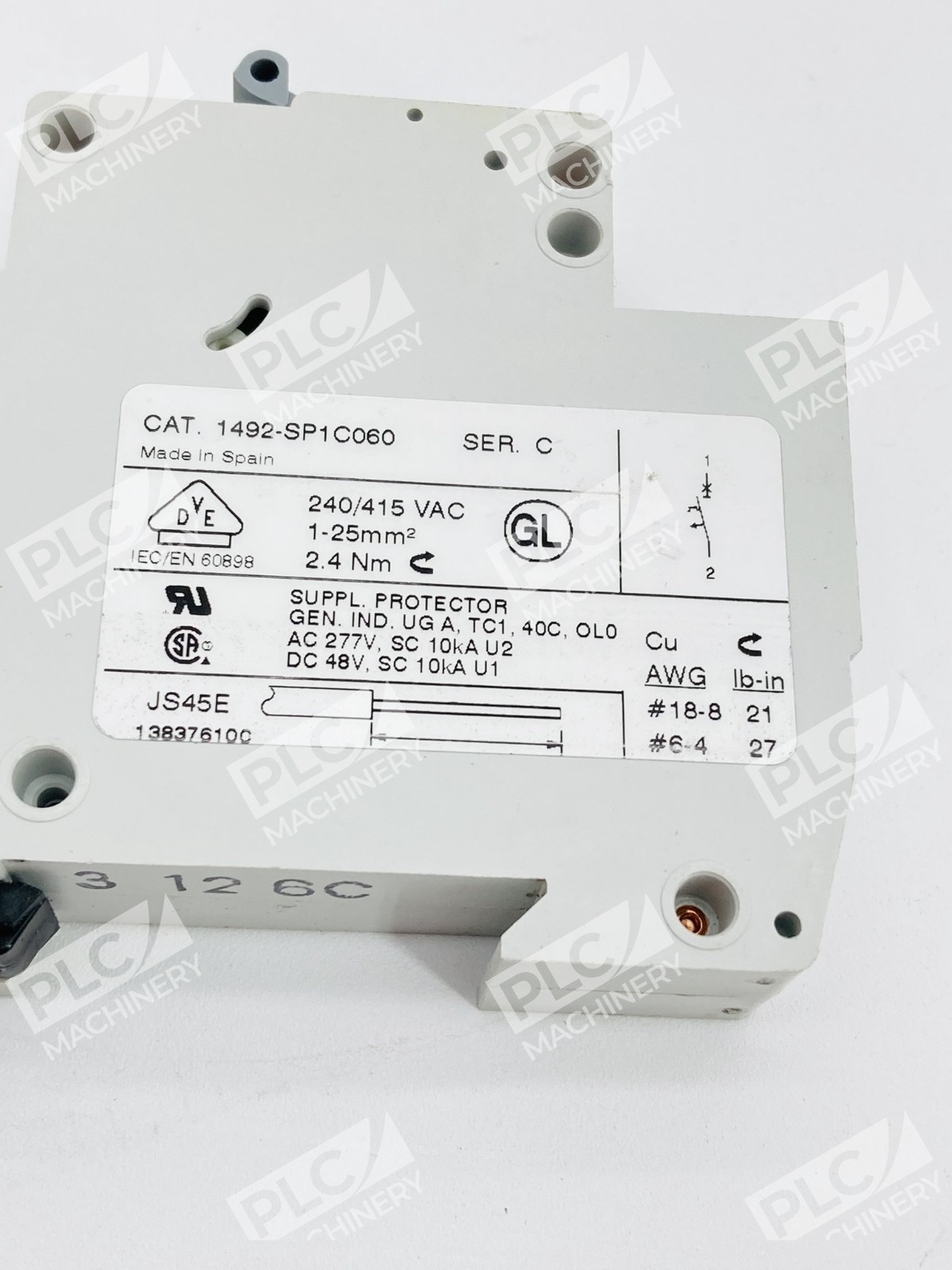

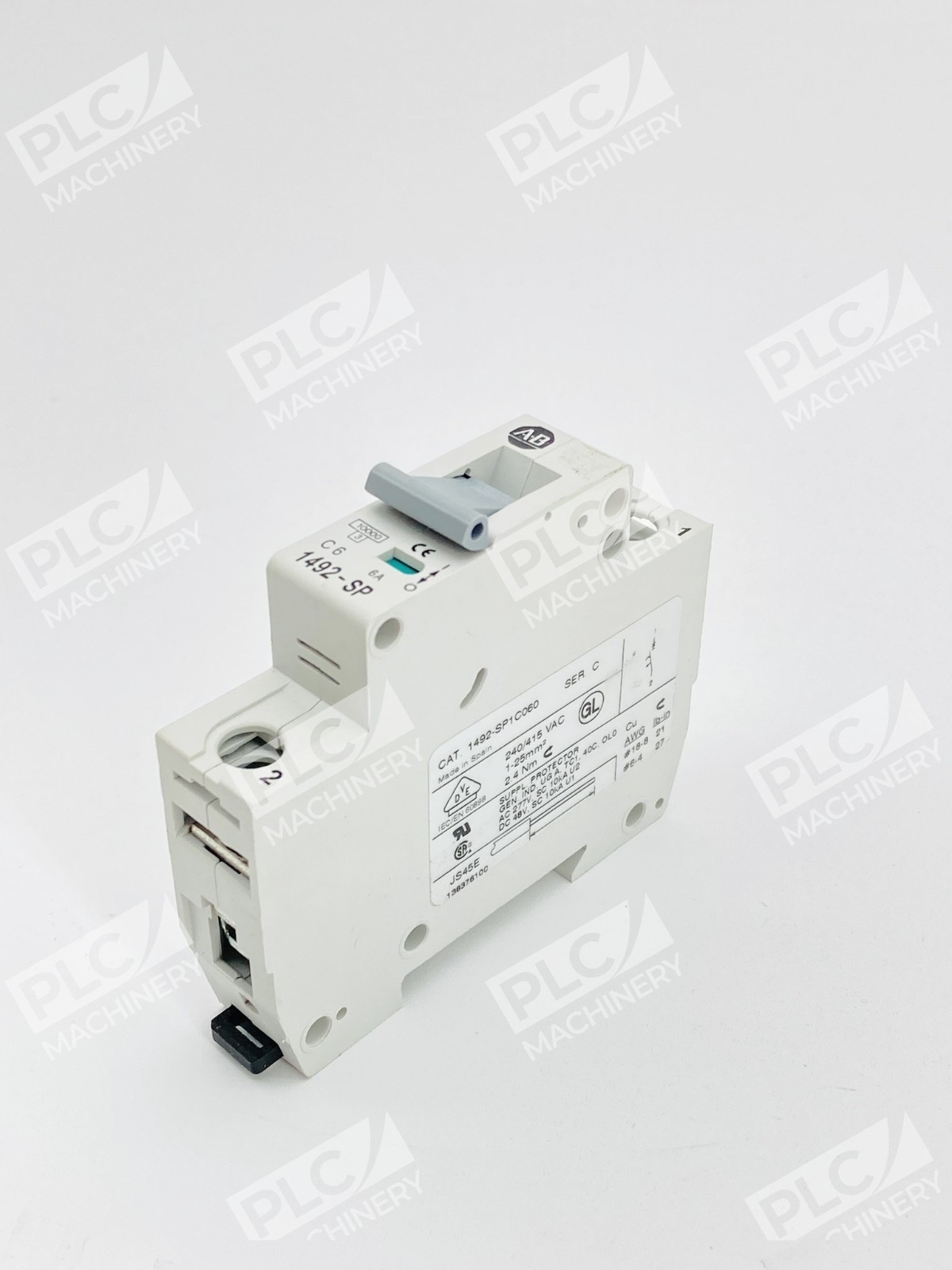

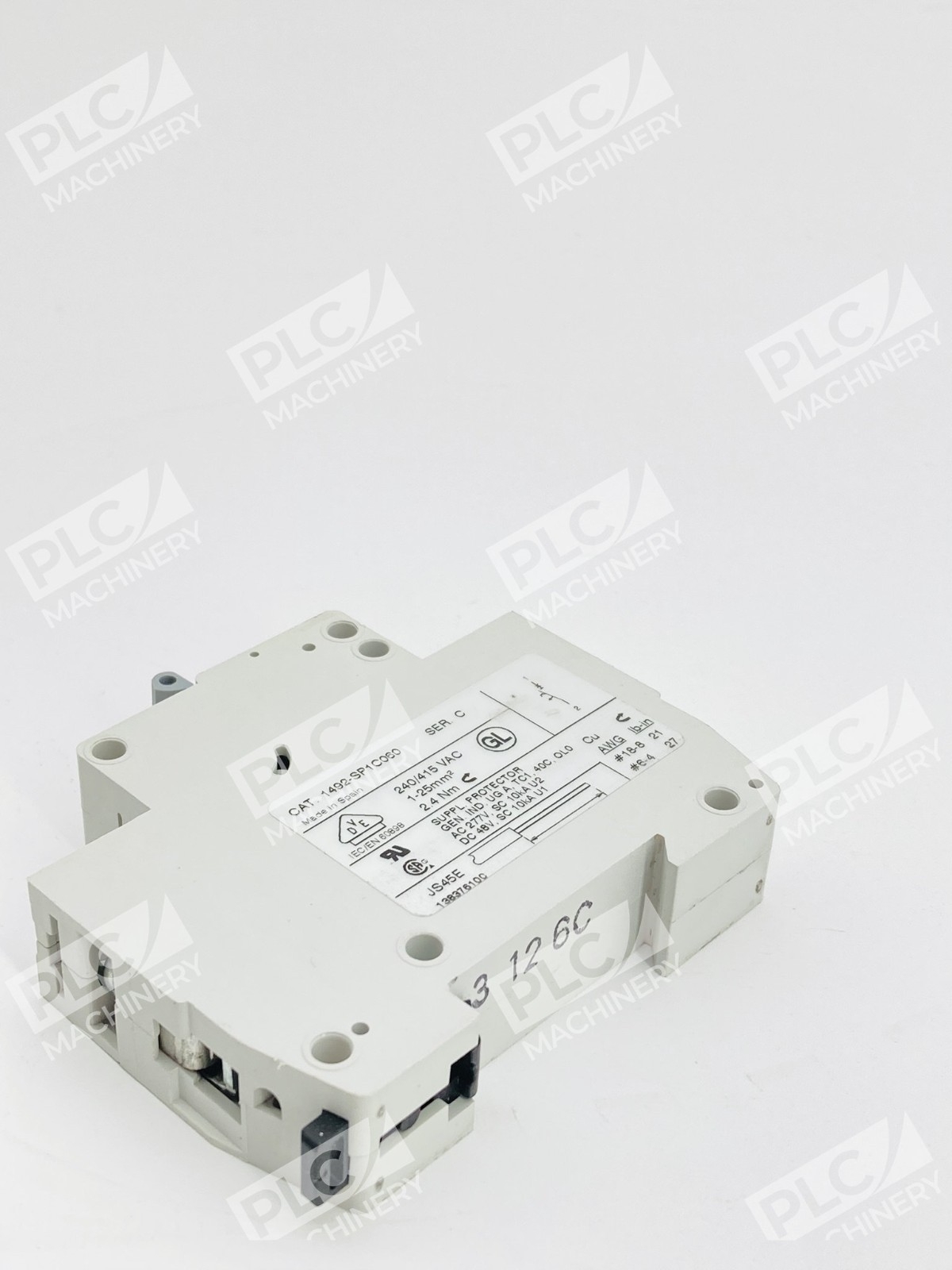

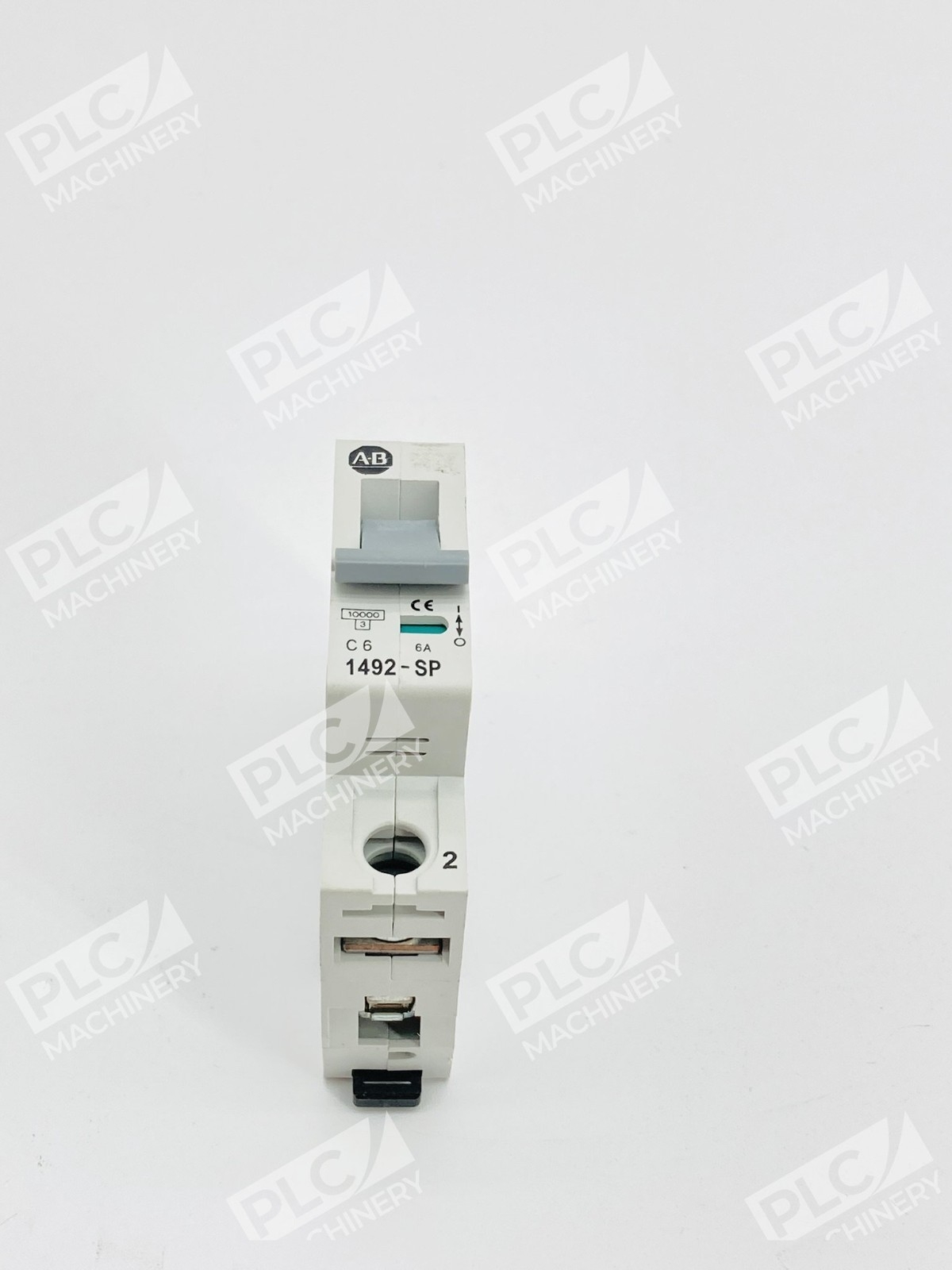

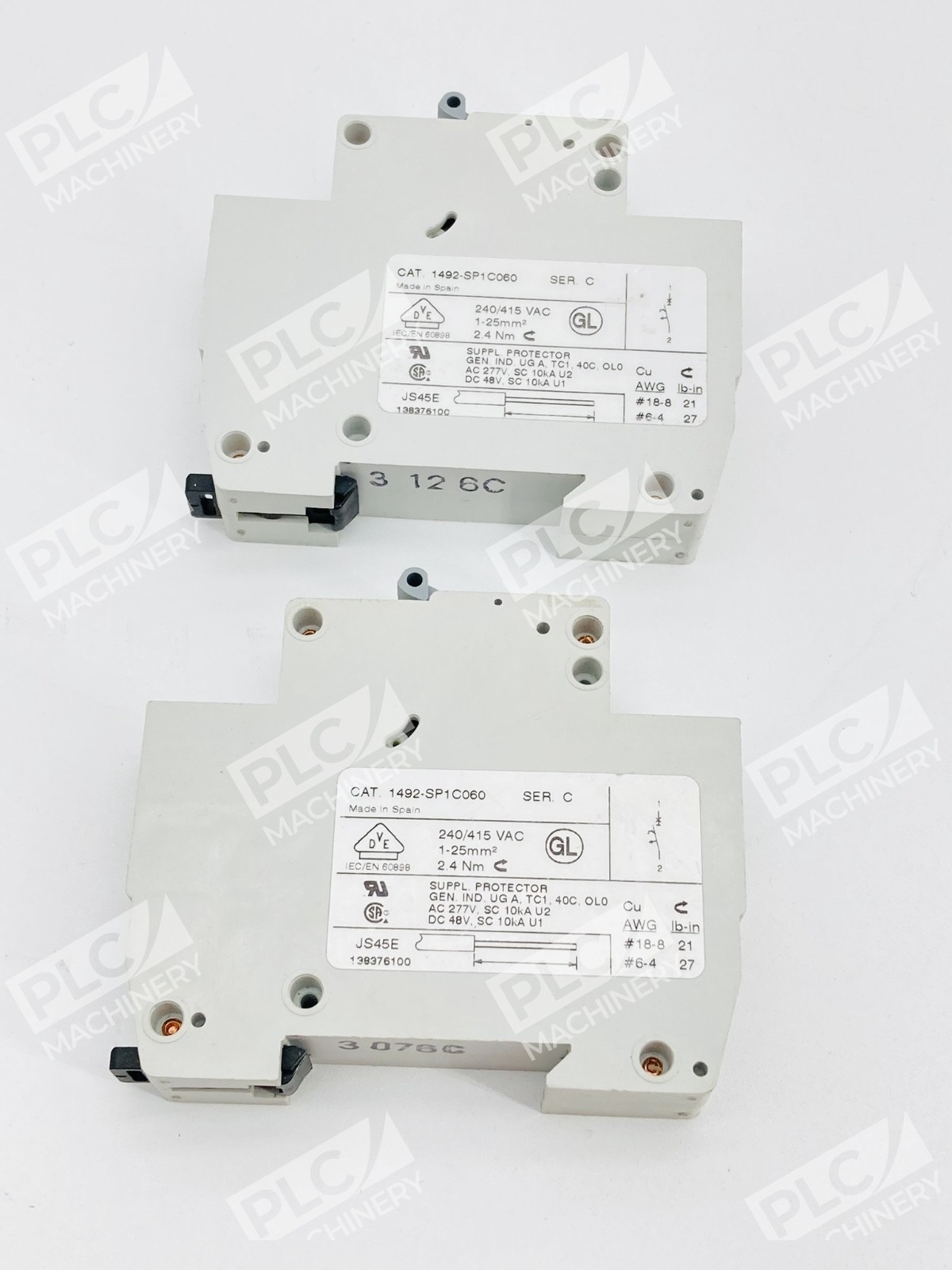

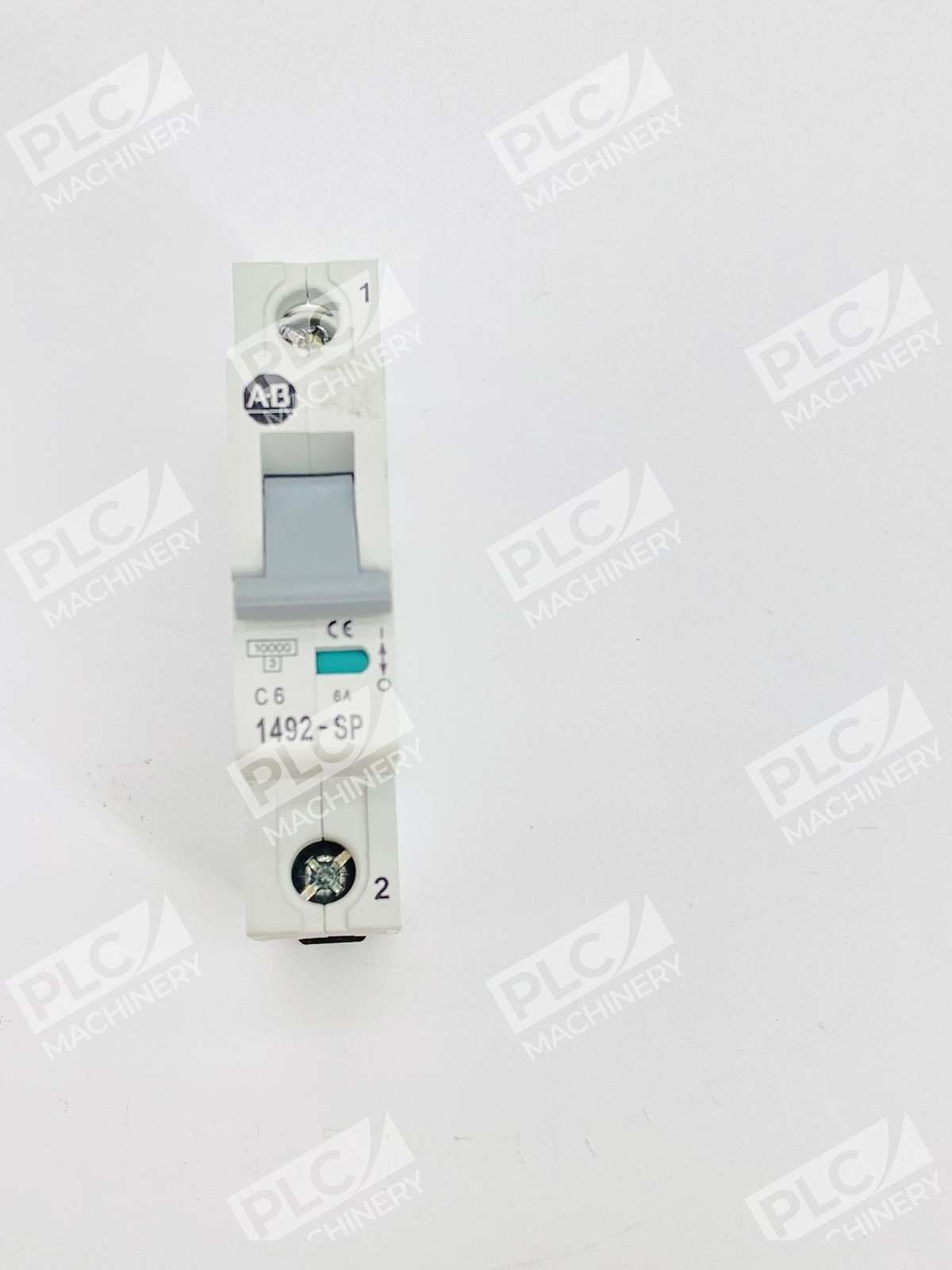

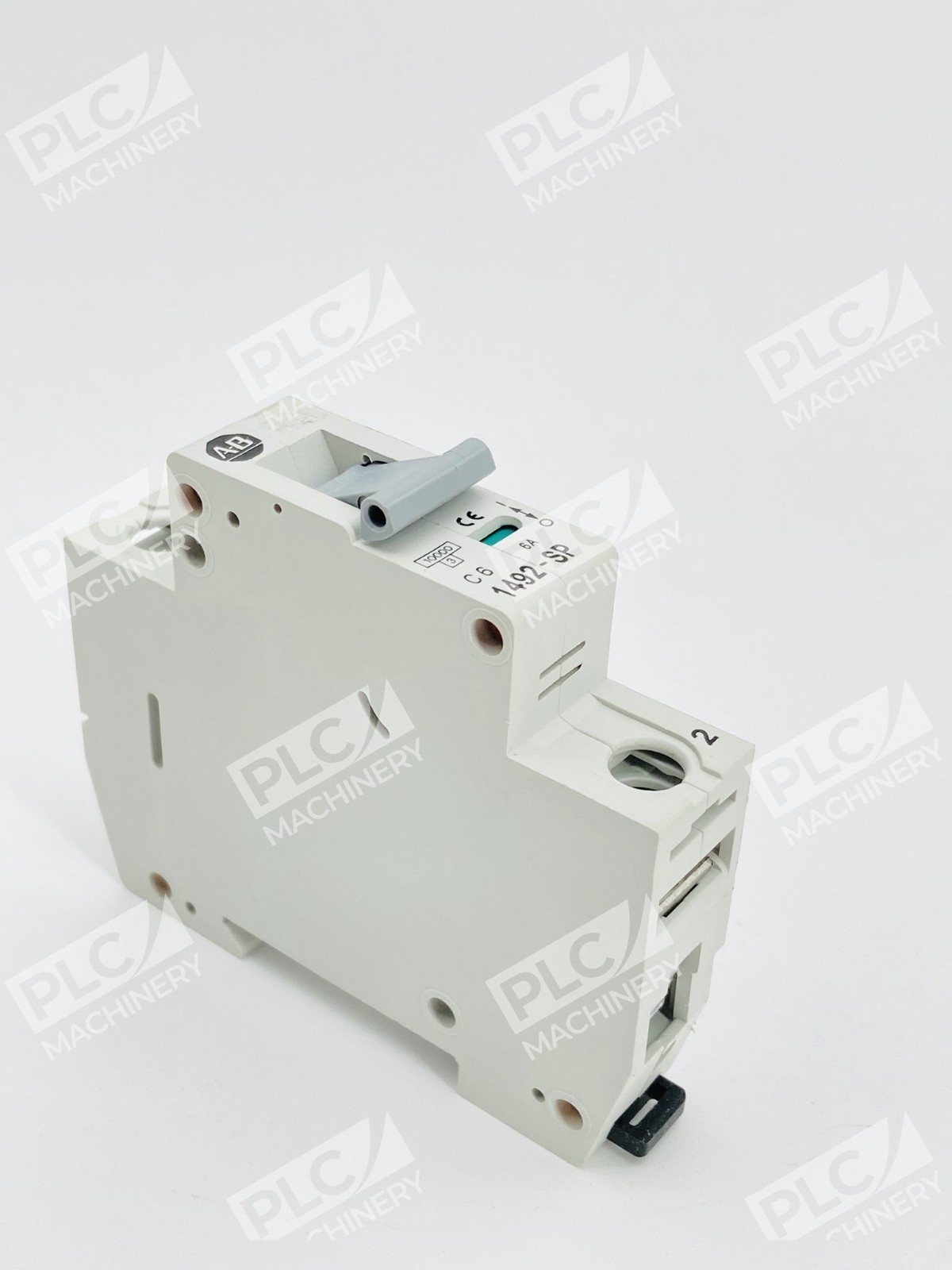

The Allen-Bradley 1492-SP1C060 is a single-pole supplementary protector/miniature circuit breaker designed for overcurrent protection in industrial automation systems and electrical equipment. This Type C breaker provides reliable thermal-magnetic tripping with a 6-ampere rating and 10,000-ampere breaking capacity at rated voltage. The 1492-SP series meets UL 1077 and CSA C22.2 No. 235 standards for North American applications.
Key Features
- Single-pole configuration with Type C tripping characteristic (5–10× rated current magnetic trip)
- Thermal-magnetic protection with fast electromagnetic trip for short-circuit events
- Screw-terminal connections accepting #16–4 AWG (1.5–25 mm²) copper wire on both line and load sides
- 10,000 A breaking capacity at rated voltage
- Compact form factor suitable for space-constrained panel installations
- UL 1077, CSA C22.2 No. 235, and IEC/EN 60898 certified
Technical Specifications
- Rated Current: 6 A
- Trip Type: Type C (5–10× In magnetic)
- Operating Voltage: 240–415V AC / 48V DC (IEC) or 277V AC / 48V DC (UL/CSA)
- Breaking Capacity: 10 kA at 277V AC
- Poles: 1
- Termination: Screw terminals
- Wire Gauge: #16–4 AWG (1.5–25 mm²)
- Certifications: UL 1077, CSA C22.2 No. 235, IEC/EN 60898
- Reference Temperature: 30 °C
Typical Applications
The 1492-SP1C060 is used for supplementary overcurrent protection in:
- Industrial automation control panels and enclosures
- Appliance internal protection circuits
- Machine tool and motor control circuits
- Power distribution within electrical equipment where main circuit breaker protection is provided upstream
- Lighting and small motor branch circuits in commercial/light industrial settings
Compatibility & Replacements
Compatible With
- Standard DIN rail mounting systems (3.5 mm pitch)
- Allen-Bradley 1492-SP accessory modules and contacts (mounted on left side of breaker; maximum two modules per unit)
- Industrial control panels using 240–415V AC or 277V AC supply (UL/CSA ratings)
- Multi-pole assemblies (breakers connected at handle for simultaneous operation in 2–4 pole configurations)
Replaces / Drop-In Replacement For
- Earlier 1492-SP1C060 units from prior manufacturing batches
- Verify compatibility with your specific panel layout and terminal requirements before substitution
Works With
- Industrial automation control systems using 240–415V AC (IEC) or 277V AC (UL/CSA) networks
- Rockwell Automation integrated control platforms
- Thermal management systems operating at reference temperature of 30 °C
- Standard over-current protection networks following IEC/EN 60898 and UL 1077 standards
