Overview

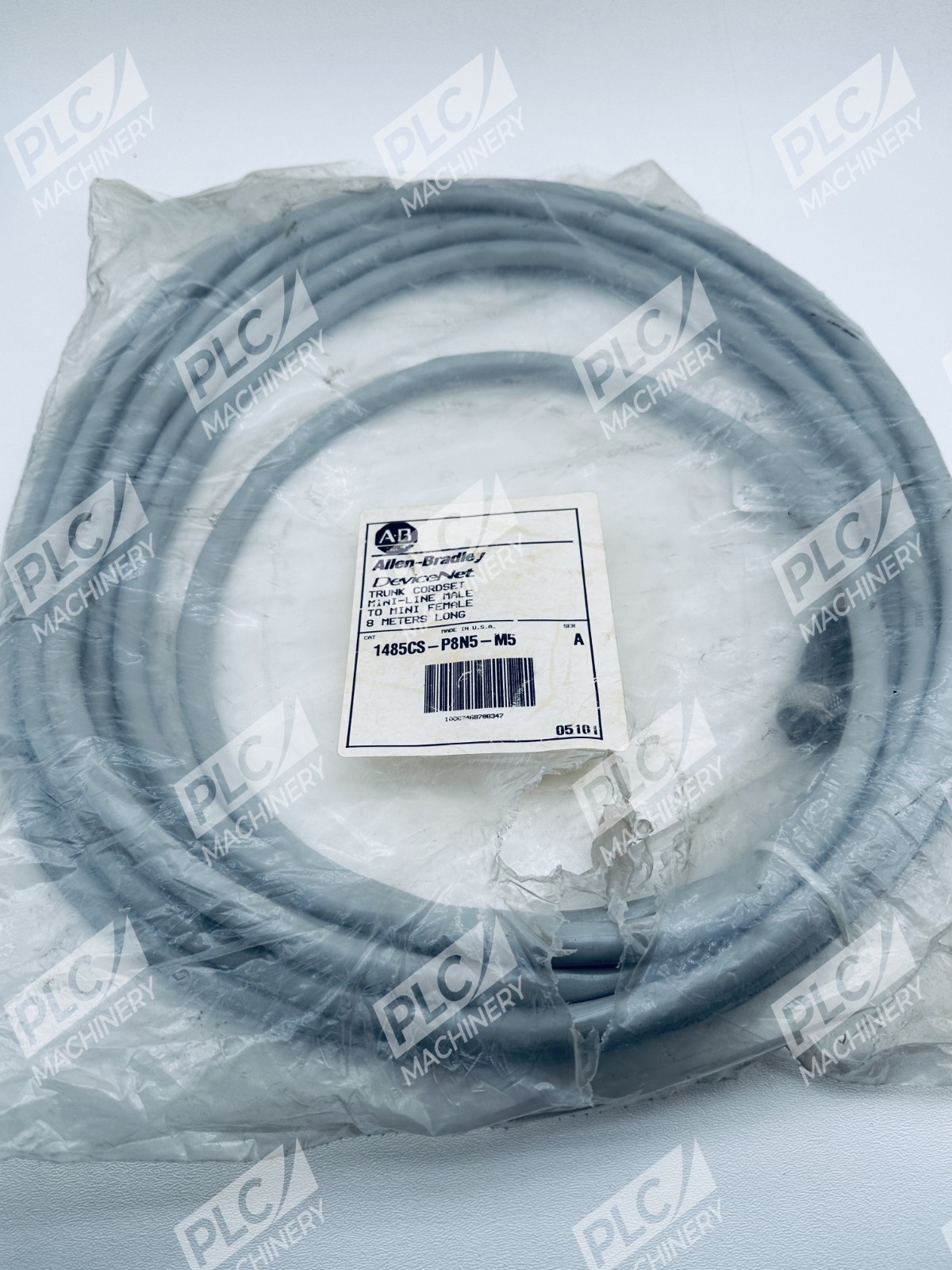

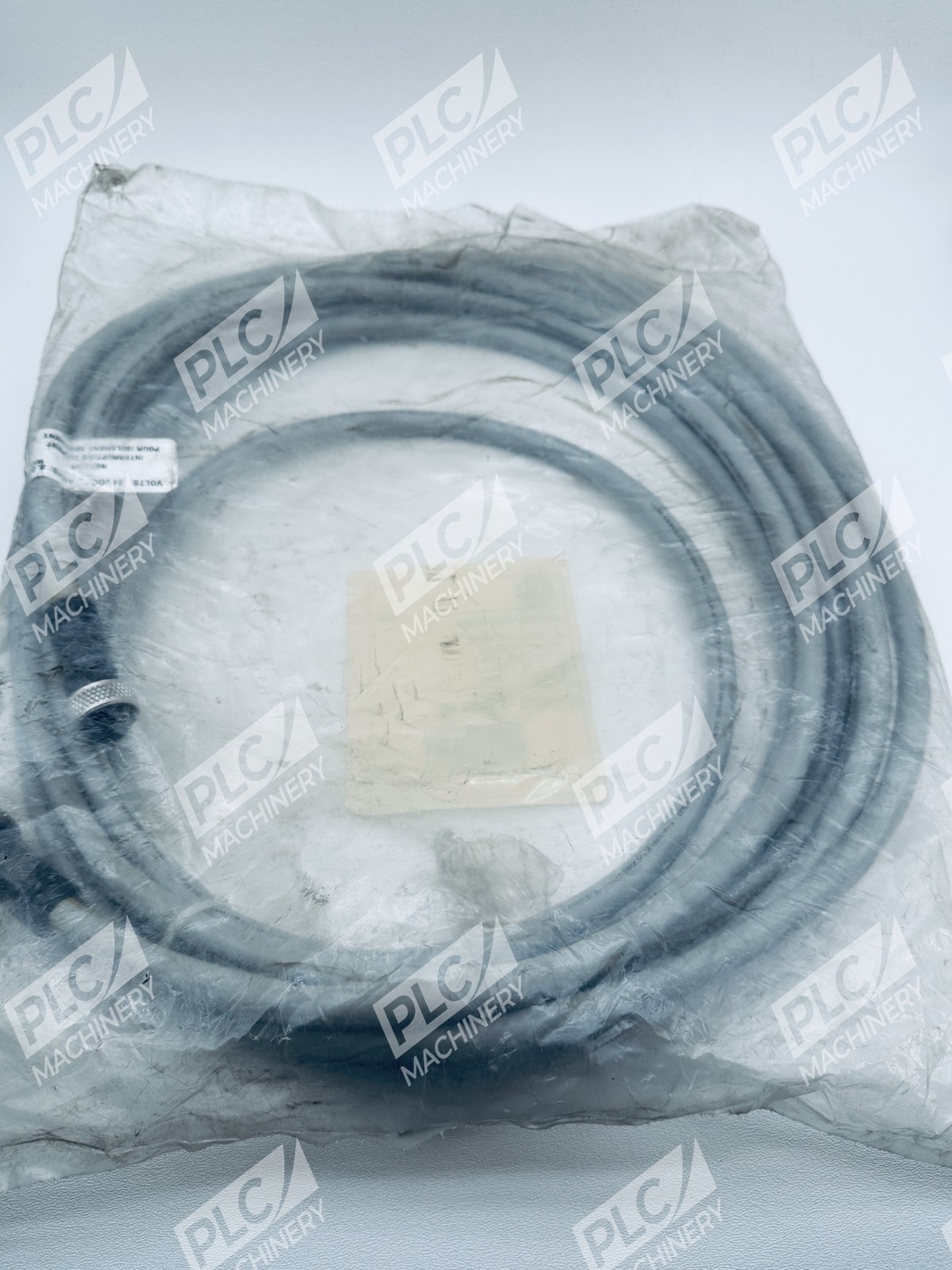

The Allen-Bradley 1485C-P8N5-M5 is a DeviceNet physical media cordset designed for mission-critical factory automation and discrete manufacturing environments. This 8-meter trunk cable connects DeviceNet devices with reliable passive communication over thick media, supporting standard 5-pin Mini connectors. Built for demanding industrial applications, the 1485C-P8N5-M5 delivers the connectivity needed for synchronized motion control, I/O networks, and distributed intelligence across production floors.
Key Features
- 8-Meter Trunk Connection: Extended reach for network segment extensions and device spacing flexibility
- Mini Straight Connectors: Trunk end features Mini Straight Female; device end Mini Straight Male for secure, sealed connections
- Thick Media Construction: Grey PVC jacket and standard epoxy-coated zinc connectors resist industrial wear, moisture, and temperature fluctuations
- Standard 5-Pin Configuration: Passive DeviceNet protocol support ensures compatibility across Rockwell Automation and third-party DeviceNet devices
- Drop-In Replacement: Direct compatibility with existing DeviceNet networks requiring extended trunk segments
Technical Specifications
- Cable Length: 8 meters
- Media Type: Thick Media, DeviceNet Physical
- Trunk End Connector: Mini Straight Female, Standard 5-pin
- Device End Connector: Mini Straight Male, Standard 5-pin
- Jacket Material: Grey PVC
- Connector Plating: Standard Epoxy Coated Zinc
- Cable Classification: Passive Cordset
- Application: DeviceNet Physical Media Networks
Typical Applications
- Factory automation backbone extensions between DeviceNet nodes
- Machine-to-machine communication in modular production systems
- Discrete manufacturing and assembly line device interconnection
- Process control networks requiring multiple sensor and actuator integration
- Retrofit installations where longer cable runs bridge equipment distances
Compatibility & Replacements
Compatible With
- Rockwell Automation CompactLogix, ControlLogix, and Micro800 controllers with DeviceNet modules
- Allen-Bradley 1485 series DeviceNet connectors and adapters
- DeviceNet-enabled drives, I/O modules, and distributed nodes
- Standard DeviceNet networks operating passive protocol
Replaces / Drop-In Replacement For
- Other 8-meter DeviceNet trunk cordsets in thick media configuration
- Verify exact replacement compatibility with your system integrator before ordering
Works With
- DeviceNet communication protocol and passive network segments
- Studio 5000 and RSNetWorx for DeviceNet configuration and monitoring
- Allen-Bradley networks integrating discrete I/O, motion, and process nodes
