Overview

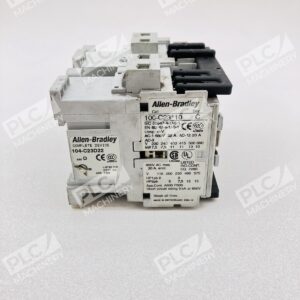

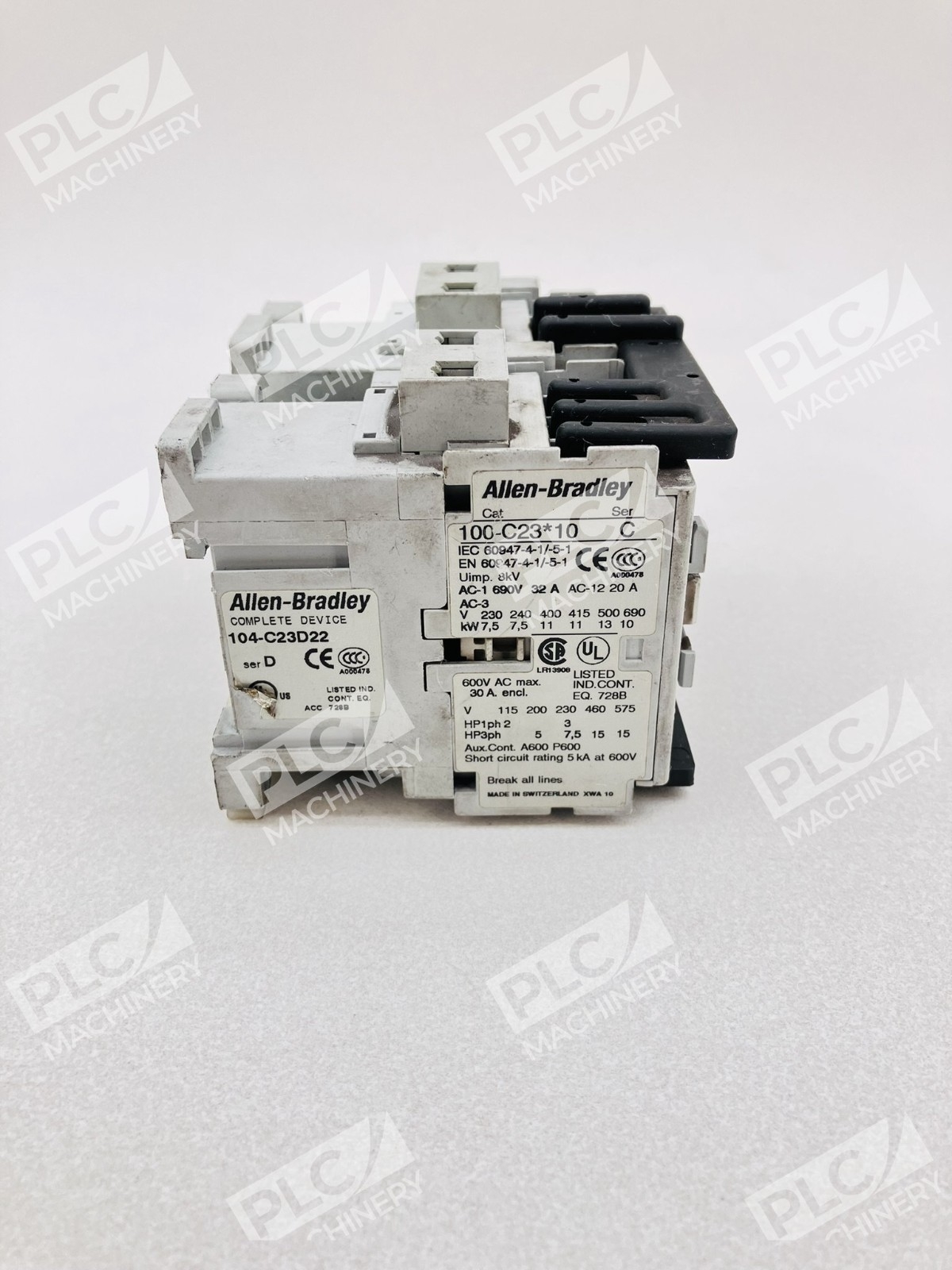

The Allen-Bradley 104-C23D22 reversing contactor is a proven IEC-standard motor control component designed for forward-reverse applications in industrial equipment. This 23A, 3-pole contactor features a 110V 50Hz / 120V 60Hz coil and combines compact design with robust electrical ratings for reliable bidirectional motor control. Used units available in fully operational condition make this a cost-effective choice for maintenance and retrofit projects.
Key Features
- 23A continuous current rating at 400VAC-3-phase
- IEC standard construction for global motor control compatibility
- 1 Normally Open (N.O.) and 1 Normally Closed (N.C.) auxiliary contact block
- Screw-type terminals for secure, field-friendly installation
- Line-side coil termination configuration
- Low-power consumption design reduces control circuit loading
- Compact 35mm DIN-rail mounting footprint
Technical Specifications
- Type: Reversing Contactor, IEC Standard
- Current Rating: 23A @ 400VAC-3, 32A @ 400VAC-1
- Poles: 3-pole
- Coil Voltage: 110V 50Hz / 120V 60Hz AC
- Power Rating: 11 kW maximum
- Auxiliary Contacts: 1 N.O., 1 N.C. (base-mounted blocks)
- Connection Type: Screw terminals
- Mounting: 35mm DIN-rail
- Standards: UL, CSA, CUL, CE, C-TICK, CCC, GOST, KC
Typical Applications
The 104-C23D22 excels in motor control circuits requiring forward-reverse capability, including:
- Conveyor belt direction control systems
- Hoist and lift motor operation
- Pump and fan bidirectional control
- Industrial machine tool reversing functions
- OEM equipment motor starters
Compatibility & Replacements
Compatible With
- IEC-standard motor control circuits
- 110V/120V AC single-phase control power systems
- 3-phase industrial motor loads up to 11 kW
- Standard DIN-rail enclosure mounting systems
- Rockwell Automation control system integration
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 104-C23D22 serves as a direct replacement for other Allen-Bradley Bulletin 104-C reversing contactor variants with matching coil voltage and auxiliary contact configurations.
Works With
- Allen-Bradley motor control relays and overload devices
- IEC-standard pushbutton stations and selector switches
- 24VDC and 120VAC control circuits
- EtherNet/IP and PROFINET-enabled motor starters (when integrated with ControlLogix platforms)
- Manual and soft-start motor control schemes
