Overview

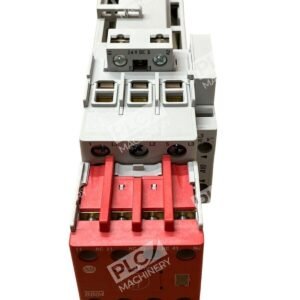

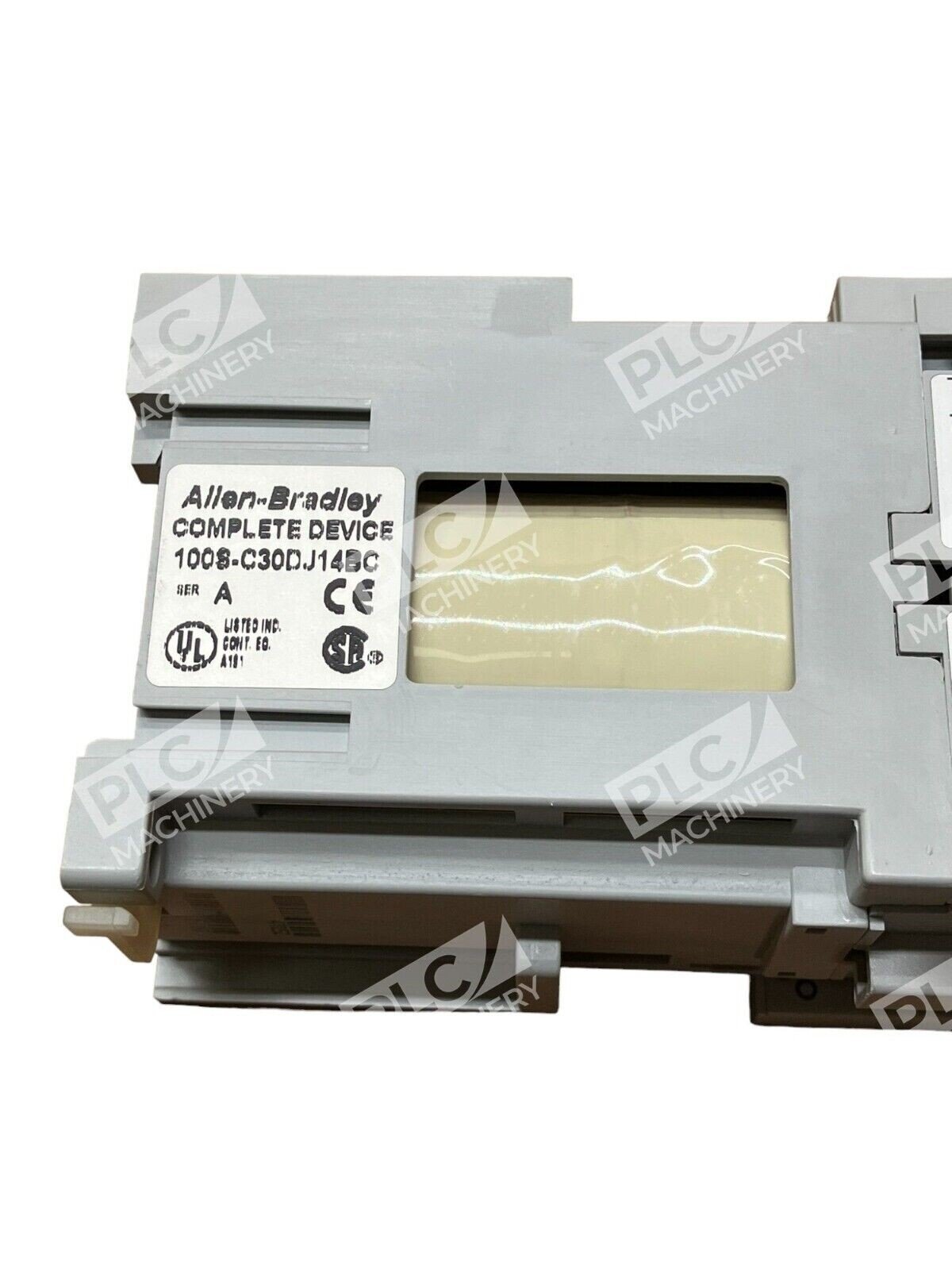

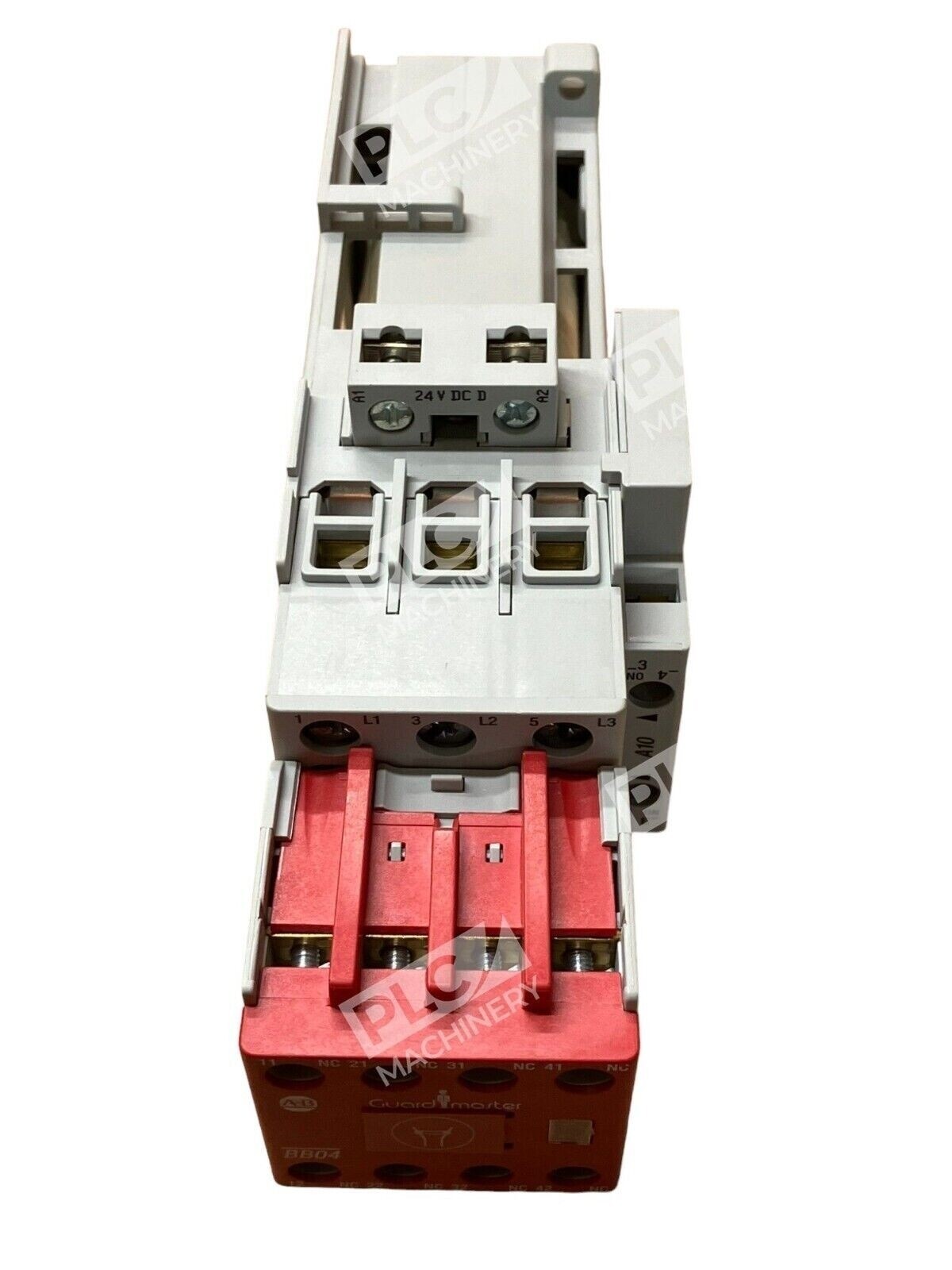

The Allen-Bradley 100S-C30DJ14BC is a safety-rated contactor engineered for high-reliability automation and control applications. This bulletin 100S-C safety contactor provides mechanically linked positively guided contacts, required in feedback circuits of modern safety applications. The mechanically linked N.C. auxiliary contacts do not change state when a power pole welds. This design ensures dependable operation in demanding industrial environments where safety compliance and contact integrity are critical.
Key Features
- Mechanically linked and positively guided auxiliary contacts to guarantee fail-safe operation

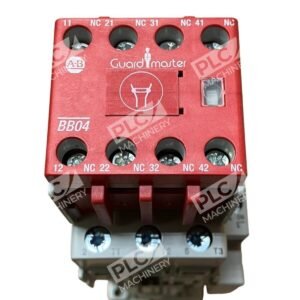

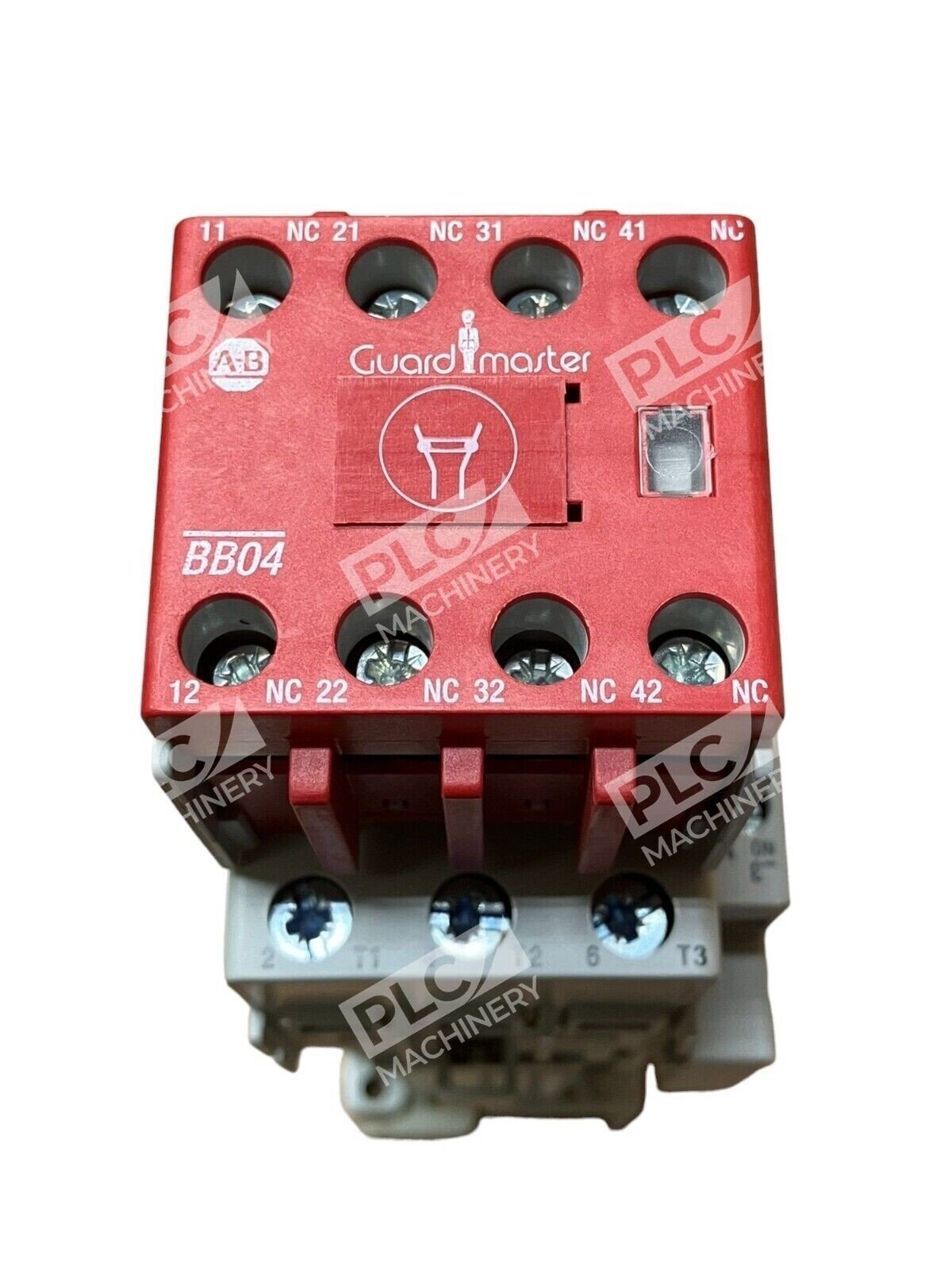

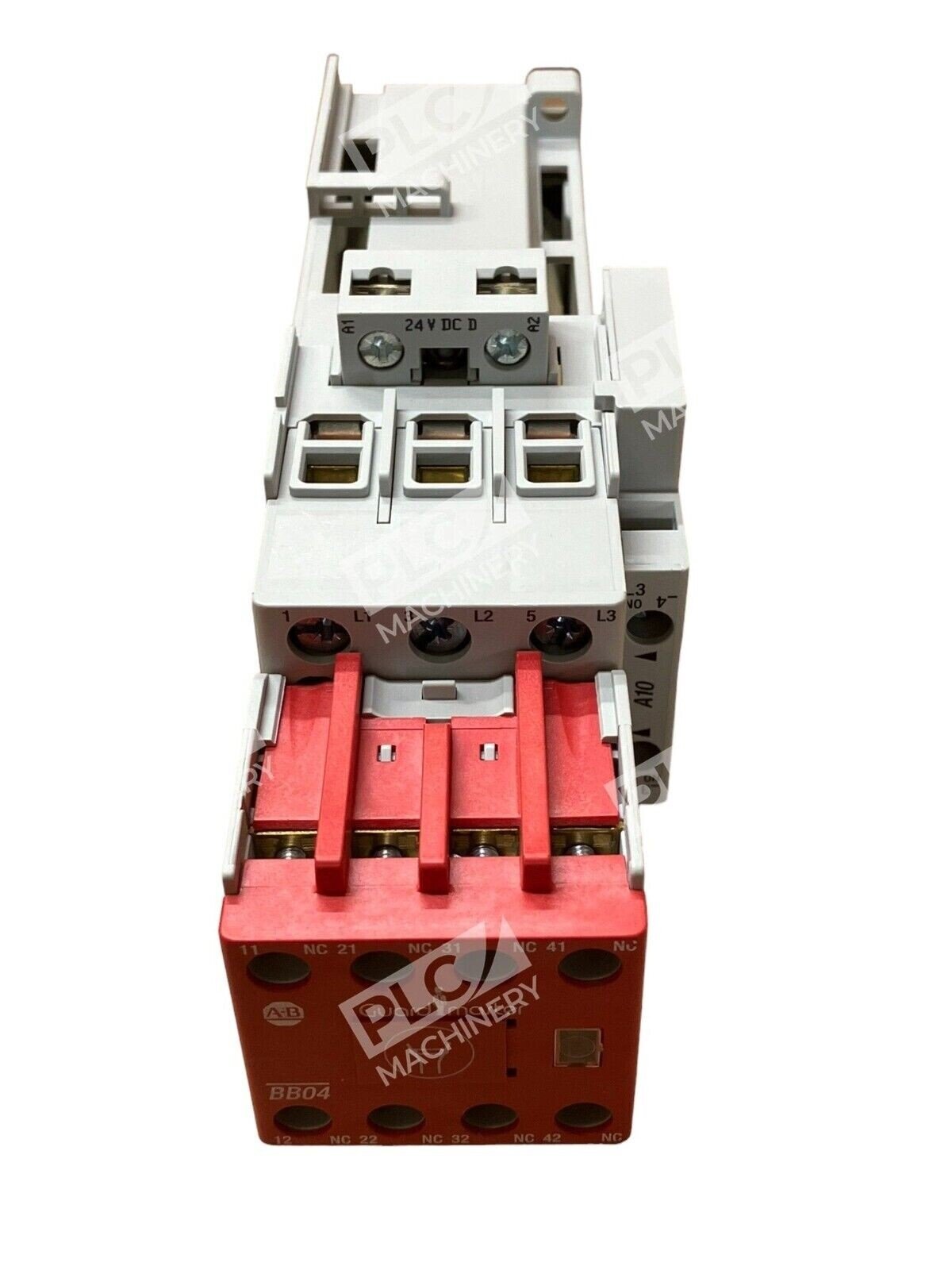

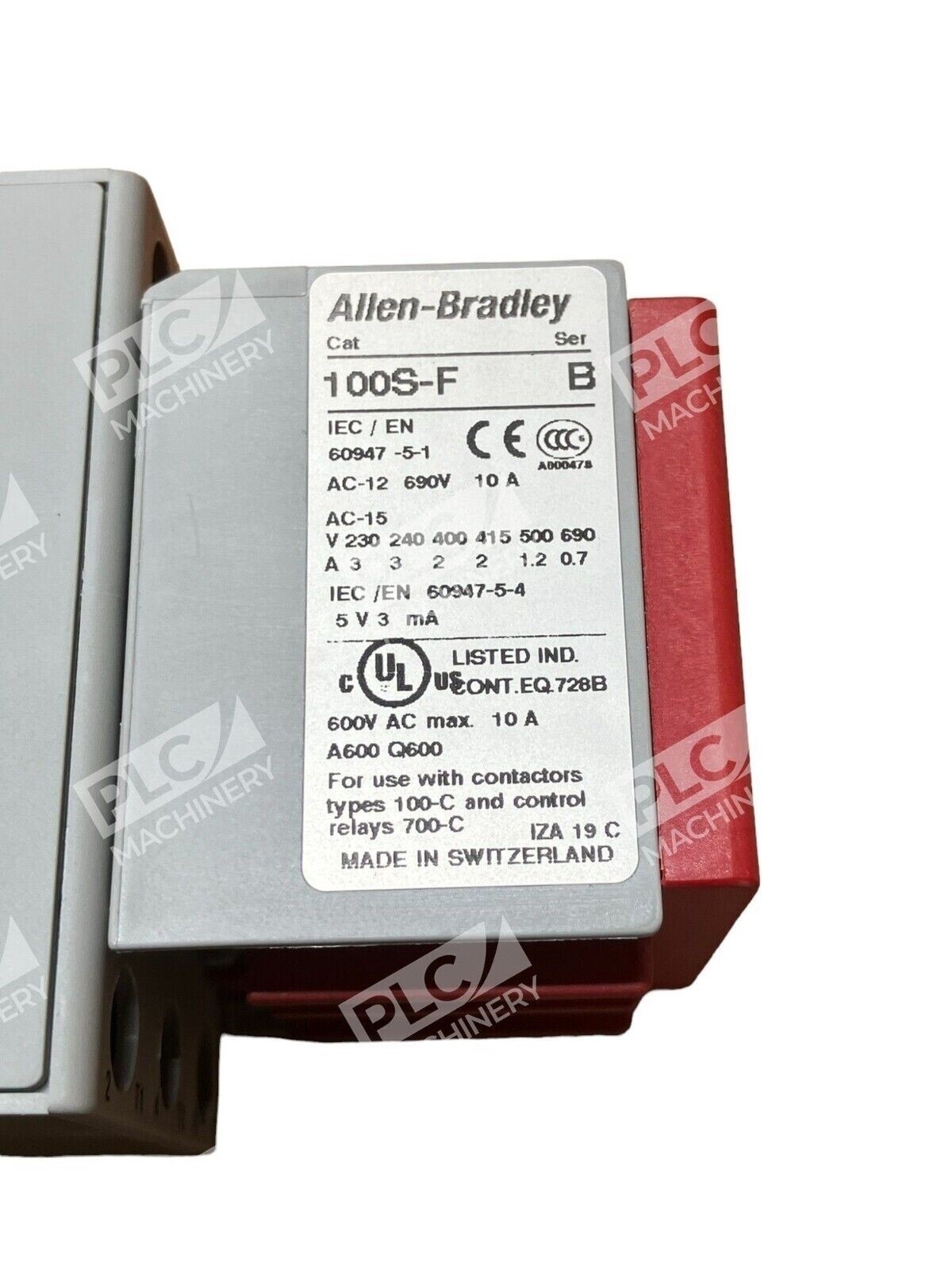

- 3 Normally Open Power Poles with 1 N.O. & 4 N.C. auxiliary contacts and bifurcated contact design
- Designed for emergency stop and safety control circuit applications and in disconnecting power to machinery when necessary
- Line-side coil termination for simplified circuit integration
- Compact design and compliance with global safety standards
Technical Specifications
The 100S-C30DJ14BC is rated for 30-amp continuous duty in IEC safety applications. Its auxiliary contact configuration (1 N.O., 4 N.C.) enables sophisticated safety interlocking and feedback control. The bifurcated contact design provides dual-channel redundancy for critical monitoring. This contactor operates across both 50 Hz and 60 Hz industrial frequencies, making it suitable for global deployment.
Typical Applications
- Emergency stop circuits and machinery safety systems
- Safety-rated interlock and feedback control
- Power distribution in safety-critical production lines
- Machine guarding and protective device control
- Automation systems requiring certified fail-safe operation
Compatibility & Replacements

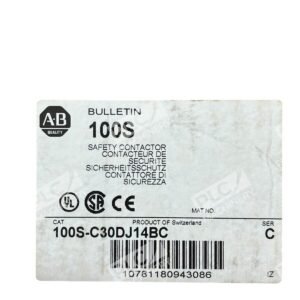

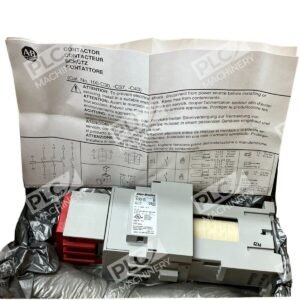

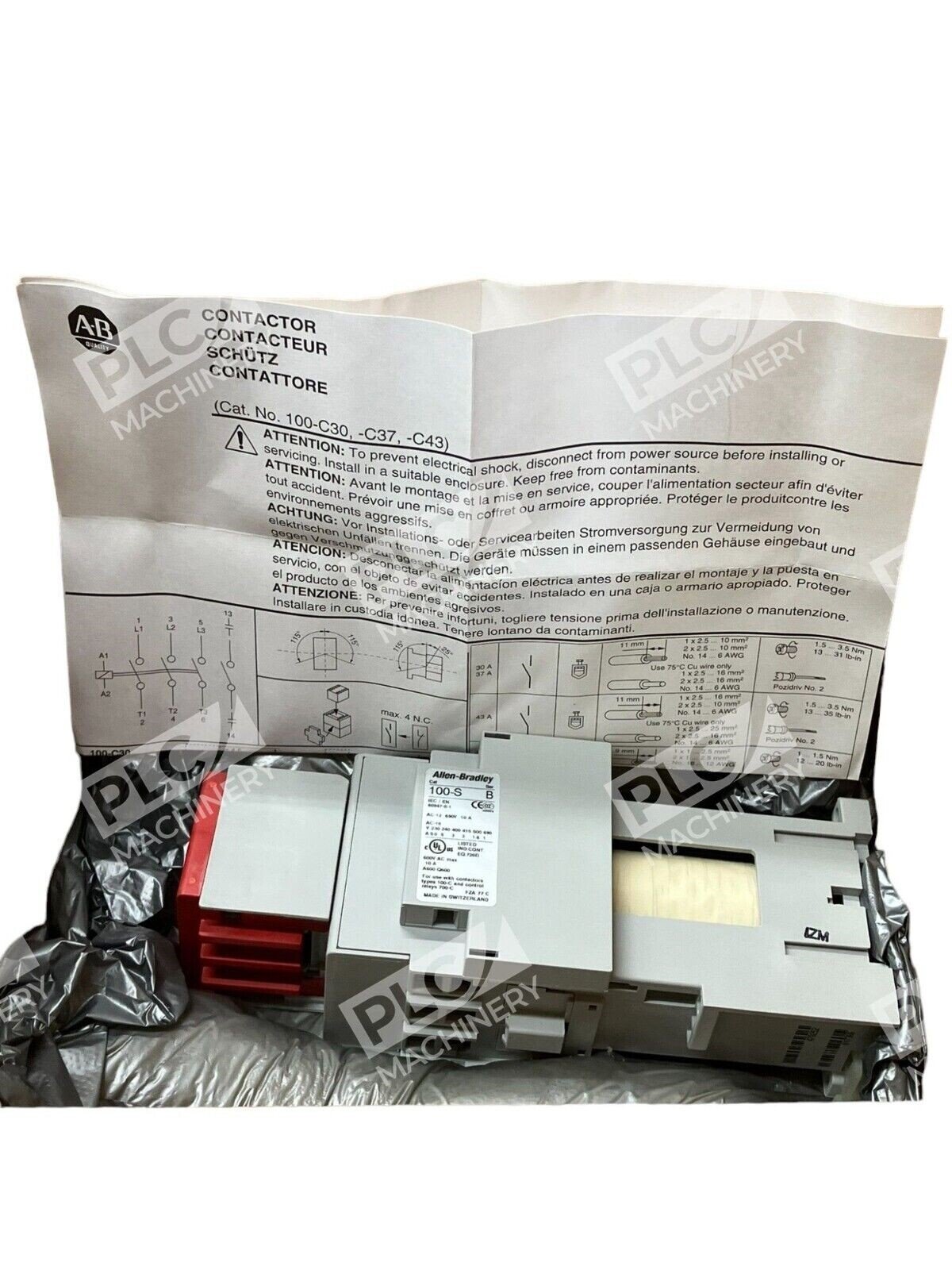

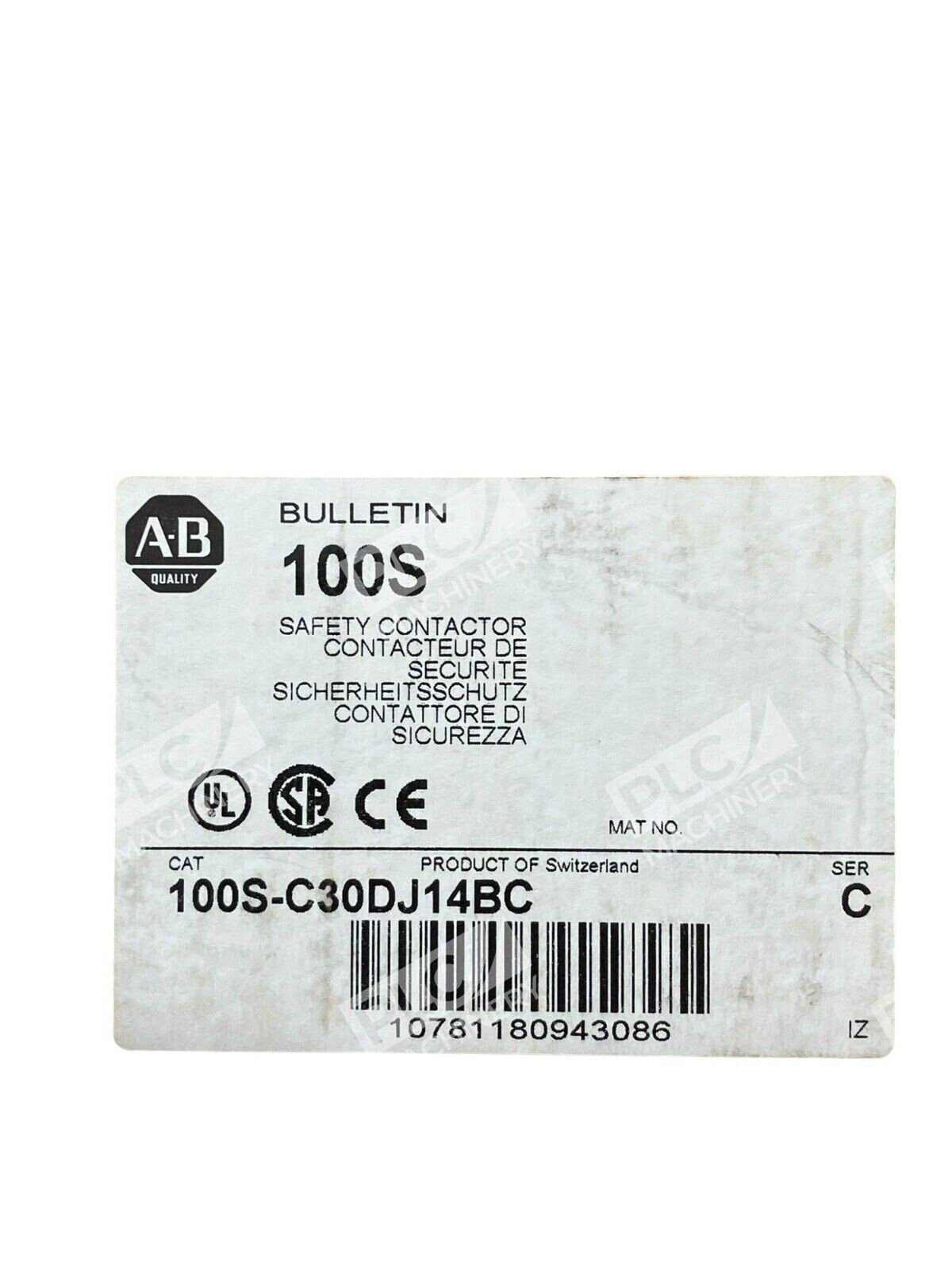

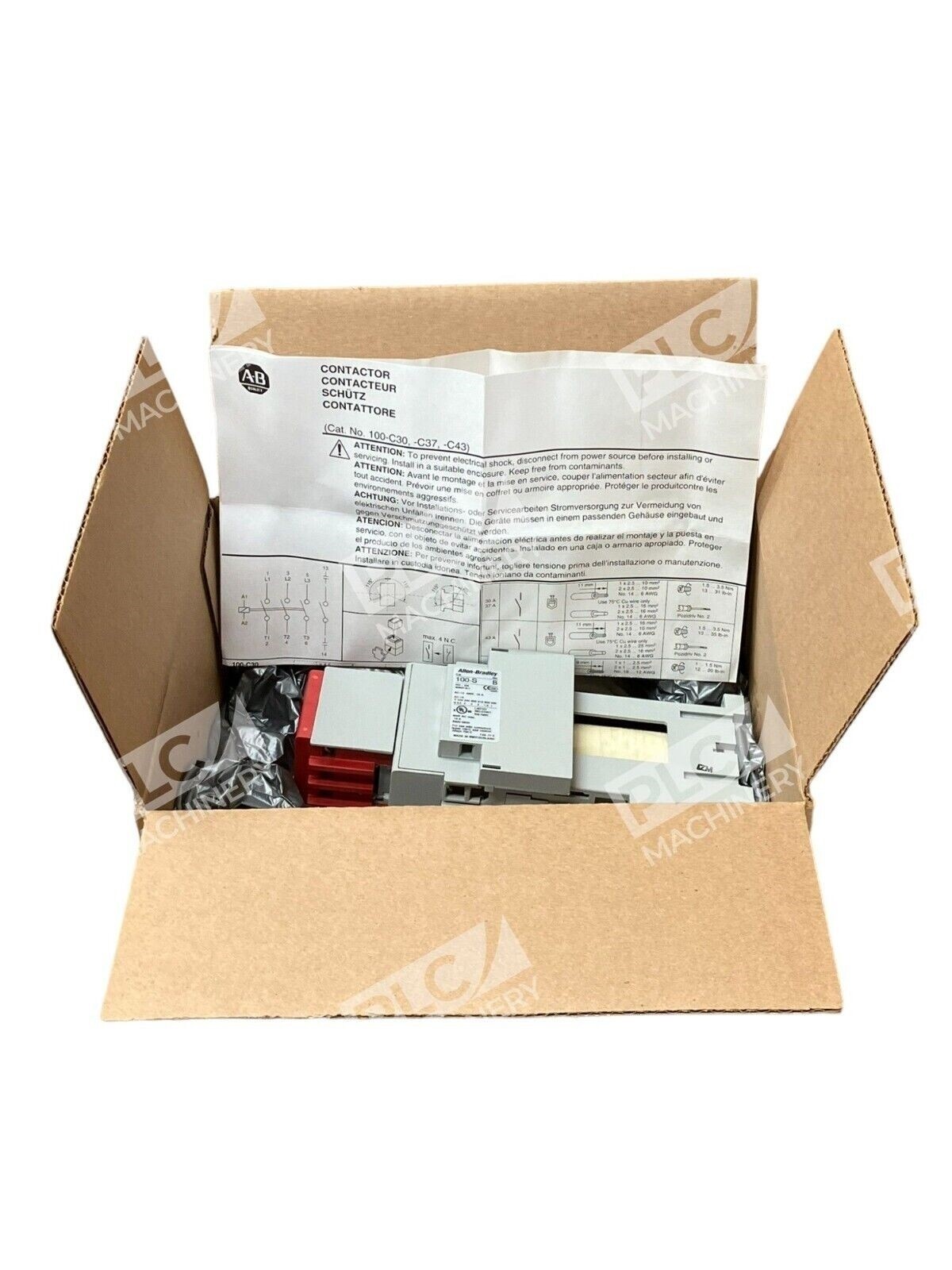

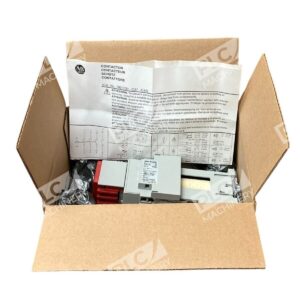

The 100S-C30DJ14BC is part of the Allen-Bradley 100S-C family of IEC safety contactors. It interfaces with standard Allen-Bradley control architectures and is compatible with both manual and electronic coil control options. When specifying replacements or upgrades, verify the coil voltage, auxiliary contact configuration, and coil termination method. Contact configurations may be modified through Allen-Bradley authorized distributors. This part comes new in box and ready for immediate installation in new equipment builds or field retrofits.
