<h2>Overview</h2>

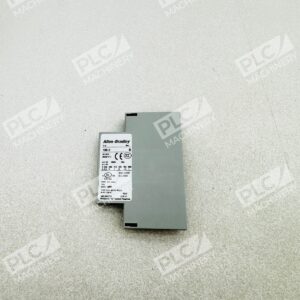

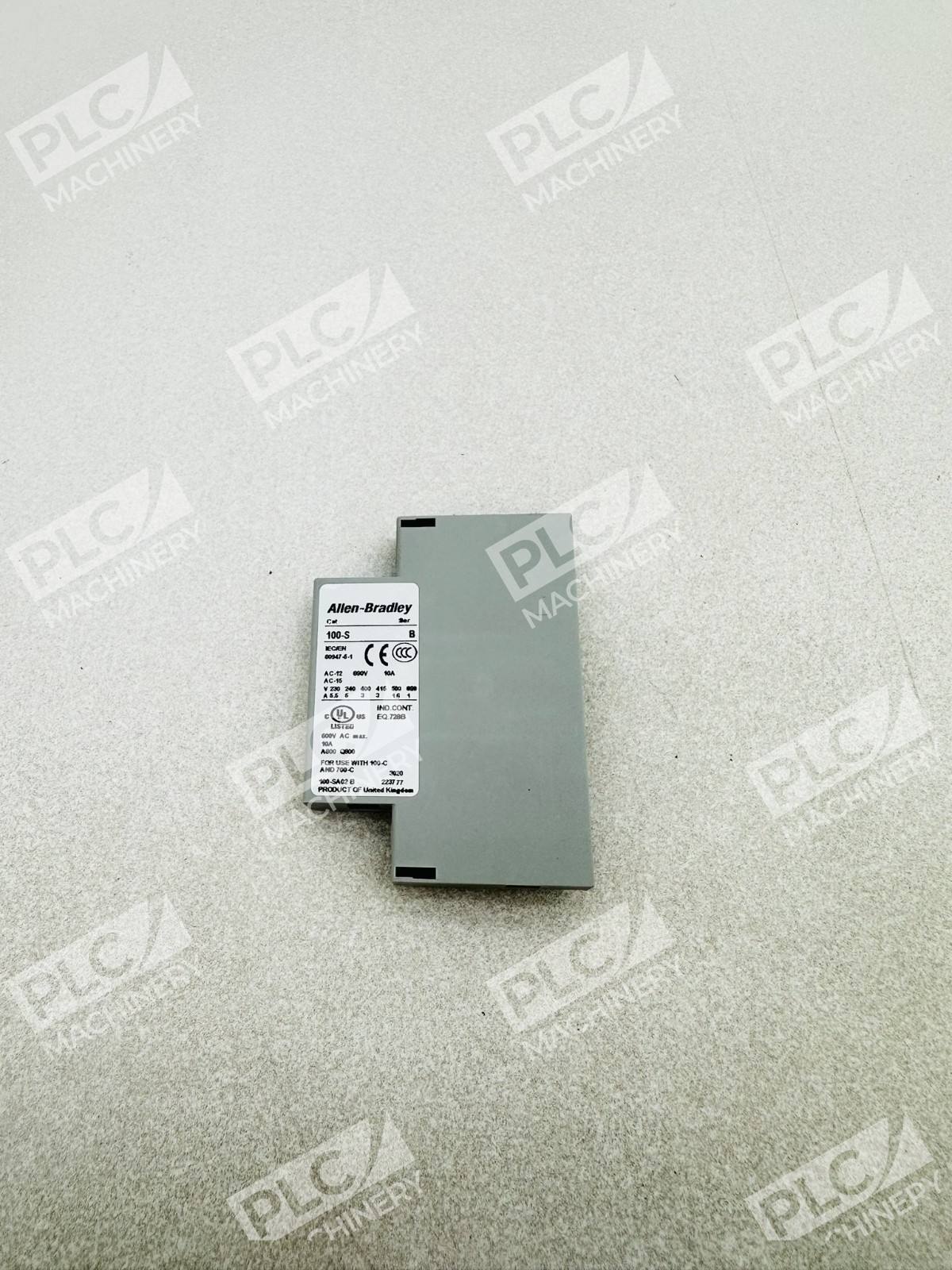

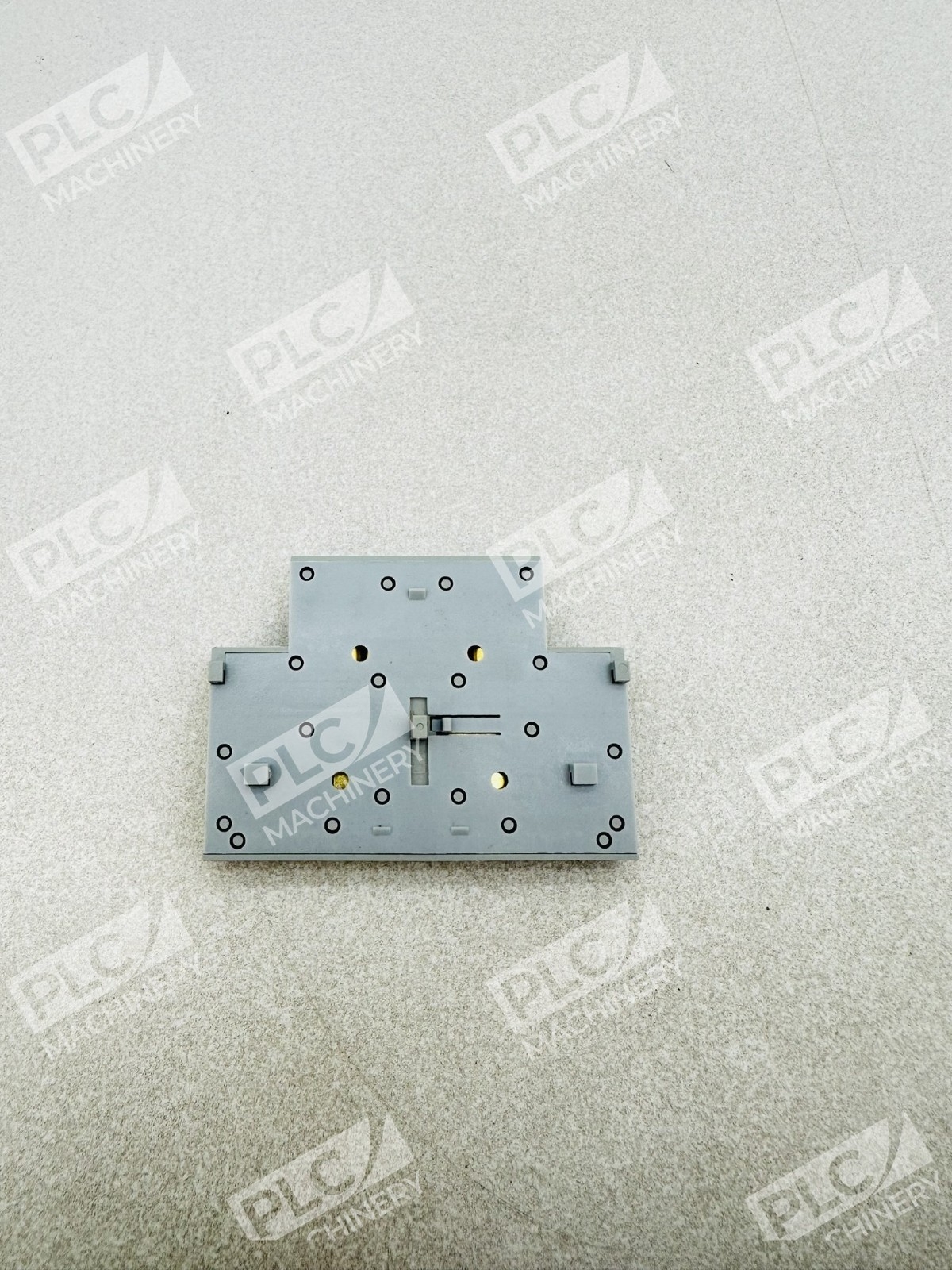

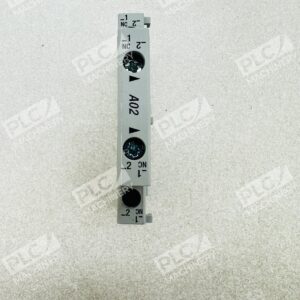

<p>The <strong>Allen-Bradley 100-SA02</strong> is a side-mounting auxiliary contact block manufactured by Rockwell Automation. This compact accessory provides additional contact functionality for standard industrial contactors and control relays. With its straightforward 2 NC (normally closed) configuration and screw terminal connections, the 100-SA02 is ideal for adding logic or status signal capability to existing contactor assemblies without requiring major control system redesign.</p>
<h2>Key Features</h2>
<ul>

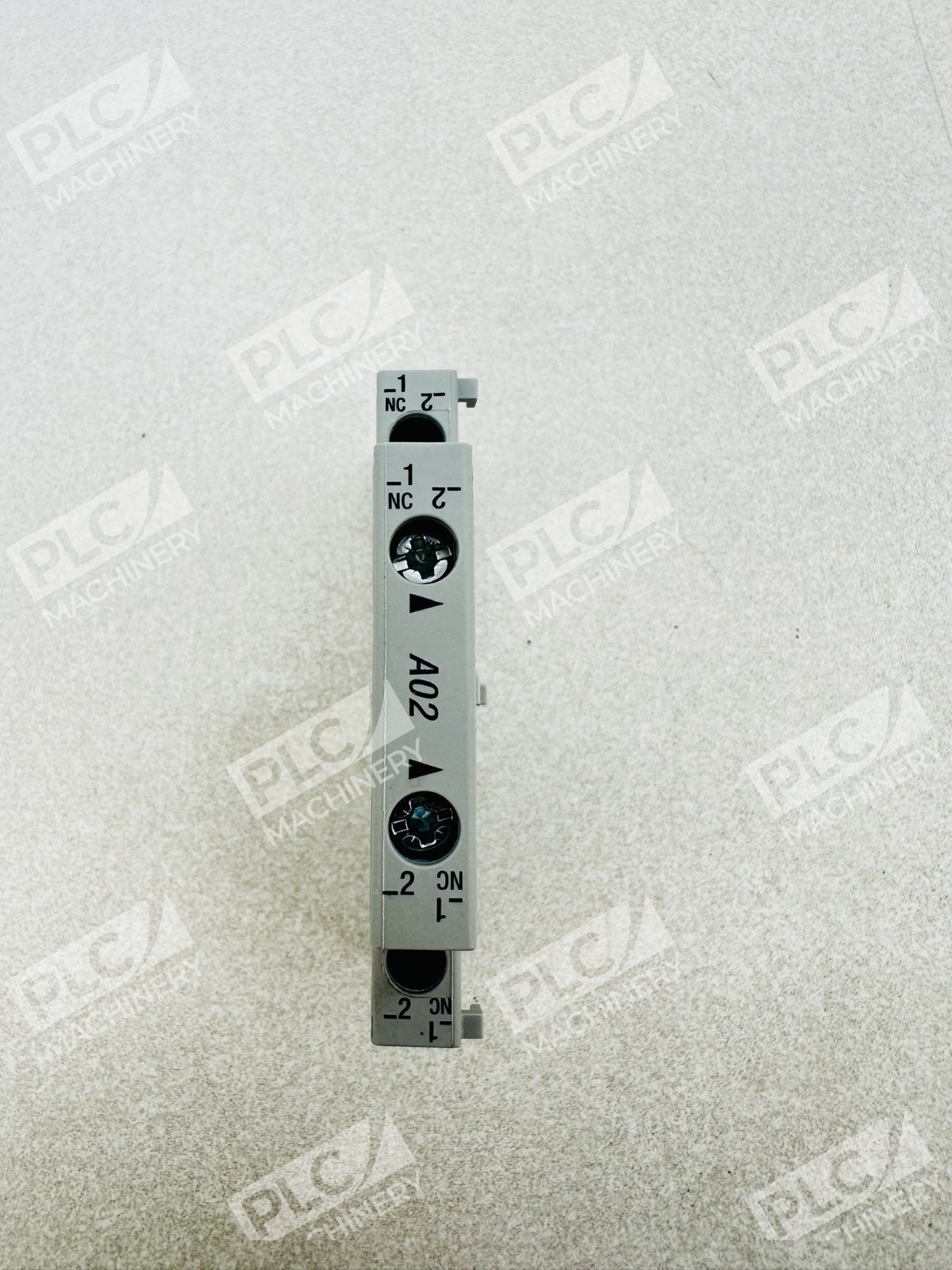

<li><strong>Contact Configuration:</strong> 2 pole, 2 normally closed (NC) contacts</li>
<li><strong>Mounting Type:</strong> Side mount design for easy installation and accessibility</li>
<li><strong>Terminal Style:</strong> Screw terminals for reliable wire termination</li>
<li><strong>Compact Design:</strong> No sequence numbering designations; simplifies wiring and reduces footprint</li>
<li><strong>Industrial-Grade:</strong> UL, CCC, and CUL certified for safety and reliability</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Part Number:</strong> 100-SA02</li>
<li><strong>Manufacturer:</strong> Allen-Bradley (Rockwell Automation)</li>
<li><strong>Contact Rating:</strong> 10 mA @ 17 V</li>
<li><strong>Number of Poles:</strong> 2</li>
<li><strong>Contact Type:</strong> 2 NC (Normally Closed)</li>

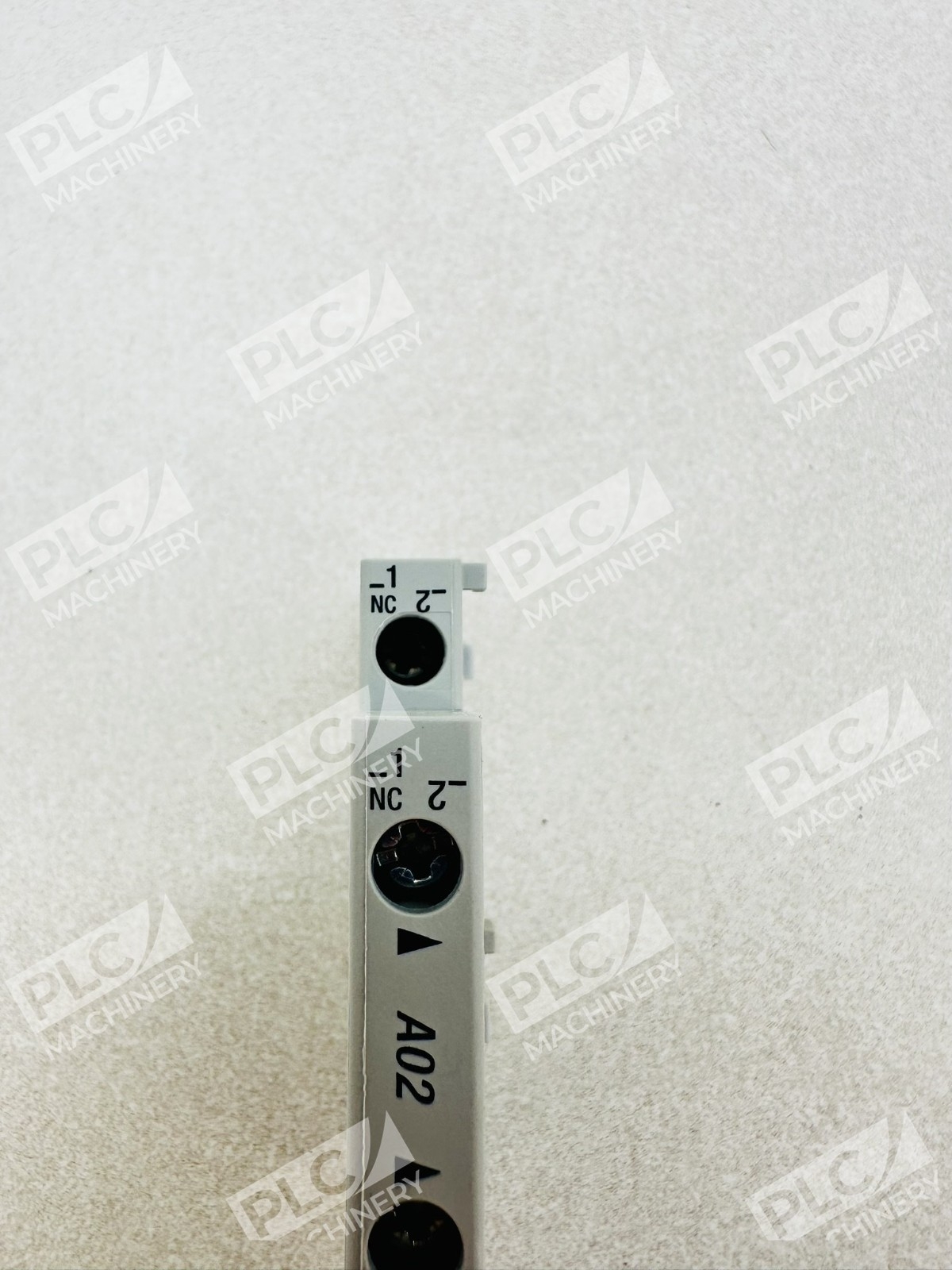

<li><strong>Terminal Connection:</strong> Screw Terminal</li>
<li><strong>Mounting:</strong> Side Mount</li>

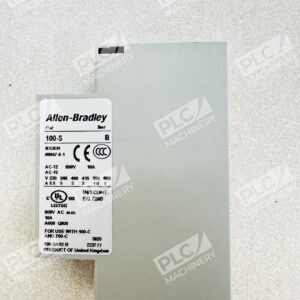

<li><strong>Certifications:</strong> UL, CCC, CUL, KC</li>

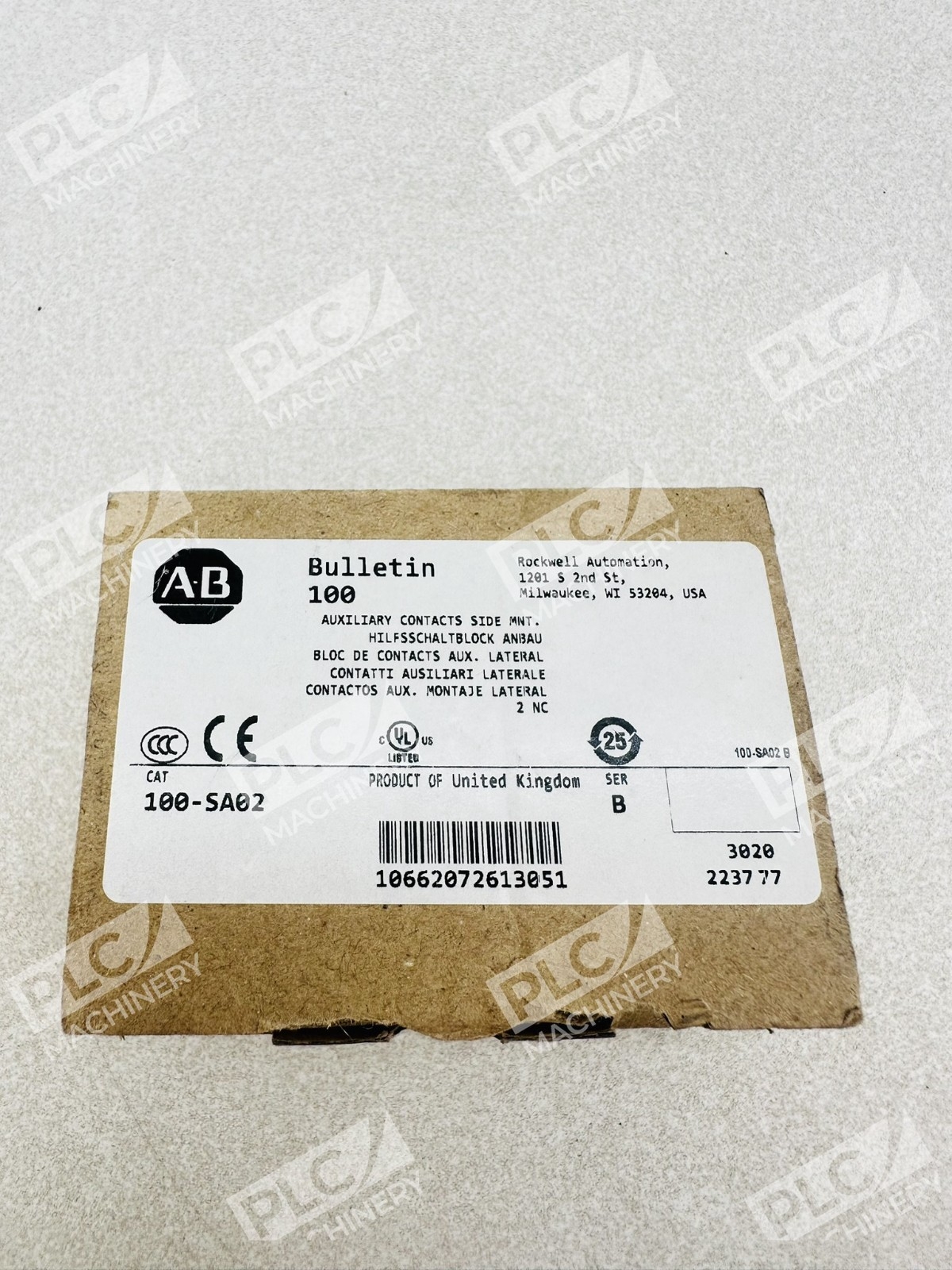

<li><strong>UPC:</strong> 662072613054</li>

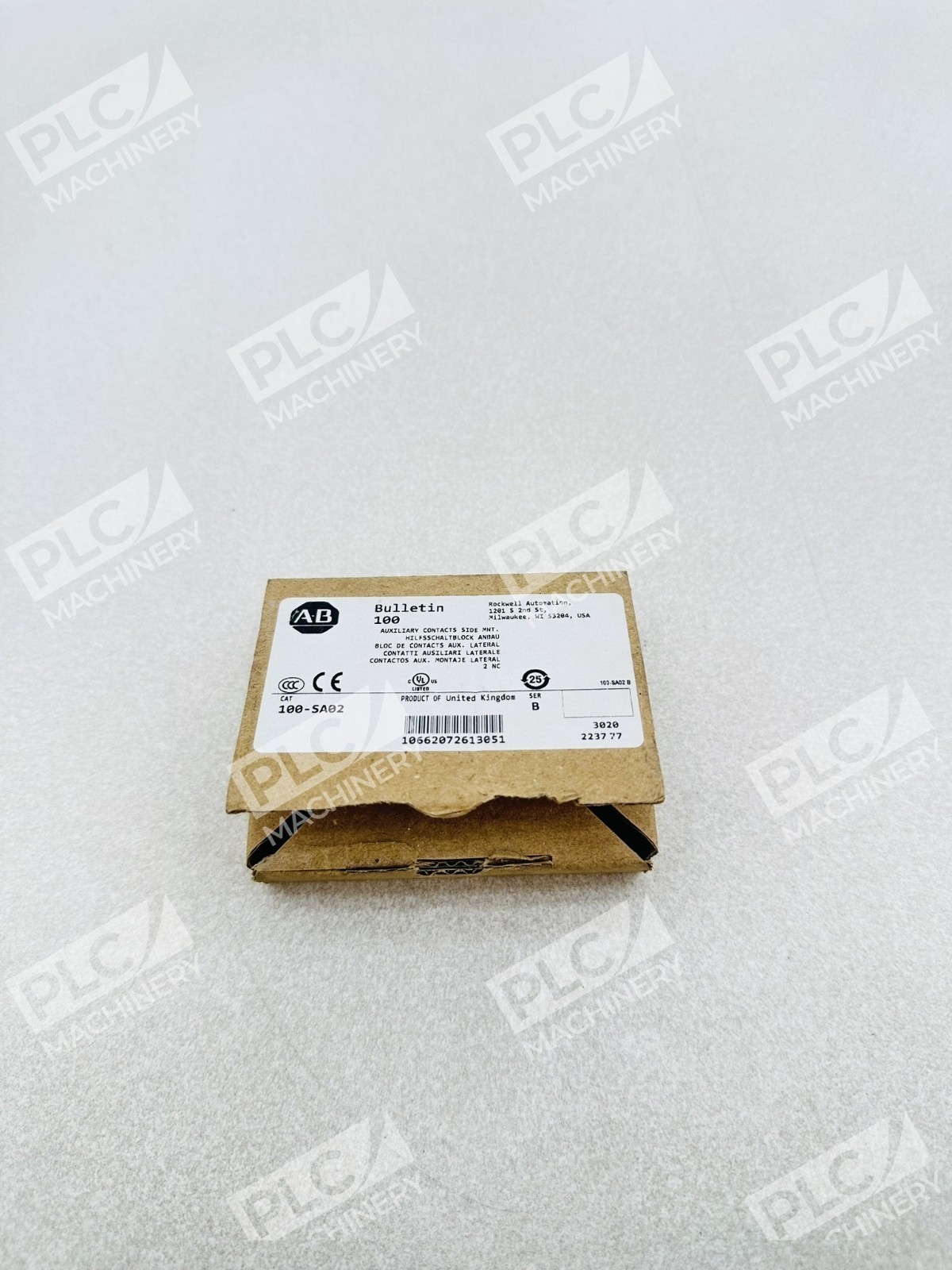

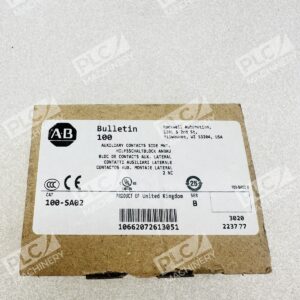

<li><strong>Condition:</strong> New in Box</li>
</ul>
<h2>Typical Applications</h2>
<p>The 100-SA02 auxiliary contact block is commonly used to:</p>
<ul>
<li>Provide status feedback signals in motor starter circuits</li>
<li>Add logic control contacts for interlock or permissive functions</li>
<li>Expand contactor contact capacity without replacing the main unit</li>
<li>Support cascade or sequence control in multi-stage industrial processes</li>
<li>Enable integration with programmable controllers (PLCs) via discrete inputs</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>100-C09 through 100-C97 contactors</li>
<li>100-C (all frame sizes)</li>
<li>104-C contactors</li>
<li>700-CF control relays</li>
<li>700S-CF control relays</li>
<li>Magnetic Motor Starters (MCS) with 100-C base compatibility</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The 100-SA02 is a direct replacement for any existing 100-SA02 auxiliary contact blocks. No cross-platform replacements are documented. Verify compatibility with your system integrator before ordering alternate auxiliary contact models.</p>
<h3>Works With</h3>
<ul>
<li>Allen-Bradley PLC systems (CompactLogix, ControlLogix, MicroLogix) via discrete input modules</li>
<li>Hardwired relay logic and contactor control circuits</li>
<li>Industrial control wiring practices (NFPA 79, IEC 61346)</li>
<li>Standard 24 VDC and 120 VAC control systems</li>
</ul>
